Synth dreams are made of this

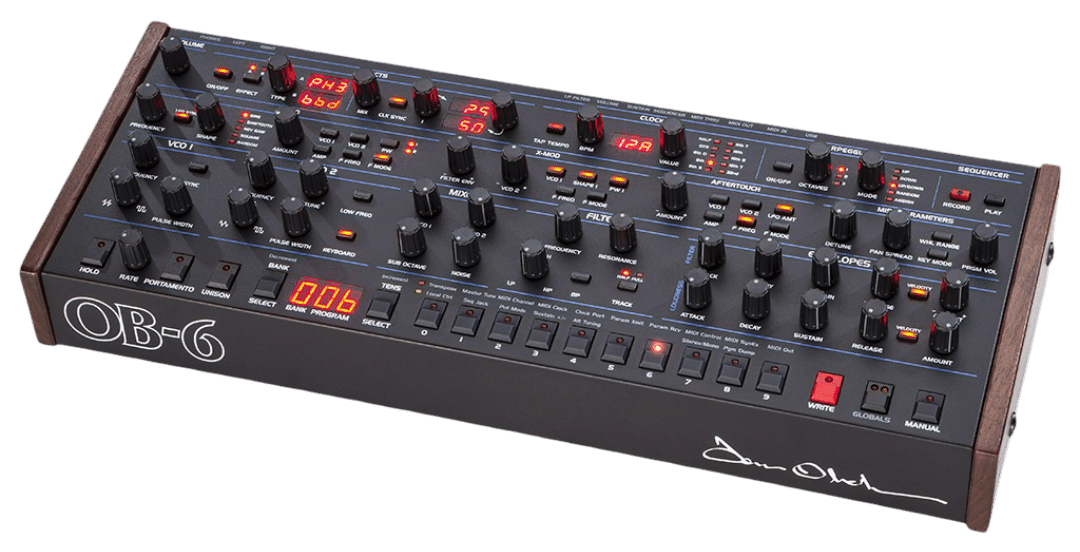

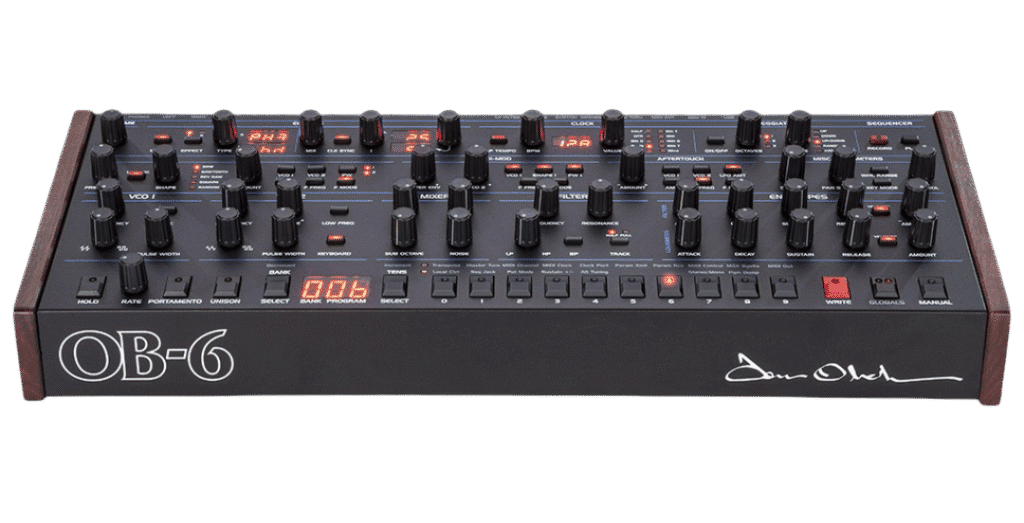

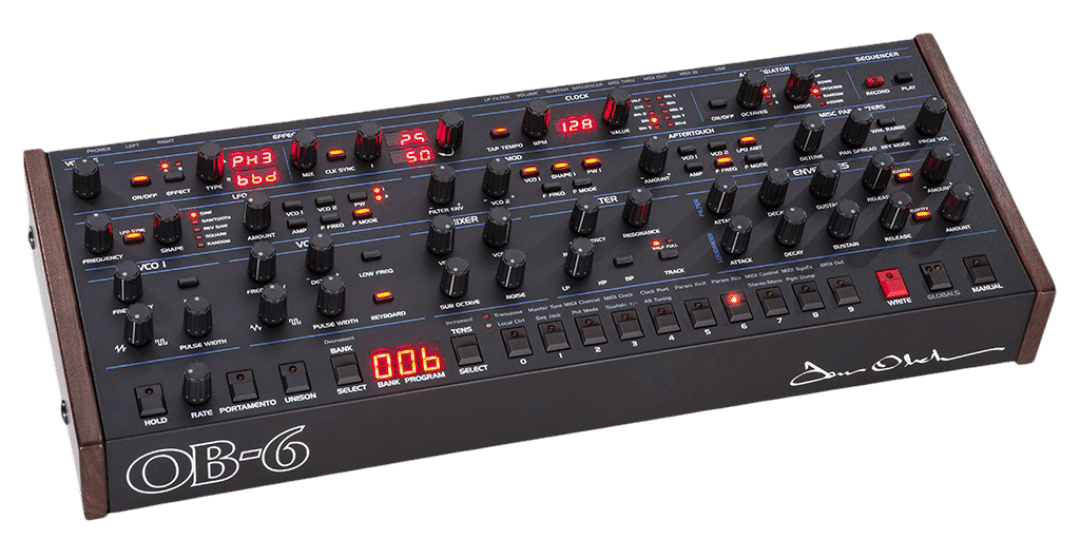

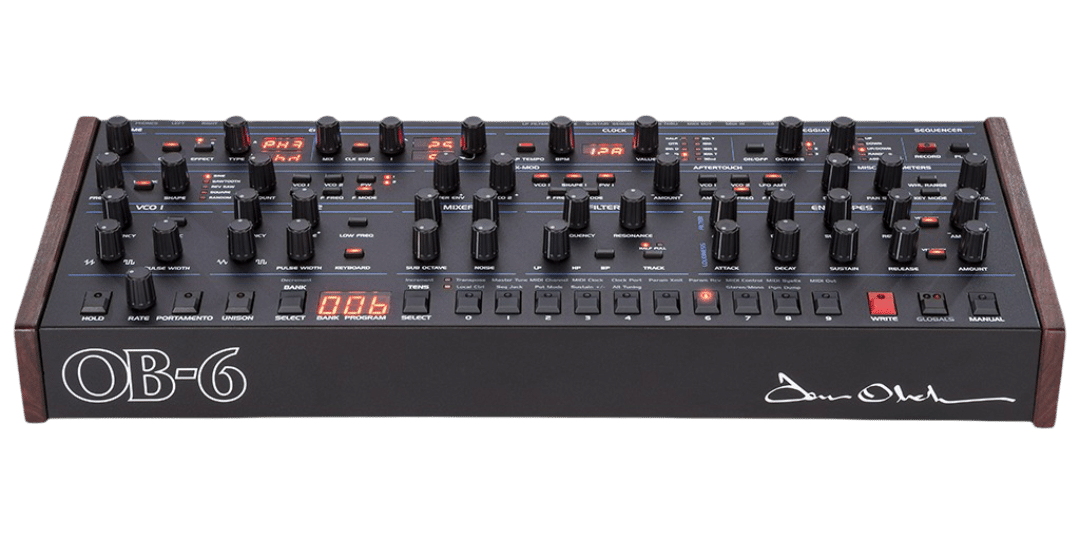

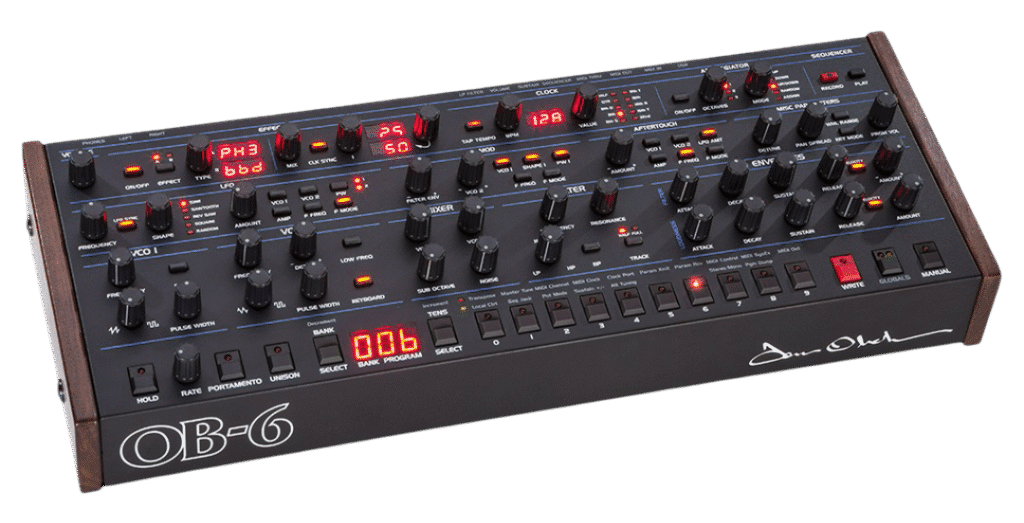

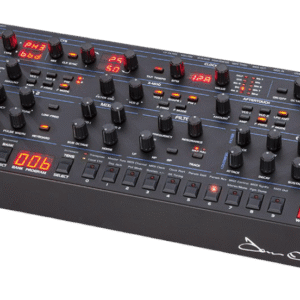

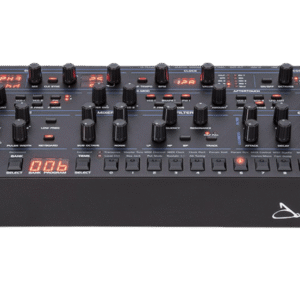

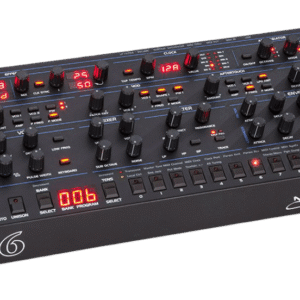

Now, finally, the artillery you need. The Sequential OB-6 Module rocks six discrete analog voices with two oscillators and a sub oscillator per voice. Naturally, OB-6 Module is equipped with Dave’s infamous X-Mod (two sources, five destinations). On top of all that, there’s a 64-step polyphonic step sequencer, two digital effects engines (with studio-grade reverbs, delays, chorus, flangers, and accurate re-creations of Mr. Oberheim’s renowned ring mod and phase shifter), and an advanced arpeggiator. To control all this firepower, you have a knob-per-function top panel that makes for quick, intuitive on-the-fly tweaks. From funk-laden basses and snarling, in-your-face leads to gloriously celestial pads, the OB-6 Module will make your synth dreams come true.
Heart of the beast: Oberheim's classic SEM
Oberheim’s original SEM (Synthesizer Expansion Module) formed the core of Tom’s renowned 4-voice and 8-voice synths of the 1970s. The SEM, in updated form, is also the core of the OB-6 Module analog sound engine. With two discrete voltage-controlled oscillators and a sub oscillator per voice, the OB-6 Module gives you the flexibility of waveshapes that are continuously variable between sawtooth and variable-width pulse. Oscillator 2 also sports a triangle wave. The classic Oberheim-style state-variable, 2-pole resonant filter features lowpass, highpass, bandpass, and notch functionality. The all-analog signal path is completed by the OB-6 Module’s voltage-controlled amplifiers.
X-Mod, Poly Step Sequencer, and Arpeggiator
The OB-6 Module is spec’d out with Dave Smith’s brilliant X-Mod, which makes it easy to achieve killer sounds via modulation. The filter envelope and oscillator 2 are the sources, and they both give you bi-polar control. The five destinations are oscillator 1 frequency, oscillator 1 waveshape, oscillator 1 pulse-width, filter mode, and filter cutoff. The polyphonic step sequencer lets you program polyphonic sequences (up to 64 steps, up to six notes per step), complete with rests, and sync them to external MIDI clock. The full-function arpeggiator can also be synced to external MIDI clock. You can configure the OB-6 Module’s Unison Mode voice count for up to six voices. And to maximize your sonic firepower, the OB-6 Module is spec’d with a poly chain feature the lets you pair any two OB-6s for 12-voice operation.
Sequential / Oberheim OB-6 Module Features:
- 2 oscillators and sub oscillator per voice
- Continuously variable waveshapes
- State-variable filter
- 64-step polyphonic step sequencer
- Full-function arpeggiator
- 2 digital effects engines

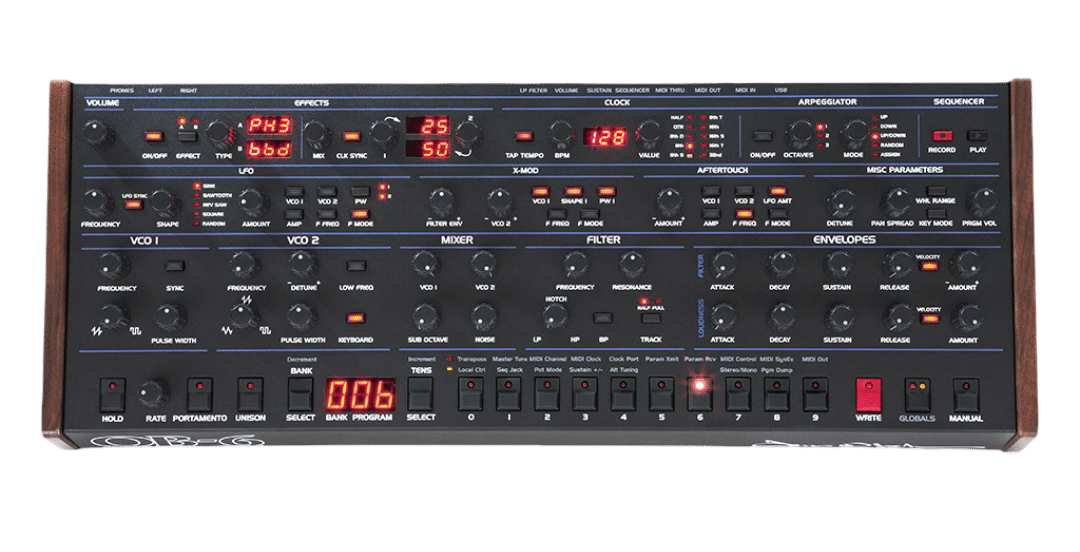

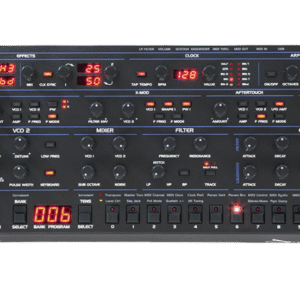

- Knob-per-function top panel
- Poly chain feature lets you pair any 2 OB-6s for 12-voice operation
Specifications
OSCILLATORS
- Two discrete VCOs per voice
- Continuously variable wave shape (sawtooth and variable-width pulse, plus triangle on oscillator 2) per oscillator
- Pulse width per oscillator
- Hard sync: oscillator 1 syncs to oscillator 2
- Square wave sub-octave generator (oscillator 1) per voice
- Low frequency mode (oscillator 2)
- Keyboard tracking on/off (oscillator 2)
- Oscillator detune amount for increased tuning instability, from subtle to extreme
MIXER
- Oscillator 1 amount
- Oscillator 1 sub-octave amount
- Oscillator 2 amount
- White noise amount
STATE-VARIABLE FILTER
- Two-pole, resonant, filter per voice with low-pass, high-pass, band-pass, and notch functionality inspired by the original Oberheim SEM filter
- Bi-polar filter envelope amount
- Velocity modulation of envelope amount
- Keyboard tracking: off, half, full
FILTER ENVELOPE
- Four-stage (ADSR) envelope generator
- Velocity modulation of envelope amount
AMPLIFIER ENVELOPE
- Four-stage (ADSR) envelope generator
- Velocity modulation of envelope amount
PERFORMANCE CONTROLS
- Full-sized, semi-weighted, 4-octave keyboard with velocity and aftertouch
- Backlit pitch and mod wheels
- Spring-loaded pitch wheel with selectable range per program (1 to 12 semitones up and down)
- Transpose controls for an 8-octave range
- Hold switch latches held notes on
- Polyphonic portamento
- Unison (monophonic) mode with configurable voice count, from one to all six voices, chord memory, and key modes
- Manual switch: when on, the front panel is live; what you see is what you hear
PATCH MEMORY
- 500 user and 500 factory programs in 10 banks of 100 programs each
- Direct program access, including single-button access to the current set of 10 programs

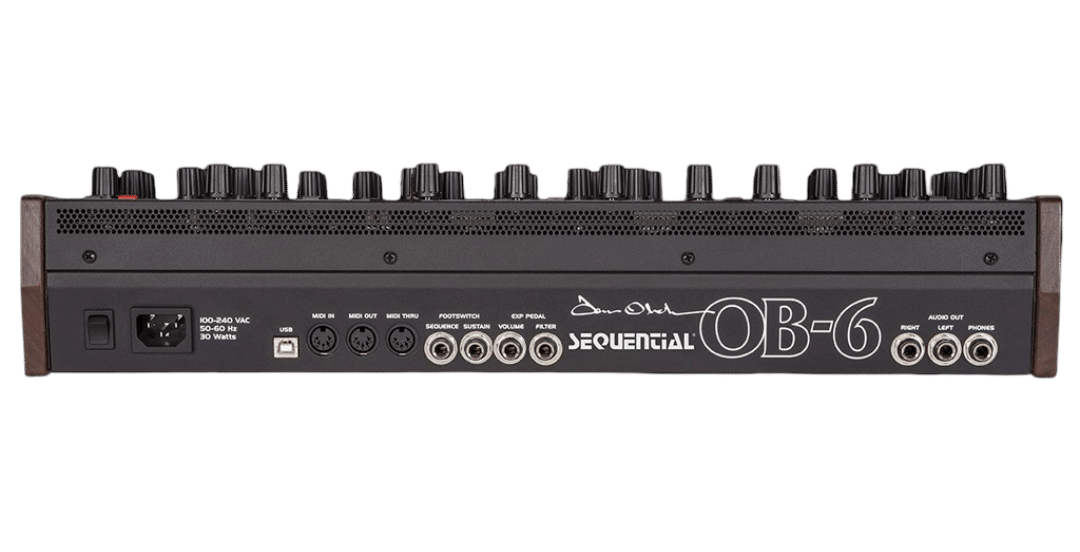

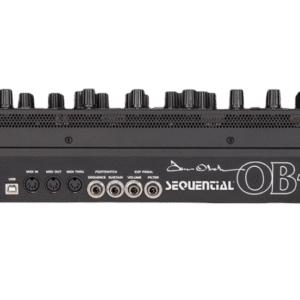

IN/OUT
- Left/mono and right audio outputs (2 x 1/4” phone jack)
- Headphone output (stereo, 1/4” phone jack)
- MIDI in, out, and thru ports
- USB for bidirectional MIDI communication
- Filter cutoff expression pedal input
- Volume expression pedal input
- Sustain footswitch input
- Sequencer start/stop footswitch input
POWER
- IEC AC power inlet for internal power supply
- Operates worldwide on voltages between 100 and 240 volts at 50 to 60 Hz; 30 watts maximum power consumption
LOW FREQUENCY OSCILLATOR
- Five wave shapes: sine, sawtooth, reverse sawtooth, square, and random (sample and hold)
- Clock sync (internal or external MIDI clock)
- Initial amount
- Mod destinations: oscillator 1 frequency, oscillator 2 frequency, oscillator 1 and 2 pulse width, filter cutoff, filter mode, amp
X-MOD
- Sources: filter envelope (bi-polar) and oscillator 2 (bi-polar)
- Destinations: oscillator 1 frequency, oscillator 1 shape, oscillator 1 pulse width, filter cutoff, filter mode, normal to bandpass filter
AFTERTOUCH
- Source: channel (mono) aftertouch with bi-polar amount
- Destinations: oscillator 1 frequency, oscillator 2 frequency, LFO amount, amplifier envelope amount, filter envelope amount, filter mode
CLOCK
- Master clock with tap tempo
- BPM control and display
- MIDI clock sync
ARPEGGIATOR
- Selectable note value: 16th note, 8th note triplet, 8th note, dotted 8th note, quarter note
- One, two, or three octave range
- Up, down, up/down, random, and assign modes
SEQUENCER
- Polyphonic step sequencer with up to 64 steps and rests
EFFECTS
- Stereo analog distortion
- Dual, 24-bit, 48 kHz digital effects, including: reverb (room, hall, plate, spring), delay (full bandwidth digital delay and emulated bucket brigade), chorus, flanger, phase shifters, and ring modulator
- Delay sync
- True bypass maintains fully analog signal path when digital effects are off
PHYSICAL SPECS
- 20.75” L x 7.8” W x 4.4″ H (52.0 cm x 19.8 cm x 11.2 cm)
- 13.0 lbs (5.9 kg)
- Walnut end panels
