A Prophet ’08 — on steroids

The starting point was Dave Smith’s modern classic, the Prophet ’08. Says Dave: “The Rev2 is the realization of our effort to enhance and improve everything we could about the original design — all at a more accessible price.” You can even download existing Prophet ’08 libraries; not only will they sound spot-on, but you can enhance them with the new Rev2 features. The Prophet ’08 was, of course, an 8-voice synth. The Prophet Rev2 not only doubles the polyphony, but also lets you allocate voices as you wish: deploy monster two-hand chords; stack two 8-voice patches for massive, intricate textures; split the keyboard into two independent 8-voice instruments; and play duets with yourself — the sky’s the limit.

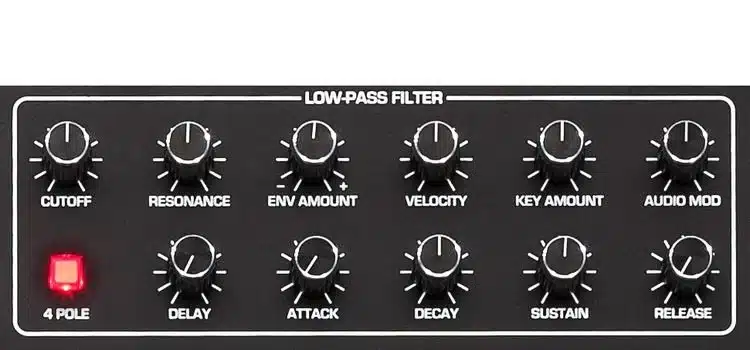

Curtis filters: classic design, incredible sound

The synth largely owes its audacious, authoritative sonics to its per-voice 2/4-pole, resonant lowpass filters, based on the chip design pioneered by the late Doug Curtis. These are the same filters used in many classic synthesizers of the 1970s and ’80s — and also in the Prophet ’08. The filter section includes a separate Audio Mod control that lets you dial in motion and harmonic complexity.

Shape Mod gives you tremendous sonic flexibility

The Prophet Rev2’s two per-voice digitally controlled analog oscillators each feature four selectable waveforms: sawtooth, sawtooth+triangle, triangle, and square. The waveshape modulation feature lets you continuously vary the pulse width of any of the waveforms, infinitely multiplying your sonic possibilities. And the Shape Mod control allows you to manually dial in a specific waveshape width or use an LFO or other modulation source to continuously shift timbre. Even single-oscillator patches take on new depth and dimension.

Powerful FX engine and Mod Matrix

The beefy effects engine onboard the Rev2 serves up tasty reverbs, standard and vintage-style BBD (Bucket Brigade Device) delays, phase shift, chorus, ring mod, and distortion. With the REV2 set up in split-voice or stacked mode, you can apply a unique effect to every layer. You can even modulate effects parameters using the Rev2’s Mod Matrix — a popular feature from the Prophet ’08. On the Prophet Rev2, the Mod Matrix is double the size, with eight individual slots and expanded sources and destinations. It’s a sound designer’s dream.

Features

• 16-voice polyphony lets you allocate voices as you wish
• 5-octave, semi-weighted keyboard with velocity and channel aftertouch
• Dual DCOs, sub-oscillator, and 2/4-pole resonant lowpass Curtis filter per voice
• Waveshape modulation, Modulation Matrix, bi-timbral operation
• Onboard FX engine with reverb, delays, chorus, phase shift, ring mod, and distortion
• Polyphonic step sequencer, advanced arpeggiator
• Per-knob programmability and real-time tweakability
• Crisp OLED display is easy to see on darkened stages
• Integrated power supply, USB support

Tech Specs

• Type:Keyboard Synthesizer with Sequencer
• Sound Engine:Analog Oscillators (digital control)
• Number of Keys:61
• Type of Keys:Semi-weighted
• Aftertouch:Yes
• Velocity Sensitive:Yes
• Other Controllers:Pitchbend, Mod Wheel
• Polyphony:16 Voice
• Number of Presets:512 factory programs, 512 editable user programs
• Oscillators:2 per voice (sawtooth, triangle, pulse)
• Effects Types:Reverb, Delay, Chorus, Phase shifter, Ring modulation, Distortion
• Arpeggiator:Yes
• Sequencer:64 steps, 6 notes per step

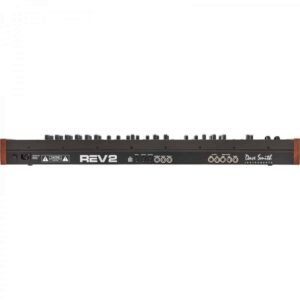

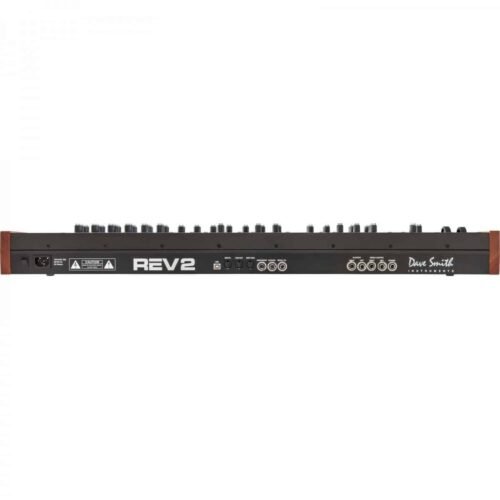

• Audio Outputs:2 x 1/4″ (main stereo out), 2 x 1/4″ (B stereo outs)
• Headphones:1 x 1/4″
• USB:1 x Type B
• MIDI I/O:In/Out/Thru
• Pedal Inputs:2 x 1/4″ (sustain, pedal/cv)
• Other I/O:1 x 1/4″ (sequencer)
• Mod Matrix:8 Slots, 22 Sources (plus 5 dedicated sources), 53 Destinations
• Features:Waveshape modulation on all waveforms, polyphonic step sequencer per layer, 8-slot modulation matrix
• Power Source:Standard IEC AC cable
• Height:3.8″
• Width:35.1″
• Depth:12.7″
• Weight:20.5 lbs.
