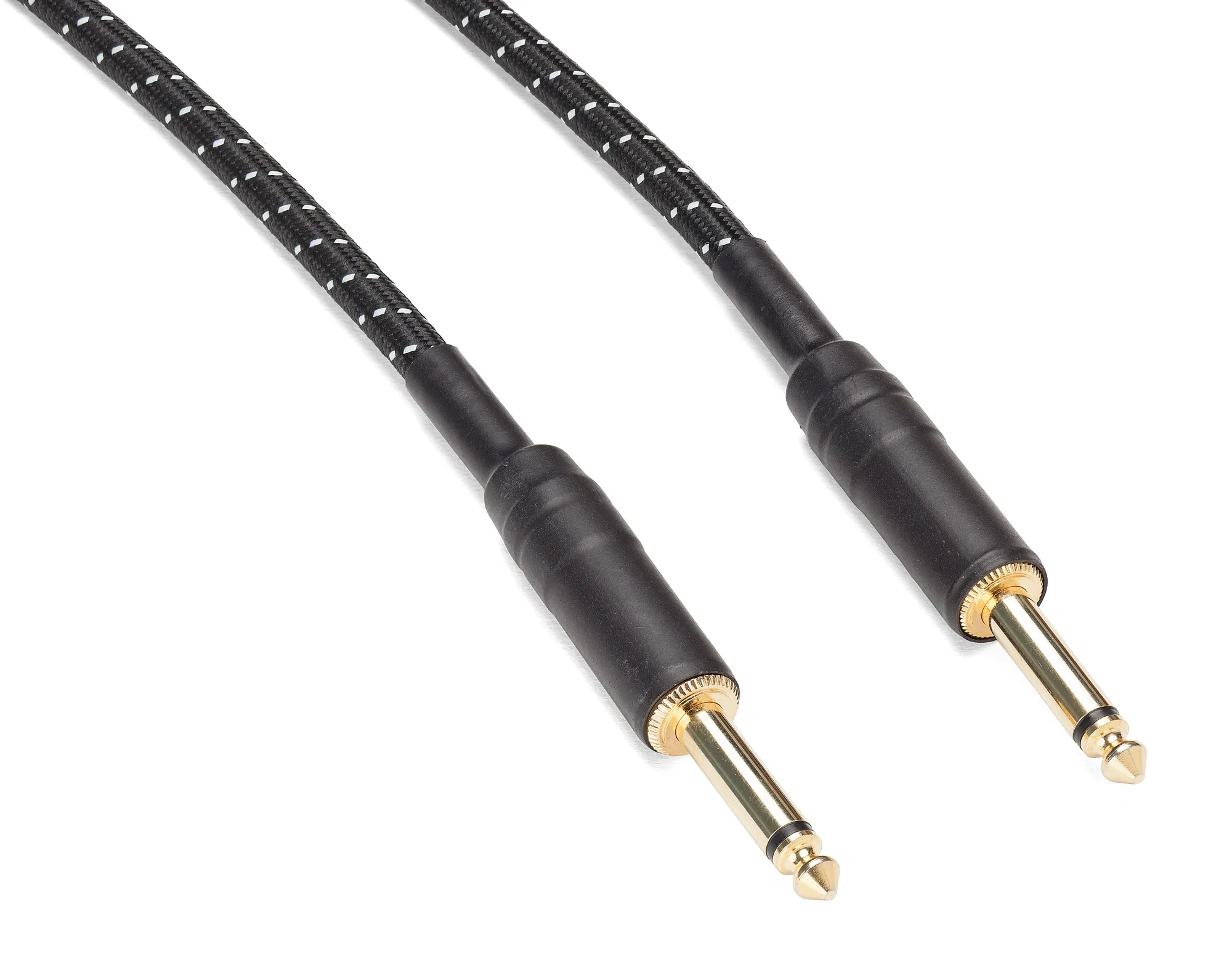

Samson TPIW10 10′ Woven Instrument Cable

Brand:  Samson
SKU: SM-8239

Product Highlights

Tourtek Pro TPIW Woven Fabric Instrument Cables offer premium performance and maximum durability for the most demanding live performers. The smooth, braided nylon outer jacket provides extra protection from kinks or cuts and won’t snag on stage or in your gig bag. Constructed with 99.99% OFC (Oxygen Free Copper), TPIW’s low-capacitance cables provide a completely transparent performance with uncolored sound from the audio source. With 99% braided shield coverage and carbon-impregnated conductive PVC insulation, TPIW cables offer extremely low noise and excellent RF/EMI interference rejection. Heavy-duty, black-chrome-plated brass connectors with 24K gold-plated plugs provide reliable signal connections.

2,791

Out of stock

Features

  • Braided nylon outer jacket protects cables from kinking or tangling
  • Constructed with 99.99% Oxygen Free Copper (OFC) conductors for increased conductivity and resistance to corrosion.
  • Gold-plated contacts for clean signal transmission and prevent signal degradation.
  • 99% braided shield and carbon-impregnated conductive PVC insulation for low noise and excellent rejection of RF/EMI interference.
  • Heavy-duty, black-chrome-plated brass connectors with gold-plated plugs for durability and ruggedness in any sound reinforcement application.
  • Available in 10′ and 25′ lengths
Brand

Samson

Conductor AWG Size & Stranding

20 AWG / 0.10×65

Conductor Capacitance Conductor to Shield

28.5pF/ft @1kHz

Conductor Material

99.99% Oxygen Free Copper

Insulation Material

Polyethylene

Insulation Diameter

2.8mm ±0.05mm

Braided Shield Material

Bare Annealed Copper

Braided Shield Coverage

99%

Jacket Material

Nylon Woven Finish

Jacket Diameter

7.0mm ±0.1mm
