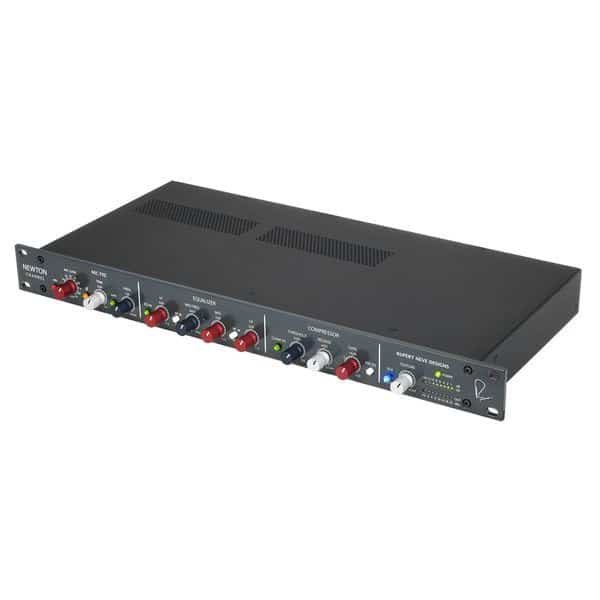

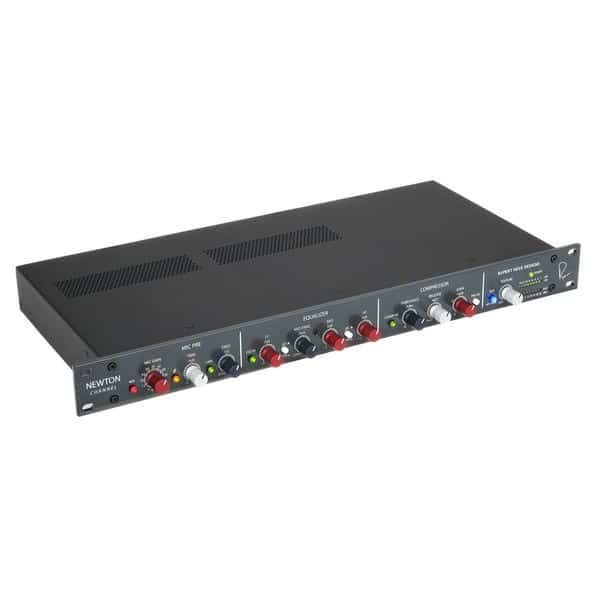

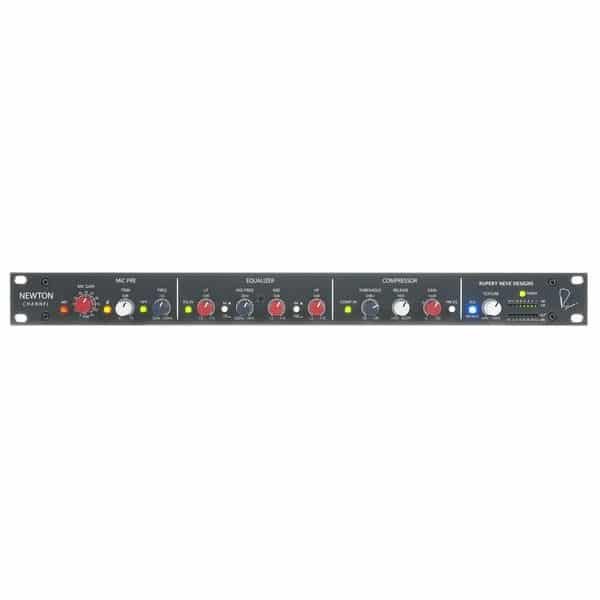

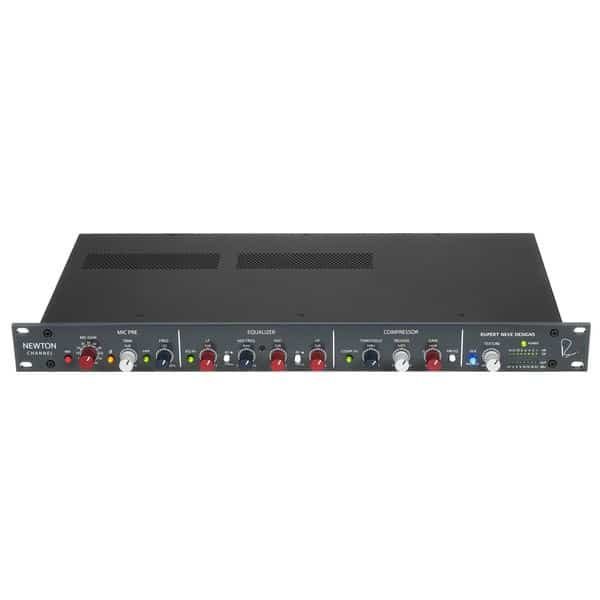

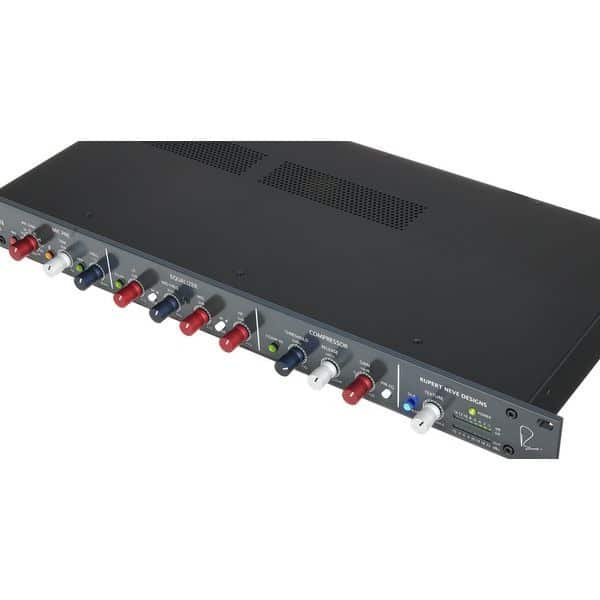

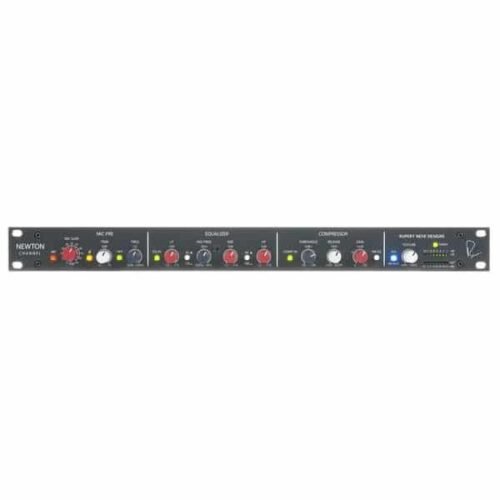

Rupert Neve Designs Newton Channel Strip

Twice the punch

The introduction of any new Rupert Neve Designs channel strip will invite comparison to the Shelford Channel, which has established itself as a modern classic and become a staple in premier studios worldwide. The Newton Channel offers sumptuous Rupert Neve sound and military-grade build quality but at half the price, allowing you to stack your rack with a pair of them for linked stereo operation without exploding your studio budget. How does RND accomplish this? The Newton Channel has a streamlined control set that’s shrewdly designed to deliver superior results fast, without the complexities of extensive settings parameters. In practice, Newton Channel is a breeze to use. The unit’s exemplary performance is testimony to the engineering prowess of the company founded by the legendary electronics designer who revolutionized the recording industry and helped launch the golden age of analog. To that end, the Newton Channel employs RND’s custom transformers and Class A line amplifiers to deliver coveted vintage character, along with the optimized headroom and precision of transformer-coupled line stages.

The Newton input stage and preamp

Rupert Neve wrote the book on characterful microphone preamplification, and the Newton Channel features the latest Class A preamp technology from the company that bears his name. From nuanced acoustic performances to clamorous drum parts, this preamp handles any source with composure, delivering the clean, tight, highly detailed, and larger-than-life sound heard on hit records over the last half-century. And with a generous 72dB of gain on tap (plus 6dB of fine trim control), you can feel free to deploy your favorite passive ribbon mic on quiet sources. While the input stage provides an ideal impedance match for microphones, it is equally welcoming of line-level signals, making the Newton Channel a premium mixing tool for enhancing stems and complete mixes with vintage-flavored analog warmth, girth, and shimmer.

The Newton equalizer

With its simple controls, the Newton Channel equalizer section allows you to contour any source quickly and efficiently. The low and high frequency shelf bands are fitted with precise, 31-step detented potentiometers that deliver up to 12dB of boost or attenuation, giving you the ability to dial in subtle or extreme settings as needed. The LF shelf frequencies are selectable at 60Hz and 150Hz; the HF shelf at 8kHz and 16kHz. The parametric midrange band provides a 31-detent boost/cut pot and a wide range of frequency selections ranging from 220Hz to 7kHz. This broad range makes the Newton’s midband EQ very versatile, enabling you to tame lower-midrange muddiness, boost presence, or eliminate shrillness in the upper midrange. The meticulously chosen fixed Q curve maintains an optimal balance of precision and musicality — wide enough for broad-brushstroke applications without a deleterious effect on neighboring frequencies. The EQ is equipped with an independent bypass button.

The Newton compressor

The Newton Channel offers the latest update of RND’s creamy-smooth VCA compressor, giving you highly effective, imperceptible leveling control over any source, from mild to wild. Clamp down hard on your signal, and the compressor responds effortlessly. With 20dB of make-up gain, you’re guaranteed a healthy output for further downstream processing, no matter how hard you’re hitting it. A thoughtful addition is the super-useful pre/post push button, which inserts the compressor either before or after the EQ section. Lastly, the compressor section includes an independent bypass button to facilitate seamless wet/dry compressions.

Variable Silk harmonic enhancement

The Newton Channel is packing a secret weapon the classics never had. At the end of its signal path resides RND’s Silk Red/Blue and Texture controls that let you tailor the harmonic content and tonality of the output stage. By engaging these controls and sufficiently driving your output, you can dial in delectable 2nd- and 3rd-order harmonic distortion (that’s the good kind) and saturation of the output transformer, imbuing your tracks with juicy-rich thickness without the danger of overloading the output stage. The Texture knob lets you set the amount of Silk enhancement you want, from transparent to almost 10 times the amount of sonic color available with Rupert’s vintage console modules. Disengage Silk, and your output is pristine and modern while maintaining that assertive, transformer-juiced sonic signature. The Silk Red mode emphasizes harmonic content generated by the source’s high and middle frequencies, adding a glimmering sheen to the top end. You’ll find Silk Red perfect for vocals, pianos, strings, snare drums, and other acoustic sources. Silk Blue, conversely, works off the harmonics generated by the low and low-mid frequencies. This makes it great for beefing up signals such as bass, drums, male vocals, heavy electric guitars, and synthesizers. However you use it, you’ll find Silk indispensable for fattening your tracks with enhanced power and effervescence.

Rupert Neve Designs Newton Channel Strip Features:

• Sumptuous Rupert Neve sound; superlative specs across the board
• Frequency response: <10Hz–30kHz (+/-0.1dB); <5Hz–70kHz (+/-0.25dB); <5Hz–140kHz (-3dB)
• Input: Balanced XLR/TRS combo jack input (may be used for mic or line signals)
• 48V phantom power: Push-button switch illuminates RED when engaged
• Class A mic preamp; Gain: 72dB, including 6dB of fine trim control
• Ø (Polarity): Push-button switch illuminates amber when engaged
• Trim: 31-detent potentiometer allows adjustment of preamp gain within a range of +/-6dB
• HPF: Push-button switch illuminates green when highpass filter (adjustable from 20Hz–250Hz) is engaged
• EQ section: 3-band, +/-12dB, with LF and HF shelves (2 selectable frequencies each) and midband peaking (31 selectable frequencies)
• Compressor with threshold, release, make-up gain, and pre/post EQ switch
• Variable Silk harmonic enhancement with Red and Blue modes and 31-step Texture (amount) control
• 8-segment LED meters indicate compressor gain reduction (dB) and output level (dBu)
• Custom transformer outputs: Balanced XLR main line-level output; separate -6dBu XLR output
• Ground Lift: helps isolate unit from ground interference (operable on both outputs)
• Link: 1/4-inch TRS jack for linking 2 Newton Channel compressors stereo operation
• Internal universal power supply provides reliable 90–240V power worldwide
• IEC AC power inlet with integrated power switch
• Robust 1U rackmount chassis
• Handcrafted by Rupert Neve Designs in  the USA

For audio professionals and enthusiasts seeking unparalleled sound clarity and control, the Rupert Neve Designs Newton Channel Strip offers a premium solution that elevates your recording and mixing experience. Whether you are tracking vocals, instruments, or complex audio sources, this channel strip delivers exceptional tonal flexibility and sonic precision, allowing you to capture and shape your sound exactly as you envision it. In an industry where detail and quality define the final product, the Newton stands out as a tool that ensures your recordings sound rich, warm, and professional every time.

One of the most compelling reasons to invest in the Newton Channel Strip is its combination of a high-quality solid-state preamp and a versatile 4-band semi-parametric equalizer. The solid-state preamp provides clean, transparent gain with a frequency response spanning a wide 10 Hz to 30 kHz range, meaning it accurately captures both the deepest lows and the brightest highs without unwanted coloration. This translates to recordings that retain their natural character and clarity, essential for professional-grade audio production. The inclusion of phantom power enables the use of condenser microphones, broadening your range of compatible equipment without needing additional power sources.

Beyond the preamp, the 4-band semi-parametric EQ allows precise tonal sculpting, giving you the ability to finely adjust frequency bands to enhance or reduce specific sound elements. Whether you need to tame harsh sibilance, add warmth to vocals, or carve space for other instruments in the mix, this EQ provides the nuanced control required for detailed sound shaping. Complementing this is the built-in VCA compressor, which offers dynamic control to smooth out peaks and maintain consistent levels without sacrificing the natural dynamics of the source. This integrated compressor helps maintain balance and punch in your recordings, reducing the need for additional outboard gear.

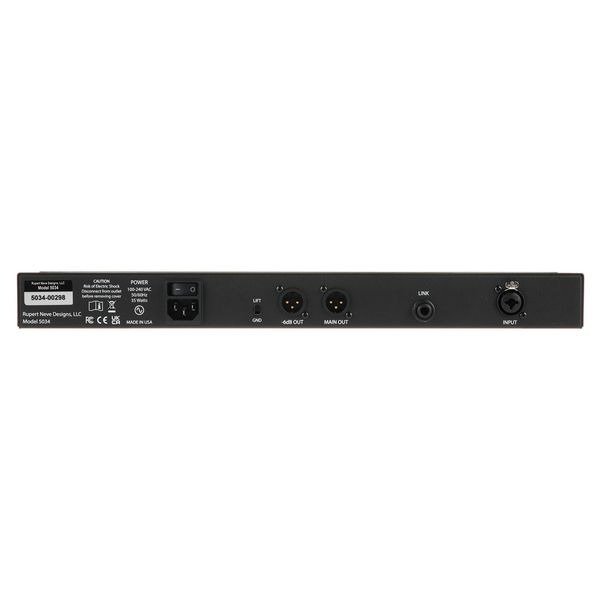

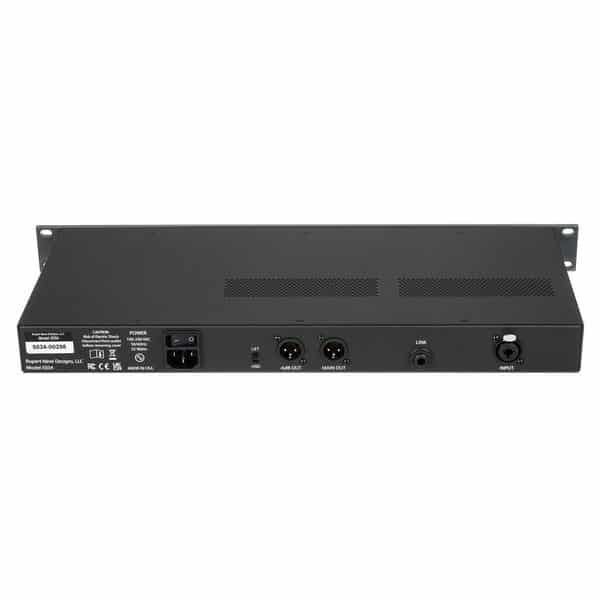

Practical connectivity and design further enhance the Newton’s appeal. It features a single XLR-1/4″ combo analog input, making it compatible with microphones and line-level instruments alike. The dual XLR outputs, including a main output and a -6 dB output, provide flexibility for routing signals to different destinations or parallel processing setups. Additionally, a 1/4″ link output allows you to easily connect multiple units for expanded channel count setups. The unit’s compact 1U rack space design, measuring 19 inches wide, 1.75 inches high, and 8.125 inches deep, fits seamlessly into standard studio racks, maximizing your workspace without sacrificing functionality.

The Newton Channel Strip is perfect for a wide range of professional applications—from music studios tracking vocals and live instruments to broadcast facilities requiring pristine audio quality. Its robust build and classic Rupert Neve sound make it an ideal choice for engineers who demand reliability and sonic excellence. Whether you’re a seasoned professional or an aspiring producer, the Newton provides the precise control and superior sound quality necessary to bring your creative vision to life.

Priced competitively at ₹218,990, down from the regular ₹242,800, this channel strip offers exceptional value for the quality and features it delivers. Backed by Rupert Neve Designs’ reputation for craftsmanship and innovation, the Newton Channel Strip is a confident investment in your studio’s future. Elevate your sound with a channel strip that combines legendary design with modern versatility, ensuring every recording session is a step toward sonic perfection.
