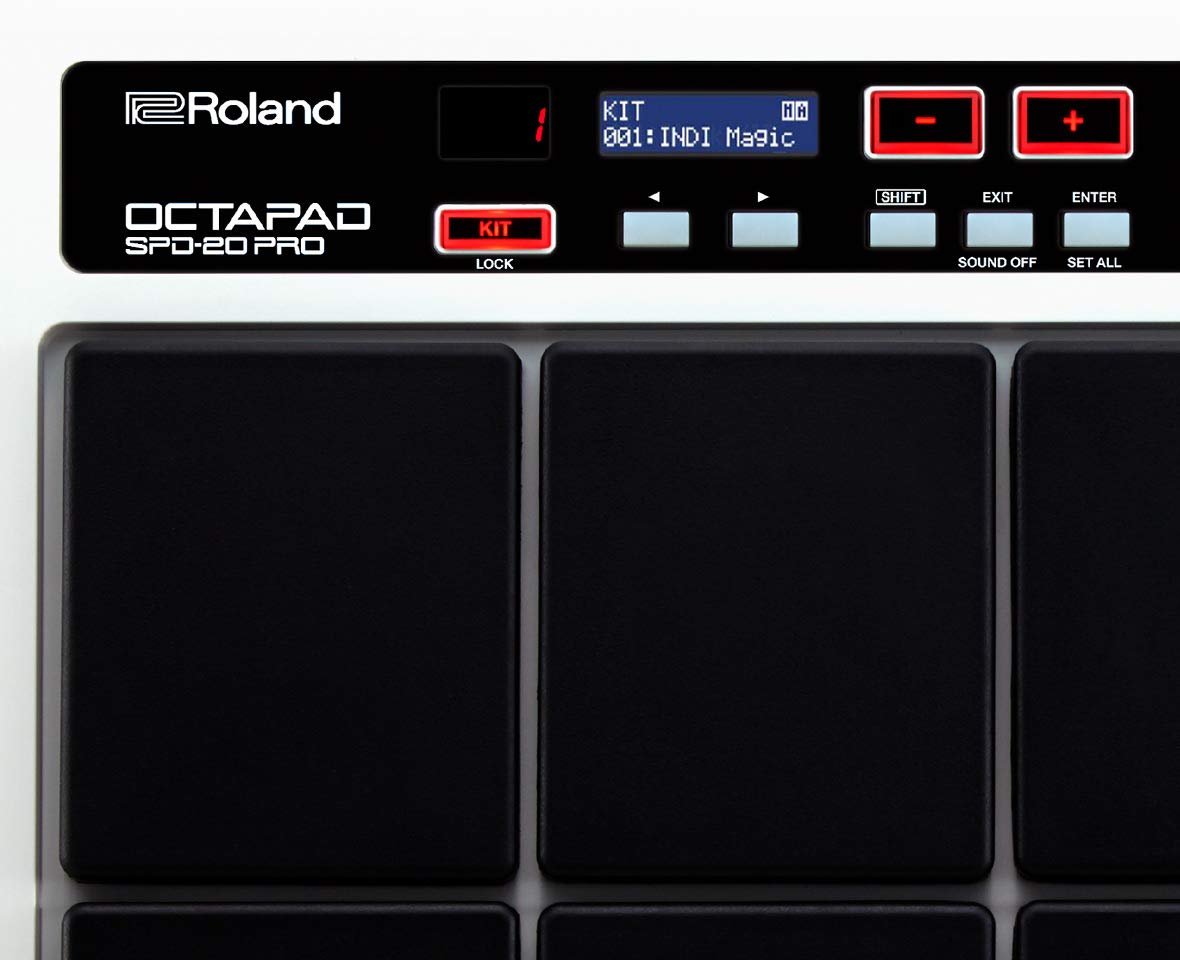

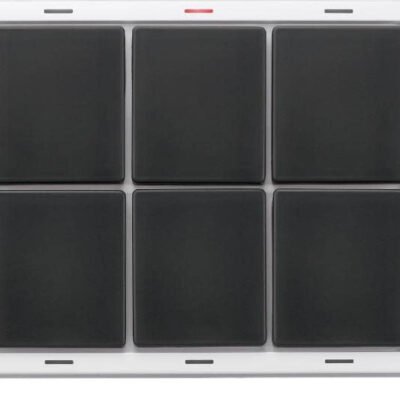

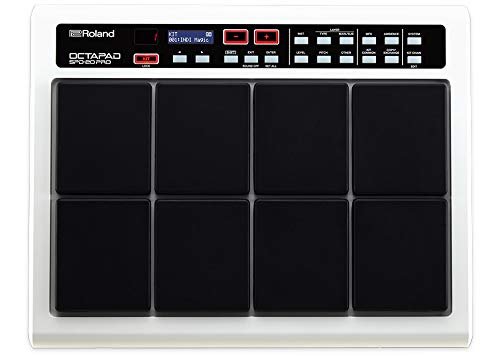

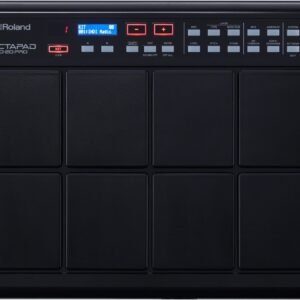

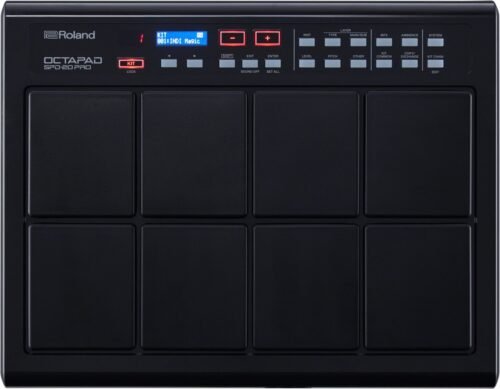

Pro percussion pad with eight pads and hundreds of sounds. Introduced over 25 years ago, the SPD-20 is still treasured by percussionists around the world for its wide-ranging versatility and authentic percussion sounds. Filled with user-requested features and the latest Roland percussion technologies, the OCTAPAD SPD-20 PRO takes performance to the next level while fully retaining the core appeal of the classic SPD-20.
Why customers choose it
Who it is for
Drummers, percussionists, worship teams, DJs and live performers adding samples and electronic sounds.
What’s in the box
- Owner’s Manual
- AC Adaptor
Specifications
| Pads | Built-in Pads: 8; * Four external trigger inputs are provided, allowing you to connect Pads. |
|---|---|
| Instruments | Instruments: 900 instruments or greater |
| Kits | 200 (Preset: 100) |
| Kit Chain | 16 chains (16 steps per chain) |
| Layer | 2 layers per pad; 2 layers x 2(Head/Rim) per external Trigger |
| Instrument /Pad Parameters | Volume; Curve; Coarse Tune; Fine Tune; Pedal Bend; Decay; Output; Layer EQ; Pad comp; Pad Mute Group; Pad Link |
| Kit Effects | Ambience (5 Types); Kit EQ; Kit Comp; MFX : 3 systems, 38 types |

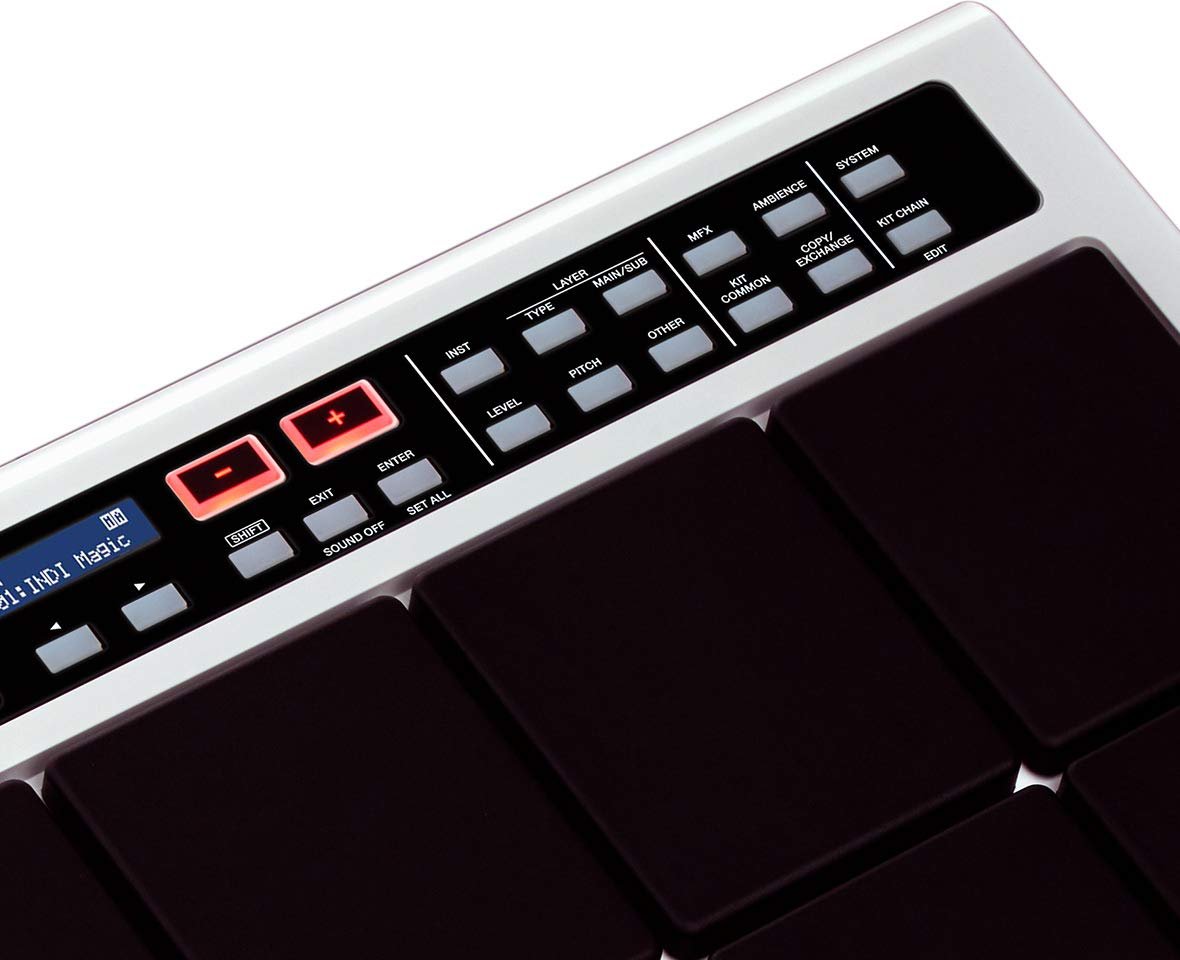

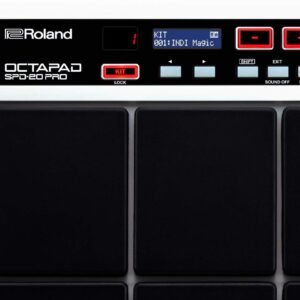

| Display | 16 characters no. 2 line (backlit LCD); 7 segments, 3 characters (LED) |

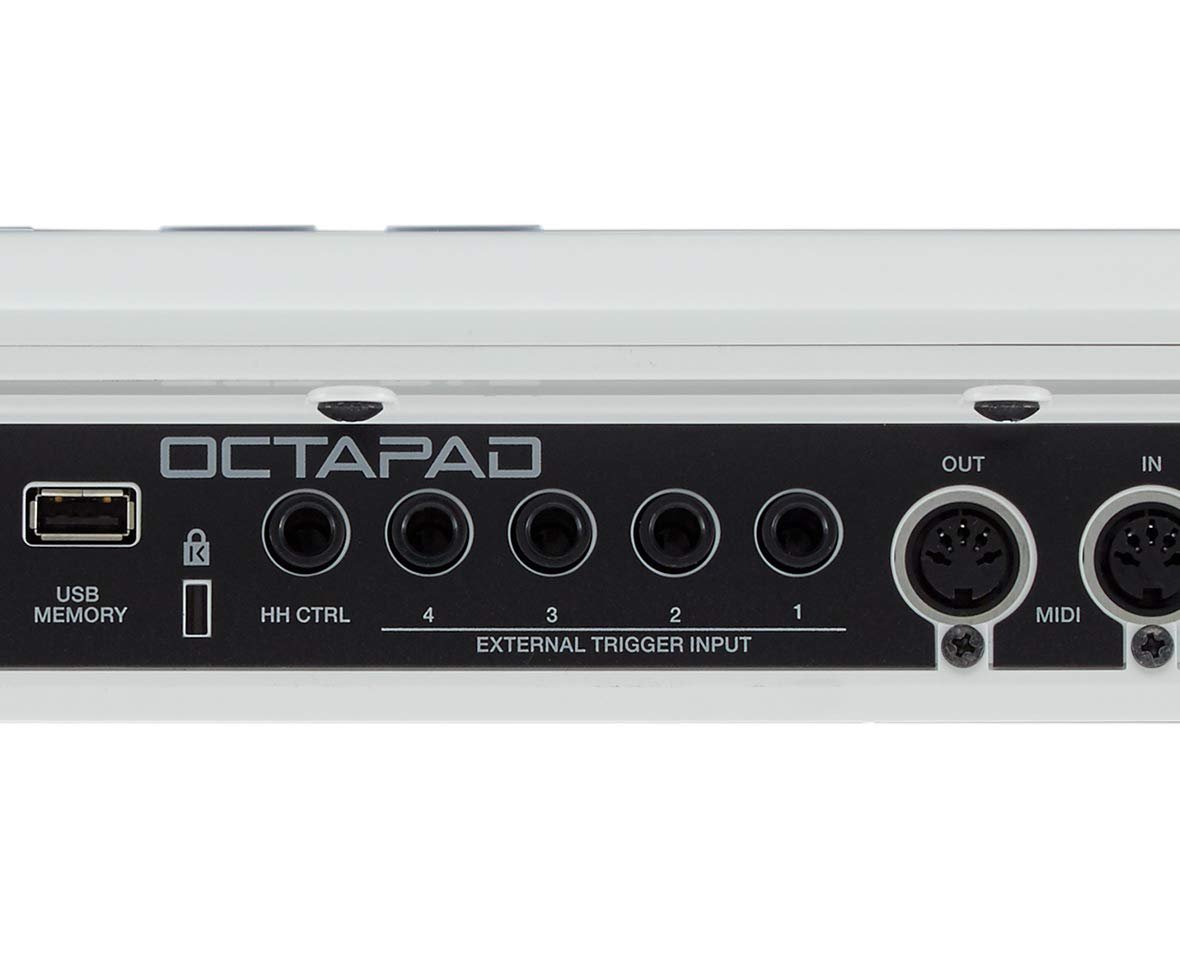

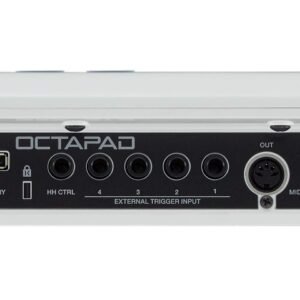

| Connectors | PHONES Jack: Stereo 1/4-inch phone type; OUTPUT(L/MONO, R) Jacks: 1/4-inch phone type; MIX IN Jack: Stereo 1/4-inch phone type; EXTERNAL TRIGGER INPUT Jack : 1/4-inch TRS phone type x 4; HH CTRL Jack: 1/4-inch phone type; FOOT SW Jack: 1/4-inch TRS phone type; MIDI (IN, OUT) Connectors; USB MEMORY port: USB A type |
| Power Supply | AC adaptor (DC 12 V) |
| Current Draw | 500 mA |
| Dimensions | 450(W) x 350 (D) x 72 (H) mm; 17-3/4 (W) x 13-13/16 (D) x 2-7/8 (H) inches |
| Weight | 3.7 kg / 8 lbs 3 oz (excluding AC Adaptor) |
| Colour (this listing) | White |
| Type | Digital percussion pad |
