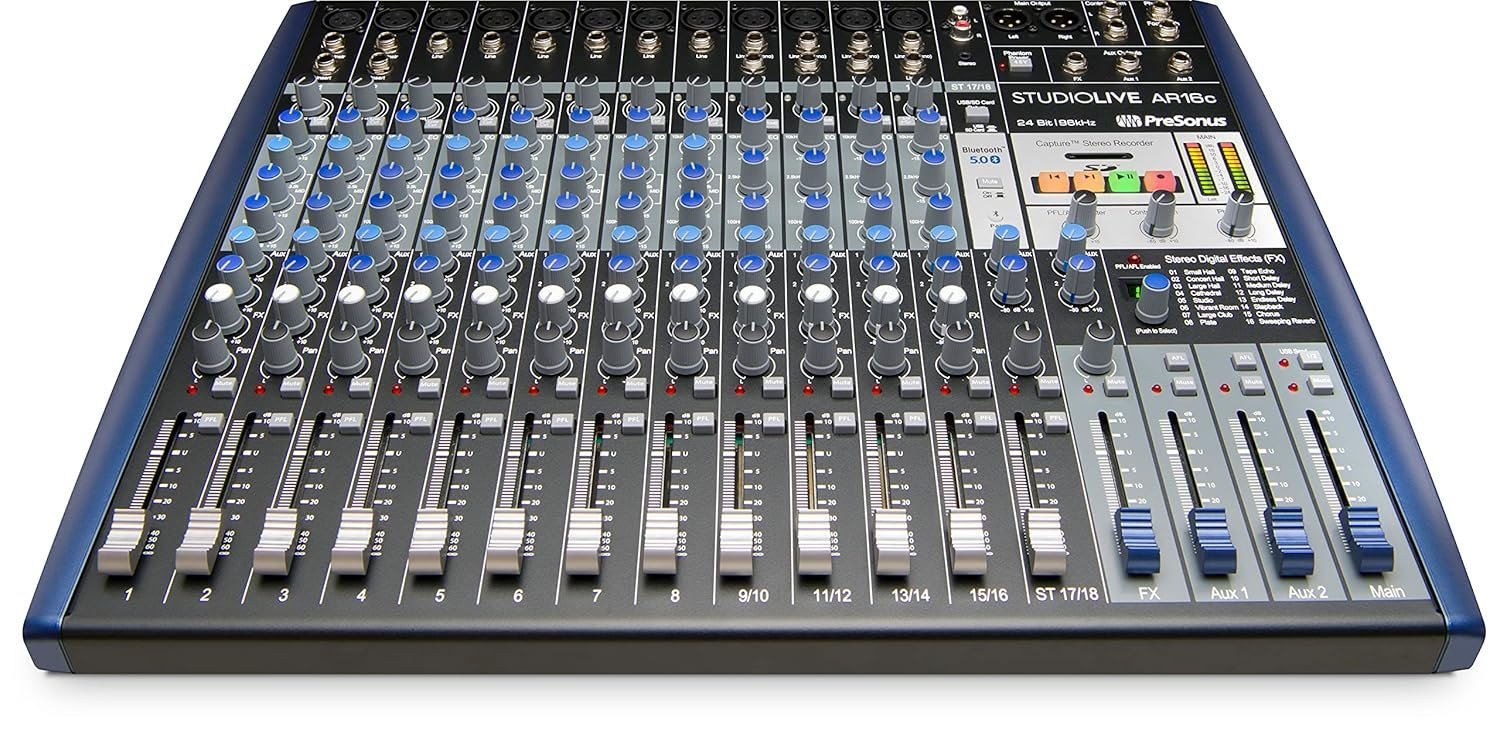

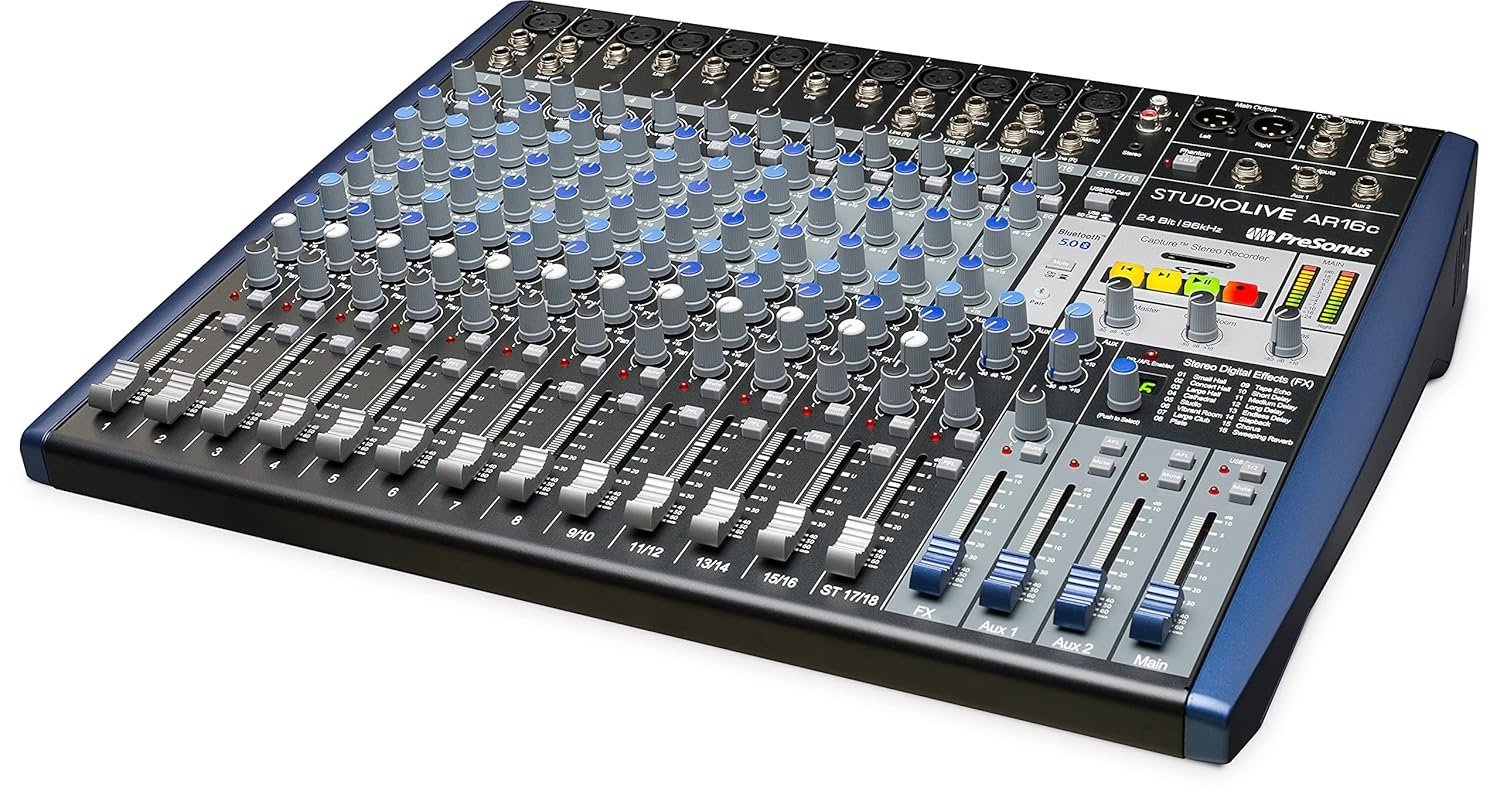

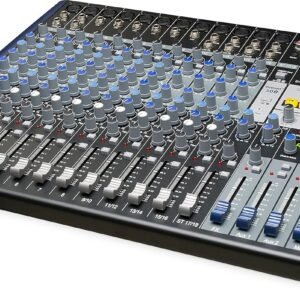

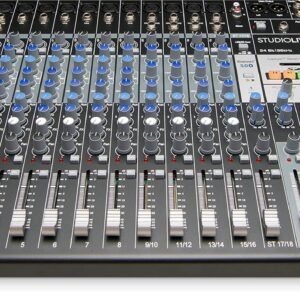

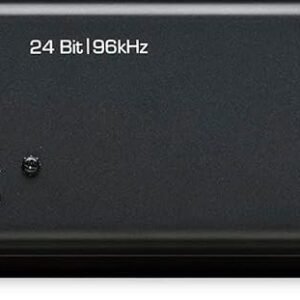

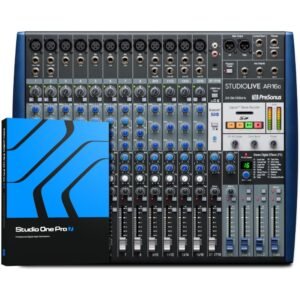

Mix your band live and record every channel at the same time. The PreSonus StudioLive AR16c is an 18-channel analog mixer with a built-in 18×4 USB-C audio interface, a stereo SD recorder, Bluetooth and onboard effects – one box for live sound, recording and streaming.
Why customers choose it
Who it is for
Bands and live sound engineers running small and medium venues, churches and schools, podcasters with several guests, and musicians who want to record rehearsals and gigs in multitrack without extra gear.
What’s in the box
- 1 x PreSonus StudioLive AR16c
- 1 x USB cable (1 m)
- 1 x IEC power cord
- 1 x Rack ear mounting kit
- 1 x StudioLive ARc-series Quick Start Guide
- 1 x Owner’s manual
Specifications
| Channels | 18 (12 mic, 2 instrument, 16 line inputs) |
|---|---|
| Mic preamps | 12 Class A XMAX, XLR, gain +12 to +55 dB |
| USB audio interface | 18 in / 4 out, 24-bit, 44.1 – 96 kHz, USB 2.0 over USB-C |
| SD recorder | 2×2, stereo WAV, SD up to 2 GB / SDHC up to 32 GB |

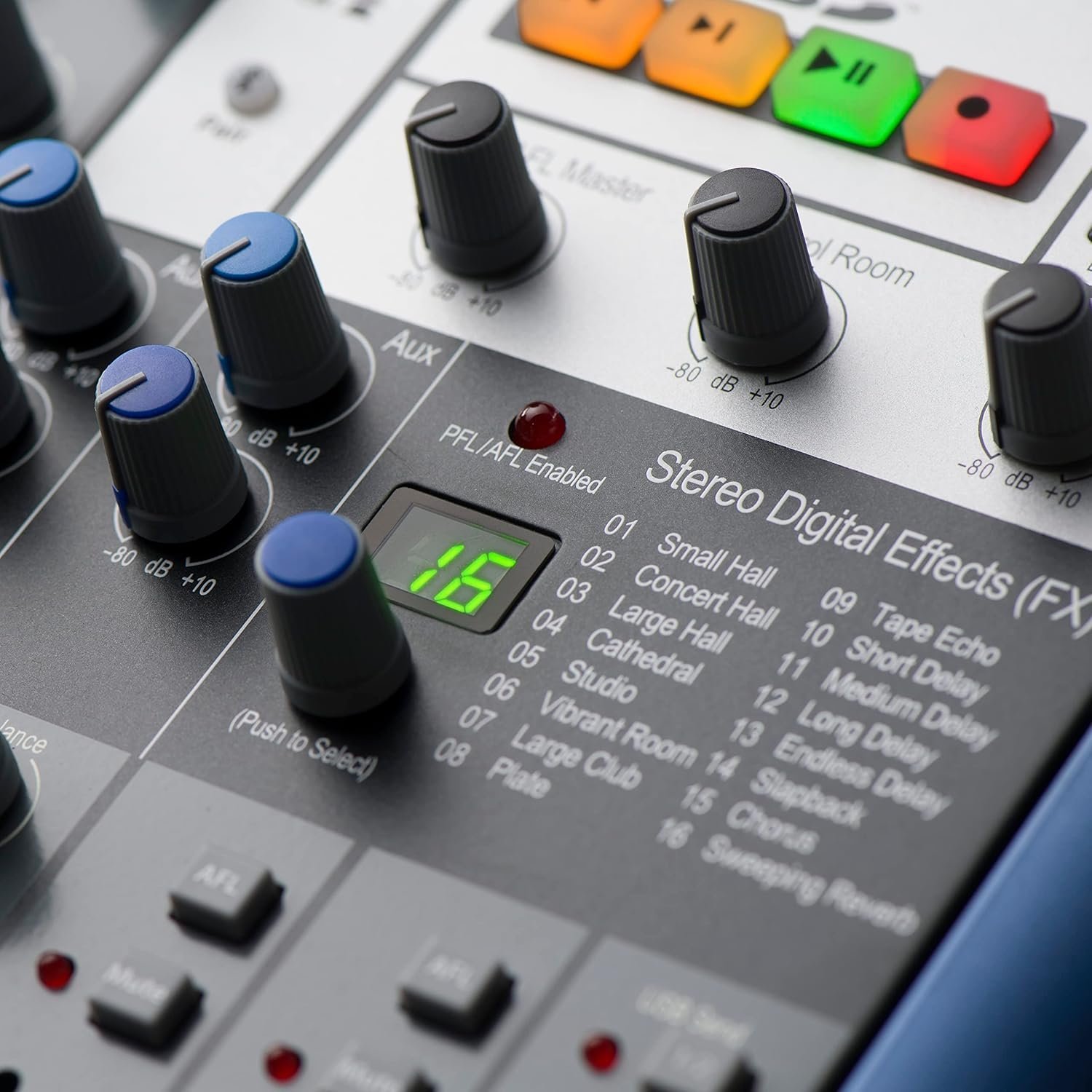

| Effects | Stereo processor, 16 presets |
| Phantom power | +48 V |
| Mic preamp S/N | 94 dB (+4 dBu) |
| Frequency response | 20 Hz – 20 kHz (+0.5 / -1.5 dB) |
| Main XLR output max | +24 dBu |
| Headphone output | 150 mW per channel at 60 Ω |

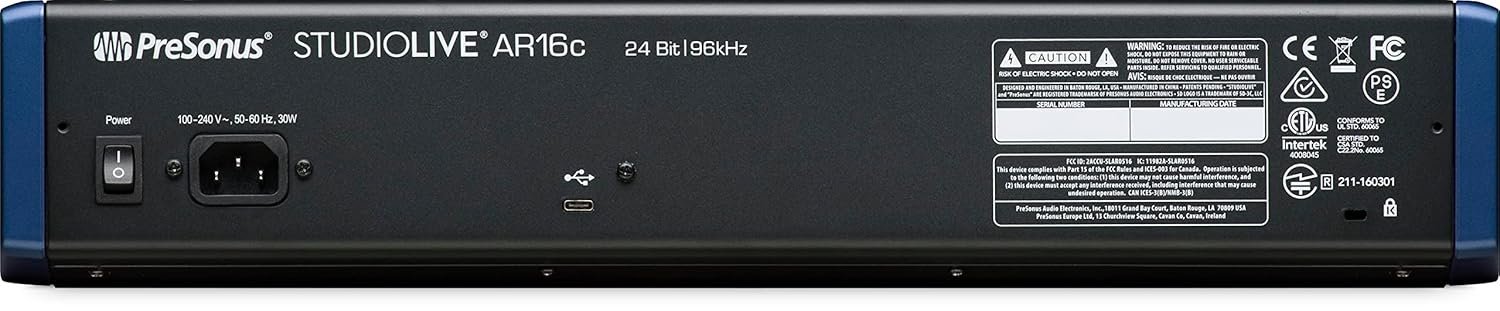

| Power | 100 – 230 V AC, 50 – 60 Hz, IEC cable |
| Dimensions (W x D x H) | 480 x 397 x 90 mm |
| Weight | 6.4 kg |
| Colour | Blue |
| Type | Hybrid analog mixer with USB-C audio interface |
| Mic Inputs | 12 XLR (XMAX preamps) |
| Line Inputs | 16 balanced |
| Instrument Inputs | 2 Hi-Z |
| Resolution | 24-bit / 96 kHz |
| Connectivity | USB-C (USB 2.0), Bluetooth, RCA, 1/8-inch stereo |
Good to know
- Works with Mac and Windows computers over USB-C (USB 2.0 protocol).
- Mains powered (100 – 230 V), so it works directly on Indian power with an IEC cable.
- A rack adapter kit is available from PreSonus for this model.
- 2-year PreSonus limited warranty per the maker’s documents.
FAQ
Can I record each microphone on a separate track?
Yes. Over USB-C the AR16c sends all 18 channels plus the main mix to your computer, so each input lands on its own track.
Can I play music from my phone through it?
Yes. The Stereo Super Channel has Bluetooth, RCA and 1/8-inch stereo inputs.
