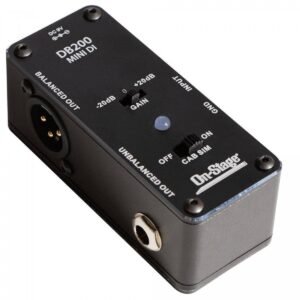

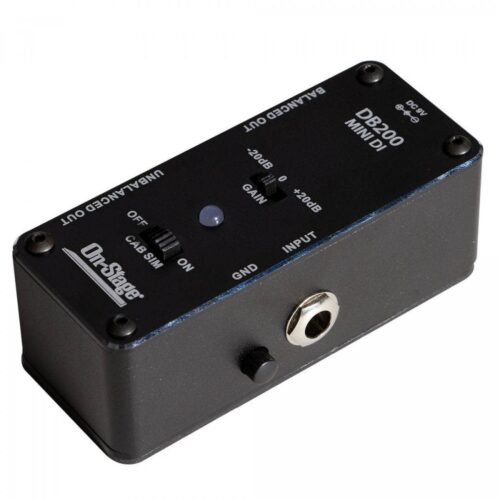

Send a clean, strong signal from your instrument to the mixer – even down a long cable. The OnStage DB200 Mini DI Box changes a high-impedance 1/4″ signal from a guitar, bass or keyboard into a low-impedance XLR signal for a mixer or PA system. It also has a cab simulator, a gain/pad switch and a ground lift, in a small pedal you can put on your board.
Why customers choose it
Who it is for
Guitarists and bassists playing churches, small venues and events where the sound goes through the PA, keyboard players sending to a mixer, and home studios recording direct.
What’s in the box
- OnStage DB200 Mini DI Box
- Hook-and-loop mounting strips
Specifications
| Type | Active mini DI box |
|---|---|

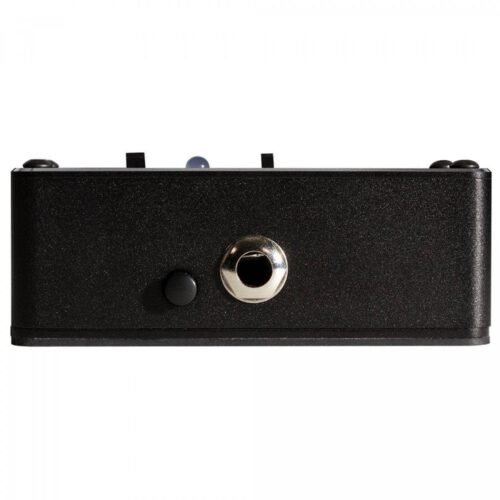

| Input | 1/4″ (high impedance), 1 MΩ |
| Outputs | Balanced XLR + unbalanced |
| Output impedance | 1 kΩ |

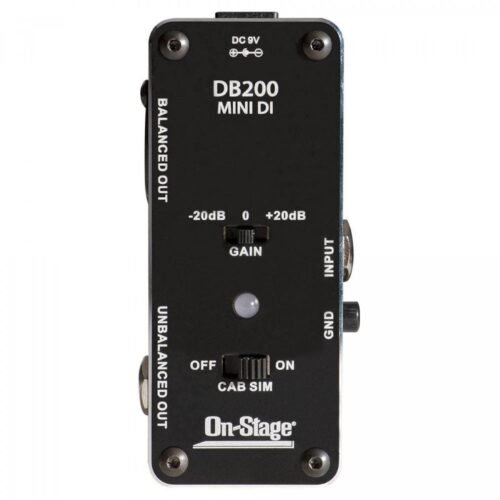

| Switches | Cab simulator, +20 dB gain / -20 dB pad, ground lift, true bypass |

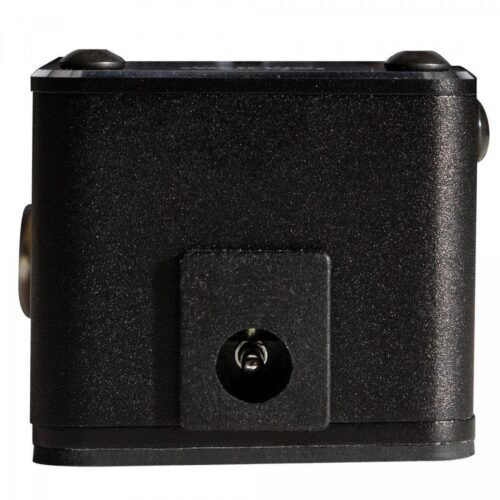

| Power supply | 9V DC, centre negative (not included) |
| Current draw | 12 mA |
| Dimensions | 3.6″ × 1.5″ × 1.3″ (approx. 91 × 38 × 33 mm) |
| Enclosure | Heavy-duty metal |
| Colour | Black |
| UPC | 659814141173 |
| Features | Cab simulator, +20 dB / -20 dB pad, ground lift, true bypass |
Good to know
- Needs a 9V DC centre-negative power supply, which is not included. A standard pedal power supply works.
- You will need an XLR cable to the mixer and a 1/4″ instrument cable from your instrument.
FAQ
Can I use it with an acoustic guitar with a pickup?
Yes. It accepts any high-impedance 1/4″ source, including guitars, basses and keyboards.
Does it need phantom power?
It runs from a 9V DC adapter (centre negative), not included.
