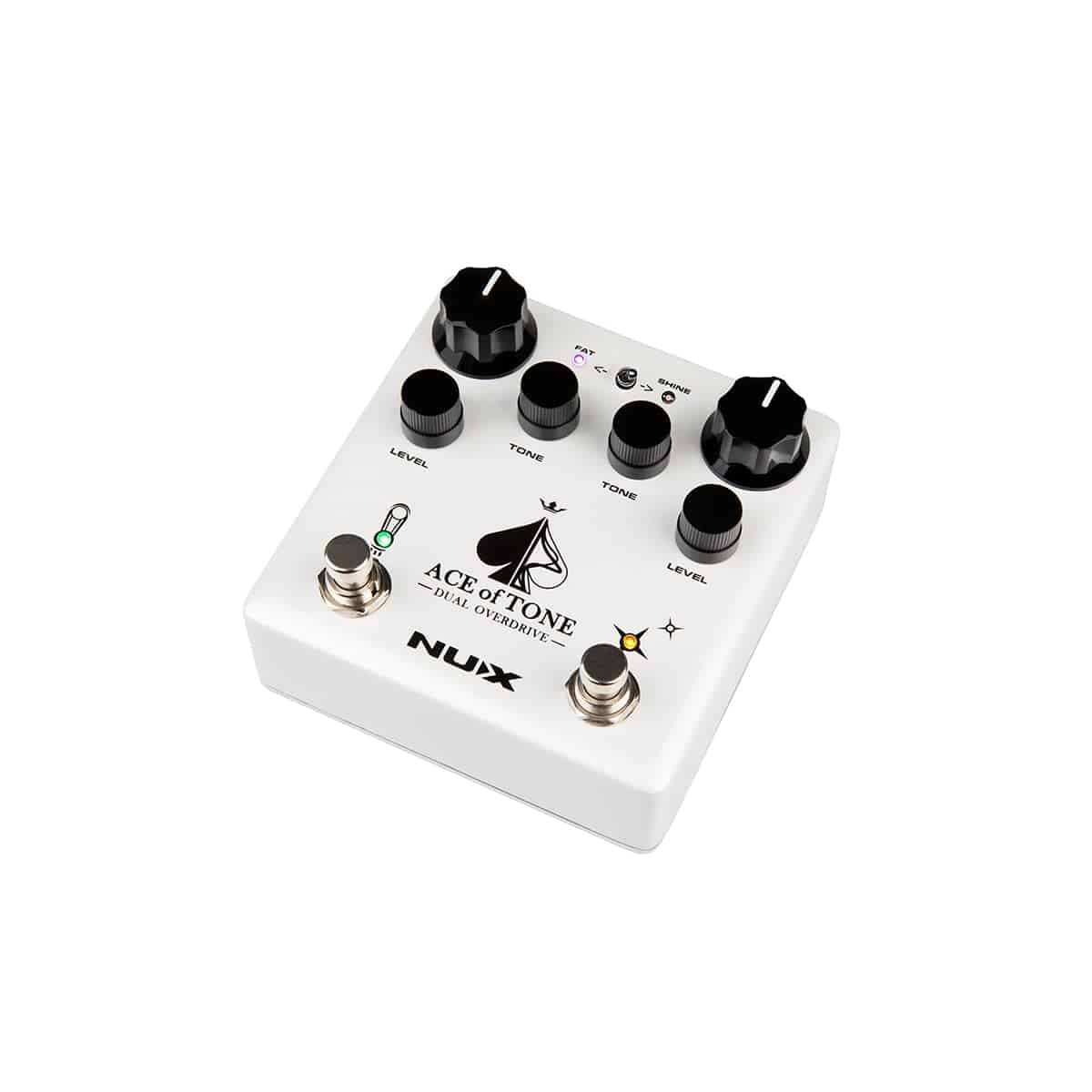

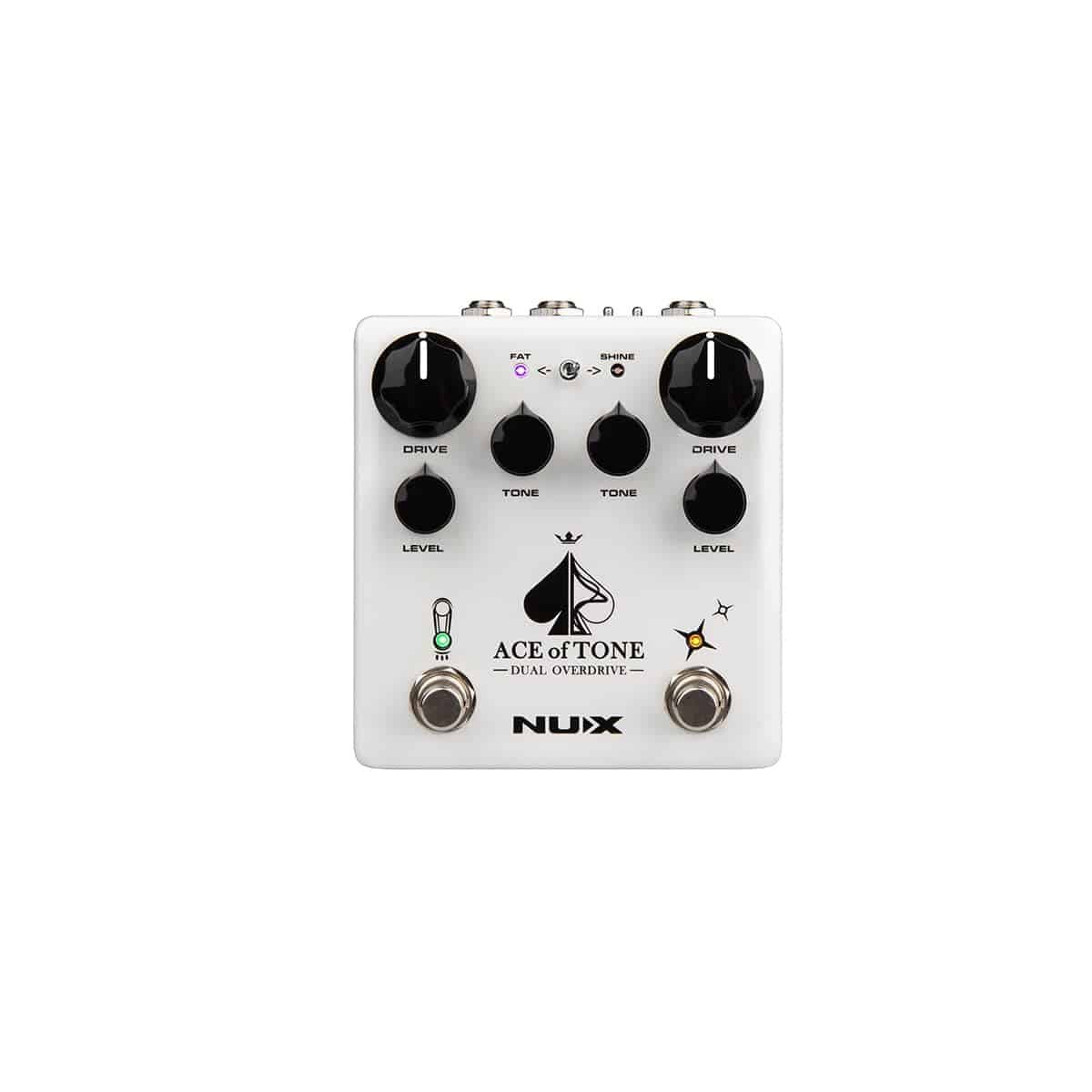

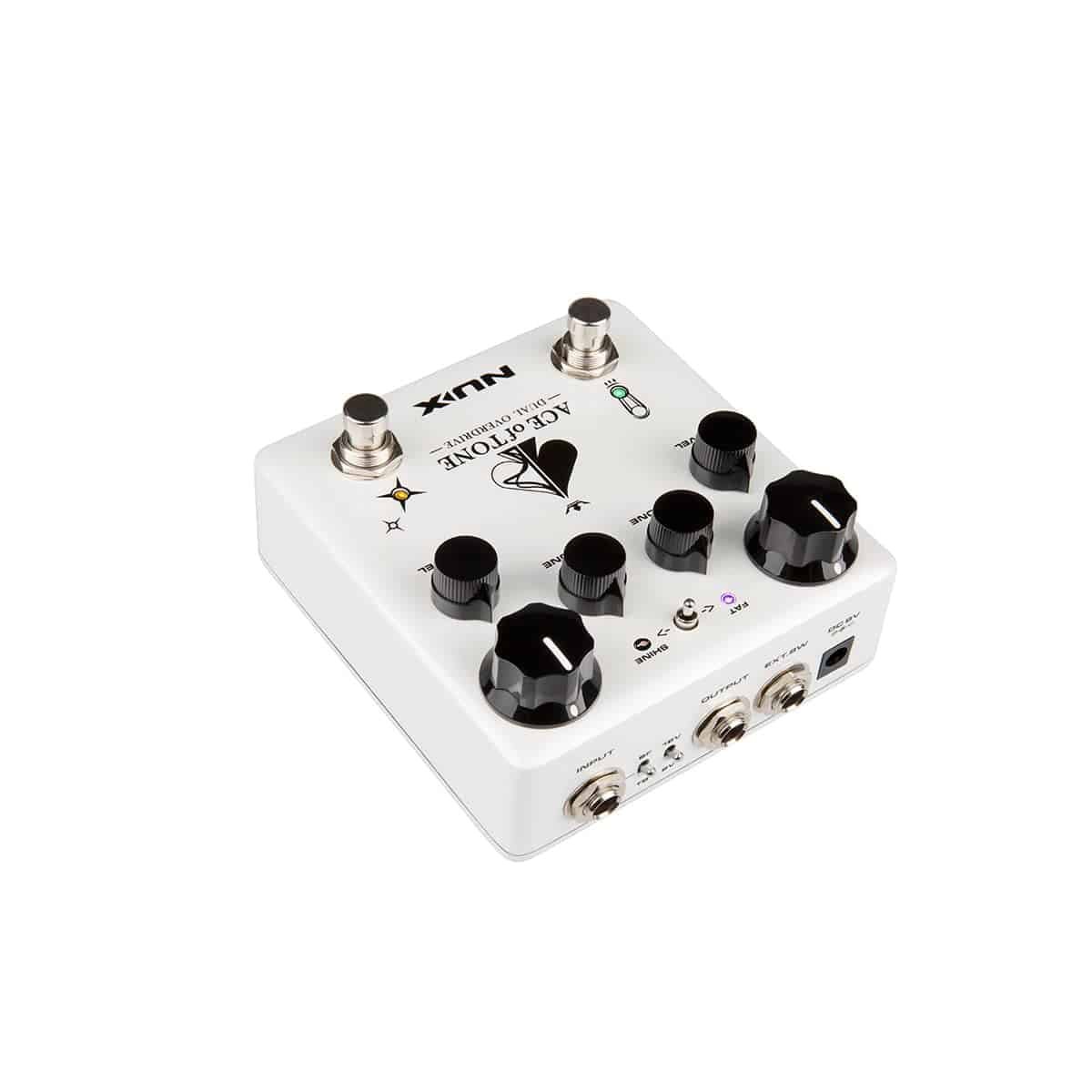

Two classic overdrives to stack, in one pedal. The NUX Ace of Tone (NDO-5) stacks two overdrives: Tubeman MKII, with more clarity and gain than a classic Tubescreamer, and Morning Star, a transparent low-gain drive based on the Bluesbreaker circuit. Each side has a hidden mode you reach by holding its footswitch.
Why customers choose it
Who it is for
Blues, rock and worship guitarists who stack two drives for rhythm and lead.
What’s in the box
- 1 x NUX NDO-5 Ace of Tone pedal
- 1 x User manual
- 1 x NUX sticker
Specifications
| Brand | NUX |
|---|---|
| Model | Ace of Tone NDO-5 |
| Circuits | Tubeman MKII + Morning Star |
| Controls | Drive, Tone, Level per side |
| Modes | FAT, SHINE |

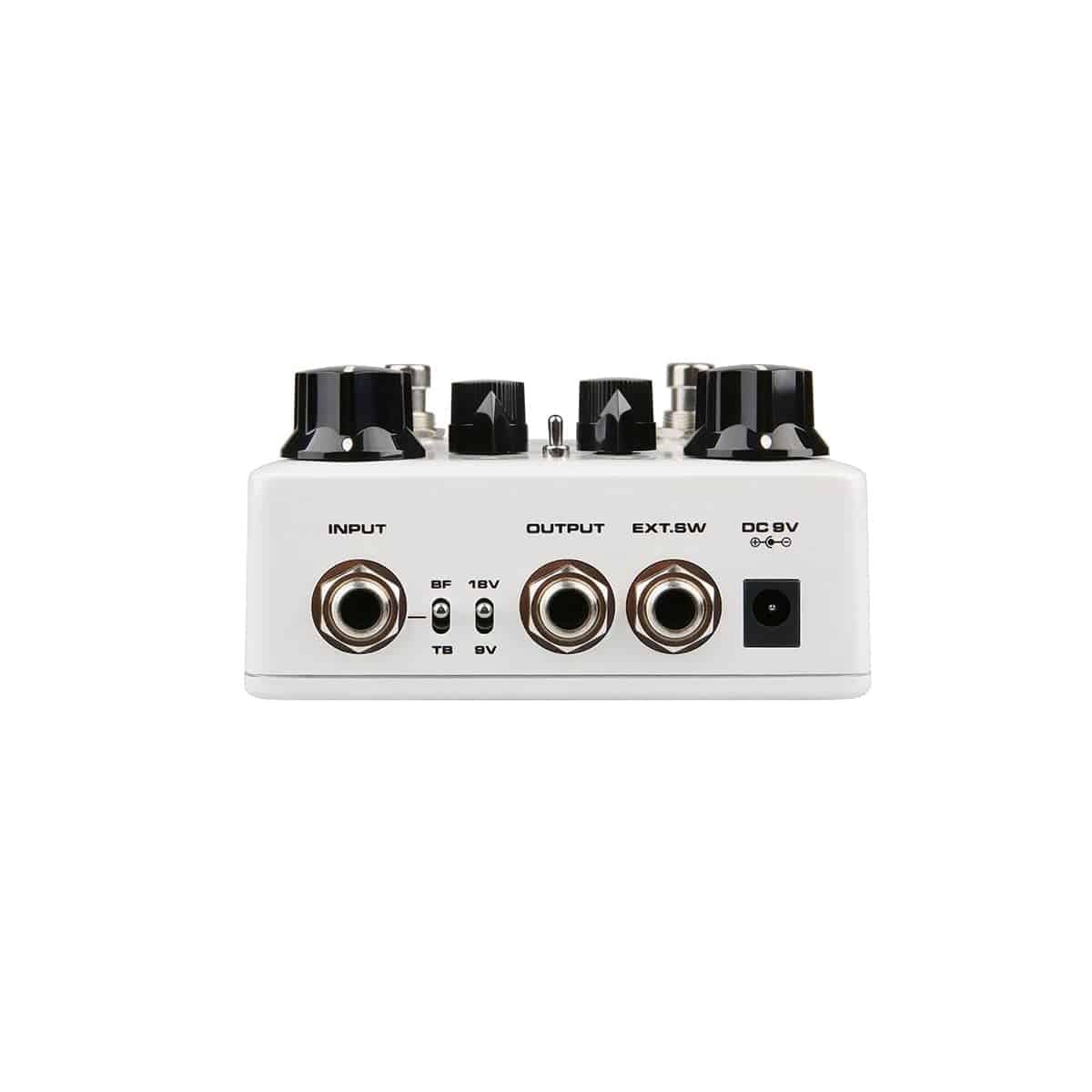

| Switches | Routing, BF/TB bypass, 9V/18V |
| Input Impedance | 2.2 MOhm |
| Output Impedance | 1 kOhm |
| Power | 9 V DC, negative tip, under 100 mA |
| Dimensions | 105 x 115 x 58 mm |
| Weight | 440 g |
| Type | Overdrive pedal |
| Bypass | Buffer / true bypass |
Good to know
- Power adapter is optional (NUX ACD-006A).
- An EXT. SW jack lets you use an external footswitch.
FAQ
Can I change the order of the drives?
Yes, with the routing toggle switch.
Does it run at 18 V?
There is a 9V/18V switch for internal double voltage; you still power it with 9 V DC.
