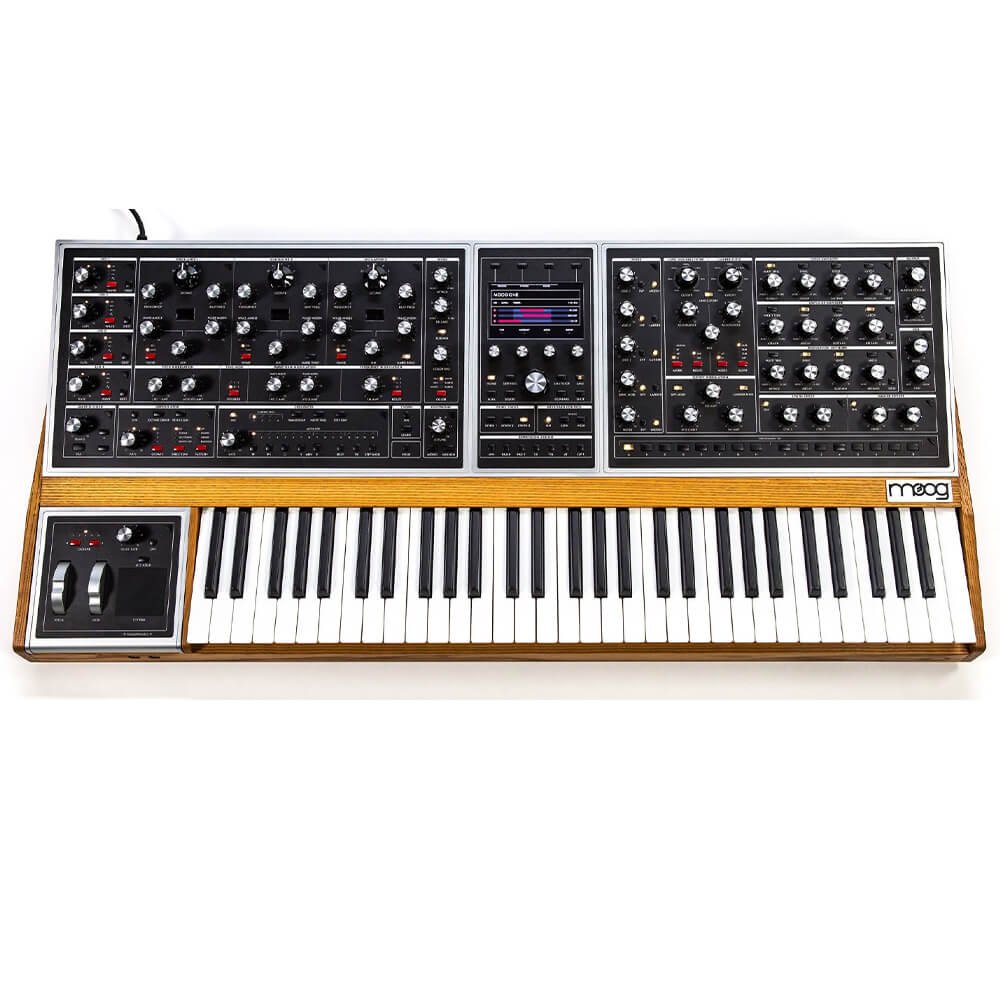

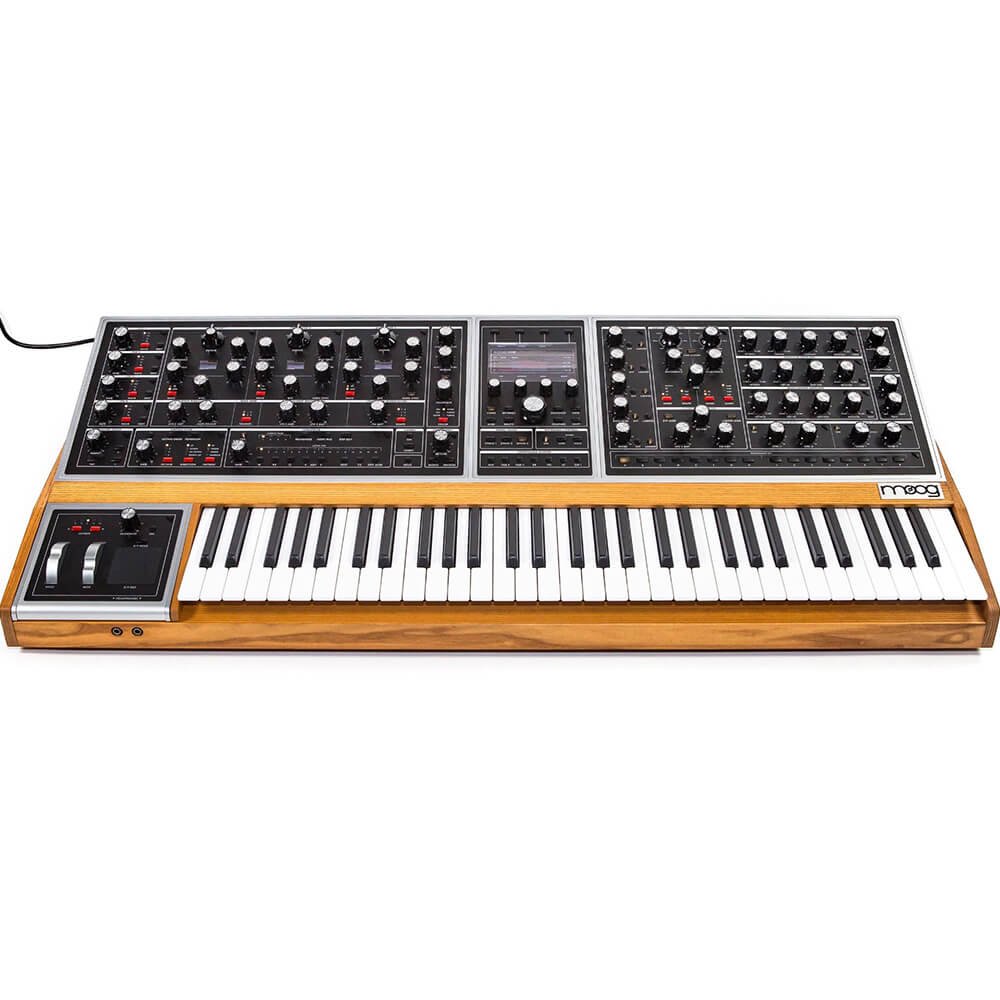

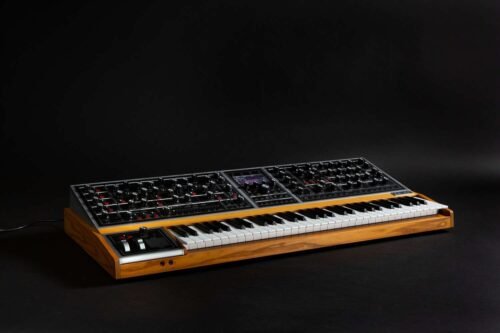

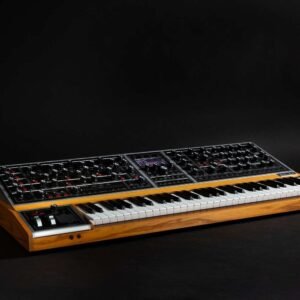

Moog One 16 Voice Polyphonic Analog Synthesizer

The Moog One is a high-end analog synthesizer designed to offer a wide range of creative possibilities and features. Here are some of its key specifications and features:

Voice Architecture:

• 16-voice polyphonic analog synthesizer.
• Each voice includes 3 newly-designed analog VCOs (Voltage-Controlled Oscillators) with selectable waveform mixing.
• Unison Mode allows for stacking up to 48 oscillators on a 16-voice instrument for massive sounds.
• 2 filters per voice, with filter mixing: 2x Multimode State Variable filters and a classic low pass/high pass Moog Ladder filter.
• 3 DAHDSR envelopes per voice, with user-definable curves for dynamic sound shaping.

Modulation and Effects:

• 4 assignable LFOs (Low-Frequency Oscillators) for modulation.
• Modulation Matrix for complex modulation assignments.
• Synth Effects and Master Bus Effects, including chorus, delay, phase, bit reduction, vocoding, and premium reverbs from Eventide®.
• Analog signal path with no in-line conversion when insert effects are off.

Sound Generation:

• Dual-source analog noise generator with selectable colors of noise and dedicated envelope.
• Mixer with volume controls and filter routing for each oscillator, noise generator, ring modulator, and external audio input.
• Hard sync, analog ring modulation, and FM capabilities for sound generation.

Keyboard and Controls:

Premium 61-note Fatar TP-8S keyboard with velocity and aftertouch for expressive playing.

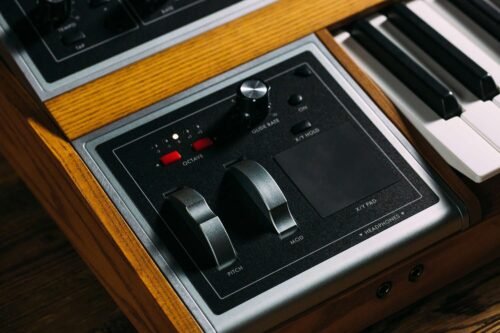

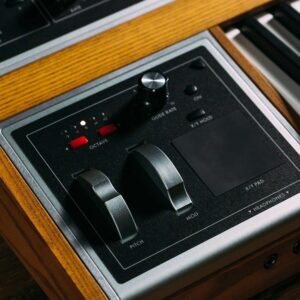

Pressure-sensitive X/Y pad for continuous control.
73 knobs and 144 buttons on the front panel for hands-on sound shaping.

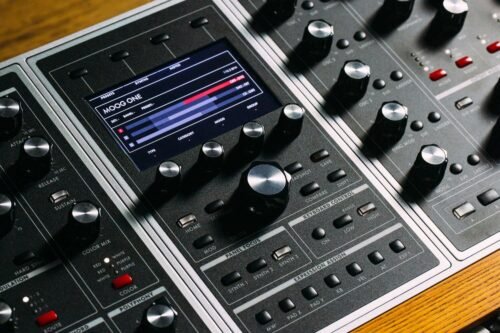

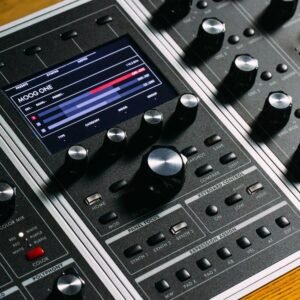

OLED displays for visual feedback and parameter control.
“More” button for accessing additional parameters specific to each module.

Sequencing and Timbrality:

3-part multitimbrality, allowing voices to be split, layered, or stacked with up to 48 oscillators in Unison Mode.
Each synthesizer has its own step sequencer, arpeggiator, and effects processor.
Chord memory function for creating and recalling chords.

Presets and Performance:

• Tens of thousands of presets can be stored, categorized, edited, notated, and shared via USB drive.
• Performance Sets for quick access to up to 64 presets.
• Snapshot feature to capture and recall a time-stamped picture of a preset’s settings.
• User Spaces for saving global settings, MIDI configurations, and more.

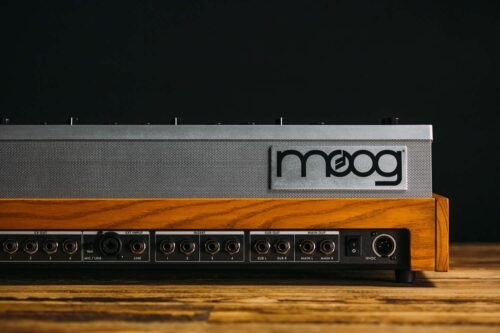

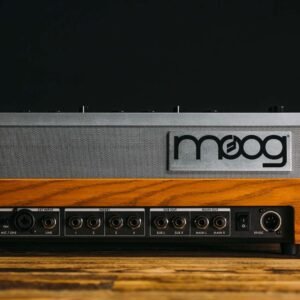

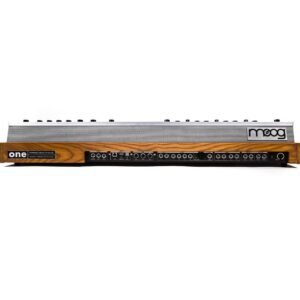

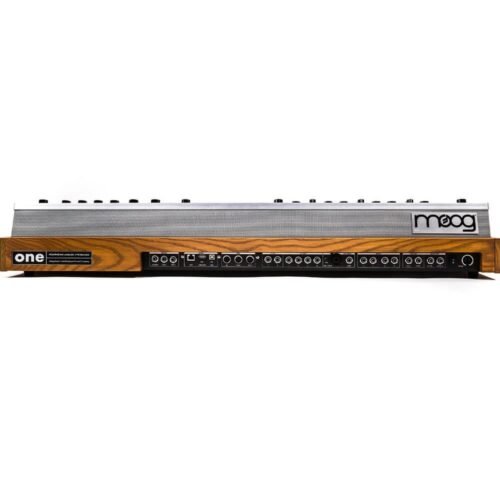

Connectivity:

• 2 assignable pairs of stereo audio outputs.
• 4 assignable inserts for external processing.
• 2 external audio inputs (XLR and ¼”) with trim knob.
• MIDI communication via 5-pin DIN and USB.
• 9 configurable CV inputs and outputs, including expression and sustain pedal inputs.
• LAN port for future expansion.

Additional Details:

• Weight: Approximately 45 lbs. (20.4 kg).
• Dimensions: 42” x 20” x 7” (107cm x 51cm x 18cm).
• Available in 8-voice and 16-voice configurations; upgrades from 8 to 16 voices are not currently available.

The Moog One is designed to provide a versatile and expressive analog synthesizer experience with a wide range of sound shaping and performance capabilities, making it suitable for both studio work and live performances.
