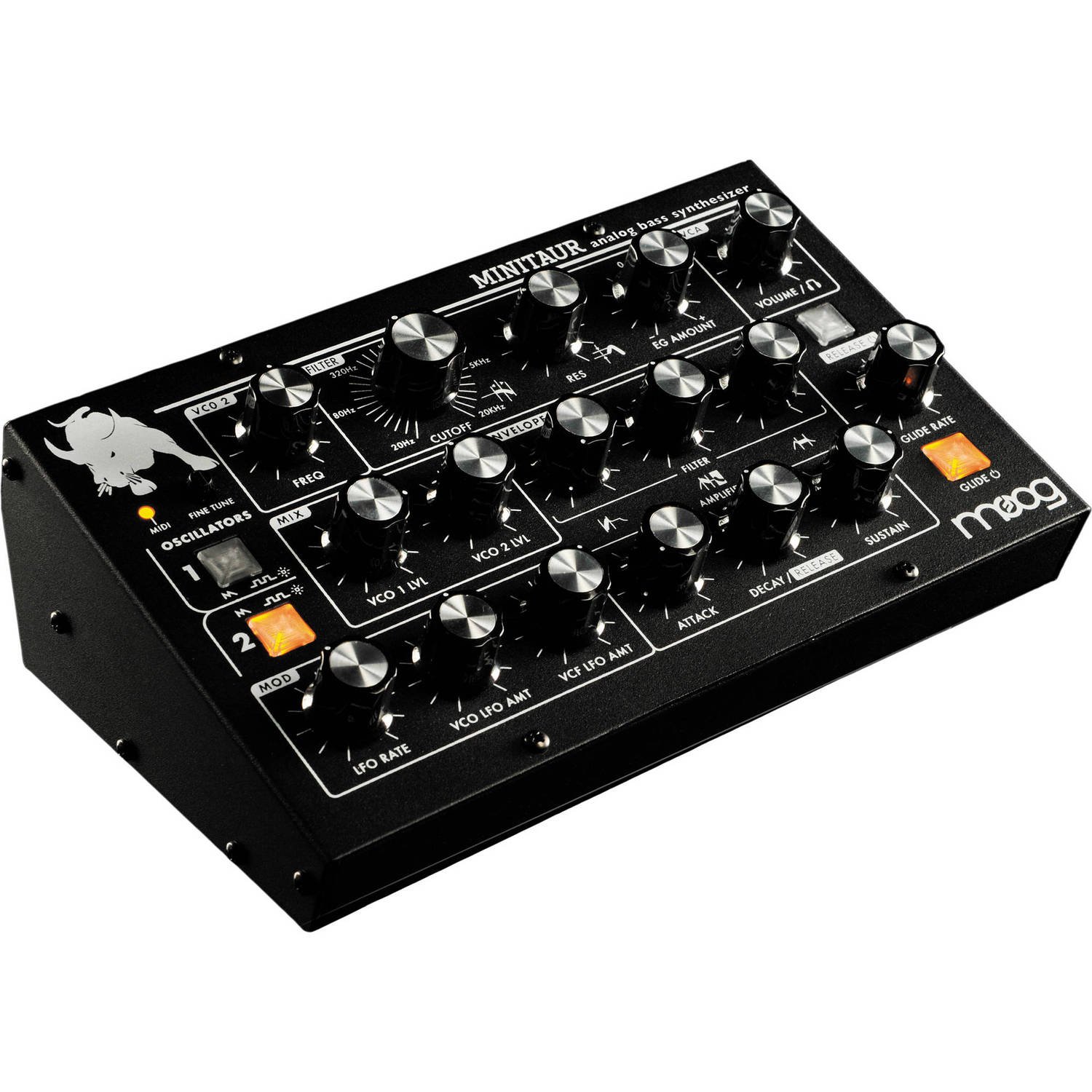

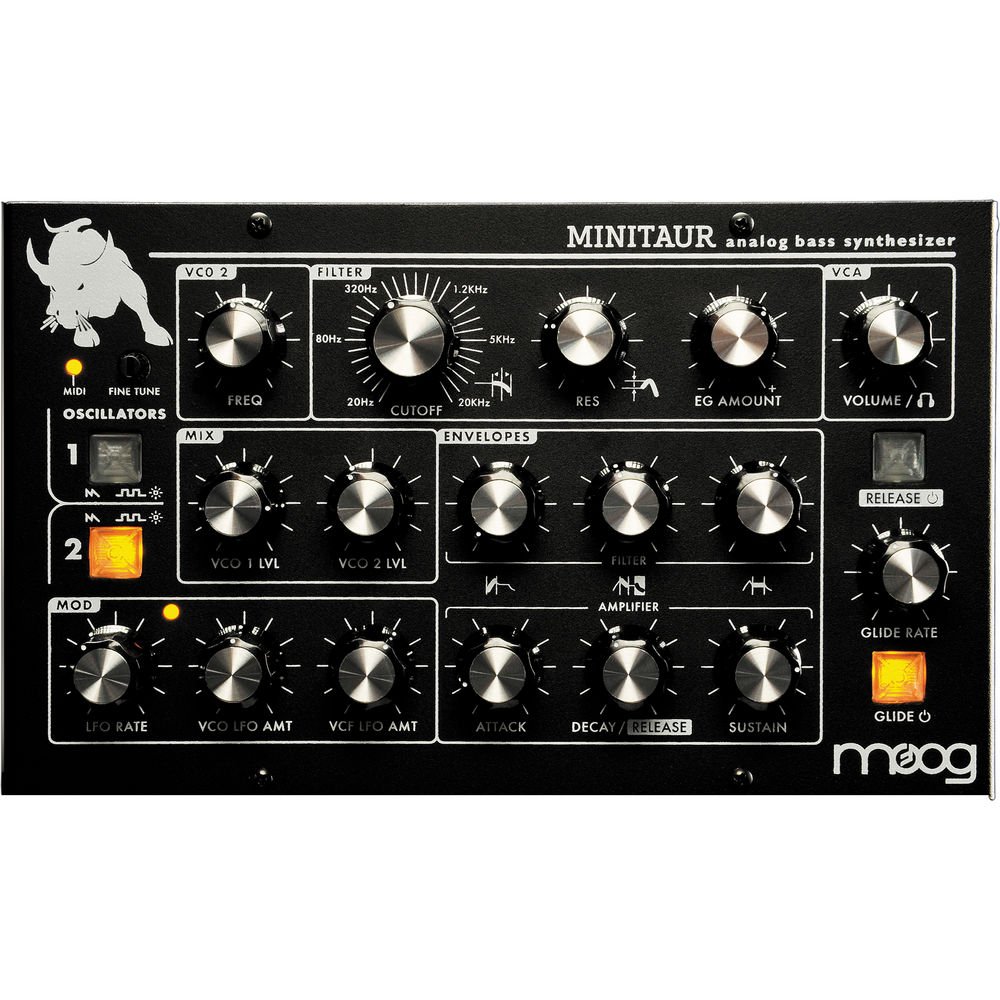

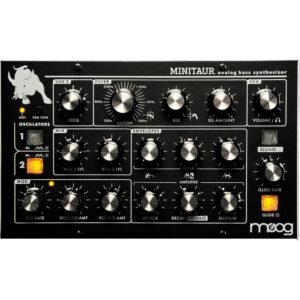

Huge analog Moog bass that fits in your backpack. The Moog Minitaur is the compact member of Moog’s Taurus family of analog bass synthesizers. It is a subharmonic bass machine made to drop into any live rig or computer-based studio, and it does one thing above all else: powerful analog bass.
Why customers choose it
Who it is for

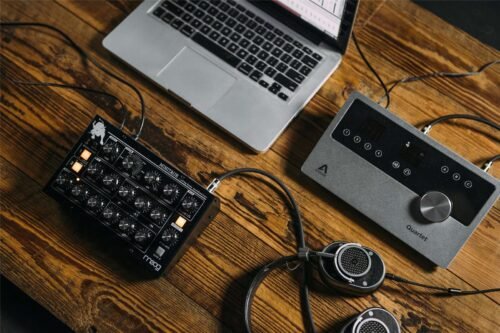

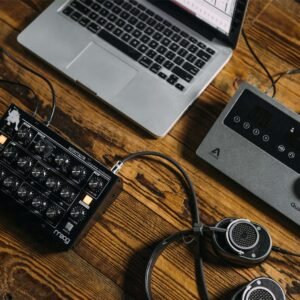

Producers who need serious bass, live keyboard players and DJs, and anyone adding a Moog bass voice to a laptop, MIDI controller or modular setup.
Specifications
| Sound engine | Analog |
|---|---|
| Polyphony | Monophonic (can be poly-chained) |
| Oscillators | 2, square and saw; VCO 2 +/-12 semitones; hard sync |
| Oscillator range | 22 Hz-6.8 kHz |
| Filter | 20 Hz-20 kHz Moog ladder filter |
| Modulation | LFO (triangle, square, saw, ramp, S&H), filter envelope |
| Envelopes | 2 x ADSR |
| Glide | LCR, LCT, EXP; legato on/off |

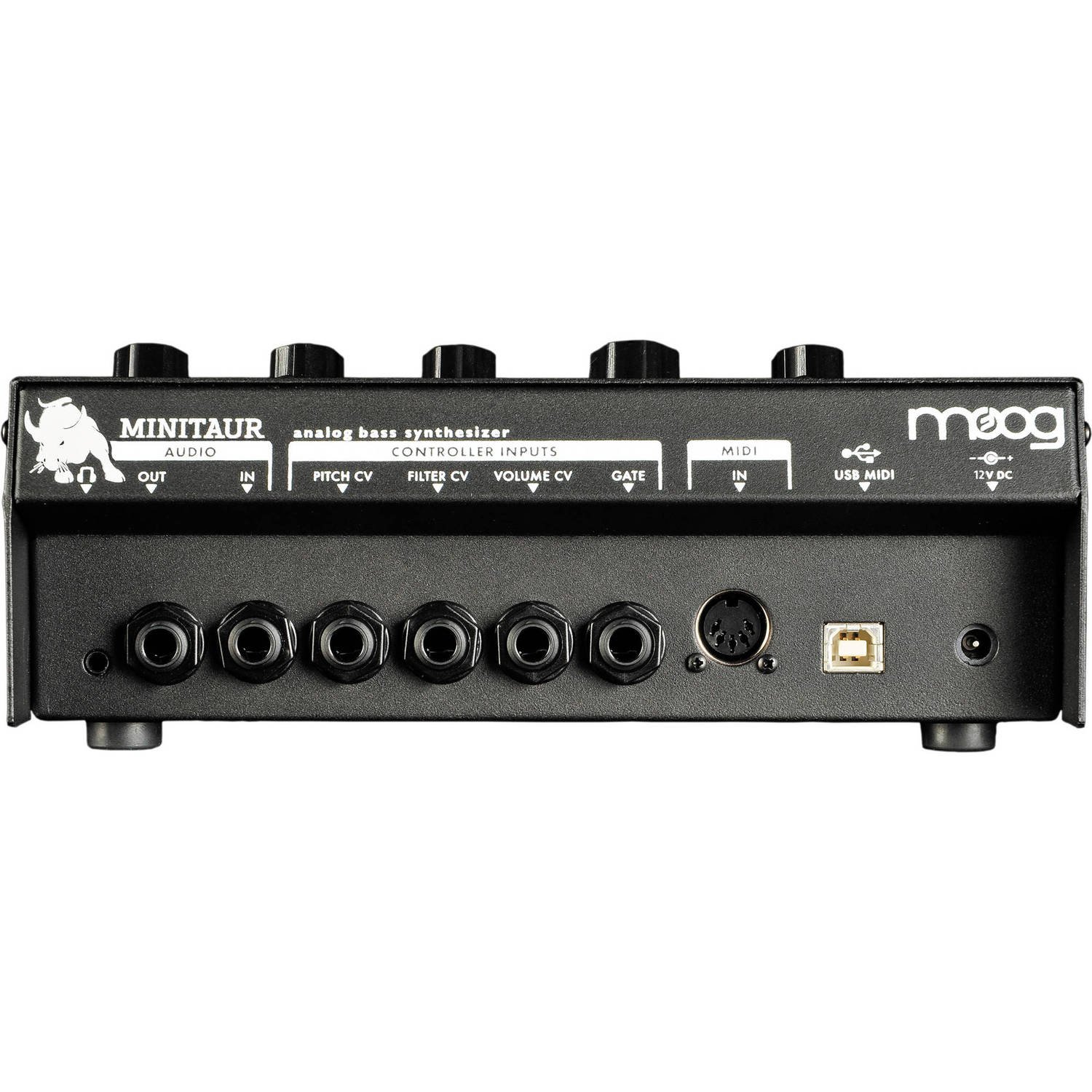

| Audio | 1/4″ TS in; 1/4″ TS out; 1/8″ TRS headphone with volume |
| MIDI | DIN in; MIDI over USB |
| CV/gate inputs | Filter CV, Pitch CV, Volume CV, KB Gate (assignable) |
| Power | Included supply, 100-250 V AC, +12 V DC |
| Dimensions | 3.1″ H x 8.75″ W x 5.1″ D |
| Weight | 1.2 kg (2.5 lb) |
| Type | Analog bass synthesizer module |
| Outputs | 1/4" out, 1/8" headphone |
Good to know
- It has no keyboard; play it from a MIDI keyboard, a DAW or CV.
- The power supply is included and accepts 100-250 V AC.
- It responds to velocity, aftertouch, pitch bend and mod wheel from an external controller.
FAQ
Can I play chords on it?
No, it is monophonic, built for bass lines. Several units can be poly-chained.
Does it work with my DAW?
Yes. Connect by USB; the free Minitaur Editor works on Mac and Windows for DAW integration.
