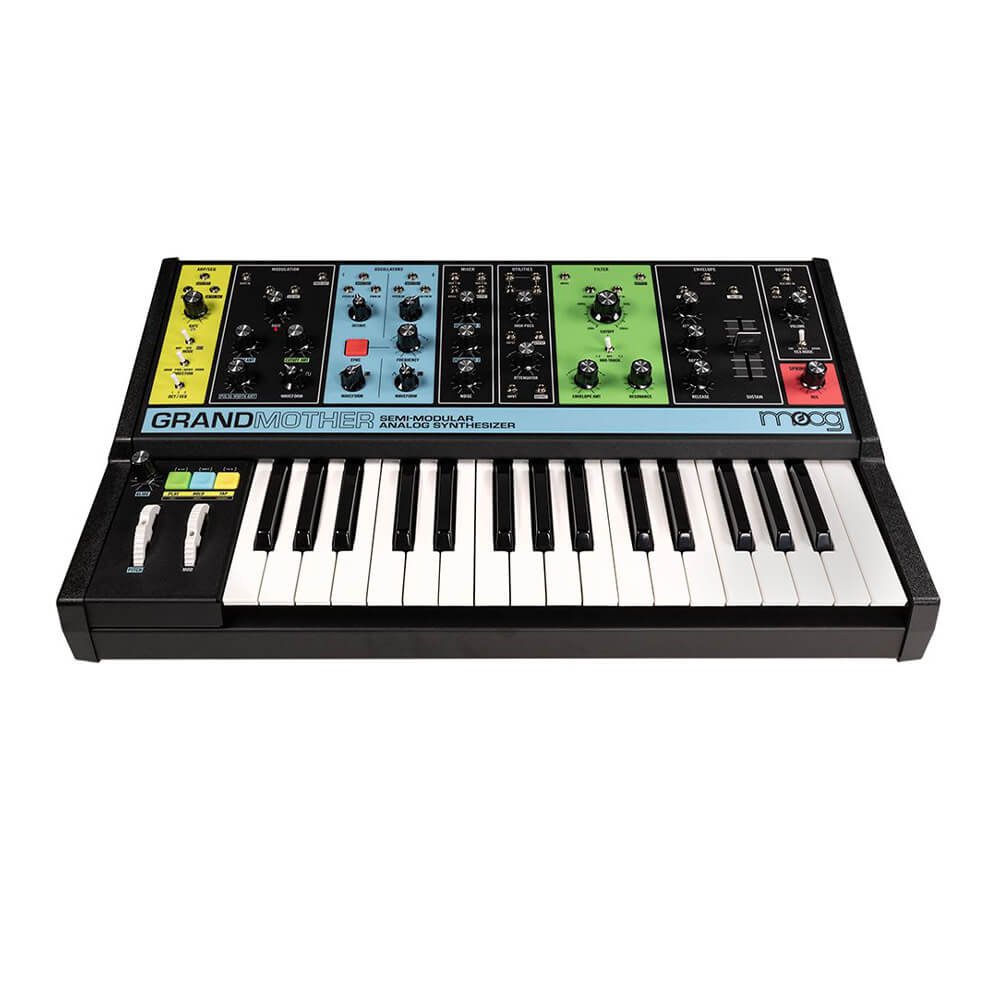

A real Moog keyboard synth with spring reverb and patching for a lifetime of exploring. The Moog Grandmother is a semi-modular analog synthesizer with a built-in arpeggiator, sequencer and spring reverb tank. Its circuits and spirit are inspired by the classic Moog modular synthesizers, and it pairs well with Mother-32, DFAM or any Eurorack system.
Why customers choose it
Who it is for
Keyboard players moving into analog synthesis, home-studio producers, live performers, and Eurorack or Mother-32 users who want a keyboard-based Moog at the centre of the rig.
What’s in the box
- 1 x Moog Grandmother
- 1 x Power supply
- 1 x Owner’s manual
- Patch cables
- 1 x Registration card
Specifications
| Type | Semi-modular analog synthesizer |
|---|---|
| Keys | 32 full-size, velocity-sensing |
| Controllers | Pitch bend, mod wheel, variable glide |
| Polyphony | Monophonic |
| Sound sources | 2 oscillators (Osc 2 sync + linear FM), white noise, external input |
| Filters | -24 dB/oct ladder LPF (self-oscillating), -6 dB/oct HPF |
| Modulation | Mod oscillator (sine, saw, ramp, square), S/H, envelope, key tracking |
| Envelope | ADSR |
| Effects | Analog spring reverb |
| Arpeggiator / sequencer | 256 steps, three sequence files |
| Patch points | 41 x 3.5 mm (21 in, 16 out, 4 mults) |
| Audio | 1/4″ TS input; 1/4″ TRS headphone / line output |
| MIDI | 5-pin DIN In, Out, Thru; USB MIDI |
| Power | Included adapter, 12 V DC 2 A, 100-240 V AC |
| Dimensions | 58.42 x 36.19 x 13.97 cm |
| Weight | 7.25 kg |
| Oscillators | 2 + white noise |
Good to know
- The power adapter is included and accepts 100-240 V AC.
- Velocity is not hard-wired to the sound; it is available via MIDI and the KBD VEL OUT jack.
- Patching overrides the internal connections, so each section can work like a separate module.
FAQ
Do I need patch cables to play it?
No. It plays without any patching; cables are for exploring further.
Can I connect it to my computer?
Yes, it has MIDI over USB as well as 5-pin MIDI.
