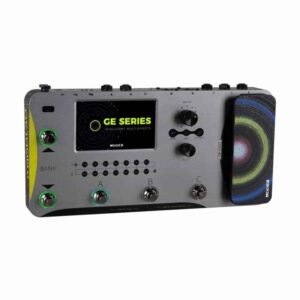

Mooer GE1000 Li Intelligent Multi Effect Pedal Processor

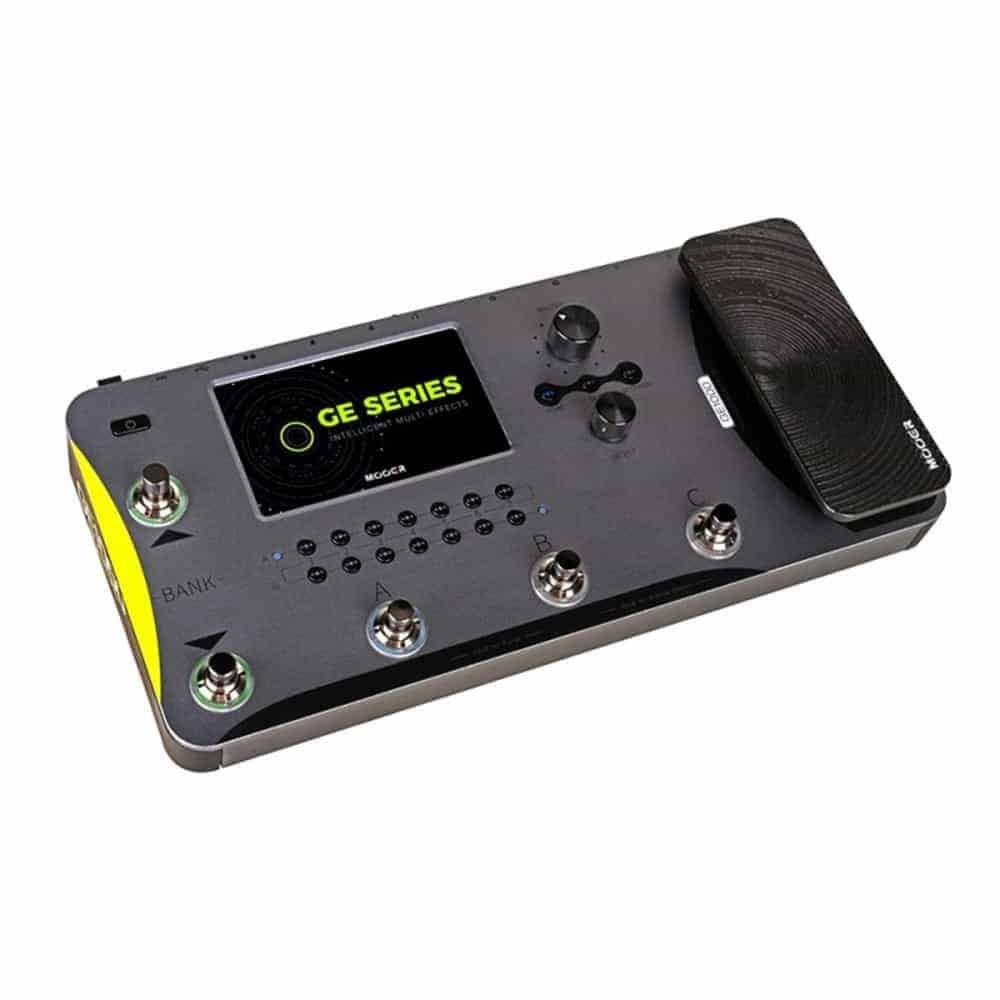

Mooer GE1000Li Multi-effects Unit

The Mooer GE1000Li is the company’s flagship multi-effects unit. With its amazing 5-inch display, it provides a clear and user-friendly interface for guitarists to monitor and modify parameters. This instrument is a genuine master of sound variety, with 255 memory regions dedicated to unique amp and effect combinations. One specific highlight is the ability to include external impulse responses, which ensures good sound quality.

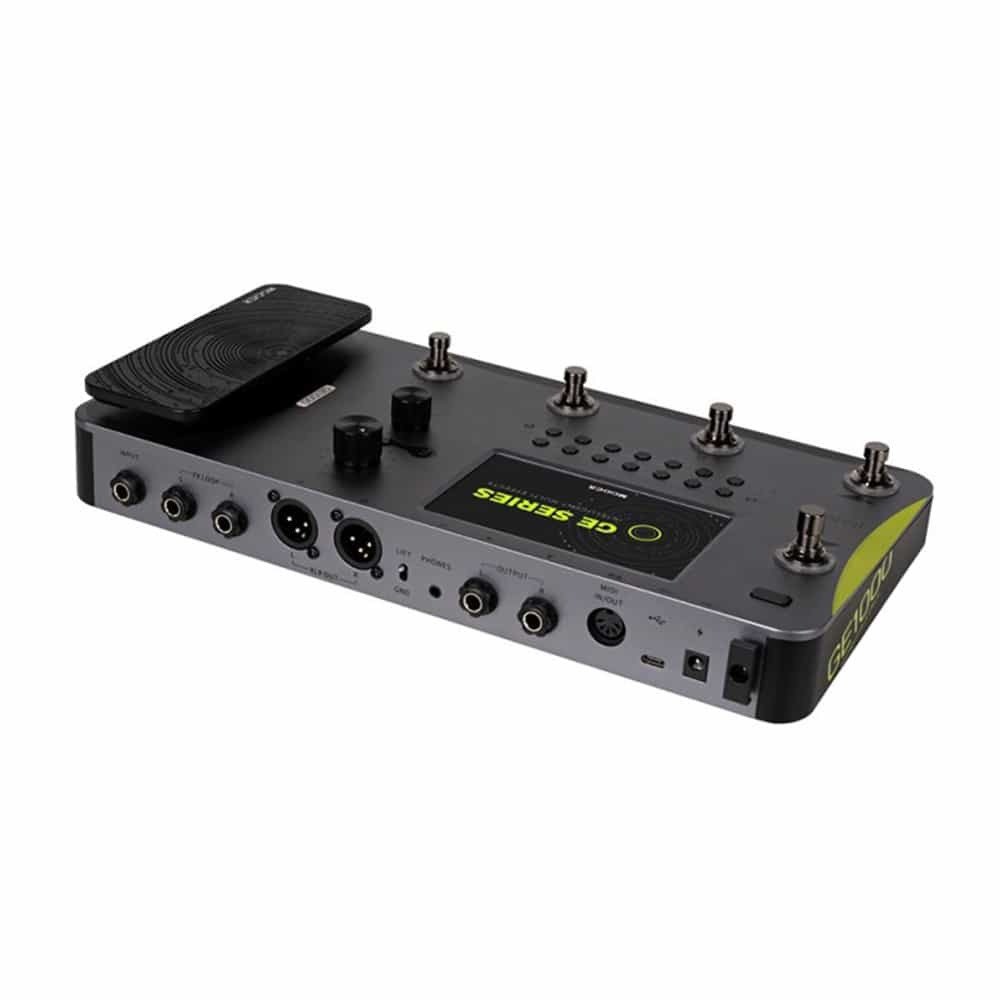

The Mooer GE1000Li has excellent networking features: Bluetooth audio, professional XLR outputs, 6.3 mm stereo output, and USB connectivity make it an excellent addition to any musical setup. The inbuilt rechargeable battery enables for usage without a power outlet. Whether in the studio or on stage, the Mooer GE1000Li pedal integrates easily and gives up a world of creative possibilities for guitarists. This instrument transforms sound sculpting into pure joy, and musical creativity takes on a new dimension.

Connect to Full-Range Equipment

This connection situation involves full-range equipment including studio monitors, sound cards, active stage monitors, and PA systems (full-range/crossover amplifiers + full-range/crossover speakers).

Full-range equipment, including headphones. To create a professional guitar sound, engage the AMP and CAB modules when connecting with this program. Please refer to the figure below for the connection.

In this instance, either the 1/4″ or the XLR output connectors can be utilized to make the connections.
XLR balanced outputs are more suited for lengthy cable paths and less prone to interference compared to unbalanced 1/4″ outputs. Please connect based on your genuine needs.

Connect to a guitar power amplifier and cabinet.

• This connection configuration comprises either a guitar amplifier with FX LOOP or a pure power amp. To make connections with this application, enable the AMP module.
• scenario. The GE1000 will handle all preamp tasks in this situation. Please refer to the figure below for the connection.

Multi Effect Pedal for Electric Guitar and Electric Bass

• Large collection of guitar effects, preamps, and amp simulators, including support for MNRS sample files.
•  The effects signal chain is customizable.
•  High-quality 5-inch touchscreen with user-friendly UI.
•  255 user presets.
•  A groove station with a drum machine and looper with a sync feature.
•  AI-controlled automatic equalizer.
•  Professional low-latency ASIO USB audio interface (USB Type-C) supports up to 192 kHz sampling rate.
•  Used PC editing software and mobile app to maintain presets and download sample files.
•  MIDI compatible.
•  Switchable serial/parallel TRS stereo FX LOOP to connect extra pedals.
•  Load up to 2048 sample points for third-party IR files.
•  Up and down footswitch to access memory banks.
•  Multifunctional footswitches (A, B, and C).
•  Controls for Master, Select, Home, and Save.
•  Push buttons to adjust settings.
•  Effect block LED push buttons.
•  Ground/lift switch.
•  Bluetooth 5.0 connectivity with AUX input.
•  Integrated volume/expression pedal.
•  Allows for wireless footswitch control.
•  USB MIDI function.
•  Aluminum housing.
•  Battery operation is not supported.
•  Power consumption: 1000mA.
•  Measurements (W x D x H): 337 x 170 x 57 mm
•  Weight: 1.9kg.

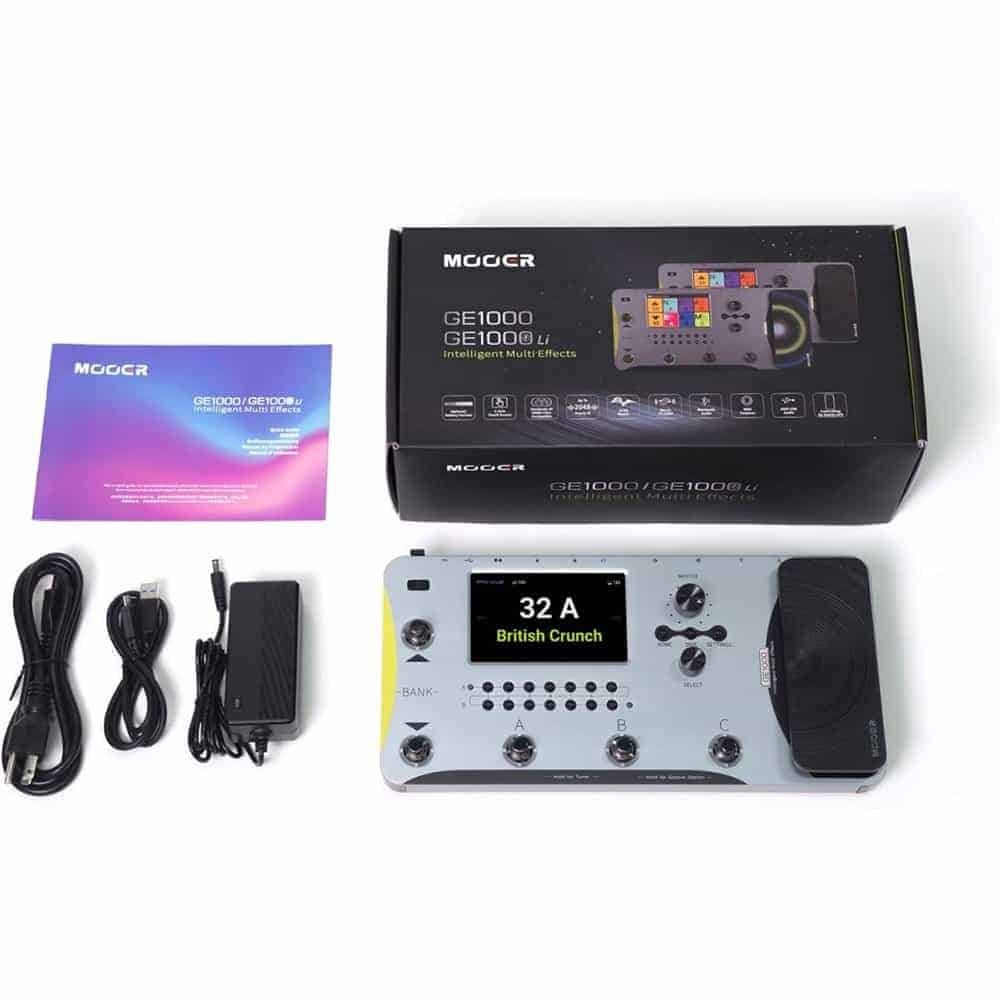

•  Includes a USB charging cord.
