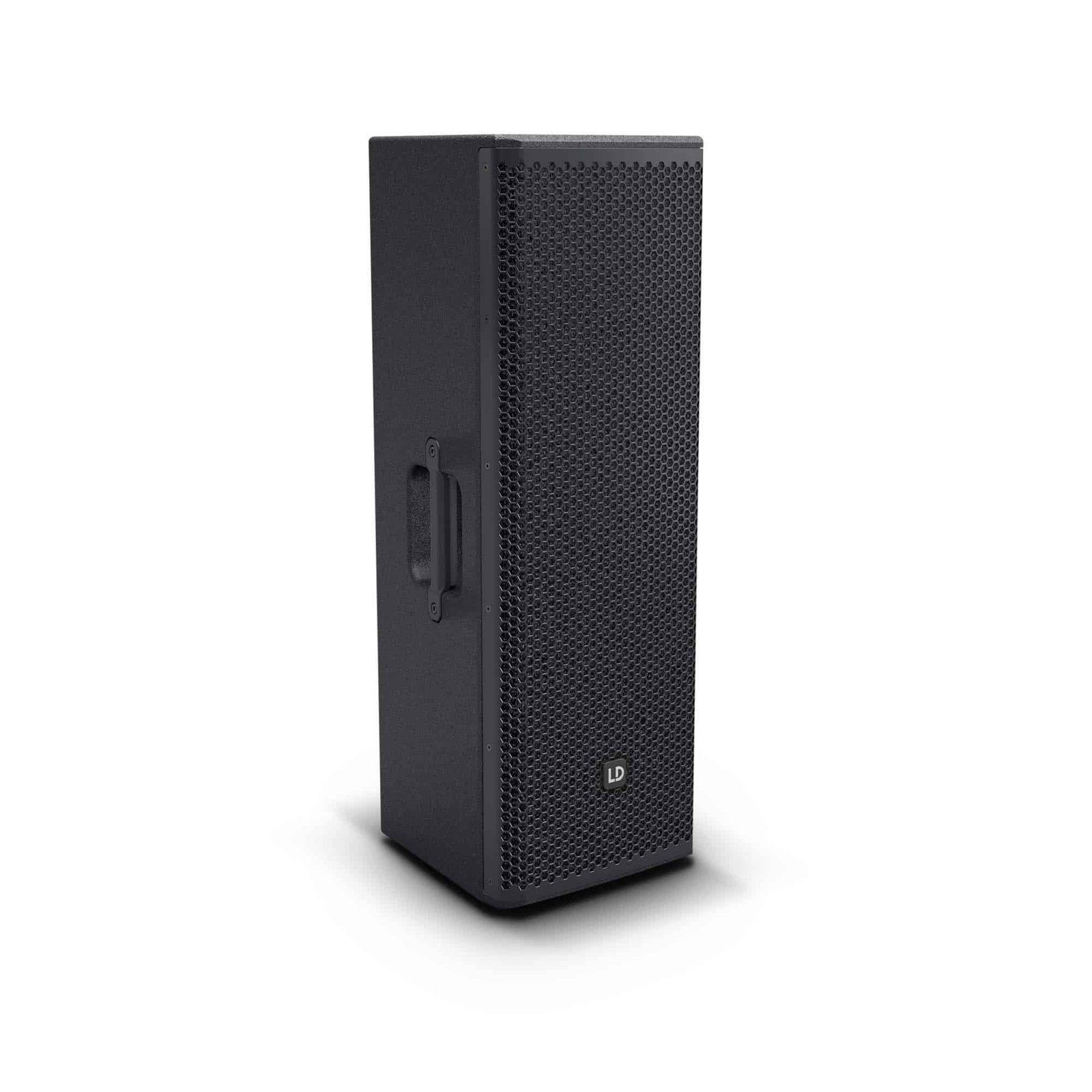

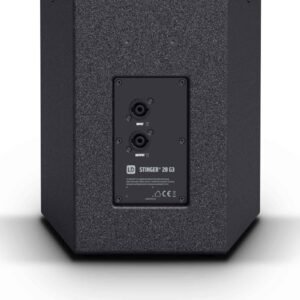

LD System STINGER 28 G3 Passive 2 x 8″ 2-way bass-reflex PA Loudspeaker

Original price was: ₹89,800.Current price is: ₹88,902.

Product Highlights

In stock

Get GST invoice and save upto 18%

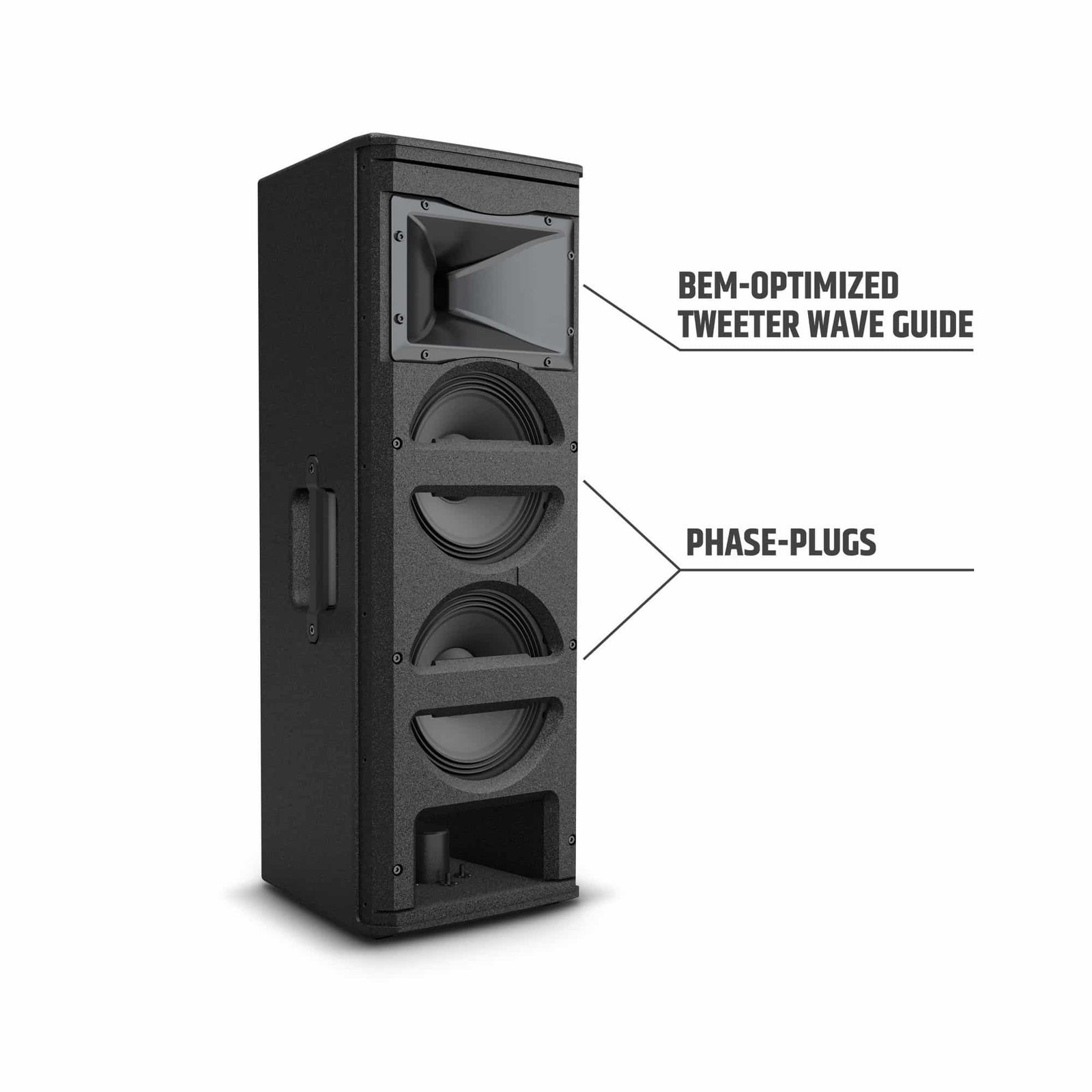

Engineered for rock-solid reliability day in, day out this passive 2-way loudspeaker is a truly professional performer. With its multi-purpose bass reflex construction it is equally suitable for fullrange, satellite or monitor use in live PA systems and permanent installations. The STINGER® 28 G3 boasts a mighty 400 watts RMS power handling and 125 dB maximum sound pressure. It is loaded with dual custom designed 8” woofers and a BMS compression driver delivering a punchy low end and smooth, crisp highs. The HF waveguide has been designed using BEM, the numerical modeling of sound radiation and propagation. It reduces floor and ceiling reflections, effectively eliminates side lobes and achieves a controlled uniform coverage pattern. Situated directly in front of the two 8” woofers, phase plugs ensure that midrange efficiency is increased and harmonic distortion above the crossover frequency is reduced.

004-security

1 Year
Warranty

003-genuine

Genuine
Products

008-help-desk

Free Tech
Support

001-free-delivery

Secure
Shipping

006-money-back-guarantee

Absolute
Satisfaction

007-van

3 Days
Dispatch

Product Type:

PA loudspeaker

Type:

Passive

Low/mid Woofer dimensions

2 x 8 "

Woofer dimensions (mm)

2 x 203.2 mm

Woofer magnet

Ferrite

Woofer brand

Custom-made

Woofer voice coil (inch)

2 "

Woofer voice coil (mm)

50.8 mm

Horn

BEM optimized CD Horn

HF driver dimensions

1 "

HF driver dimention (mm)

25.4 mm

HF driver magnet

Ferrite

HF driver brand

BMS

HF driver voice coil

1 "

HF driver voice coil (mm)

25.4 mm

Dispersion (H x V)

90 x 50 °

Load rating (RMS)

400 W

Peak power

800 W

Frequency response

58 – 20000

SPL (1W/1m)

99 dB

Max. SPL

125 dB

Impedance

8 Ohm(s)

Protection circuits

HF Driver

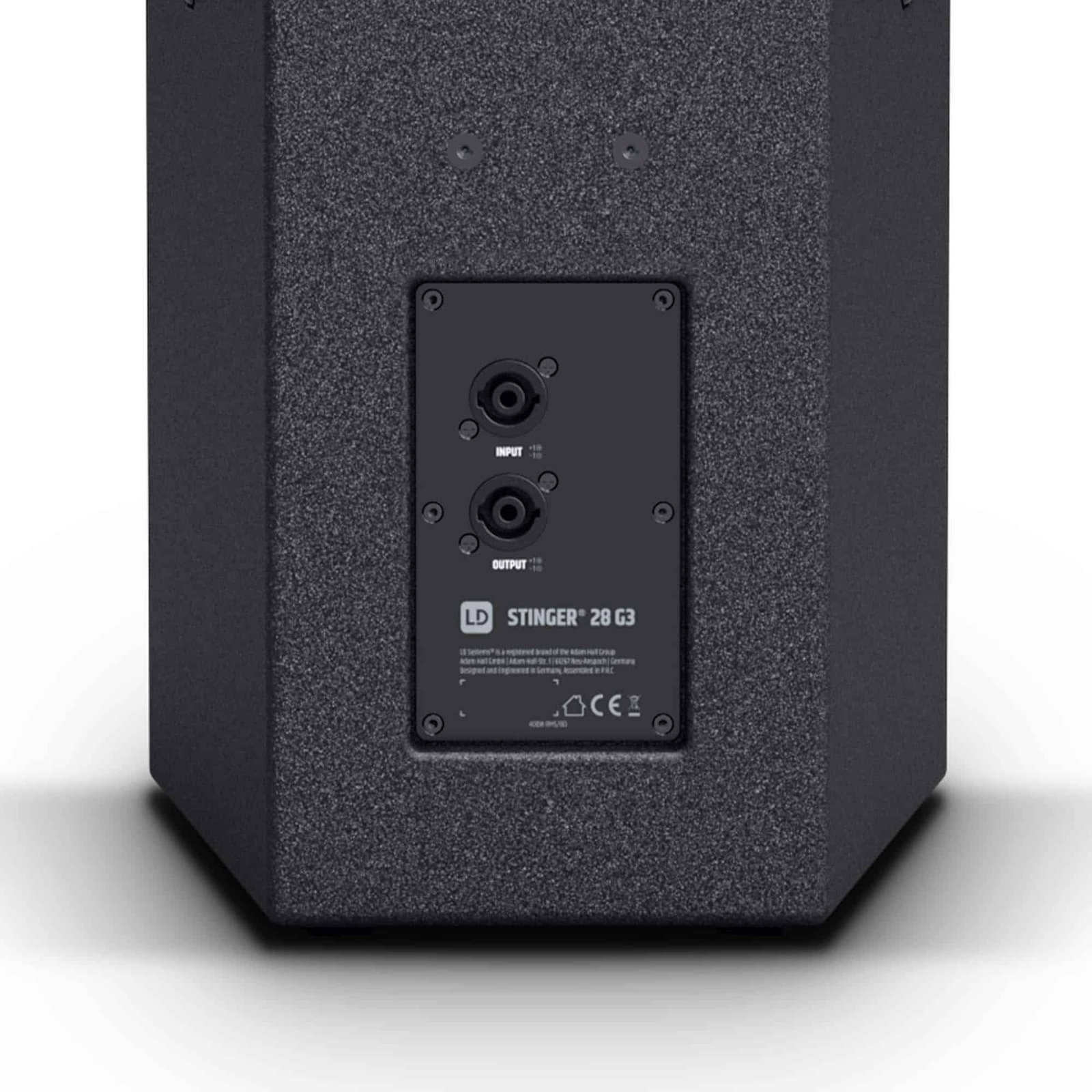

Loudspeaker inputs

1

Speaker input connections

Speakon compatible

Loudspeaker outputs

1

Speaker output connections

Speakon compatible

Speakers per amplifier channel (DSP44/45K)

3

Cabinet material

12 mm Plywood

Cabinet surface

Polyurea

Width

270 mm

Height

756 mm

Depth

290 mm

Weight

19,3 kg
