Mid/ Hi System

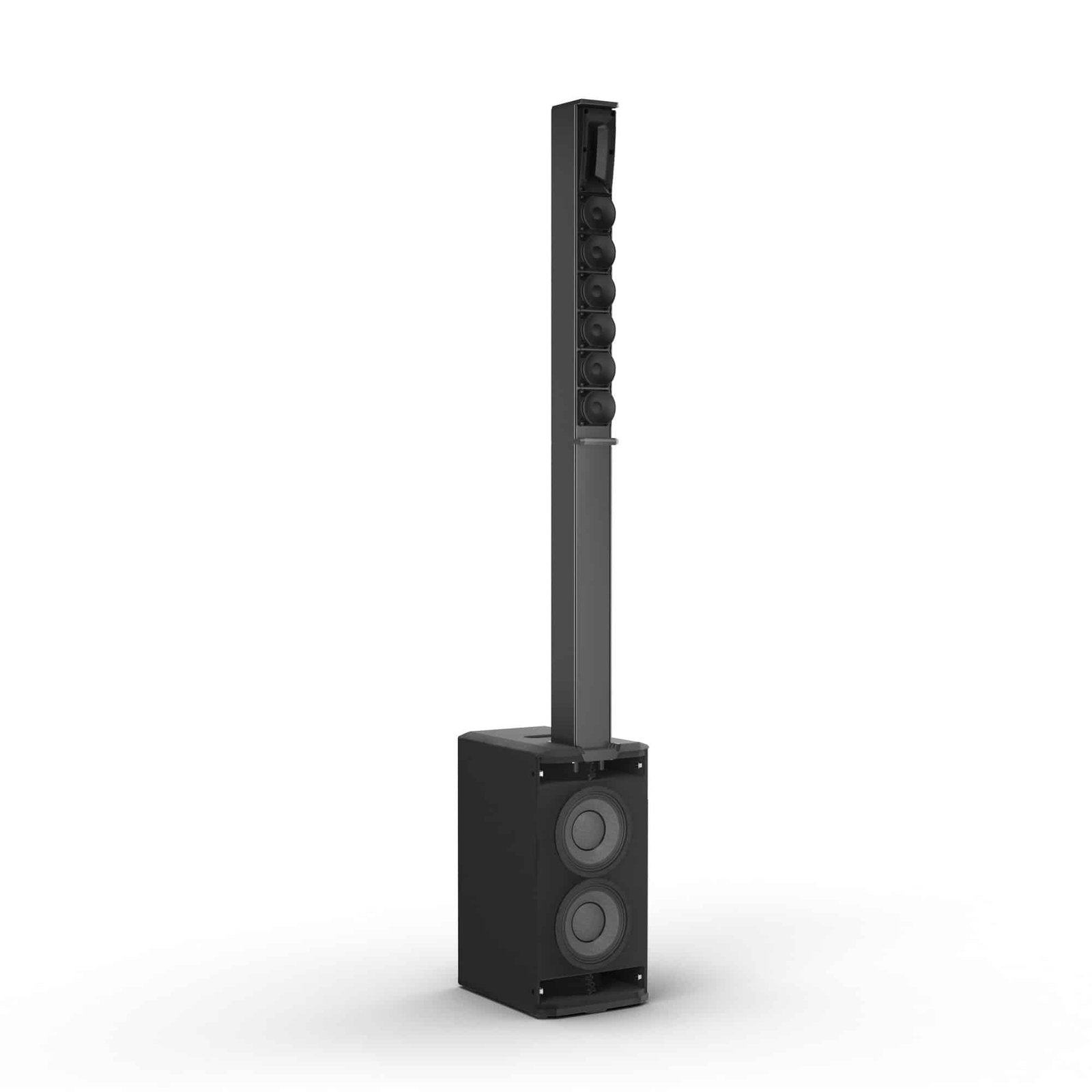

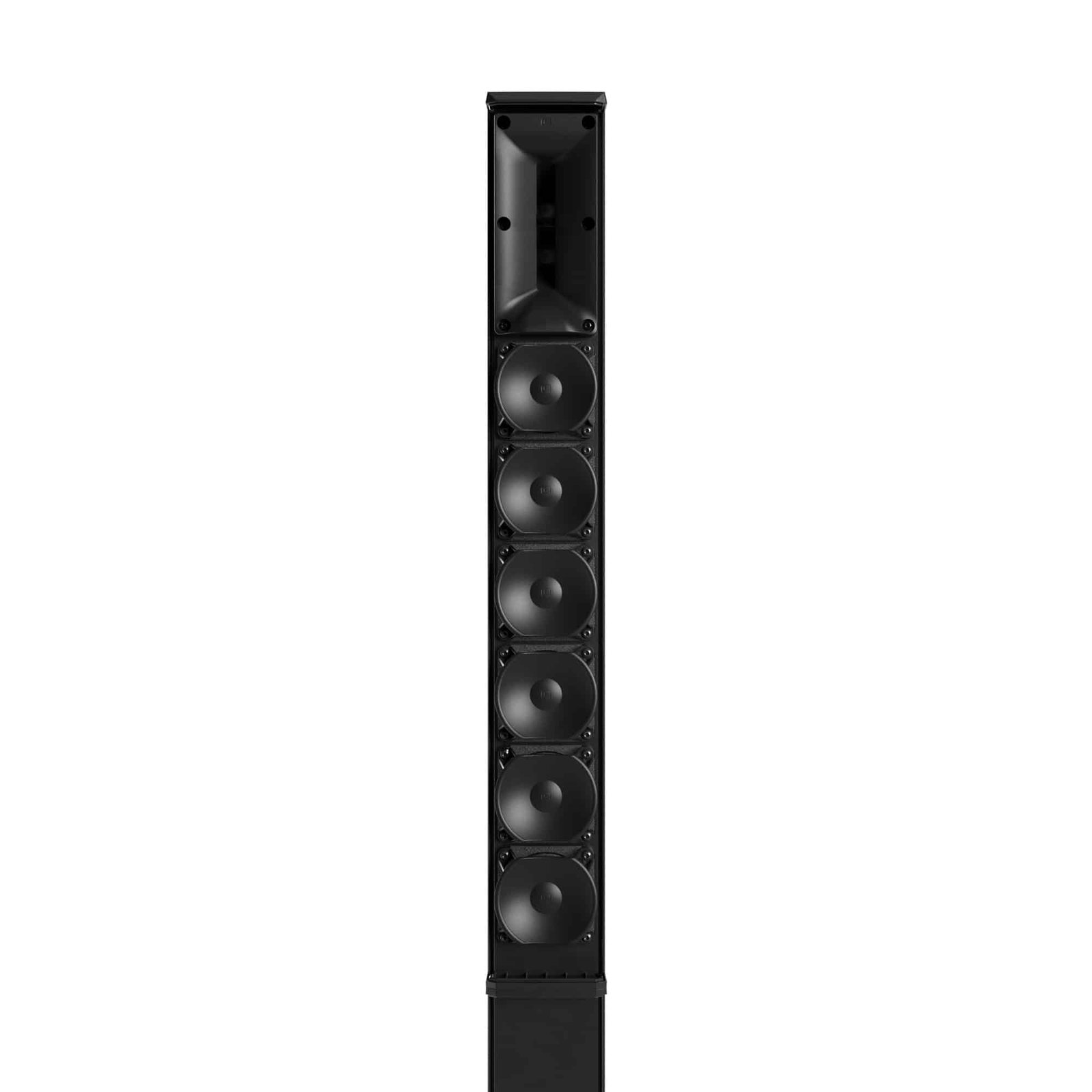

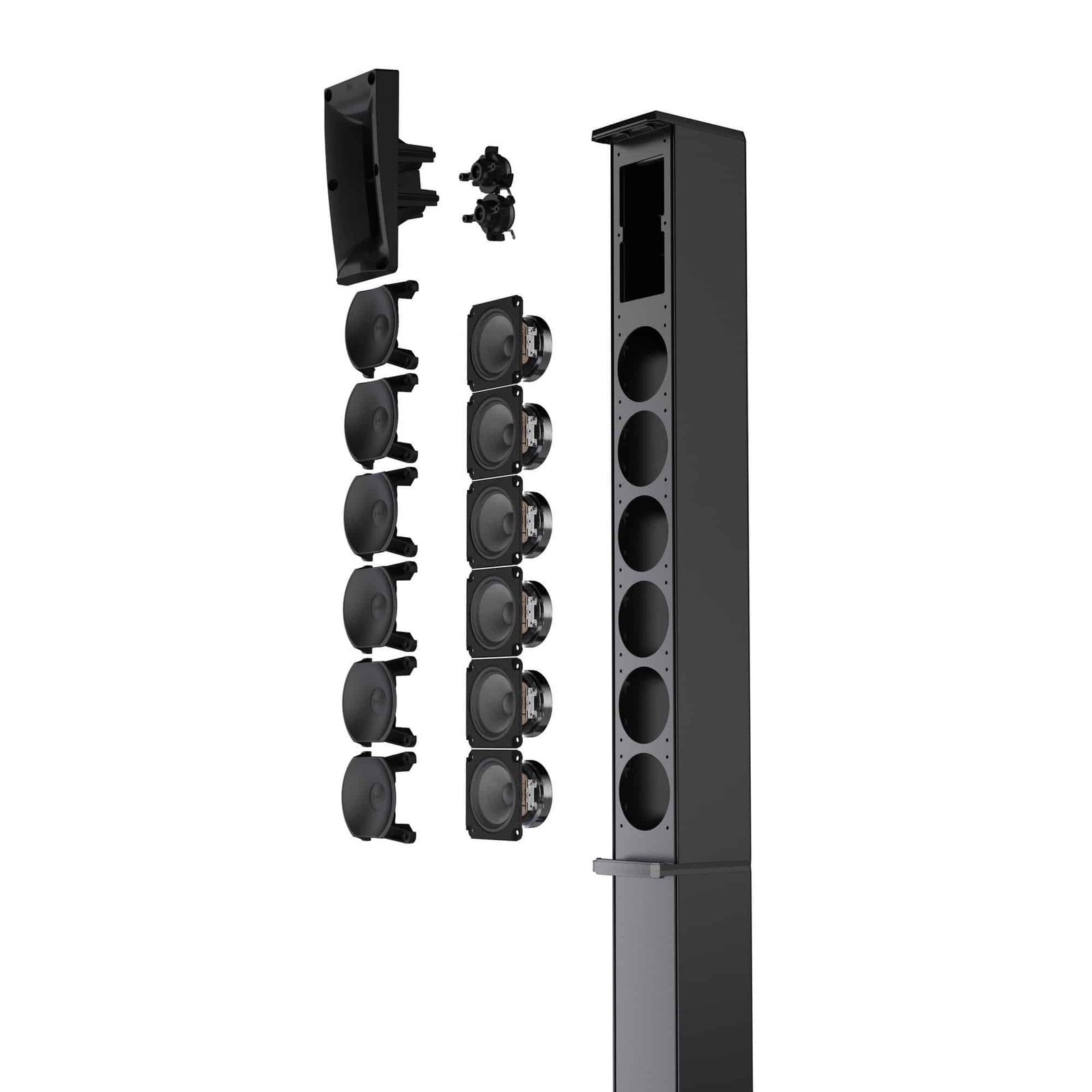

Midrange dimensions : 6 x 3.5 “Midrange dimensions (mm) : 6 x 89 mmMidrange magnet : FerriteMidrange brand  : Custom-madeMidrange voice coil : 0.75 “Midrange voice coil : 19 mmTweeter dimensions : 2 x 1 “Tweeter dimensions (mm) : 2 x 25.4 mmTweeter magnet : NeodymiumTweeter brand : Custom-madeTweeter voice coil  : 1 “Tweeter voice coil (mm) : 25.4 mmWave Guide : CD WaveguideLoudspeaker inputs : 1Speaker input connections : Custom-made multipinCabinet construction mid/high : Passive CardioidMid/Hi system cabinet material : AluminiumMid/Hi system cabinet surface : Powder-coatedMid/Hi system width : 103 mmMid/Hi system height : 1460 mmMid/Hi system depth : 135 mmMid/Hi system weight : 10.2 kg

Amplifier module (integrated in subwoofer)

Amplifier : Class D
System output (RMS) : 730 W
System output (Peak) : 1460 W
Protection circuits : DC protection, Multiband limiter, Short circuit, Thermal protection
Cooling : Convection

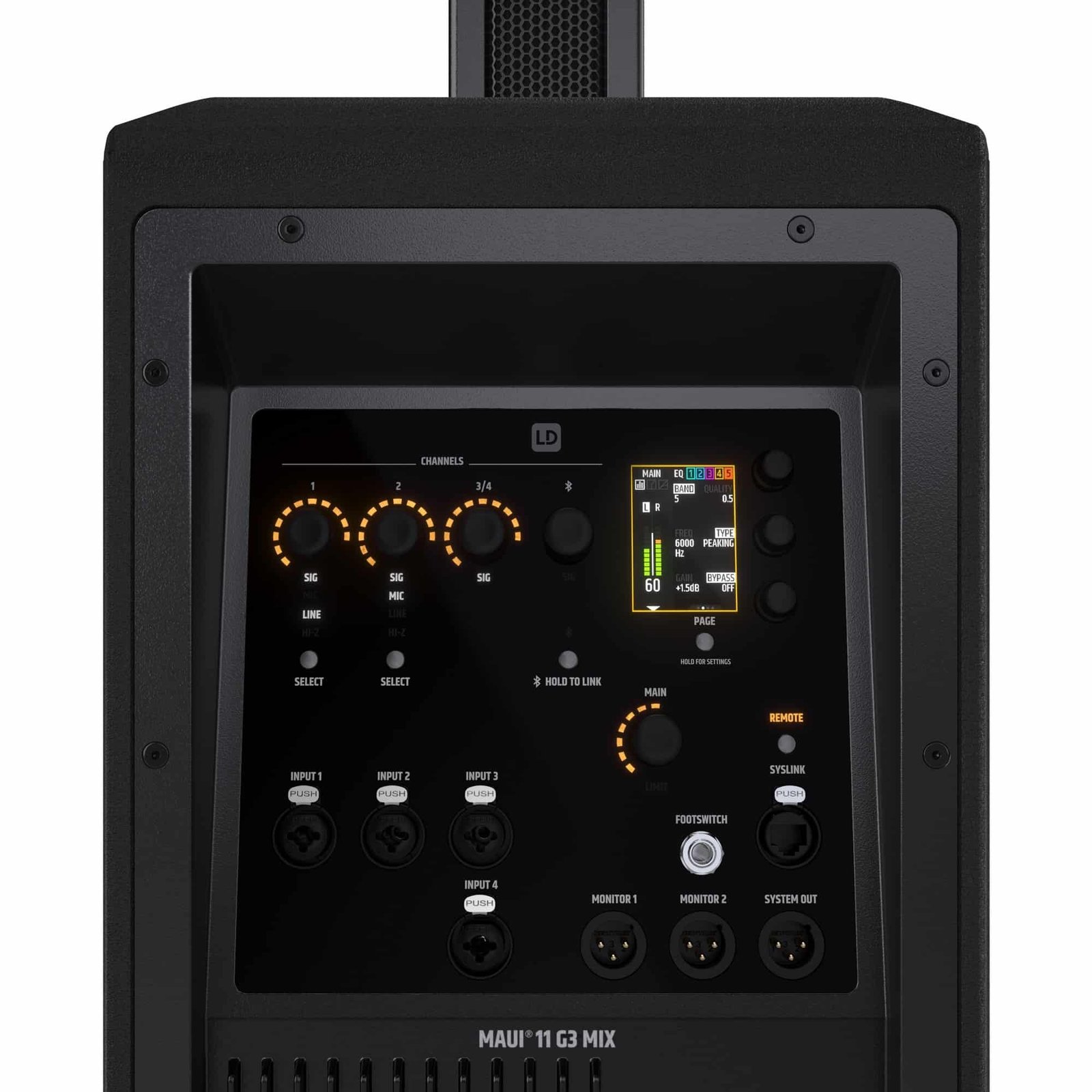

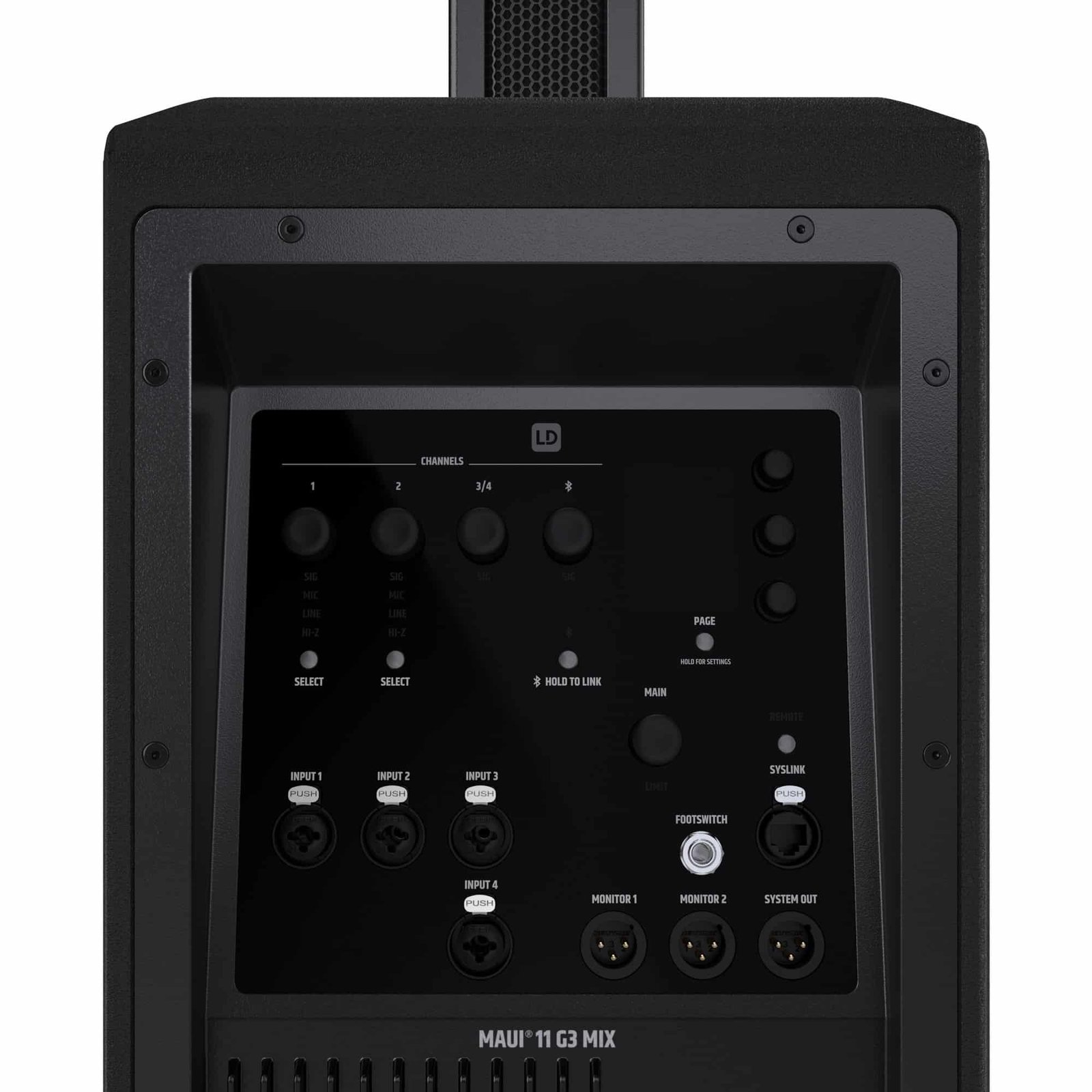

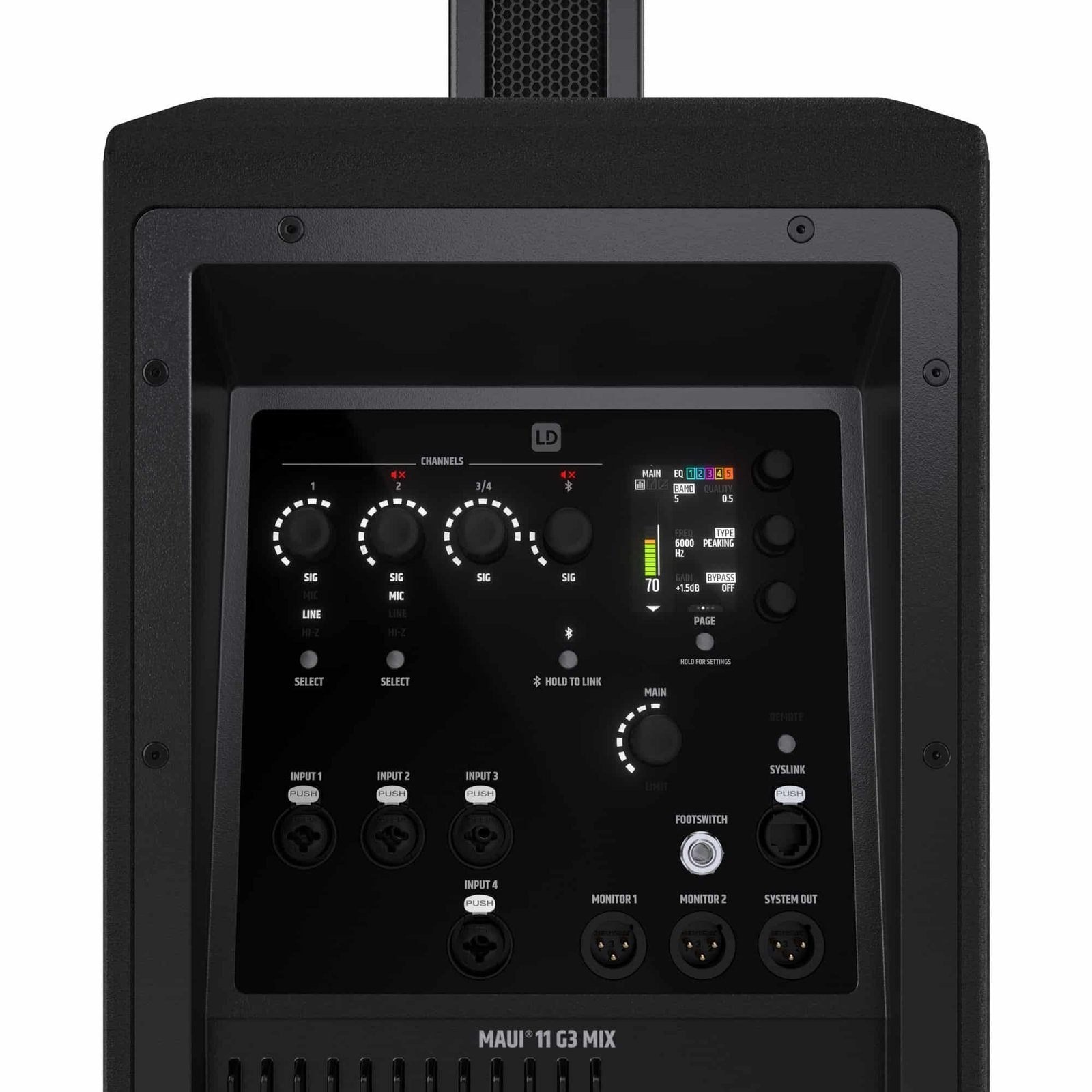

Controls : Bluetooth HOLD TO LINK button, Cardioid On/Off, Main level, Power On/Off, Sub level

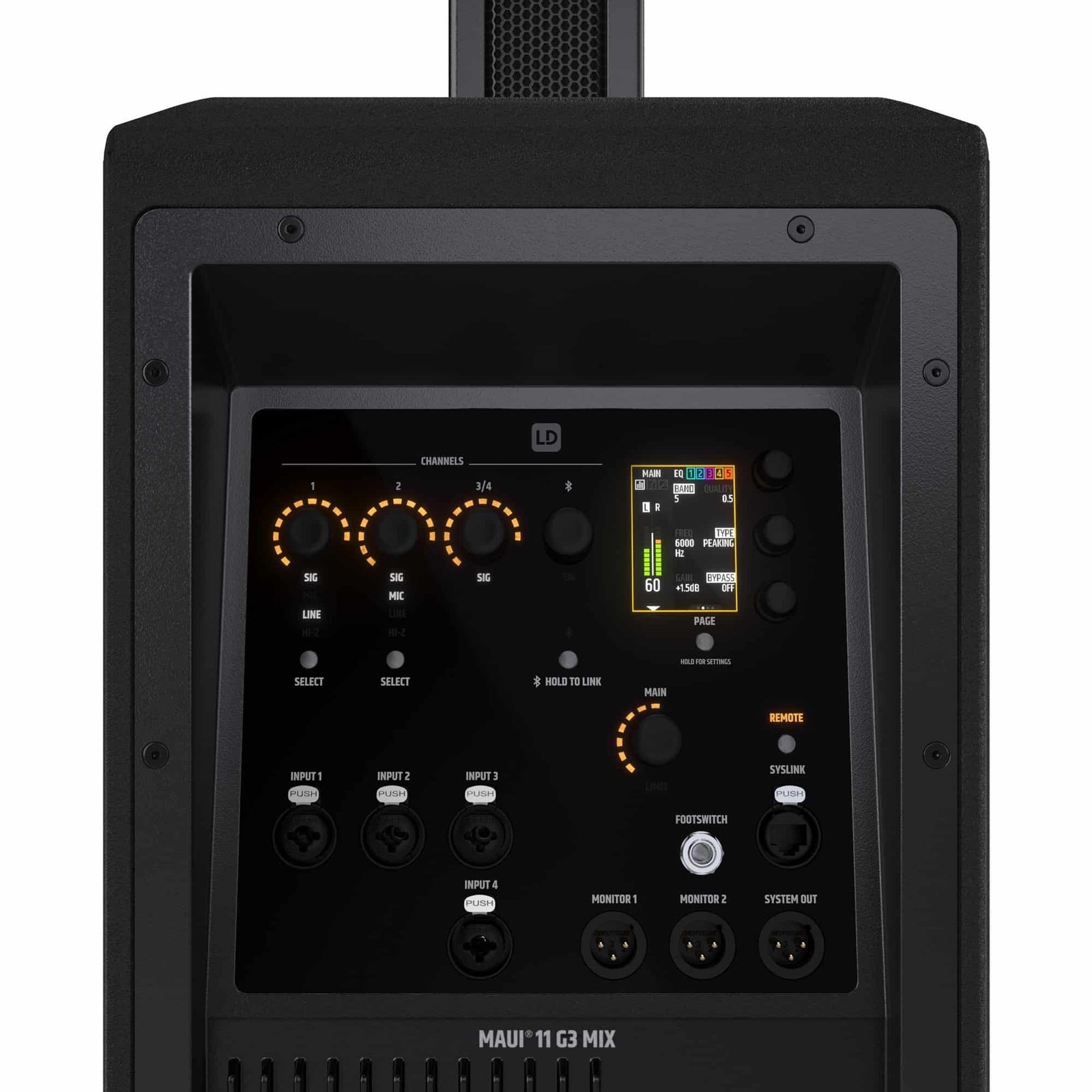

Indicators : Bluetooth, Cardioid On/Off, Follower mode, Limit, Power, Protect (protection circuit engaged), Signal, Subwoofer Mode
Mains connector : PowerCon
Operating voltage : 100 V AC – 120 V AC, 50 – 60 Hz, 220 V AC – 240 V AC, 50-60 Hz
Fuse : T 3.15AL / 250 V
Power consumption : 300 W
Ambient temperature (operating) : 0 – 40 °C
Relative Humidity : < 80% (non-condensing)

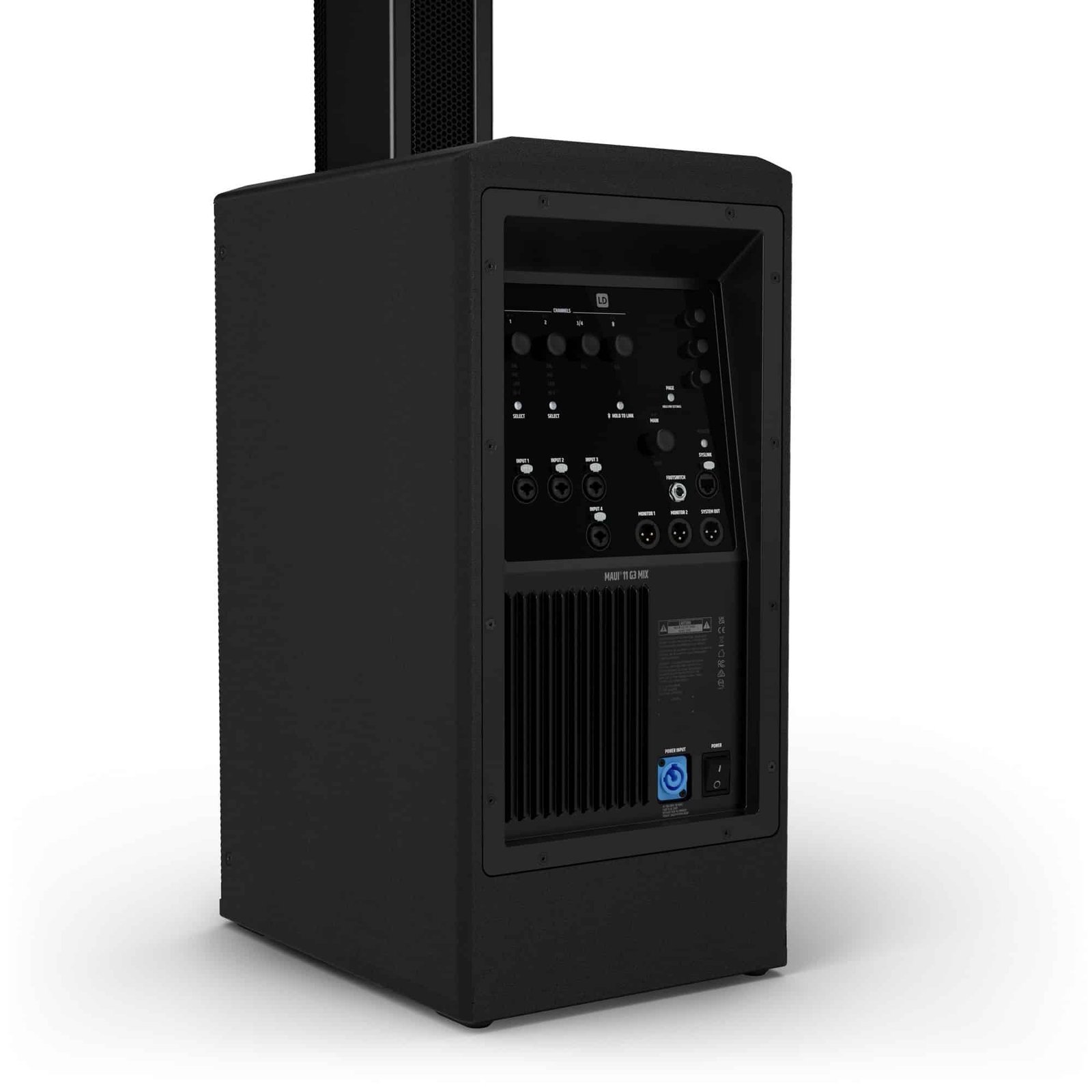

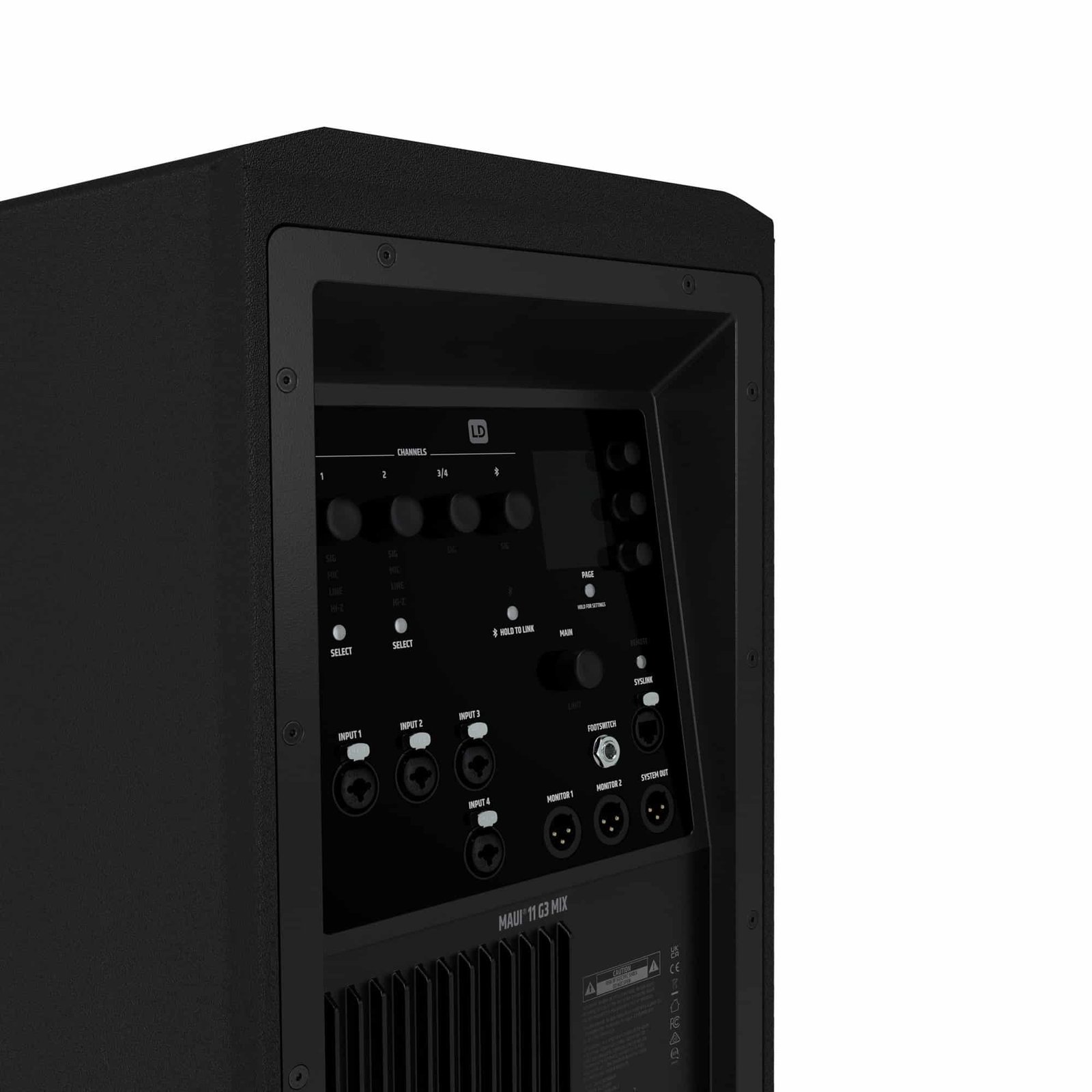

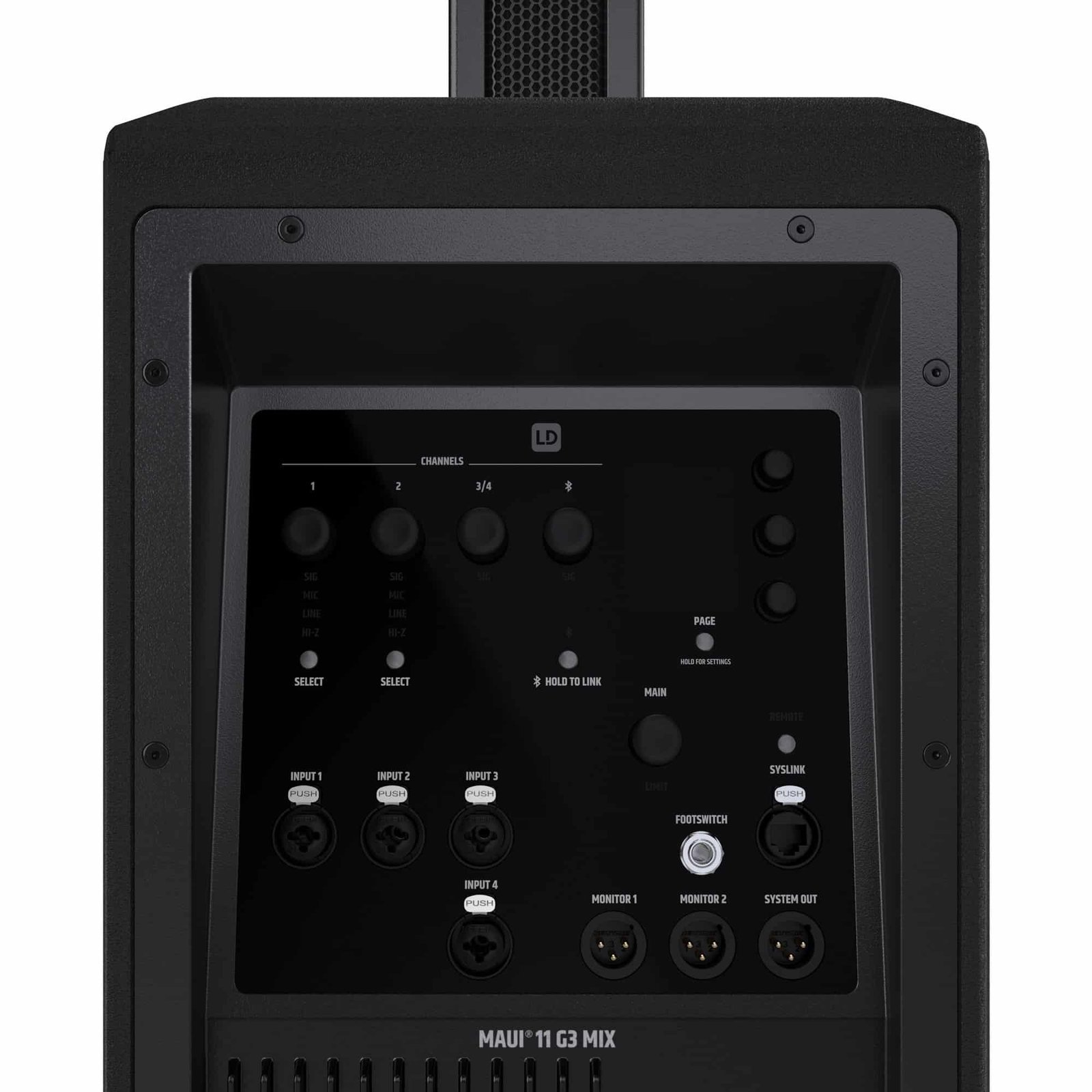

Line Inputs : 4, FootswitchLine Input Connectors : Combo XLR / TRS
Line Outputs : 1 System OUT, 2 Monitor OUT
Line Output Connectors : XLR male
Number of speaker outputs : 1
Loudspeaker Output Connectors : Custom-made multipin
Bluetooth Standard : A2DP
Bluetooth Audio Decoder :  SBC
Other Connections : 1 RJ45 SysLink® Port

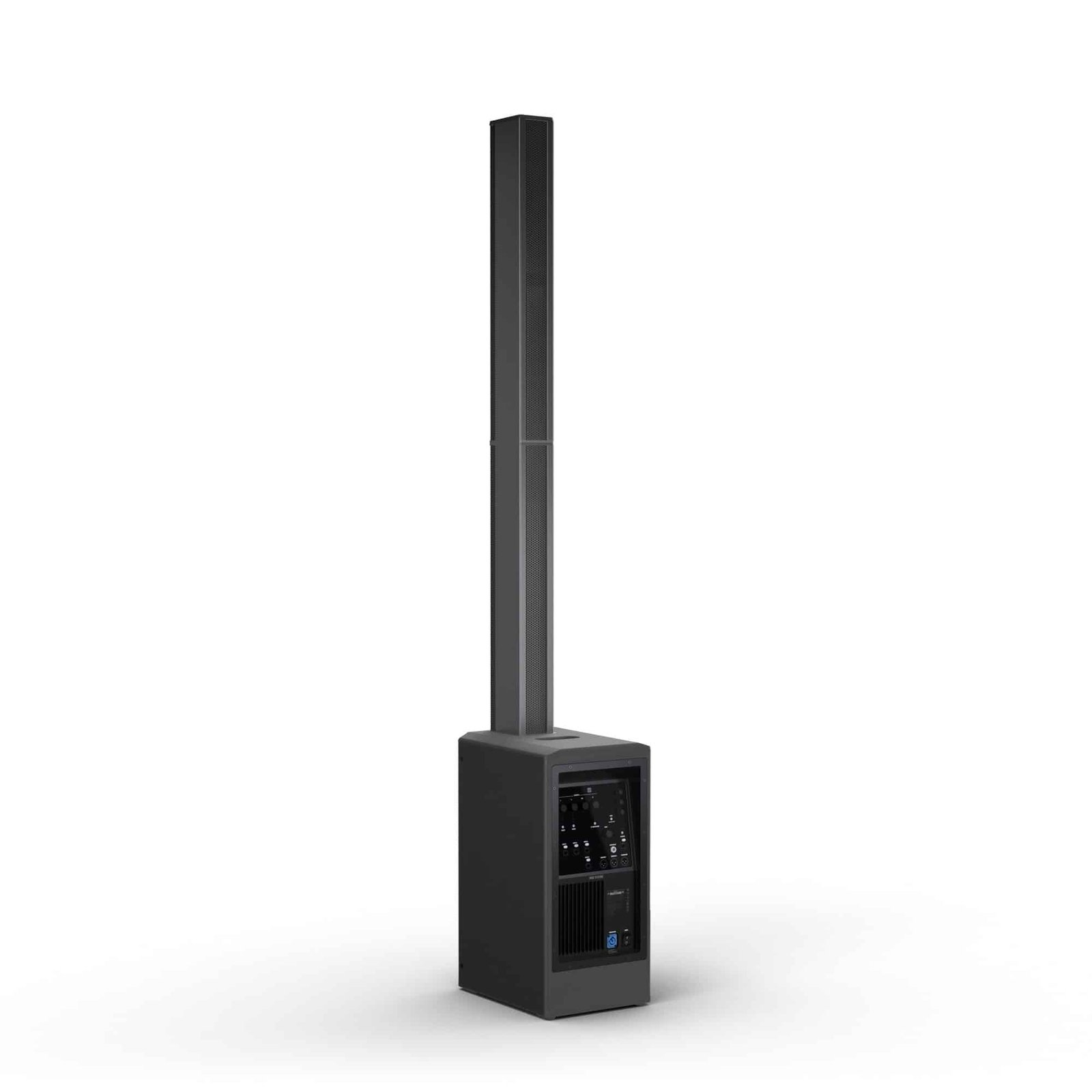

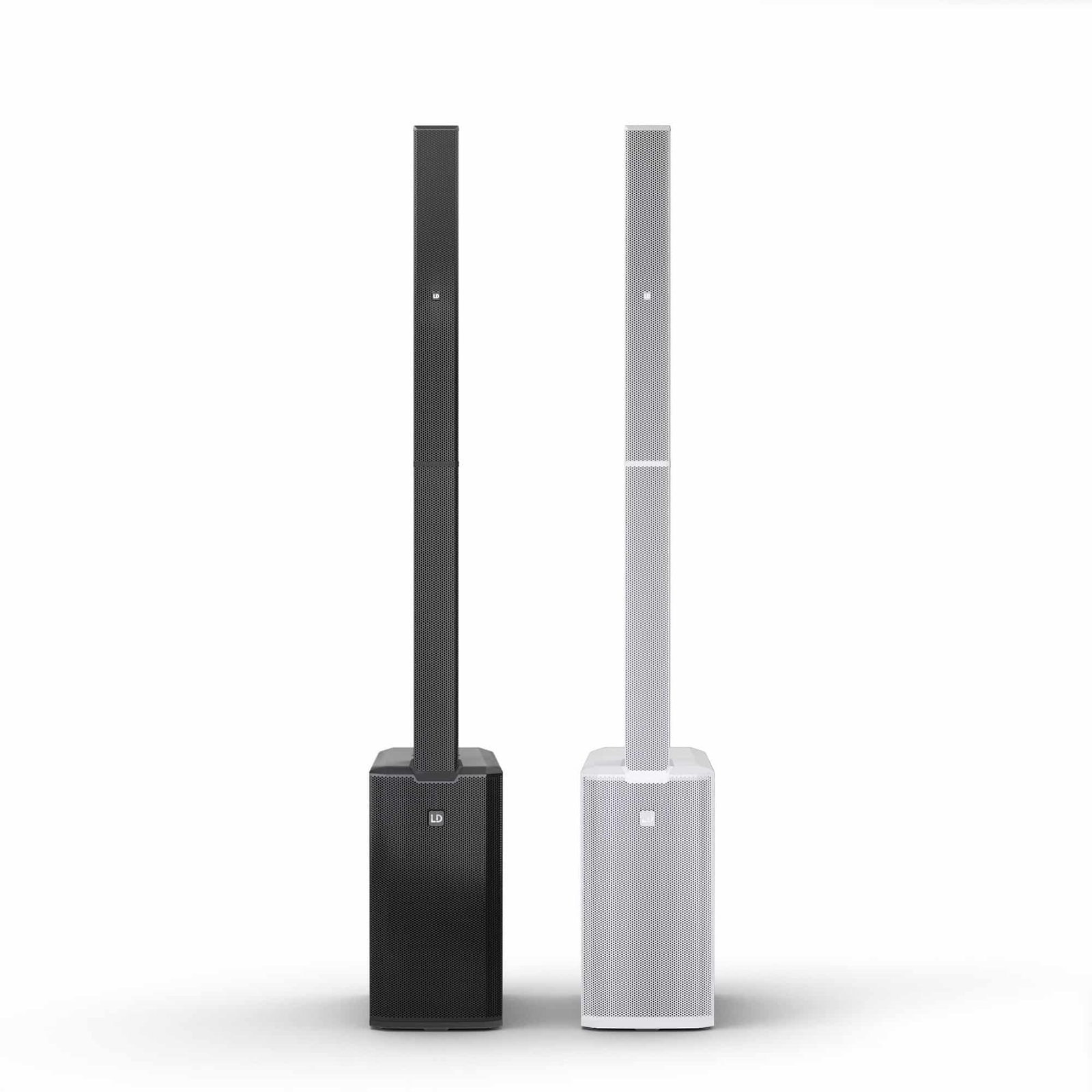

For professionals seeking a versatile and high-performance portable PA system, the LD System Portable cardioid column PA system offers an exceptional solution that combines powerful sound output with smart control features. Whether you are a live performer, event host, or public speaker, this system ensures your audio is delivered with clarity, precision, and ease, eliminating the common challenges of heavy, complicated setups and poor sound dispersion.

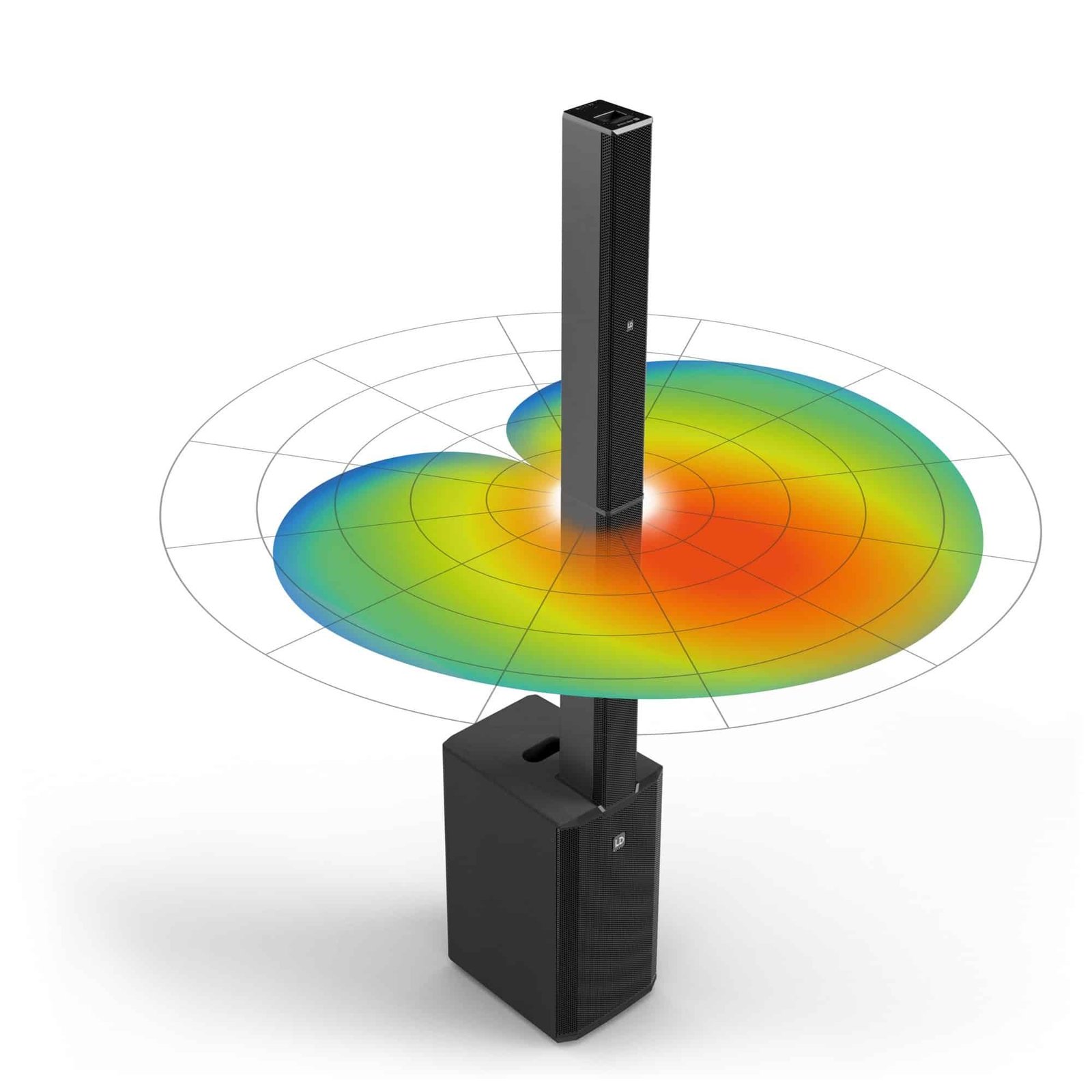

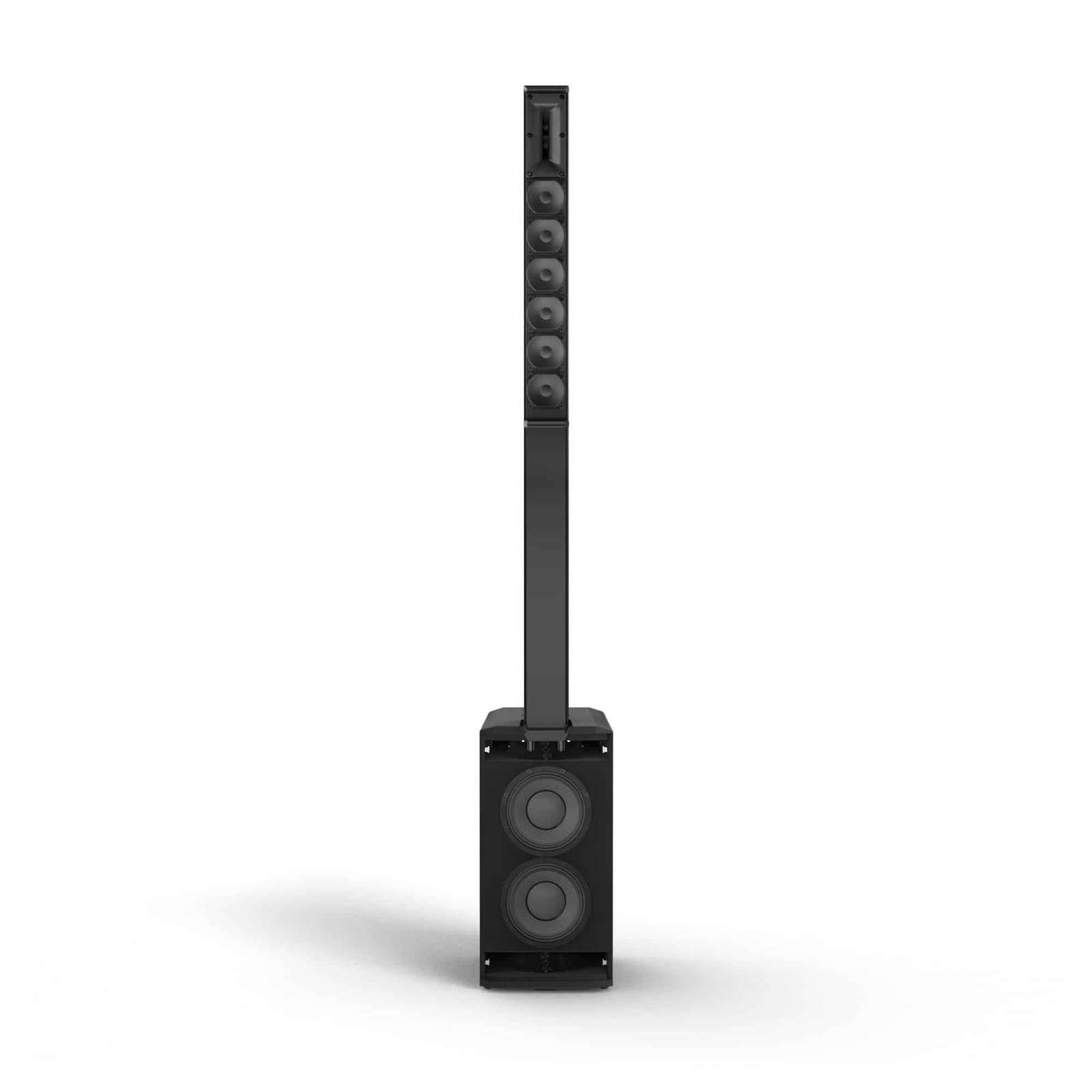

One of the standout advantages of this system is its cardioid column design, which significantly reduces unwanted feedback and minimizes rear sound projection. This means you get clear, focused sound directed towards your audience without the disruptive echoes or background noise that often plague live events. With a maximum peak SPL of 125 dB, the system delivers loud, room-filling audio capable of reaching large venues without distortion. The broad frequency response range of 39 Hz to 20,000 Hz ensures both deep bass and crisp highs, allowing your music or speech to sound natural and balanced.

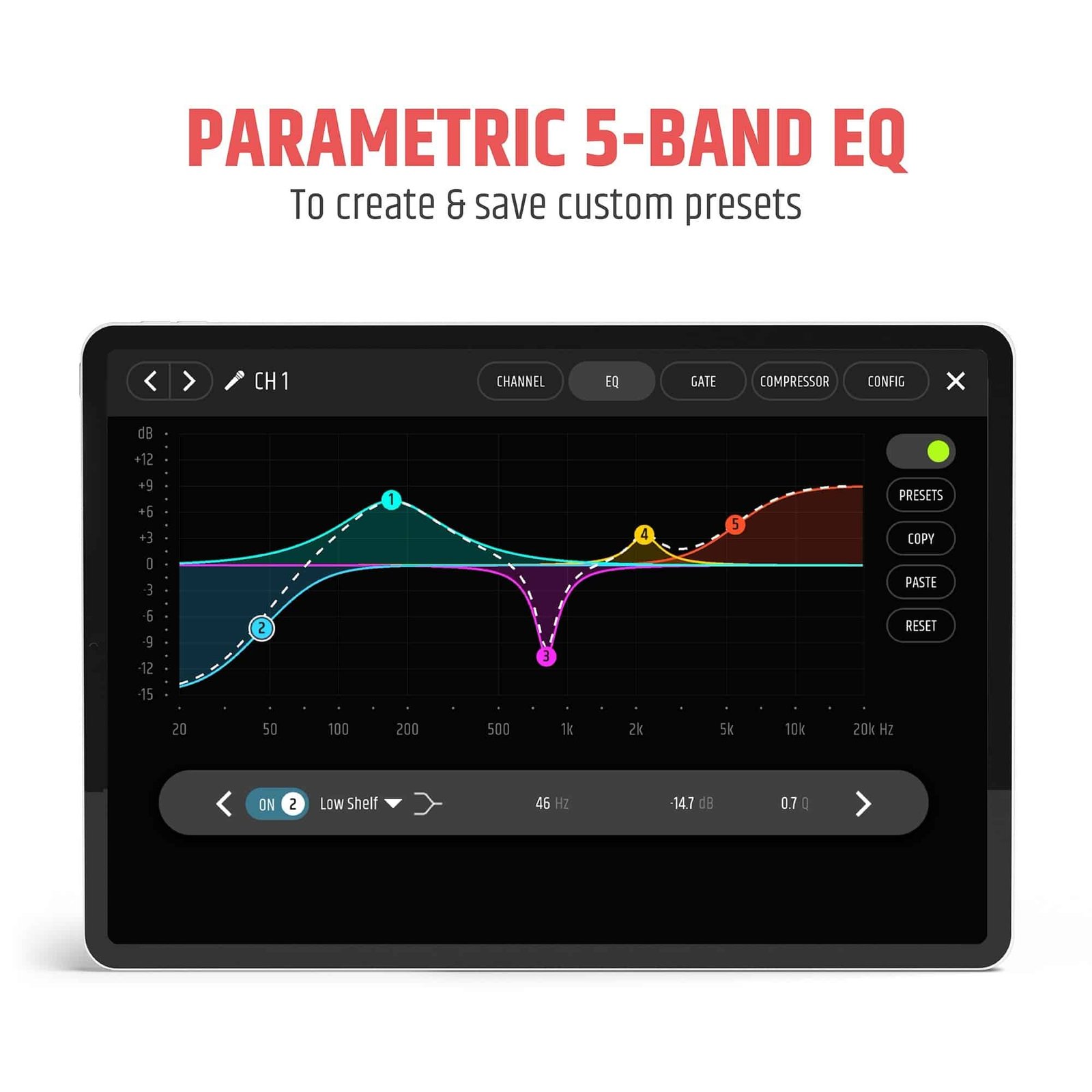

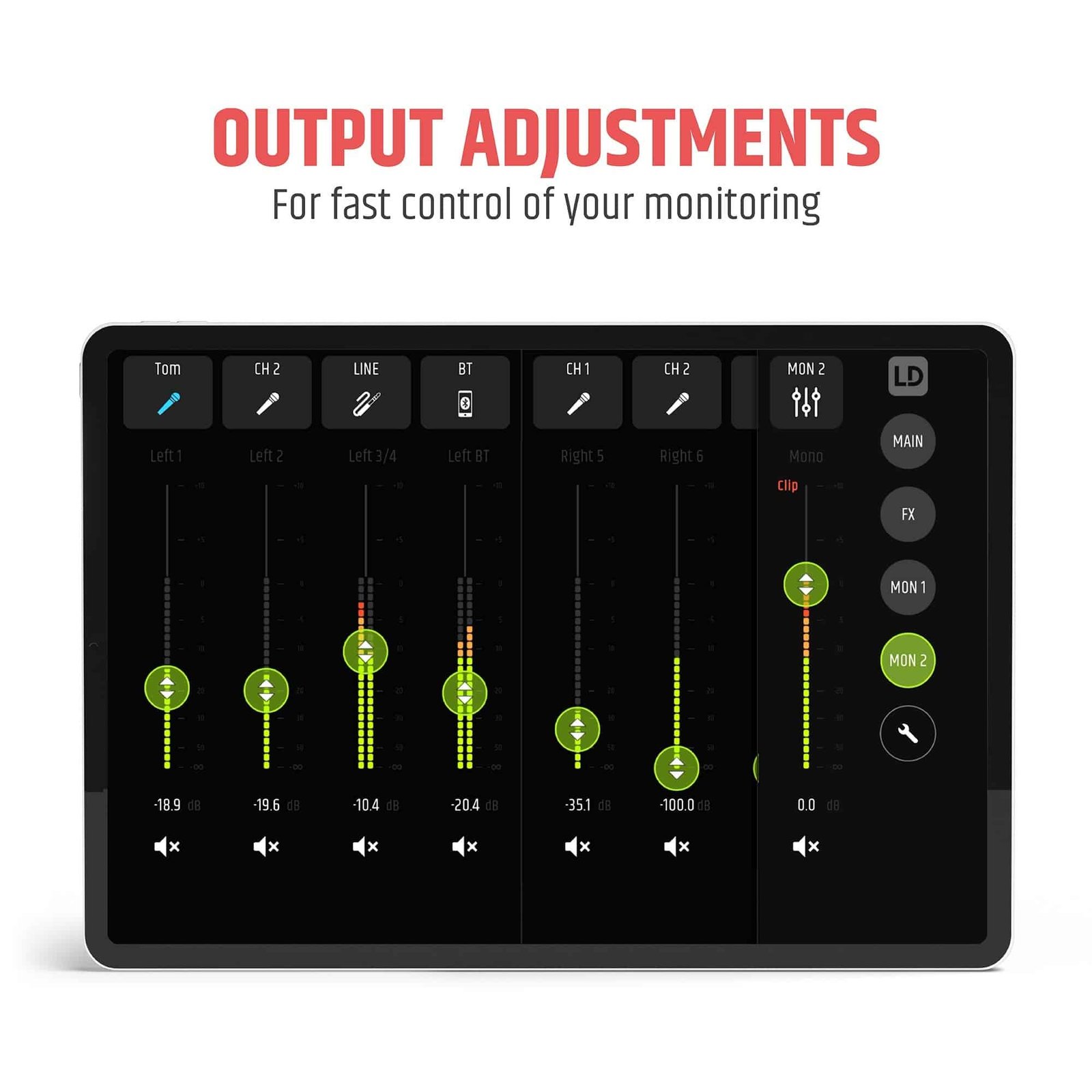

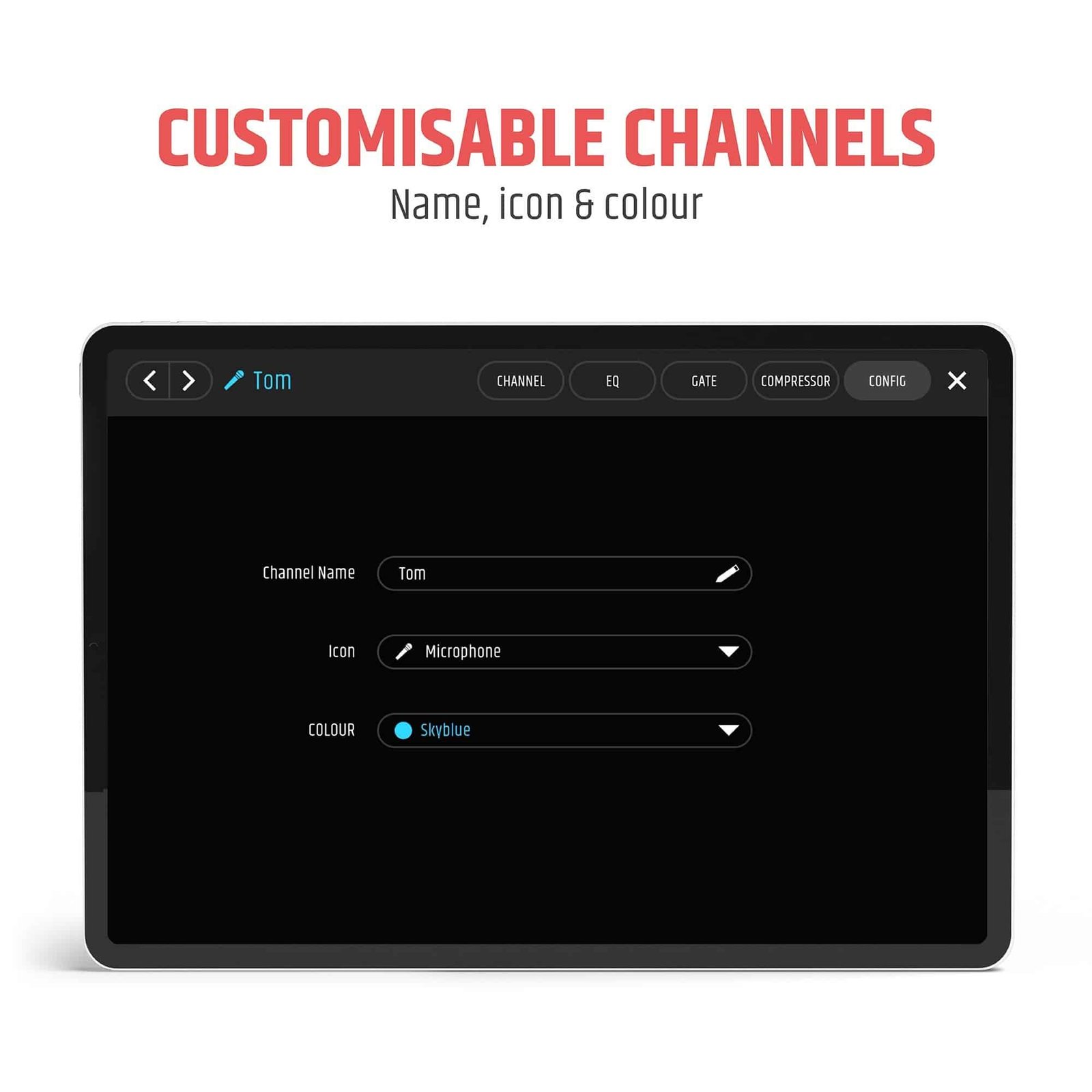

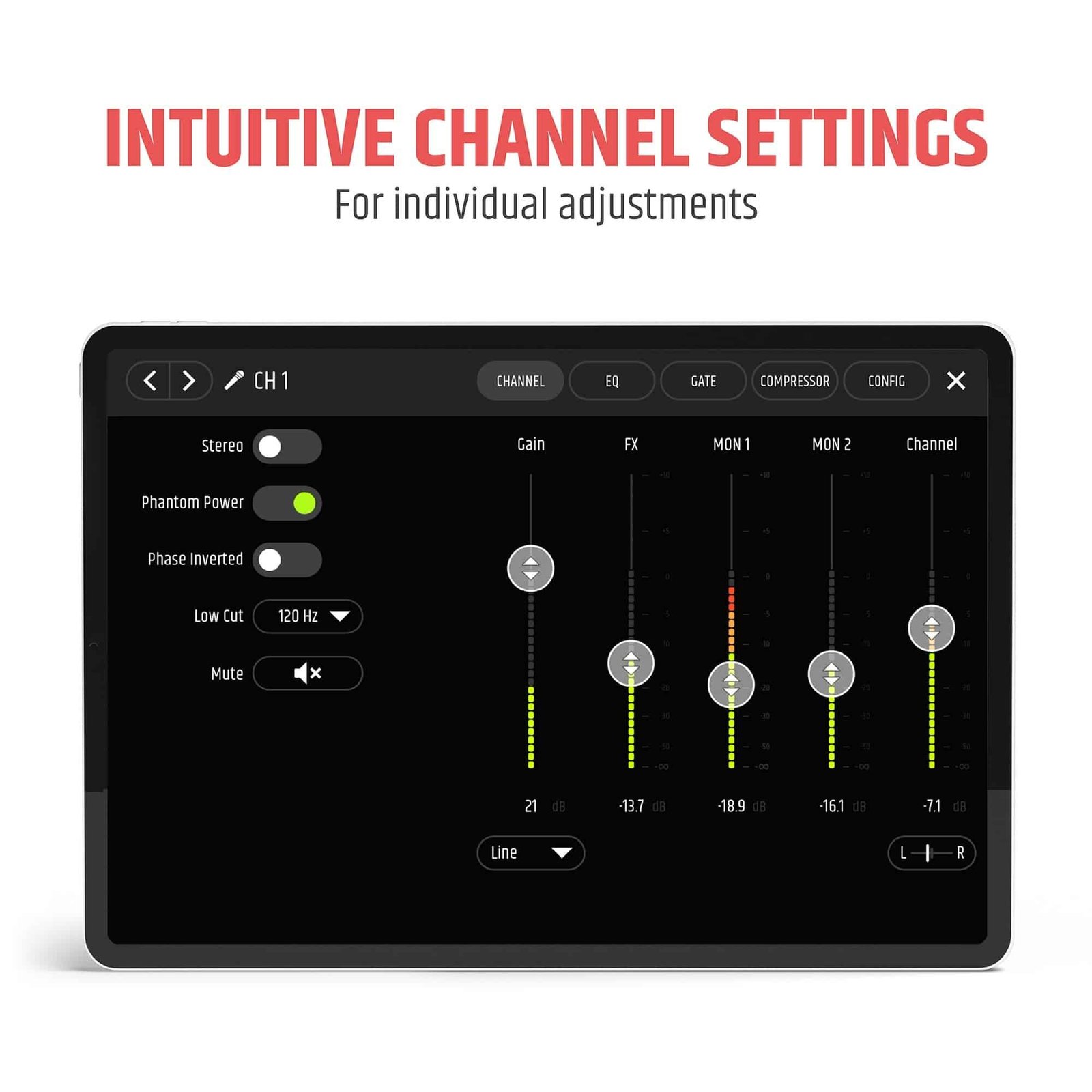

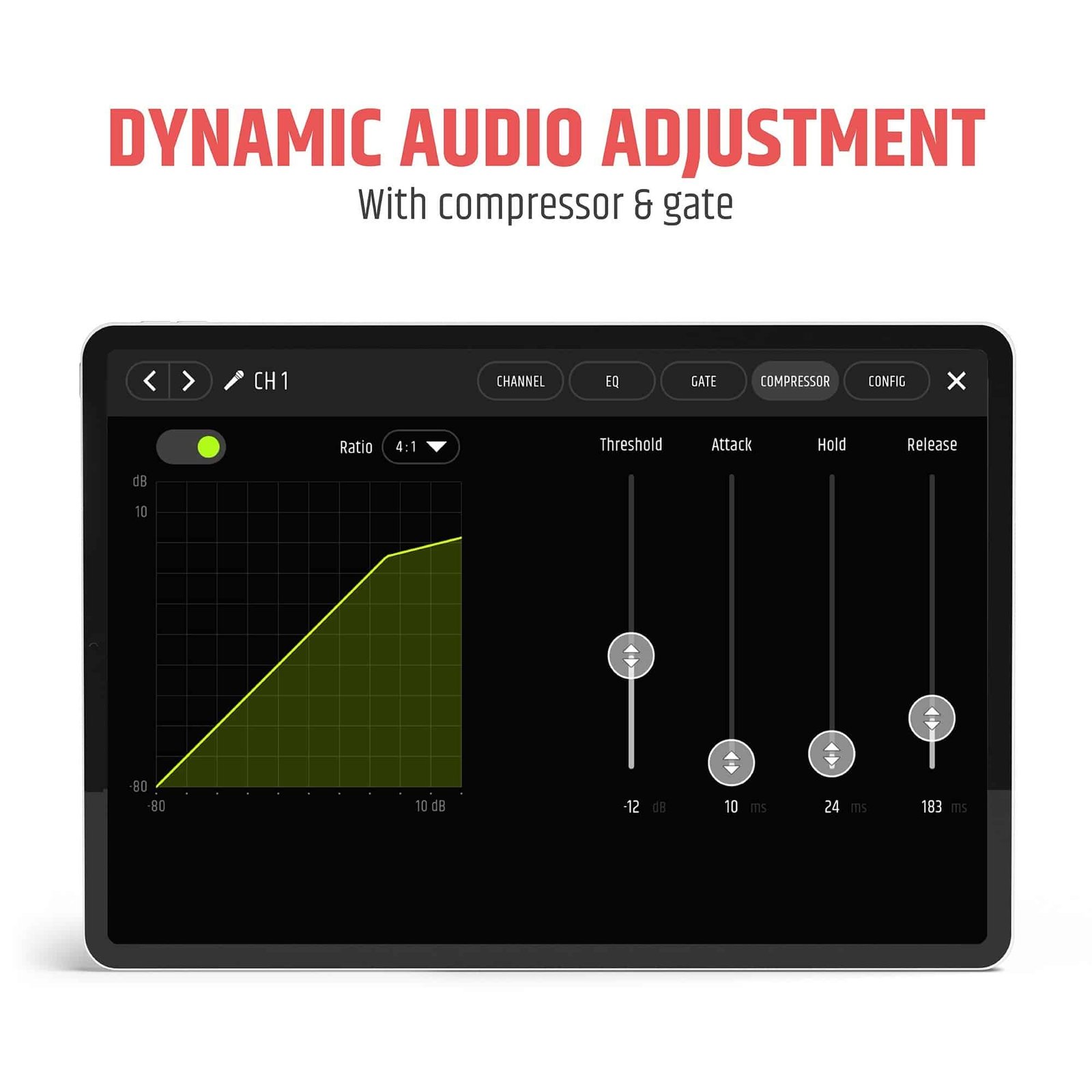

Equipped with a 6-channel digital mixer and integrated app control offering both Easy and Expert modes, this system empowers users to customize their sound with precision. The app interface allows remote adjustment of levels, EQ, effects, and dynamics, providing total control from your smartphone or tablet. Bluetooth audio streaming adds another layer of convenience, enabling wireless playback of backing tracks or playlists without the need for additional cables. For performers who require hands-free operation, the footswitch input opens the door to real-time control of effects or mute functions, enhancing live performance flexibility.

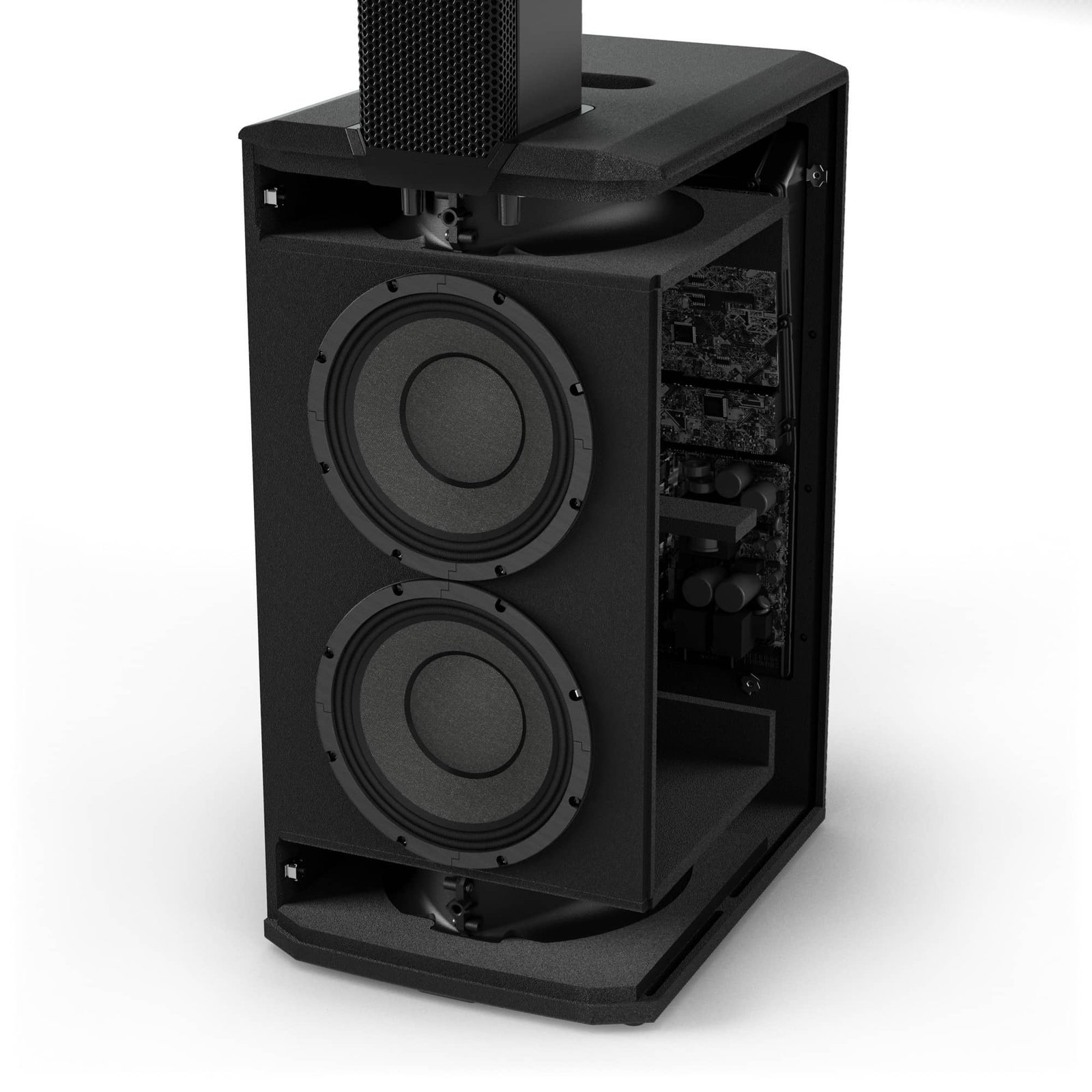

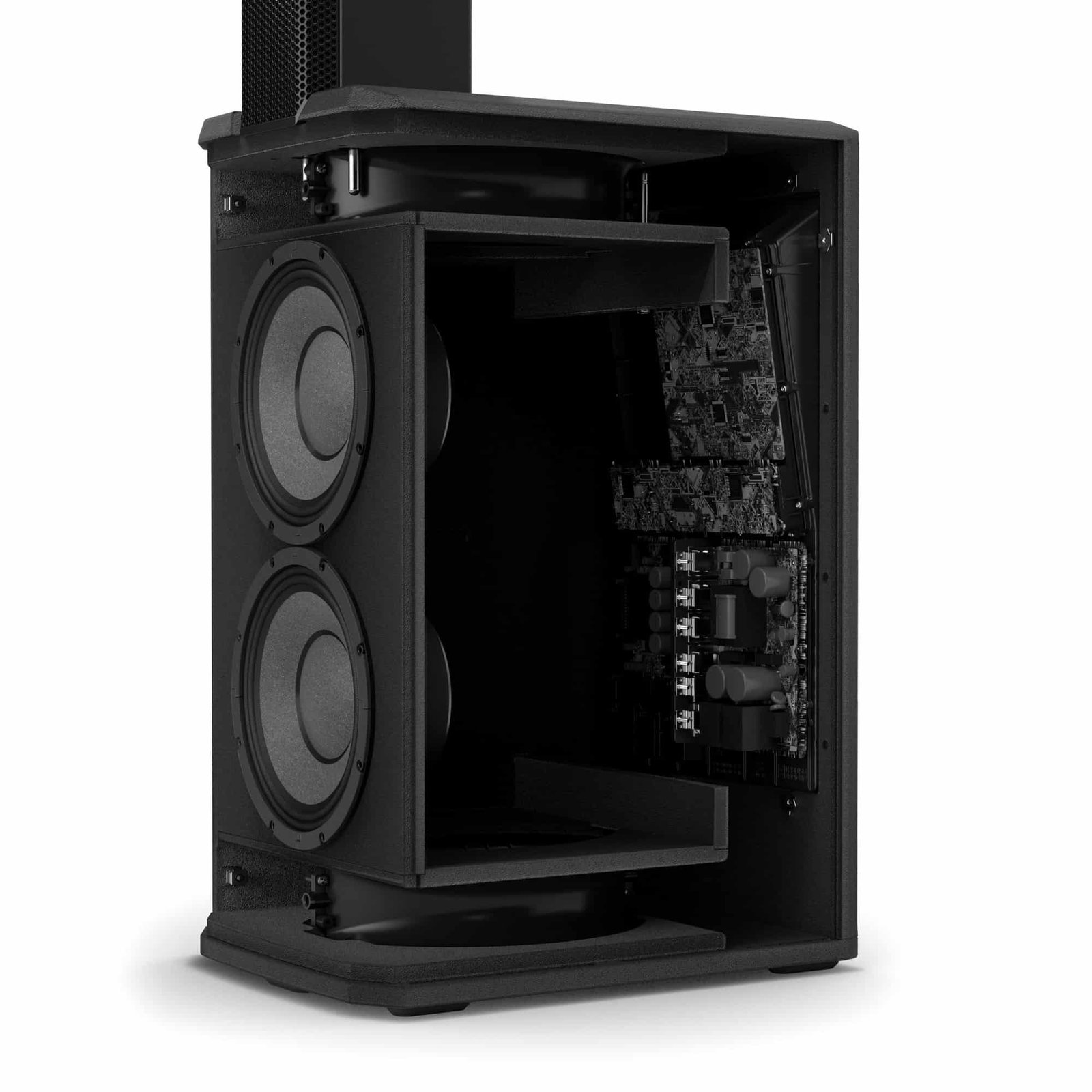

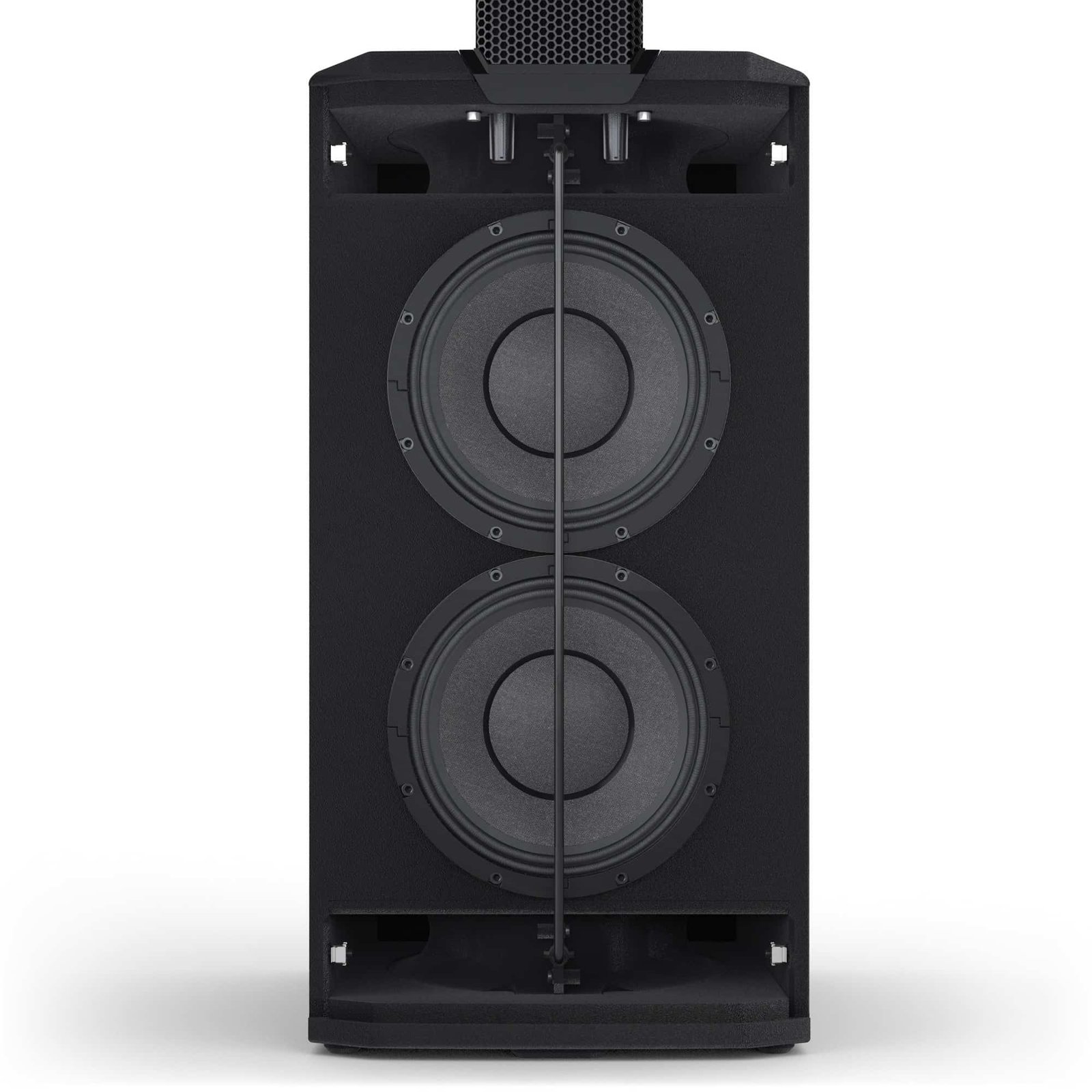

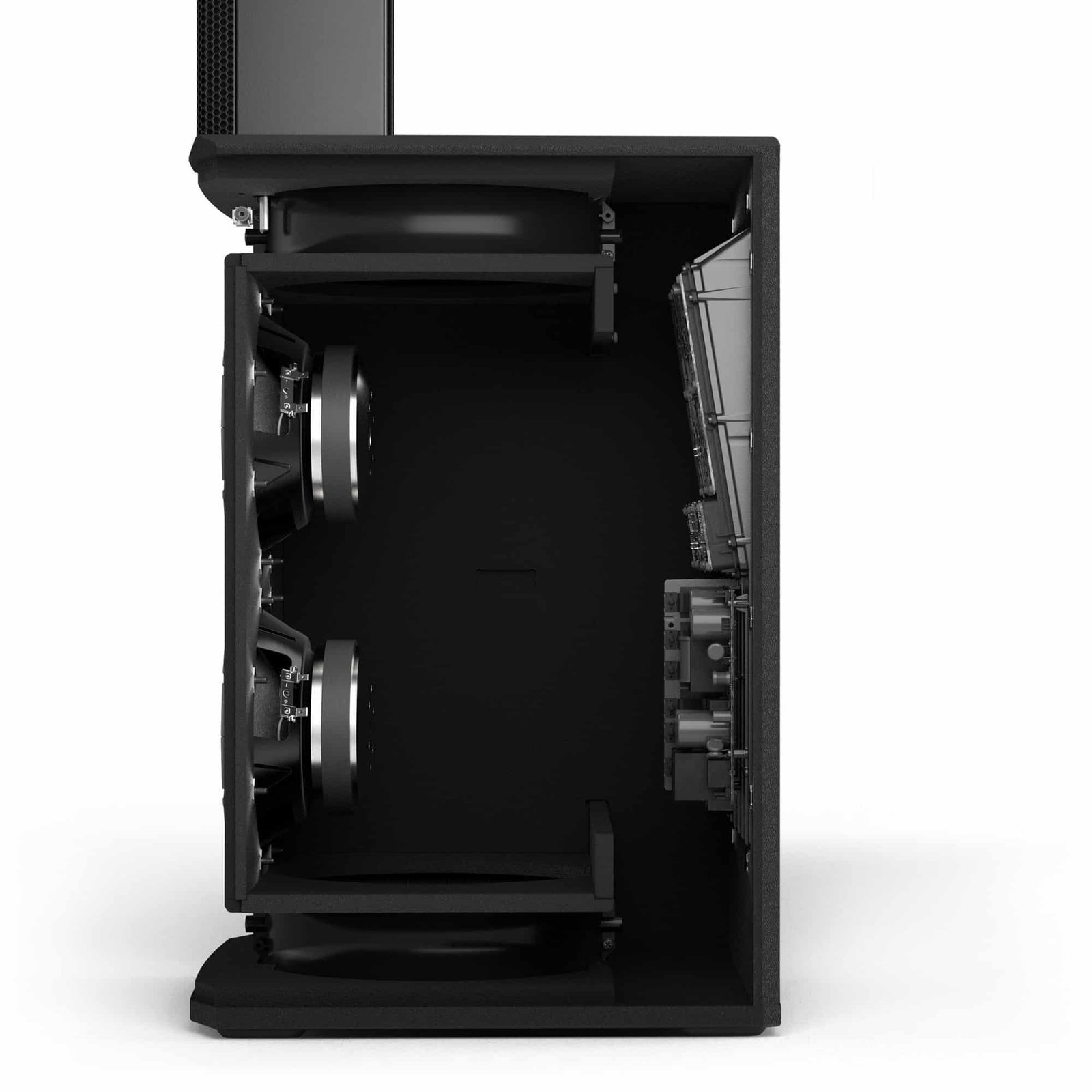

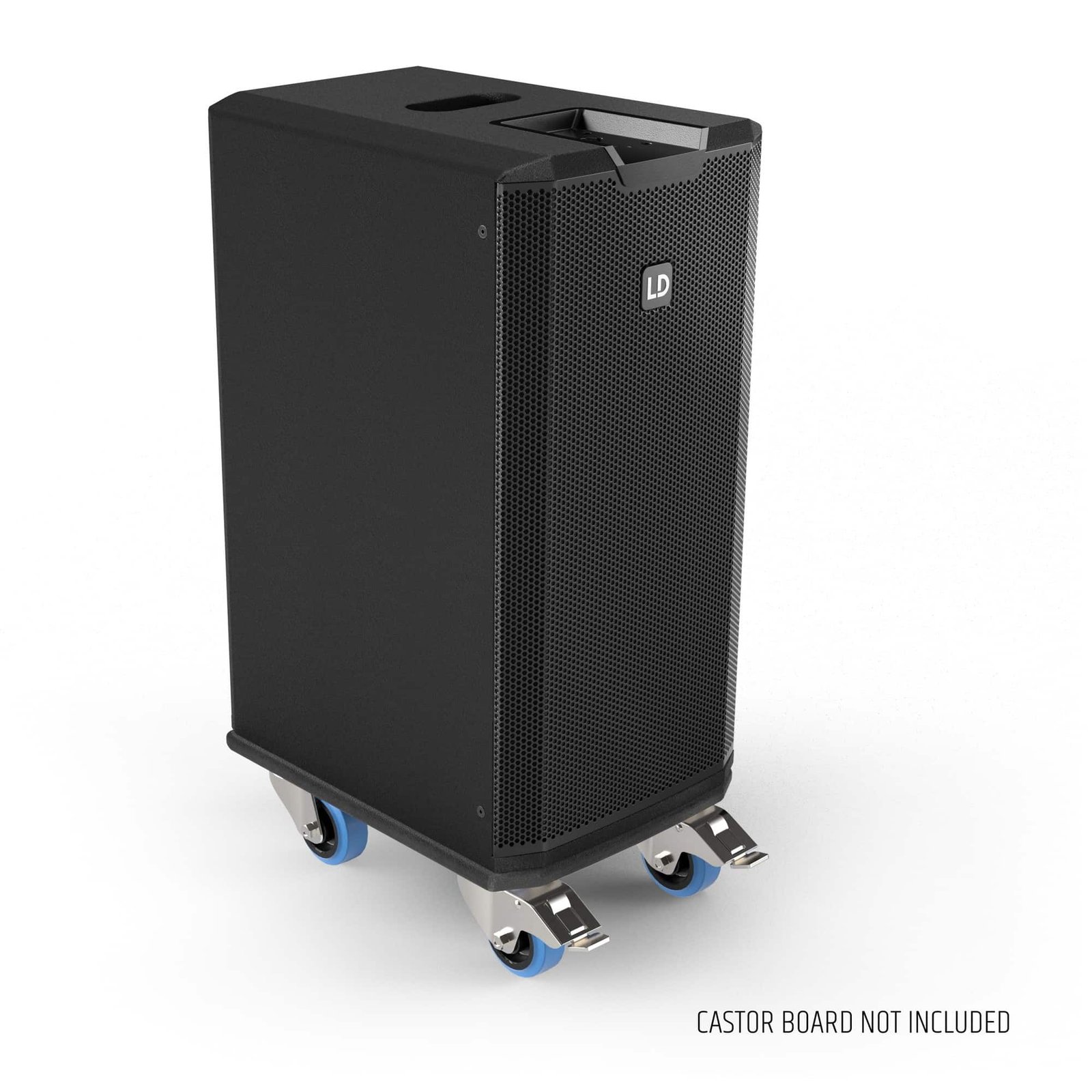

Constructed with durability and portability in mind, the PA system features a robust 15 mm birch plywood housing coated with a resilient polyurea surface, ensuring it withstands the rigors of frequent transport and stage use. The system’s subwoofer, measuring 305 x 607 x 403 mm and weighing 21.53 kg, houses two custom-made 8-inch woofers with 2-inch voice coils and ferrite magnets designed for accurate, powerful bass reproduction. The bass reflex cabinet design further enhances low-frequency performance, delivering punchy and controlled bass that complements the system’s clear mid and high ranges. Despite its powerful components, the total system weight of 31.5 kg keeps it manageable for one or two people to move and set up without difficulty.

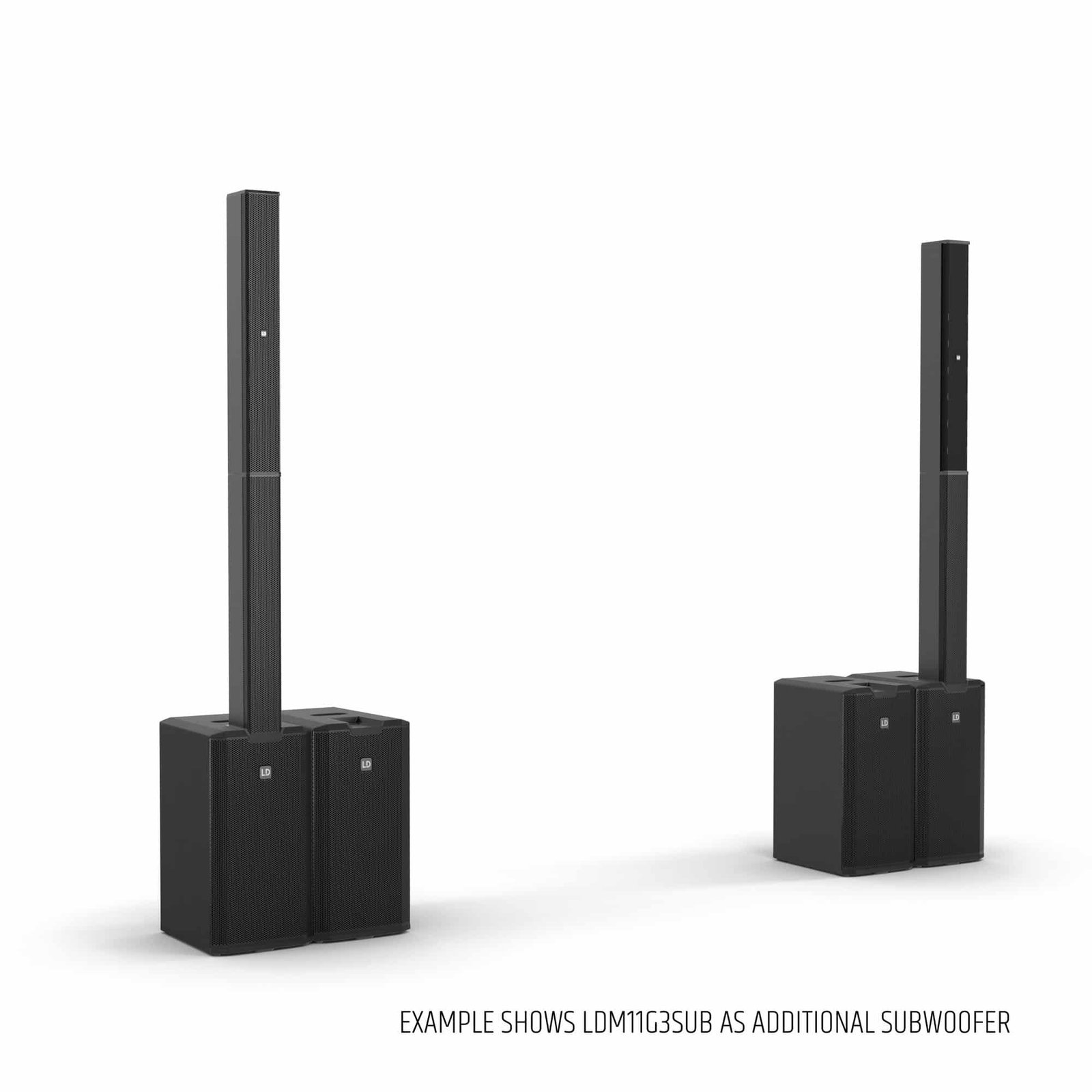

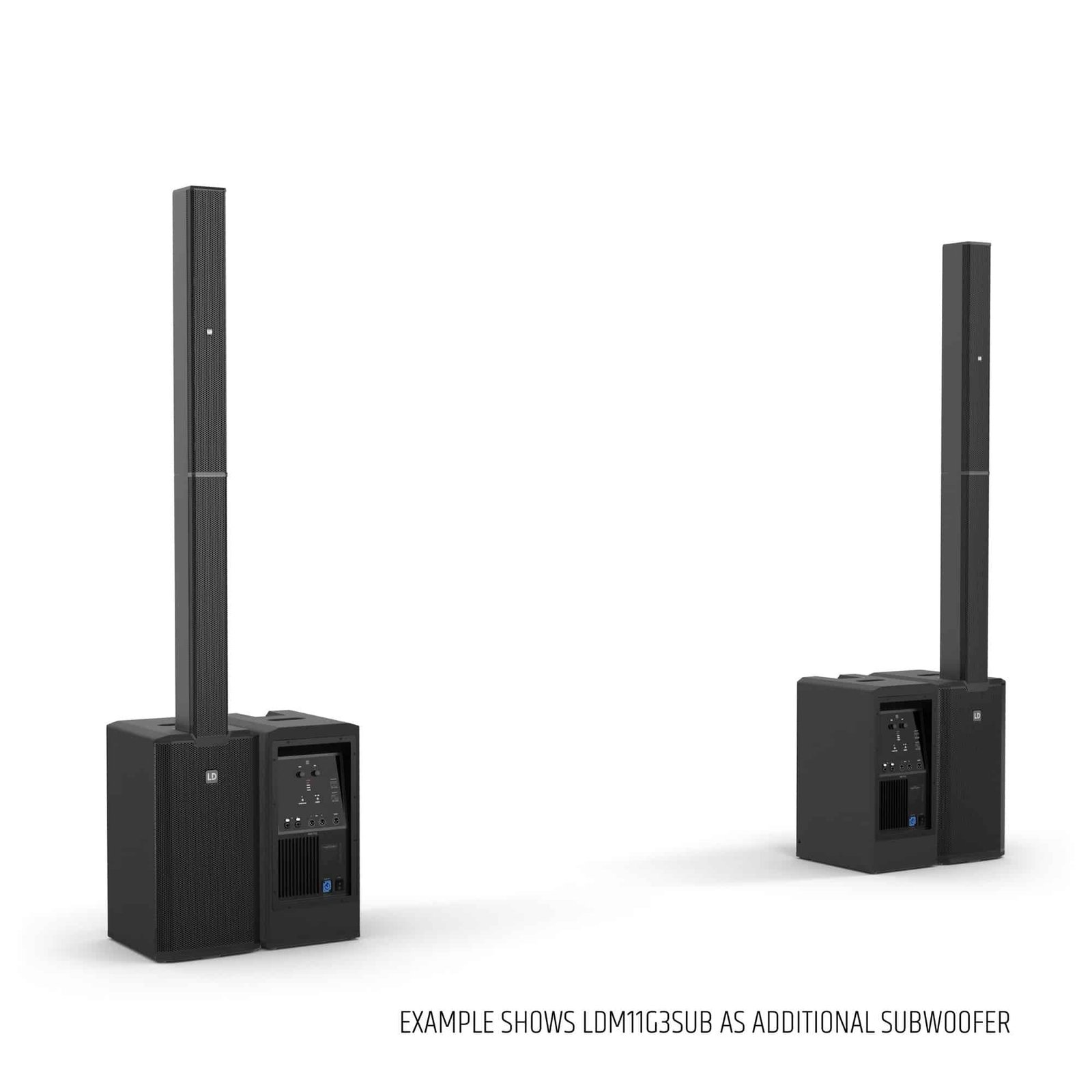

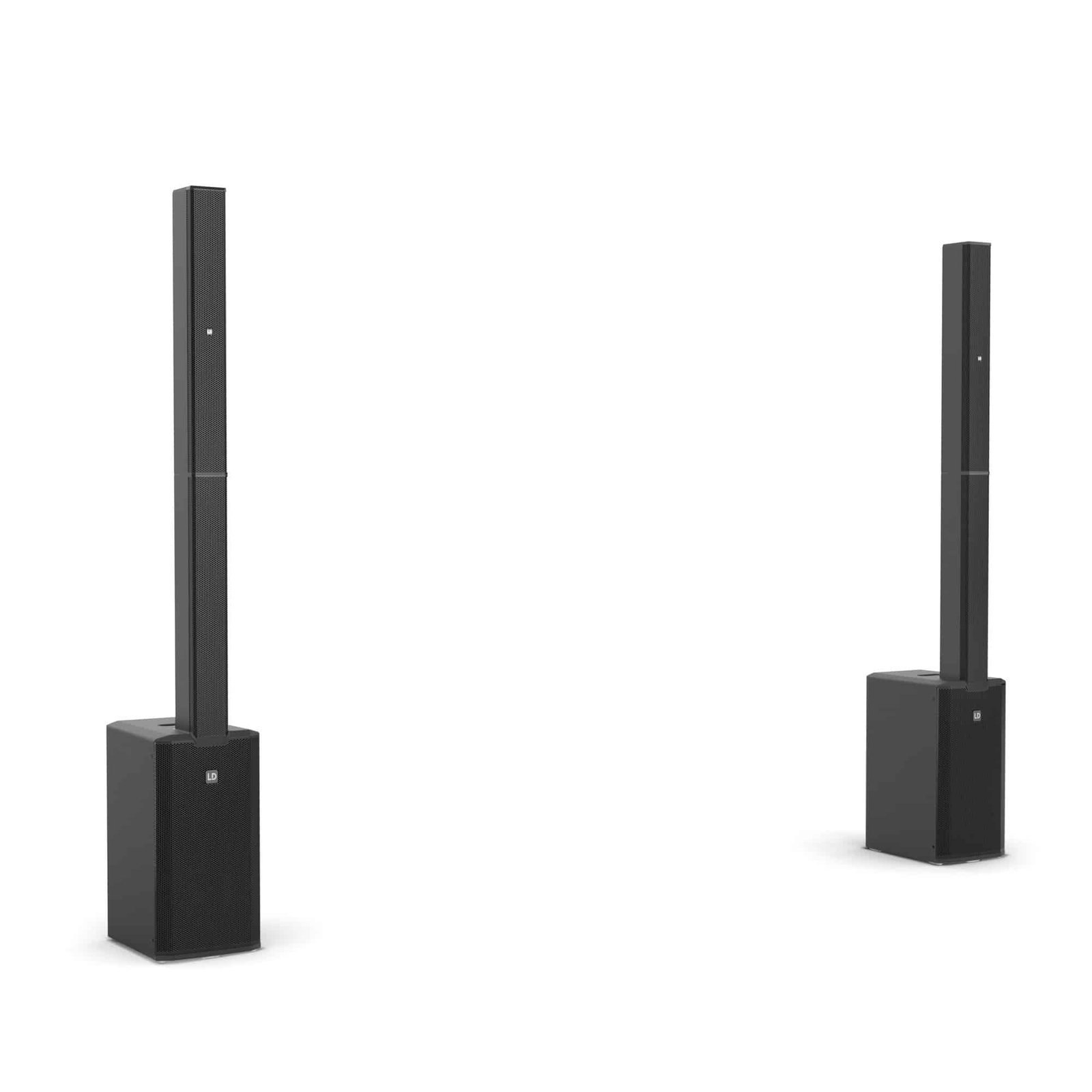

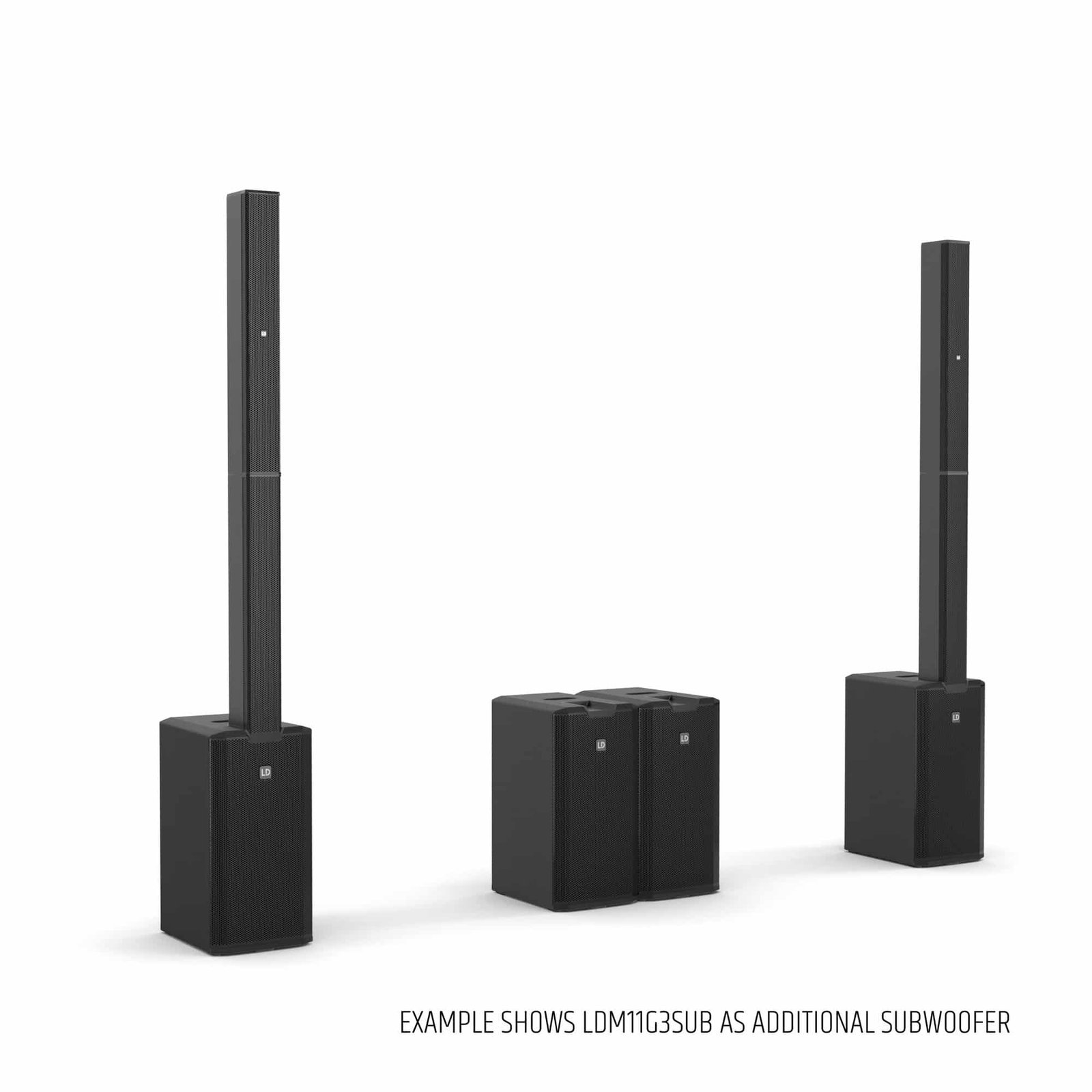

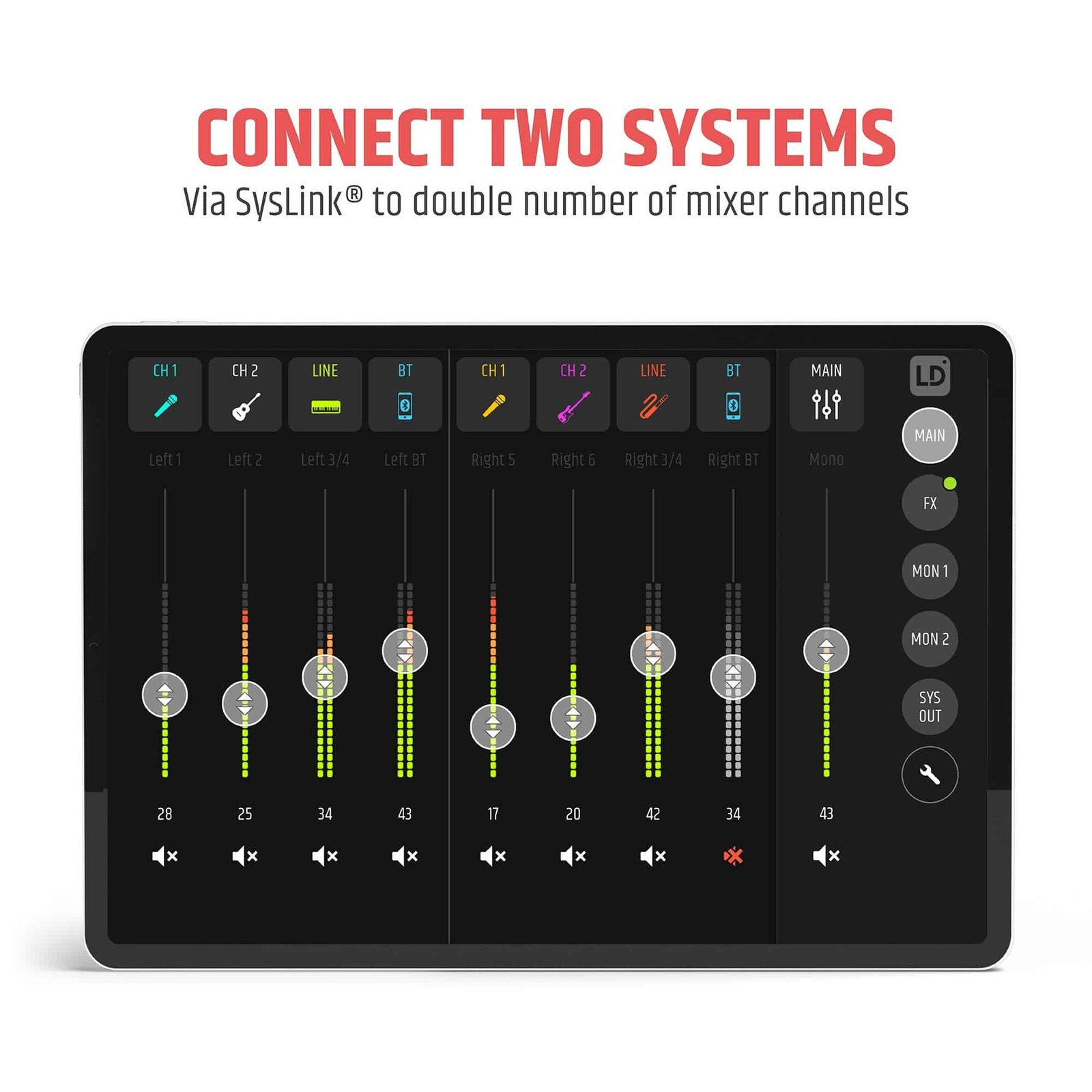

With a horizontal dispersion of 120 degrees and vertical coverage of 30 degrees, the system is optimized to cover wide audience areas evenly, making it ideal for a variety of settings such as live music gigs, corporate presentations, weddings, and community events. The Sys Link® feature allows cascading two systems together, doubling your coverage and power for larger venues without complexity. This scalability ensures the LD System PA can grow with your event demands.

Offered at a competitive price of ₹217,800, slightly discounted from the regular ₹220,000, this portable cardioid column PA system presents an excellent investment for anyone serious about professional audio performance. Combining cutting-edge technology, robust build quality, and user-friendly operation, it guarantees reliable sound reinforcement that elevates any event or performance. Choose the LD System Portable cardioid column PA system to experience clean, powerful audio that adapts seamlessly to your needs, backed by a brand known for quality and innovation.
