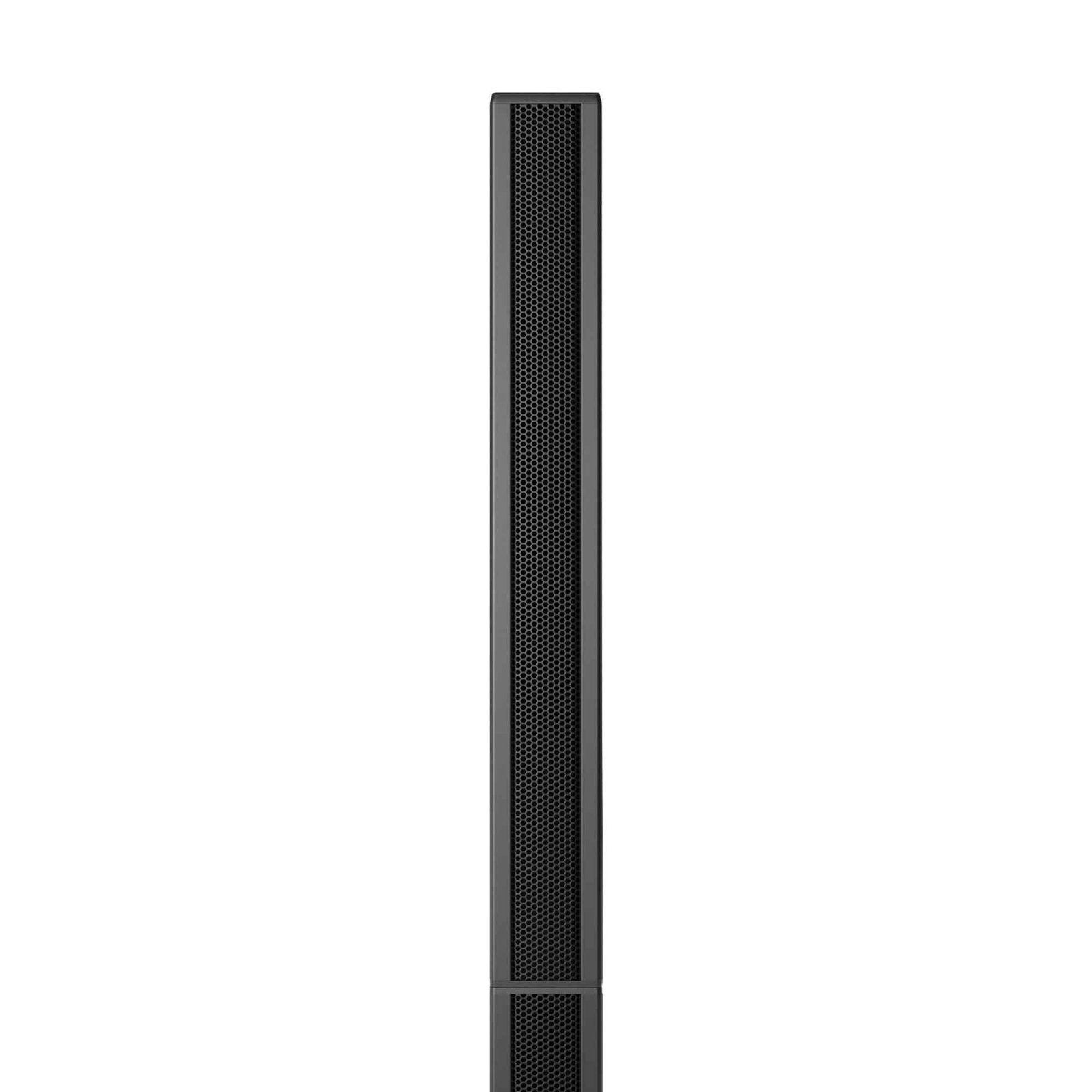

Mid/ Hi System

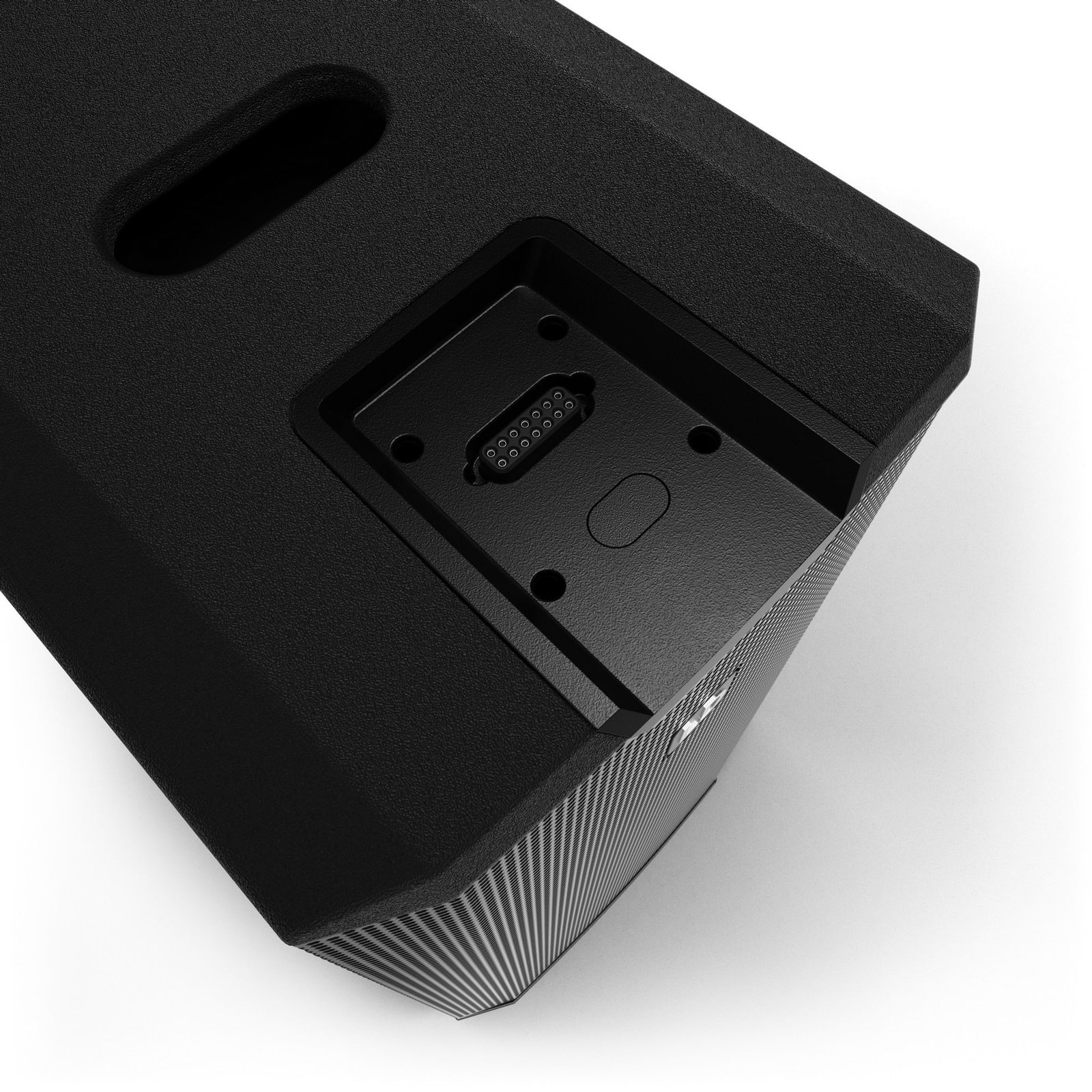

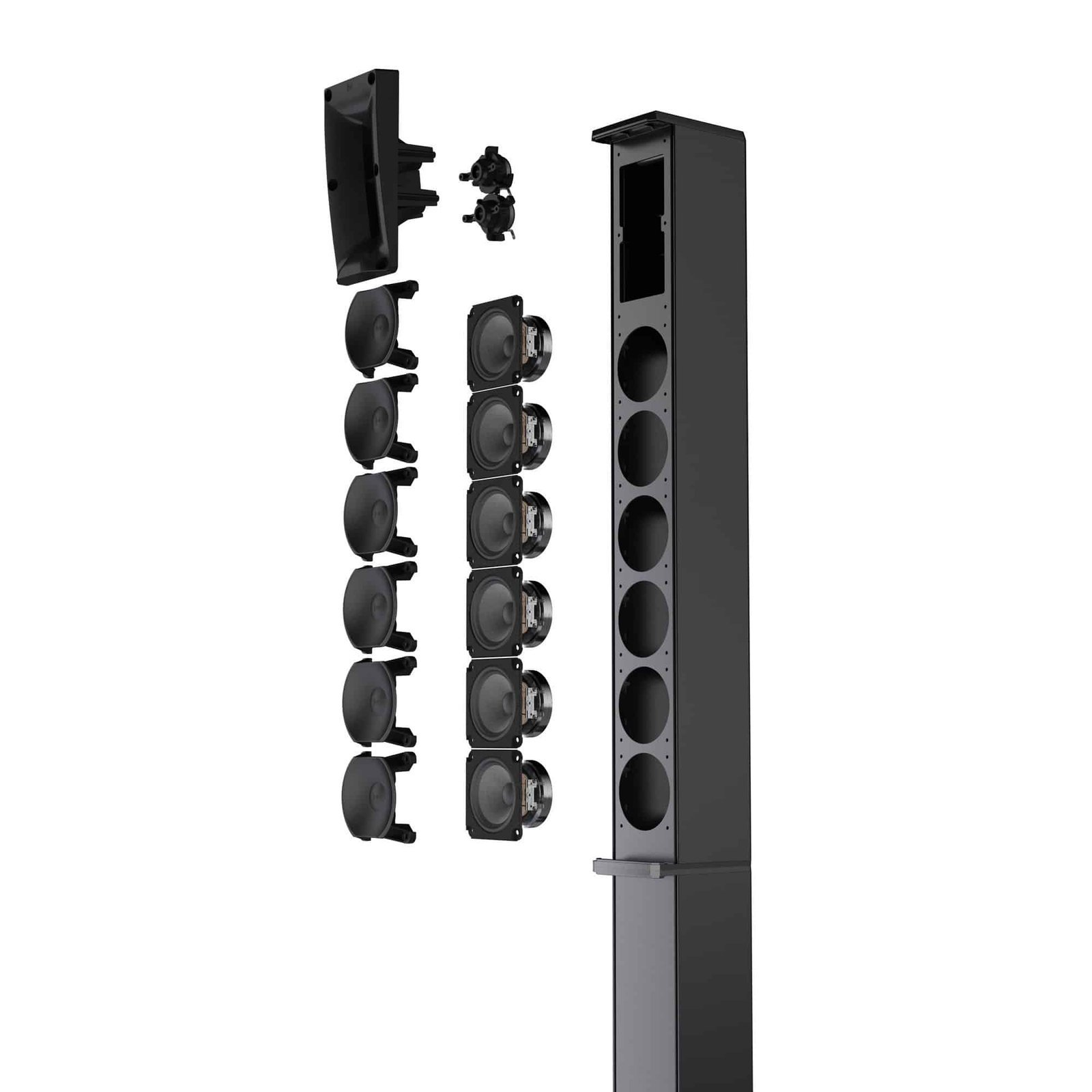

Midrange dimensions : 6 x 3.5 “Midrange dimensions (mm) : 6 x 89 mmMidrange magnet : FerriteMidrange brand: Custom-madeMidrange voice coil : 0.75 “Midrange voice coil : 19 mmTweeter dimensions : 2 x 1 “Tweeter dimensions (mm) : 2 x 25.4 mmTweeter magnet : NeodymiumTweeter brand : Custom-madeTweeter voice coil : 1 “Tweeter voice coil (mm) : 25.4 mmWave Guide : CD WaveguideLoudspeaker inputs  :  1Speaker input connections : Custom-made multipinCabinet construction mid/high : Passive CardioidMid/Hi system cabinet material : AluminiumMid/Hi system cabinet surface : Powder-coatedMid/Hi system width : 103 mmMid/Hi system height : 1460 mmMid/Hi system depth : 135 mmMid/Hi system weight : 10.2 kg

Amplifier module (integrated in subwoofer)

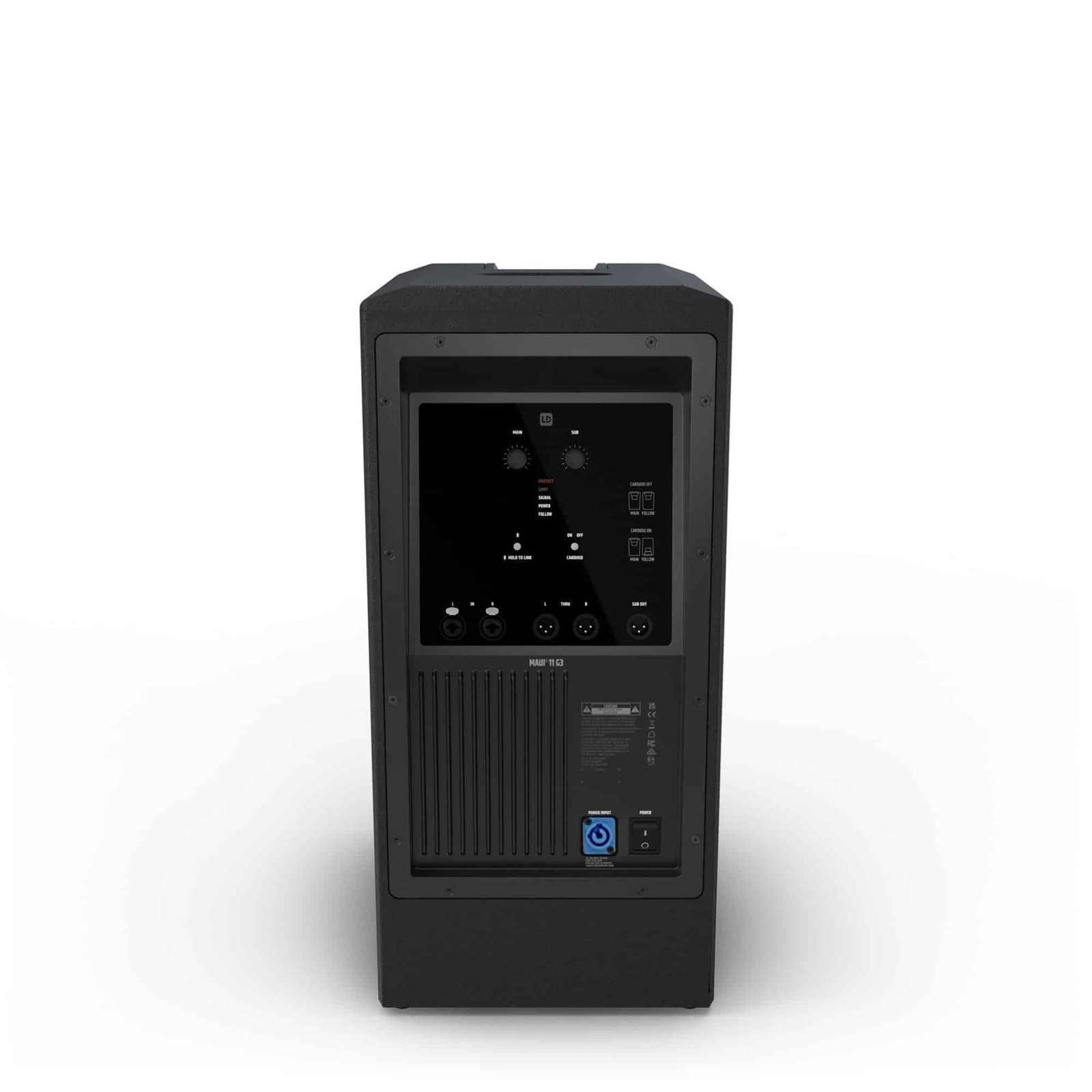

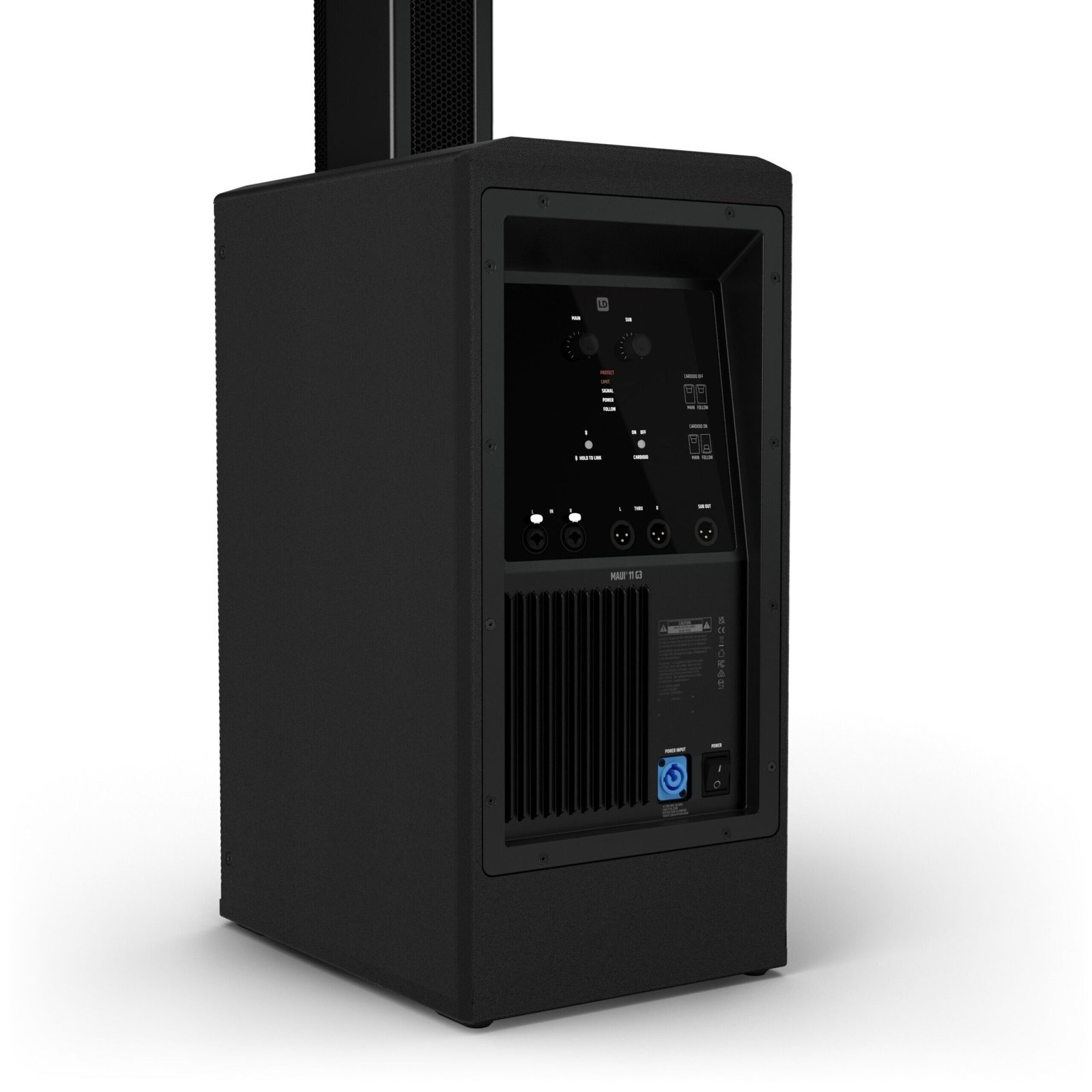

Amplifier : Class DSystem output (RMS) : 730 WSystem output (Peak) : 1460 WProtection circuits : DC protection, Multiband limiter, Short circuit, Thermal protectionCooling : ConvectionControls : Bluetooth HOLD TO LINK button, Cardioid On/Off, Main level, Power On/Off, Sub levelIndicators : Bluetooth, Cardioid On/Off, Follower mode, Limit, Power, Protect (protection circuit engaged), Signal, Subwoofer ModeMains connector : PowerConOperating voltage :  100 V AC – 120 V AC, 50 – 60 Hz, 220 V AC – 240 V AC, 50-60 HzFuse : T 3.15AL / 250 VPower consumption : 300 WAmbient temperature (operating) :  0 – 40 °CRelative Humidity :  < 80% (non-condensing)Line Inputs : 2Line Input Connectors : Combo XLR / TRSLine Outputs : 1 x Sub OUT, 2 x THRULine Output Connectors : XLR maleNumber of speaker outputs : 1Loudspeaker Output Connectors : Custom-made multipinBluetooth Standard : A2DPBluetooth Audio Decoder : AAC, SBC

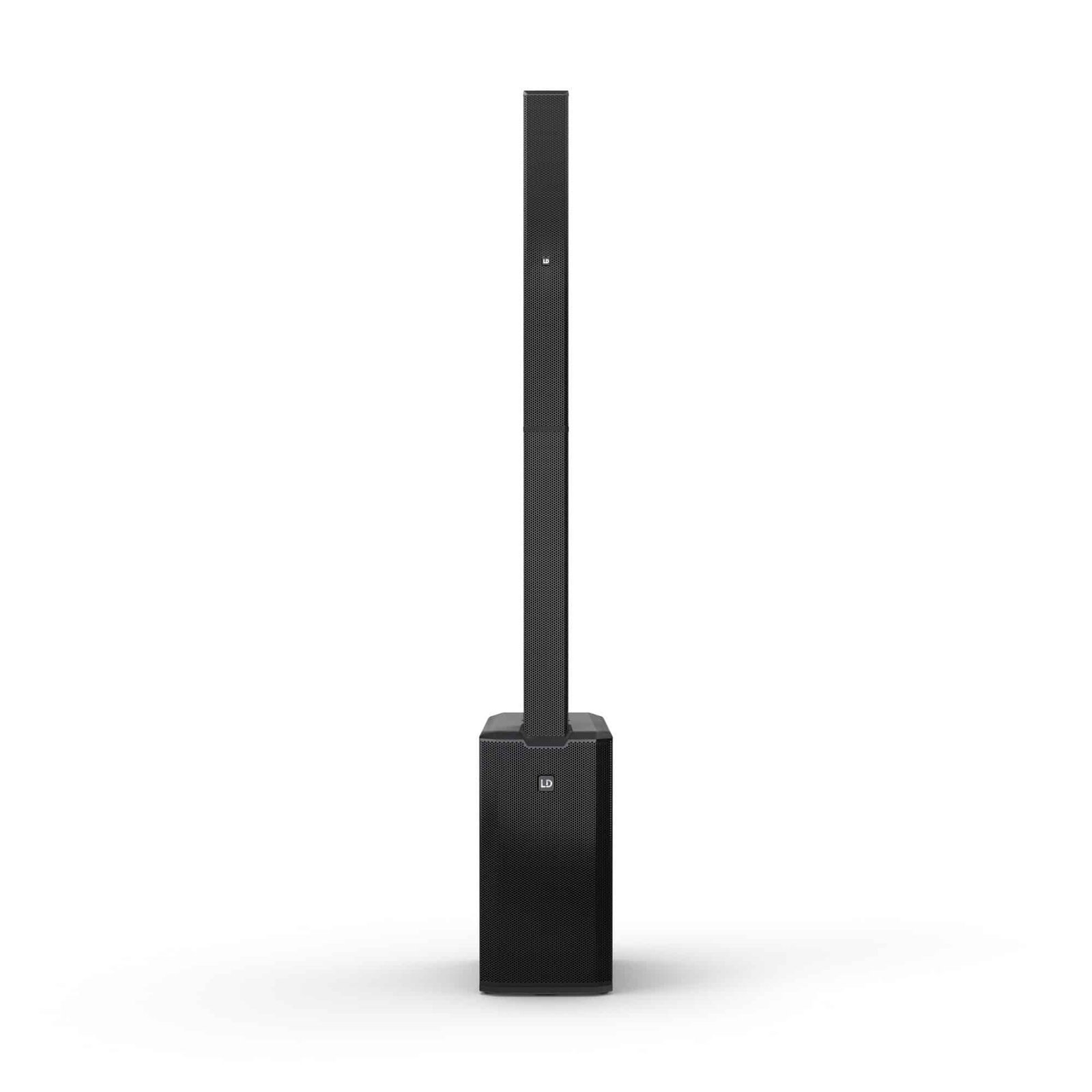

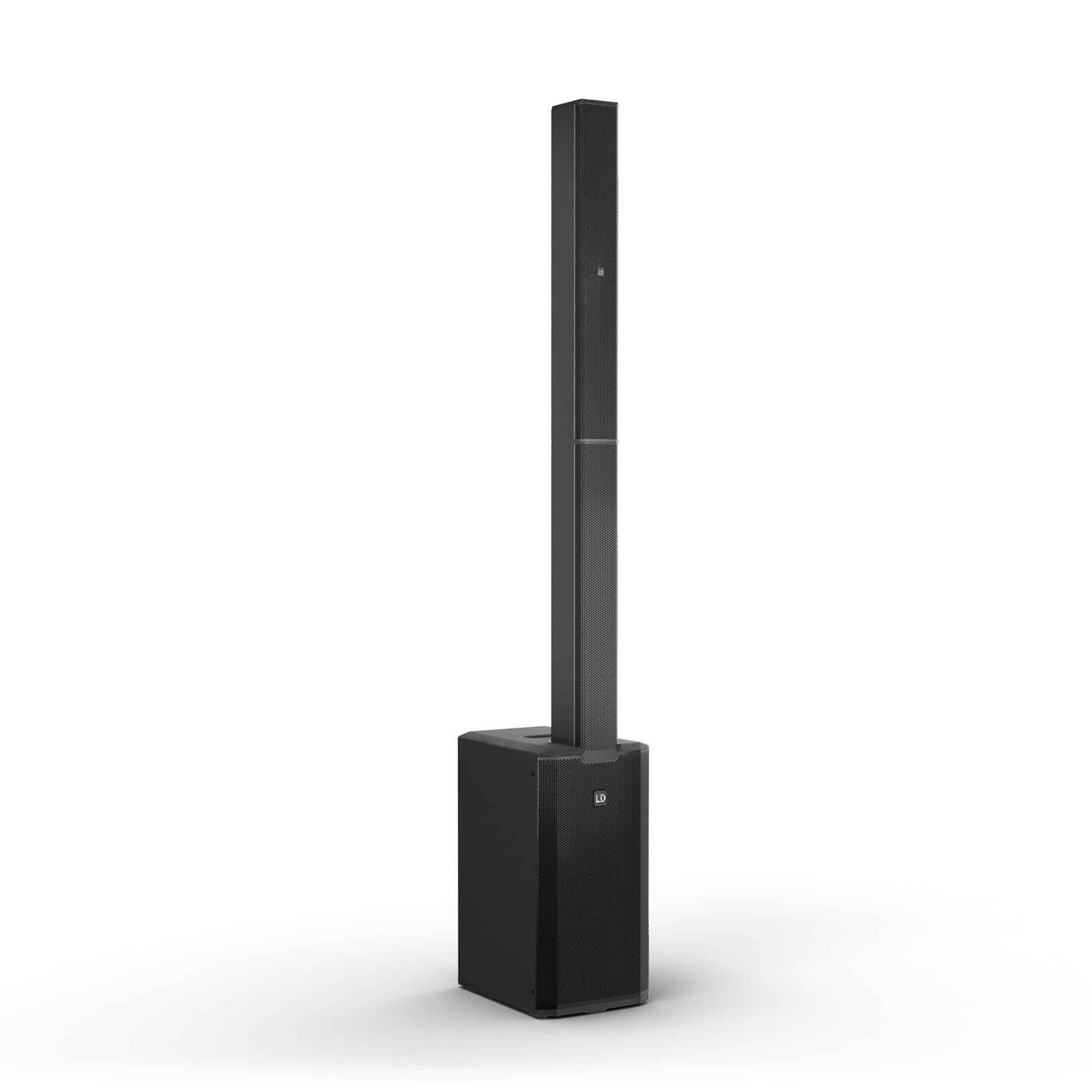

For professionals and enthusiasts seeking a portable, high-performance sound reinforcement system, the LD System MAUI Portable cardioid column PA system offers a compelling solution. Whether you are a DJ, musician, event organizer, or public speaker, this system is designed to deliver crystal-clear, powerful audio in a compact and easily transportable format. Its combination of advanced technology and thoughtful design ensures your sound reaches your audience with precision and clarity, no matter the setting.

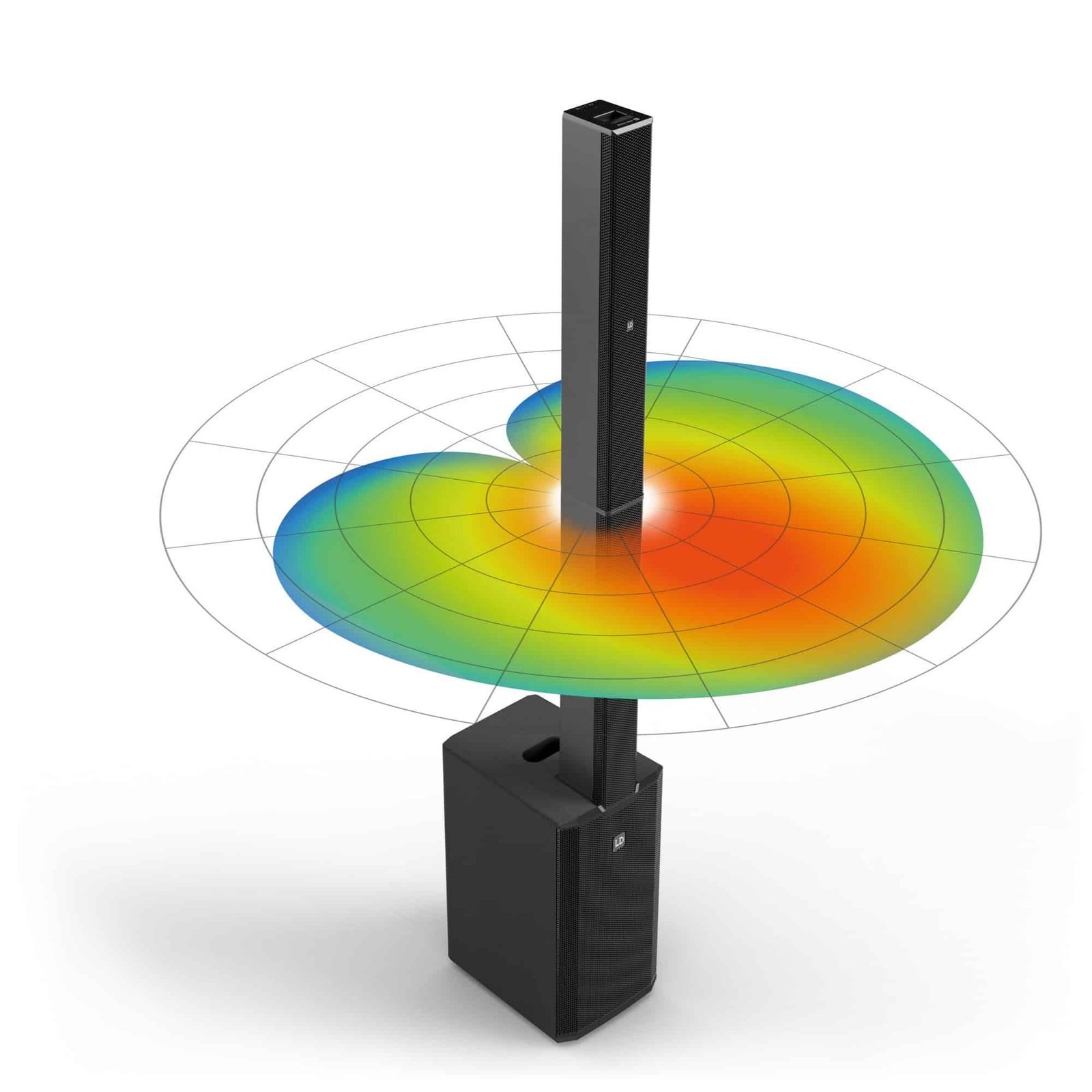

One of the standout features of the MAUI system is its cardioid column design. Unlike traditional PA speakers that emit sound in all directions, the cardioid configuration focuses the audio output forward while reducing unwanted rear noise. This means you get less feedback and cleaner sound on stage, allowing performers to monitor themselves without interference. For audiences, this translates to a more immersive listening experience with enhanced clarity and less ambient noise bleed.

The system’s DSP-based signal processing is another critical advantage. Digital Signal Processing optimizes the audio output in real-time, ensuring balanced frequency response and protecting the speakers from distortion. The result is a consistently high-quality sound performance that adapts to different environments, whether it’s an intimate venue or a larger outdoor event. This level of sound control means you spend less time tweaking settings and more time focusing on your performance or presentation.

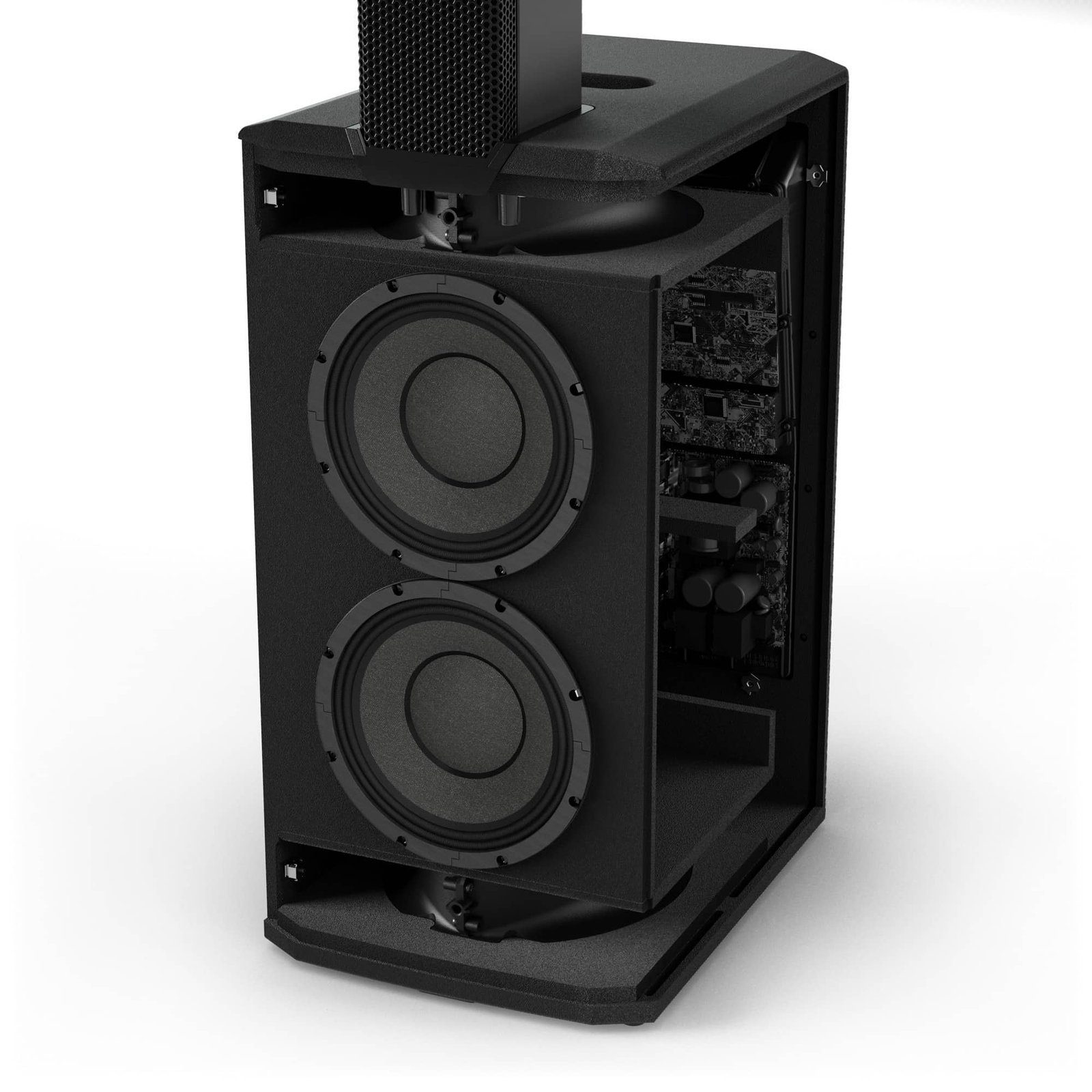

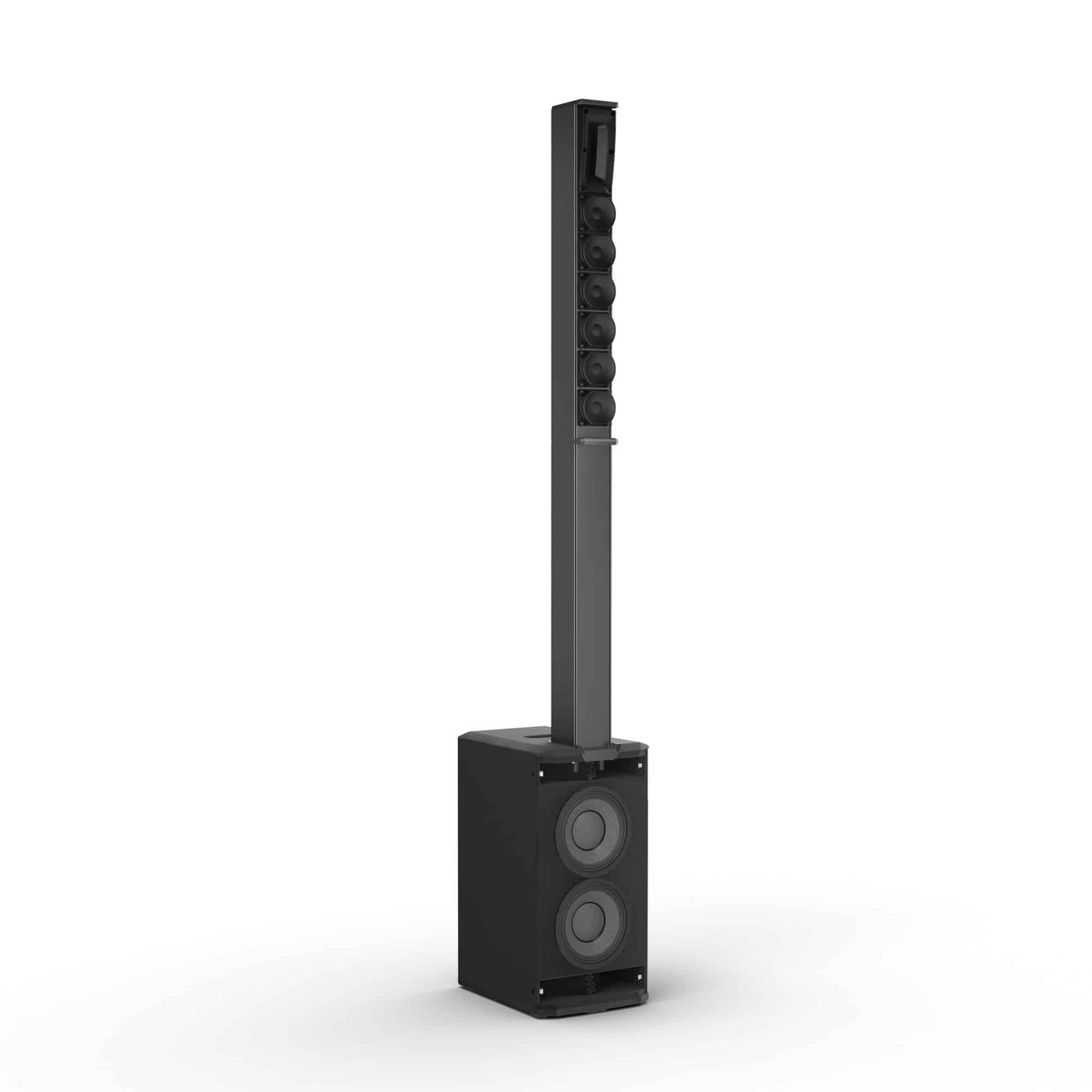

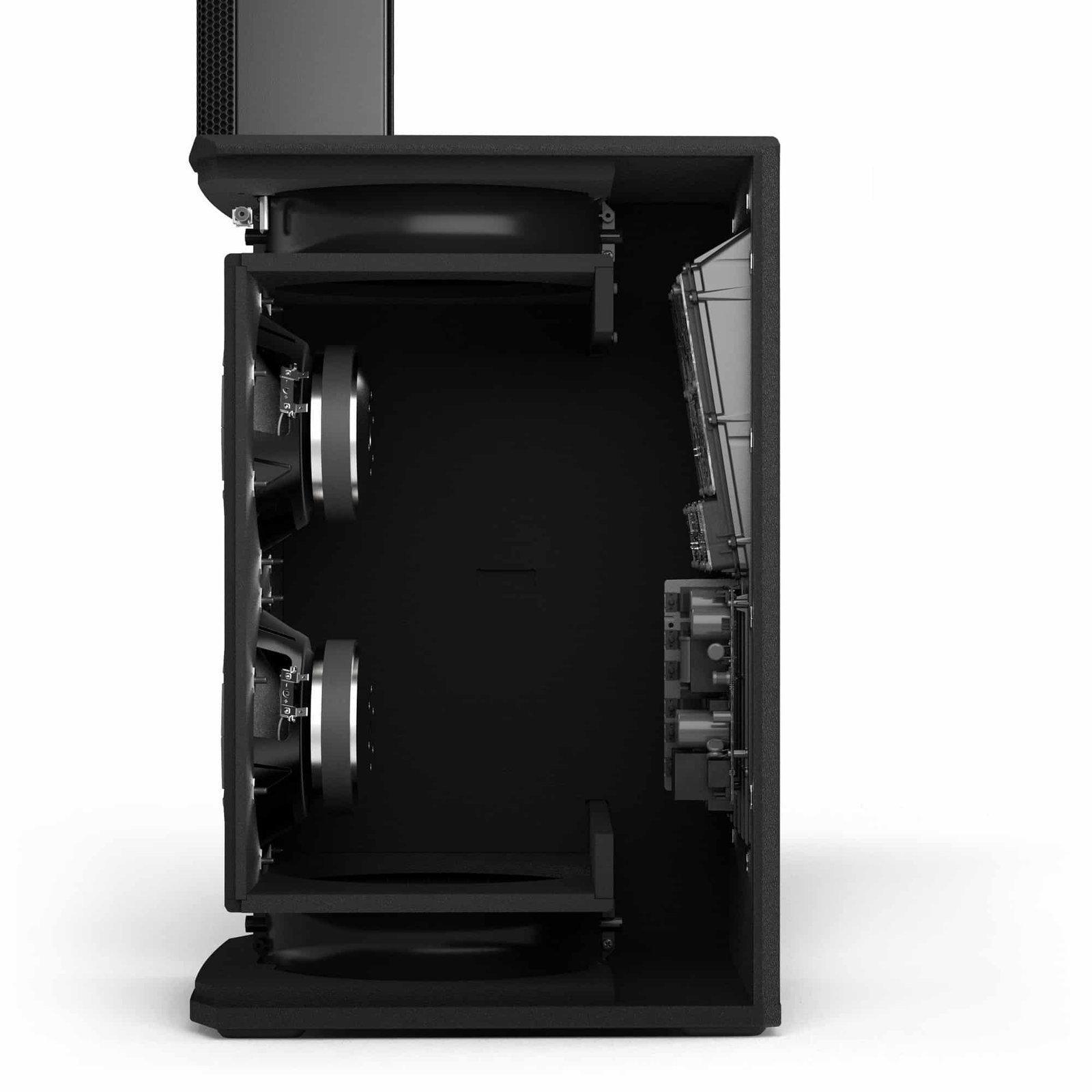

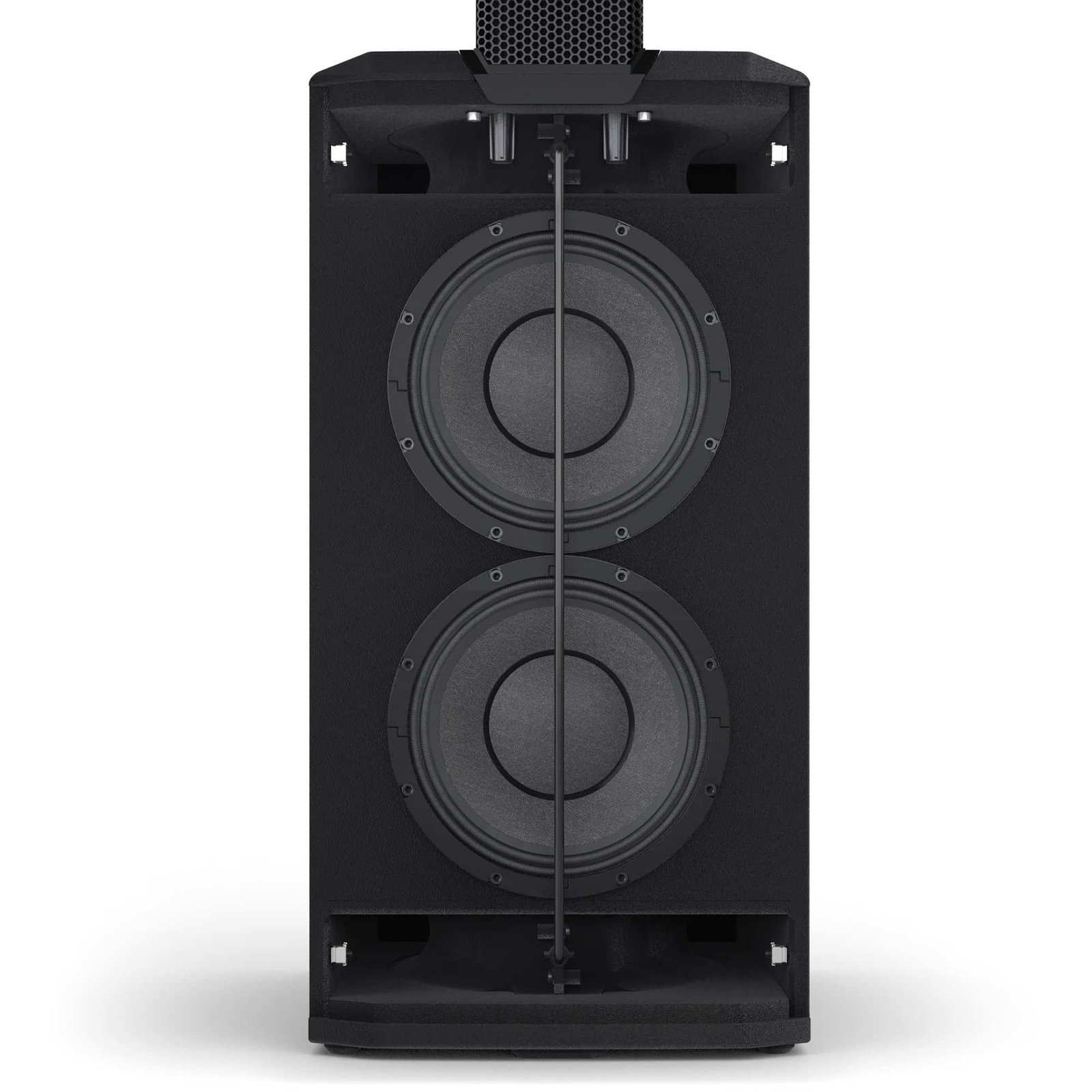

With a maximum peak sound pressure level of 125 dB, the MAUI system is capable of filling medium to large spaces with rich, detailed sound. The frequency response range from 39 Hz to 20,000 Hz covers deep bass through crystal-clear highs, providing full-spectrum audio that suits a variety of music genres and speech applications. The inclusion of two 8-inch custom-made woofers with robust ferrite magnets and large 2-inch voice coils ensures powerful low-end performance and excellent dynamic range without distortion.

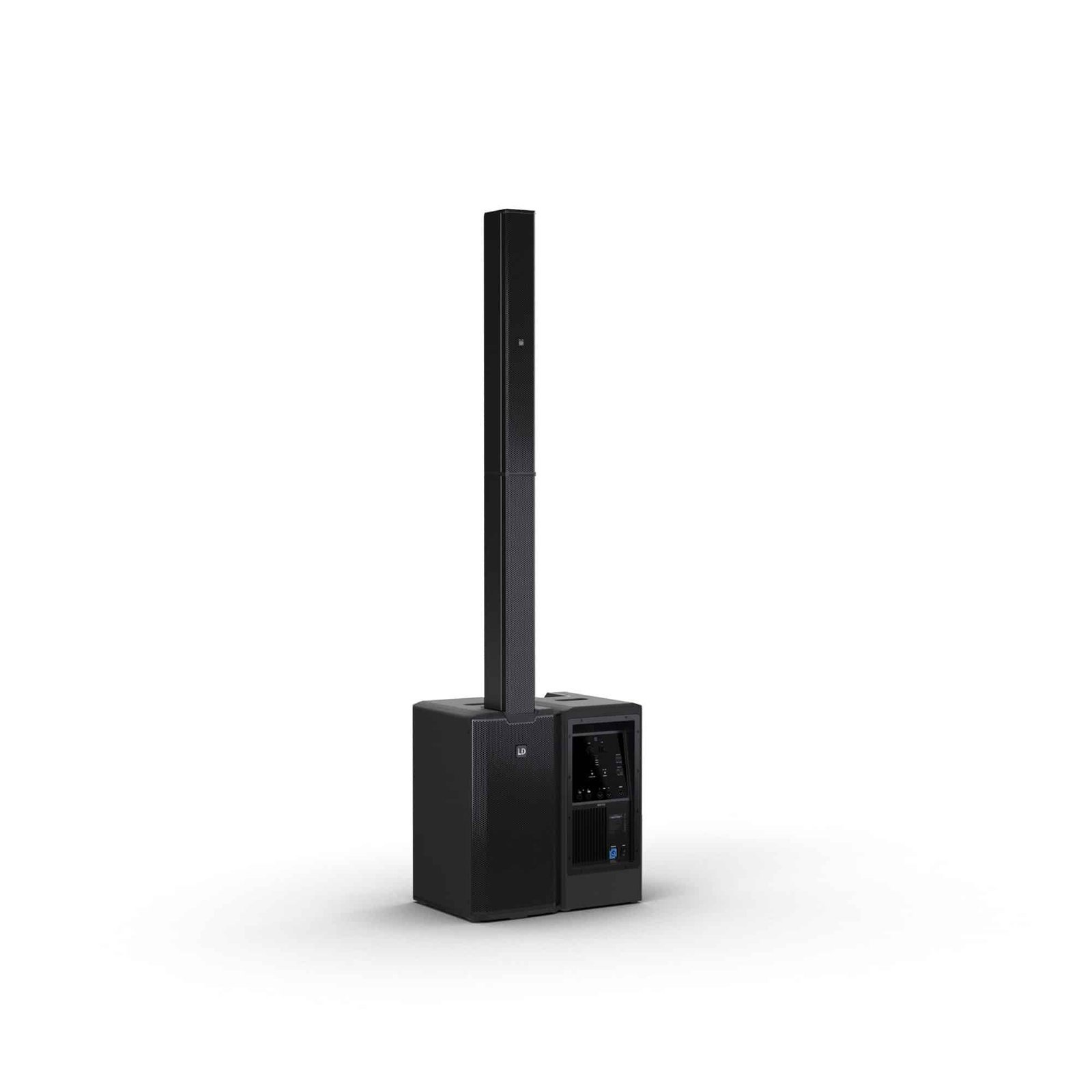

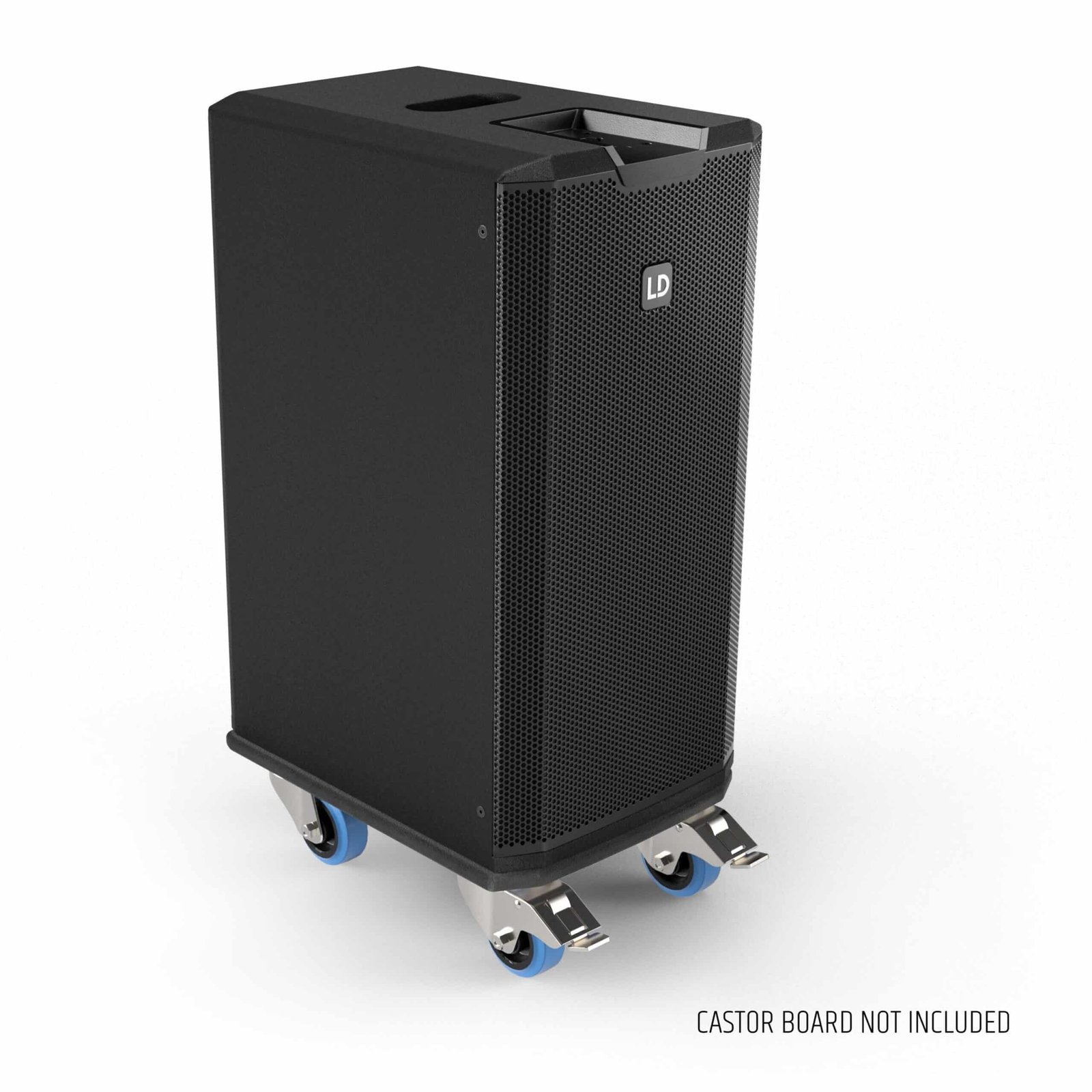

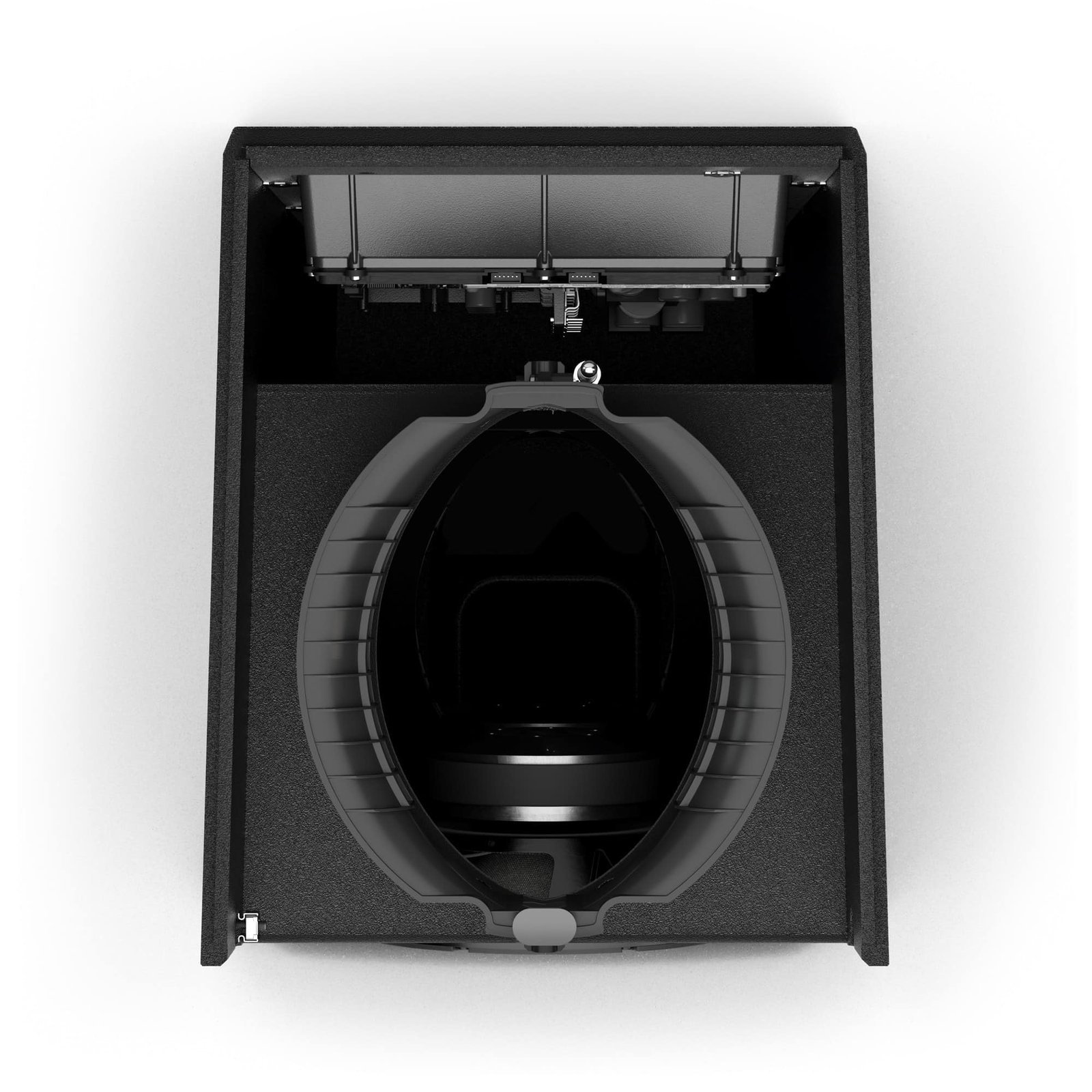

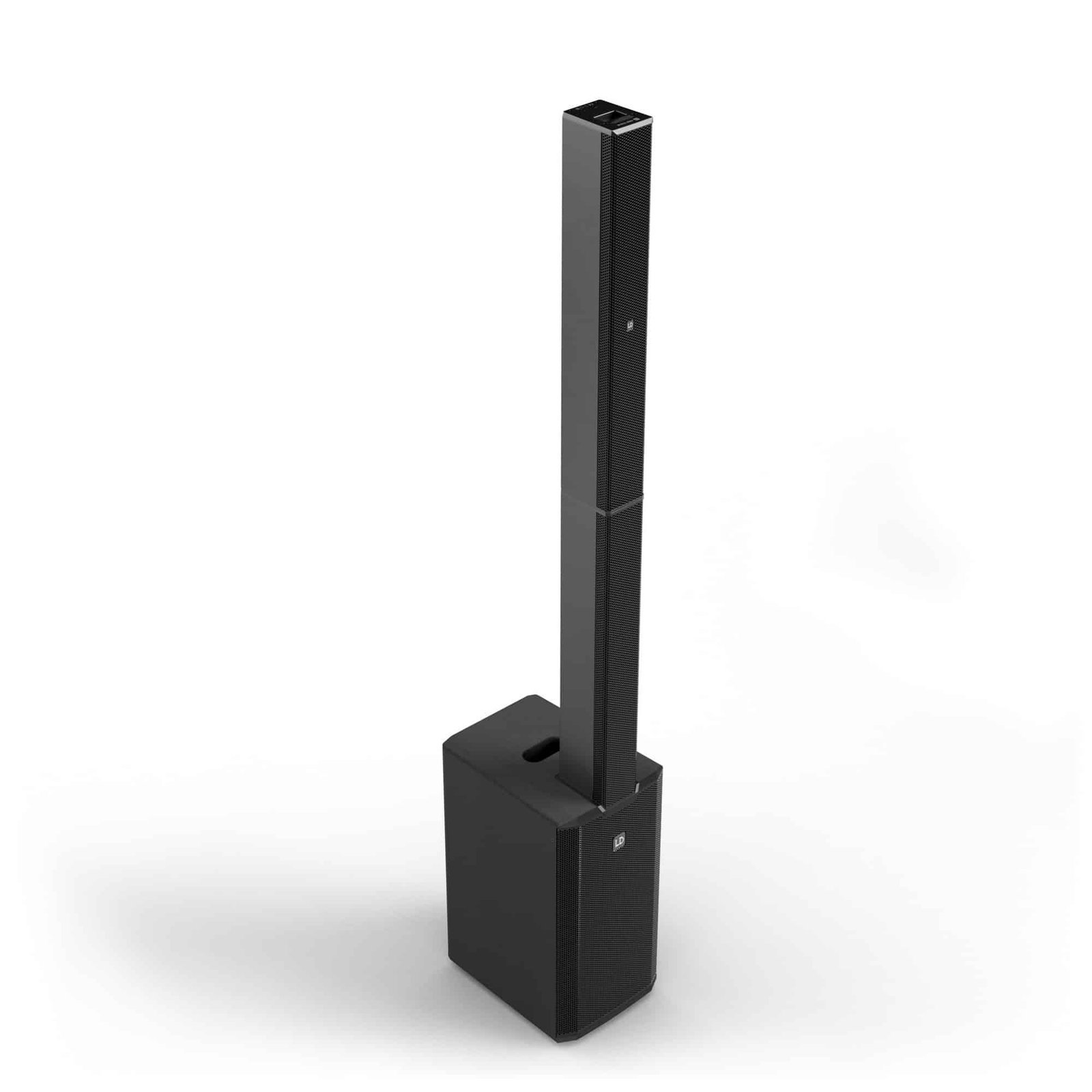

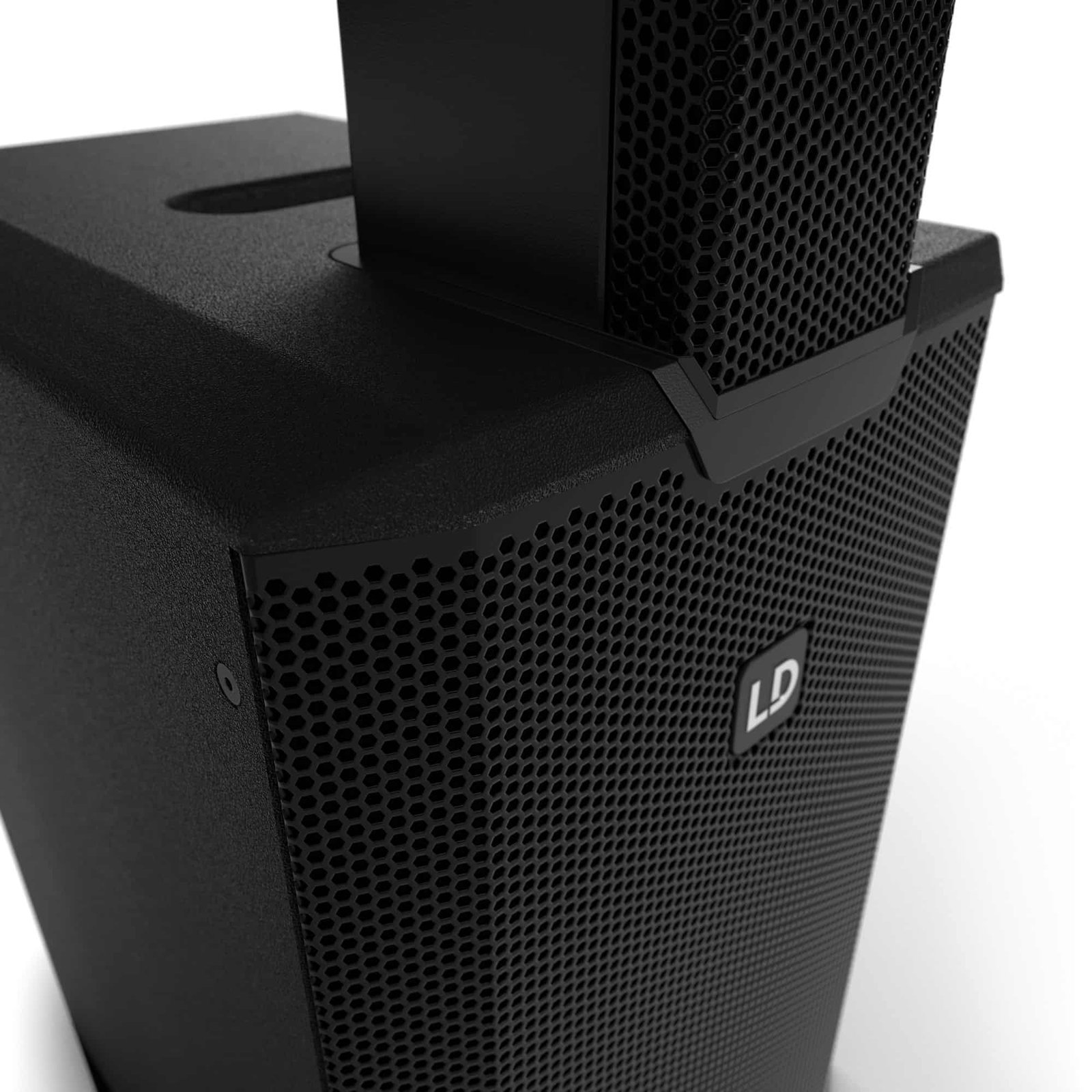

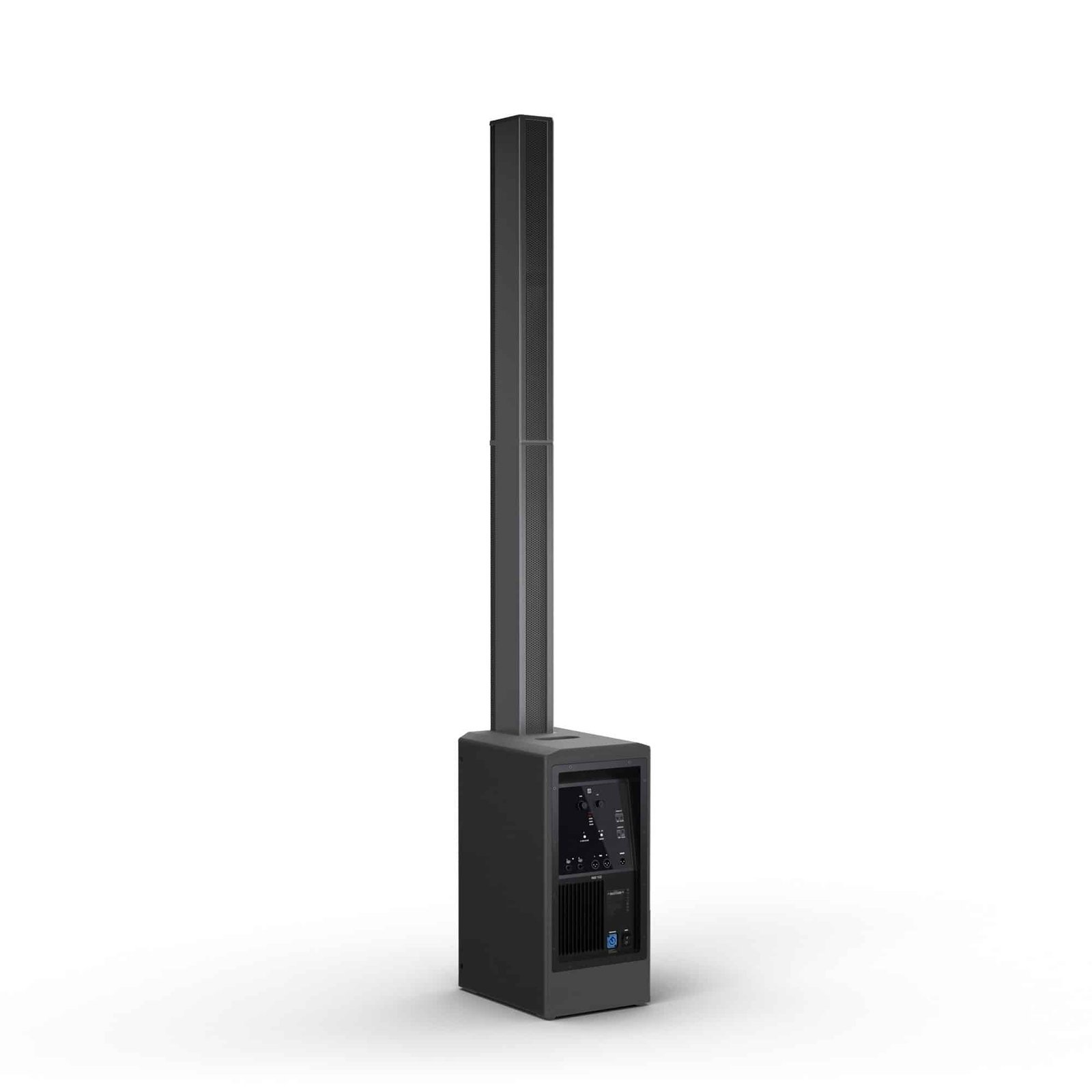

The physical design of the MAUI system also enhances its usability. Standing over two meters tall but weighing just over 30 kg, it strikes a balance between presence and portability. The bass-reflex cabinet constructed from durable 15 mm multiplex wood and coated with a protective polyurea surface can withstand the rigors of transport and setup. The compact subwoofer measures 305 x 607 x 403 mm and weighs 20.5 kg, making it manageable for a single person to handle. Additionally, Bluetooth audio streaming adds convenience by allowing wireless connection to smartphones or other devices, reducing cable clutter and setup time.

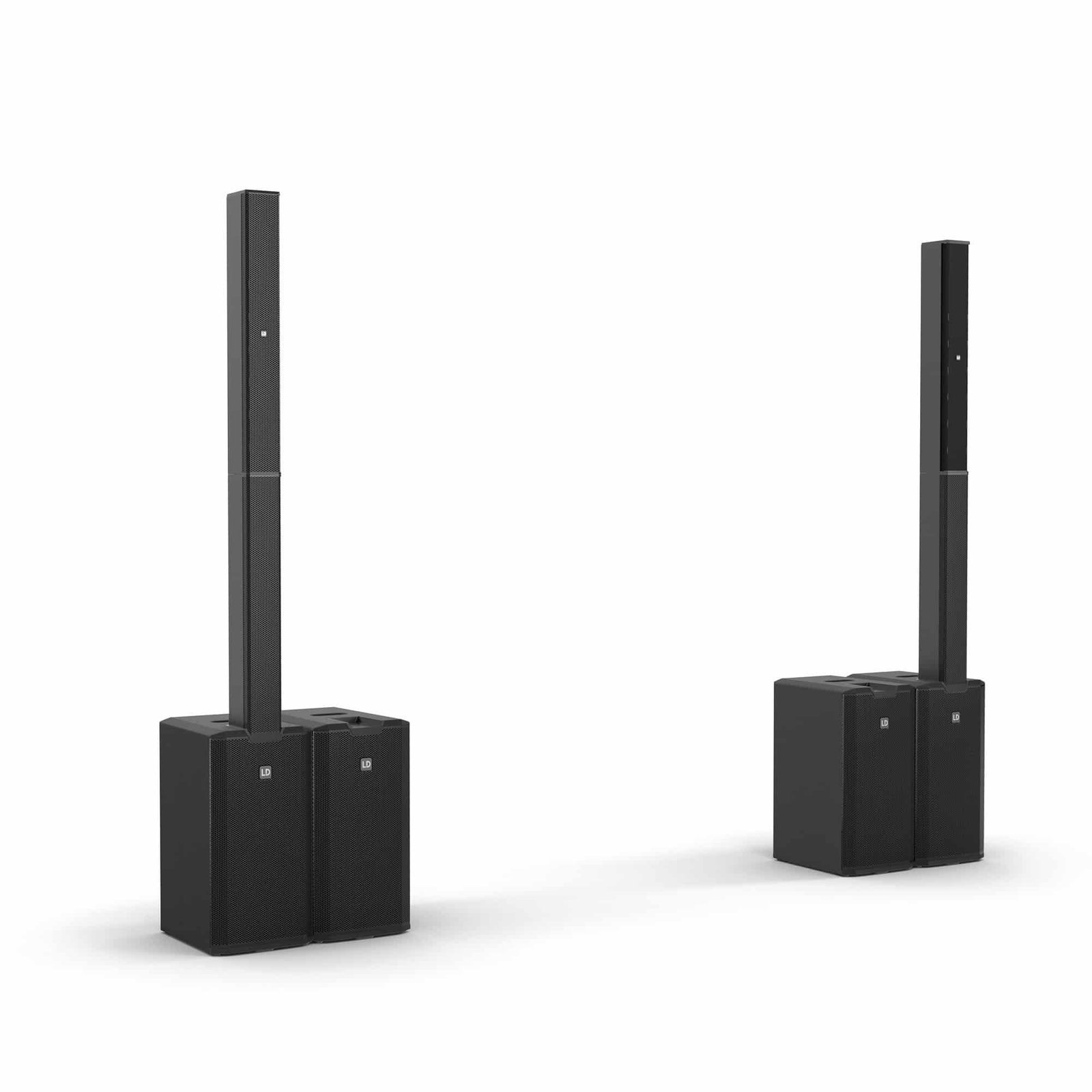

Versatility is another hallmark of this system. It supports both mono and stereo applications, giving you flexibility in configuring your sound based on the event’s requirements. The horizontal and vertical sound dispersion angles of 120° by 30° ensure that audio coverage is wide enough to reach a broad audience while maintaining focus. Whether you’re hosting a corporate event, live concert, or public address, this system adapts to deliver professional-grade sound that impresses.

In summary, the LD System MAUI Portable cardioid column PA system is a smart investment for those who prioritize sound quality, ease of use, and reliability. Its advanced cardioid technology, powerful woofers, and intelligent DSP processing combine to provide clear, impactful sound with minimal feedback. The rugged yet lightweight design facilitates easy transport and setup, while features like Bluetooth streaming add modern convenience. Confidently elevate your audio experience with a system built to meet the demands of professional live sound applications.
