Original price was: ₹69,000.₹68,310Current price is: ₹68,310.
In stock

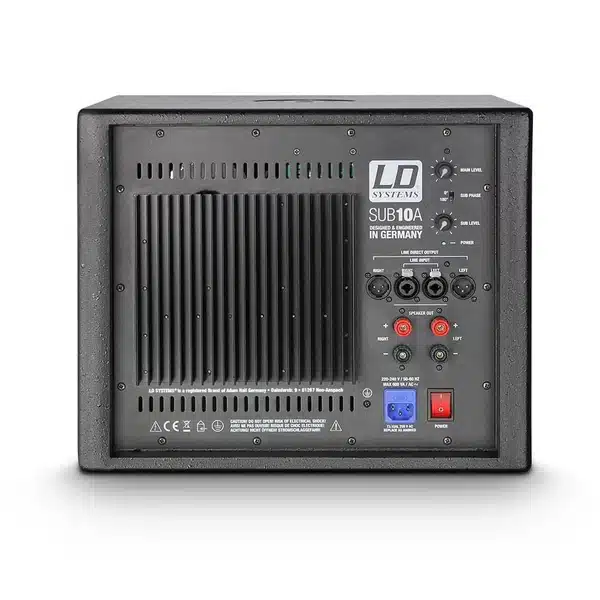

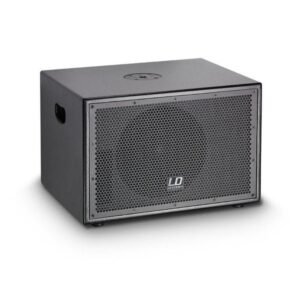

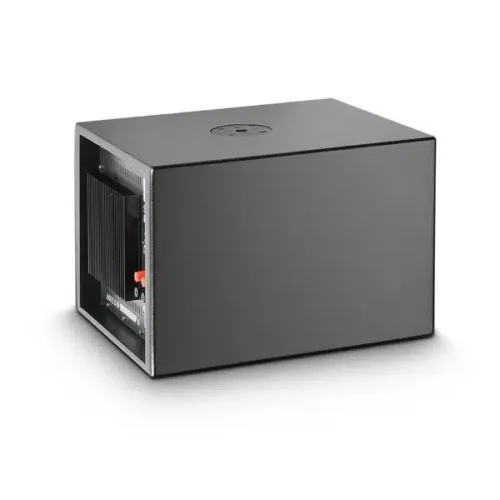

LD Systems LDSUB10A 10″ Active Subwoofer Overview: The LDSUB10A is a very compact and powerful 10″ subwoofer and a genuine multitalent that can be used as an additional bass cabinet in conjunction with full-range speakers (Stinger 8″ or Stinger 10″) and is also suitable for permanent installations This subwoofer features an integrated 3-channel power amplifier (3 x 120 W RMS), thus permitting connection of additional passive full-range speakers or installation speakers such as those in the LD SAT series.
| Product Type: | Subwoofer |
|---|---|
| Type: | Installation Subwoofer |
| Low/mid Woofer dimensions | 10 " |
| Woofer dimensions (mm) | 254 mm |
| Woofer magnet | Ferrite |
| Woofer brand | Custom-made |
| Woofer voice coil | 2 " |
| Woofer voice coil (mm) | 50.8 mm |
| Amplifier | Class A/B |
| System Power (RMS) | 360 (3 x 120) W |
| Frequency response | 40 – 120 |
| Max. SPL (continuous) | 118 dB |
| Protection circuits | limiter, over voltage, short circuit |
| Input sensitivity | 0.3 V RMS V |
| Controls | mains switch (on/off), Subwoofer Phase Reverse, Subwoofer Volume, volume |
| Indicators | Power |
| Line input connectors | 6.3 mm jack, XLR |
| Line output connectors | XLR |
| Loudspeaker outputs | 2 |
| Speaker output connections | Terminal Posts |
| Operataing Volatage | 220 v AC – 240 V AC |
| Cabinet material | 15 mm MDF |
| Cabinet surface | texture paint |
| Cabinet construction | Bass Reflex |
| Weight | 21 kg |
| Width | 505 mm |
| Height | 345 mm |
| Depth | 425 mm |
| Line inputs | 2 |
| Line outputs | 2 x direct output |
