Original price was: ₹71,000.₹70,290Current price is: ₹70,290.
In stock

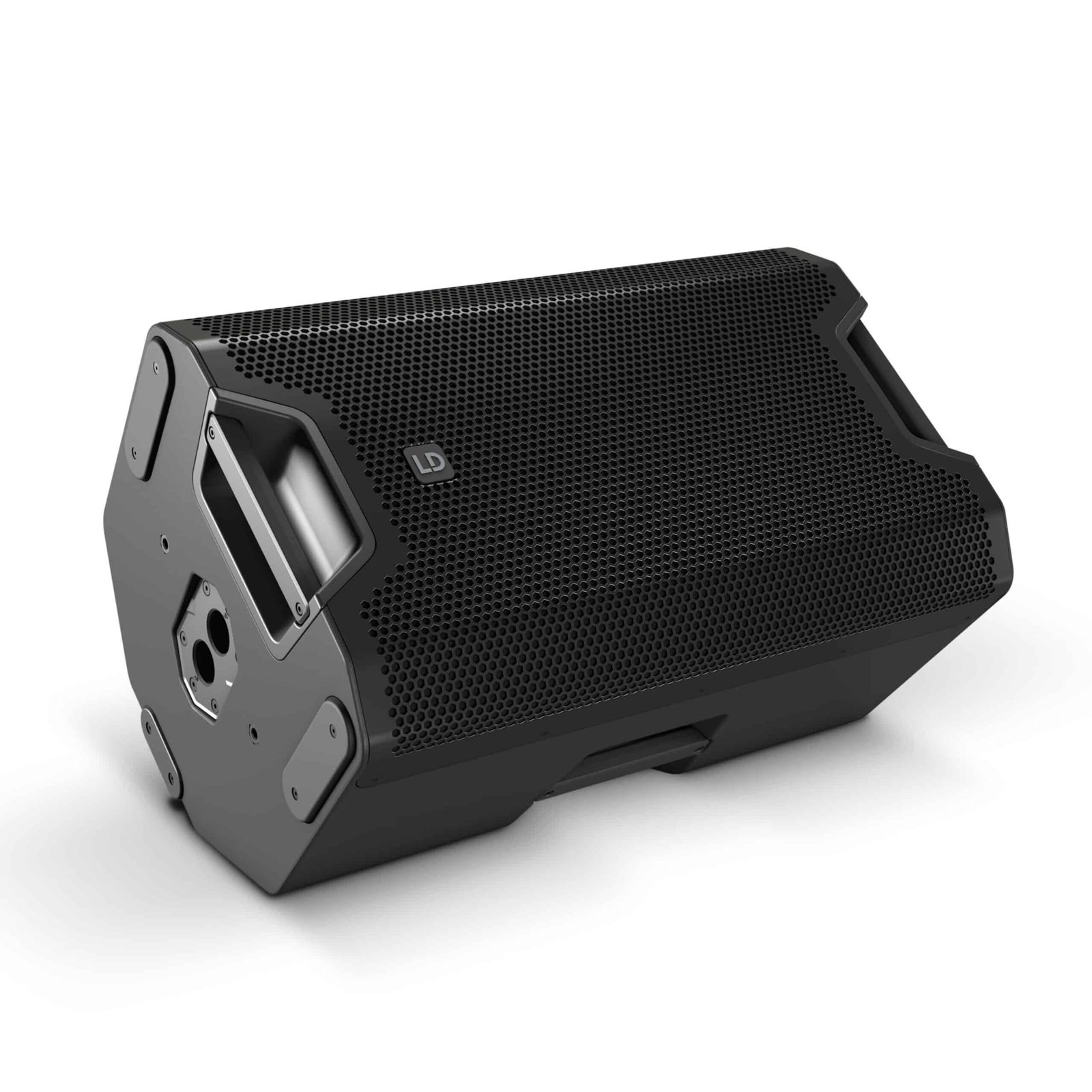

This full-range loudspeaker impresses with its outstanding sound, even at low frequencies. The ICOA 15 A by LD Systems is a genuine all-rounder that offers unparalleled features for its class. Its coaxial design, rotating, BEM-optimised CD horn and extensive and precisely calibrated DynX DSP presets make this powered 15″ loudspeaker exceptionally flexible.

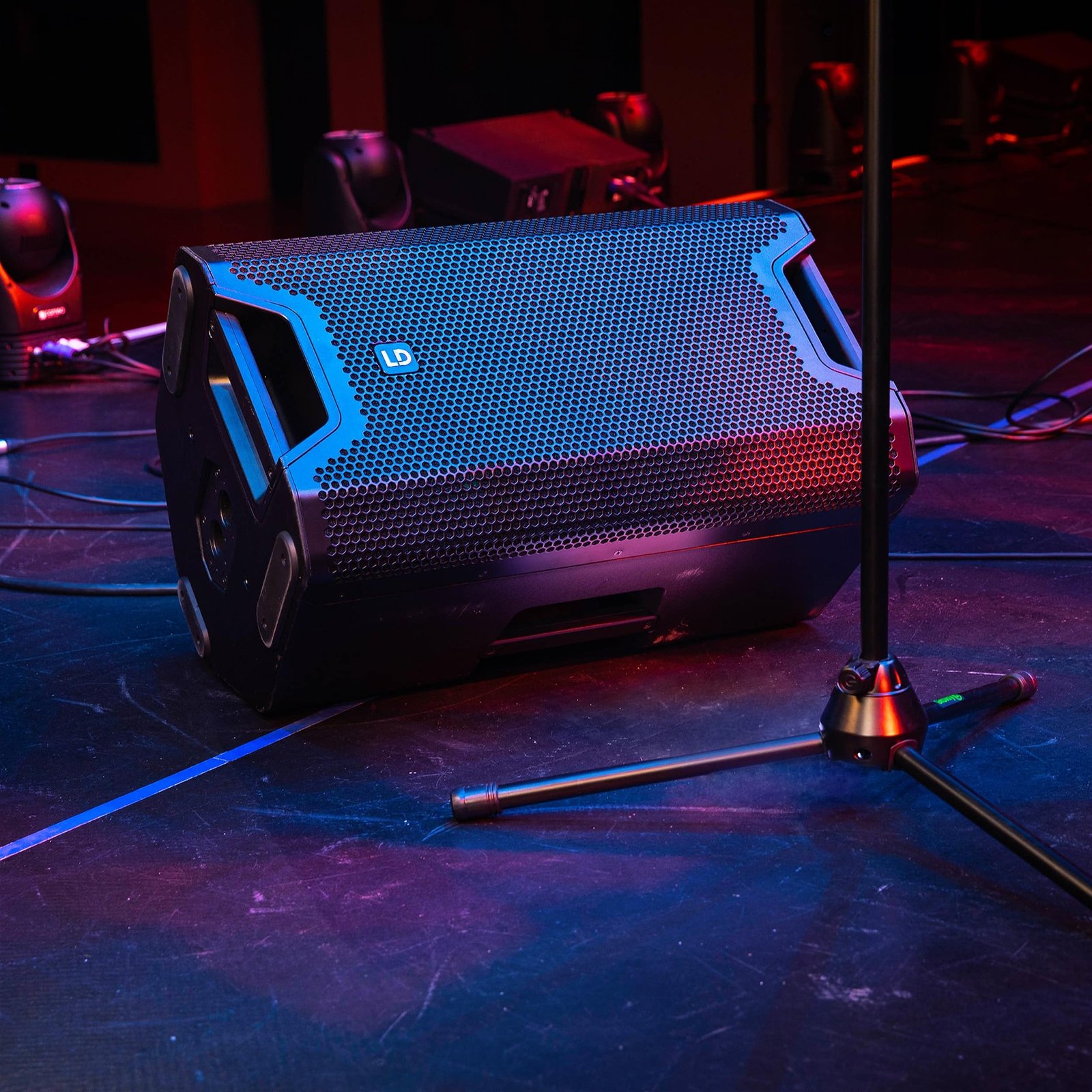

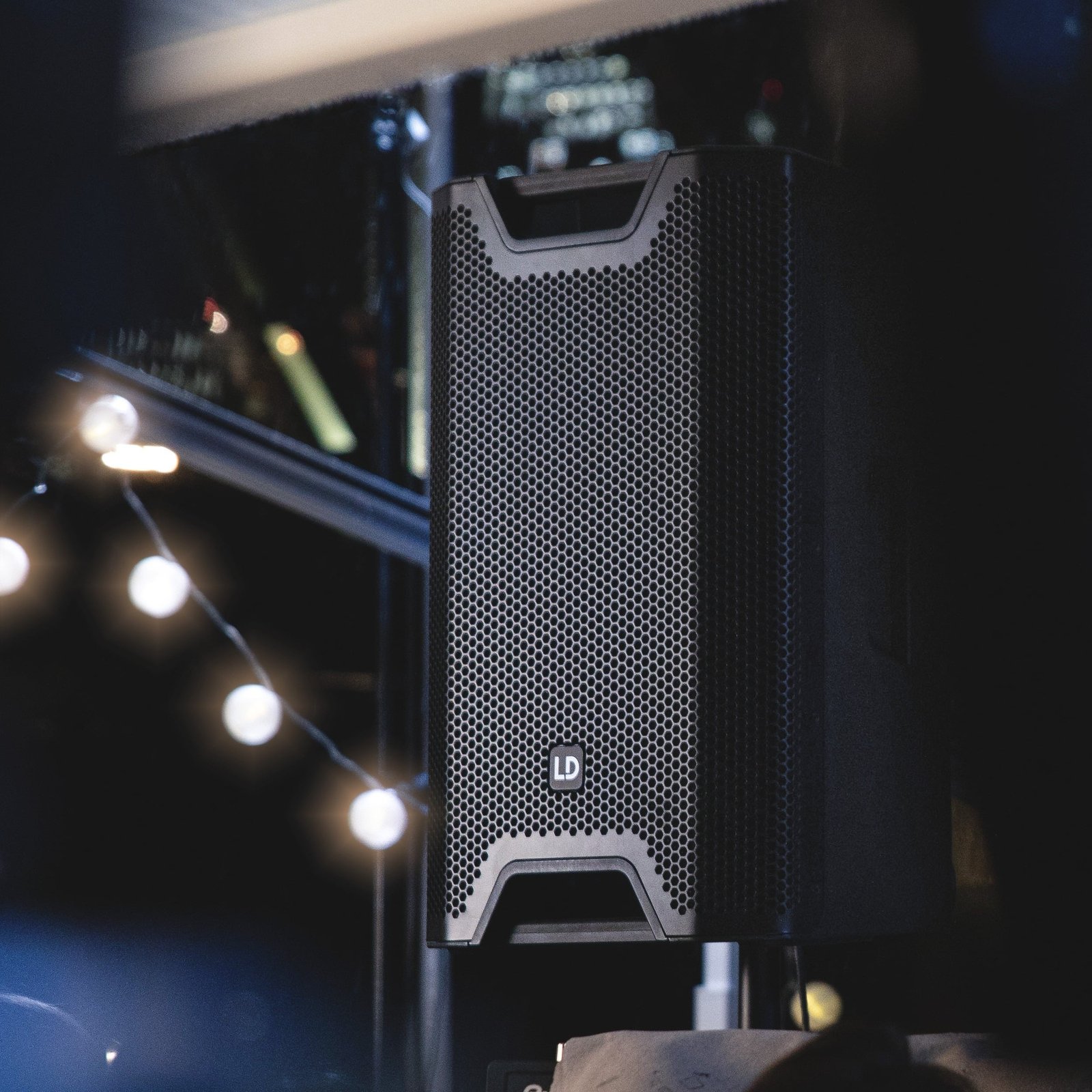

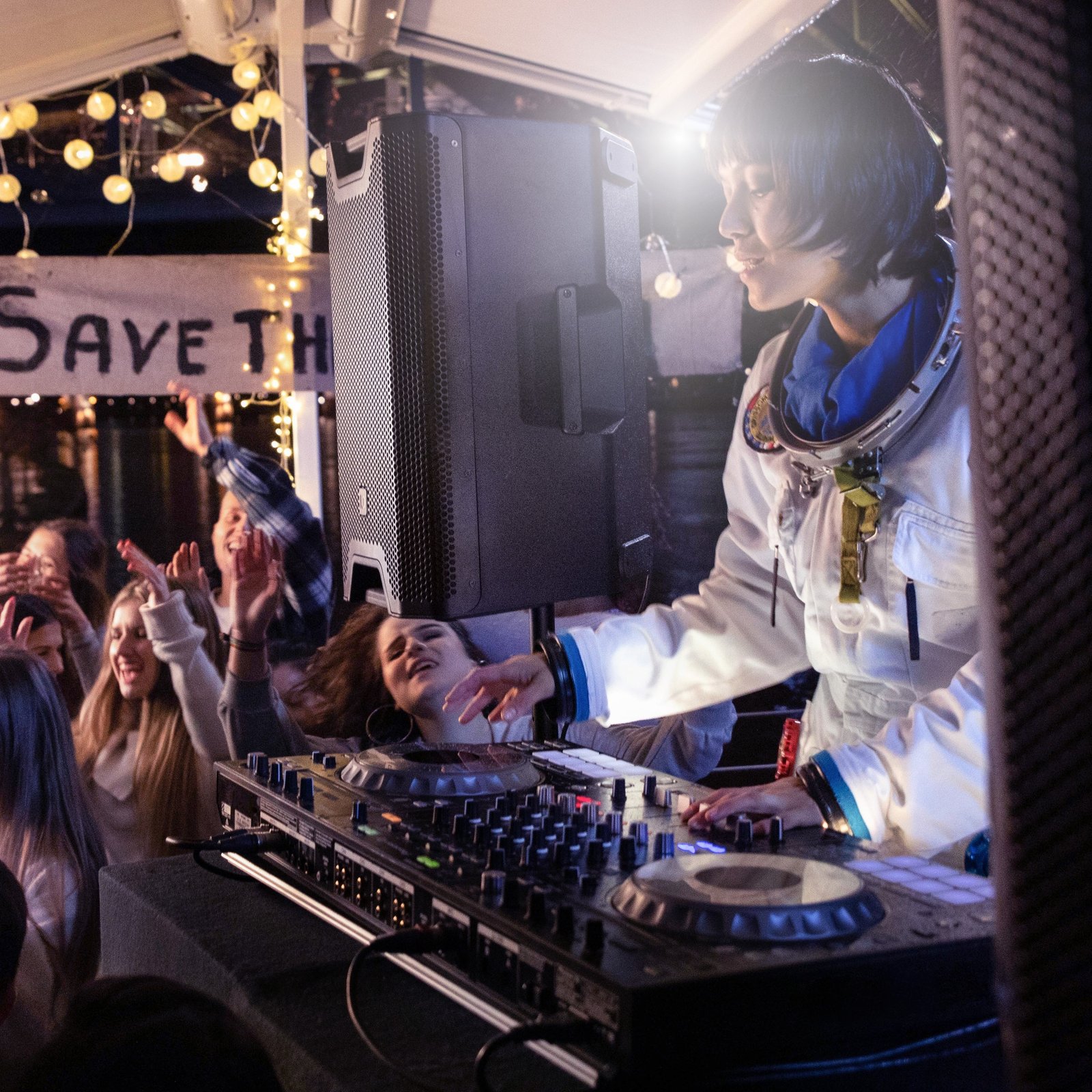

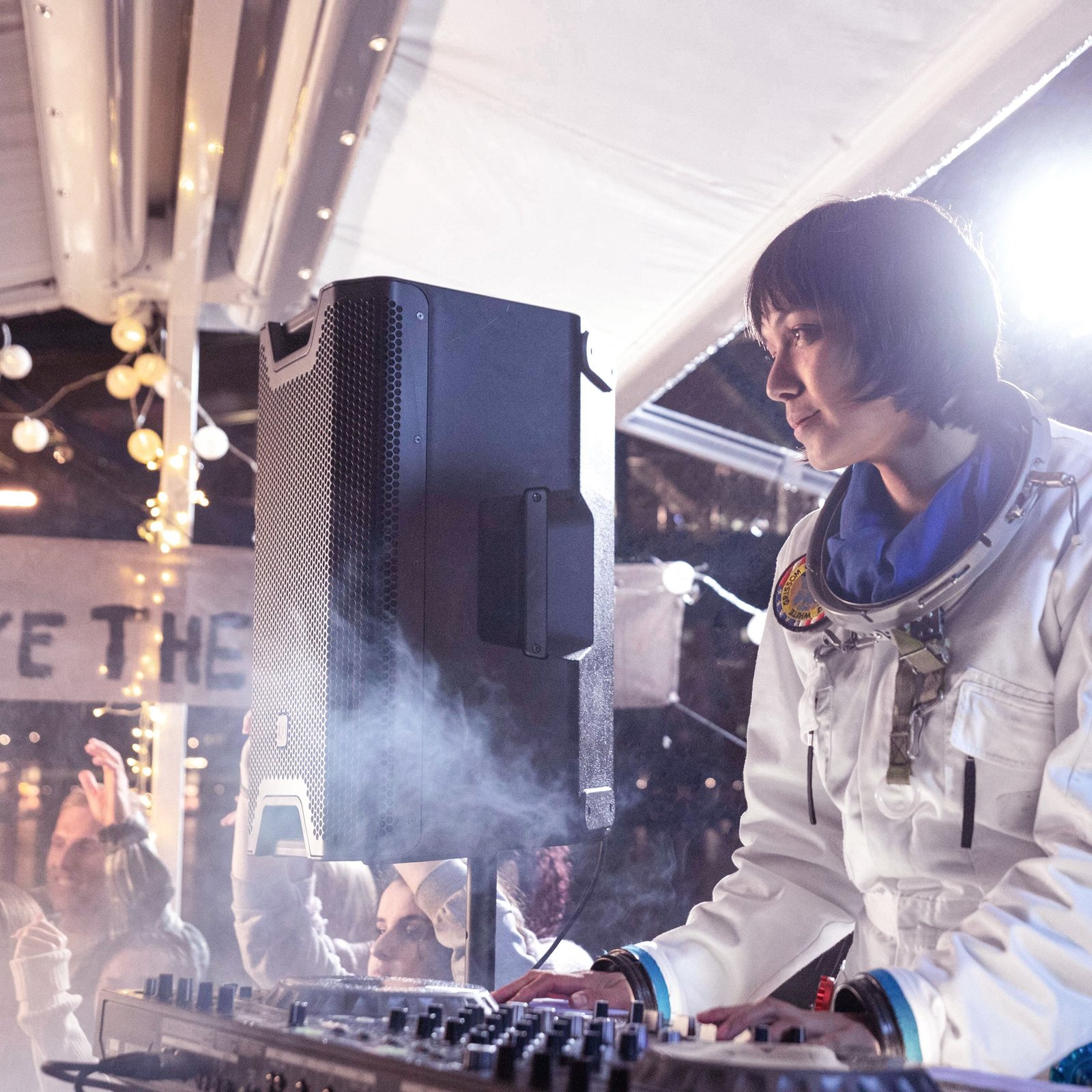

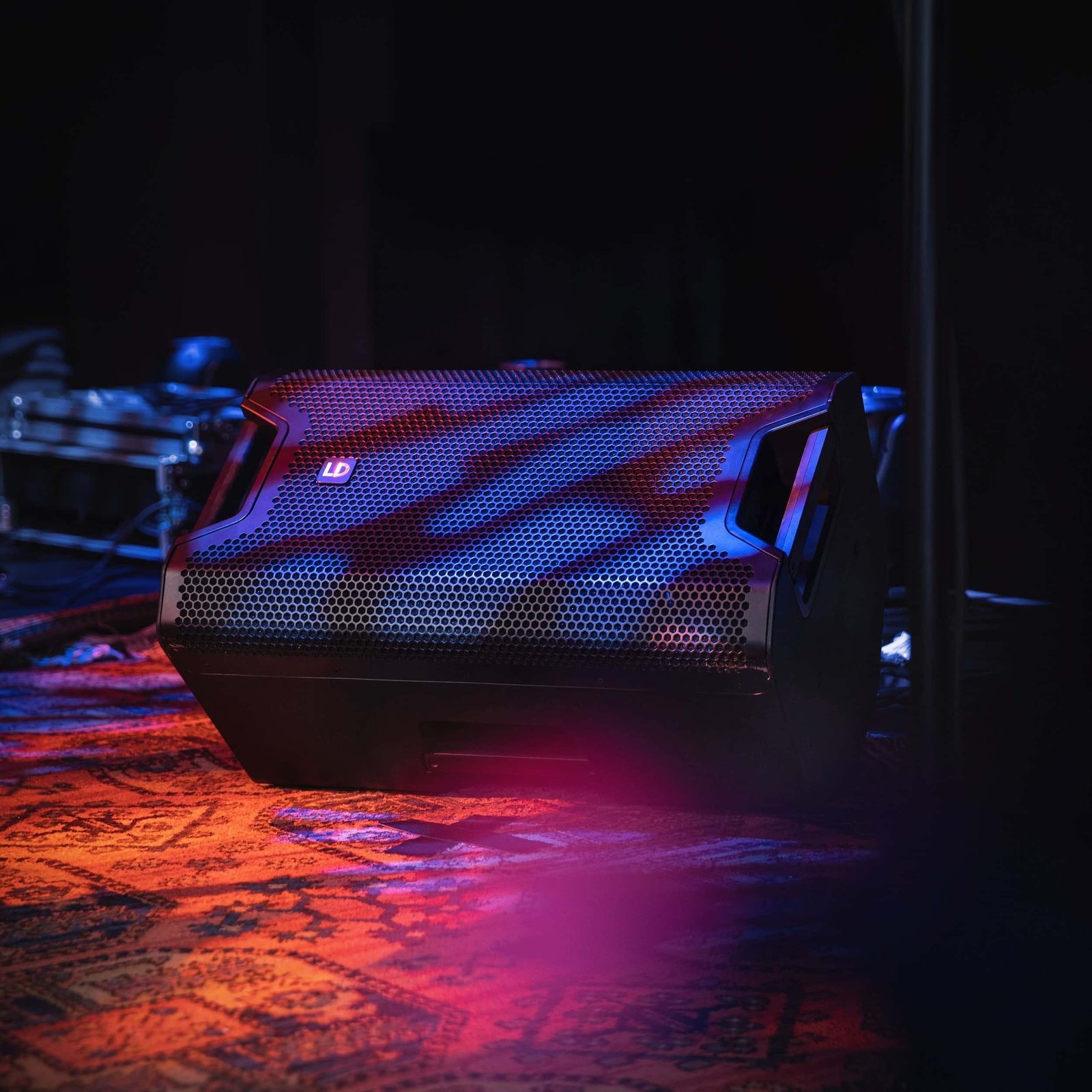

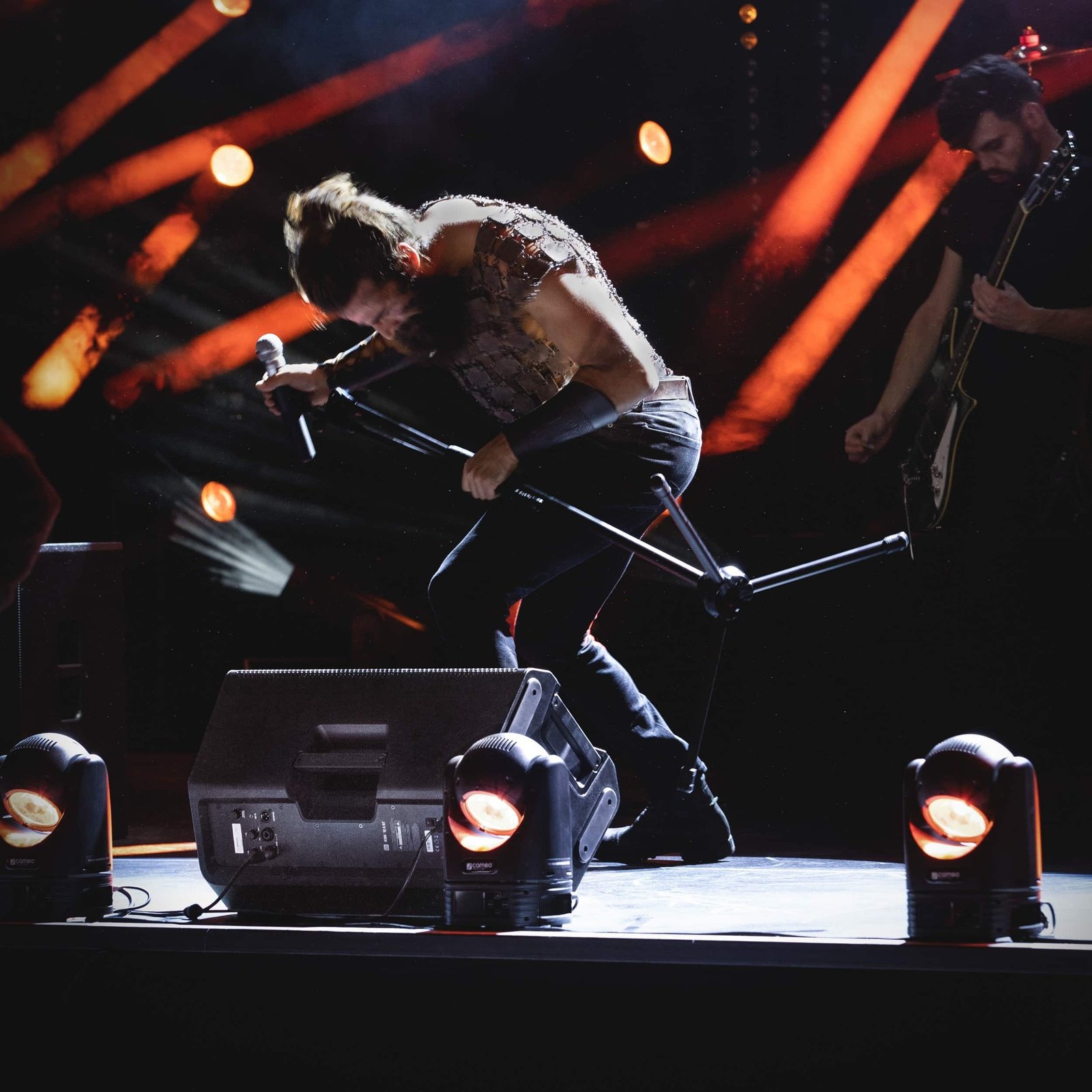

The outstanding bass reproduction from the horn-loaded woofer makes the LD ICOA 15 A the ideal choice for musicians, bands, entertainers and dance schools. It also allows DJs to play sets without the need for a subwoofer. Deployed vertically, the speaker impresses as a satellite; horizontally, it’s excellent in suspended systems or as a floor monitor. The efficient class-D power amplifier delivers 128 dB max. SPL and 1200 W peak performance.
| Product Type | PA loudspeaker |
|---|---|
| Type | Powered |
| Low/mid Woofer dimensions | 15 " |
| Horn | BEM optimized CD Horn |
| Woofer dimensions (mm) | 381 mm |
| HF driver dimensions | 1 " |
| Woofer magnet | Ferrite |
| HF driver dimention (mm) | 25.4 mm |
| Woofer brand | Custom-made |
| HF driver magnet | Ferrite |
| HF driver brand | Custom-made |
| HF driver voice coil | 1.4 " |
| HF driver voice coil (mm) | 35 mm |
| Amplifier | Class D |
| Dispersion (H x V) | 90° x 50° |
| System Power (RMS) | 300 W |
| Peak power | 1200 W |
| Frequency response | 48 Hz – 20000 Hz |
| Crossover frequency kHz | 2 kHz |
| Max. SPL (Peak) | 126 dB |
| Protection circuits | Multiband limiter, over voltage, over-current, thermal overload |

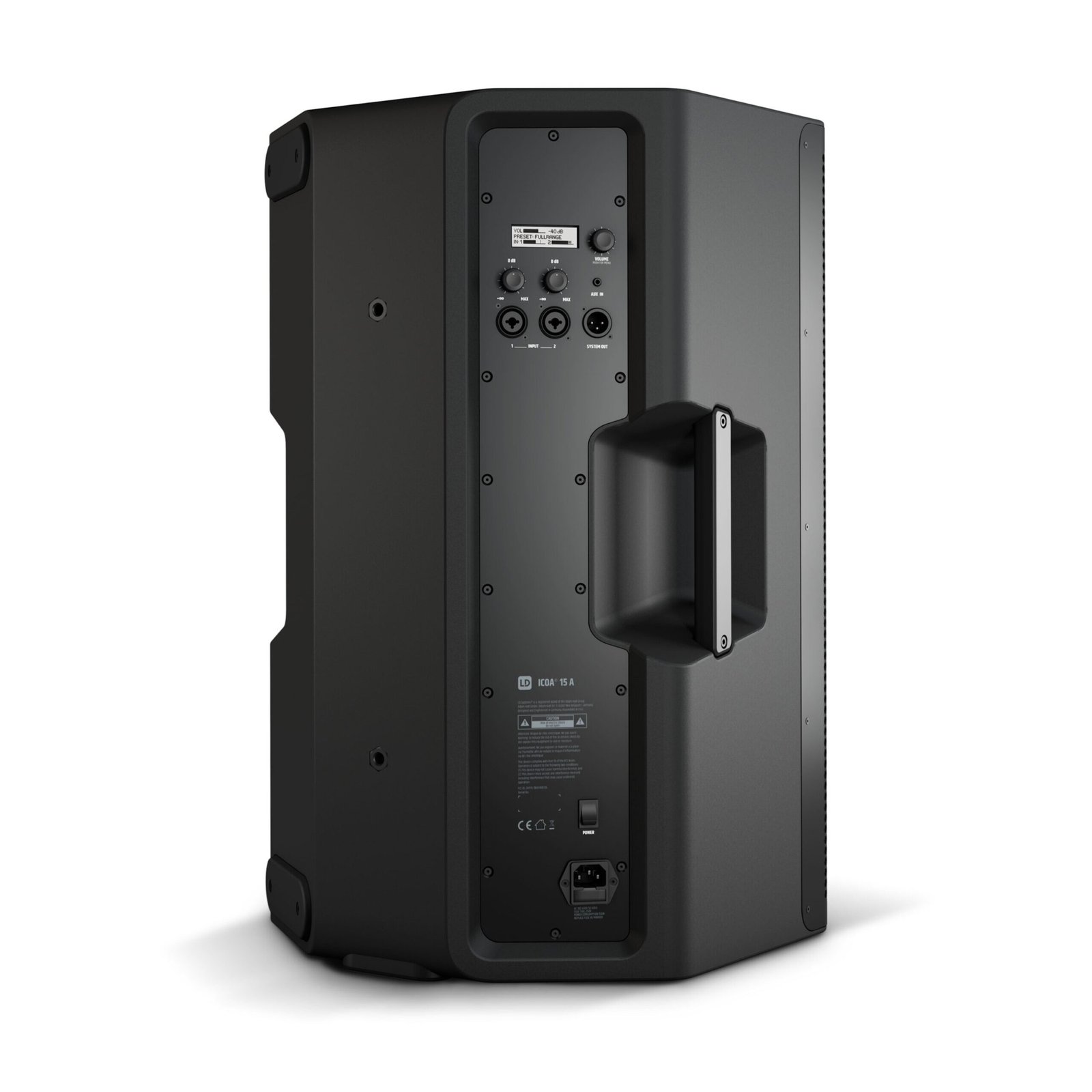

| Controls | 2 x gain, On / off switch, Rotary/push encoder |
| Indicators | LC display |
| Mic/ line inputs | 2 |
| Mic-/ Line Input Connectors | 6.3 mm jack Combination sockets (symmetrical), XLR |
| Line inputs | 1 |
| Line input connectors | 3.5 mm TRS |
| Line outputs | 1 |
| Line output connectors | XLR |
| Power supply | SMPS |
| Power consumption | 150 W |
| Ambient temperature (in operation) | 0 – 40 °C |
| Operating voltage | 100 V – 240 V AC / 50 – 60 Hz |
| Relative Humidity | < 80 %, not condensing |
| Fuse | T4AL 250 V |
| Cabinet material | Polypropylene |
| Cabinet construction | Bass Reflex |

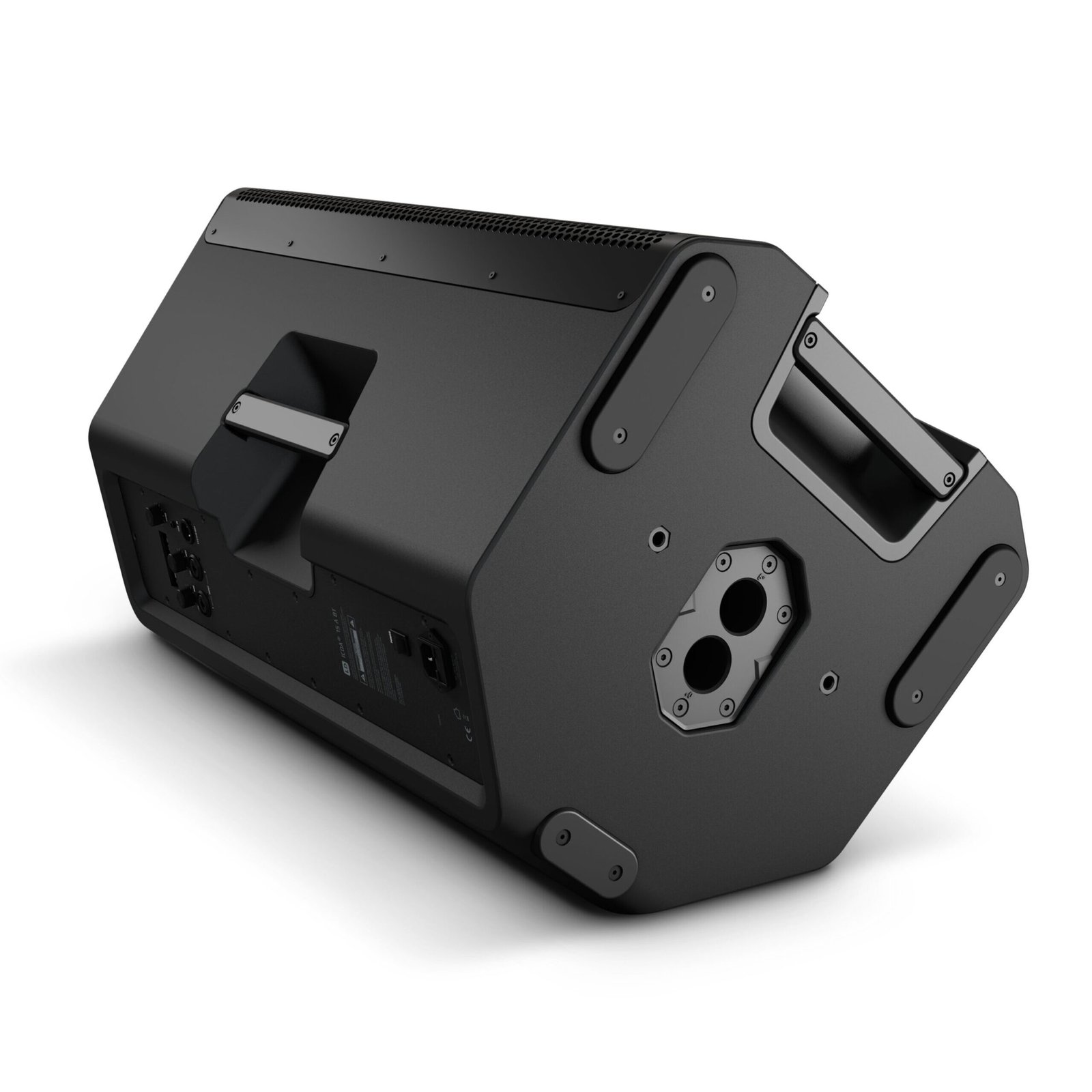

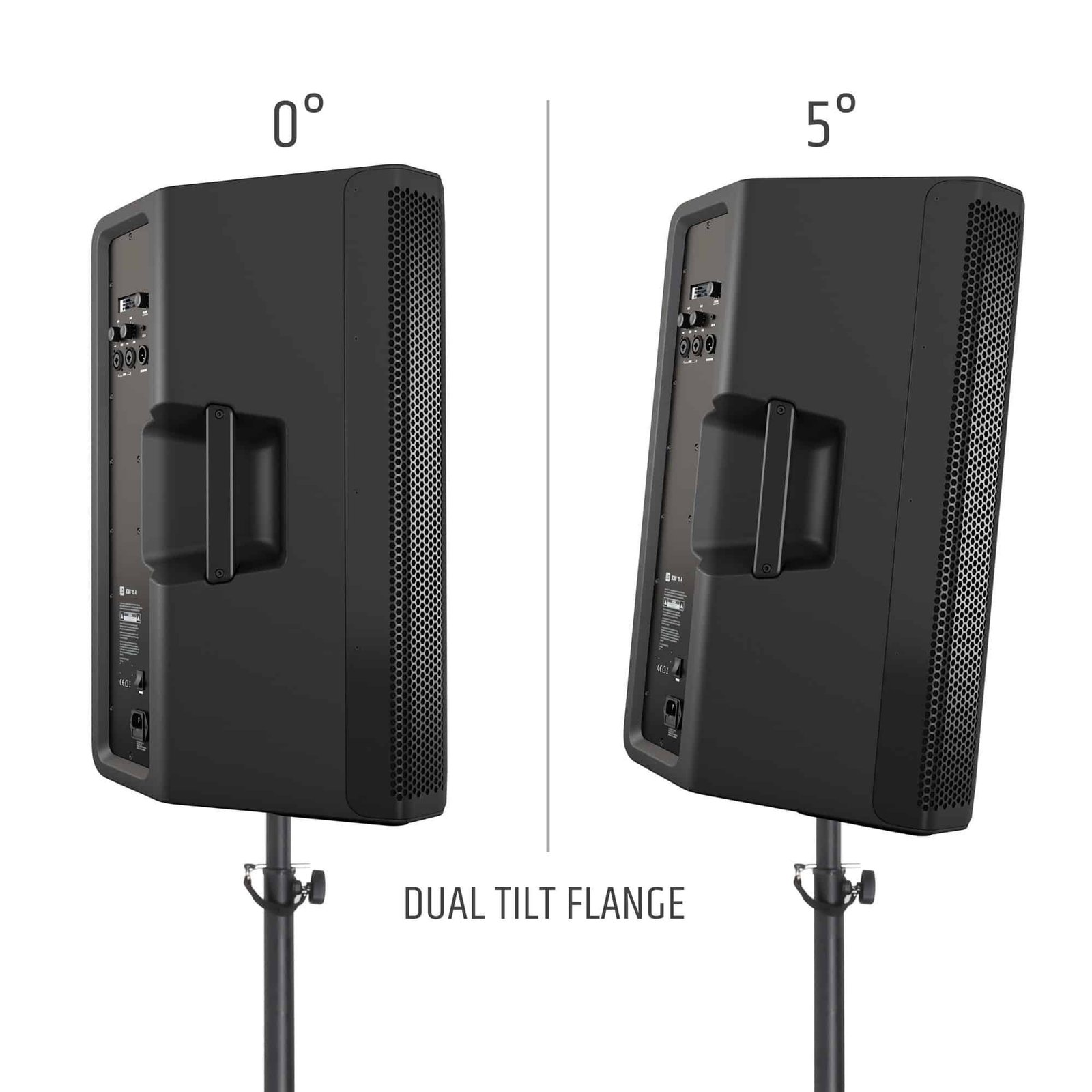

| Mounting | 36mm flange (0°, 5°), 6 x M10 flying points |
| Monitor angle | 55 ° |
| Width | 416 mm |
| Height | 695 mm |
| Depth | 415 mm |
| Weight | 24,3 kg |
