8-Channel remote-controlled mic pre with dual PSUs

RedNet MP8R is a 1U, eight-channel remote-controlled mic pre and A-D interface for any Dante™ audio-over-IP network. Featuring network and power supply redundancy, RedNet MP8R is the ideal choice for providing mic pres in many critical-path applications, whether in Post Production, Broadcast, Live Sound or the Recording Studio.

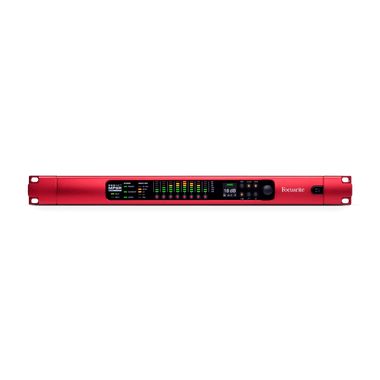

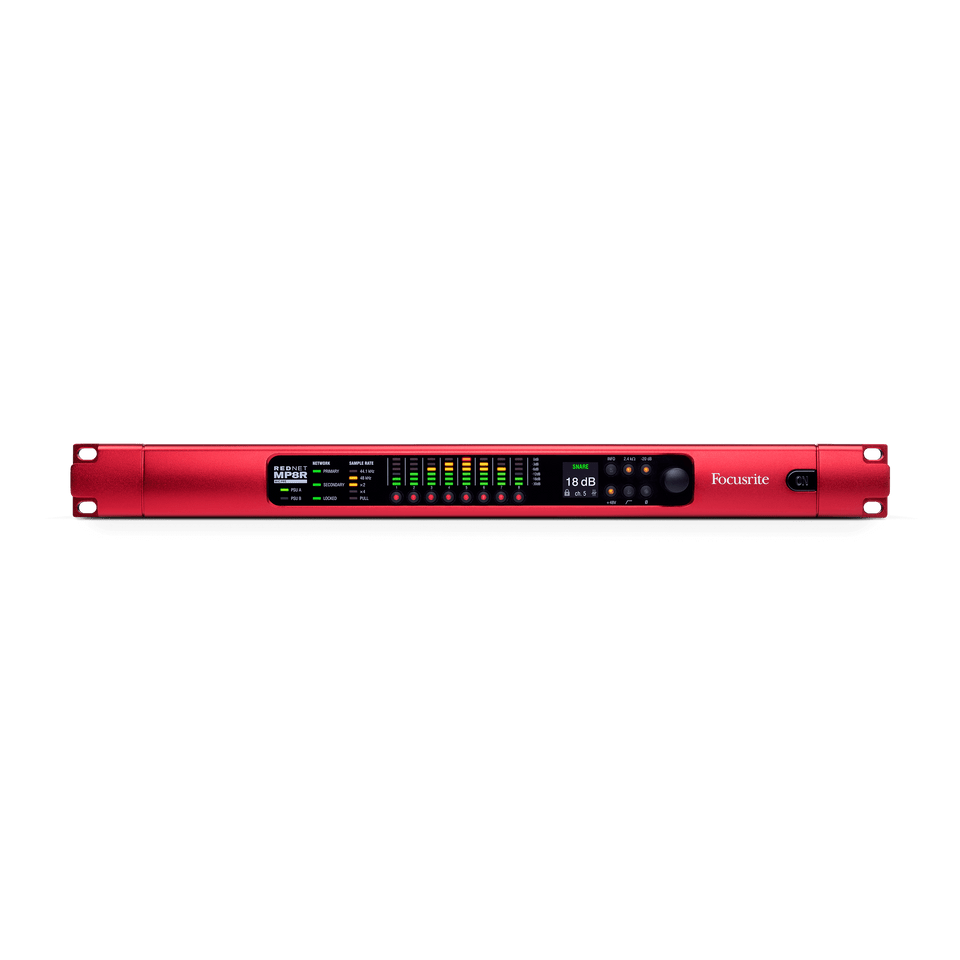

RedNet MP8R was designed in direct response to requests from clients in Live Sound and Broadcast looking for a high-quality remote controlled mic pre coupled with high performance A-D conversion. The result is a preamp with high dynamic range, flat frequency response, and excellent common-mode gain performance. The unique automatic gain compensation feature allows for a variety of flexible workflows; each mic pre feeds a pair of network transmitters, – one directly fed by the mic pre, the other fed through automatically compensated DSP – making mic pre sharing very simple. Front panel level indication is provided through 6-segment LED meters, while an OLED display indicates input gain and other system information.

Brainworx bx_console

The Focusrite Studio Console reborn in your DAW

The Focusrite Studio Console defined countless hits of the 80s and 90s, thanks in large part to its ISA 110 Equaliser and ISA 130 Dynamics Modules. Brainworx’s bx_console Focusrite plug-in brings you stunningly accurate emulations of both in a single plug-in, perfectly capturing the famously warm, open sound of two of the most revered pieces of studio hardware ever made.

Enjoy 3 years of warranty

All Focusrite products are built to the highest standards, and are designed to provide many years of reliable performance.

Specifications in detail

Microphone inputs

• Gain Range                        10dB to 65dB in 1dB steps
• Type                                    Electronically Balanced, Zin = 2.4kO/10kO (Switchable); Inputs
  default to 2.4kO unpowered
• Max. Input Level                29dBu ±0.5; min gain with pad for 0dBFS, Rs = 150O
• Min. Input Level               -46dBu ±0.5; max gain without pad for 0dBFS, Rs = 150O
• Frequency Response       20Hz – 40kHz ±0.1dB
• THD N                                  -98dB (0.0012) @ -1dBFS, Rs = 150O
• EIN                                        -129dBu A-Weighted (typical), Rs = 150O
• Signal-To-Noise Ratio       118dB A-Weighted (typical), Rs = 150O
• Phantom Power                  48V, independently switchable per channel
• Pad                                      -20dB, independently switchable per channel
• HPF                                       -6dB @ 65 ± 3Hz, 12dB/Octave, independently switchable per
  channel

Digital performance

• Supported Sample Rates                    44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz (-4 / -0.1 / 0.1 /
  4.167) at 24 bit
• Clock Sources                                         Internal or from Dante Network Master

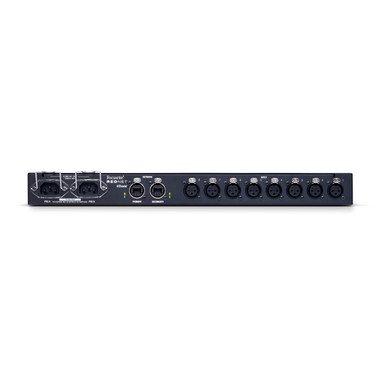

Rear panel connectivity

• Mic Inputs                               8 x Female XLR
• PSU                                           2 x IEC Inputs with retaining clips
• Network                                  2 x etherCON NE8FBH-S, also compatible with standard RJ45
  connectors

Network modes

• Redundant                                               Allows unit to connect to two independent networks
• Switched                                                  Connects both ports to integrated network switch
  allowing daisy-chaining of devices
