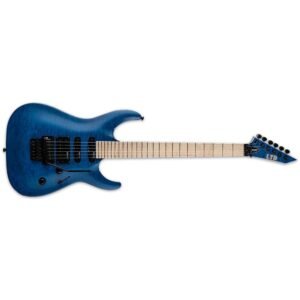

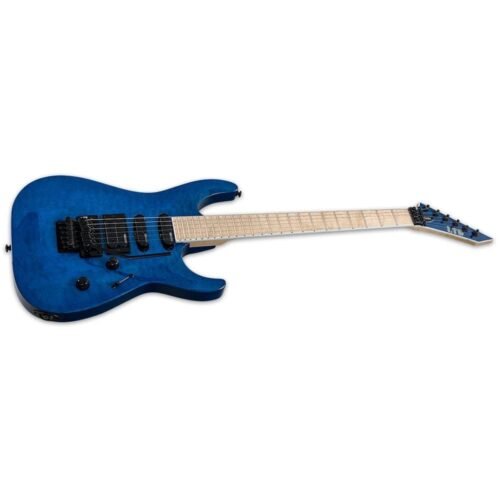

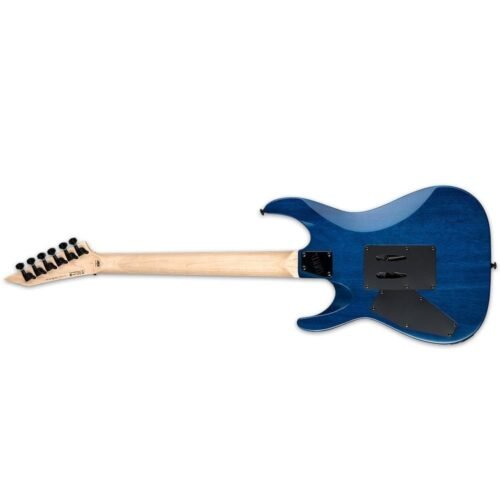

Humbucker and single-coil sounds in one guitar with an arched quilted top. The LTD MH-203QM has the arched top of the ESP Horizon with M Series styling, a quilted maple top on a mahogany body, H/S/S pickups (ESP LH-150B humbucker plus two LS-120 single coils) and an LTD by Floyd Rose tremolo.
Why customers choose it
- Easy to play: Thin U-profile maple neck in bolt-on construction, 25.5″ scale and 24 extra-jumbo frets on a 350mm-radius maple fingerboard.
- Tone woods: Mahogany body with a quilted maple top and maple neck.
- Pickups: Passive ESP LH-150B (bridge), ESP LS-120M (middle) and ESP LS-120N (neck), with coil-splitting for single-coil sounds from a push-pull tone knob.
- Bridge: FR by Floyd Rose double-locking tremolo with a locking nut for dive-bombs and wide vibrato while staying in tune.
- 5-way switch: Choose humbucker, single-coil and in-between sounds.
Who it is for
Players who need many sounds from one guitar – rock, pop, worship and cover bands – and lead players who use a tremolo.
Specifications
| Construction | Bolt-On |
|---|---|
| Scale length | 25.5″ |
| Body | Mahogany |
| Top | Quilted Maple |
| Neck | Maple |
| Neck profile | Thin U |
| Fingerboard | Maple |
| Fingerboard radius | 350mm |
| Frets | 24 extra-jumbo |
| Nut | 42mm, Locking |
| Hardware colour | Black |
| Tuners | LTD |
| Bridge | FR by Floyd Rose |
| Bridge pickup | ESP LH-150B |
| Middle pickup | ESP LS-120M |
| Neck pickup | ESP LS-120N |
| Electronics | Passive |
| Controls | Volume/Tone(Push/Pull)/5-Way Switch |
| Factory strings | D’Addario XL120 (.009/.011/.016/.024/.032/.042) |
| Finish | See Thru Blue |
Good to know
- Hard case is not included; it fits the ESP MH Guitar Form Fit Case (sold separately).
- A Floyd Rose locking bridge takes a little longer to restring and retune than a fixed bridge.
- Amplifier and cable are not included.
FAQ
Can it get single-coil sounds?
Yes. Pull the tone knob to split the bridge humbucker into single-coil sounds.
Which strings does it come with?
ESP lists D’Addario XL120 (.009/.011/.016/.024/.032/.042) as the factory strings. Use the same gauge when you restring to keep the setup and action the same.
Does it come with a case?
No. The hard case is sold separately (ESP MH Guitar Form Fit Case).
