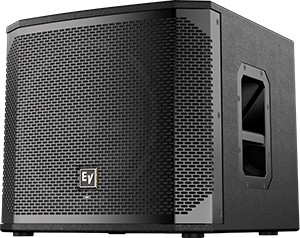

ELX200-12SP features high-efficiency Class-D power amplifiers (up to 1200 W) with integrated QuickSmartDSP, and delivers up to 129 dB SPL utilizing transducers designed and engineered by EV (12-inch EVS-12L woofer). Powered subwoofer models allow easy setup via three presets (Music, Live, Club), sub/top system-match crossovers, three-band EQ, five user-programmable presets (Store and Recall

settings), visual monitoring of limiter status, input level control and meters, and master volume control to ensure optimal gain structure. ELX200 powered models are ideal for portable and installed applications, with lightweight and compact 15-mm wood enclosures, integrated M20 threaded pole polemount plate, and two-handle design for easy lifting.

The new QuickSmart Mobile wireless control and monitoring application, using Bluetooth Low Energy (BTLE) technology, allows intuitive system control, configuration and monitoring of up to six powered ELX200 loudspeakers simultaneously. Receive alerts when your system is being overdriven, and control your system while in front of your speakers, not behind. Bluetooth is available in select countries.

Deep Bass Power

The ELX200-12SP delivers powerful, precise low-end performance with its 1200W Class-D amplifier and 12-inch EVS-12L woofer, engineered by Electro-Voice for maximum clarity and punch. Reaching up to 129 dB SPL, this subwoofer is perfect for both portable and installed sound setups.

Smart DSP Control

Equipped with QuickSmartDSP, it offers three presets (Music, Live, Club), system-match crossovers, 3-band EQ, and five user-programmable settings for quick optimization. Visual limiter monitoring, input meters, and master volume ensure ideal gain structure every time.

Wireless System Management

With the QuickSmart Mobile app using Bluetooth Low Energy (BTLE), control and monitor up to six ELX200 speakers simultaneously. Receive performance alerts, adjust settings remotely, and fine-tune your system in real time—all from your smartphone.

Features

• EV QuickSmart Mobile application: quickly and wirelessly configure, control and monitor up to six ELX200 loudspeakers simultaneously, and receive immediate notification during critical performance conditions. Bluetooth is available in select countries.
• QuickSmartDSP features best-in-class processing. Easy setup via three presets, sub/top system-match, five user-programmable presets, visual monitoring of limiter status, input level control and meters, and master volume control to optimize gain structure, all via LCD.
• High-efficiency 1200 W Class-D power amplifier delivers up to 129 dB peak SPL utilizing ultraefficient, high-sensitivity transducer designed and engineered by EV.

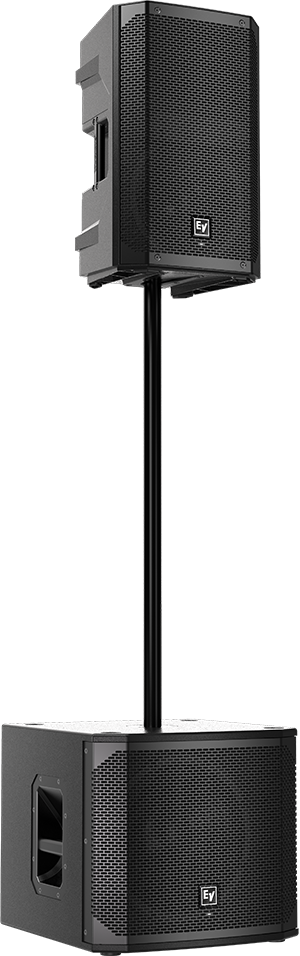

• Ideal for portable and installed applications. Professional-grade hardware: integrated M20 threaded pole mount plate and two-handle design for easy lifting.

In live sound reinforcement, delivering deep, powerful bass is essential to creating an immersive audio experience that captivates audiences and elevates performances. The Electro Voice ELX200-12 SP 12″ powered subwoofer is designed to meet this demand, offering robust low-frequency output that seamlessly integrates with your existing sound system. Whether you are a professional DJ, a touring musician, or a sound engineer managing a venue, this subwoofer ensures your audio setup has the impact and clarity needed to engage listeners fully.

Many subwoofers struggle to provide consistent, distortion-free bass at high volume levels, which can detract from the overall sound quality. The ELX200-12 SP solves this with its 1200-watt power rating and a maximum sound pressure level (SPL) of 129 dB. What this means for you is the ability to deliver loud, clear, and punchy low frequencies without the worry of distortion or speaker damage, even in challenging acoustic environments. This level of performance ensures that the bass lines and kick drums hit with authority, adding the depth and presence your music or event demands.

One of the standout features of the ELX200-12 SP is its frequency response range from 49 Hz to 135 Hz at -3 dB, extending down to 41 Hz to 165 Hz at -10 dB. This broad range captures the full spectrum of bass frequencies, reproducing both deep sub-bass and the higher bass harmonics with precision. The adjustable low-pass filter, selectable at 80 Hz, 100 Hz, 120 Hz, or 150 Hz, allows you to tailor the subwoofer’s output to perfectly blend with your main speakers, ensuring a seamless audio transition without gaps or overlaps. This customization means you can optimize your sound for different venues and musical styles.

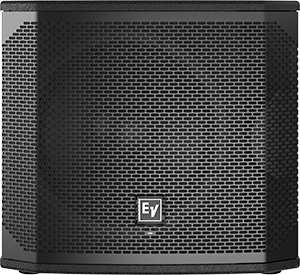

Constructed with a sturdy 15 mm plywood enclosure treated with EVCoat, the ELX200-12 SP is built to withstand the rigors of frequent transport and heavy use. Its 18 AWG steel grille with powder coating protects the internal components without compromising sound quality, giving you peace of mind during setup and teardown. At just 19.1 kilograms (42.2 pounds), it is relatively lightweight for a powered subwoofer, making it easier to handle while still delivering professional-grade performance. The inclusion of three M10 suspension points expands your mounting options, enabling flexible placement whether flown or stacked.

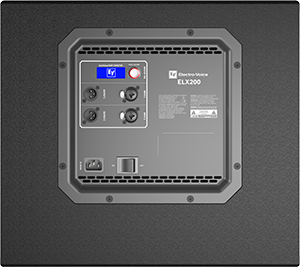

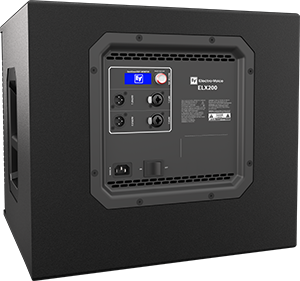

Connectivity is another area where this subwoofer excels. With two combo XLR/TRS inputs and two XLR link outputs, you can easily integrate the ELX200-12 SP into complex audio systems. These versatile connectors support balanced signals, reducing noise and interference, which is crucial in professional settings. The power supply supports a wide voltage range from 100 to 240 V at 50 to 60 Hz, making this subwoofer suitable for international use without the need for voltage converters.

The Electro Voice ELX200-12 SP is ideal for a wide range of applications, including live concerts, DJ performances, houses of worship, and corporate events. Its compact dimensions—397 mm high, 445 mm wide, and 457 mm deep—allow it to fit comfortably on stage or in tight spaces without sacrificing output. Whether you need to fill a small club with tight, impactful bass or provide the low-end foundation for a larger venue, this subwoofer delivers reliable, high-quality sound.

In summary, the Electro Voice ELX200-12 SP 12″ powered subwoofer is a professional-grade solution for those seeking powerful, clear, and customizable bass performance. Its combination of high wattage, adjustable filtering, rugged construction, and versatile connectivity ensures that it will enhance any audio setup. Backed by Electro Voice’s reputation for quality and durability, this subwoofer is a confident investment for anyone serious about achieving superior low-frequency sound.
