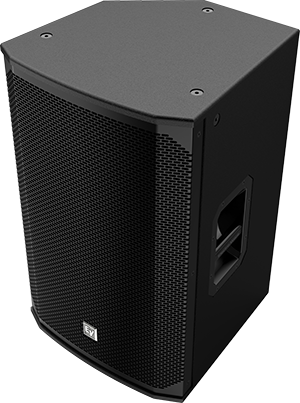

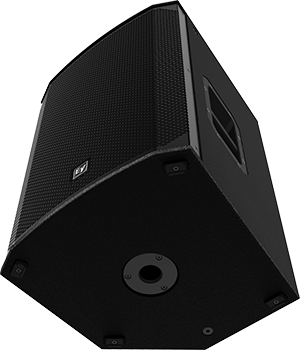

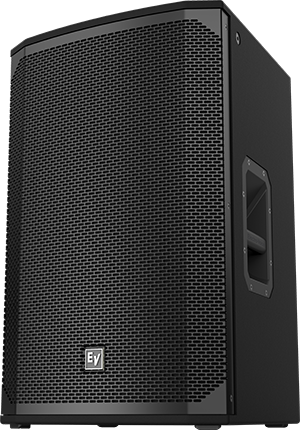

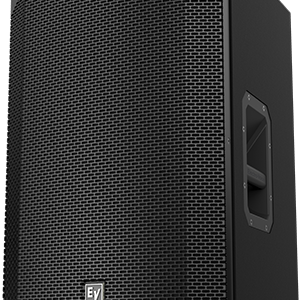

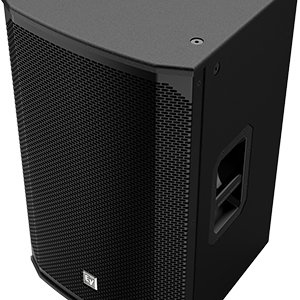

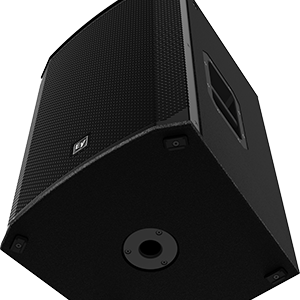

The Electro-Voice EKX-15 is a high-performance passive loudspeaker designed for professional sound reinforcement. Delivering 1600 W peak power and up to 132 dB SPL, it ensures powerful, crystal-clear output across all frequencies. Engineered with EV’s Signal Synchronized Transducers (SST) waveguide, it offers precise, even coverage with exceptional clarity. The 15-mm plywood enclosure with internal bracing and EVCoat finish provides durability for demanding gigs and installations. With eight M10 threaded mounting points, dual NL4 connectors, and a 90° x 60° dispersion pattern, the EKX-15 offers flexible setup and mounting options. Ideal for live performances, DJs, and venues seeking top-tier sound quality.

Superior Sound Performance

The EKX-15 delivers a powerful 1600 W peak output and 132 dB SPL, ensuring crystal-clear, high-volume sound with minimal distortion. Equipped with EV’s high-sensitivity transducers and the patented Signal Synchronized Transducers (SST) waveguide, it provides accurate and consistent audio coverage. Ideal for mid-size stages, its 90° x 60° pattern ensures every listener enjoys the same premium sound quality.

Durable and Versatile Design

Features

• EKX-15: 1600 W (peak), 132 dB peak SPL utilizing high-sensitivity transducers designed and engineered by EV.
• EV-patented Signal Synchronized Transducers (SST) waveguide design provides precise and consistent coverage.
• Lightweight, compact 15-mm wood enclosure with internal bracing, and durable EVCoat finish.
• Eight M10 threaded mounting points, aluminum pole mounts, and all-metal handles.
• 90˚ x 60˚ pattern for best coverage on mid-size stages. 40˚ monitor angle with rubber feet.

When delivering powerful, clear sound in professional audio settings, the Electro Voice EKX-15 15″ passive loudspeaker stands out as an exceptional choice. Whether you are outfitting a live music venue, a corporate event space, or a house of worship, this speaker offers the reliability and sonic precision that sound engineers and performers demand. Its robust design and high power handling ensure it can handle the rigors of frequent use while providing consistently impressive audio performance.

One of the key reasons to choose the EKX-15 is its ability to deliver a broad frequency response with remarkable clarity. Featuring a frequency range from 55 Hz to 20 kHz (-10 dB), it captures deep lows as well as crisp highs, ensuring that every nuance of music or speech is accurately reproduced. This means your audience experiences full, rich sound without distortion, even at high volumes. The 15-inch EVS-15 woofer paired with the DH-1 M 1-inch titanium compression driver drives a two-way full-range system that balances powerful bass with clear midrange and treble frequencies, providing a natural and engaging listening experience.

The speaker’s power handling capabilities are particularly noteworthy. With a continuous power rating of 400 watts and a peak power handling of 1600 watts, the EKX-15 can operate at high volumes without strain or damage. This allows sound professionals to push the limits during live performances or large gatherings without worrying about speaker failure. Additionally, the maximum sound pressure level (SPL) of 132 dB at one meter ensures the speaker can fill large spaces with loud, distortion-free audio, making it suitable for both indoor and outdoor use.

Durability and ease of installation are also critical factors in professional audio equipment, and the EKX-15 excels here. The enclosure is constructed from 15 mm plywood and finished with EVCoat, providing resistance against wear and environmental factors while maintaining an elegant appearance. The 18-gauge steel grille with powder coating protects the internal components from physical damage without compromising sound quality. Furthermore, the speaker features eight M10 threaded mounting points, allowing for flexible suspension options and secure rigging, which is essential for venues with varying stage setups and installation needs.

Dimensionally, the EKX-15 is designed to fit seamlessly into professional audio configurations. Measuring 685 mm in height, 432 mm in width, and 429 mm in depth, and weighing 23.2 kg, it strikes a balance between portability and robust construction. The dual NL4 connectors simplify wiring and integration into existing sound systems, making setup efficient and reliable. Its nominal impedance of 8 ohms and minimum impedance of 7.2 ohms ensure compatibility with a wide range of amplifiers and audio processors.

The EKX-15 is ideal for sound reinforcement in scenarios where high-quality, dependable audio is paramount. Concert venues, touring productions, corporate events, and houses of worship will benefit from its ability to deliver clear, powerful sound that engages audiences and supports performers. Its two-way design and wide 90-degree horizontal by 60-degree vertical coverage pattern ensure consistent sound distribution throughout the listening area, reducing the need for additional speakers and simplifying system design.

In summary, the Electro Voice EKX-15 15″ passive loudspeaker offers a compelling combination of power, clarity, durability, and flexibility. Its high SPL capabilities and broad frequency range mean you can confidently rely on it for professional-grade sound in demanding environments. Backed by Electro Voice’s reputation for quality and innovation, the EKX-15 is an investment that will enhance your audio setup and deliver outstanding performance for years to come.
