Contains Legendary Drum Sets

• The delicate resonance of aged shells are newly captured, recorded by EFNOTE
• Raw and organic, NOT synthetic and electronic
• Includes maple, birch, acrylic, steel, aluminum, brass, titanium shells, even a towel-muted sound

Diverse Cymbal Collection

• Our mint selection, from bright and crisp modern sounds to dark and soft vintage sounds
• Contains modern trash/effect/stacked cymbal sounds

V2.0
User Tone (UT)

• • UT is a custom drum tone that can be created with your audio files and added to your sound module.
  • Supports a dynamics-sensitive tone with multiple audio files.
  • All UTs can also be used as Overlay Tones to overlay on any preset drum sounds.
  • Easy to create UTs using the new EFNOTE Desktop Tools app.

User Tones can be used for drum pads (Kick/Snare/Toms) only.

EFNOTE Desktop Tools runs on Mac/PC.

V2.0
Instrument Expansion (IX)

• • A collection of add-on drum instruments for the EFNOTE PRO is now available online from the EFNOTE Desktop Tools app.
  • Quick IX installation and easy slot management are available.

Instrument Expansions can be used for drum pads (Kick/Snare/Toms) only.

EFNOTE Desktop Tools runs on Mac/PC.

Overlay Tone (Layering)

• Elements such as tambourines and EDM kicks can be easily layered over each drum sound
• Attack Elements for reinforcing the attack
• Percussion sounds
• eKick, eSnare and eClap sounds

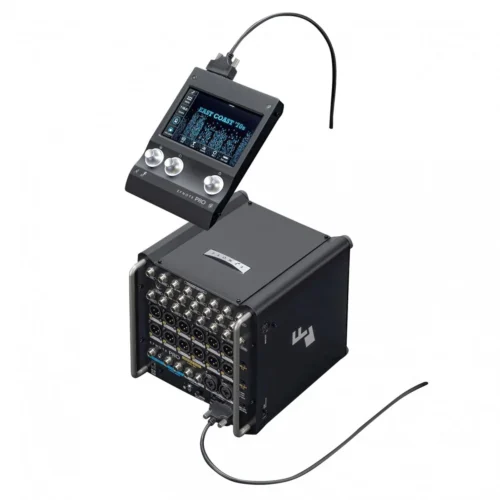

Innovative Two-Piece Design

• The two-piece sound module provides both operability and expandability required by professionals
• Low-profile and compact control surface with touch-screen full-color LCD
• Floor-standing base unit with robust enclosure and reliable cable connections

Designed for Worship Concerts

• “Its ability to produce crisp, clear drum tones while keeping stage volume to a minimum has been a game-changer for us.” – Rock Harbor Church
• Visit Churchfront to learn the real voices of worship drummers.

Discrete Foot Stage Light

• A foot light is equipped on the bottom of the control surface to help with setup and adjustment of the stage box
• Great for dark stages
• Adjustable brightness

Beautiful Kit Images Inspire

• Kit themes that highlight the musicality of each kit
• Simple interface design for professionals
• High-definition and high-brightness screen

Easy Left Handed Setup

• Just like acoustic drums, EFNOTE Drums allow for easy left-handed setting
• The Global Pan function makes it easy to adjust sound localization for left-handed setup

Perfect Customizing

• Mix and match the expansion packs and optional components to create your ideal set
• Beautiful white sparkle shell finish
• Consistent pad design
• Supports EFNOTE 3/3X/5/5X/7/7X pads

High-Powered Headphone Amp

• 1x 1/4″ jack + 1x 1/8″ jack for headphones (can be used simultaneously)
• Dedicated 2x headphone amp circuit for enough loudness
• High quality DAC and audio circuit

7 Shells and 8 Cymbals

• • Build a custom kit for any stage
  • 5x 2-zone input for toms
  • 6x 3-zone (including 3-zone hi-hat), 2x 2-zone input for cymbals
  • Traditional individual trigger connections (TRS), for professional reliability

Except for the hi-hat which uses dedicated 6-pin cable

ELISE™ Sensing Processor 2.0

• We’ve evolved, delivering improved sensitivity for capturing your most delicate touch
• The new algorithm for even more natural dynamics

Full Drum Pad Lineup

• Birch wood shells and 2-ply mesh drum heads
• Multi-sensor for hot-spotless and high-resolution sound
• 20” and 16” kick drums
• 14” and 12” snare drums
• 8”, 10”, 11” rack toms
• 12”, 13”, 15” floor toms

“World’s First” Cymbal Pads

• Tru-Motion™ 14” hi-hat cymbal
• 8” to 20” full size cymbal lineup, the first of their kind
• New 18” China cymbal and 17” effect cymbal with stackable/suspendable STAK™ mount

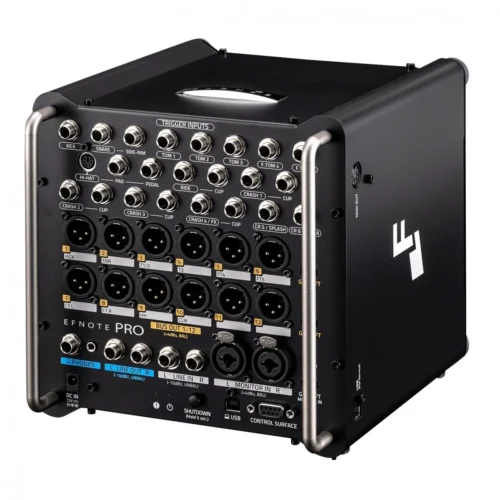

12-ch Buses to the Console

• 12-ch buses, and 12x XLR balanced bus output
• Dedicated bus compression for Bus 1 to 6
• HPF and 2-band EQs for Bus 1 to 12
• Stereo-Link for two adjacent buses
• Ground lift switches

XLR Inputs from the Console

• 2-ch Monitor In (XLR balanced) for monitoring return from the console
• 2-ch Line In (TS unbalanced) for an additional sampling/percussion pad
• Ground lift switch for Monitor In

EFNOTE Desktop Tools

• Allows for simple and intuitive management of UT and IX.
• Compatible with Mac and Windows.
• Visit the V2.0 page to get started.
