EFNOTE 705 Heavy Set (CS7 stand)
Brand:
EFNOTE
Product Highlights
EFNOTE PRO is designed to digitize your drum riser, then elevates your stage.
By simply connecting up to 12 balanced XLR outputs to your stage snake or sound-board, you will be sending and receiving the highest quality drum sounds on the market with total consistency and perfect isolation.
Experience unparalleled precision and dynamic control in your drumming with the EFNOTE 705 Heavy Set, featuring the advanced ELISE™ 2.0 Trigger Sensing Chip for exceptional responsiveness across 3-zone and 2-zone pads. Its full-color capacitive touchscreen and 12-channel XLR audio outputs provide professional-grade interface and connectivity, making it the perfect choice for serious musicians seeking both versatility and superior sound quality. Discover how this state-of-the-art electronic drum kit can elevate your performance to the next level.
Original price was: ₹869,940.₹826,400Current price is: ₹826,400.
In stock
Estimated delivery dates: May 9, 2026 - May 13, 2026
In stock
No More Acrylic Panel
There is no need to isolate your drummer from the choir, acoustic instruments, your audience or congregation. Your drummer is now free to connect and engage with everyone!
EFNOTE PRO has eliminated mic bleed and feedback problems on-stage, creating the ideal FOH mixing environment with clarity, balance and control.
Stage-Box Reliability
EFNOTE PRO has eliminated the need to change mics or mic placement, tuning, head replacement and maintenance at every show.
Just assign its 12-ch balanced outputs, using stereo or mono sends, such as kick, snare, toms, cymbals, click and external sampling pad.
Each channel is equipped with HPF, 2-band EQ, individual compressors for Bus 1-6, and ground lift switches.
Flexibility for All Music
EFNOTE PRO supports 7 shells and 8 cymbals. All pads are individually wired, so players can adapt to any musical environment.
All sound settings can be quickly saved and loaded, for multiple players and set-lists at any time.
In addition, with 12-ch of multitrack USB Audio and 16-ch USB MIDI running simultaneously, a drummer, producer or mixer have quick access to editing, in order to meet artist’s budget requirements.
Design

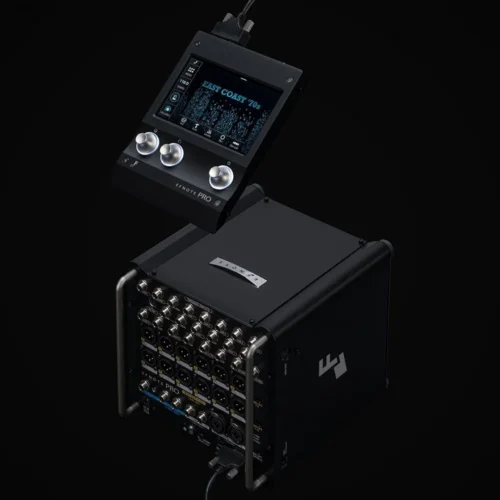

Innovative Two-Piece Design
The two-piece sound module provides both operability and expandability required by professionals
Low-profile and compact control surface with touch-screen full-color LCD

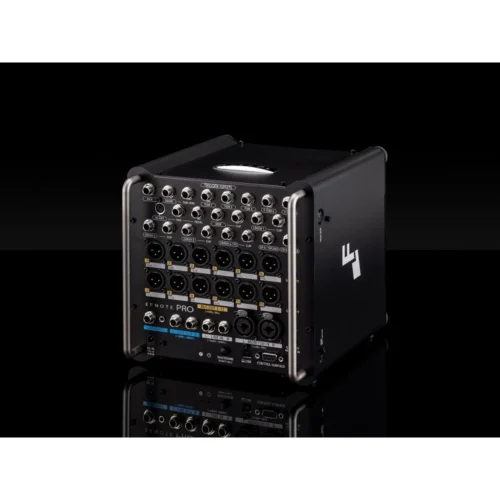

Floor-standing base unit with robust enclosure and reliable cable connections
Perfect Customizing
Mix and match the expansion packs and optional components to create your ideal set
Consistent pad design
Supports EFNOTE 3/3X/5/5X/7/7X pads
Beautiful Kit Images Inspire
Kit themes that highlight the musicality of each kit
Simple interface design for professionals
High-definition and high-brightness screen
Contains Legendary Drums Sets
- The delicate resonance of aged shells are newly captured, recorded by EFNOTE
- Raw and organic, NOT synthetic and electronic
- Includes maple, birch, acrylic, steel, aluminum, brass, titanium shells, even a towel-muted sound
Discrete Foot Stage Light
- A foot light is equipped on the bottom of the control surface to help with setup and adjustment of the stage box
- Great for dark stages
- Adjustable brightness
Diverse Cymbal Collection
- Our mint selection, from bright and crisp modern sounds to dark and soft vintage sounds
- Contains modern trash/effect/stacked cymbal sounds
Overlay Tone (Layering)
- Elements such as tambourines and EDM kicks can be easily layered over each drum sound
- Attack Elements for reinforcing the attack
- Percussion sounds
- eKick, eSnare and eClap sounds
Playability
- 7 Shells and 8 Cymbals
- Build a custom kit for any stage
- 5x 2-zone input for toms
- 6x 3-zone (including 3-zone hi-hat), 2x 2-zone input for cymbals
- Traditional individual trigger connections (TRS), for professional reliability
High-Powered Headphone Amp
- 1x 1/4″ jack + 1x 1/8″ jack for headphones (can be used simultaneously)
- Dedicated 2x headphone amp circuit for enough loudness
- High quality DAC and audio circuit
ELISE™ Sensing Processor 2.0
- We’ve evolved, delivering improved sensitivity for capturing your most delicate touch
- The new algorithm for even more natural dynamics
Full Drum Pad Lineup
- Birch wood shells and 2-ply mesh drum heads
- Multi-sensor for hot-spotless and high-resolution sound
- 20” and 16” kick drums
- 14” and 12” snare drums
- 8”, 10”, 11” rack toms
- 12”, 13”, 15” floor toms
“World's First” Cymbal Pads
- Tru-Motion™ 14” hi-hat cymbal
- 8” to 20” full size cymbal lineup, the first of their kind
- New 18” China cymbal and 17” effect cymbal with stackable/suspendable STAK™ mount
12-ch Buses to the Console
- 12-ch buses, and 12x XLR balanced bus output
- Dedicated bus compression for Bus 1 to 6
- HPF and 2-band EQs for Bus 1 to 12
- Stereo-Link for two adjacent buses
- Ground lift switches
XLR Inputs from the Console
- 2-ch Monitor In (XLR balanced) for monitoring return from the console
- 2-ch Line In (TS unbalanced) for an additional sampling/percussion pad
- Ground lift switch for Monitor In
EFNOTE Desktop Tools
- Allows for simple and intuitive management of UT and IX.
- Compatible with Mac and Windows.
- Visit the V2.0 page to get started.
Remote Control
- EFNOTE Tools App available for remote control/file-management
- Save and upload kit/trigger/bus settings
- Control the bus assign/effect/mix/output settings
- Select the drum kit and preview each pad sound
USB 12-ch Multi-Track Recording
- Simultaneous recording of 12-ch multi-track Audio and multi-track MIDI is available
- Confirmed with major DAWs
- 5-pin DIN MIDI Out
Bluetooth®
- Wireless connection with a smartphone or tablet for playing along
*(EFNOTE app will be available)
Centralized Volume Control
- Simply press the left knob to access the central volume management window
- One-touch switching between Main L/R and Bus Mix L/R monitoring
- One-touch mute for Monitor In
Graphical Bus Assigning
- Graphical bus assignment helps you setup your intended routing correctly
- All Pads can be assigned as both stereo and mono outputs
- Click, Line In, Monitor In can be set to a bus individually
Bus Effect Overview
- Allows viewing of each bus’s settings of effects and stereo link in one window
- HPF, EQ, Comp, and Stereo-link can be selected ON/OFF at once
Tags: 12-channel XLR audio output drum brain, Bluetooth MIDI drum trigger interface, EFNOTE electronic drum module
| Brand: | EFNOTE |
|---|---|
| User Interface | Full Color, Capacitive Touchscreen Display |
| Trigger Interface | 3-Zone (7x): Snare, Crash 1/2/3/4(FX), Ride, Hi-Hat |
| Audio / MIDI Interface | Bus Out: 12x XLR(M) (+4dBu, Balanced, +23dBu Max), Attenuator (-6dB, -12dB, -20dB, -30dB), GND Lift Sw (1-6, 7-12) USB: B Type USB 2.0 Hi-Speed MIDI Out: 5-pin DIN |
| Other Interfaces | Link Port: D-SUB 9-pin (use included link cable EFD-DSUB9-2 only) |
| Drum Kits / Instruments | Preset Drum Kits: 23 (editable) |
| Edit Parameters | Level, Pan, Tuning, Muffling (for each pad) |
| Click | 4x Click Setup Memory |
| Set-List | 15x Set-List (20 slots for each list) |
| Recorder | Tracks: 15 |
| Buses | 16 Channel Audio Buses (12x Bus + Bus Mix L/R + Main L/R) |
| Other Features | Inst Expansion |
| Dimensions / Weight | Control Surface: 128 (W) x 172 (D) x 30 (H) mm / 700 g |
| Power Supply / Current Draw | AC Adapter (FJ-SW1202000N-EFNOTE) DC 12V / 1.5A |
| Accessories | 1x Link Cable 2.0m (EFD-DSUB9-2) |
