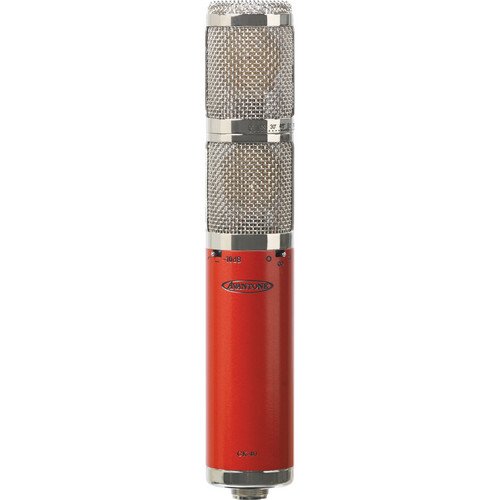

Avantone Pro CK-40 Stereo Large-diaphragm FET Condenser Microphone

Avantone CK-40 Stereo Class A FET Condenser Microphone at a Glance:

• Stereo design with rotatable capsule gives you a range of sonic and spatial options
• Switches between three pickup patterns for tailoring your sound

Stereo design with rotatable capsule gives you a range of sonic and spatial options
Apart from the amazing sound you’ll get from the CK-40 stereo FET condenser, you’re going to be amazed by just how versatile this microphone is — especially when you consider the affordable price. The Avantone CK-40 has two large-diaphragm transducers arranged vertically, for accurate stereo imaging without issues with phase. Beyond that, you can rotate the upper capsule up to 90 degrees, so you can take advantage of a wide range of miking techniques.

Switches between three pickup patterns for tailoring your sound
Let your ears be the final judge as you rotate the CK-40 microphone’s upper capsule, taking advantage such miking techniques as XY, Blumlein, and MS. Because both of the microphones on the CK-40 can switch among cardioid, omnidirectional, and figure 8 polar patterns, you have a wide variety of sonic and spatial options to experiment with as you tune in the perfect stereo image for your track.

Avantone CK-40 Stereo Class A FET Condenser Microphone Features:

• Stereo microphone with rotatable upper capsule for XY-coincident, Blumlein, M-S
• Switchable between cardioid, omnidirectional, and figure 8 polar patterns
• 3-Pattern Class A FET Microphone w/ two dual 35mm gold sputtered thin Mylar capsules
• -10dB pad and80Hz LF roll off switches
• Works well as a group vocal mic, room mic, piano mic, or utility condenser
• Extra-large dual -35mm center-terminated Euro style capsules
• The versatile Stereo CK-40 mic is able to produce professional results with a warm, pleasing sonic character

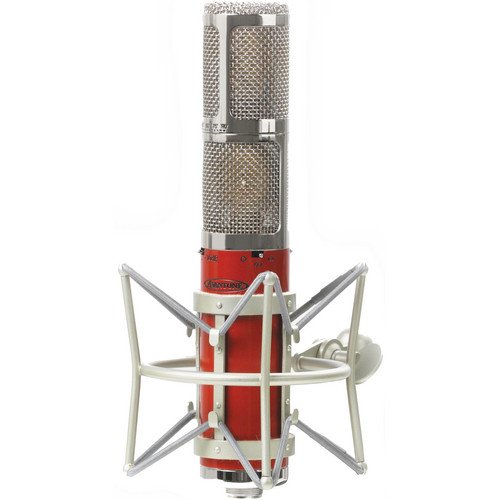

• The included Custom Retro Shockmount allows precise positioning of the mic while inhibiting the transfer of unwanted vibrations up into the mic
• Rugged CK-40 microphone body and capsule assembly are precision-machined of brass
• Features an elegant Metallic Cabernet Wine-Red finish, accented with polished nickel trim and grille

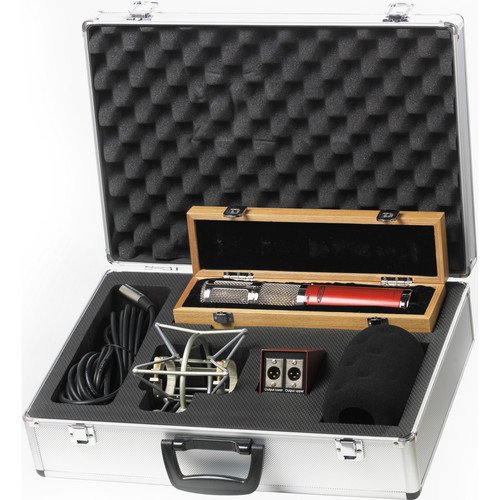

Avantone CK-40 Stereo Class A FET Condenser Microphone Includes:

• Avantone CK-40 Multi-Pattern Stereo FET Microphone
• Avantone Custom Retro Shockmount
• Padded Wooden Mic Box
• 1X2 Splitter Box
• 30′ 5 Pin Cable
• Foam Wind Filter
• Padded Aluminum storage/travel case
• Owners Manual

Avantone CK-40 Stereo Class A FET Condenser Microphone Specifications:

• Type: Stereo True Condenser Microphone
• Polar Pattern/s: Cardioid , Omni , Figure 8 (x2)
• Capsules: (2) Dual plate 35mm gold sputtered diaphragm/brass assembly
• Frequency Response:20Hz-20kHz +/- 3dB
• Rated Output Impedance: <=200 Ohms
• Maximum SPL : 147dB (0.5% THD @1000Hz)
• Sensitivity: -40dB
• Noise Level: 17dB (A weighted EC651)
• S/N Ratio re 1Pa : 77dB
• Output Connector: Male XLR 5 pin
• High-Pass Switch: 80Hz 6dB/octave
• Attenuation Switch: -10 dB
• Finish: Polished Nickel trim / Metallic Cabernet Red Body
• Size: 10 7/8″ x 1 15/16″
• Weight: 2.1 lbs.
• Requires +48V phantom power
