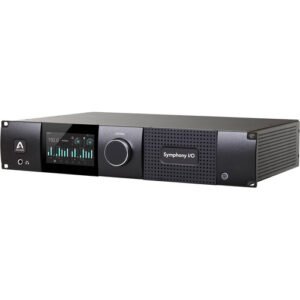

Apogee’s flagship conversion, built around your studio. The Apogee Symphony I/O Mk II SYM2-CONNECT-8-16X16SE-PTHD-PLUS is a modular multichannel audio interface with Pro Tools HD connectivity and Connect 8×8 MP module + 16×16 SE module. Symphony I/O Mk II takes up to 32 channels of analog I/O per chassis, with an intuitive touchscreen – made for recording, mixing and mastering at the highest level.
Why customers choose it
- Exactly the I/O you need: this configuration (SYM2-CONNECT-8-16X16SE-PTHD-PLUS) comes with Connect 8×8 MP module + 16×16 SE module: 8 mic/line preamps (up to 72 dB gain) + 8 analog out (DB25), plus AES, ADAT and S/PDIF digital I/O; 16 analog in / 16 analog out (DB25) + 2-ch coaxial S/PDIF.
- Pro Tools HD / HDX ready: the Pro Tools HD option card connects to HD and HDX systems; works with any Mac or PC running Pro Tools HD 9 or later.
- Mastering-grade sound: the SE modules are Apogee’s highest-performing Symphony modules: A/D 122 dB dynamic range (A-weighted) and -115 dB THD+N; D/A 126 dB and -119 dB THD+N. The 16×16 SE is the first Apogee product with the ESS 9822pro A/D chip.
- Record live bands and drums: 8 high-gain mic preamps (up to 72 dB gain) let you track a full kit or band without an external preamp.
- Hands-on control: front-panel touchscreen and control knob give quick access to sample rate, clock, levels and more; 1/4″ headphone output with Apogee Constant Current Drive.
Who it is for
Recording studios that track bands and drums, project studios, scoring stages, live recording rigs and broadcast facilities that need many mic inputs with top-class conversion.
What’s in the box
- Symphony I/O Mk II (Connect 8×8 MP module + 16×16 SE module installed)
- 3-pin IEC power cable
- Quick Start Guide
- Warranty booklet
Specifications
| Model / configuration | SYM2-CONNECT-8-16X16SE-PTHD-PLUS |
|---|---|
| Platform | Apogee Symphony I/O Mk II |
| Connectivity | Pro Tools HD |
| I/O modules | Connect 8×8 MP module + 16×16 SE module |
| Analog I/O | 24 in / 24 out |
| Mic preamps | 8, up to 72 dB gain |
| A/D (SE) | Dynamic range 122 dB (A-wtd), THD+N -115 dB @ +22 dBu |
| D/A (SE) | Dynamic range 126 dB (A-wtd), THD+N -119 dB @ +21 dBu |
| Max input / output level | +24 dBu (+4 setting) / up to +24 dBu |
| Headphone output | 1 x 1/4″ stereo, front panel, Constant Current Drive |

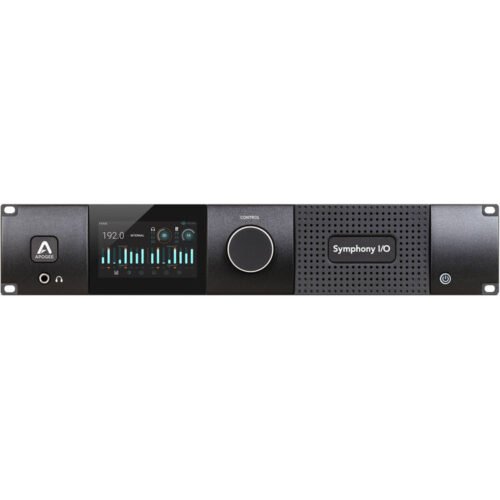

| Front panel | Touchscreen, control knob, power button |

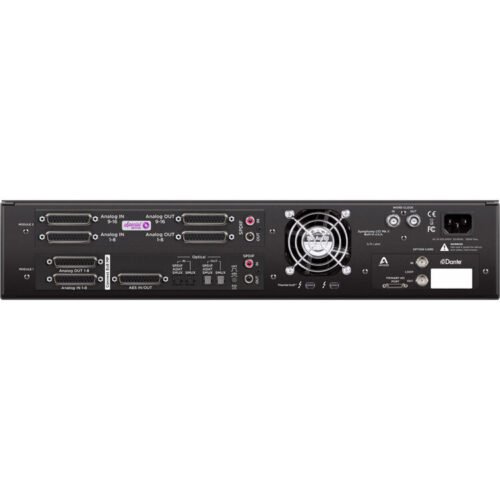

| Rear panel | 2 module slots, option card slot, word clock I/O, AC power |
| Compatibility | Mac or PC with Pro Tools HD 9 or later |
| Power | 90-240 VAC, 50-60 Hz, 150 W |
Good to know
- DB25 connections need DB25 snake cables (not included).
- Register with Apogee to download the Symphony Control software and firmware updates.
FAQ
Can I change the modules later?
Yes. Symphony I/O Mk II has two module slots that take any combination of Mk II modules, plus an option card slot for other connectivity.
What is the difference between SE and non-SE modules?
SE modules are Apogee’s top-of-the-line Symphony modules: the 16×16 SE uses the ESS 9822pro A/D chip and an ultra-low distortion output driver.
