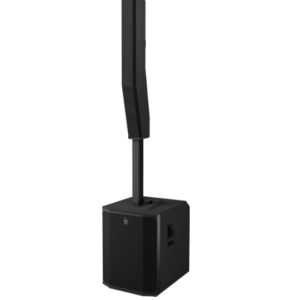

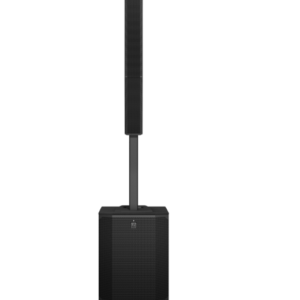

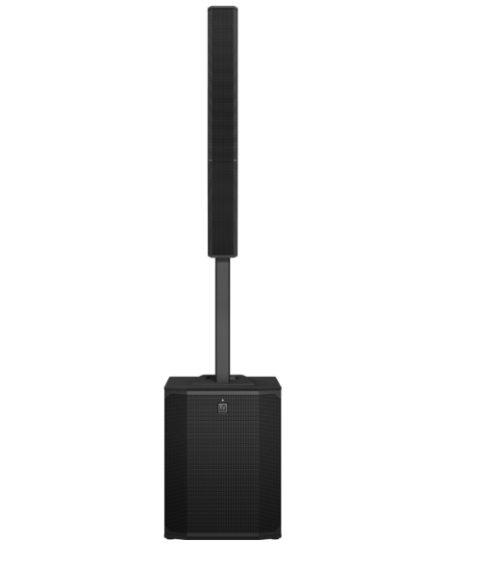

Fill bigger rooms – 134 dB peak from an 18-inch sub and a column of eight drivers. The Electro-Voice EVOLVE 90 is the largest EVOLVE column system, built around an 18-inch powered subwoofer. Electro-Voice made it for crowds of 300 to 500 and more: DJ sets, live bands, productions and big rooms.
Why customers choose it
- Serious output: 18-inch sub plus eight 4.7-inch neodymium drivers reach 134 dB peak SPL.
- Reach the back of the room: 120° x 25° waveguide coverage with longer throw.
- Plenty of power: 2,000 W Class-D amplifier, split 1,000 W LF and 1,000 W HF.
- Deep bass: frequency response 35 Hz – 18 kHz (28 Hz – 20 kHz at -10 dB).
- Plug in anything: dual XLR/TRS combo, stereo RCA, AES/EBU and Bluetooth TWS streaming.
- Run it from the app: QuickSmart App control, four sound modes and linking with other EVOLVE speakers.
Who it is for
Event and wedding sound companies, DJs playing large halls, live bands, churches and auditoriums that need column-system convenience with big-system output.
Specifications
| Type | Powered column loudspeaker system with 18-inch subwoofer |
|---|---|
| Drivers | 18-inch subwoofer + eight 4.7-inch neodymium drivers |
| Max SPL | 134 dB (peak) |
| Frequency response | 35 Hz – 18 kHz |
| Frequency range (-10 dB) | 28 Hz – 20 kHz |
| Coverage | 120° x 25° |
| Amplifier | 2,000 W Class-D (1,000 W LF + 1,000 W HF) |
| Inputs / outputs | Dual XLR/TRS combo mic/line inputs with switchable 48V phantom power, stereo XLR/TRS combo line input, stereo RCA line input, XLR AES/EBU input and thru, XLR Mix out, XLR Sub out, RJ45 QuickSmart Link, Bluetooth stereo input with TWS |
| Power input | powerCON |
| Enclosure | Plywood with polyurea coating (sub); composite (column); aluminium (pole) |
| Grille | Steel with powder coat |
| Net weight | 44.5 kg |
| Colours | Black or white |
Good to know

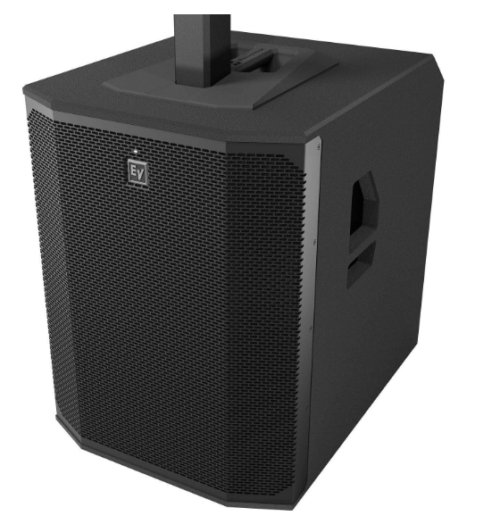

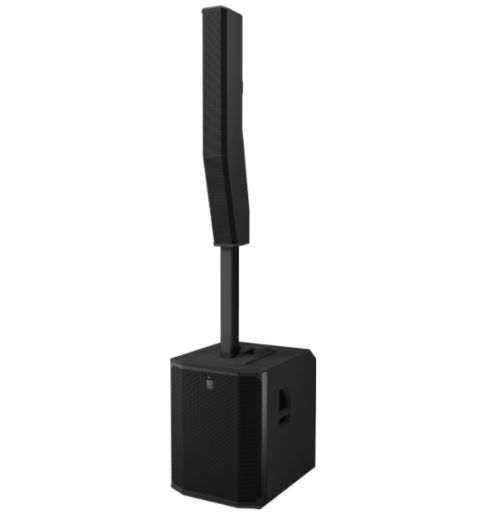

- All connections and the amplifier are on the subwoofer; the column sits on top on the pole.
- Phantom power (48V) is available on the dual combo inputs for condenser mics.
- Mix out and Sub out let you add more speakers or subwoofers.
FAQ
How many people can it cover?
Electro-Voice states crowds of 300 to 500 and up.
Does it have Bluetooth?
Yes, a Bluetooth stereo input with true wireless stereo (TWS).
