Solid, deep low end for live sound – from a proven JBL 18-inch subwoofer. The JBL JRX218S is a compact passive subwoofer from the JRX200 series. It adds real bass and punch to PA systems for bands, DJs, events and churches.
Why customers choose it
Who it is for
Live bands, DJs, sound rental companies, event organisers, churches, temples and schools that need more low end than full-range speakers give alone.
Specifications
| Type | Passive 18-inch compact subwoofer |
|---|---|
| Power rating | 350W continuous / 1400W peak |
| Recommended amplifier | 350W – 700W into 4 ohms |
| Frequency range (-10 dB) | 34 Hz – 250 Hz |
| Frequency response (±3 dB) | 53 Hz – 250 Hz |
| Sensitivity (1 m) | 98 dB SPL |
| Maximum SPL (1 m) | 133 dB |
| Impedance | 4 ohms |
| LF driver | M118-4, 18-inch, 3-inch voice coil |

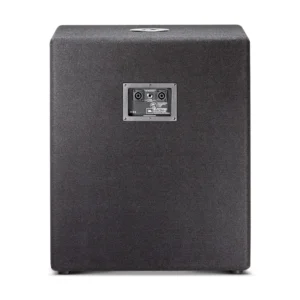

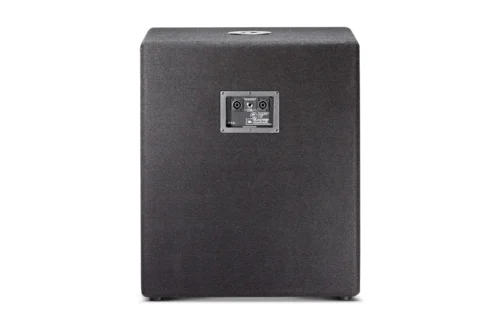

| Inputs | 2 x Neutrik Speakon NL-4 (parallel) |
| Enclosure | 19 mm MDF, black carpet covering |
| Dimensions (H x W x D) | 605 x 508 x 551 mm |
| Weight | 32.2 kg |
| Pole Mount | 35 mm |
Good to know
- This is a passive subwoofer: it needs an external power amplifier (350W – 700W into 4 ohms) and Speakon speaker cables.
- The second Speakon socket is wired in parallel to link another cabinet; mind the total amplifier load.
- The pole (SS3BK) is optional and not included.
FAQ
Does it have a built-in amplifier?
No. The JRX218S is passive and must be driven by a separate power amplifier.
Can I put a speaker on top?
Yes, using an optional 35 mm pole in the top-mounted pole socket.
