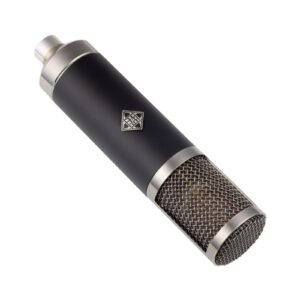

TF47

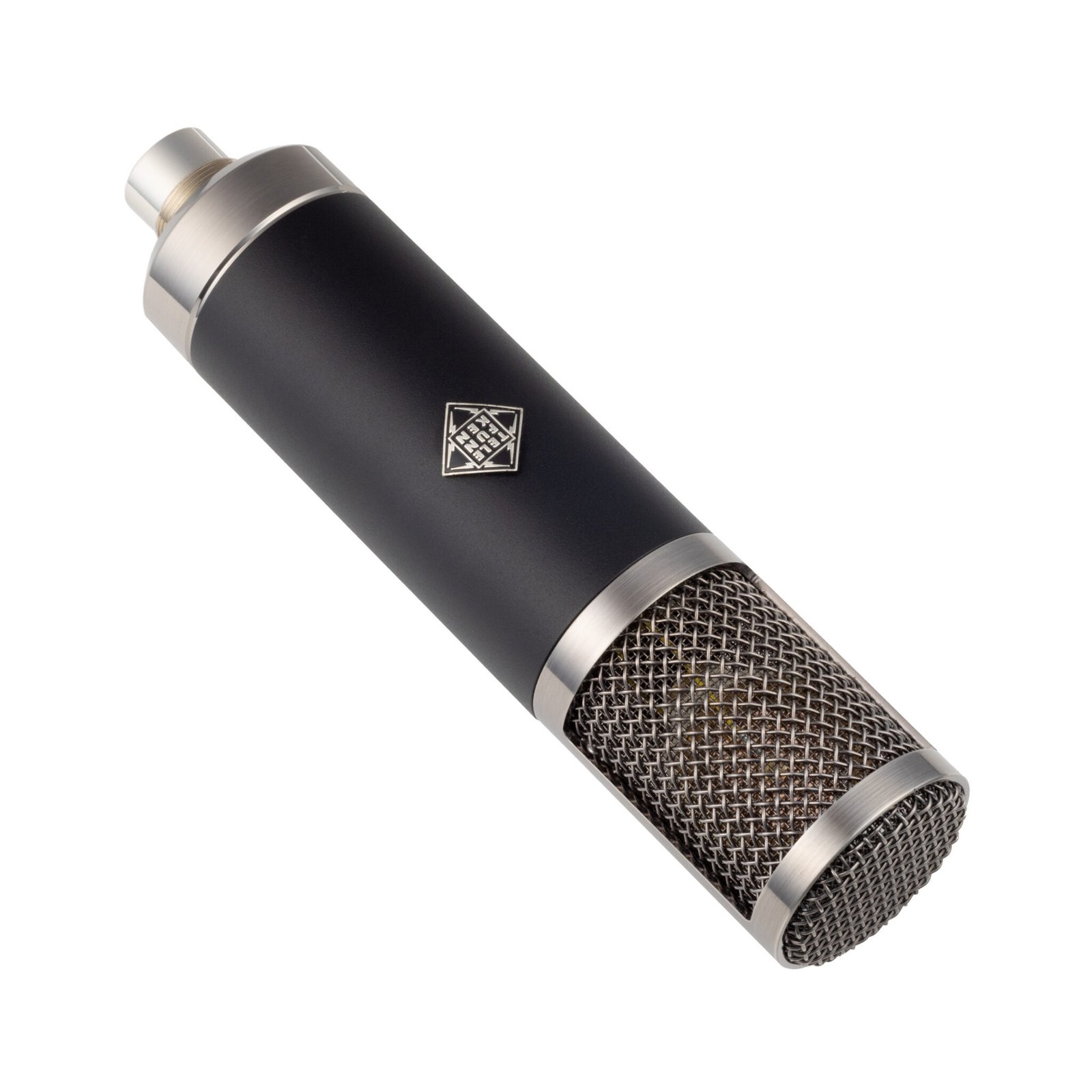

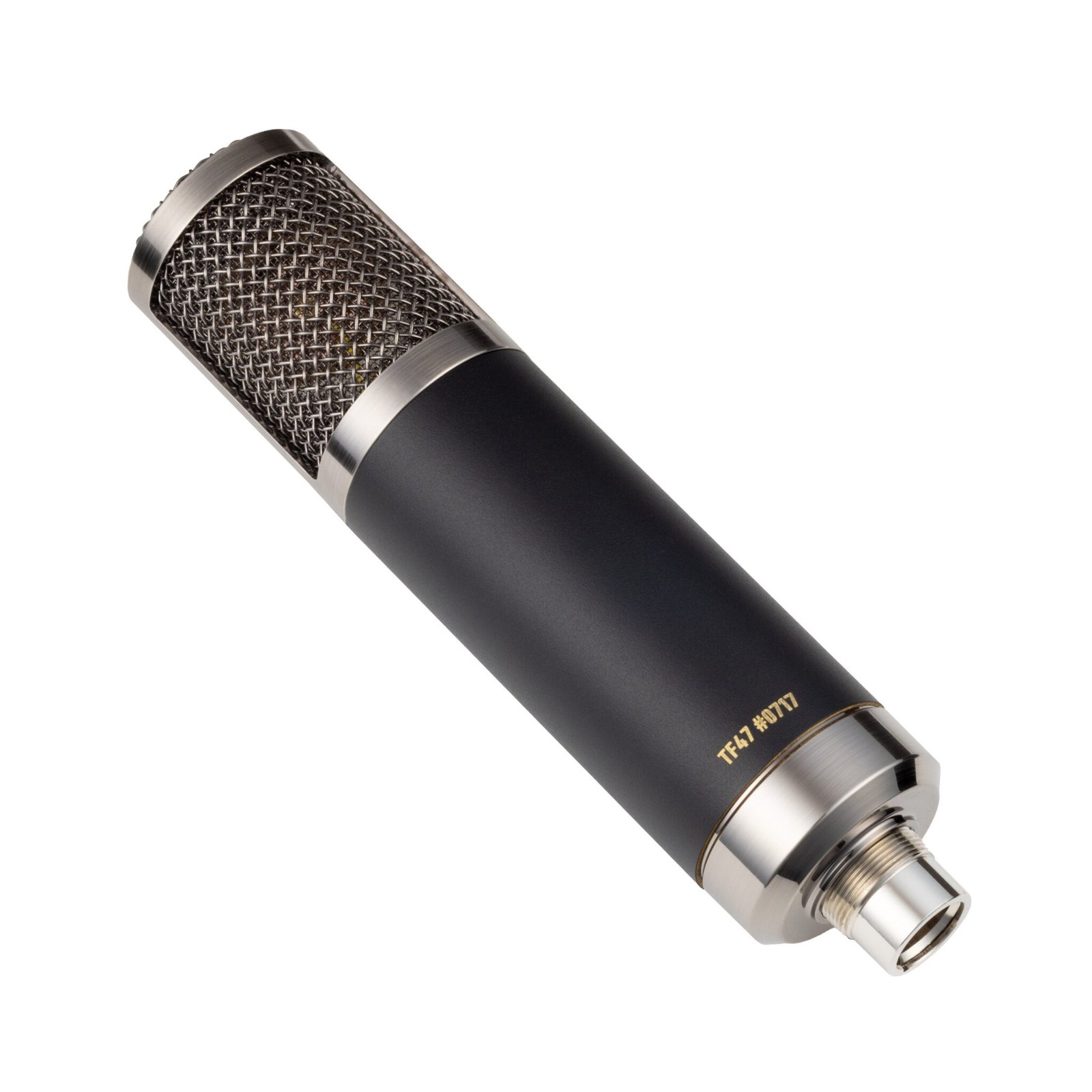

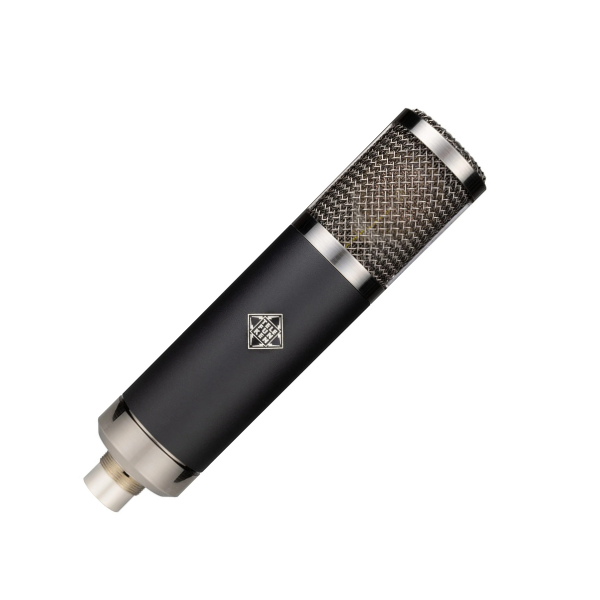

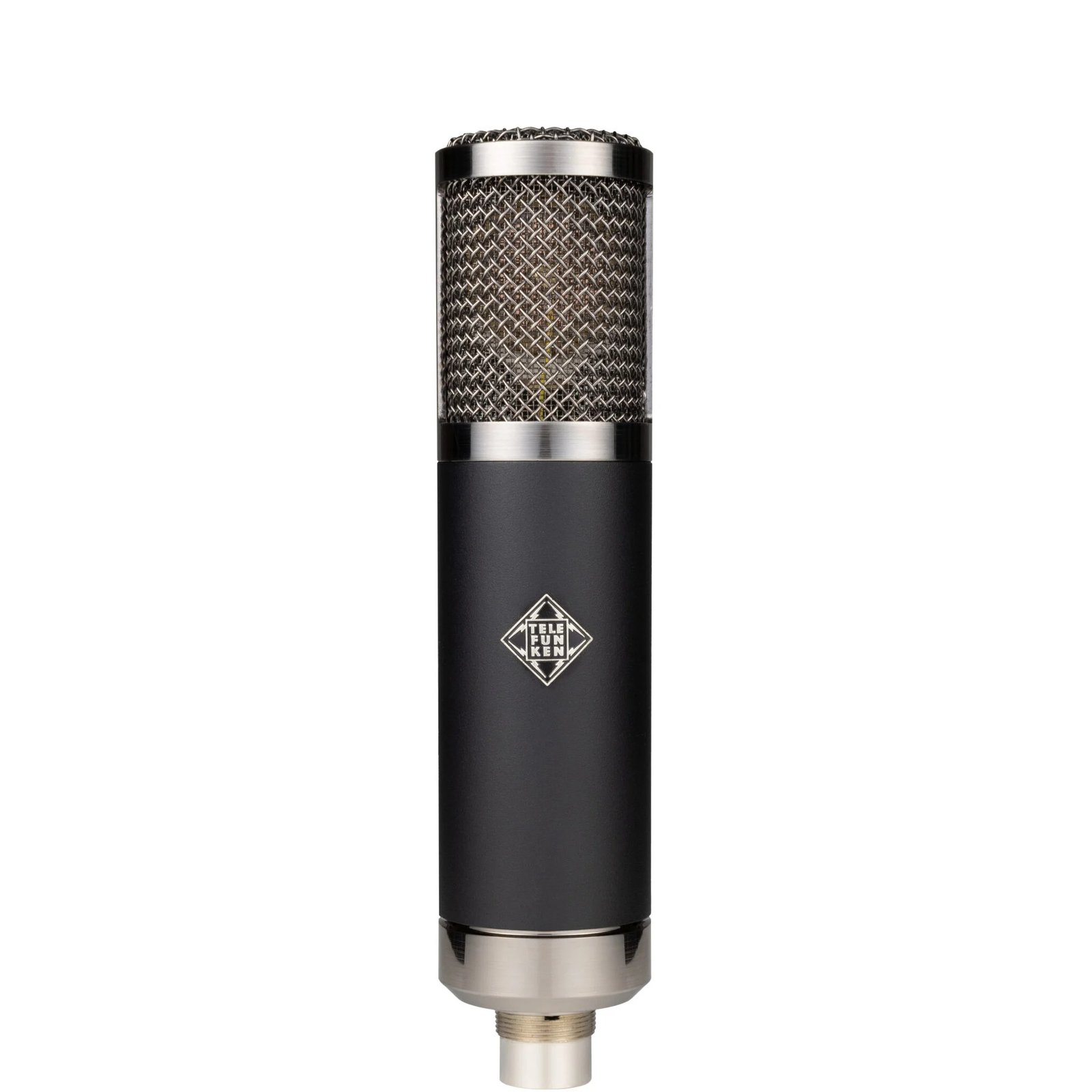

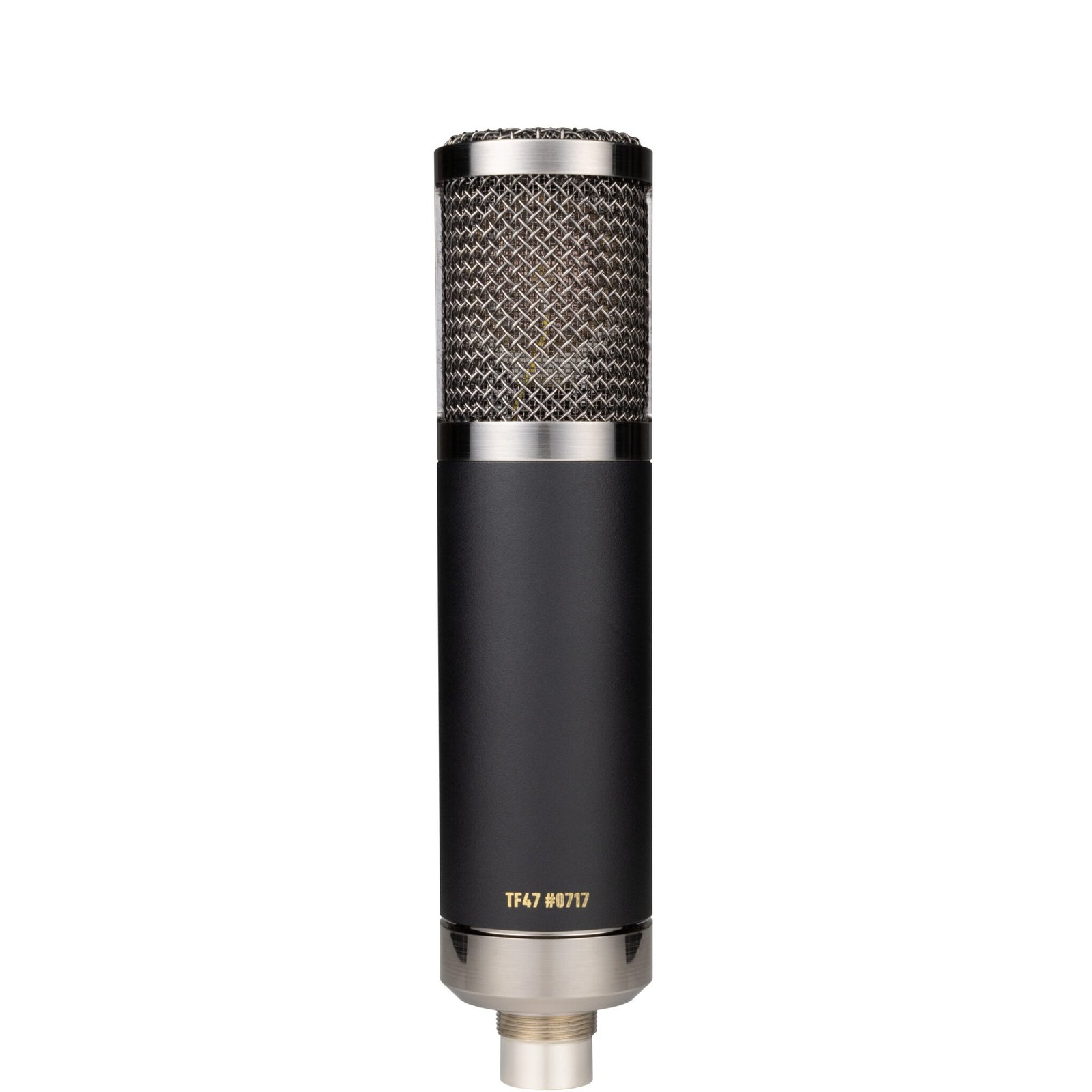

The TF47 is a modern design based on the “German” sound, drawing inspiration from the historic U47 and M49. With a deep low end and a forward midrange, the TF47 is excellent for adding depth and presence to any source. These characteristics make it especially ideal for recording vocals, guitar amps, and drums. At the heart of the TF47 is an all-brass K47-style capsule, new old stock 5840W vacuum tube, and custom-made historically accurate BV8 transformer, as found in the U47. These components deliver a warm and punchy sound, reminiscent of the U47, as well as a pleasant top end articulation that sits perfectly in the mix with a certain authority and weight.

Features

Full low end and forward midrange, reminiscent of the U47
Smooth and detailed top end
Cardioid, Omni, and Figure 8 polar pattern selection
New old stock Philips/Raytheon 5840W vacuum tube
K47-style capsule and robust BV8 output transformer
Designed and hand assembled in the USA
Recommended Applications: Vocals, Piano, Drums, Trombone, Bass, Cello

Configuration Options

TF47

Large diaphragm three-pattern tube microphone system.

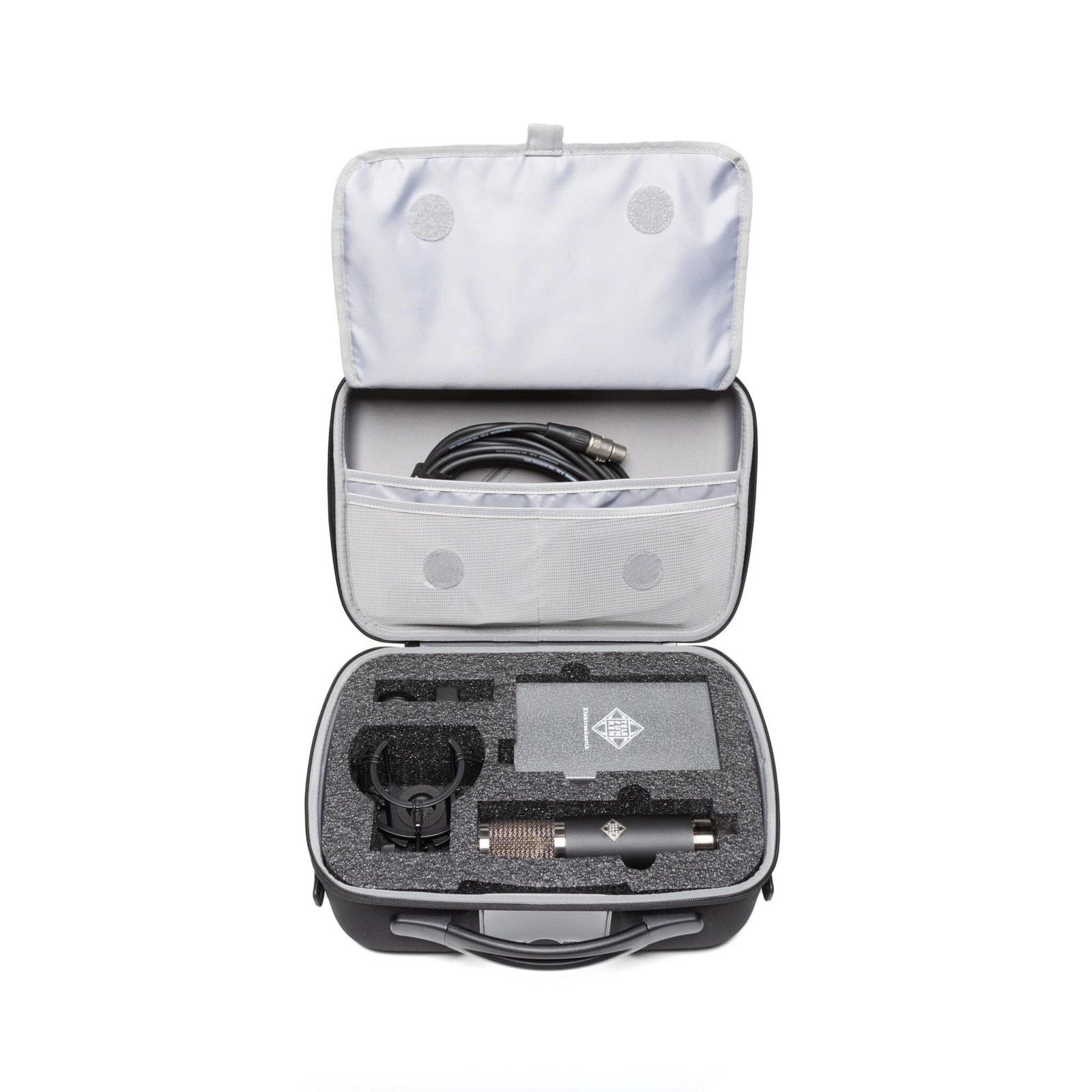

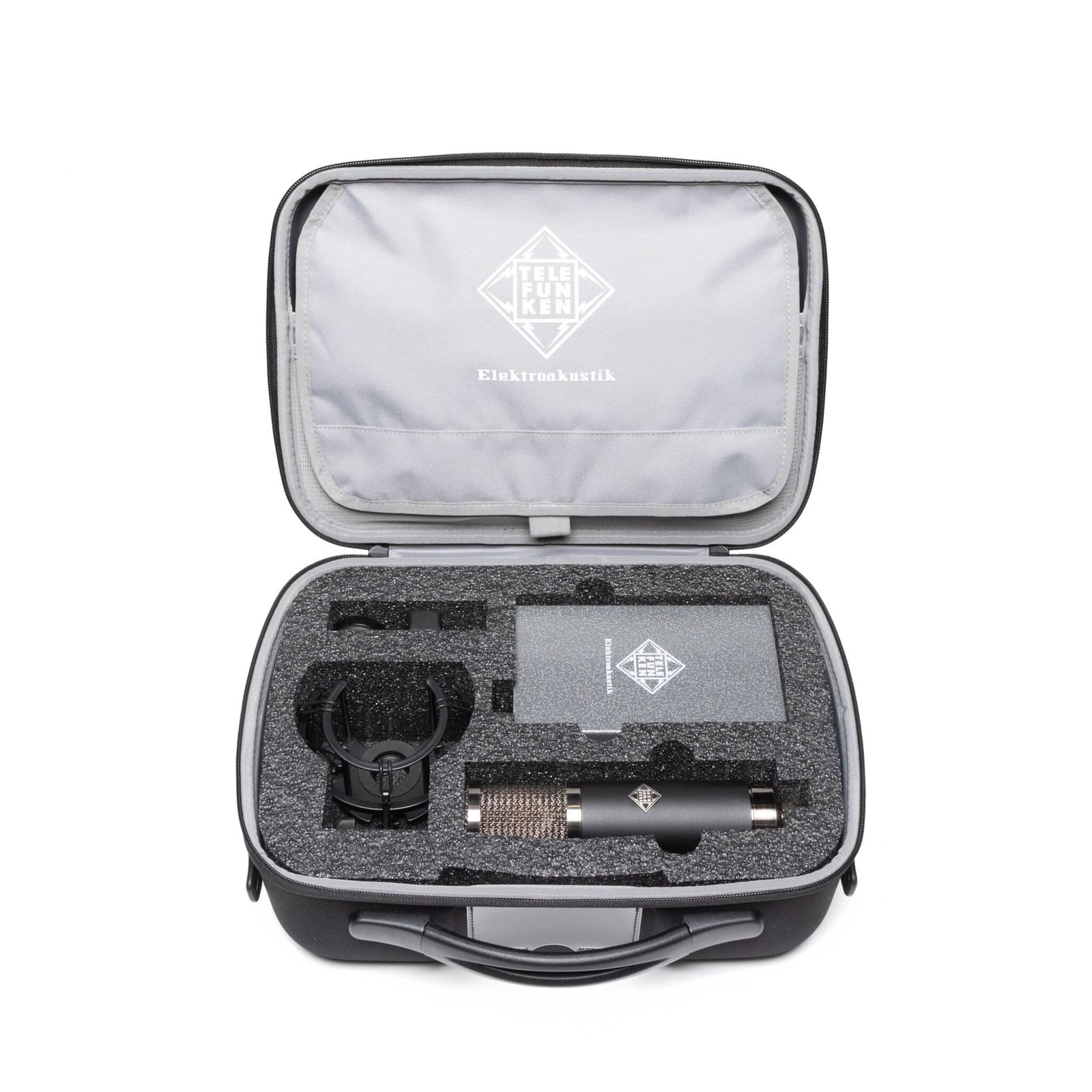

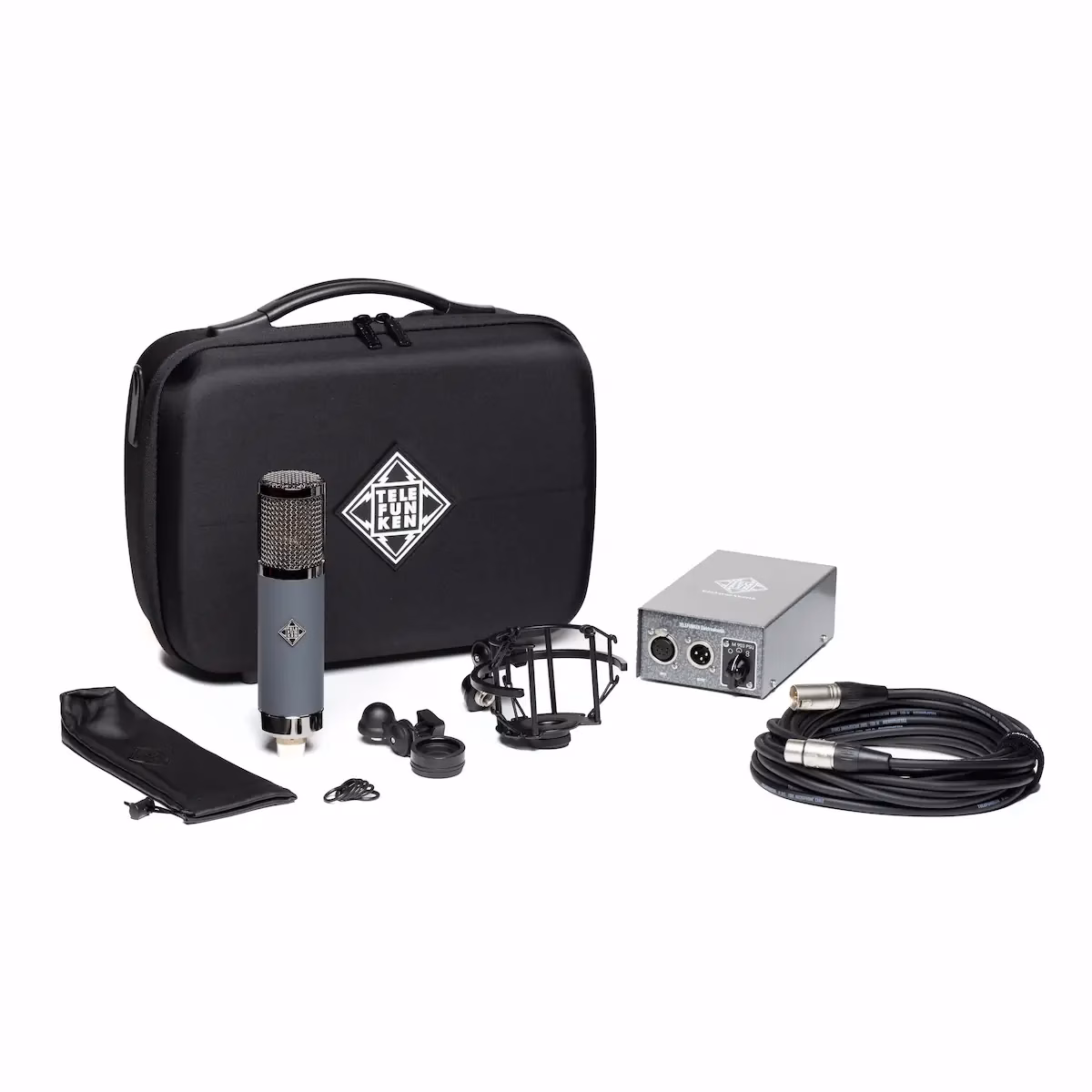

Each system includes:

• TF47 Microphone
• M 903 Power Supply
• M 803 Tube Microphone Cable – 7m
• ZC03 Zipper Case
• M 703 Shock Mount
• M 782 Stand Mount
• MS01 Microphone Sleeve

For audio professionals and enthusiasts seeking pristine sound quality, the Telefunken TF47 microphone offers a superior recording experience that elevates every vocal and instrumental capture. Whether you are in a high-end studio or a dedicated home setup, this microphone delivers the clarity, warmth, and versatility necessary to bring your audio projects to life. Its vacuum tube condenser design ensures a sonic character rich in detail and depth, making it an invaluable tool for anyone who demands professional-grade recordings.

Many microphones struggle to balance sensitivity with noise reduction, often compromising on either detail or clarity. The Telefunken TF47 solves this by employing a TK47 center-terminated large diaphragm capsule, combined with a TELEFUNKEN Elektroakustik BV8 transformer and a NOS Philips/Raytheon 5840 W tube. This combination captures sound with remarkable accuracy and warmth, while maintaining low distortion levels below 0.3% at 1 kHz, ensuring that your recordings remain true to the original source without unwanted coloration or noise. The result is a microphone capable of capturing even the most subtle nuances in vocals or instruments, providing a rich and natural sound that translates beautifully across all playback systems.

The microphone’s multiple polar patterns—cardioid, omnidirectional, and figure-8—offer unmatched flexibility in various recording scenarios. Cardioid mode isolates sound from the front, minimizing background noise and room reflections, ideal for solo vocal performances. Omnidirectional mode captures ambient sound equally from all directions, perfect for ensemble recordings or capturing natural room acoustics. Figure-8 pattern picks up sound from the front and back while rejecting the sides, making it excellent for duet recordings or mid-side stereo techniques. This versatility allows users to adapt the TF47 to virtually any recording environment or artistic requirement.

In terms of technical specifications, the TF47 boasts an impressive frequency response ranging from 20 Hz to 20 kHz with a ±3 dB tolerance, ensuring it captures the full spectrum of audible sound with accuracy. Its sensitivity of 22 mV/Pa guarantees that even the faintest sound signals are picked up clearly, while the low self-noise level of 10 dBA and a signal-to-noise ratio of 84 dBA means your recordings will be clean and free from unwanted hiss or hum. Furthermore, the microphone can handle sound pressure levels up to 125 dB without distortion, making it suitable for capturing everything from delicate vocals to loud instruments like drums or brass.

Physically, the Telefunken TF47 is thoughtfully designed to fit comfortably in any studio setup. Measuring 200 mm in length with a 46 mm diameter and weighing 710 grams, it balances substantial build quality with manageable size and weight. It requires an external power supply to operate, which ensures consistent performance and the optimal operating conditions for its vacuum tube electronics. This external power design also contributes to the microphone’s longevity and reliability, as the sensitive components are protected from potential heat and electrical interference.

The TF47 is ideal for professional voice-over artists, vocalists, acoustic guitarists, string players, and recording engineers who require a microphone that offers both sonic excellence and adaptive recording capabilities. Its ability to capture the finest details and natural warmth makes it a preferred choice for studio recordings, broadcast, and other critical listening applications. Whether you are tracking a solo artist, recording a podcast, or capturing a full band, the TF47 provides a sonic foundation that inspires creativity and guarantees outstanding results.

Investing in the Telefunken TF47 means securing a microphone that stands at the pinnacle of audio craftsmanship. Backed by decades of Telefunken’s expertise and built with premium components, this microphone delivers unmatched sound quality and reliability. When you choose the TF47, you’re not just buying a microphone; you’re investing in a tool that transforms your recordings into professional-grade productions. With the TF47, your sound is captured with precision, warmth, and clarity—confidence you can hear in every note.
