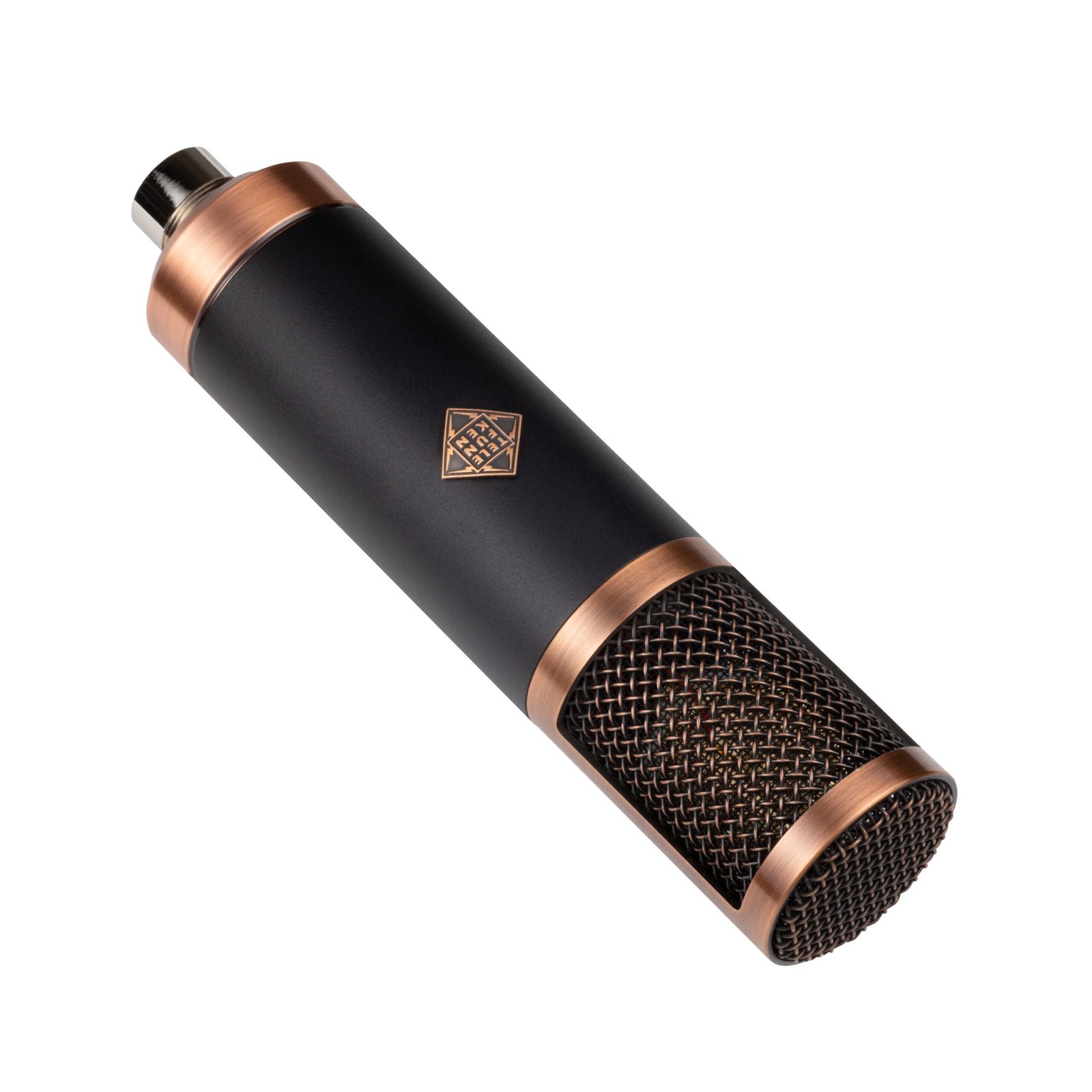

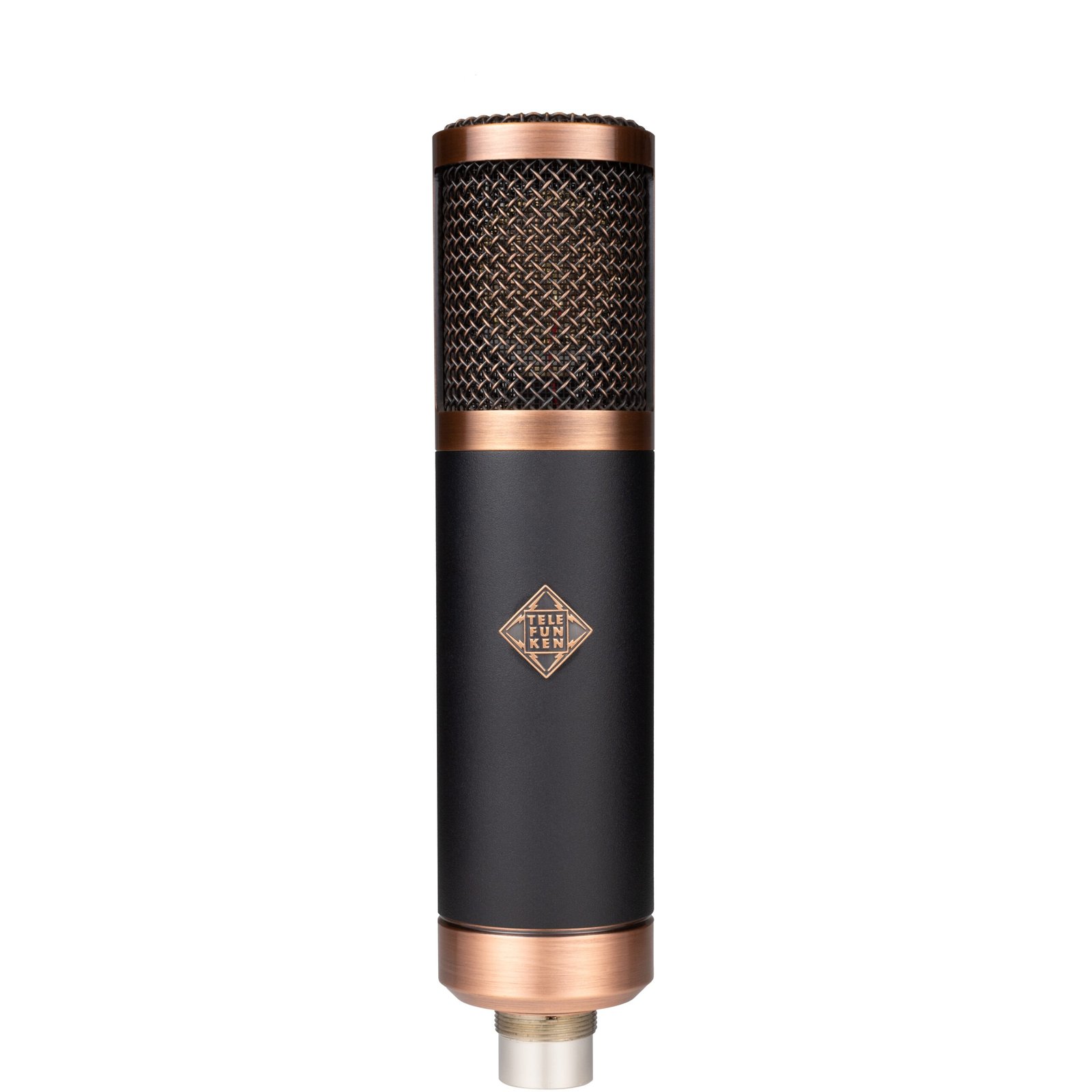

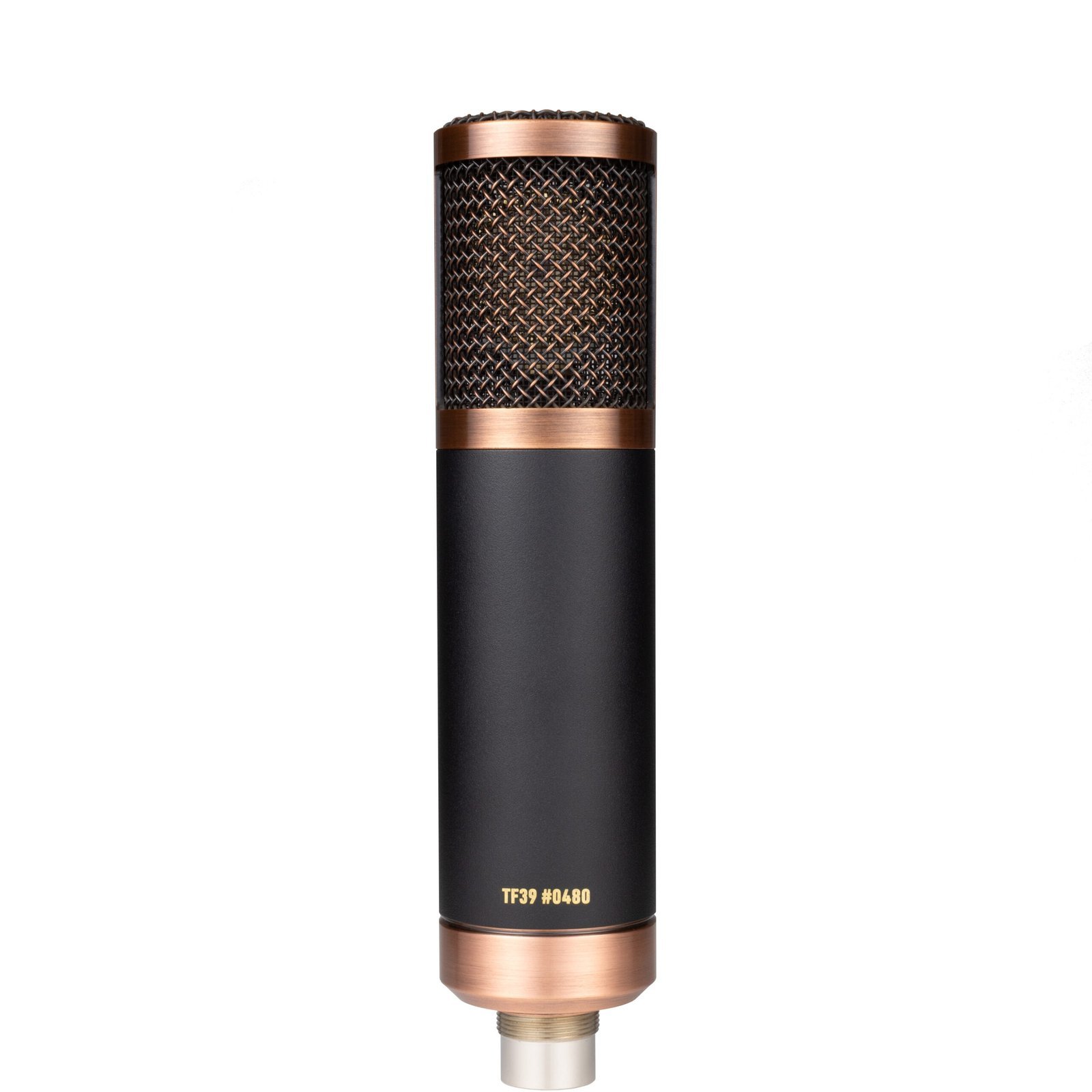

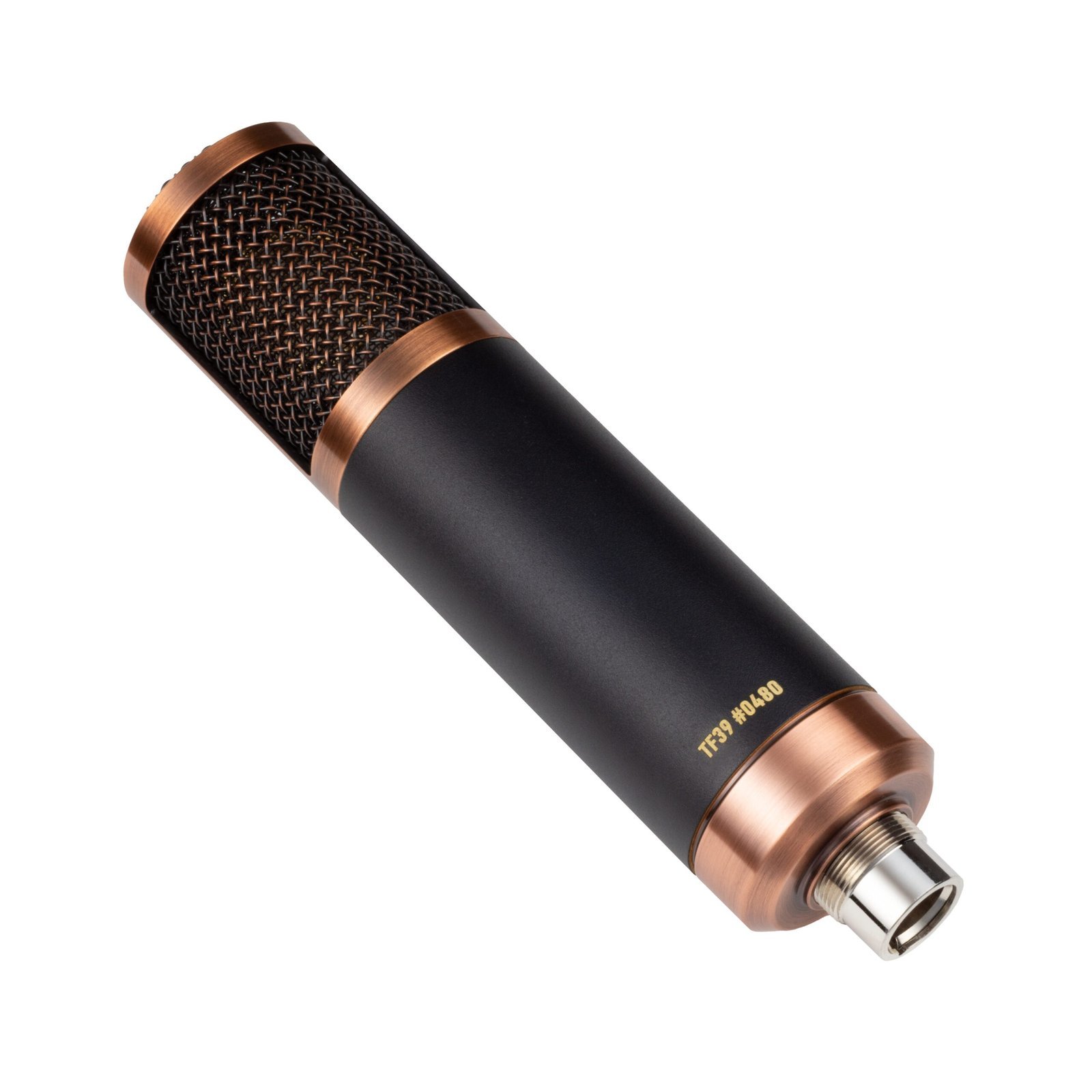

TF39 Copperhead Deluxe

Name: Telefunken TF39 Copperhead Deluxe Microphone - Suhavi Mart
Price: 206690 INR
Availability: InStock

The TF39 is an expansion of the “Copperhead” sound with the addition of 3-pattern selection between Cardioid, Omnidirectional, and Figure-8. This added feature set gives the TF39 greater flexibility and options in the studio.

Features

Balanced, natural midrange and high end
Extended low frequency response
Cardioid, Omni, and Figure 8 polar pattern selection
Premium Swedish-made Lundahl output transformer
New Old Stock General Electric 5654W vacuum tube
Designed and hand assembled in the USA
Recommended Applications: Vocals, Guitar Amps, Saxophone, Drum Overheads

Configuration Options

TF39 Copperhead Deluxe

Large diaphragm three-pattern tube microphone system.

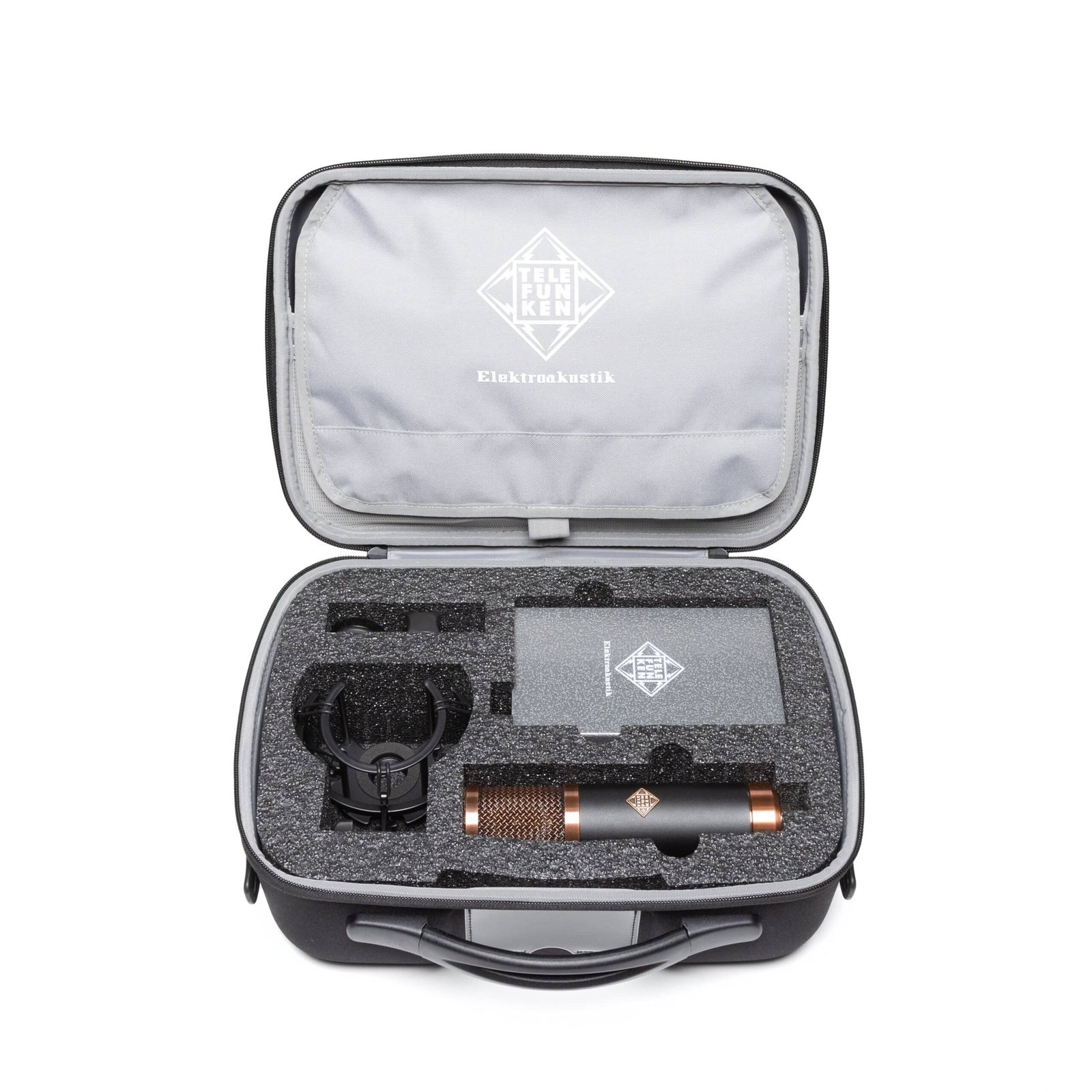

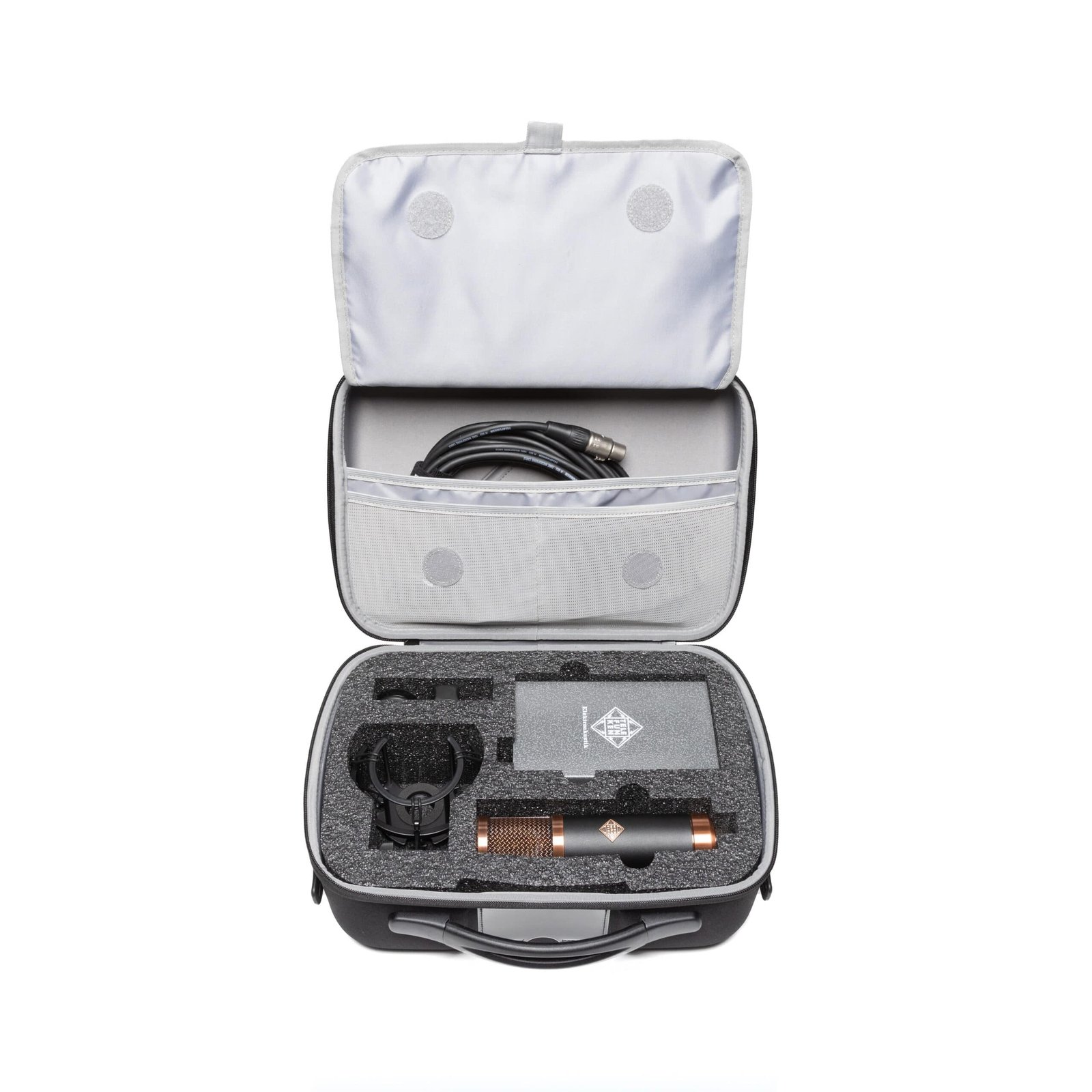

Each system includes:

TF39 Microphone
M 903 Power Supply
M 803 Tube Microphone Cable – 7m
ZC03 Zipper Case
M 703 Shock Mount
M 782 Stand Mount
MS01 Microphone Sleeve

Type:	Vacuum Tube Condenser
Polar Pattern	Cardioid, Omnidirectional, Figure-8
Frequency Range	20 Hz – 20 kHz, ±3 dB
Power Source:	External Power Supply
Capsule:	TK67 Center Terminated Large Diaphragm
Transformer:	Lundahl LL1935
Sensitivity:	17 mV/Pa, ±1 dB
THD at 1kHZ at 1Pa (Amplifier):	< 0.3%
Output Impedance:	< 300 Ω
Maximum SPL (for 1% THD):	130 dB
S/N Ratio:	87 dBA
Self Noise (Amplifier):	7 dBA
Dimensions:	200 mm L x 46 mm Dia
Weight:	650 g
Tube:	NOS GE 5654W
