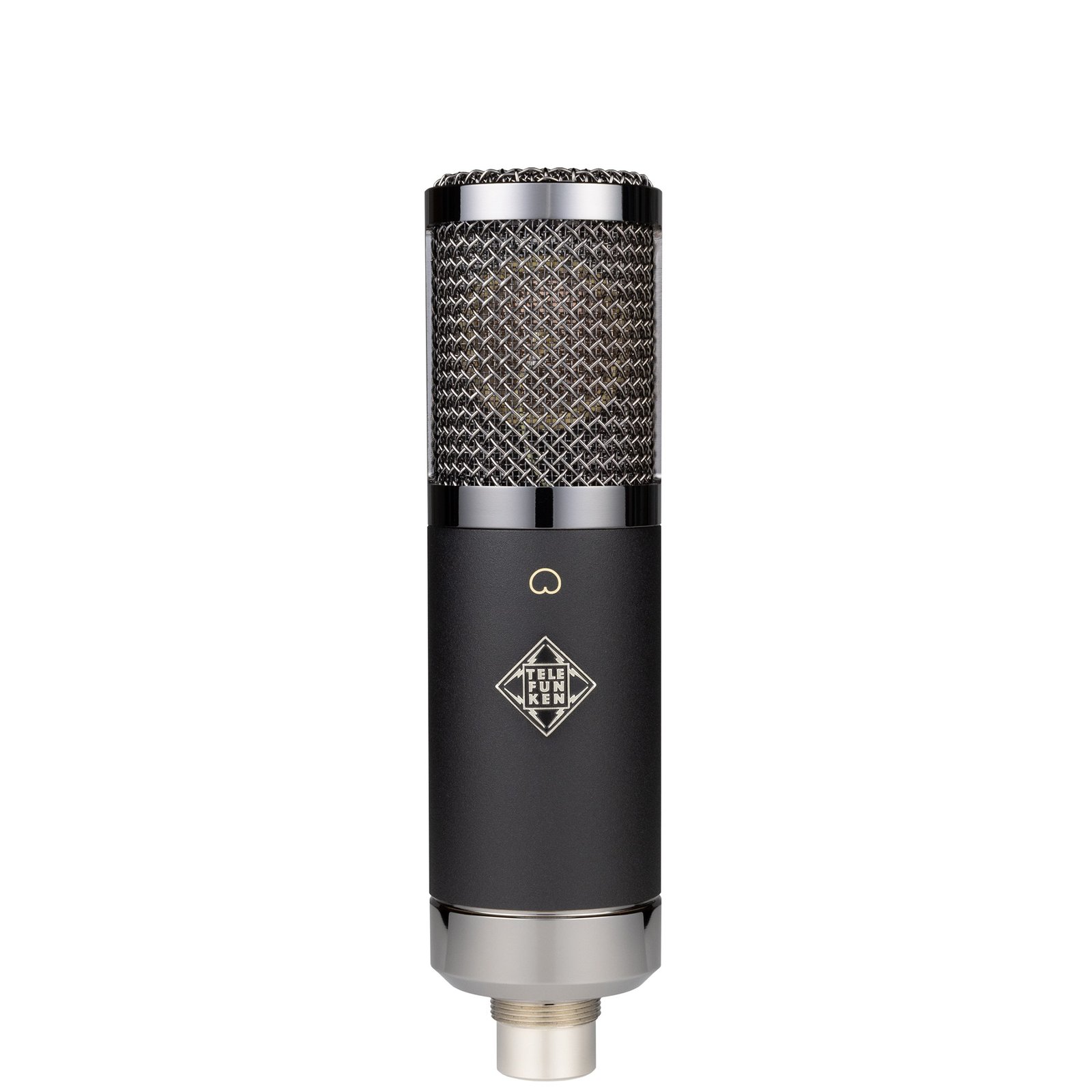

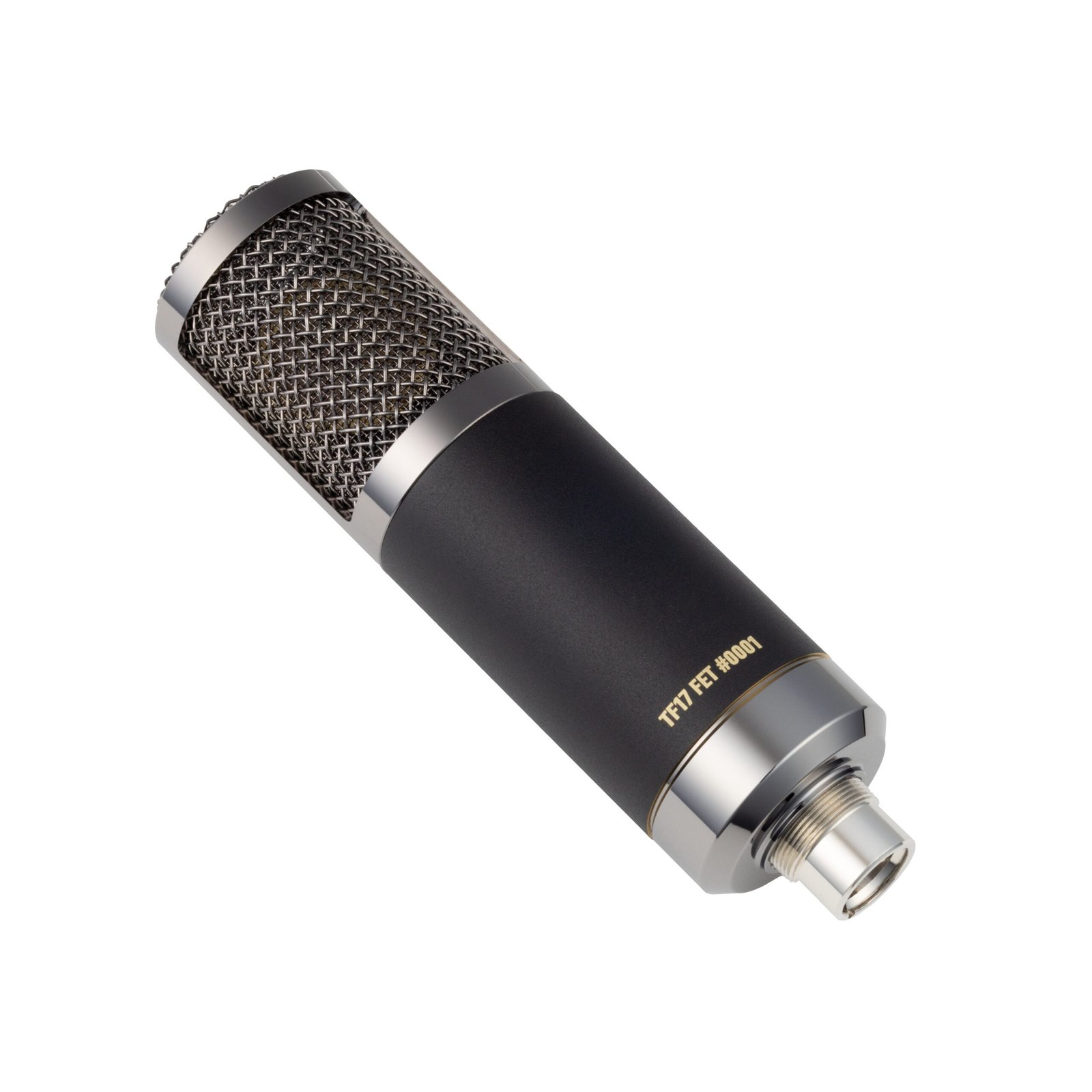

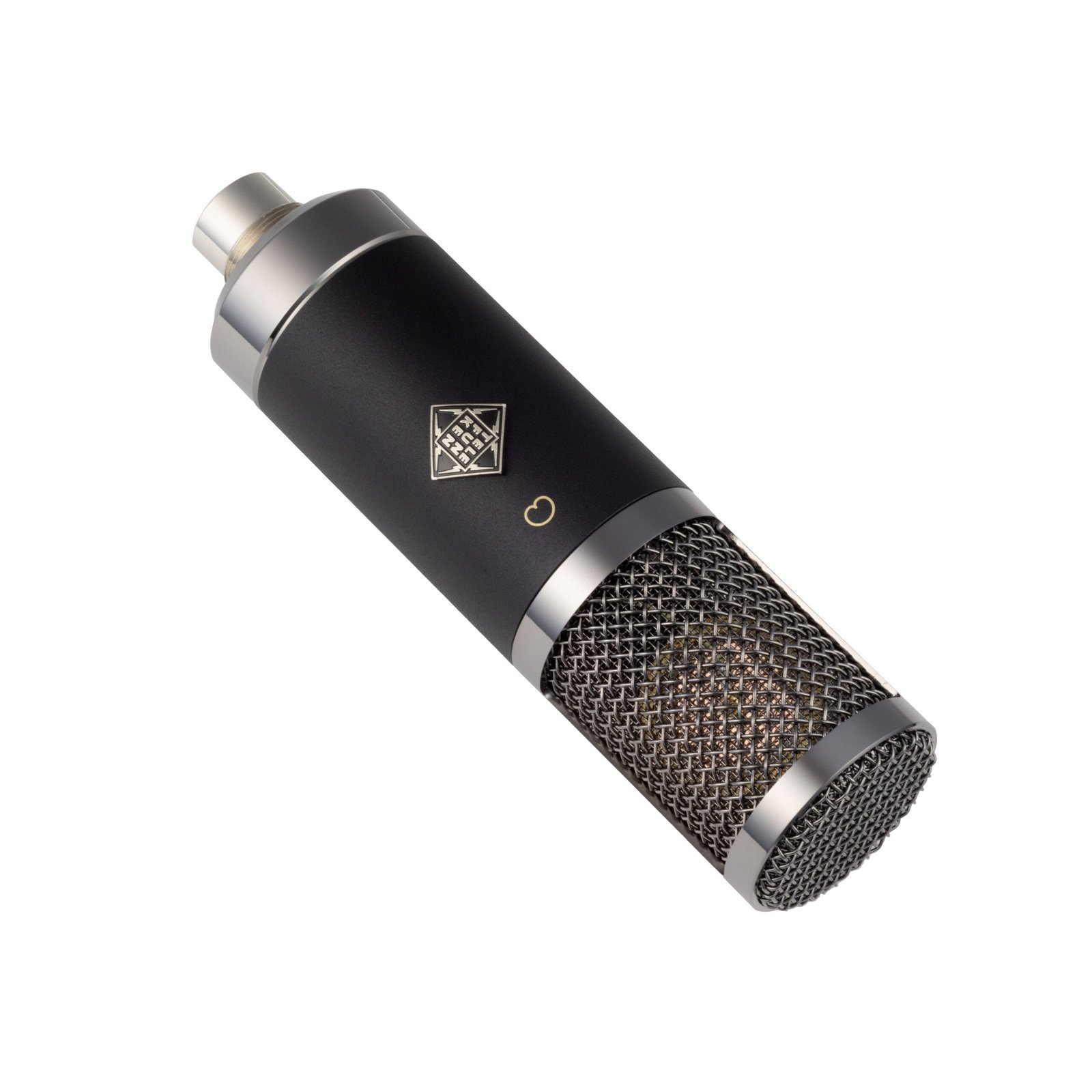

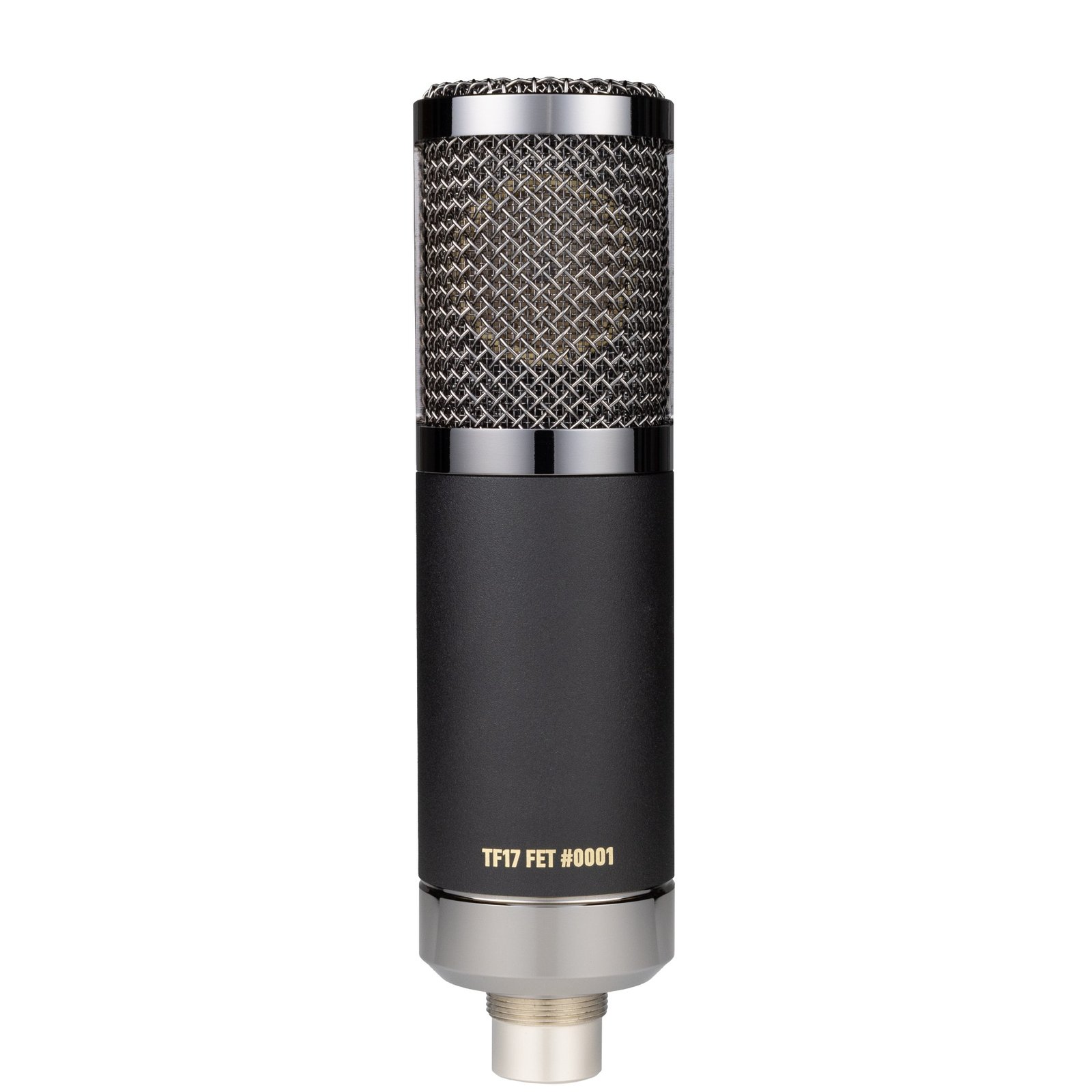

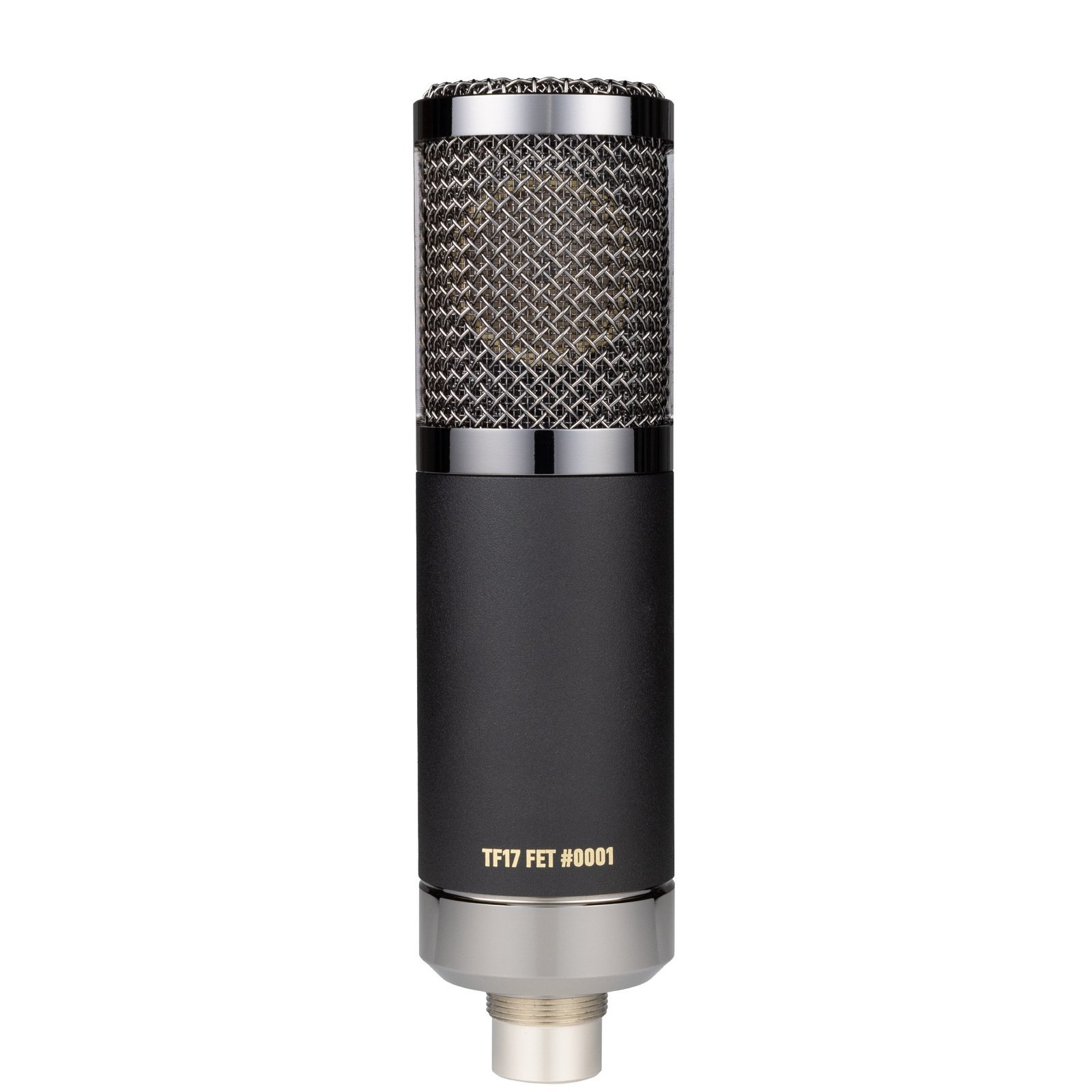

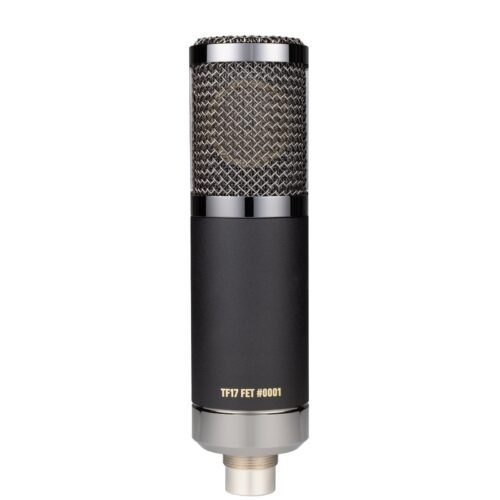

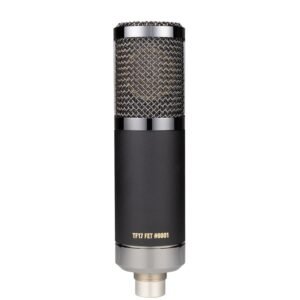

TF17 FET

The TF17 is the newest voice in the Alchemy Series and the latest offering of Telefunken’s vintage-inspired phantom-powered condenser microphones. Combining an iconic mid-forward “German” voicing with modern FET technology, the TF17 is sonically bold with a punchy transient response, high SPL handling, and very low self-noise. Its extended low frequency response, strong midrange, and a smooth top end benefit sources including voice, drums, electric guitar, and piano. Designed with all recording environments in mind, the fixed true cardioid TF17 is perfect for home, studio, or stage. The TF17 features a K47-style center-terminated capsule, premium through-hole components and a UK-made OEP/Carnhill transformer with a high-grade nickel-iron core.

Features

Bold and forward tone with punchy transient response
Compact size suitable for all recording environments
Fixed true cardioid polar pattern with K47-style capsule
High SPL handling, low noise phantom-powered FET amplifier
UK-made OEP/Carnhill transformer with high grade nickel-iron core
Designed and assembled by hand in the USA
Recommended Applications: Vocals, Drums & Percussion, Electric Guitar, Live Sound

Configuration Options

TF17
Single microphone system

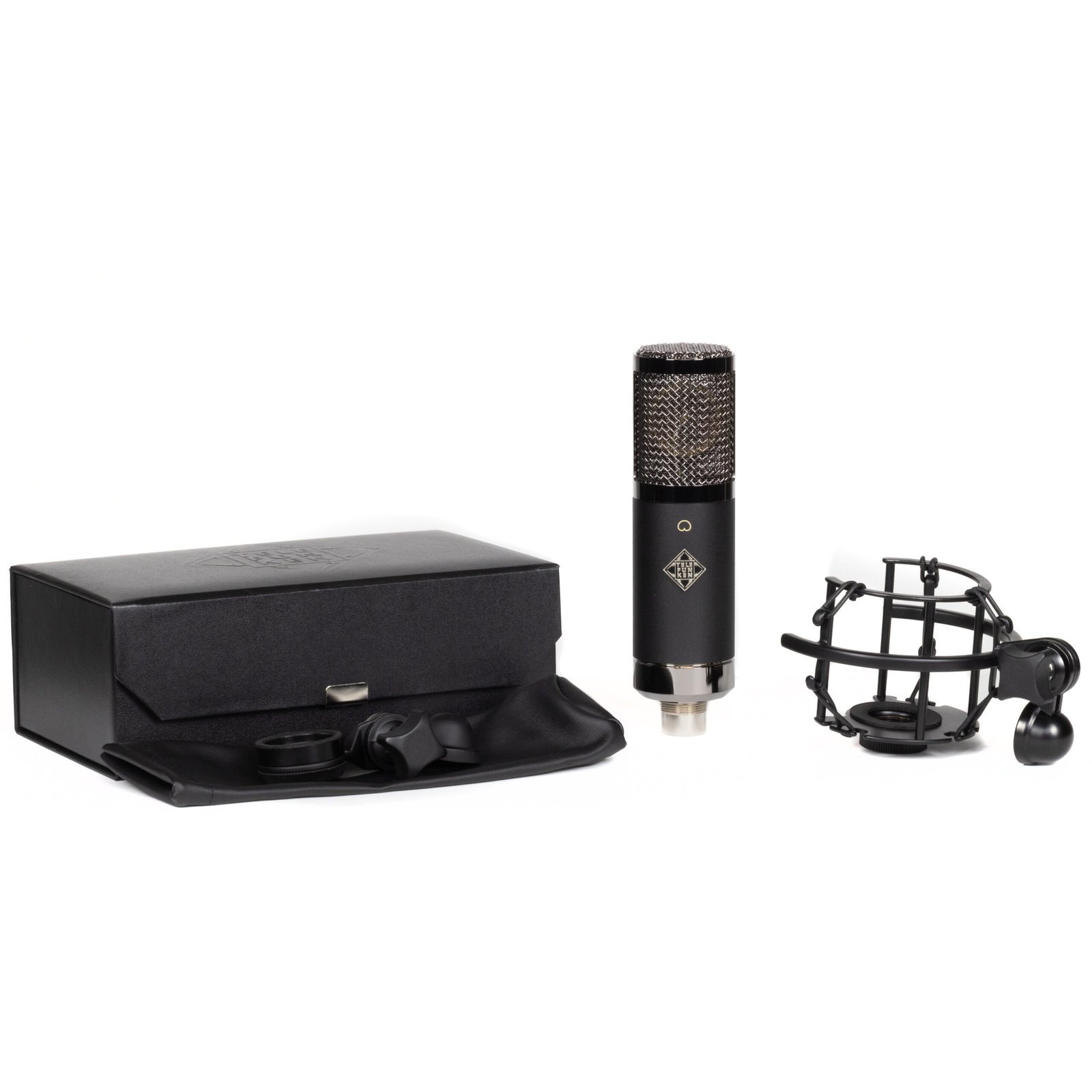

Each system includes:

• TF17 Microphone

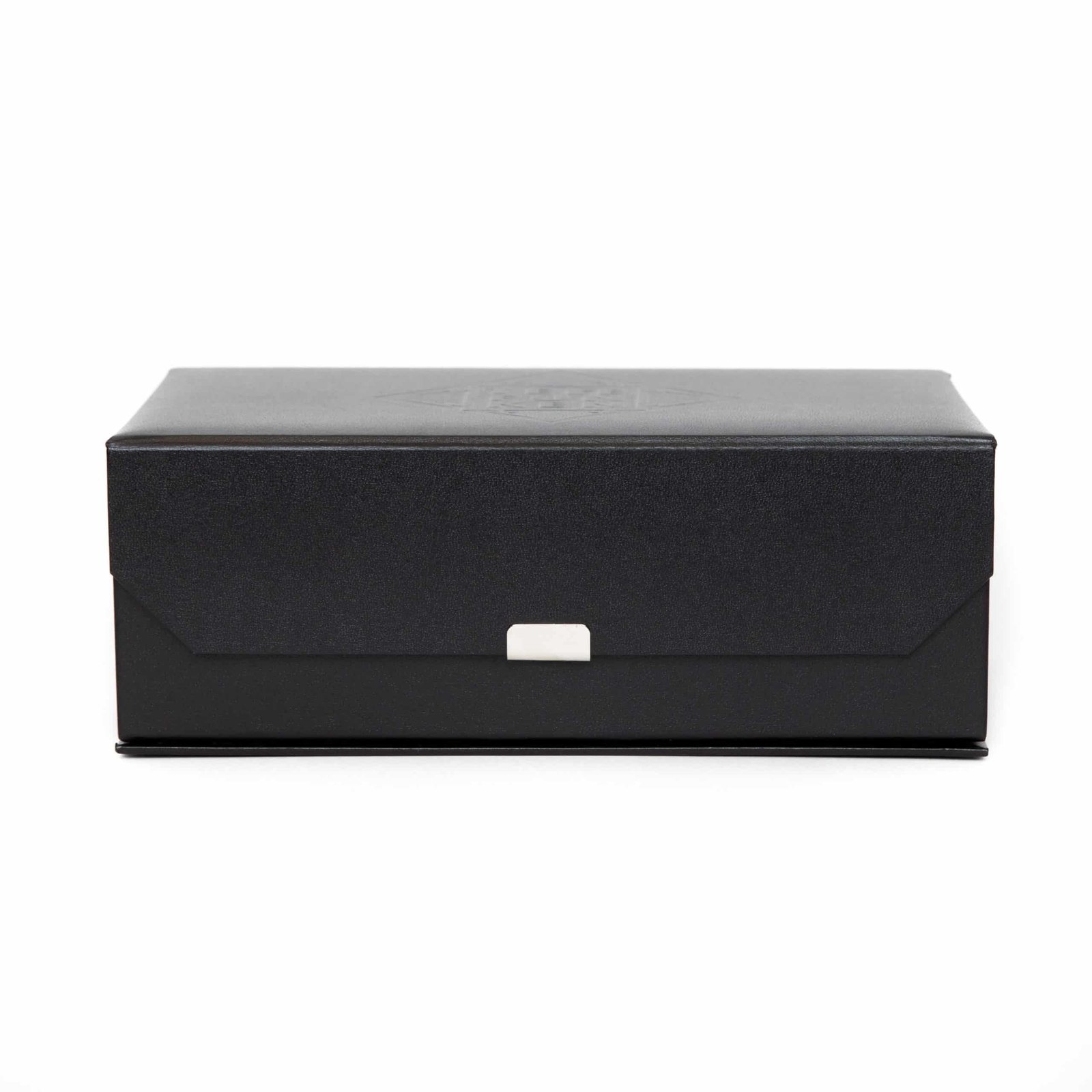

• MC11 Microphone Case

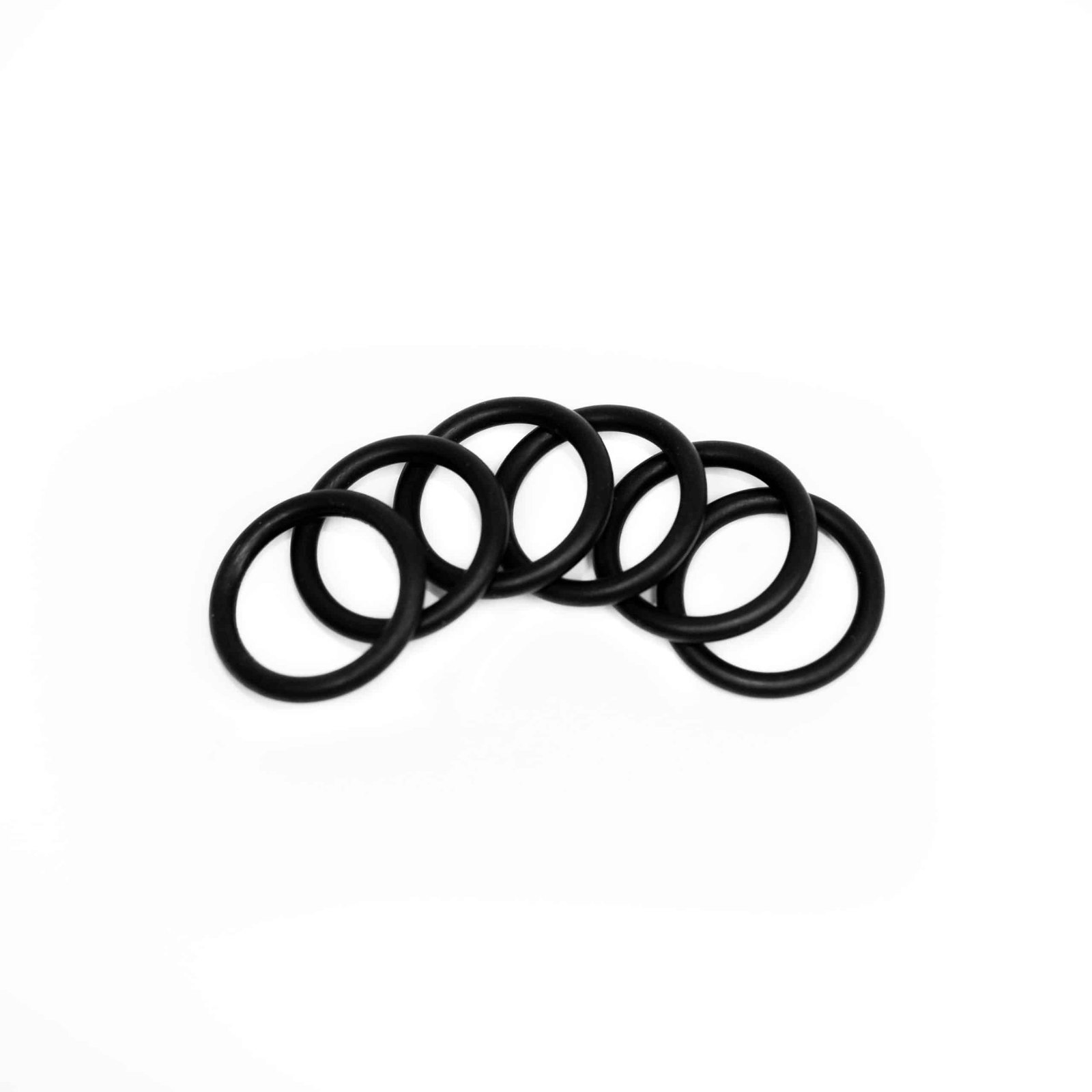

• M 703 Shock Mount
• M 782 Stand Mount
• MS01 Microphone Sleeve

For professionals and enthusiasts seeking pristine audio capture, the Telefunken TF 17 microphone offers an exceptional solution. In environments where clarity, precision, and reliability are paramount, this microphone delivers a level of detail and warmth that elevates every recording. Whether you are tracking vocals, instruments, or podcasting, the TF 17 provides the sonic fidelity needed to bring your projects to life with studio-grade quality.

Many microphones claim high performance, but few combine the technical prowess and craftsmanship found in the TF 17. At the core of this microphone is a FET condenser design paired with a TK47 S center-terminated large diaphragm capsule. This combination captures sound with remarkable accuracy while providing a natural tonal balance. The cardioid polar pattern ensures focused pickup of your source while minimizing unwanted ambient noise, making it ideal for both controlled studio settings and live environments where background sounds can be distracting.

One of the standout features is the use of the OEP/Carnhill T217 transformer, renowned for its musicality and low distortion. This transformer contributes to the microphone’s ability to handle sound pressure levels exceeding 135 dB without distortion, allowing it to capture even the loudest sources without compromise. For the user, this means versatility—you can confidently record anything from delicate vocals to booming drums without fear of clipping or coloration.

The TF 17’s sensitivity of 12 mV/Pa ensures that subtle nuances in your performance are faithfully reproduced, while the impressively low total harmonic distortion at 0.01% guarantees a clean, uncolored capture. Noise performance is equally impressive, with a self-noise level of just 3 dBA and a signal-to-noise ratio of 91 dBA, resulting in recordings with exceptional clarity and minimal background hiss. This is particularly beneficial for capturing quiet passages or dynamic performances where detail is essential.

Powered by standard +48 V phantom power, the microphone integrates seamlessly into professional audio setups without the need for additional power supplies. Its dimensions—175 mm in length and 46 mm in diameter—and weight of 545 grams strike a balance between robustness and ease of handling, making it comfortable for extended sessions whether mounted on a stand or held with a shock mount.

Practical applications for the TF 17 are broad and varied. In the studio, it excels on vocals, acoustic instruments, and overhead drum miking, delivering a rich and transparent sound. Its precise cardioid pattern and low noise floor also make it a superb choice for broadcast, voiceover work, and podcasting, where clarity and presence are crucial. Live sound engineers will appreciate its ability to handle high SPLs without distortion, enabling versatile use on stage.

Investing in the Telefunken TF 17 means choosing a microphone designed with the discerning user in mind. Its combination of high-quality components, exceptional technical specifications, and ergonomic design ensures it will perform reliably in demanding professional settings. Whether you are upgrading your studio arsenal or starting a serious recording project, the TF 17 offers a level of audio excellence that inspires confidence and delivers results that stand out.
