TF11 Microphone

Give your acoustic instruments the sound they deserve with the Telefunken TF11 FET, an Alchemy Series large-diaphragm condenser microphone intended to provide an open, airy sound while managing high SPLs of up to 135 dB without distortion. This cardioid microphone, designed for project studios, commercial facilities, and the stage, produces a sound close to the world-renowned C12 while maintaining an ultralow noise level of only 4 dBA.

The mic’s technology ensures an open, detailed, and dimensional sound across its frequency range. The TF11 FET has components in common with other Telefunken Elektroakustik designs, including a single-membrane, CK12-style, edge-terminated capsule. The built-in amplifier is a proprietary version of an M60-style FET mic amplifier. This is paired with a unique, large-format, nickel-iron core transformer created by OEP/Carnhill, a well-known company. The mic also employs superior film capacitors and Nichicon Fine Gold electrolytic capacitors, which contribute to its quiet yet distinctive acoustic pickup.

Features

Demonstrates quick transient responsiveness and detailed tone.
The cardioid polar pattern lowers ambient pickup behind the microphone.
The FET amplifier is low-noise and phantom-powered, comparable to the M60 amp.
The CK12 capsule is edge-terminated and has a single membrane, similar to the TF51 capsule.
OEP/Carnhill manufactures custom large-format nickel-iron core transformers in the UK.
Our premium through-hole components include UK-made polystyrene film capacitors and Nichicon Fine Gold electrolytic capacitors.
Hand-assembled in the USA.
Compact, travel-friendly, and cost-effective design.
XLR 3-pin output connection.
Phantom powered at 48V.

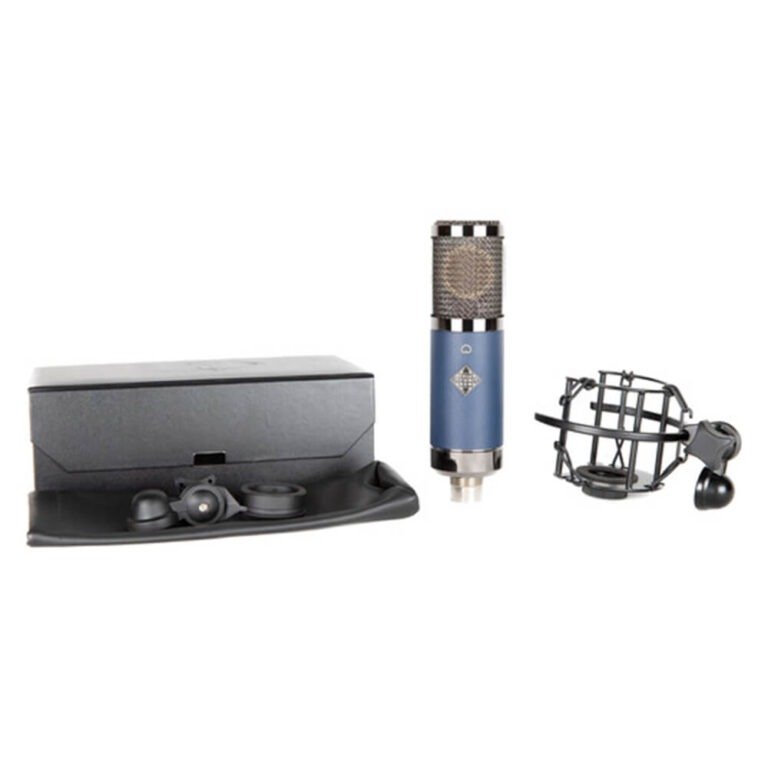

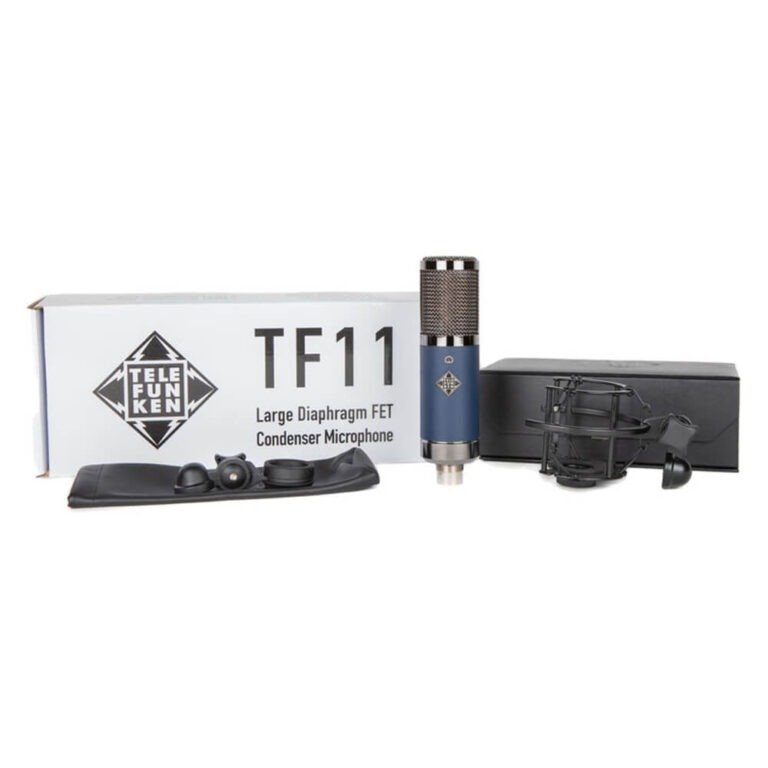

Includes shock mount, hard mount, mic sleeve, and mic case.

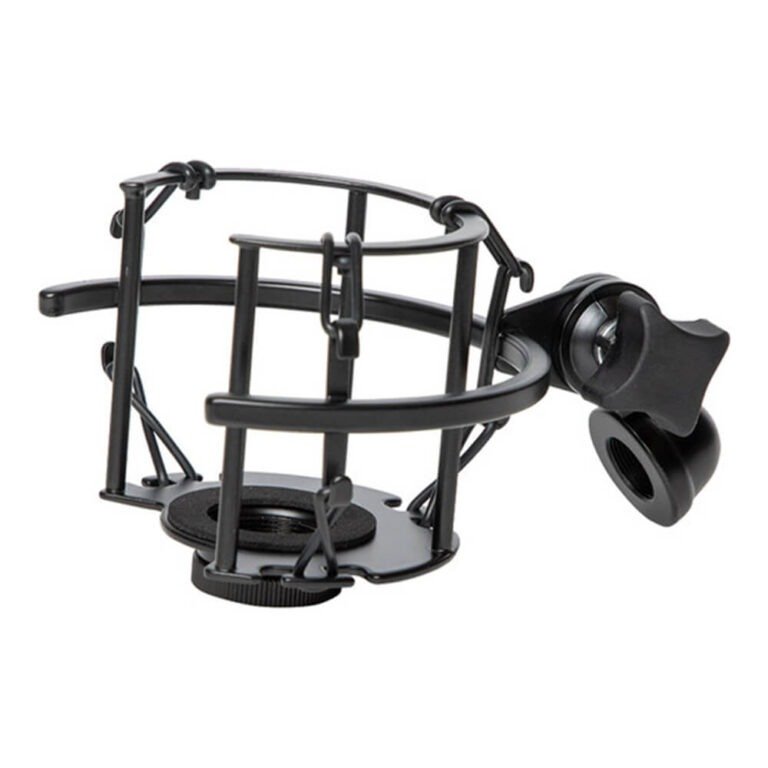

Includes MC11 Microphone Case, M 703 Shock Mount, M 782 Stand Mount, and Microphone Sleeve.
Handcrafted in the United States.

Easy to use, store, and transport

The TF11, finished in a deep indigo blue powder coat with black nickel hardware, has the same form factor as the other Alchemy Series microphones but is one inch shorter in length. This low-profile design, along with the lack of an additional power supply or a tube microphone’s specialized connection, makes the TF11 simple to set up, disassemble, and travel.

The Telefunken TF 11 Microphone is designed for professionals and discerning enthusiasts who demand exceptional clarity and detail in their recordings. Whether you are a vocalist, podcaster, or instrumentalist, this microphone delivers pristine audio reproduction, capturing every nuance of your performance. If you seek a microphone that elevates your sound to a new level of precision and warmth, the TF 11 offers an outstanding solution that combines advanced technology with reliable build quality.

One of the standout features of the TF 11 is its FET condenser design paired with a cardioid polar pattern. This means the microphone uses a Field Effect Transistor to provide high sensitivity and low noise, ensuring that your sound is captured with remarkable accuracy and minimal distortion. The cardioid pattern focuses on sound sources directly in front of the microphone while effectively rejecting unwanted ambient noise from the sides and rear. For the user, this translates into cleaner recordings with less background interference, ideal for studio environments where clarity is paramount.

The microphone’s frequency response ranges from 20 Hz to 20 kHz with a ±3 dB tolerance, covering the full spectrum of human hearing. This wide frequency range allows the TF 11 to capture everything from deep bass tones to sparkling high frequencies with fidelity. The result is a natural and balanced sound profile that faithfully represents your voice or instrument without coloration. Additionally, the maximum sound pressure level of 135 dB SPL means the TF 11 can handle loud sound sources—such as drums or amplified guitars—without distortion, offering versatility across different recording scenarios.

With an output impedance of 110 ohms and a sensitivity of 14 mV/Pa, the TF 11 efficiently interfaces with professional audio equipment, providing a strong and clean signal that minimizes the need for excessive gain. The microphone also boasts a superior signal-to-noise ratio of 90 dBA and an impressively low self-noise level of 4 dBA. In practical terms, this ensures that your recordings will be free from unwanted hiss and background noise, resulting in a polished and professional sound that requires less post-processing.

The TF 11 is powered by standard 48V phantom power, making it compatible with virtually all professional audio interfaces and mixing consoles. Its robust yet lightweight design, measuring 6.88 inches in length and 1.81 inches in diameter and weighing just 1.2 pounds, makes it easy to position on stands or mounts without compromising stability. The package includes a shockmount, case, and standmount, providing essential accessories that protect the microphone from vibrations and facilitate convenient transport and setup.

Ideal for studio recording, voice-over work, and live sound applications, the Telefunken TF 11 offers a level of audio fidelity that meets the demands of top-tier music production and broadcast environments. Its combination of precision engineering, superior noise handling, and versatile performance makes it a reliable tool for capturing sound in its purest form. Whether you are recording vocals, acoustic instruments, or ambient sounds, the TF 11 ensures your recordings are clear, detailed, and true to life.

In summary, the Telefunken TF 11 Microphone is a professional-grade condenser microphone that delivers exceptional sound quality and flexibility. Its advanced FET circuitry, wide frequency response, and low noise profile provide a significant advantage to anyone seeking a microphone that can handle a variety of recording tasks with ease. Backed by durable construction and comprehensive accessories, the TF 11 is a confident investment for those who prioritize audio excellence in their creative work.
