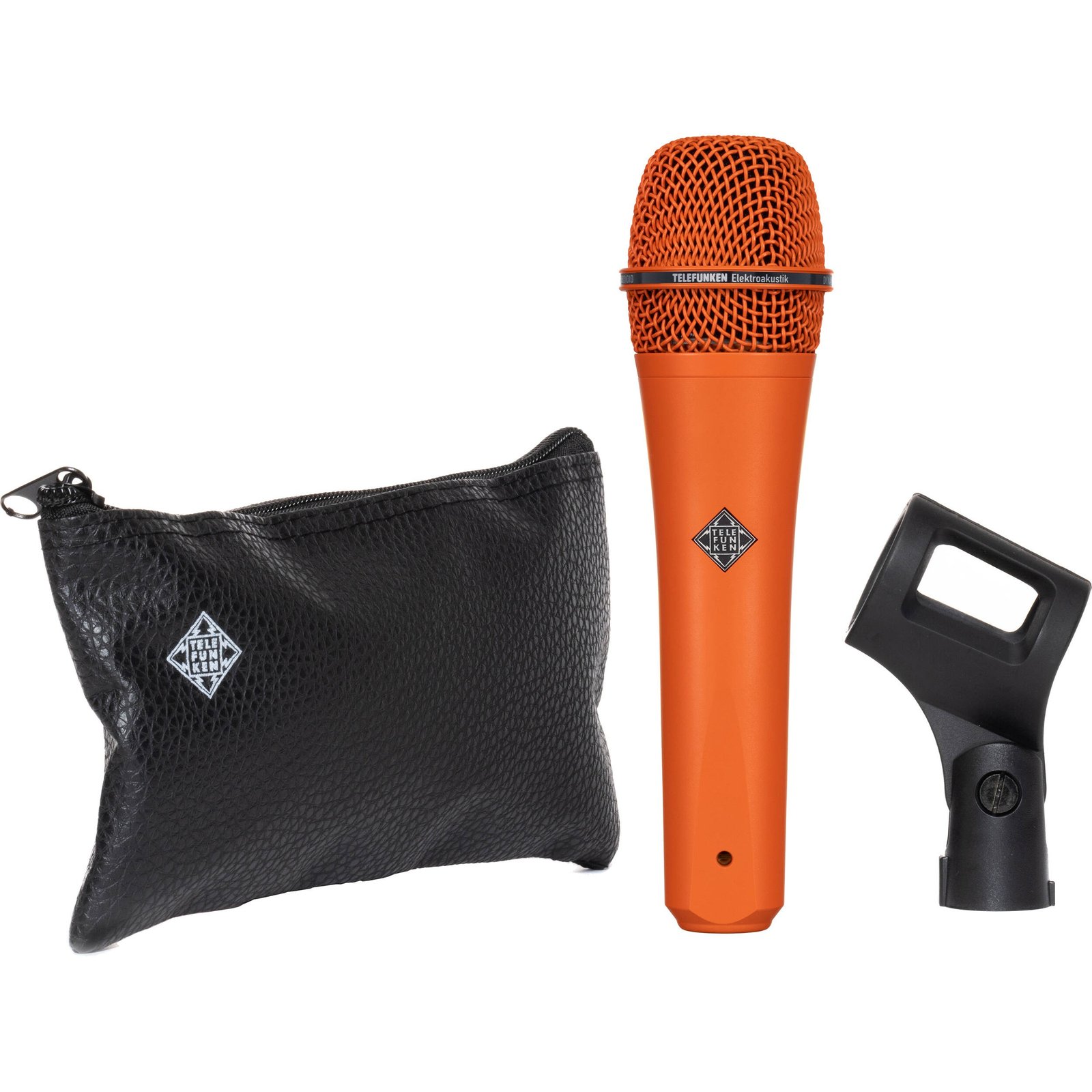

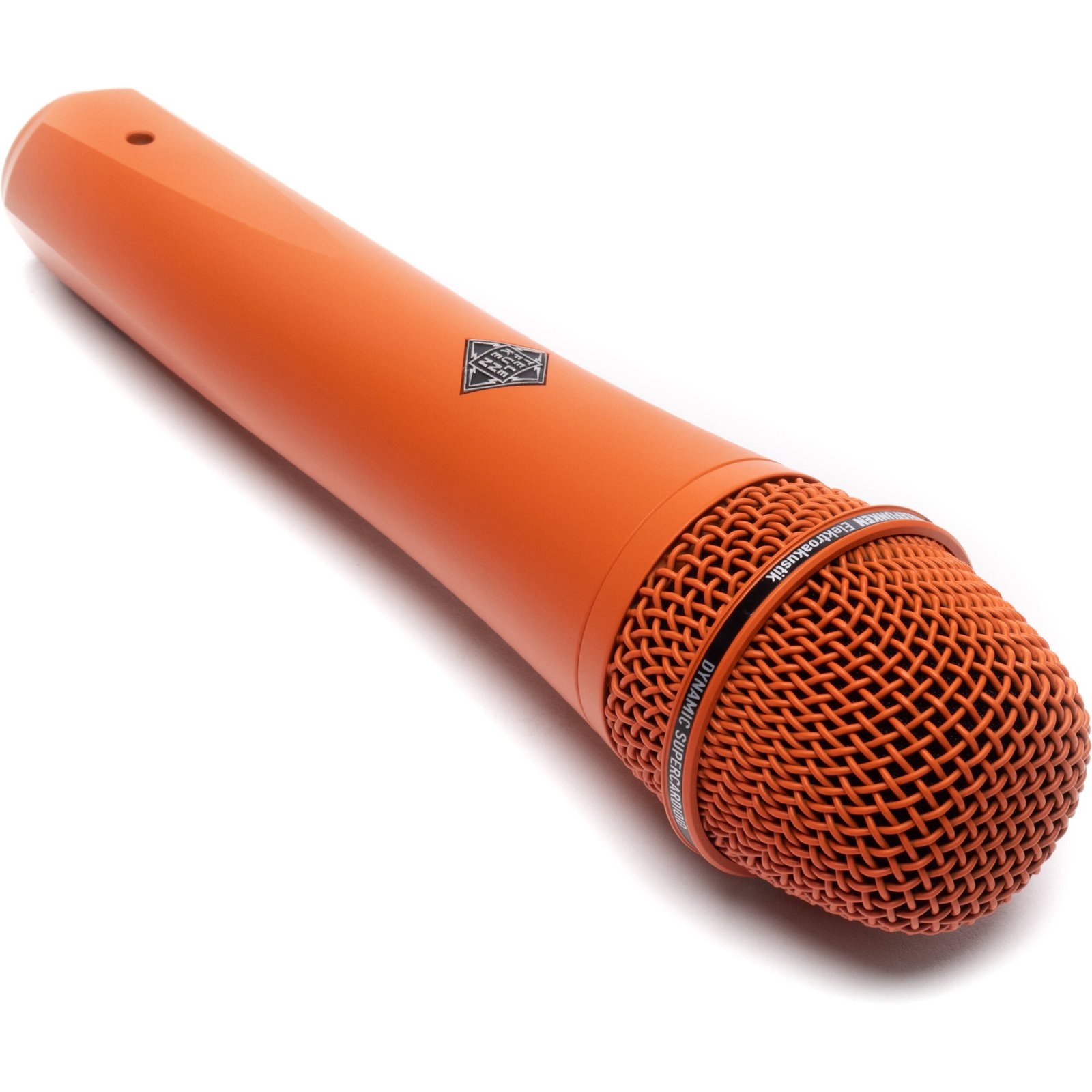

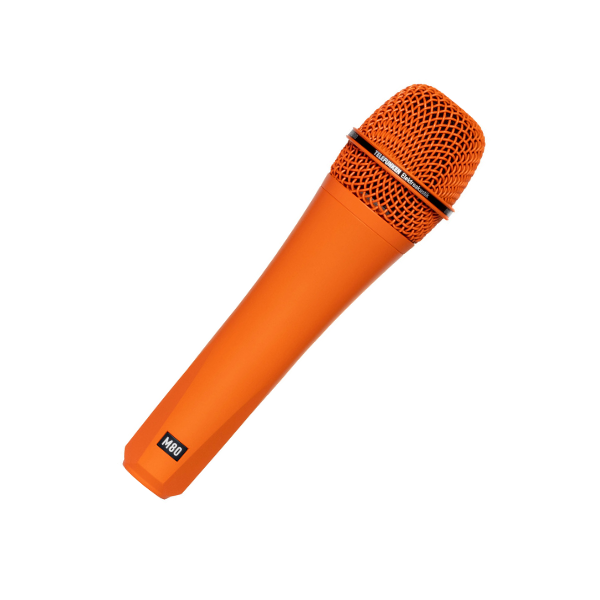

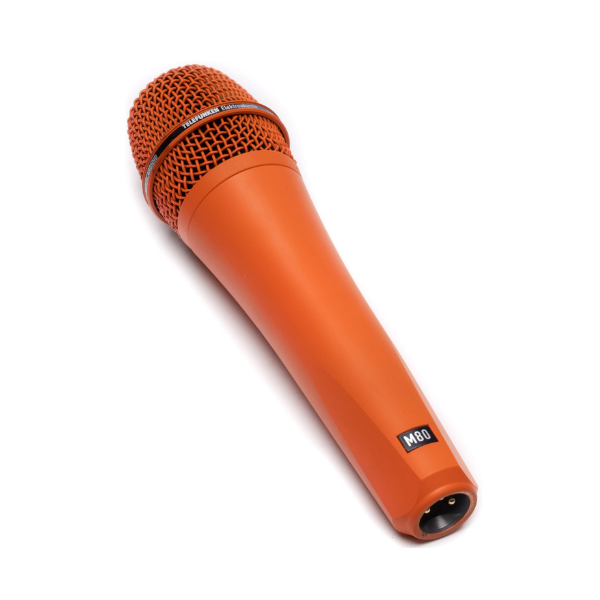

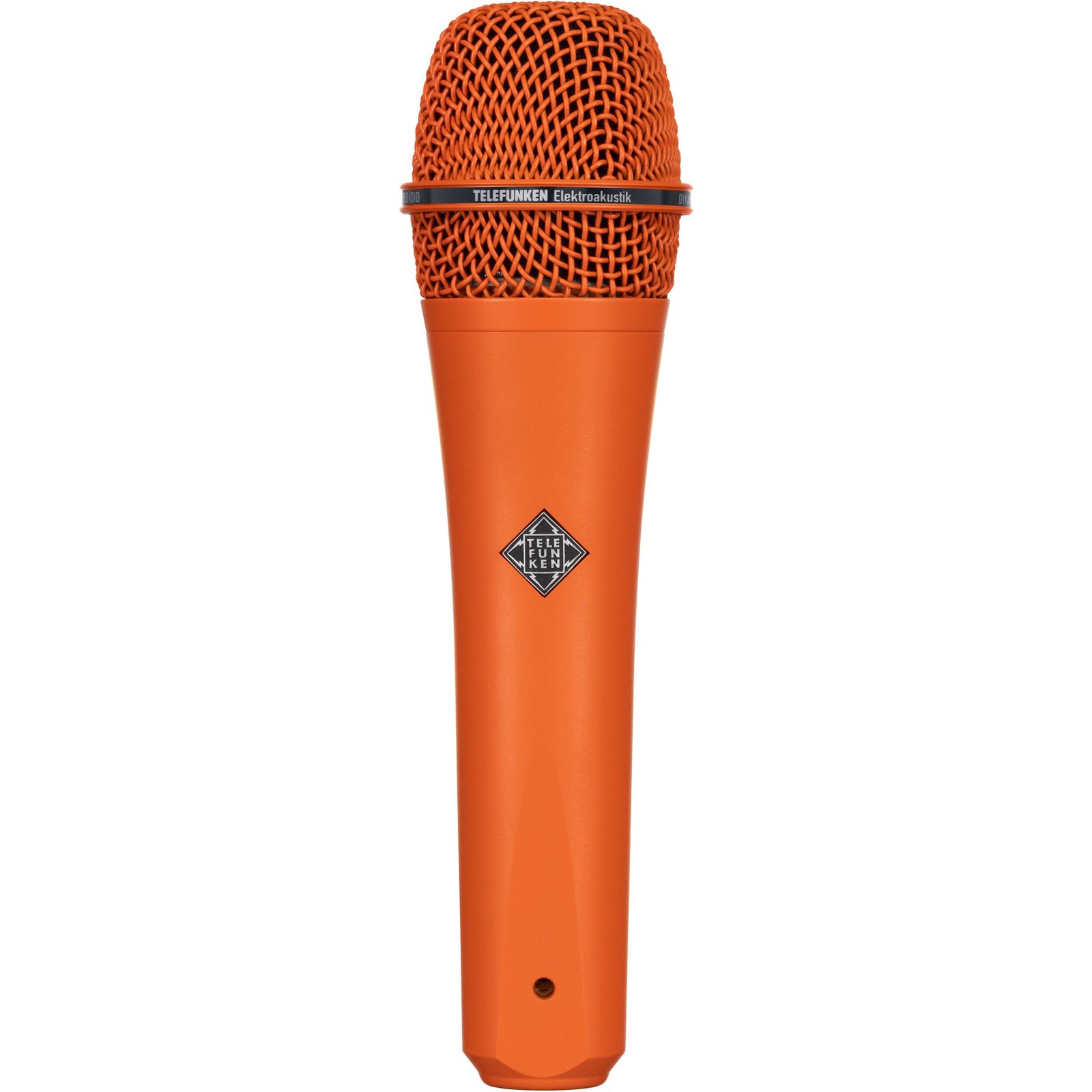

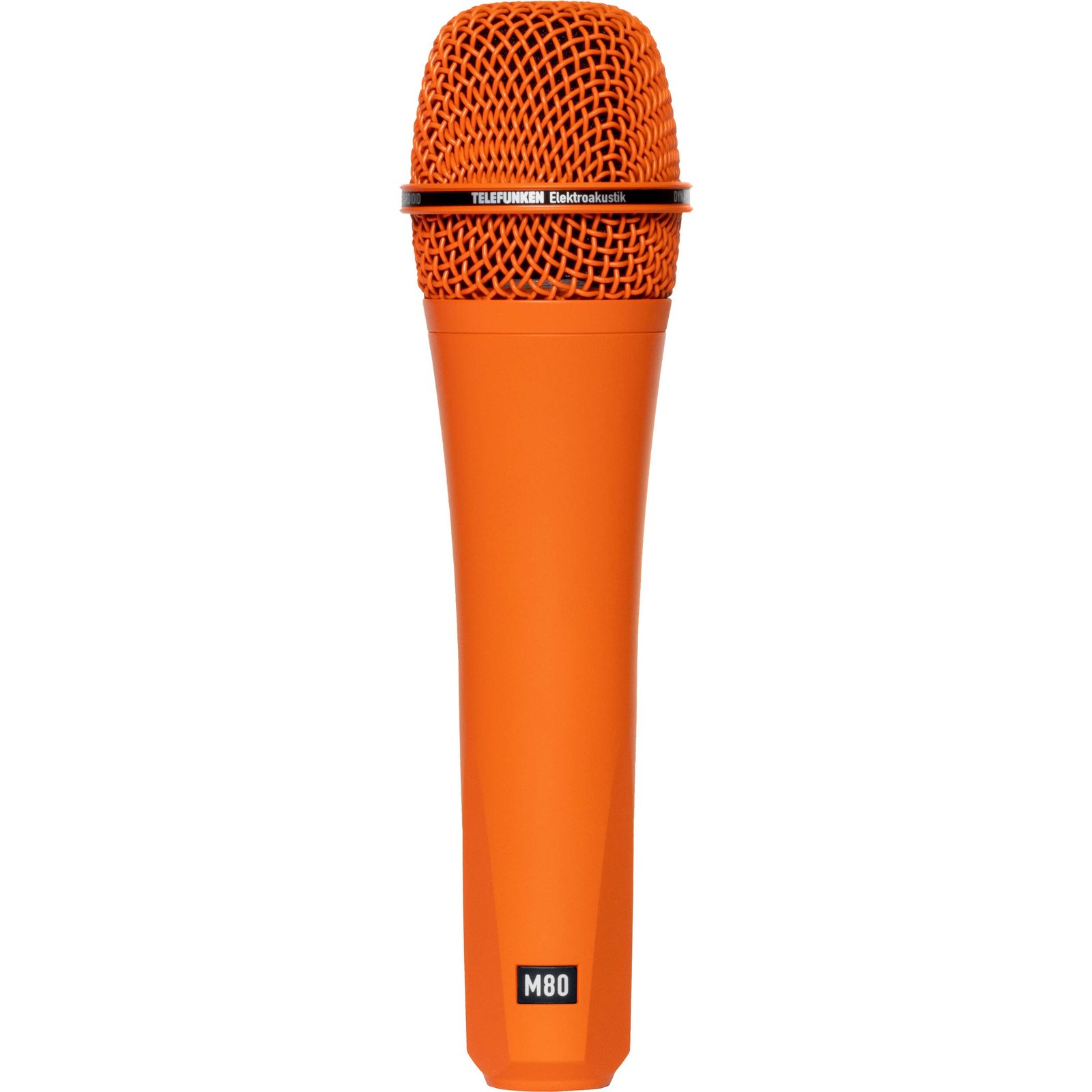

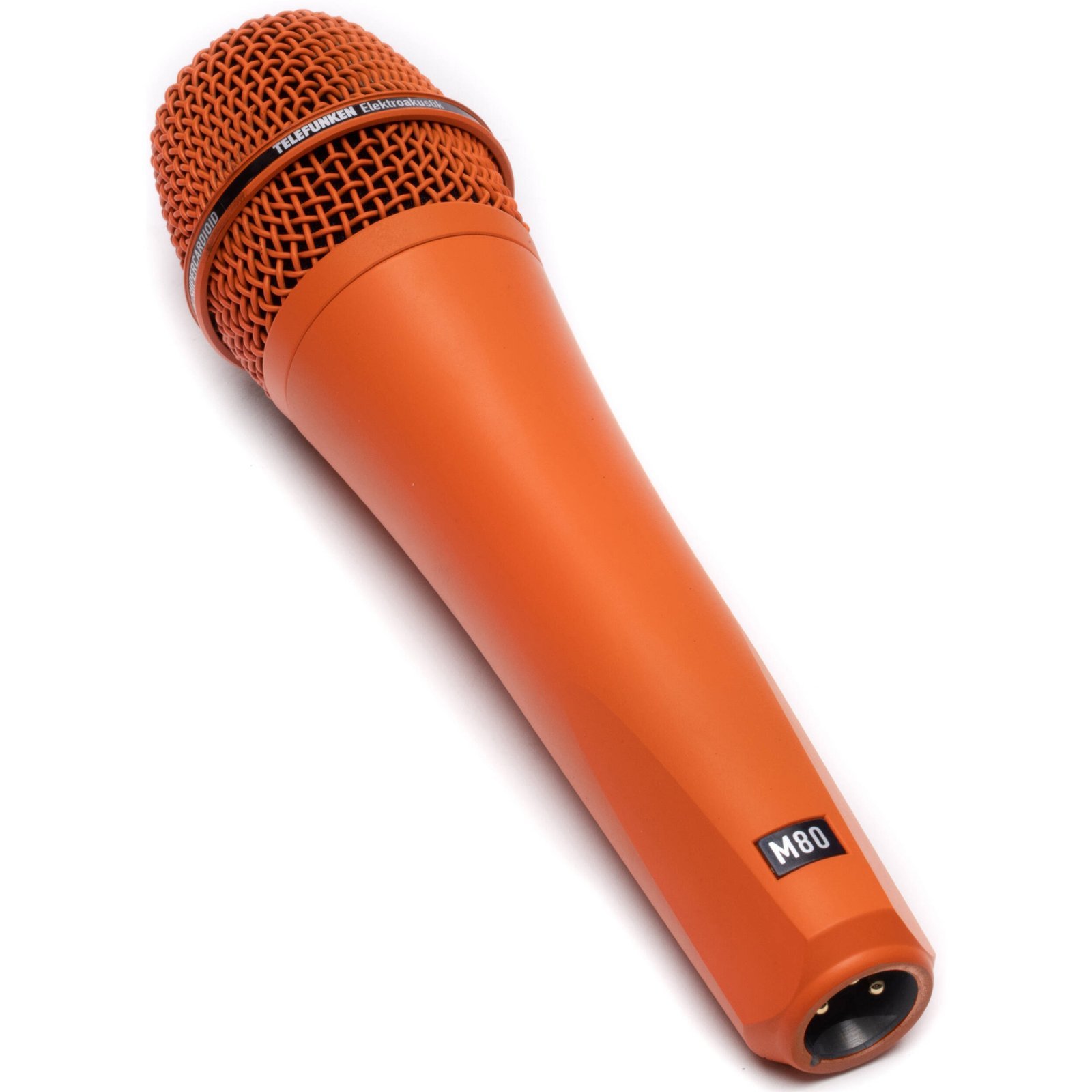

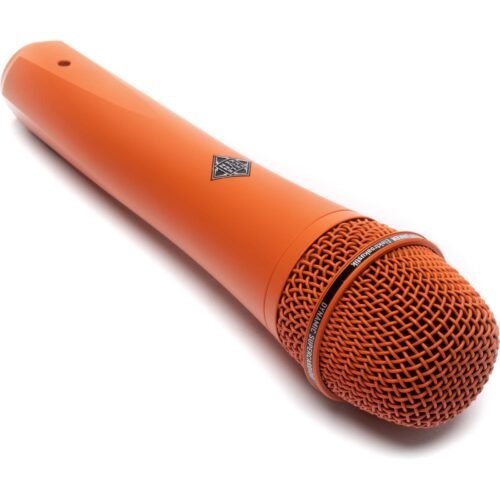

Telefunken M 80 Orange Microphone

M80

Over the last decade the M80 has become a staple in live sound reinforcement and studio recording. Its wide frequency response, condenser-like performance, and high SPL capabilities allow the M80 to capture the full range of any sound source, making it a reliable first choice for many sources including lead vocals and snare drum. Featuring a custom-wound impedance matching transformer, its unmatched performance is mated with intelligent internal construction to provide low handling noise. Hand-assembled in the USA, the M80’s rugged build quality is designed to withstand the wear and tear of the road.

The M80 is available in a variety of colors and finishes through our Custom Shop, and in Low-Profile (M80-SH) and Wireless (M80-WH, M80-WH2) packages.

Features

Condenser-like high frequency extension cuts through dense mixes
Detailed sound with high SPL handling, perfect for studio and stage
Supercardioid polar pattern provides excellent feedback rejection
Available in multiple colors and finishes through the Custom Shop
Designed and hand assembled in the USA
Recommended Applications: Lead Vocals, Snare Drum, Brass Instruments

For musicians, vocalists, and audio professionals seeking a microphone that delivers exceptional clarity and durability, the Telefunken M 80 Orange microphone stands out as an outstanding choice. Whether you are performing live on stage or recording in a studio environment, this microphone is engineered to capture your voice or instrument with precision and presence, ensuring your sound cuts through any mix with remarkable detail and warmth.

One of the foremost challenges performers face is balancing sensitivity with feedback resistance, especially in loud environments. The Telefunken M 80 Orange addresses this by utilizing a supercardioid polar pattern, which means it picks up sound primarily from the front while significantly reducing unwanted noise from the sides and rear. This directional focus helps minimize feedback and background noise, allowing for cleaner sound capture in live settings. Consequently, you can confidently perform in noisy venues or crowded stages without compromising audio quality.

At the heart of the microphone lies a 25 mm dynamic moving coil capsule paired with the exclusive TELEFUNKEN Elektroakustik T80 transformer. This combination is critical for transforming sound waves into electrical signals with high fidelity. The large dynamic capsule ensures robust, rich sound reproduction with excellent transient response, making your vocals or instruments sound natural and full-bodied. The T80 transformer enhances signal integrity by reducing distortion and noise, so your sound remains pure and transparent even at high volumes.

The frequency response of the M 80 Orange spans from 50 Hz to 18 kHz within a ±3 dB range. This broad range means the microphone can accurately capture low-end warmth, midrange clarity, and high-frequency details, offering a balanced tonal profile suitable for various sound sources. Whether you’re recording a deep bass guitar or a crisp vocal performance, this microphone provides the tonal accuracy necessary for professional audio production.

In terms of handling high sound pressure levels, the M 80 Orange can manage up to 135 dB SPL at 1% total harmonic distortion without distortion. This capability is vital for capturing loud sound sources like drums, brass instruments, or energetic vocal performances without clipping or loss of detail. Additionally, with a sensitivity of 1.54 mV/Pa and an output impedance of 325 ohms, the microphone is compatible with most professional audio equipment, ensuring seamless integration into your existing setup.

Physically, the Telefunken M 80 Orange measures 184 mm in length with a diameter of 48 mm, weighing 430 grams. Its robust construction supports durability for rigorous touring and consistent use, while its ergonomic design provides comfortable handling during extended performances. The microphone’s striking orange finish not only adds visual appeal but also makes it easy to spot on crowded stages or in busy studios.

The Telefunken M 80 Orange microphone is perfectly suited for live vocal performances, studio recordings, broadcast applications, and instrument amplification. Its superior feedback rejection and wide frequency response make it an ideal choice for singers, public speakers, and sound engineers who demand professional-grade audio clarity and reliability. Investing in this microphone means securing a tool that enhances your sound quality and elevates your overall performance.

In conclusion, the Telefunken M 80 Orange microphone offers a unique blend of advanced technology, rugged design, and sonic excellence. Its supercardioid pattern, premium capsule and transformer, wide frequency range, and high SPL handling capabilities translate directly into better sound capture and greater versatility. Whether you are a seasoned professional or an aspiring artist, this microphone delivers the precision and durability needed to excel in any audio environment, giving you the confidence to perform and record at your best.
