SMC 7.1

Surround Monitor Controller

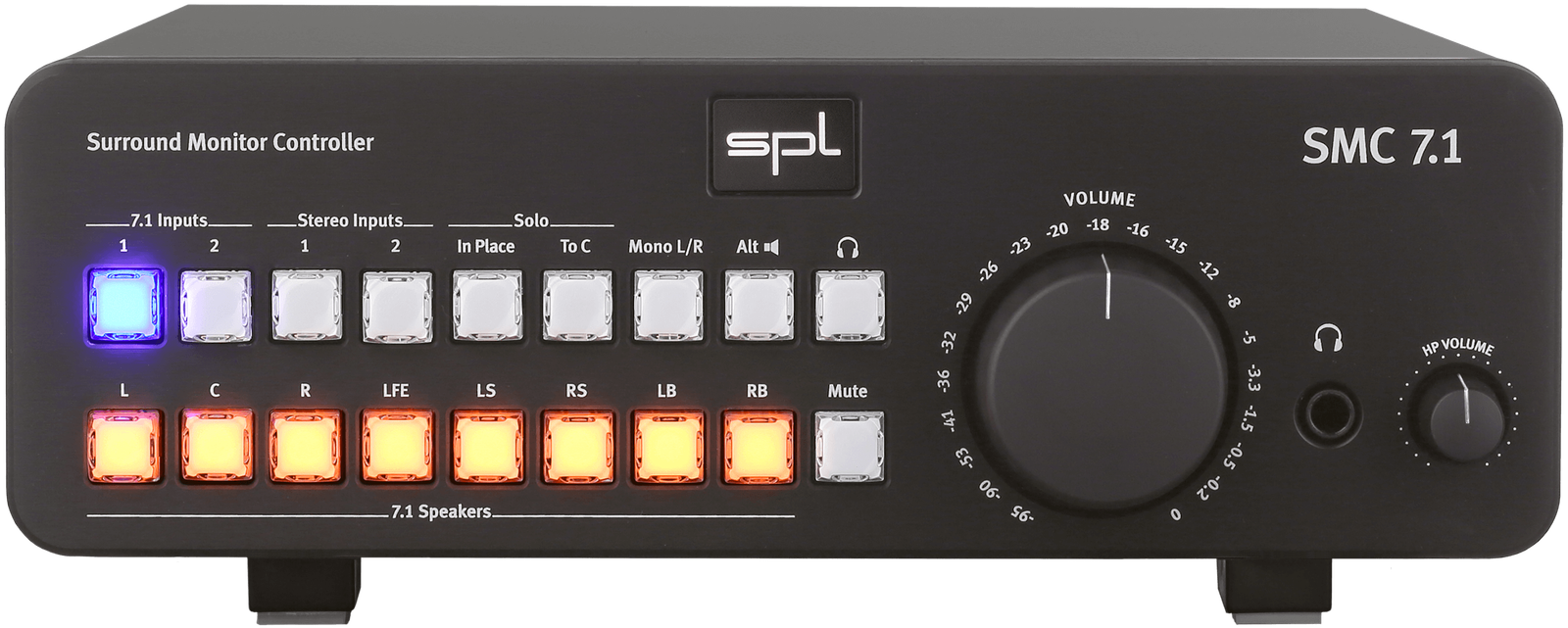

The SMC 7.1 expands analog surround monitoring to 8 channels and offers Solo, Solo-In-Place and Solo-To-Center as well as a headphone jack.

Inputs & Speaker Management

Two 7.1 and two stereo input sources can be connected to the SMC 7.1. This is important because in monitoring, two productions are always compared with each other.

A subwoofer can be added to a stereo input by activating the LFE button.

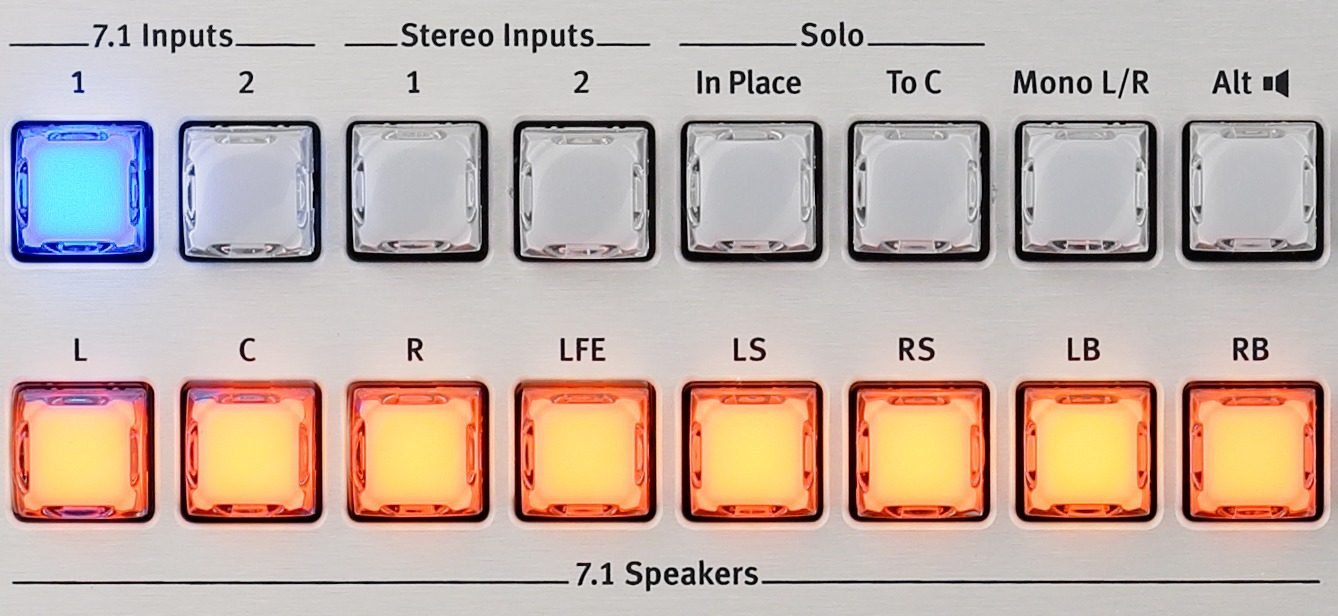

Each loudspeaker can be switched on and off individually, and the SMC 7.1 remembers the last speakers used for each source.

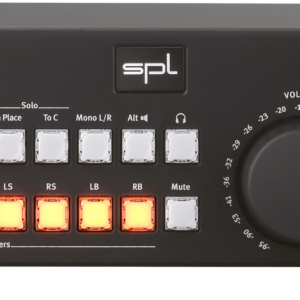

The Solo-In-Place function now turns the loudspeaker on/off switches into solo buttons. This allows each loudspeaker to be heard alone at its position.

Solo-To-Center places the selected loudspeaker on the center speaker, so that it can be listened to exactly from the front in case critical listening is required.

An alternative output is available for connecting a pair of stereo loudspeakers.

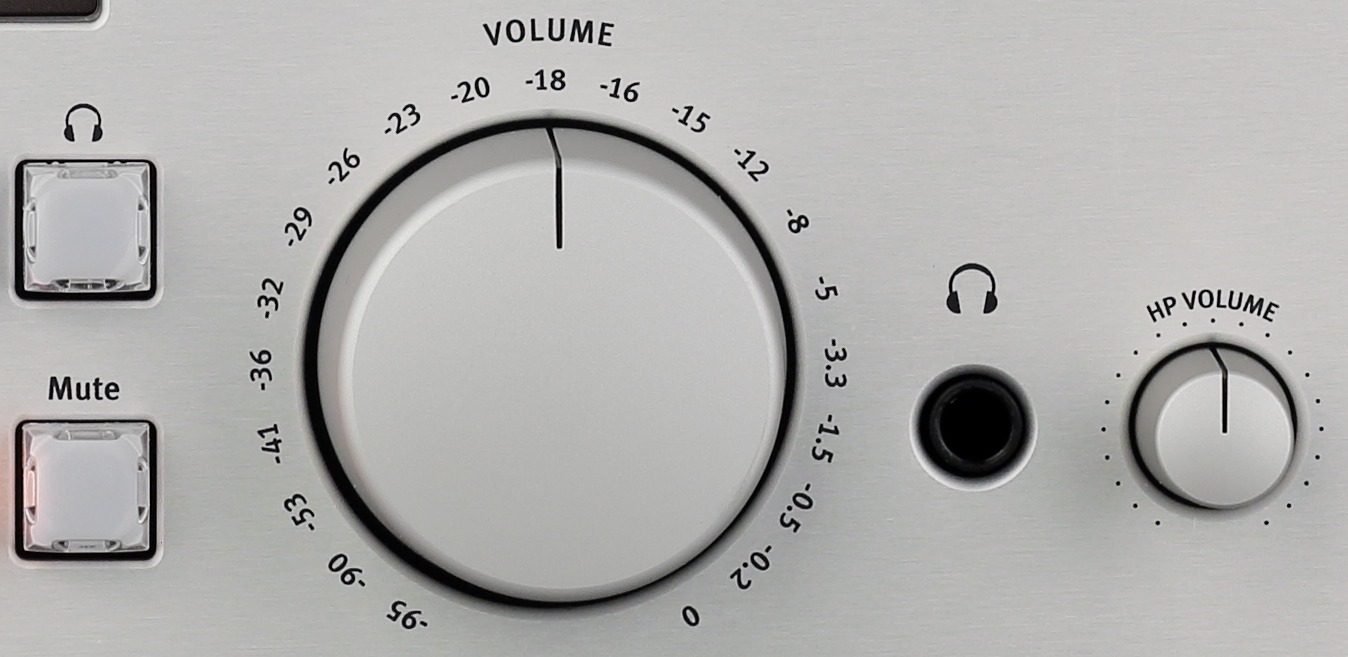

The 45mm all-aluminium rotary knob moves an 8-level potentiometer.

Mute is especially important when the DAW is sending full-range audio garbage due to a problem. Mute can be used

quickly to protect speakers and hearing.

As an alternative to the speakers, headphones can be used for monitoring. The headphones can be switched on and have their own volume control.

Expansion Rack

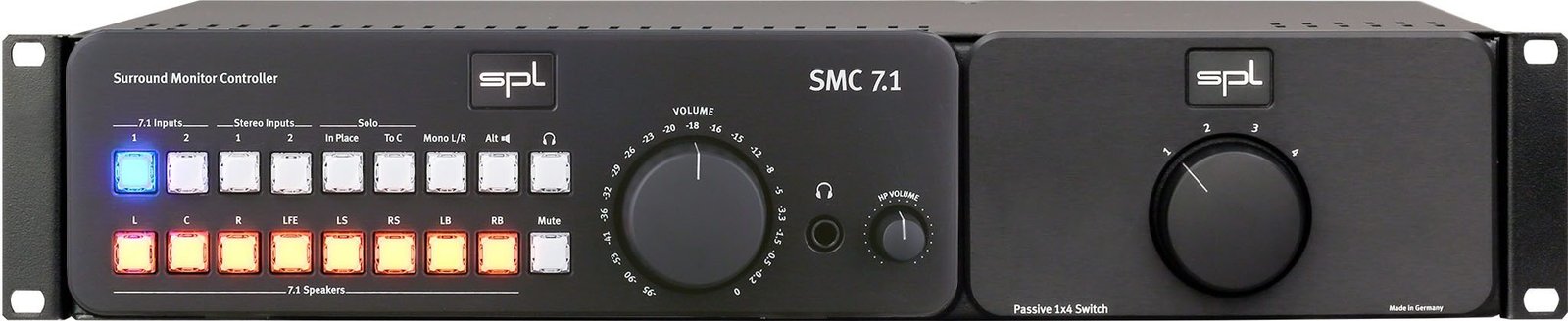

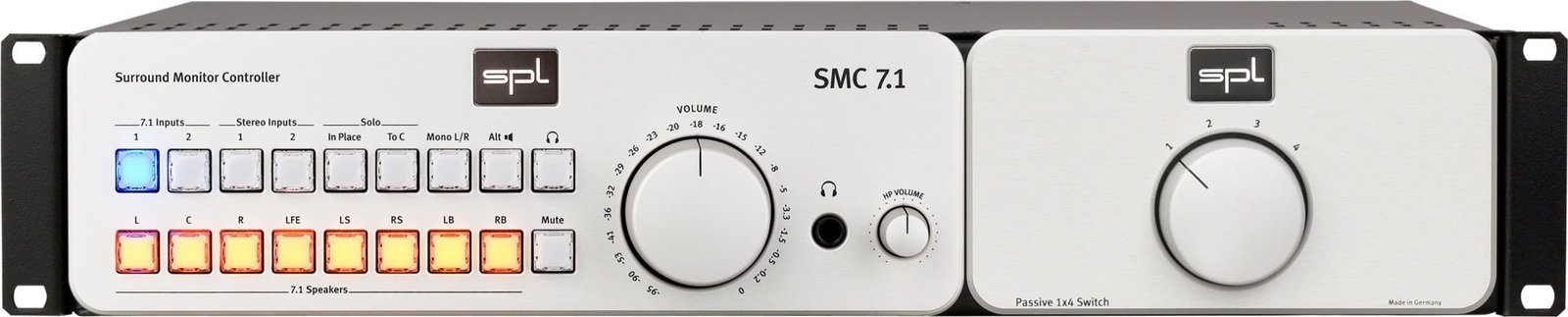

The SMC 7.1 can be installed in the Expansion Rack to be screwed into a 19-inch rack.

The Expansion Rack is equipped with a switch that can passively route the stereo output signal of the SMC 7.1 to four stereo outputs.

In this combination, the SMC 7.1 is expanded by three additional stereo outputs.

This allows a 7.1 loudspeaker array and full-range, mid and nearfield stereo speakers to be controlled and monitored.

In professional audio production, precise control over your surround sound environment is essential to delivering mixes that translate perfectly across all playback systems. The SPL SMC 7.1 Surround Monitor Controller is engineered for audio professionals who demand uncompromising accuracy and flexibility in their monitoring setup. Whether you are mixing film, television, or immersive audio formats, this device ensures you can manage multiple inputs and outputs seamlessly, providing you with the confidence to make critical decisions in your mix.

One of the biggest challenges in surround sound production is managing multiple audio sources and speaker configurations without signal degradation or complexity. The SPL SMC 7.1 addresses this by offering an impressive 16 inputs and 8 outputs, enabling you to switch effortlessly between various audio sources and speaker arrays. This versatility means you can audition your mixes on different configurations quickly, ensuring your work sounds exceptional no matter the playback environment.

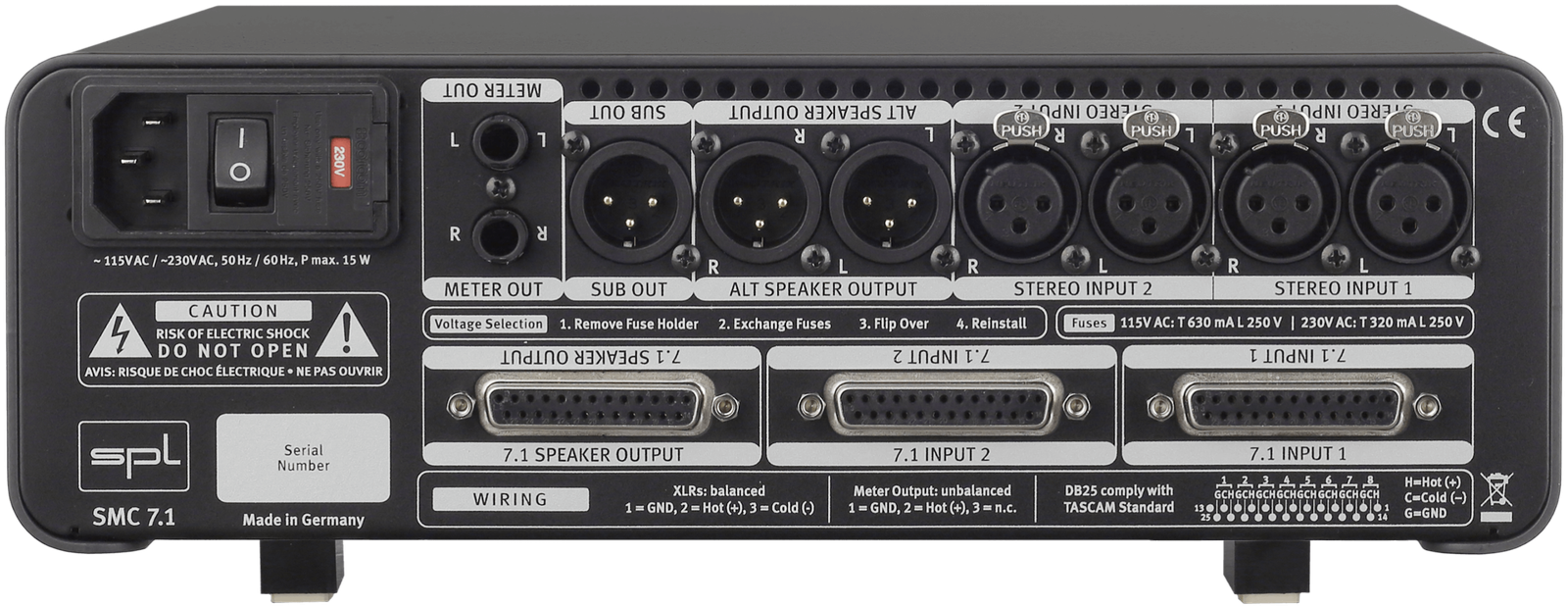

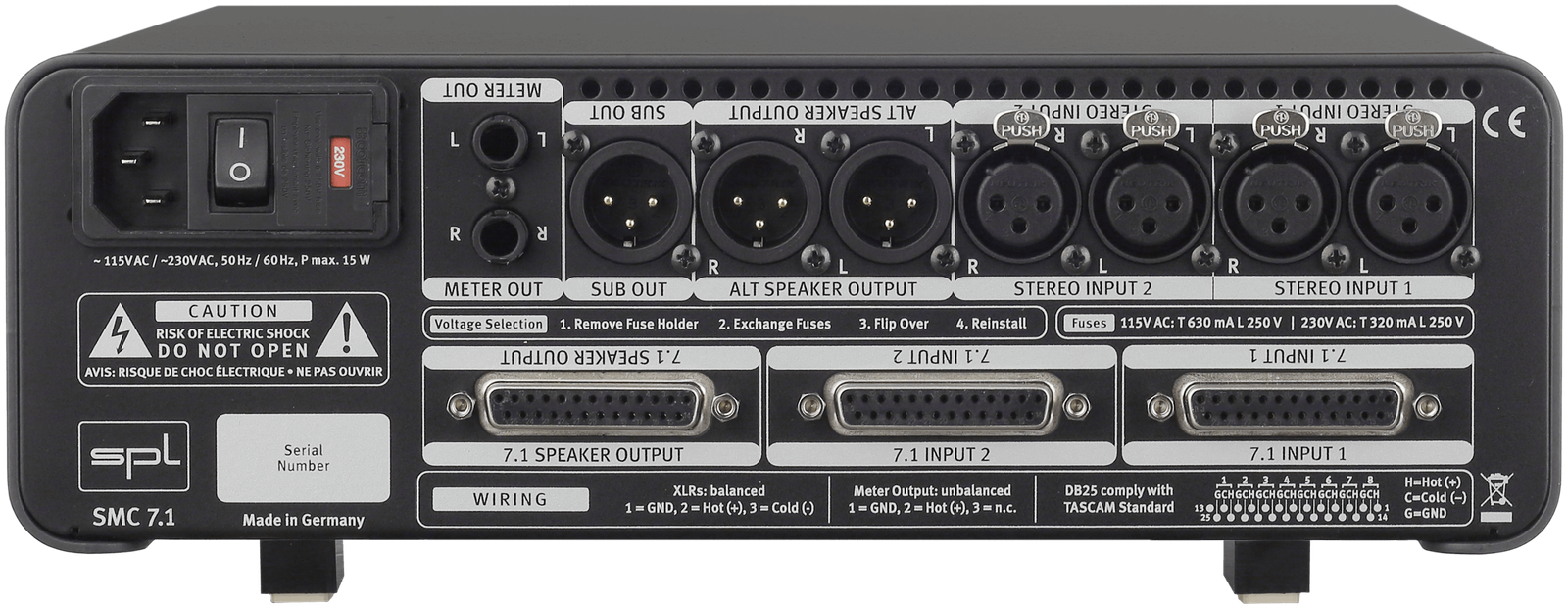

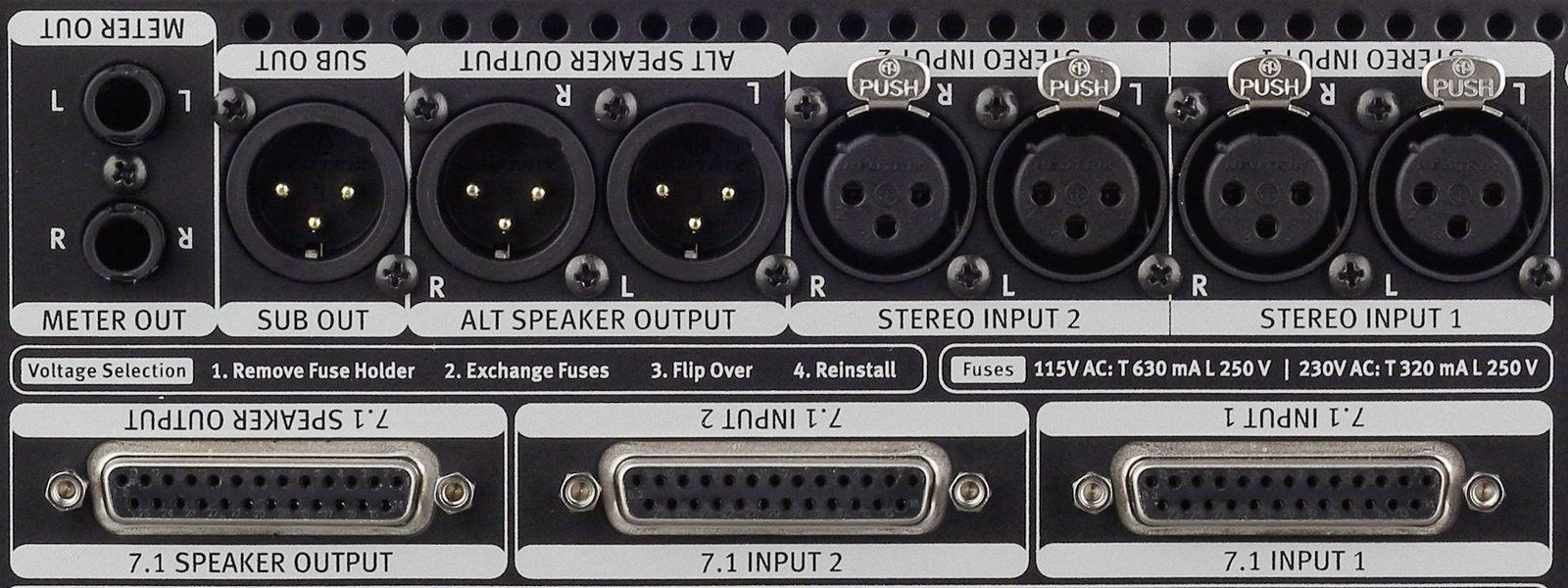

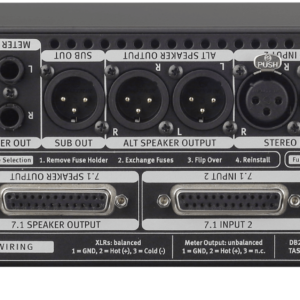

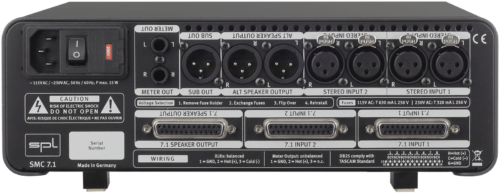

The controller’s analog connectivity is designed with professional studios in mind. It features four XLR inputs and two DB-25 connectors dedicated to 7.1 input channels, allowing you to integrate seamlessly with high-end audio interfaces and mixing consoles. This ensures pristine signal integrity and compatibility with industry-standard equipment. On the output side, the device offers a DB-25 connector for 7.1 speaker outputs, two XLR connectors for alternative speaker setups, a dedicated XLR output for a subwoofer, and two XLR outputs for meter monitoring. This comprehensive output range means you can manage multiple speaker systems and monitoring setups without needing additional hardware, simplifying your workflow.

A crucial aspect of any monitor controller is headphone monitoring, and the SPL SMC 7.1 excels here as well. It includes a 1/4-inch headphone jack with its own volume control, allowing engineers to switch to critical headphone listening without affecting the main monitor levels. This feature is vital for detailed checking of mixes, especially in surround formats where spatial cues are paramount.

Physically, the unit is designed to fit comfortably into professional studio racks or desktop setups, with dimensions measuring 4.6 inches in height, 11 inches in width, and 13 inches in depth. Weighing just 4 kilograms, it is robust yet manageable for studio environments where space and equipment weight are considerations. Its sleek black finish adds a professional aesthetic that complements any studio environment.

The SPL SMC 7.1 is ideal for post-production studios, broadcast facilities, and music production environments where surround sound mixing is standard. It enables sound engineers to maintain precise control over their monitoring systems, ensuring mixes are accurate and consistent across all speaker setups. By simplifying complex routing and providing high-quality analog connections, it helps professionals focus on what matters most: the sound.

In summary, the SPL SMC 7.1 Surround Monitor Controller is a meticulously engineered solution for surround sound professionals who require flexibility, precision, and reliability. Its extensive input and output options, combined with high-fidelity analog connectivity and practical design, make it an indispensable tool for any serious surround sound mixing environment. Investing in this controller means you gain confidence in your monitoring decisions, ultimately leading to superior audio productions that stand out in quality and clarity.
