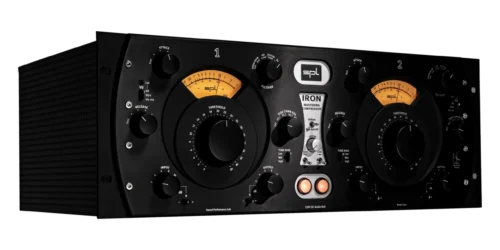

SPL Audio Iron V2 Mastering Compressor
Brand:
SPL Audio
Product Highlights
- Tube compressor/limiter with stereo and dual-mono modes.
- All controls are switches or detented knobs for easy repeatability.
- High 120-volt operating voltage for ample headroom and ultra-low noise.
- Achieve transparent to sonically colored compression.
- Internal control signal limiting delivers musical, lively sound.
₹825,150
In stock
Estimated delivery dates: Apr 14, 2026 - Apr 18, 2026
In stock

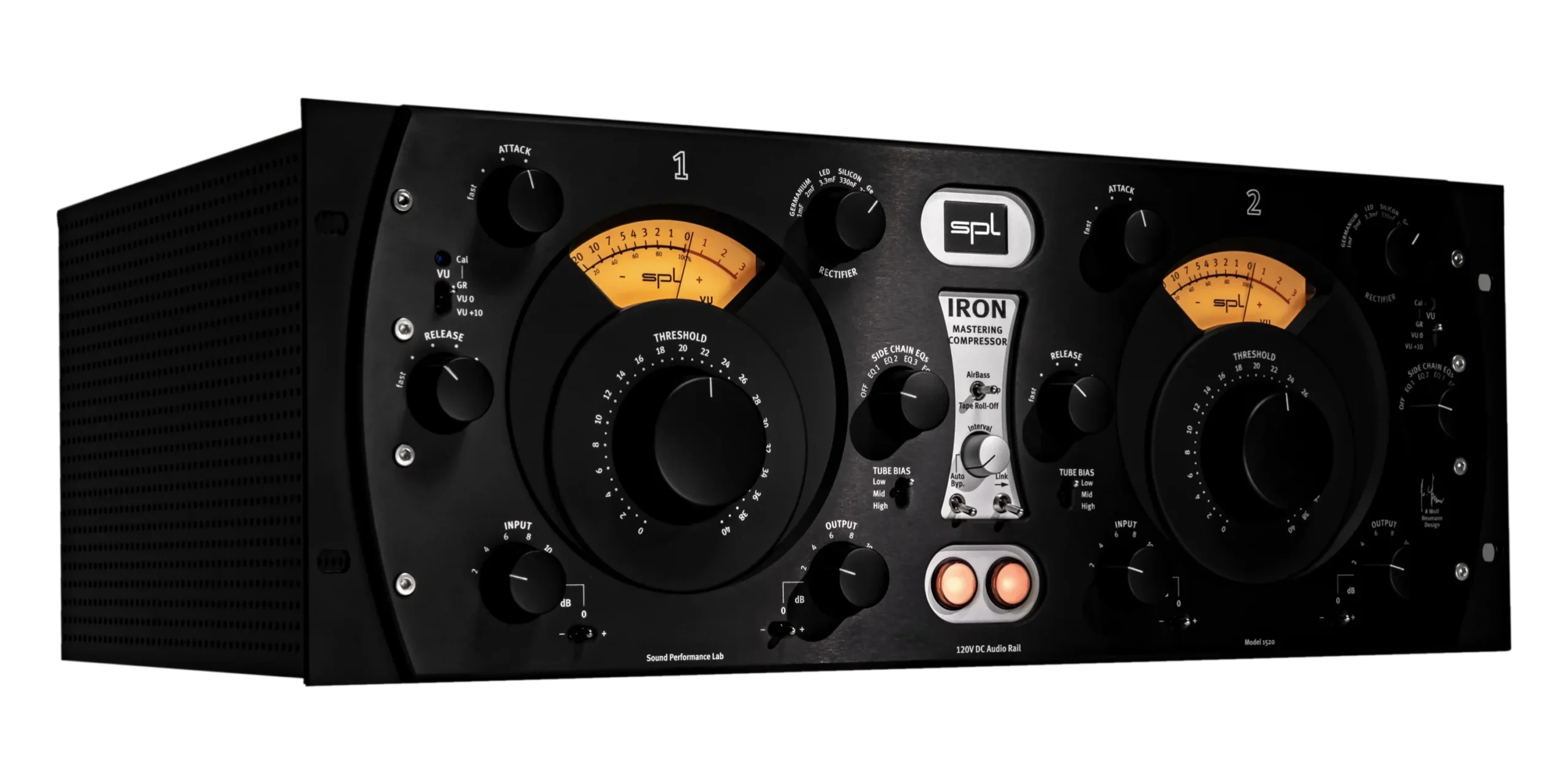

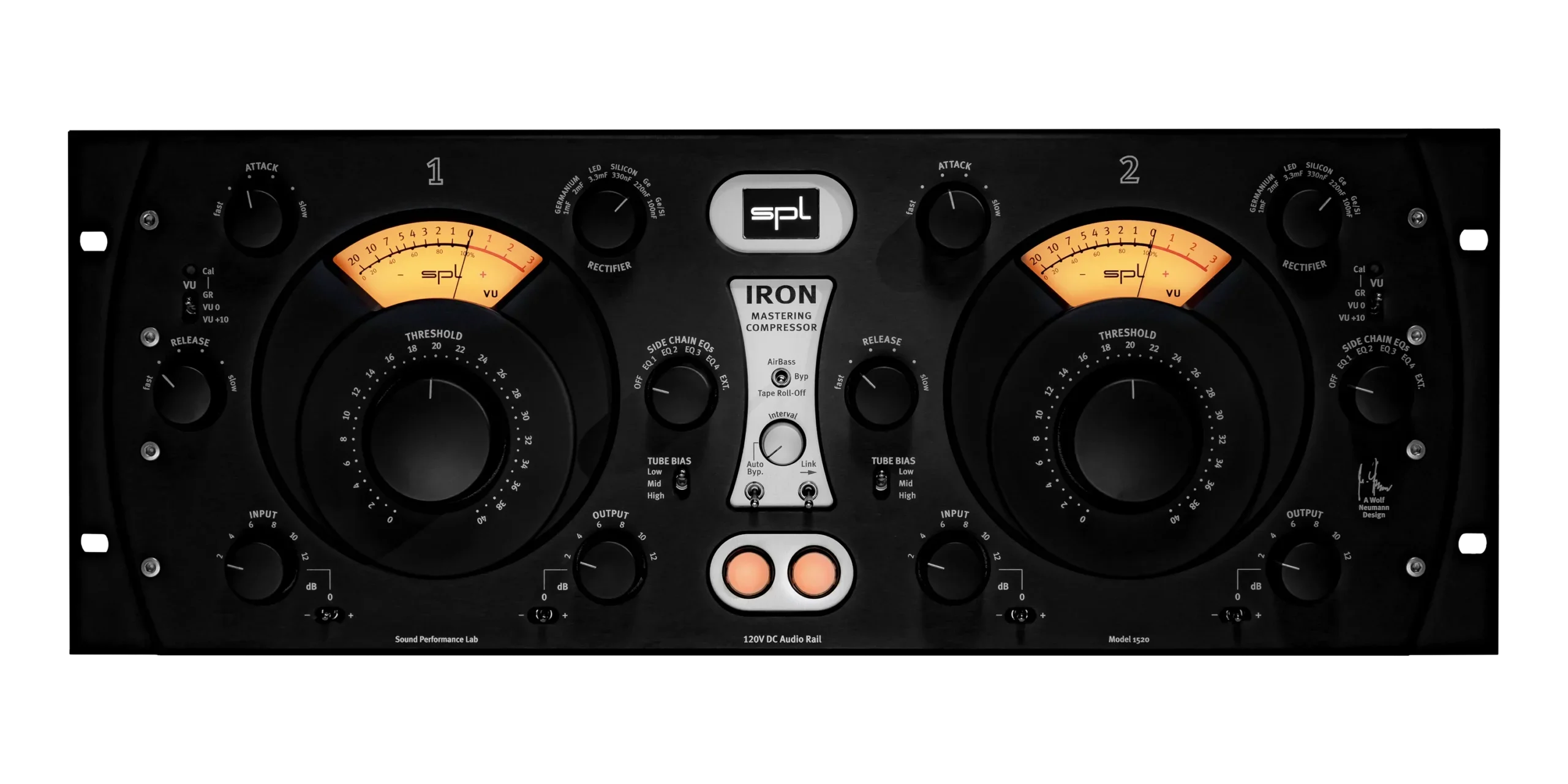

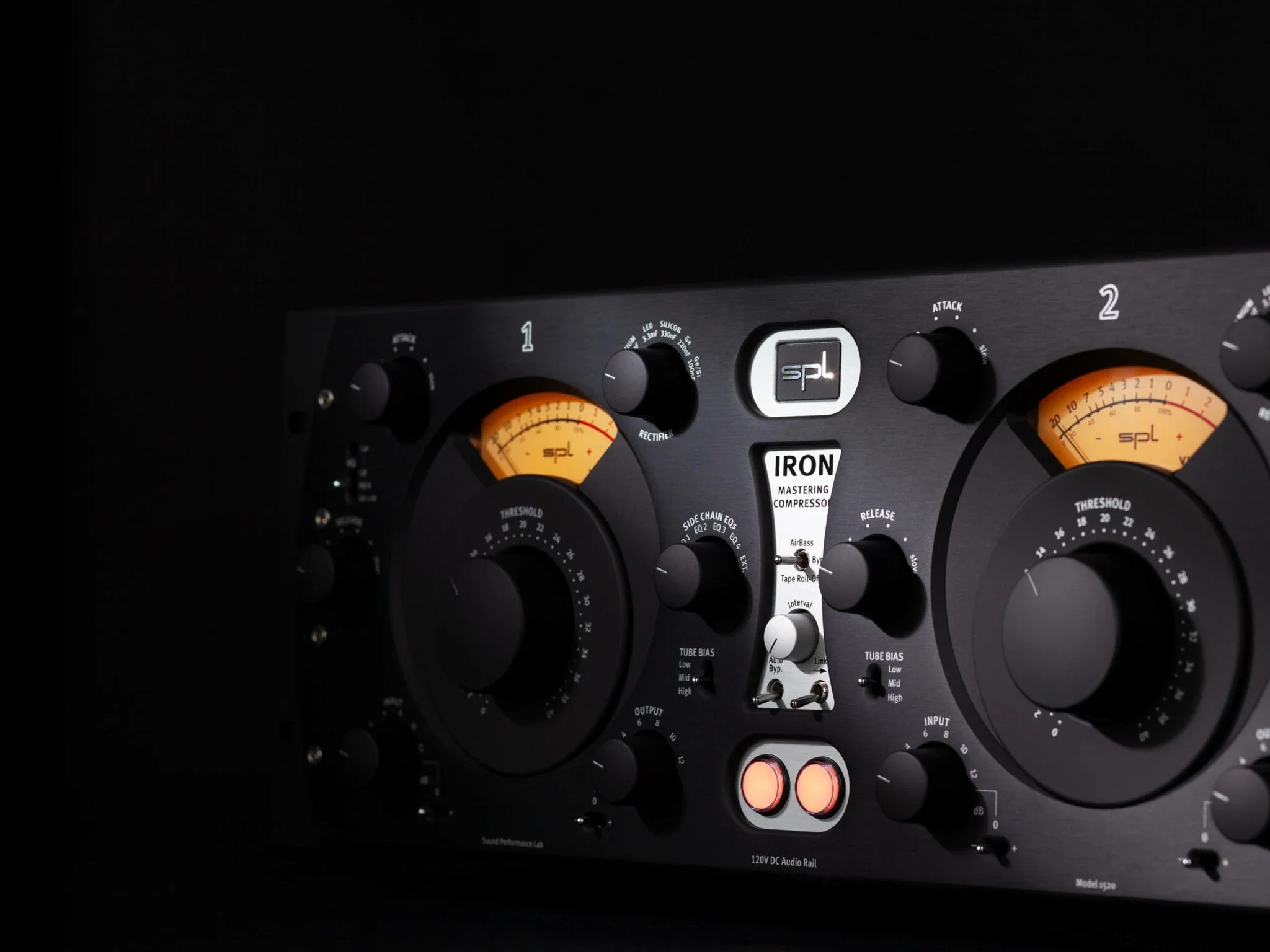

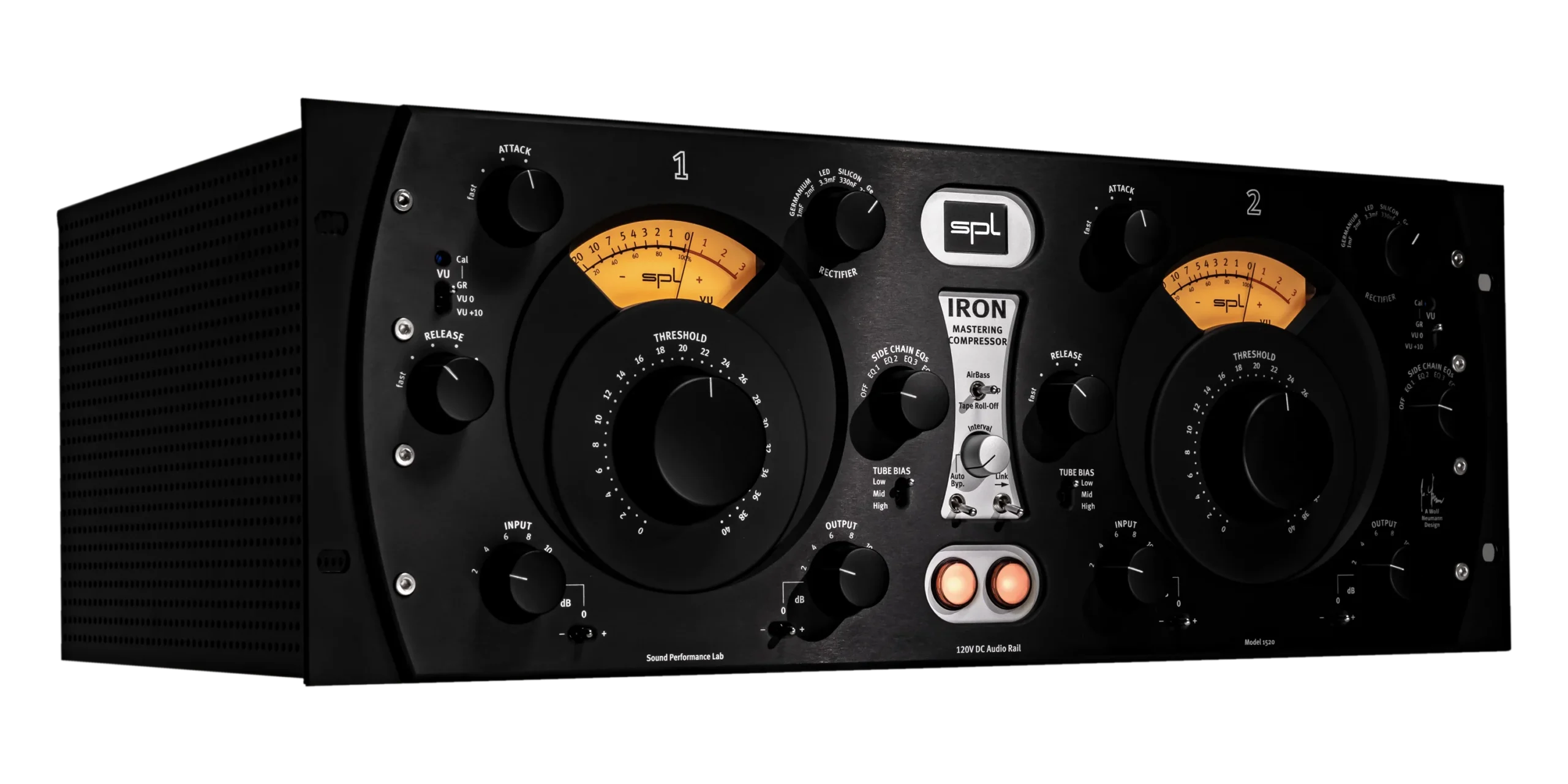

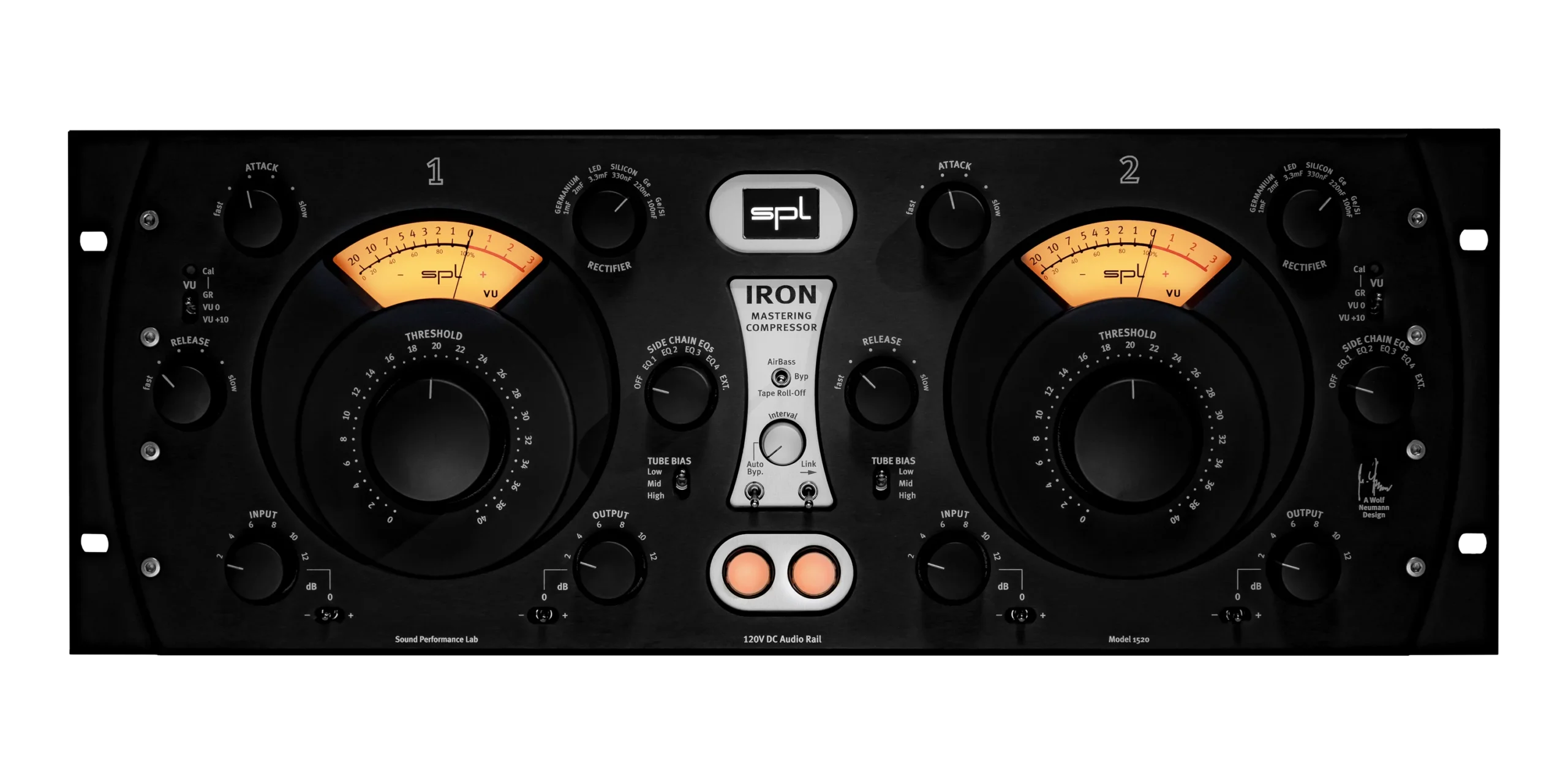

IRON
Mastering Compressor
The IRON Mastering Compressor combines the sonic benefits of legendary vintage tube compressors with the advantages of the SPL 120V technology in one device. The result is a pleasant, melodic-sounding, musical compression inspired by vintage compressors of the radio era, yet very flexible and perfectly adapted to the needs of modern mastering studios and productions.
IRON adds power, size and depth to any signal – without being obtrusive.
Basic Concept
The IRON Mastering Compressor is a variable-bias limiter/compressor from the basic concept. Through the integration of new technologies, this concept gets significantly improved.
IRON works on the principle of the bias controlled remote cutoff tube. Sharp-cutoff tubes with a steeper characteristic are parallelly connected to these.
Depending on the level of the signal amplitude, one or another tube is in charge for signal processing/limiting. The positive result is a well-balanced sound and more controllable settings of the parameters.

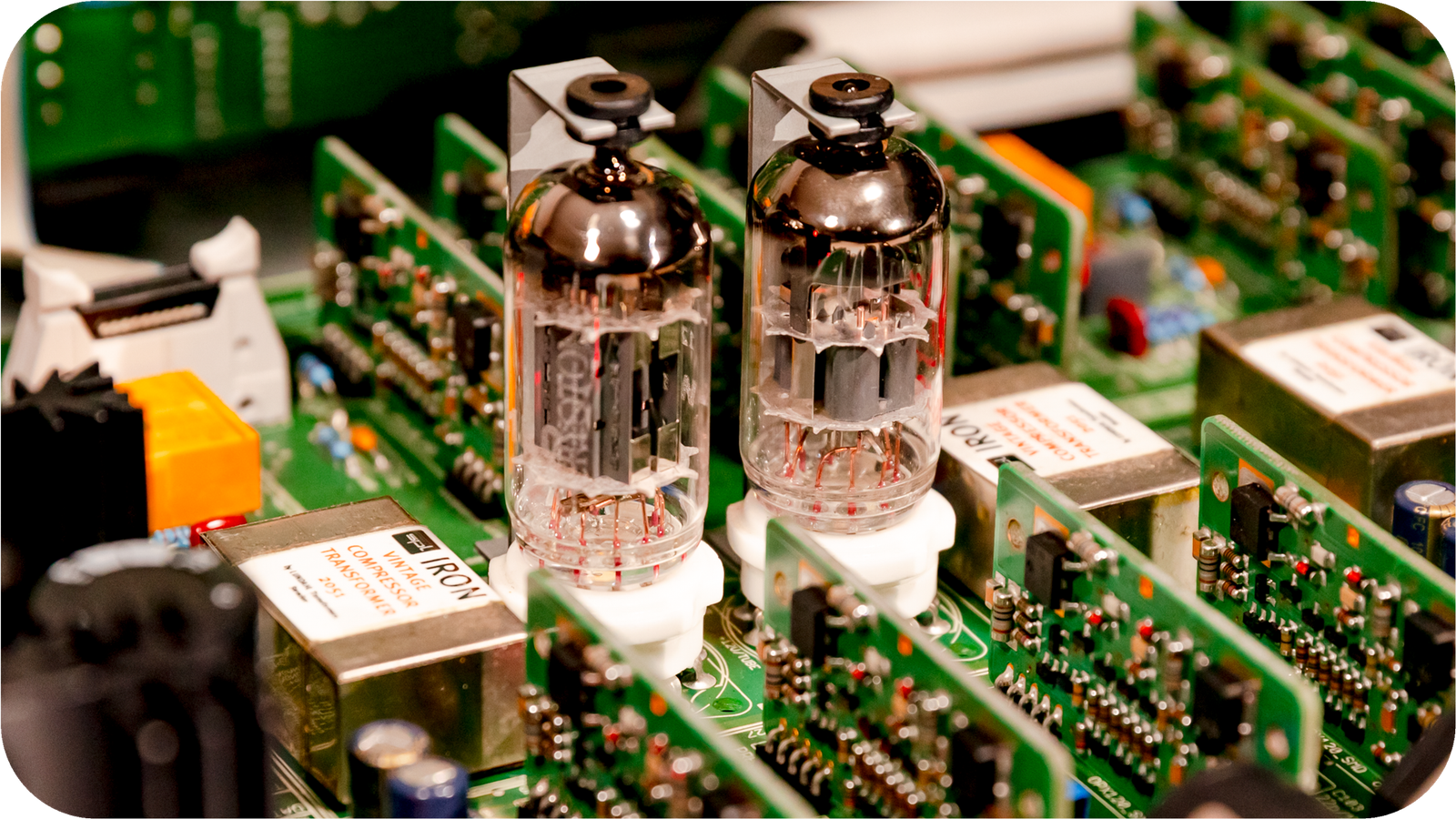

All four tubes in the IRON are a specially matched set to the overall system.
The Wathen CryoTone™12AX7-WCM Long Plate tubes are not only a perfect match as a pair – but also the perfect complement to the selected 12AU7 tubes.
The tubes are integrated into the IRON’s signal flow via special Lundahl manufactured balanced high-level double core mu-metal-iron transformers.
An independent feed-forward resistive vactrol-opto-isolator in the control path of the variable-bias tube circuit intercepts extreme signal peaks, ensuring that the tube circuitry achieves its full sonic potential.
Thanks to SPL 120V technology, tube compressor technology sets new standards in IRON.

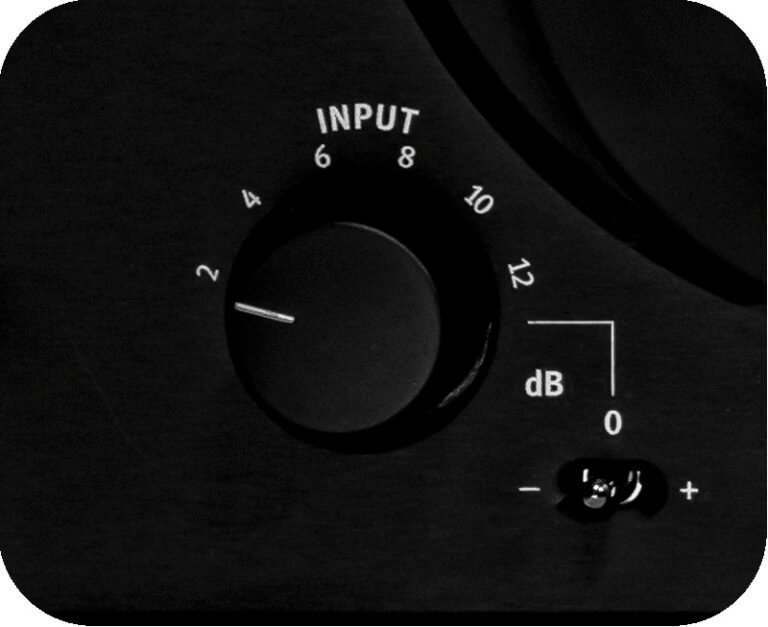

Input
The input level is switchable in a control range of +/- 12 dB in 2 dB steps. An increase of the input level leads to more intensive compression.
Tip: For audio material with a narrow dynamic range and a lot of information in the lower frequency spectrum, attenuating the input signal with the Input switch allows the compressor to work in a much more relaxed manner.

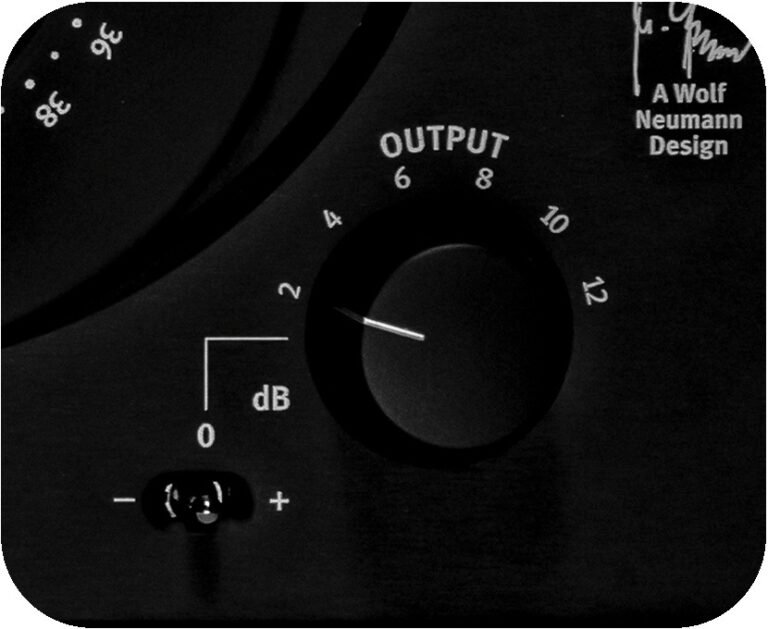

Output
The output level is also adjustable in a control range of +/- 12 dB in 2 dB steps. This allows the audio level to be increased again after compression.

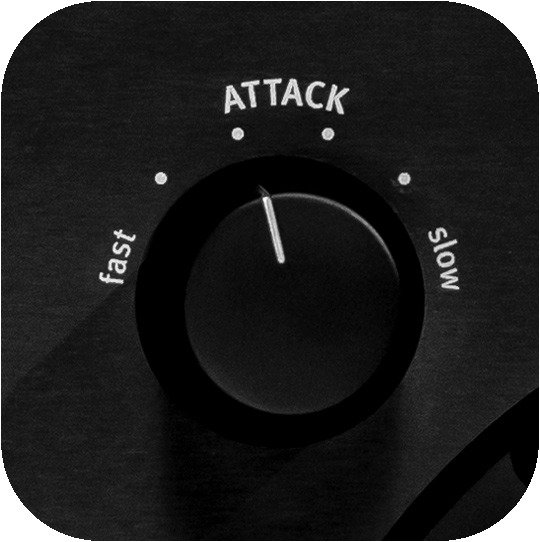

Attack
Attack determines the response time of the compressor.
The Attack time can be adjusted in six steps, from Fast to Slow.

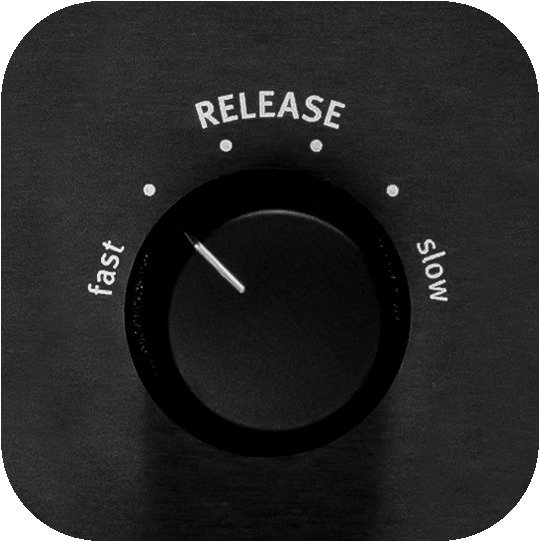

Release
The counterpart of the Attack is Release. The Release parameter determines how fast the compressor eases processing the signal.
Similarly to the Attack time, the Release time can also be set in six steps from Fast to Slow.

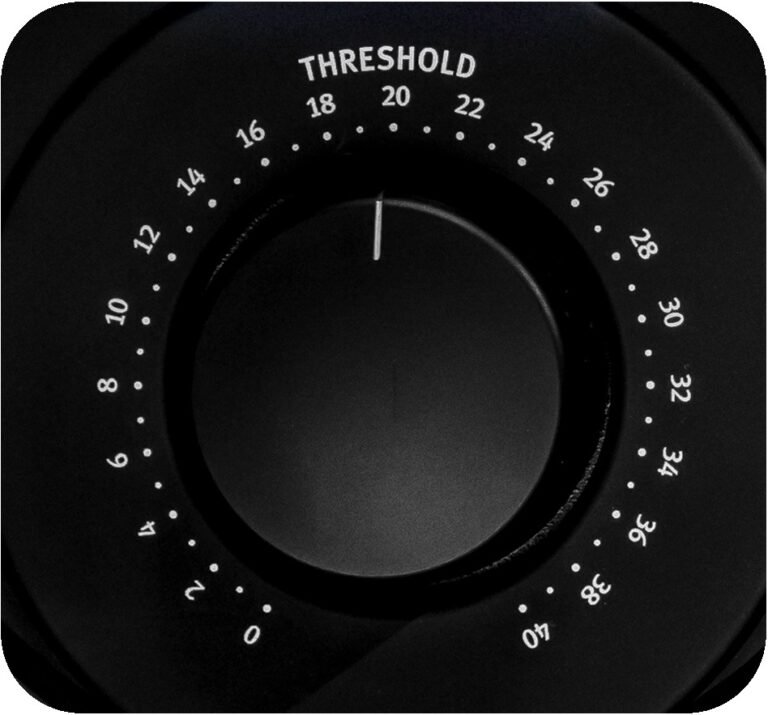

Threshold
Threshold determines the level beyond which the compressor starts to compress. The compressor begins to process the signal once the threshold value has been exceeded. Only signals that exceed the threshold level are compressed. Signals whose level is beneath the threshold value are not processed.
The Threshold parameter of the IRON can be adjusted in 41 steps with the detent potentiometer.

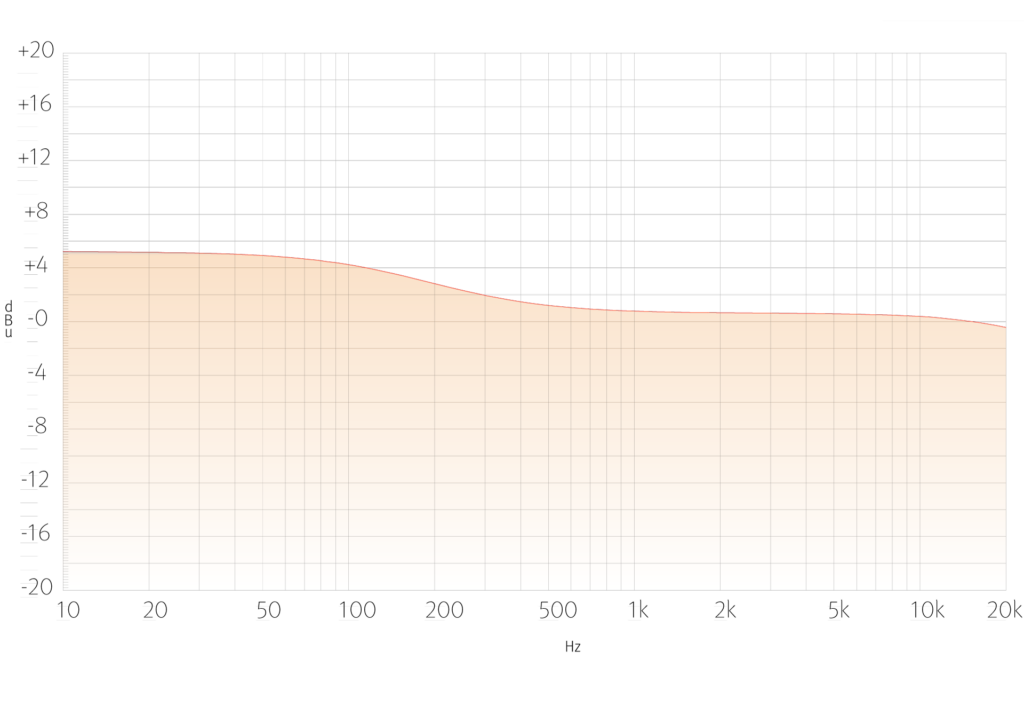

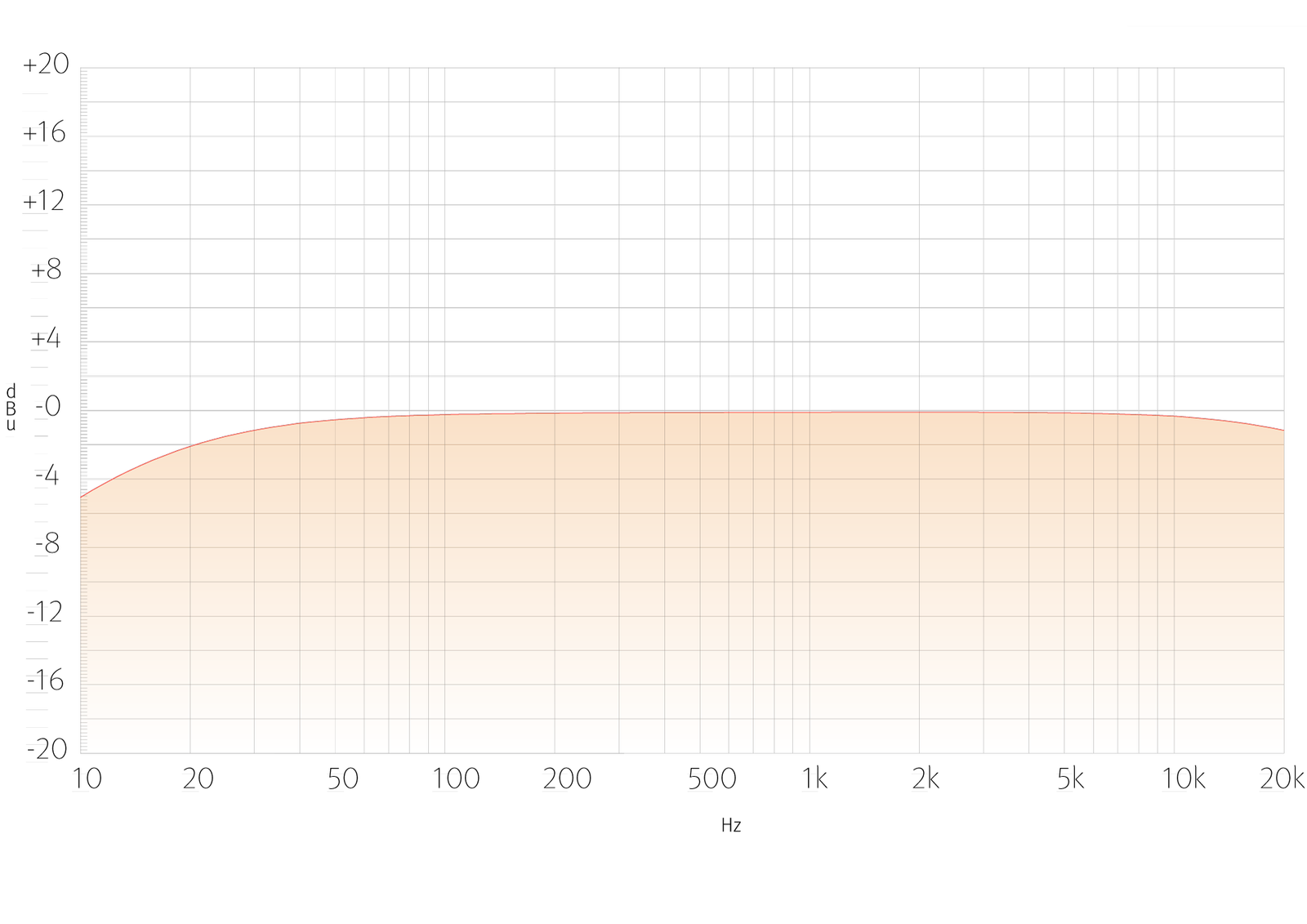

In position 1 (Off), only a capacitor is integrated into the side-chain signal to filter out frequencies lower than 20 Hz.
Position 2 (EQ 1) integrates a lowpass filter.
Position 3 (EQ 2) integrates a highpass filter.
Position 4 (EQ 3) integrates a bandpass filter.

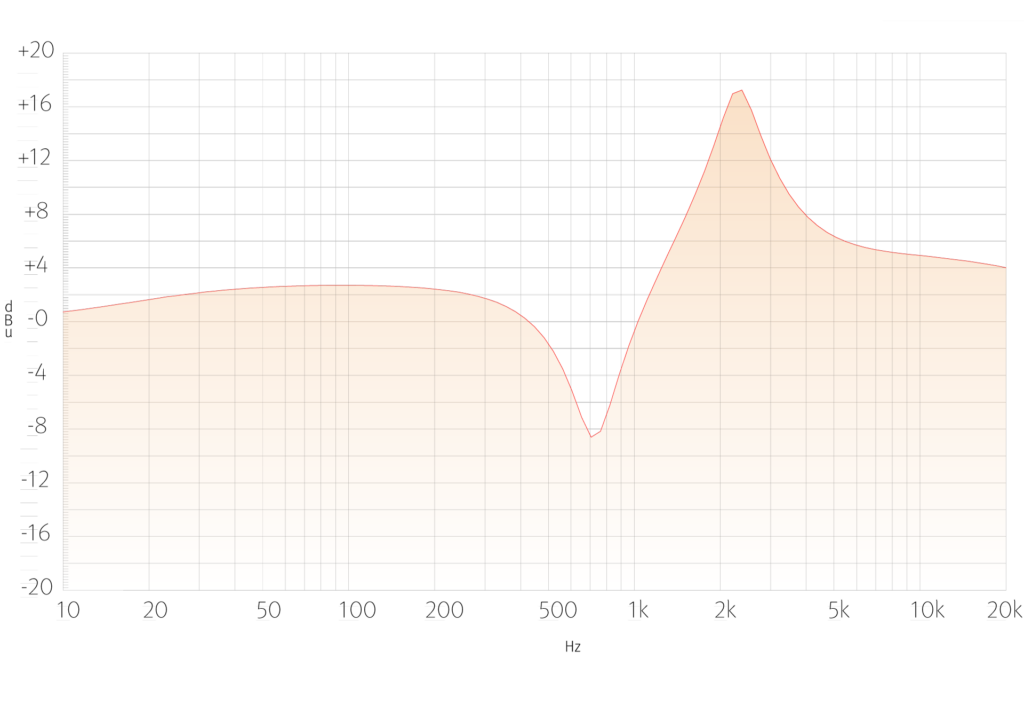

Position 5 (EQ 4) integrates a filter curve empirically designed by developer Wolfgang Neumann.

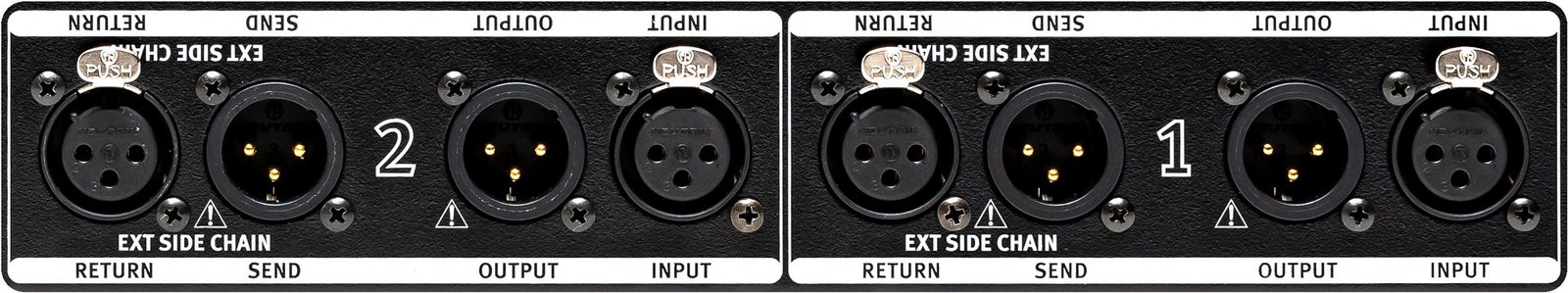

Side Chain Insert
In position 6 (Ext) the external side-chain insert is activated. Via insert send and insert return, an external stereo equalizer can be integrated into the side-chain signal. Individual filter curves can be created to focus the response of the compression to certain frequency ranges.
The side-chain equalizers in the IRON Mastering Compressor only process the control signal – not the audio signal! If no external equalizer is connected to the side-chain insert or if the send and return of the side-chain insert are not bridged with a cable, the audio signal in the IRON will be interrupted when the switch position (Ext) is selected.

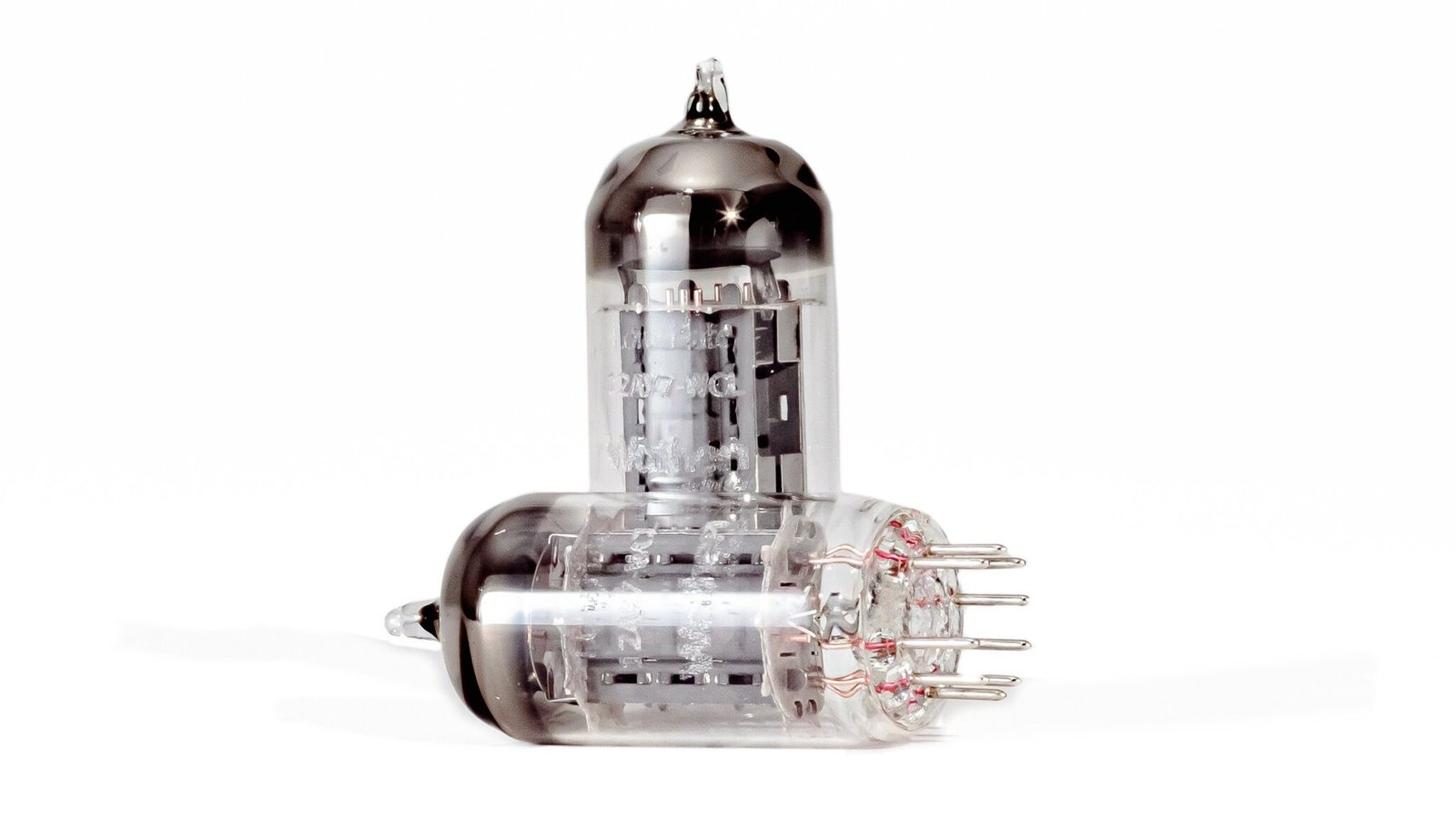

Tubes

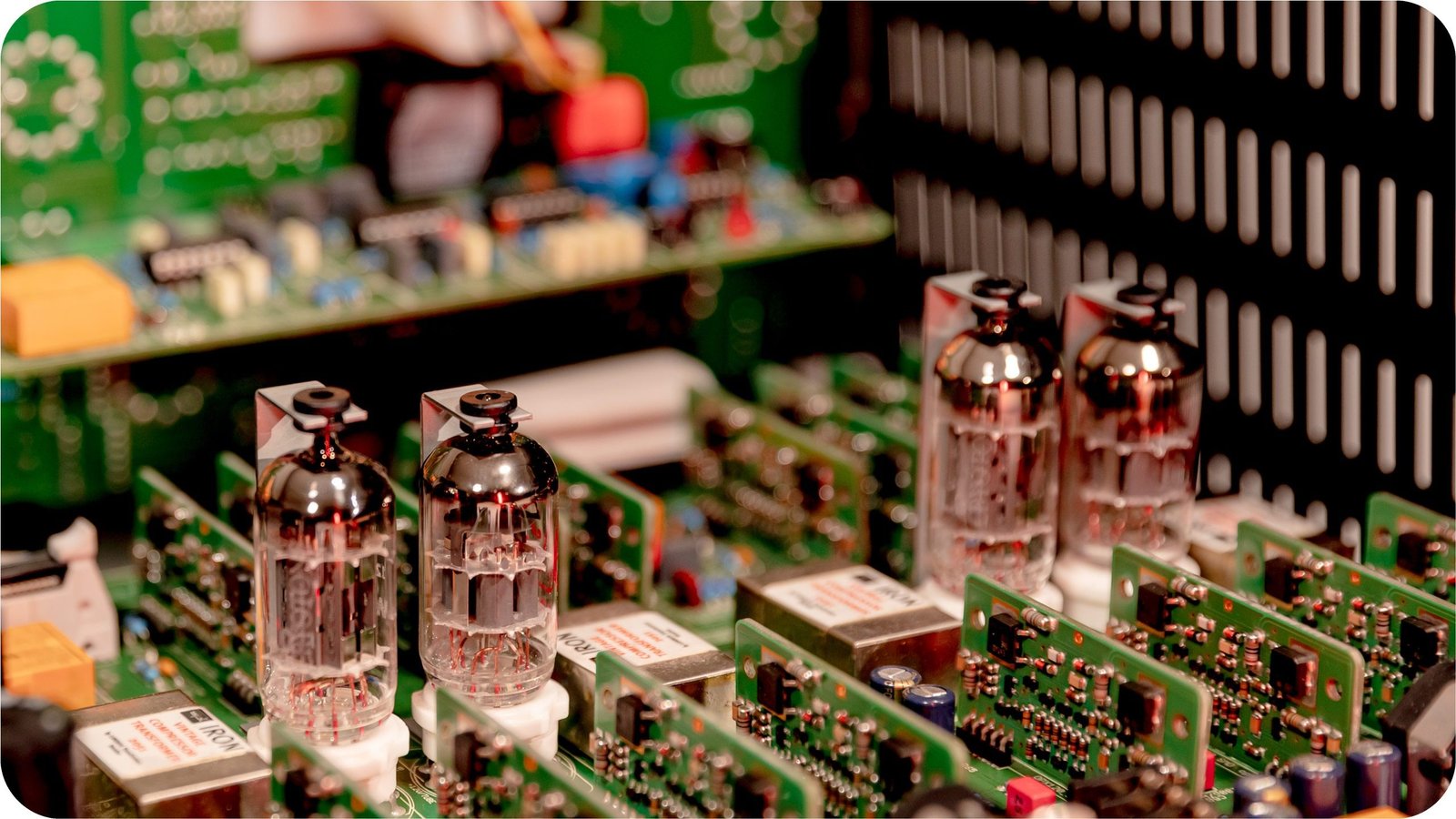

IRON uses four tubes in its circuit. A parallel connected pair for each channel. To receive mastering grade sound and performance it is necessary to use the best tubes available. It is not only crucial to use perfectly matched tubes – they also need to stay true to their specs as long as possible. Therefore IRON is equipped with matched 12AU7 tubes, which get paired with preselected matched pairs of Wathen CryoTone™12AX7-WCM Long Plate tubes at SPL.
Wathen Audiophile’s CryoTone™ tubes are cryogenically treated tubes. Cryogenics is the study of how to get to low temperatures and of how materials behave when they get there. Cryogenic treatment modifies the molecular structure in electronic components by reducing or eliminating voids and imperfections in the material. Wathen utilizes a cryogenic treatment process that is specifically designed to maximize all aspects of the sonic performance in audio tubes. Wathen CryoTone™ Long Plate versions of the 12AX7-WCM have unequaled soundstage, depth and frequency balance. Silky, clear and large from top to bottom with the quietest noise floor and an extended life-span.
IRON combines the best of modern technology and vintage magic.
Link
By activating the Link function, the Threshold, Bias, Attack, Release, Rectifier and Side Chain EQ parameters are controlled by the right side (channel 2). In Link mode, it is no longer necessary to make these settings on the left side (channel 1).
IRON operates with a summed side-chain control signal when Link is active. The signal of the right channel then also influences the compression on the left channel – and vice versa. If the Link mode is not active, the left and right channels of the IRON operate completely independent of each other.

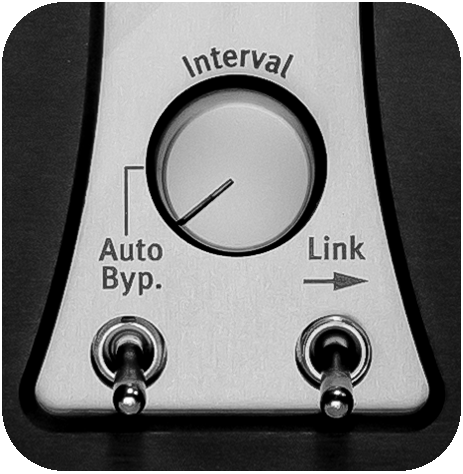

Auto Bypass
Channels 1 and 2 are activated with the big, illuminated, circular switches. In Auto Bypass mode, the channels are automatically switched on and off, which allows a more objective evaluation of the processing. The Interval control is used to adjust the time window of the automatic Auto-Bypass continuously.

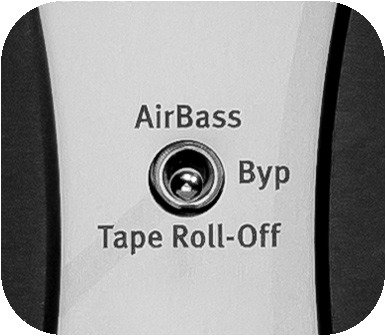

AirBass & Tape Roll-Off
The compressor is followed by a passive filter network with two equalizer presets: AirBass and Tape Roll-Off.

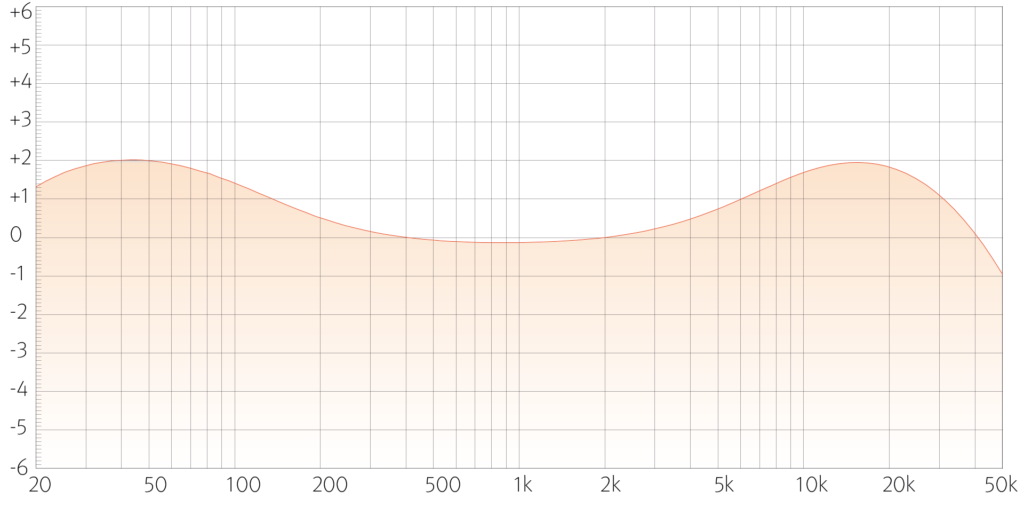

The AirBass filter boosts low and high frequencies by about 1.5 dB and the Tape Roll-Off filter emulates the typical frequency response of a tape machine.
AirBass

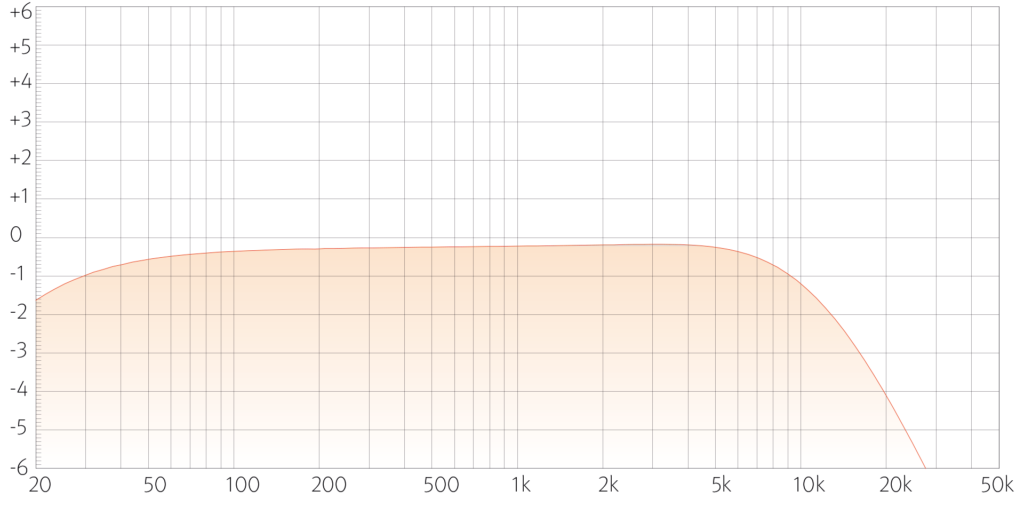

Tape Roll-Off

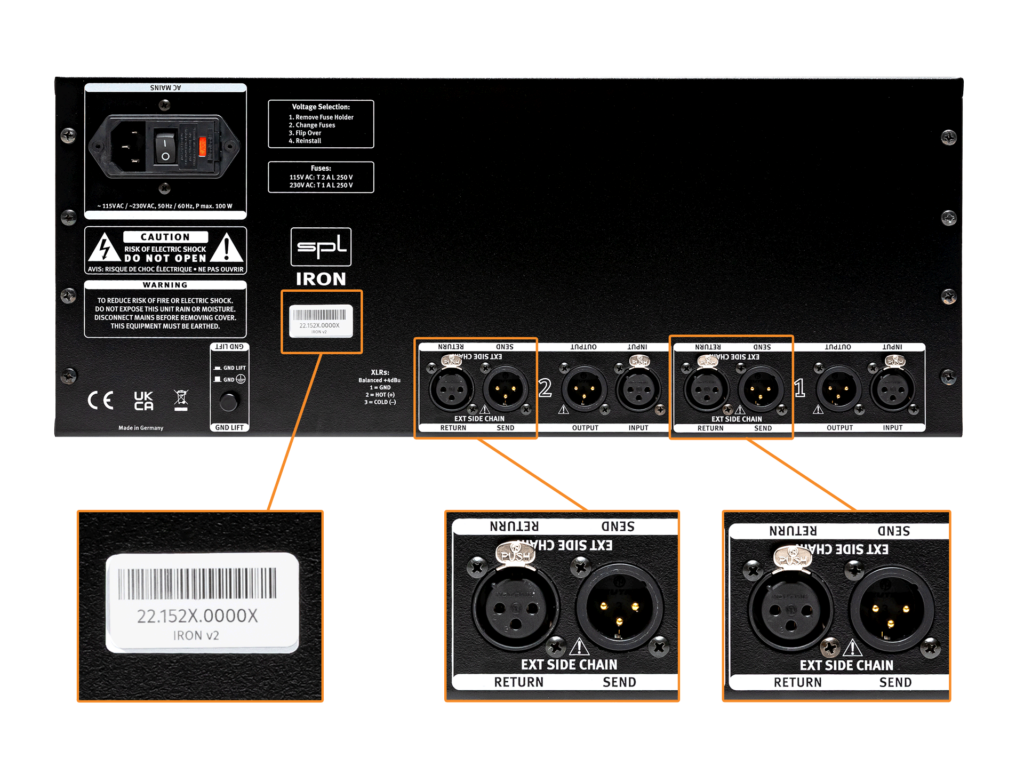

IRON v1 or v2?

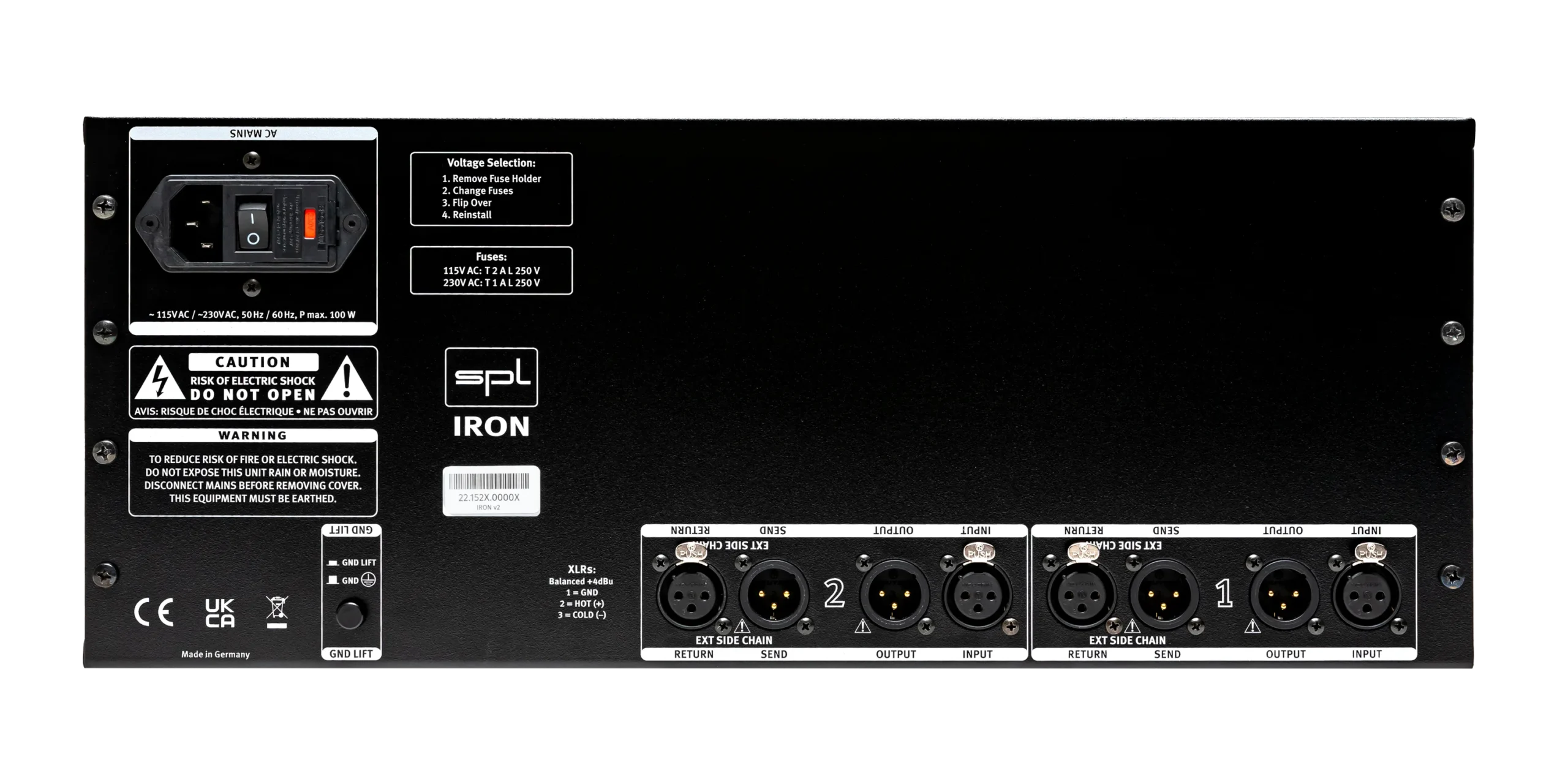

The IRON Mastering Compressor has been updated with a hardware revision in October 2022. This can be recognized by the “IRON v2” labelling on the serial number sticker and the side-chain insert with XLR sockets. (See picture).
The current version – IRON v2 – differs from the first hardware version in the following details:
1. Side Chain Inserts
IRON v2 features balanced side-chain inserts with send and return XLR sockets. The first hardware version only features side-chain inputs with TS jacks to receive a trigger signal.
2. Side Chain EQ filter curves
IRON v2 features different side-chain EQ presets.
3. Tubes
IRON v2 is equipped with Wathen CryoTone™ 12AX7-WCM Long Plate tubes.
The 120V technology
The 120V technology is our reference technology. The 120V technology is unique in the world. It operates at a DC voltage of 120 volts. This is four times that of IC-based semiconductor op-amps.
The highest possible audio quality requires the highest possible audio operating voltage.
The 120V technology works with +/-60 V. To be able to handle such a high voltage, we have developed special proprietary operational amplifiers that can operate with a DC voltage of +/-60 V: the SPL 120V SUPRA operational amplifiers.
This high voltage would destroy conventional components and operational amplifiers.
The 120V technology achieves exceptional technical specifications and sonic benefits. Technically, in terms of dynamic range, signal-to-noise ratio and headroom. Sonically, in terms of richness of detail and an absolutely relaxed listening experience.
By the way, the “120V” in the name of the technology has nothing to do with the local mains voltage from the mains power socket. This is about the operating voltage inside the device with which the audio signals are processed.
The mains voltage from the mains power socket is transformed to the required secondary voltage in the device’s internal linear power supply with toroidal transformer. Rectifiers convert this AC voltage into DC voltage required in the audio device.
The idea for SPL 120V technology and the SUPRA operational amplifier based on this technology were developed in the 1990s by SPL founder and chief developer Wolfgang Neumann.
With the goal of building the best mastering console ever, this basic technological philosophy then took shape for the first time – thus the SPL MMC1 Mastering Console for Galaxy Studios saw the light of day in 2000.
The outstanding sonic and technical features quickly got around in the scene – so further orders were not long in coming.
Besides the MMC 1, another legendary product with 120V technology was created with the PQ, the “King of Parametric Equalizers”.
Since that time, 120V technology has been the foundation for all SPL premium products. Meanwhile, not only for mastering applications, but also for the, studio or hifi use.
Comparison
Most audio devices work with an internal operating voltage of +/-15 volts and can thus process a maximum input level of +21.5 dBu. If a DAC, for example, has an output level of +22 dBu at 0 dBFS, level peaks of the music material would already cause overloads in the input stage of the device.
All components in the audio device often operate at their limits. The result is an unsteady sound that causes stress and faster ear fatigue.
SPL devices with 120V technology can handle input levels of +32.5 dBu thanks to the higher internal operating voltage of +/- 60 volts – thus offering 12 dB more headroom. All components consequently operate continuously in the optimum operating range. The result is a very pleasant, natural and relaxed sound experience. So you can enjoy your music in every detail.
These diagrams clearly show the superiority of the 120V technology in comparison to other circuits with lower, common operating voltages.
Tags: high headroom audio compressor, mastering compressor analog, studio mastering dynamics processor
| Analog inputs & output | Maximum input & output gain : 32,5 dBu |
|---|---|
| Internal Linear Power Supply with Shielded Toroidal Transformer | Operating voltage for analog audio : +/- 60 V |
| Mains Power Supply | Mains voltage (selectable, see fuse chamber) : 230 V AC / 50; 115 V AC / 60 Hz |
| Dimensions & Weight | W x H x D (width x height x depth) : 482 x 177 x 300 mm , 19 x 6,97 x 11,8 inch |
