SPL Audio Crescendo duo

The Undistortable

Thanks to the SPL 120V technology, it is almost impossible to overdrive this microphone preamplifier.

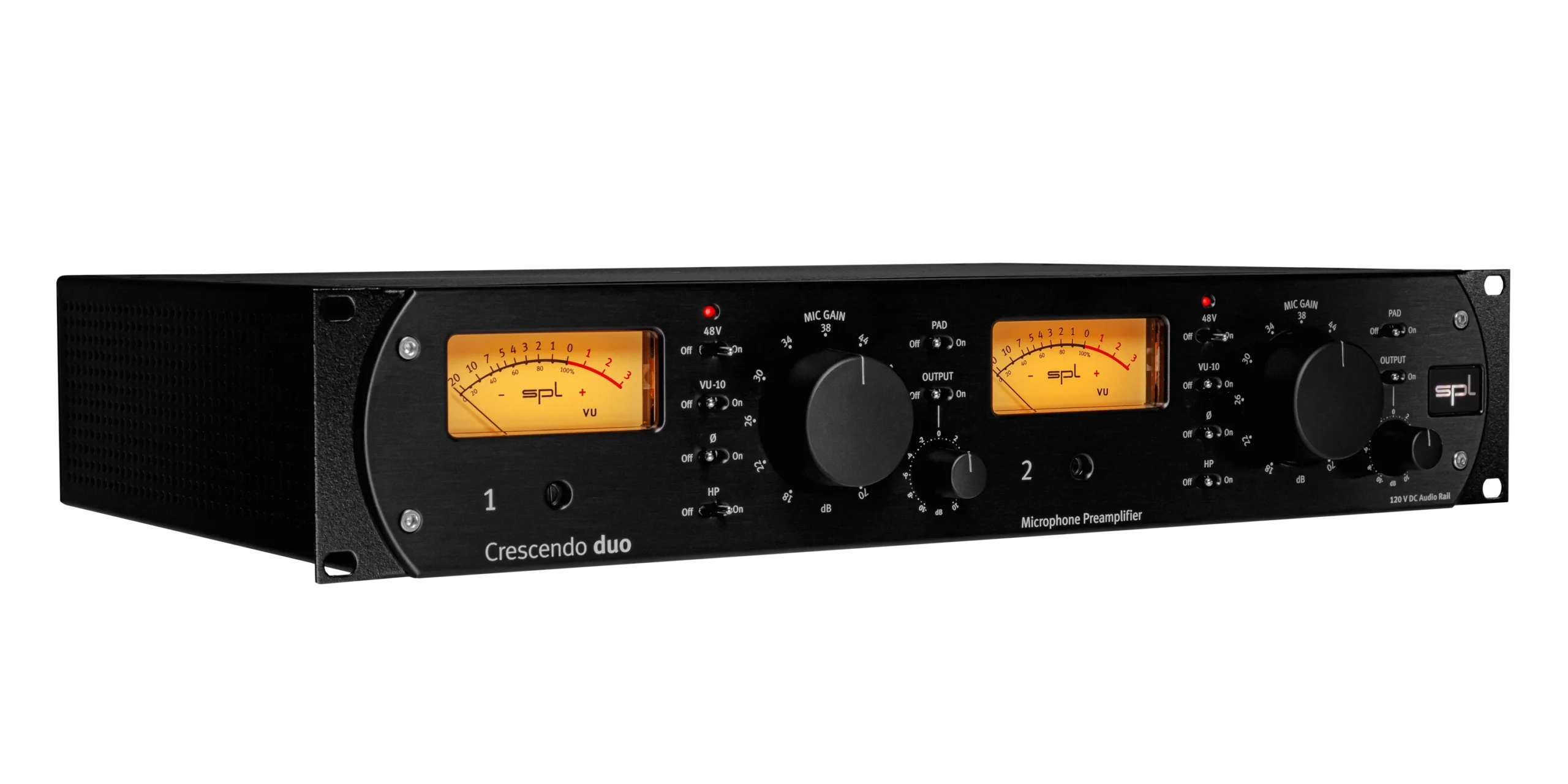

Crescendo duo is a dual-channel microphone preamplifier with 120V technology.

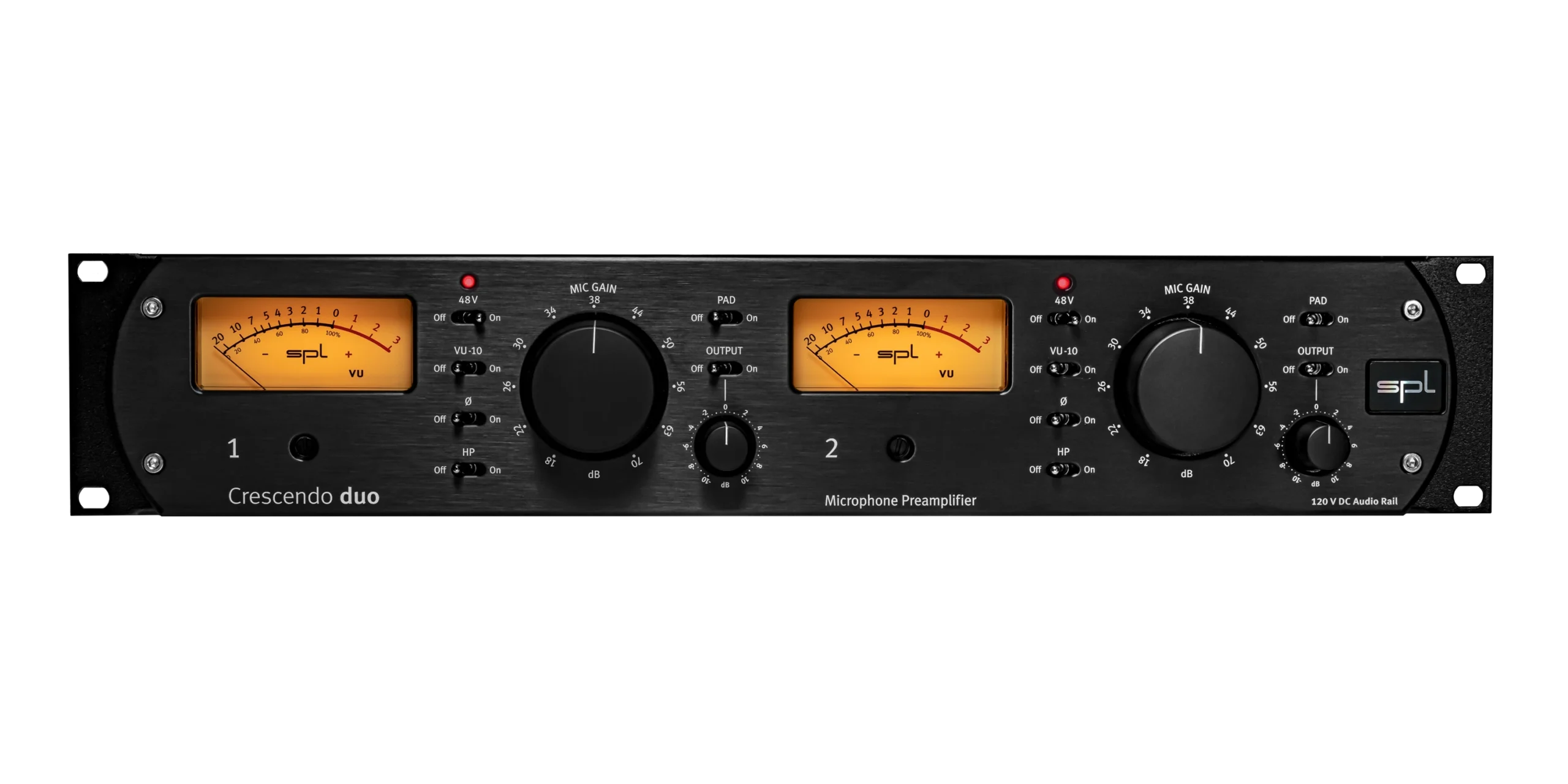

Both channels feature the same range of functions. Besides phantom power (48 V) for condenser microphones, polarity reversal, a high-pass filter and a PAD switch, they provide the possibility to adjust the VU meter to display very high levels – so they leave nothing to be desired. The gain can be adjusted comfortably and precisely via a 12-step switch. With the switchable output control, the output level of the Crescendo duo can be perfectly adapted to following AD converters. Two outputs per channel allow the signal to be sent to two different devices in parallel. In addition to the extensive feature set and the outstanding technical characteristics, Crescendo duo convinces with a sonic authenticity that is second to none.

48 V

The 48V switch activates the required phantom power of 48 volts for the use of condenser microphones.

VU-10

With this switch the level displayed in the VU meter can be adjusted by -10 dB. This is very handy to display high levels.

Ø

Activating the polarity reversal switch turns the polarity of a microphone signal by 180°.

HP

A high-pass filter with 6 dB per octave reduces subsonic noise below 120 Hz.

Output

The switchable output control allows level adjustment to subsequent devices. The control range is +/- 10 dB. This results in a total gain of 80 dB.

Built-in Output Splitter

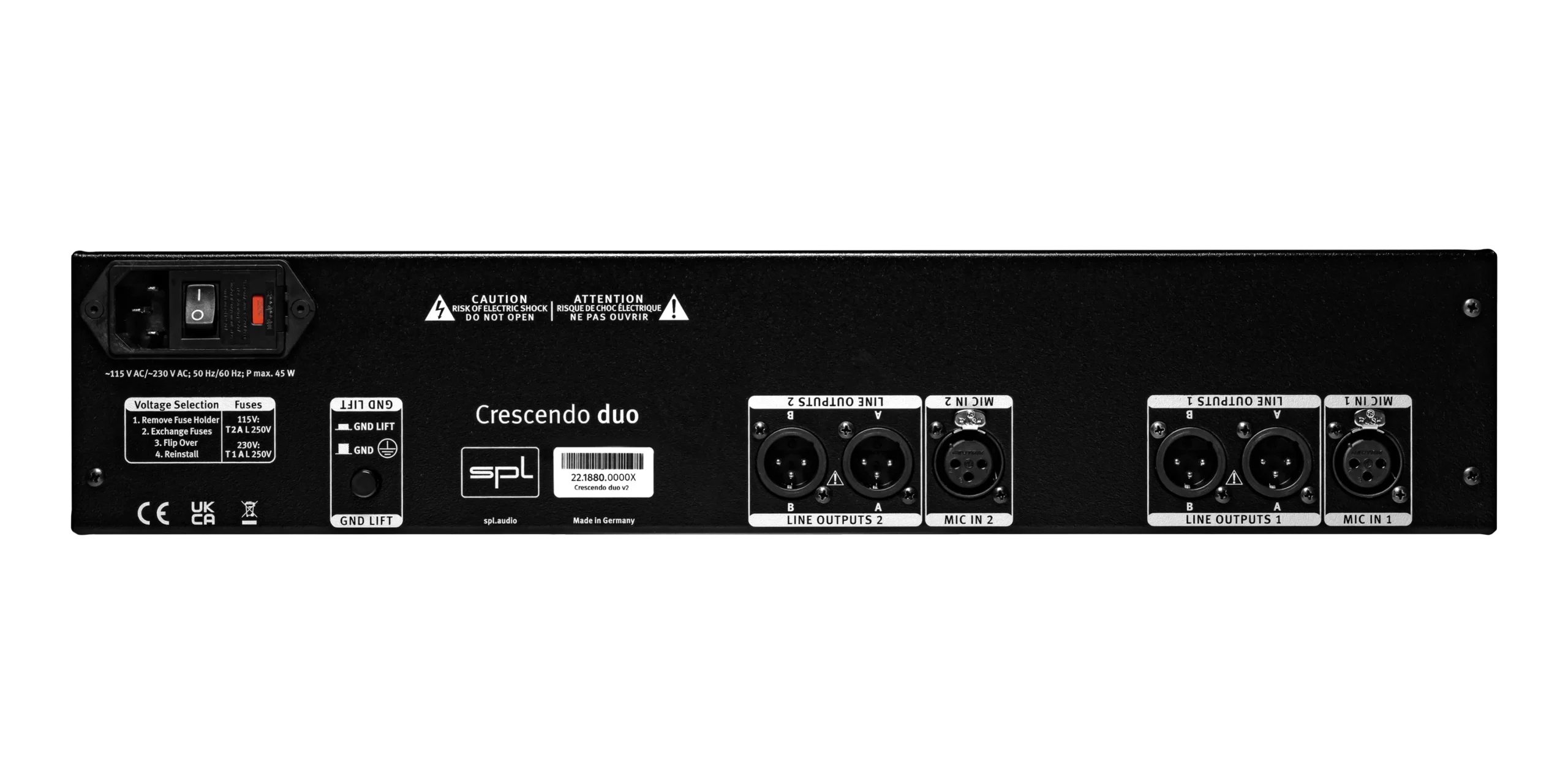

Both microphone preamps have two parallel outputs each. An additional external signal splitter for back-up systems during a recording session is therefore no longer necessary.
