VHF Operation
Samson has been at the forefront of wireless innovation, always striving to make it easier for performers everywhere to cut the cord. The Stage 412 operates on the reliable VHF frequency spectrum, which has become much less crowded with the advent of digital television.
Simple Setup
The Stage 412’s frequency-agile design offers four channels with six operating frequencies per channel over a 173MHz-198MHz frequency range. In addition, the system’s IR sync feature allows users to wirelessly match each transmitter to the operating frequency of a receiver channel in seconds. A 200′ operating range provides ample freedom for any presenter or performing group, while each microphone transmitter offers exceptional battery life of up to 10 hours on two AA batteries (not included).
Versatile Performance

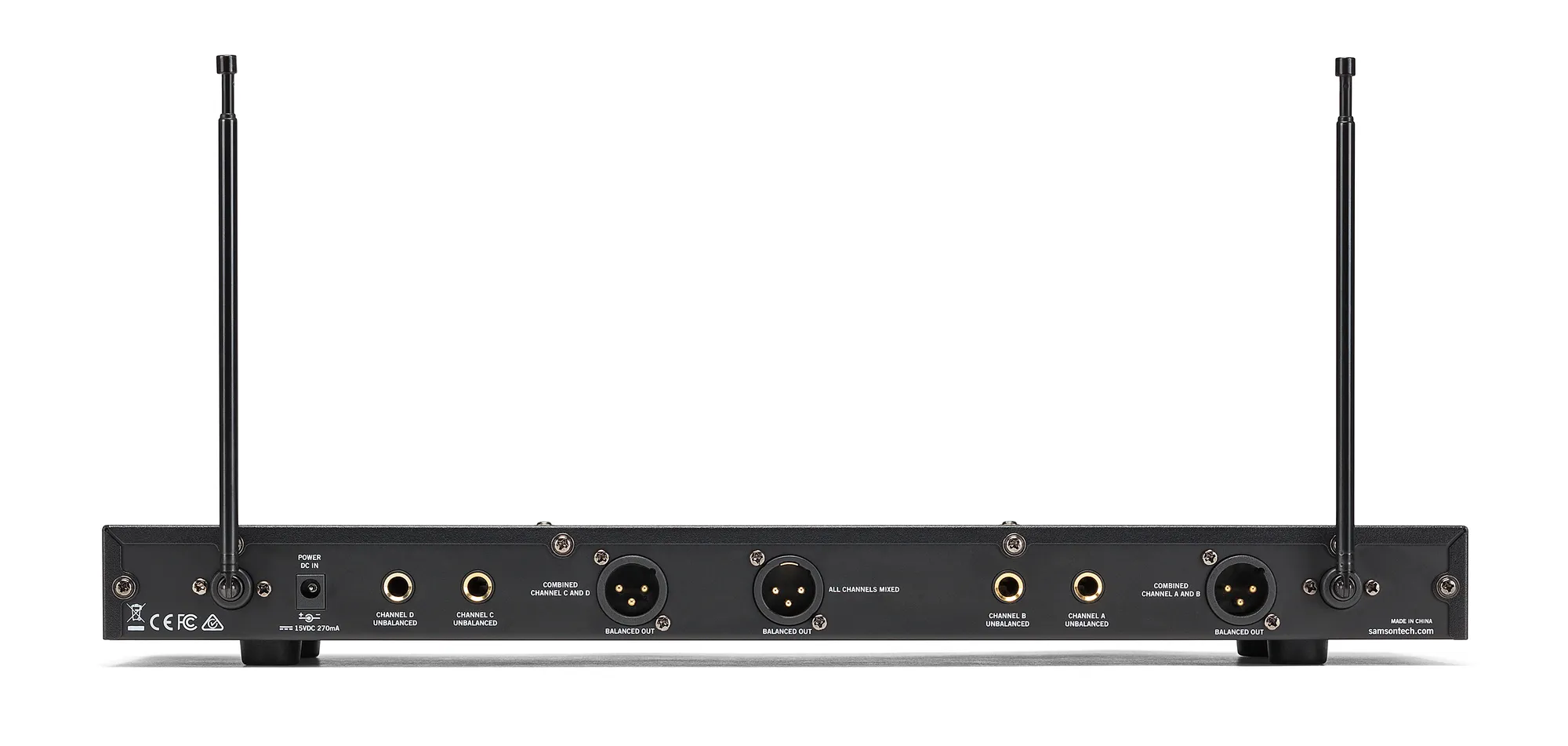

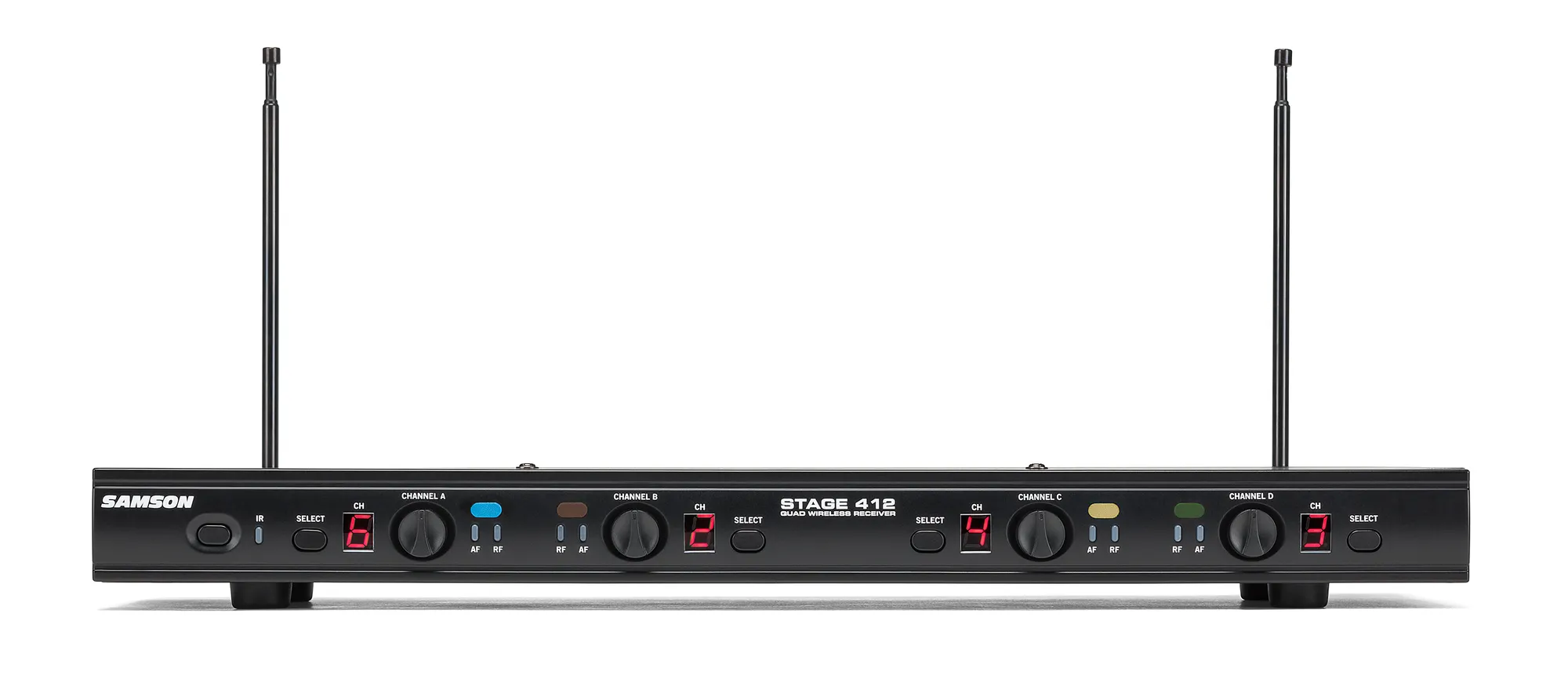

Featuring the rugged metal SR412 receiver, the Stage 412 is designed for maximum durability and versatility. The rear panel features four 1/4″ outputs and three balanced XLR outputs for connection to a mixer or powered PA speakers. The 1/4″ outputs send each channel separately, while the XLR outputs are dedicated to sending single output mixes of channels A/B, channels C/D, and all four channels. Front panel volume controls on each channel allow you to find the perfect blend for each performer.
Features
Stage 412 Wireless System
- Quad-channel VHF (173MHz–198MHz) wireless system
- Six operating frequencies per channel
- Up to three simultaneous systems (region dependent)
- IR sync wirelessly matches receiver and transmitter frequency
- 200′ (60m) operating range (line-of-sight)
- AC adapter included

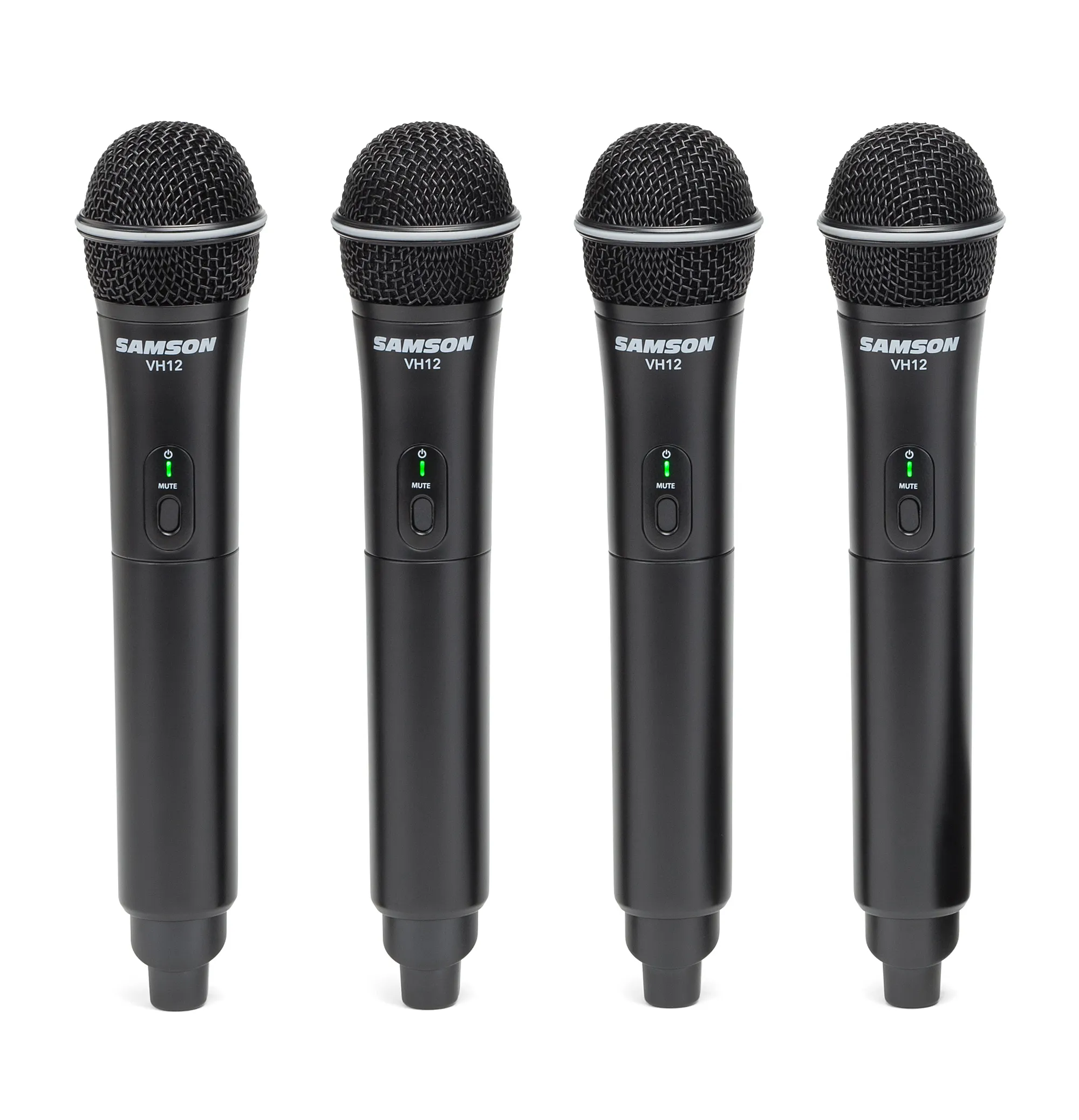

VH12 Handheld Transmitters
- Four Q6 Dynamic Microphone capsules
- Each offers up to 10 hours of battery life using two AA batteries (not included)
SR412 Wireless Receiver
- Rugged metal chassis
- Dedicated Volume controls for each channel
- Four 1/4″ independent channel outputs
- Three balanced XLR mixed outputs
Specifications
| Operating Frequency | VHF 173MHz to 198MHz |
|---|---|
| Number of Frequencies per Channel | 6 |
| Frequency Stability | ±0.005% |
| Modulation Mode | FM |
| Maximum Deviation | ±30 kHz |
| Operating Range | 200’ / 60m |
| Frequency Response | 80 Hz to 15kHz |
| Tone Key Frequency | 30.00kHz |
| RF Power Output | 10mW |
|---|---|
| Microphone Element | Dynamic |
| Typical Battery Life | 10 hours |
| Current Consumption | 120 mA typical |
| Dimensions | ø2.17″ x 10″ / ø55mm x 255mm |
| Net Weight | 0.5lb 0.22kg |
| Image Rejection | 35 dB |
|---|---|
| Dynamic Range | 100 dB |
| Maximum Output | 1.37 V |
| Sensitivity | -100 dBm @ 30 dB SINAD |
| Output Connectors | 2x 1/4” (6.3 mm) unbalanced, 3x XLR balanced |
| Audio Output Levels | -12dB |
| Dimensions | 16.92” x 6.7” x 1.57” / 430mm x 170mm x 40mm |
| Net Weight | 3.08lb / 1.4 kg |
