Comprehensive All-In-One Rack Mixer
The SM10 features ten channels of 1/4-inch stereo line inputs and a balance control for each channel. Two channels are XLR microphone inputs. This allows you to mix the relative levels of the stereo inputs to your liking. In addition, each channel has a switch for +4 dBu or -10 dBV line level input.

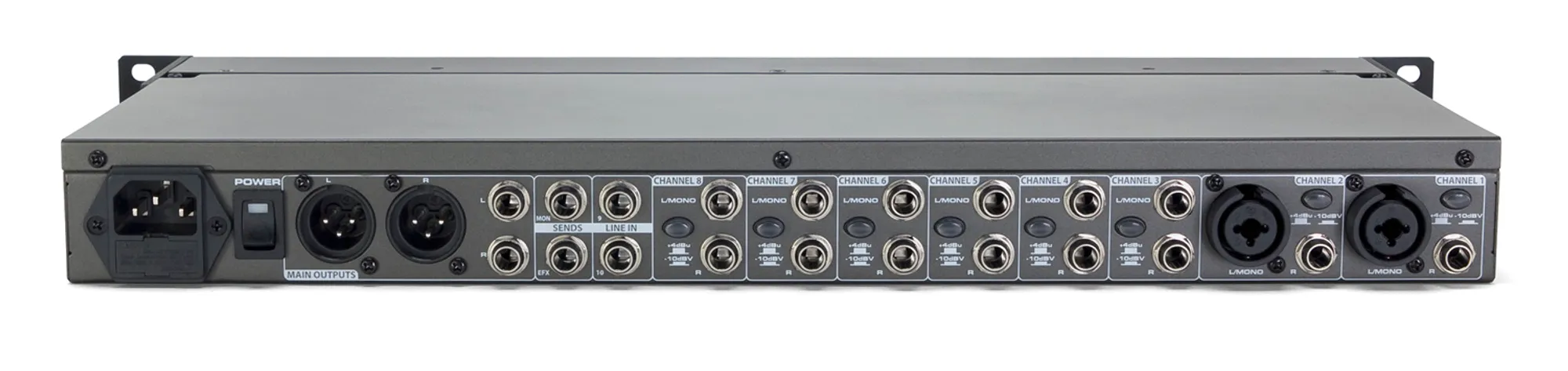

For output, the SM10 provides electronically balanced main stereo XLR and 1/4″ line outputs. The SM10 offers versatile signal routing via Main Mix, Mix B, Monitor and EFX bus outputs, as well as low-noise and discrete mic preamps with 48V phantom power.

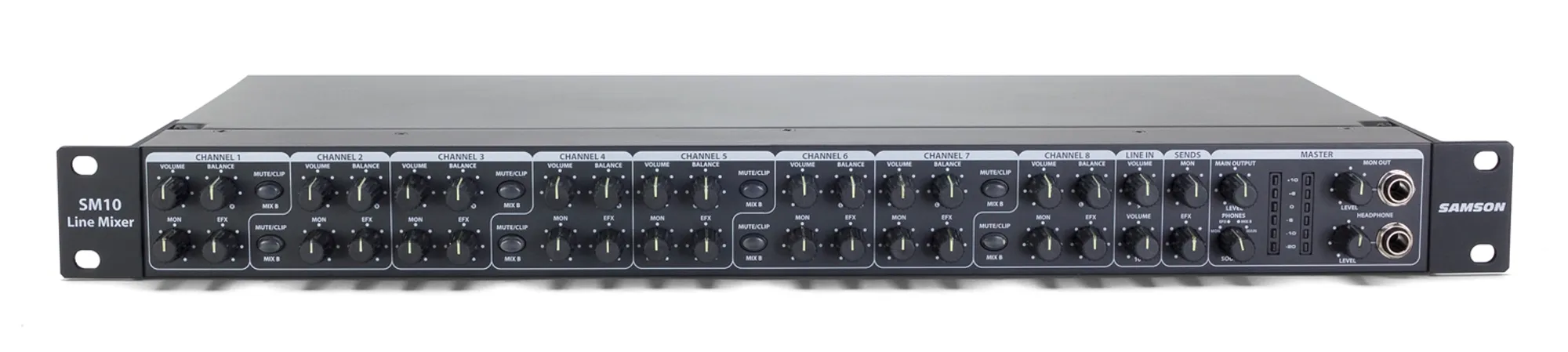

Two auxiliary sends can also be used to route signals to external effects or create a separate mix for stage monitors. The SM10 features front-panel headphone and monitor outputs with dedicated level controls. The mix can be monitored with the SM10’s 6-segment LED meter and flexible meter/headphone source control.
The generously equipped SM10 line mixer is at home on stage, in studios, boardrooms, health clubs, restaurants, houses of worship, and more. Whether your interests lie in audio or video applications, the SM10 Line Mixer brings multiple signals together for an amazing audio experience.
Features
- Ten channels (eight 1/4″ stereo line inputs, two combination XLR-1/4″ inputs)
- Balance control for each channel
- Switchable +4 dBu or -10 dBV line input level
- Balanced main stereo XLR and 1/4″ line outputs
- Versatile signal routing
- Low noise, discrete microphone preamplifiers with 48-volt phantom power
- Two auxiliary sends
- Front-panel headphone and monitor outputs with level controls
- Flexible 6-segment LED meter/headphone source control
- Center detents for all controls for use in low light situations
- Single 19″ rackmount metal chassis with internal power supply
Specifications
| Microphone | XLR balanced (2) |
|---|---|
| Line | 1/4” TRS balanced (Ch 1-8), 1/4” stereo (Ch 9-10) |
| Input Impedance Mic | 1.5K Ohms |
| Input ImpedanceLine | 23K Ohms (+4 dBu, Ch 1-8), 40K Ohms (-10 dBV, Ch 1-8), 20K Ohms (Ch 9-10) |
| Maximum Gain Mic | 65 dB |
| Maximum Gain Line | 39 dB |
| Line Operating Level | +4 dBu / -10 dBV selectable |
| Maximum Input Level (1 kHz, ±3 dB) Mic Input | -4 dBu |
| Maximum Input Level (1 kHz, ±3 dB) Line Input | +28 dBu |
| Equivalent Input Noise | -123 dBu unweighted |
| Main Outputs | 1/4” TRS balanced (2), XLR (2) |
|---|---|
| Output Impedance | 200 Ohms Main Out |
| Gain Range | -∞ to +15 dB |
| Max output level | +22 dBu |
| MON (Pre Fade Out) | 1/4” impedance balanced mono output (front panel), Stereo MON (rear panel) |
| EFX (Post Fade Out) | 1/4” unbalanced |
| Output Impedance | 100 Ohms |
| Headphone | 1/4” TRS Stereo |
| Output (600 Ohm load) | 100 mW |
| Frequency Response | 10 Hz – 23 kHz ±1 dB |
|---|---|
| Signal-to-noise ratio | > 90 dB typical |
| THD | <0.01% typical |
| Crosstalk (1 kHz) | -70 dB between input channels, -70 dB between input/output channels |
| Phantom Power | 48 Volts DC |
| Dimensions | 19″ x 8.25″ x 1.75″ / 484mm x 210mm x 44.5mm |
