Take the worry out of wireless with the Concert 288 presentation wireless system. With easy setup, flawless operation and premium sound, it’s the ideal high-performance UHF wireless solution for a variety of business, house of worship, Q&A, and educational presentations that require two users.
The dual-channel, frequency-agile Concert 288 Presentation allows up to 10 systems per band (20 performers) to operate simultaneously (depending on your region). The Concert 288 Presentation gives both performers an impressive 300′ of wireless range between the transmitters and receiver, making the system ideal for large stages and crowd participation. To ensure interference-free performance, the Concert 288 Presentation features a true diversity design. In the event of a drop-out, the receiver’s tone button triggers an automatic mute function to eliminate any background noise until the signal is restored.
Perform in Pairs

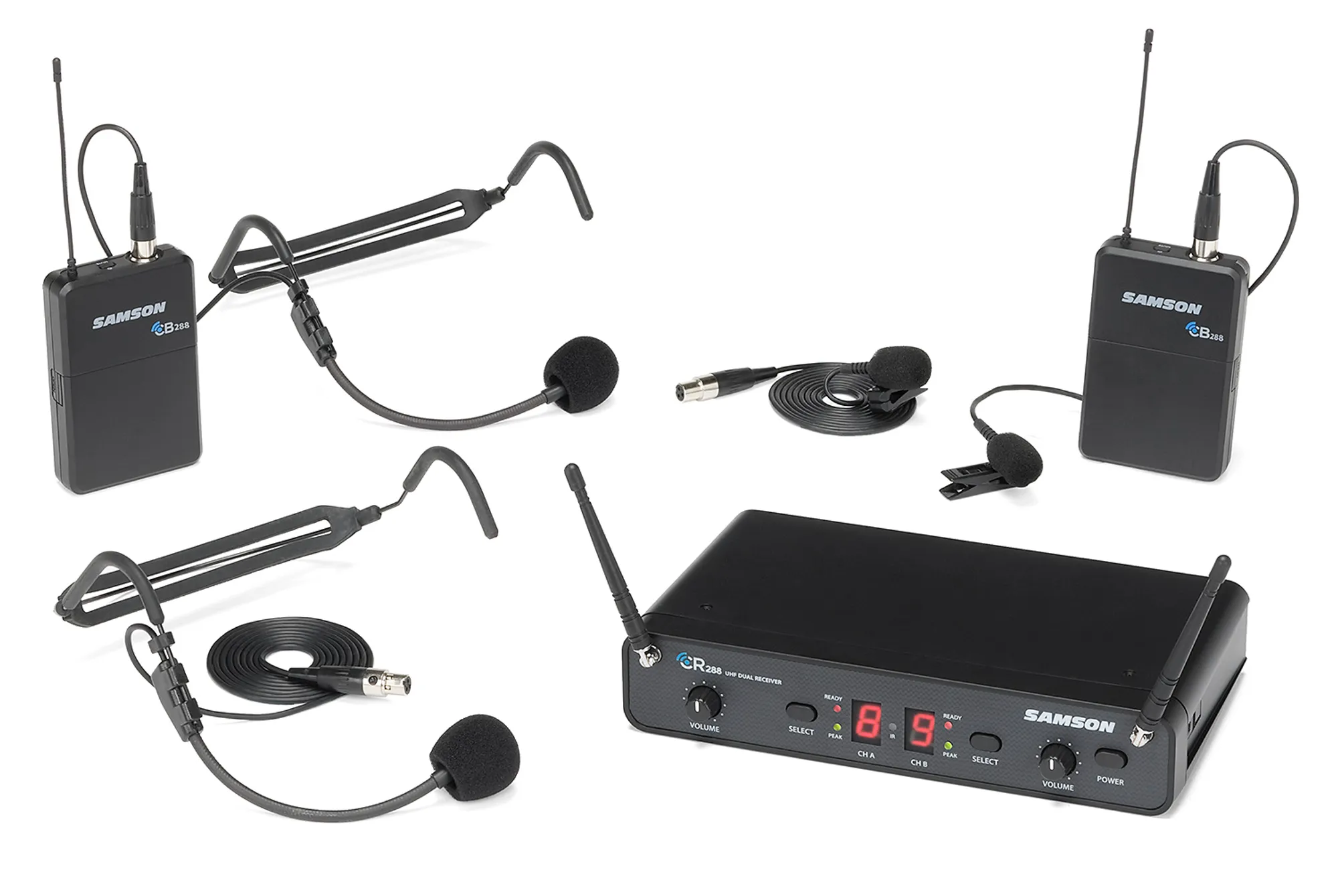

The Concert 288 Presentation includes two CB288 beltpack transmitters, two LM5 lavalier microphones with locking connectors, and two HS5 headset microphones with locking connectors. These microphone options provide maximum versatility for any dual-user application, especially dynamic presentations and interview situations. The transmitters, which operate for up to eight hours on two AA batteries, have been meticulously engineered to provide the ultimate in sonic performance.
Dual-Channel Receiver

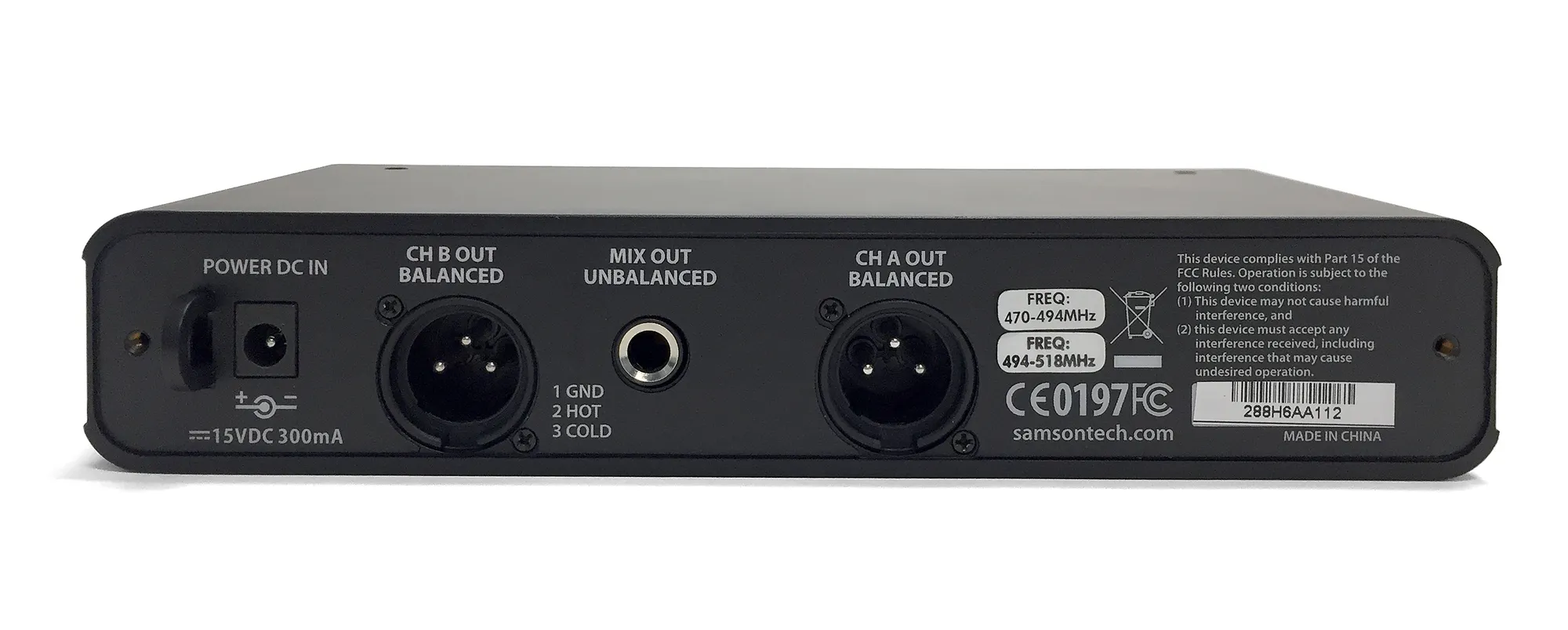

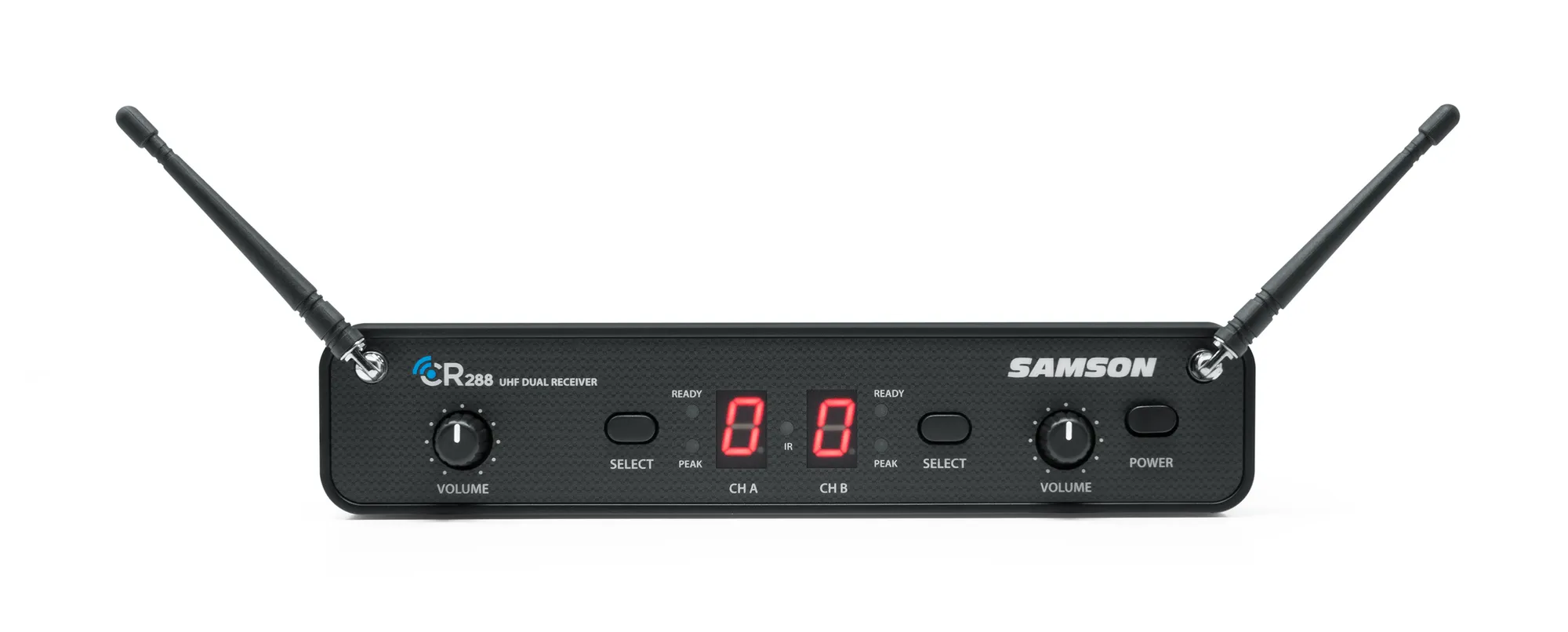

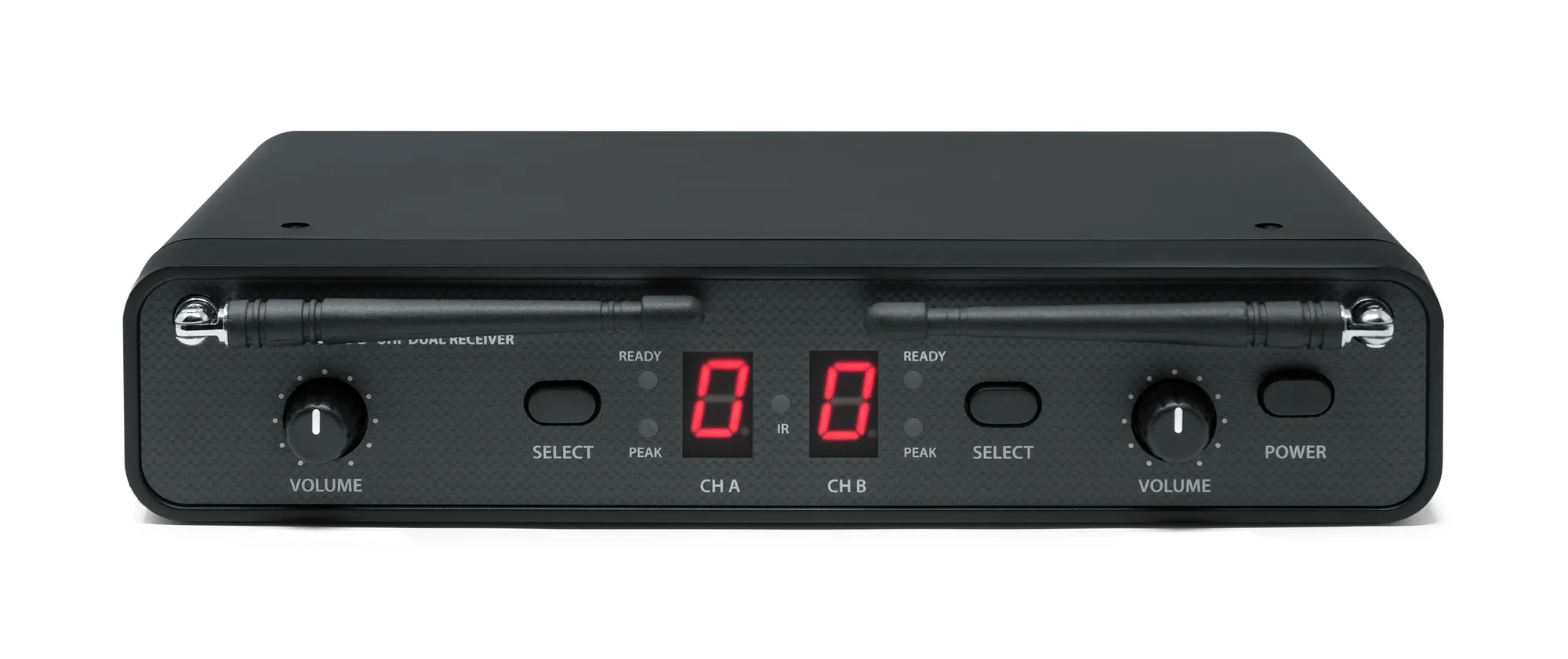

With a user-friendly front panel, the CR288 wireless receiver makes system setup quick and easy. To help you find your optimal channel, the CR288 has two select buttons that automatically synchronize the receiver and transmitter channels via an infrared signal. The front panel also features a dual 7-segment LED to indicate operating channels, two volume controls, two tuned antennas, and Ready and Peak indicators for optimal functionality and monitoring. The rear of the receiver features two separate balanced XLR outputs for routing signals to two separate mixer channels, as well as a 1/4″ unbalanced mix output that combines both signals into a single channel for direct connection to a PA speaker.
Features
System
Dual-channel, high-performance UHF wireless system
1/4” audio cable, AC adapter and rackmount kit included
Two CB288 Beltpack Transmitters
Two LM5 Lavalier Microphones with locking connectors
Two HS5 Headset Microphones with locking connectors
Each offers up to eight hours of battery life using two AA batteries
300′ operating range
CR288 Wireless Receiver
Multiple frequency options for interference-free performance in any environment
Up to 12 systems can be operated simultaneously (region dependent)
Separate Volume controls for each wireless signal
Dual balanced XLR outputs for routing signals to two separate mixer channels
1/4” unbalanced mix output to combine signals to one output channel
Specifications
System
Working Range
300′ (100m) line of sight
Audio Frequency Response
50 Hz – 15 kHz
T.H.D. (Overall)
<1% (@AF 1 kHz, RF 46 dBu)
Dynamic Range
>100 dB A-weighted
Signal to Noise
>85 dB
Tone Key Frequency
32.768 kHz

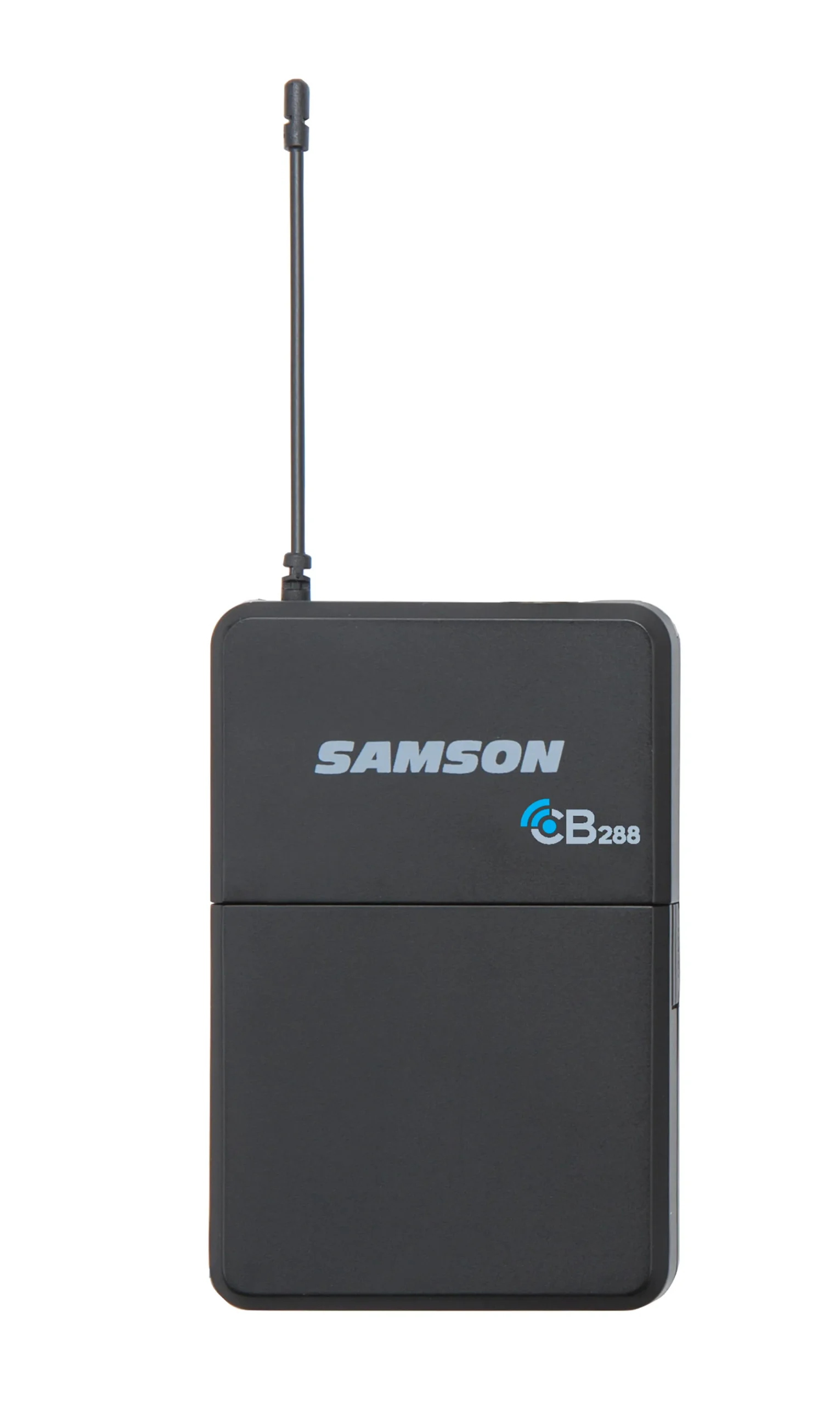

CB288 Belt pack Transmitter
Input Connector
Mini-XLR (P3)
Input Impedance
1MΩ
Input Gain Range
38 dB
RF Power
10 mW EIRP
Power Requirements
Two AA (LR6) alkaline batteries
Battery Life
8 hours
Dimensions
3.75″ x 2.44″ x 0.75″ / 96mm x 62mm x 18.5mm
Weight
0.2lb / 93g
CR288 Receiver
Audio Output Level – Mix Unbalanced
+14 dBu
Audio Output Level – Balanced
+14 dBu
Audio Output Impedance – Unbalanced
1k Ohms
Audio Output Impedance – Balanced
470 Ohms
Sensitivity
-100 dBm / 20 dB sinad
Image Rejection
>50 dB
Operating Voltage
15 VDC 300mA
Dimensions (LxWxH)
8.25″ x 4.9″ x 1.75″ / 210mm x 125mm x 44mm
Weight
0.99lb / 450g
Brand
Samson
Product Model
Concert 288 Presentation System (Band I), Concert 288 Presentation System (Band H)
