Rupert Neve Designs RNDI-M Active Transformer Direct Interface

The RNDI’s signature sound is the product of new custom Rupert Neve-designed transformers and class-A biased, discrete FET amplifiers. The carefully orchestrated union of these two elements is key to the RNDI’s unique response, delivering a powerful and vibrant direct sound capable of reproducing the full harmonic depth of basses, guitars, acoustic instruments, and professional line level sources. With portable, powerful, larger-than-life tone for your instrument and amplifier signals, the RNDI is truly the first standalone DI worthy of the Rupert Neve name.

The Development
After coming into existence during an experimentation with new transformer designs, the RNDI was fine-tuned over a series of listening tests against the the most popular high-end DIs available. It was in these tests where the RNDI always seemed to add another dimension to the sound and bring the instruments to life. The lows felt richer, deeper and fuller, and the highs had outstanding clarity without any added harshness. Most importantly, the design team noted: “As musicians, the RNDI consistently stood out as the DI we wanted to play through.”

The Elements of Direct Tone

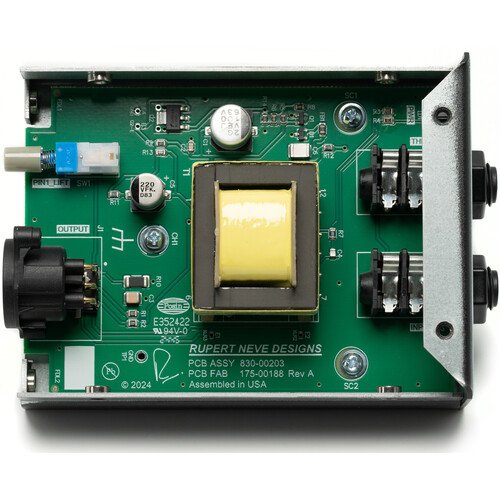

The RNDI’s signature sound is the product both of new custom Rupert Neve-designed transformers and class-A biased, discrete FET amplifiers. The carefully orchestrated union of these two elements is key to the RNDI’s unique response.

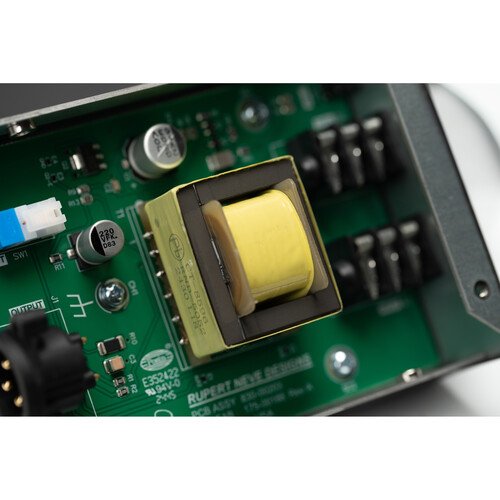

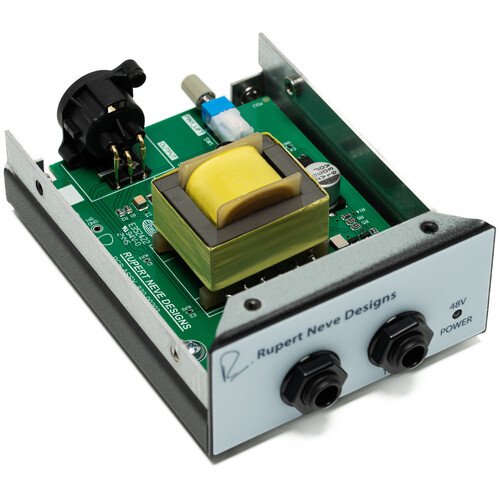

The transformers provide superior passive isolation while adding musical harmonics and dimension to the sound. The low impedance, transformer balanced output excels at driving long cable runs, and performance is immensely consistent regardless of the connected equipment. This is very important for both live and studio environments where the unamplified signal may travel almost 100ft before hitting an amplifier. In other designs, these high capacitance lines cause major reductions in high frequencies, however the output stage of the RNDI unrivaled at handling long runs with minimal losses.

The class-A and discrete FET amplifier in the RNDI is powered by industry-standard 48V phantom power on the XLR connection, and creates a very high impedance input of 2M Ohms that ensures consistent performance with a wide variety of instruments. The significance of the RNDI’s class-A design is that there is no crossover distortion added to the signal, which can add upper order odd harmonics to the sound that are musically dissonant in nature. With the RNDI, the overwhelming majority of harmonic content is 2nd order (octave) with some 3rd order present (fifth above octave). These musically relevant harmonics – present in subtle amounts – actually add to the richness of the original signal. The discrete aspect of the RNDI design means there are no ICs or digital components that can have negative effects on the tone.

These efforts to harmonize the performance of the transformer and the FET amplifier have resulted in the RNDI’s extremely well balanced response. The low end tonality is thick and powerful, with frequency response several octaves below audibility. The high end is clear, present, and smooth, with a frequency response extending beyond 100kHz. The phase coherence is unrivaled at all frequencies, which keeps the sound as natural as possible – especially vital when blending the direct signal with a microphone capture of the same source. Simply put, there is no DI ever made that performs like the RNDI.

Game-Changing Headroom
In instrument mode, the RNDI’s high input headroom of +21.5dBU is capable of handling not only instruments, but professional, line level sources like interfaces, CD players and drum machines without a pad. This allows the RNDI to serve as a way to “Re-Preamp” any previously recorded track using your interface and a desired pre-amp. To do this, simply connect a channel output of the interface to the input of the RNDI and connect the RNDI’s output to the preamp and engage 48V. By “Re-Preamping” you can apply the tone of another preamp to the source and more accurately automate or control the drive level on the preamp.

In speaker mode, the RNDI can handle the screaming output of a 1000-watt power amplifier (92 Vrms or 266Vp-p) to capture the full tone of the instrument, preamplifier, EQ, inserts, and the amplifier’s output stages before it hits the speakers. This technique allows the engineer to avoid any bleed in a live environment and any unwanted tone added by the speaker cabinet or microphone. When used with modern speaker emulation plug-ins, this technique allows the engineer to take advantage of both the flexibility of digital modeling and the superior non-linear response of an actual analogue amplifier.

Features:
Groundbreaking Direct Tone
When class-A, discrete amplifiers meet Rupert’s custom transformers, good things happen to your tone. The RNDI is imbued with the unique components and design knowledge that makes it worthy of the Rupert Neve name

Huge Headroom
The high input headroom of +21.5dBU is capable of handling professional, line level sources without a pad – and in speaker mode, the RNDI can handle the full output of a 1000-watt power amplifier (92 Vrms or 266Vp-p).

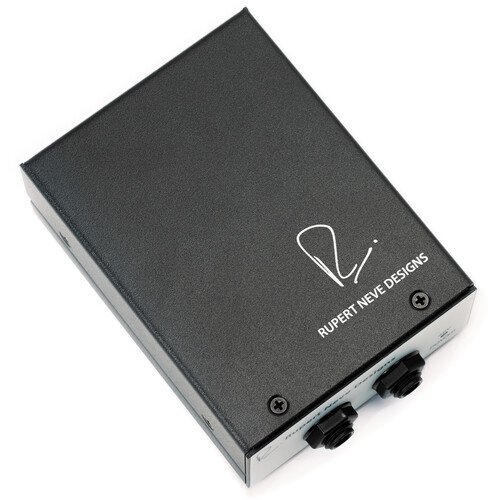

Rugged Solid-Steel Frame
The rugged steel chassis features an industrial-grade powder coating, and is built to withstand the severe stresses of life on the road

Takes All Kinds
The RNDI has immensely consistent performance across a wide variety of sources due to its 2M Ohm discrete FET input and high headroom. You can confidently use the RNDI with basses, guitars, acoustic instruments, keyboards, and even professional line level devices. In instrument mode, you can even connect a professional line level interface output to “Re-Preamp” a previously recorded source

Drive Longer Lines
The low impedance transformer coupled output – below 50 ohms – is capable of driving long lines with unrivaled high frequency performance1/4” THRU Output

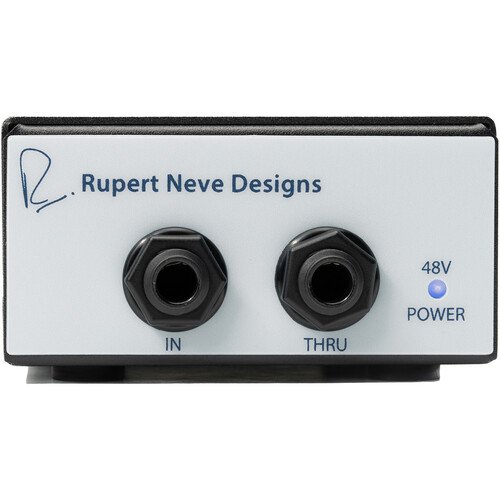

In instrument mode the THRU output can feed the amplifier input for reinforcement. In speaker mode, the THRU is used to feed the amplified signal to the speaker

Best in Class Phase Coherence
Phase coherence is excellent at all frequencies, which keeps the sound well-balanced and natural, and is especially vital when blending the direct signal with a microphone capture of the same source

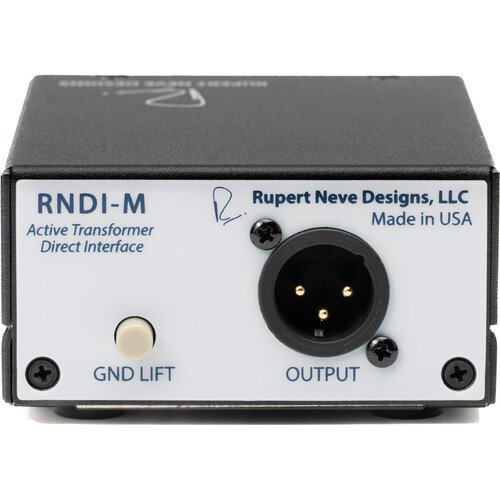

Ground Lift
A ground lift switch is provided on the back to help fix any problematic grounding.

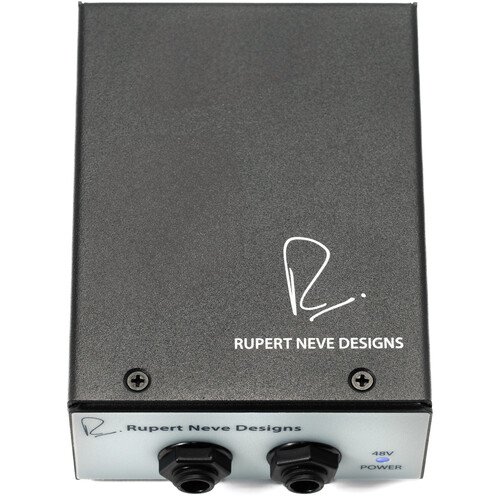

Phantom Powered

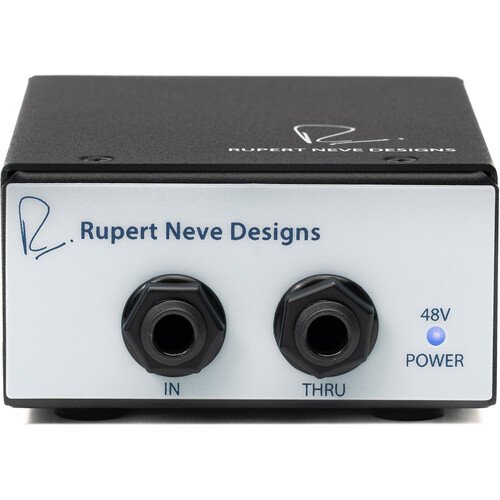

The RNDI is powered by standard 48V phantom power. Power is indicated by a blue LED on the front panel

In the world of professional audio recording and live sound, achieving pristine signal quality and reliable connectivity is paramount. Whether you are a recording engineer, live sound technician, or musician, the Rupert Neve Designs RNDI-M Active Transformer Direct Interface offers a powerful solution to elevate your sound. This compact and robust device is designed to eliminate unwanted noise and impedance mismatches, ensuring that your audio signals maintain their integrity from source to mixer or recording device. If you demand clarity, warmth, and reliability in your audio chain, the RNDI-M is engineered to meet and exceed those expectations.

A common challenge in audio setups is the degradation of signal quality when connecting instruments or line-level sources to professional audio equipment, which often requires balanced inputs. The RNDI-M addresses this by providing an active direct input transformer interface that converts unbalanced signals to balanced outputs with minimal noise and distortion. Unlike passive DI boxes, the active circuitry in the RNDI-M preserves the dynamic range and tonal character of your instrument or source. This means you get a clean, detailed sound that captures the nuances of your performance without unwanted coloration or signal loss. Its transformer-based design further enhances the sound quality by imparting the classic Rupert Neve warm tonal signature, valued by audio professionals worldwide.

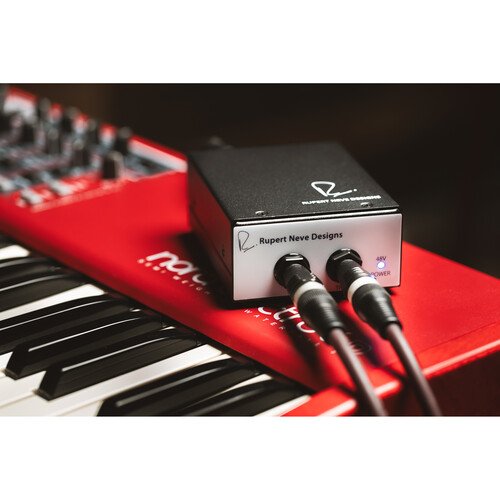

Key features of the RNDI-M include a single active channel with a quarter-inch input, a main balanced XLR output, and a parallel quarter-inch thru output. The single-channel design makes it ideal for handling individual instruments or line sources, while the thru output allows you to send the signal directly to an amplifier or another device without interruption. Powered by 48V phantom power supplied from your mixing console or audio interface, the RNDI-M requires no batteries or external power supply, ensuring hassle-free operation and consistent performance. This feature is particularly valuable for live sound engineers who need reliable gear that integrates seamlessly with existing setups.

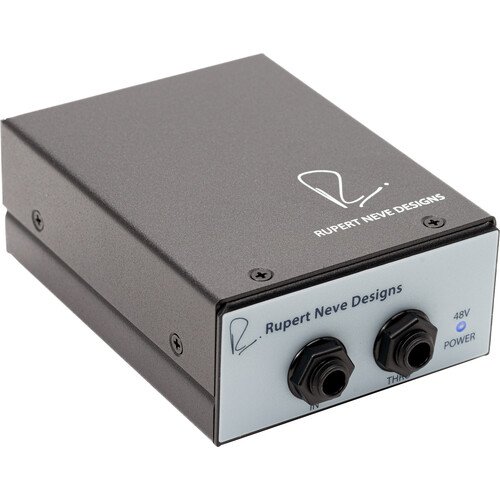

In terms of build and portability, the Rupert Neve Designs RNDI-M measures a compact 1.75 inches in height, 3.25 inches in width, and 4.75 inches in depth, making it easy to transport and fit into tight rack spaces or pedalboards. Despite its small size, it is constructed with rugged materials designed to withstand the rigors of touring and frequent use. The minimal footprint does not compromise its functionality or sound quality, allowing you to maintain a professional setup in any environment, from studio sessions to live performances.

Practical use cases for the RNDI-M include connecting electric guitars, basses, keyboards, or other line-level instruments to mixers, preamps, or audio interfaces. It is also ideal for use in broadcast studios or post-production environments where signal integrity and noise reduction are critical. By providing a clean, balanced output, the RNDI-M helps reduce ground loop hum and radio frequency interference, common issues in complex audio setups. This results in a clearer mix and less time spent troubleshooting signal problems, allowing you to focus on creativity and performance.

Investing in the Rupert Neve Designs RNDI-M means choosing a direct interface known for its exceptional audio quality and reliability. Priced at ₹22,990, currently on sale from its regular price of ₹25,500, it represents excellent value for professionals who demand uncompromising sound quality. The RNDI-M’s combination of active electronics, transformer warmth, and practical design ensures that your audio signals remain pristine from source to output. With this device in your toolkit, you can confidently tackle any recording or live sound challenge knowing the foundation of your audio chain is solid and sonically superior.
