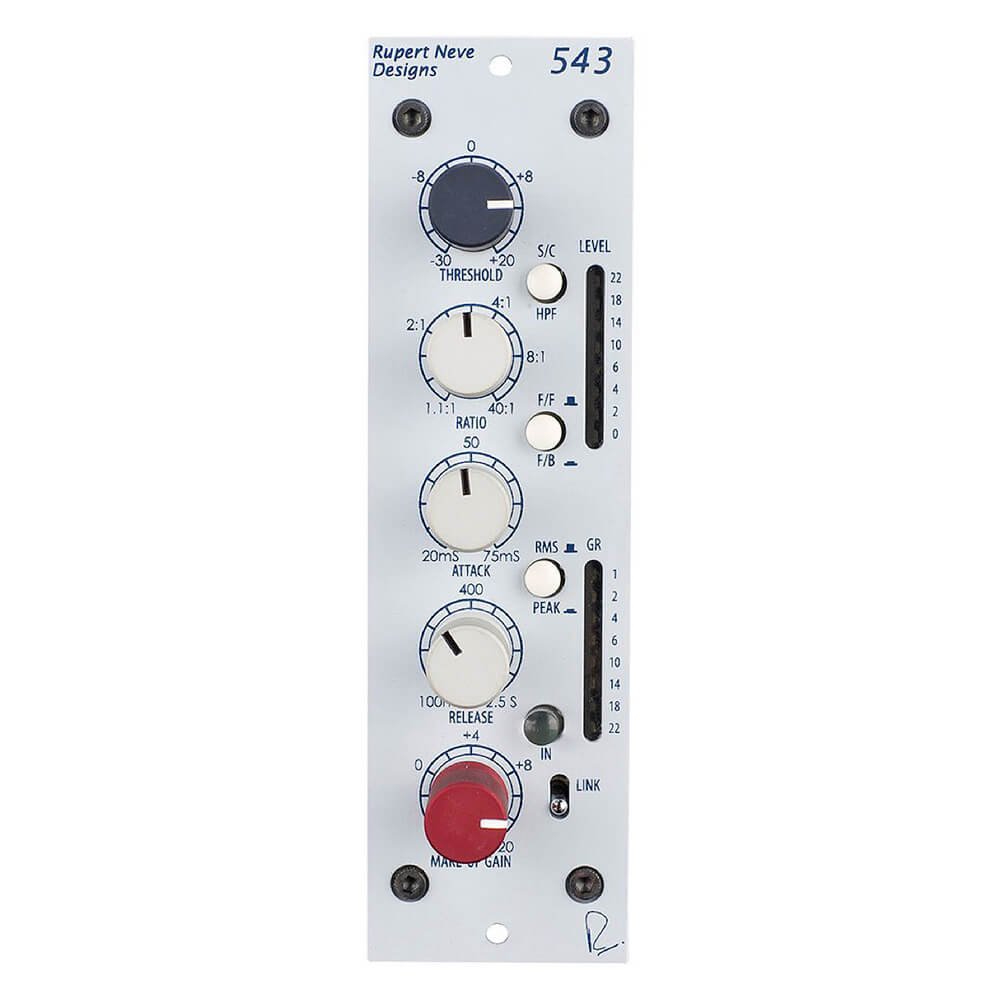

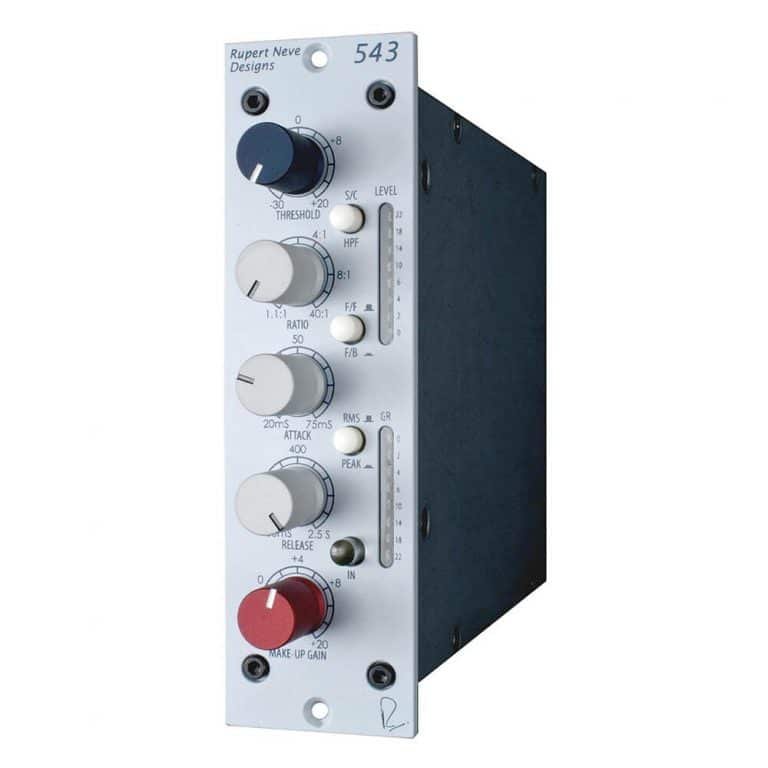

Rupert Neve Designs 543 500 Series Mono Compressor Limiter

The Rupert Neve Designs 543 Compressor is a high-quality compressor-limiter module designed for use in the 500 series format. It offers a range of features and options to control the dynamics of audio signals while preserving their musicality. Here’s a breakdown of how this compressor works and its key features:

Voltage Controlled Amplifier (V.C.A.):

The 543 Compressor uses a low-noise, low-distortion V.C.A. to control gain. This component plays a crucial role in shaping the compressor’s sound.

Threshold, Attack, Release, Makeup Gain, Ratio:

 These are parameters that you can control to shape the compression effect. Threshold sets the level at which compression begins, while Attack determines how quickly the compressor responds to incoming signals. Release controls how long it takes for the compressor to stop compressing after the input signal falls below the threshold. Makeup Gain allows you to boost the compressed signal to match the desired output level. Ratio sets the amount of gain reduction applied to signals above the threshold.

Feed-Forward and Feed-Back Modes:

The 543 Compressor provides the option to switch between feed-forward and feed-back modes. Feed-forward mode uses control voltage derived from the input signal before compression, while feed-back mode uses control voltage from the output. These modes offer different compression characteristics and response times.

Peak and RMS Detection:

The compressor features a switch that allows you to choose between Peak and RMS detection modes. RMS circuits mimic how the human ear perceives loudness, while Peak circuits respond directly to the waveform voltage. The Peak/RMS mode combines elements of both methods to optimize compression.

Ratio and Threshold Interdependence:

The Ratio and Threshold settings are closely related. A higher ratio (e.g., 40:1) typically requires a higher threshold to prevent excessive gain reduction. The Threshold control ranges from -30dB to +22dBu.

Attack Time:

The Attack Time setting determines how quickly the compressor responds to transients in the input signal. Short attack times can make the compression sound more aggressive, while longer attack times allow transients to pass through uncompressed.

Release/Recovery Time:

Release Time controls how quickly the compressor recovers and stops reducing gain after the input signal falls below the threshold. The optimal settings depend on the program material and desired effect.

Stereo Operation:

You can link two 543 modules for stereo operation to maintain stereo balance and positioning. This is useful for processing stereo audio sources.

Ducking:

When two linked 543 modules are used, one can be controlled by the other to create ducking effects. For example, you can reduce music levels when there is speech to create a “speech-over” announcement.

Meters:

The 543 Compressor includes two peak LED meters that display the output level and gain reduction. The output level meter covers a range from -10dB to +22dB, while the gain reduction meter is calibrated in dB and covers a range from +1dB to +22dB.

In summary, the Rupert Neve Designs 543 Compressor offers precise and versatile dynamic control with various settings and modes, making it a powerful tool for audio engineers and producers looking to shape the dynamics of their audio signals. Its combination of features, including feed-forward/feed-back modes, Peak/RMS detection, and stereo operation, makes it a valuable addition to a 500 series rack.

For audio professionals seeking unparalleled control over dynamic range and tonal character, the Rupert Neve Designs 543 500 Series Mono Compressor Limiter offers a transformative solution. Whether you’re mixing, tracking, or mastering, achieving a polished, professional sound hinges on precise compression that enhances clarity without sacrificing warmth. This compressor limiter is engineered to deliver exactly that, providing a versatile tool that elevates your audio productions to new heights.

Compression is a vital process in audio production, but many units fail to offer the nuanced control necessary for subtle shaping or aggressive limiting without distortion. The Rupert Neve Designs 543 addresses this challenge by combining a VCA compressor design with finely tuned controls that allow you to sculpt dynamics with surgical precision. This means you can tame peaks, add punch, or smooth out vocals and instruments while preserving the integrity of the original sound. Ultimately, it’s about giving you confidence that your audio will translate well across all playback systems.

At the heart of the 543 lies a single-channel VCA compressor housed in a 500 Series module slot, making it an ideal addition for any professional rack setup. The compressor features adjustable Threshold, Ratio, Attack, Release, and Gain controls, allowing you to tailor the compression effect to your exact needs. The Threshold control spans from -30 dBu to +20 dBu, accommodating a wide range of input levels, while the Ratio can be set anywhere between 1:1 and 40:1, giving you flexibility from gentle compression to hard limiting. This range ensures that whether you’re working with delicate vocal nuances or aggressive drum hits, the 543 can handle it with ease.

In terms of sonic performance, the Rupert Neve Designs 543 boasts a remarkable frequency response from 18 Hz to 150 kHz, far beyond the audible range, which means it preserves audio fidelity and maintains clarity across the entire spectrum. This broad frequency response ensures that no subtle detail or harmonic content is lost during compression, which is crucial for professional mixing and mastering applications. Powering the unit requires a standard ±16 V DC supply, compatible with most 500 Series racks, making integration seamless.

This compressor limiter excels in a variety of use cases. Recording engineers will appreciate its ability to add warmth and presence to individual tracks without introducing unwanted artifacts. Mixing engineers can rely on its precise controls to balance complex arrangements by managing dynamics transparently. Mastering professionals will find it invaluable for controlling peaks and enhancing overall track cohesion. Its compact 500 Series design also means it fits neatly into existing setups without taking up excessive space, making it a practical choice for studios of all sizes.

Priced at ₹109,990, currently on sale from its regular price of ₹121,990, the Rupert Neve Designs 543 provides exceptional value for a high-quality compressor limiter with this level of craftsmanship and performance. Investing in this unit means investing in sound quality and reliability that meet the rigorous demands of professional audio production.

In summary, the Rupert Neve Designs 543 500 Series Mono Compressor Limiter is a versatile, high-performance tool that empowers audio professionals to achieve precise dynamic control and sonic excellence. Its extensive control range, wide frequency response, and trusted Rupert Neve sonic signature make it a compelling addition to any studio. With this compressor limiter, you can confidently shape your sound knowing you have one of the finest dynamic processors available.
