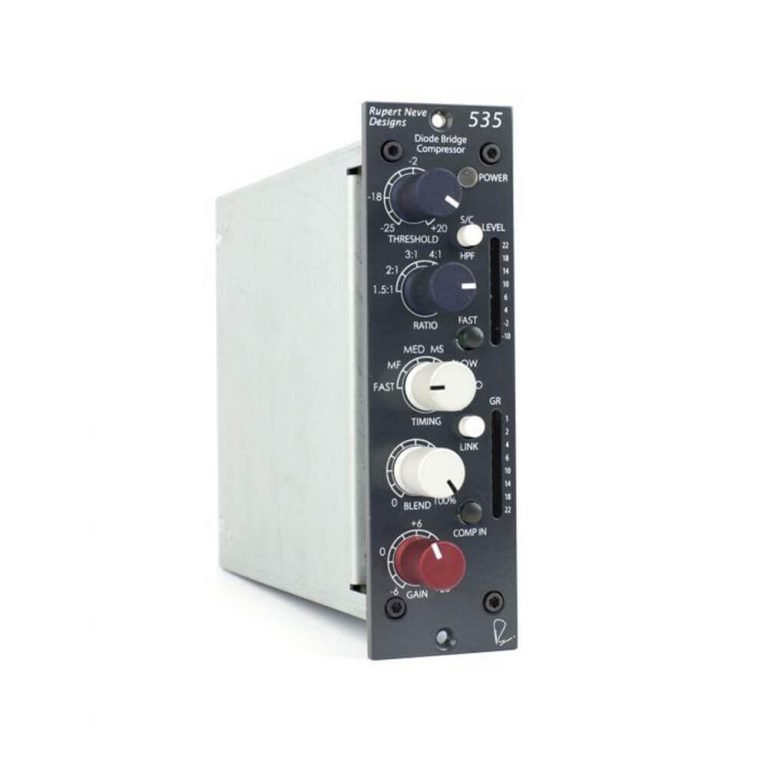

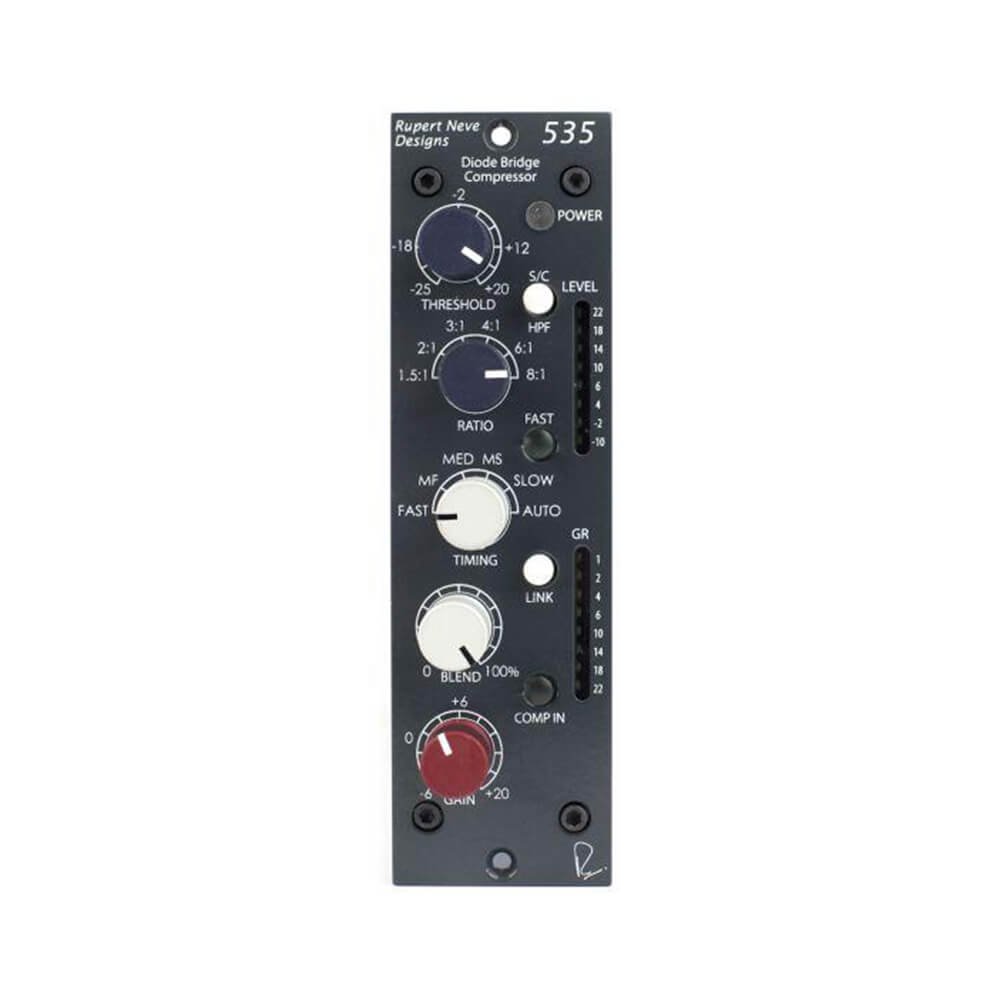

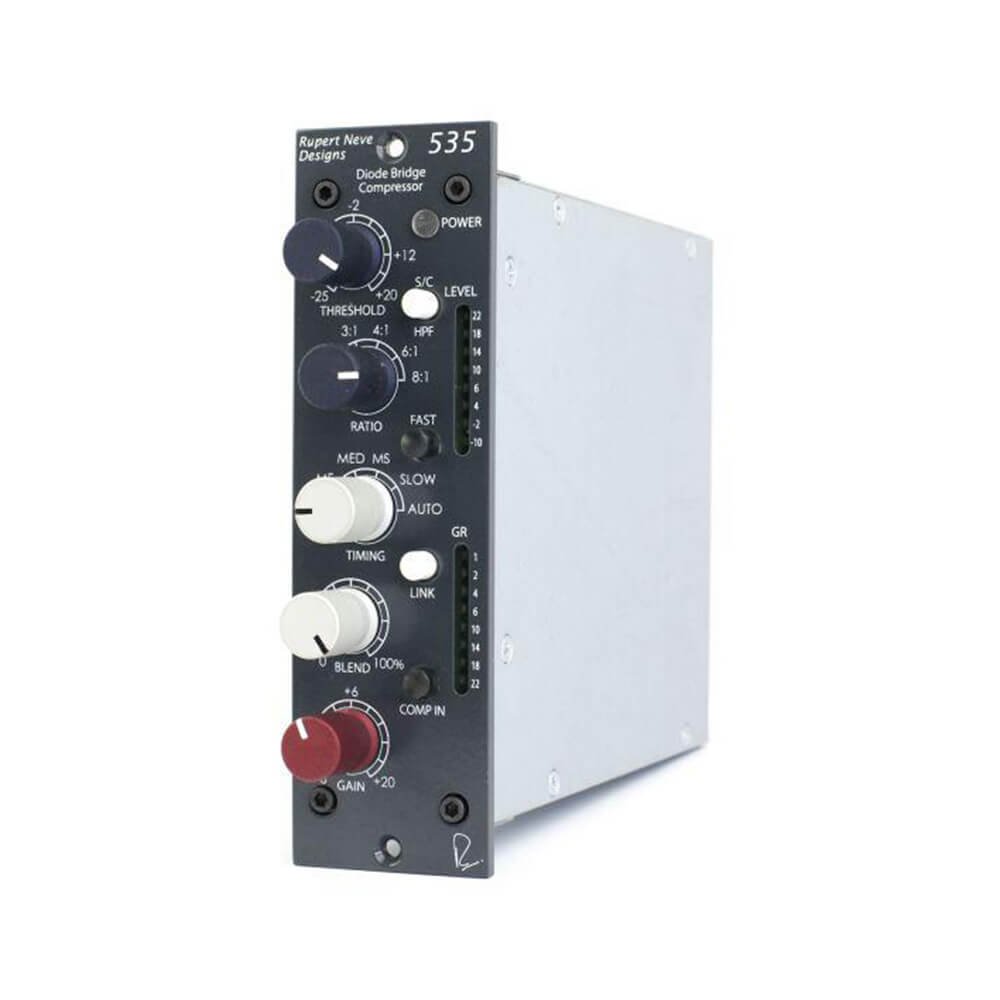

Rupert Neve Designs 535 500 Series Diode Bridge Compressor

Diode bridge compression is a specific type of compression technique used in audio signal processing, particularly in the context of analog compressors. Here’s a breakdown of diode bridge compression and its key characteristics:

Diode Bridge Topology:

Diode bridge compression is based on a specific circuit topology that uses diodes to control the compression of audio signals. Diodes are electronic components that allow the flow of electrical current in one direction while blocking it in the other. In this circuit, diodes are arranged in a bridge configuration to achieve compression.

Characteristic Sound:

Diode bridge compression is known for its unique sonic characteristics. It imparts a distinct tonal coloration to audio signals, often described as thick, punchy, and harmonically rich. This coloration can add warmth and character to audio sources, making it particularly useful for enhancing certain instruments and vocals.

Versatility:

While diode bridge compression is known for its character, it can also be versatile. It can be applied to a wide range of audio sources, including vocals, electric guitars, bass, and drums. Its versatility makes it a valuable tool in audio production for shaping the sound of various elements within a mix.

Timing Control:

The 535 Diode Bridge Compressor, as described in your text, offers advanced timing control. Timing parameters include attack and release times, which determine how quickly the compressor responds to changes in the input signal’s level. These settings allow users to tailor the compression behavior to their specific needs, whether they want transparent compression or more pronounced effects.

Parallel Compression:

The 535 compressor includes a BLEND control that enables parallel compression. This means you can blend the compressed (wet) signal with the original uncompressed (dry) signal. Parallel compression allows for a wide range of compression subtlety and can help preserve the dynamics and transients of the original audio while adding the desired compression characteristics.

Sidechain High-Pass Filter:

The compressor also provides a sidechain high-pass filter (S/C HPF) option, which filters out low-frequency content from the sidechain signal. This can be useful for ensuring that low-frequency elements in the audio source, such as kick drums, do not overly influence the compressor’s response. It helps maintain a more balanced compression effect.

Stepped Controls:

The 535 compressor features stepped controls throughout, which means that settings are precisely calibrated and repeatable. This allows for consistent and accurate adjustments when using the compressor.

Linking and Stereo Operation:

The compressor includes a LINK switch, allowing two 535 modules to be linked for stereo operation. This ensures proper stereo center imaging while applying compression to both audio signal paths.

Gain Reduction Metering:

LED meters provide visual feedback on the amount of gain reduction being applied by the compressor, allowing for precise monitoring of the compression’s effect on the input signal.

Compatibility:

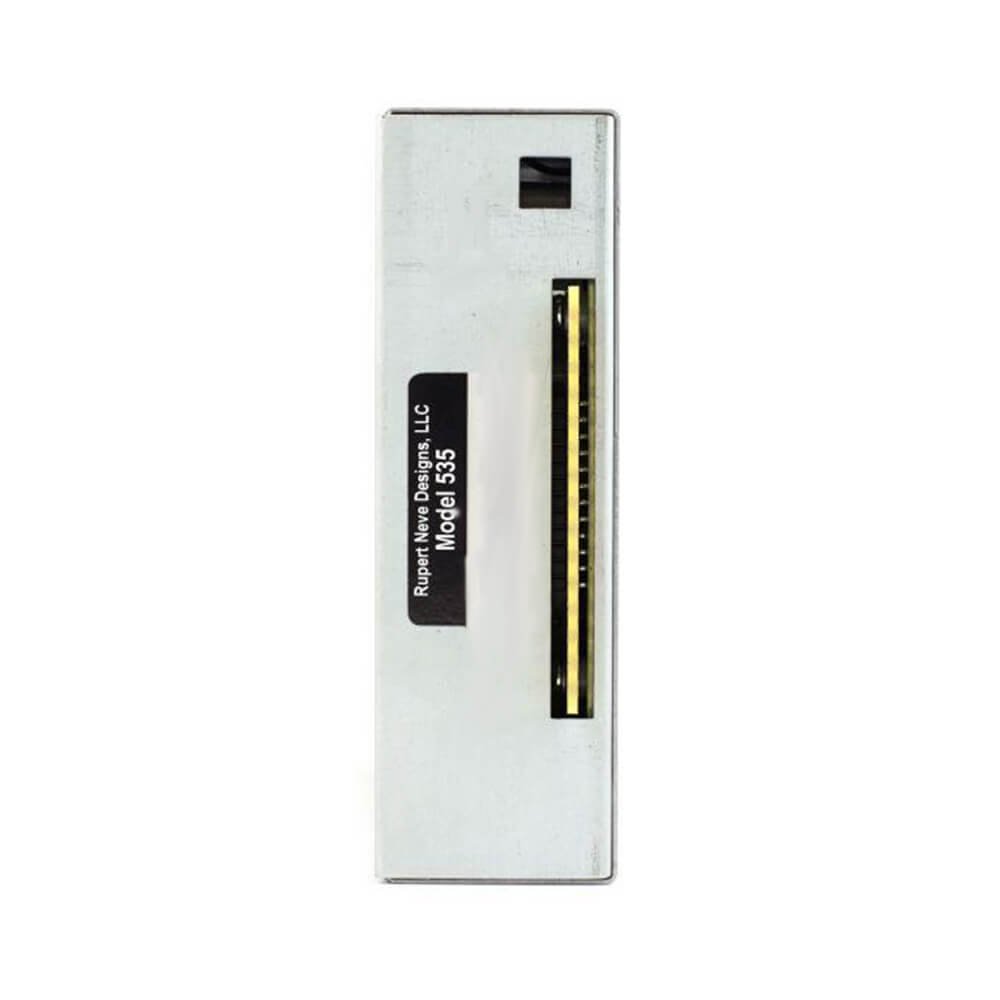

It’s important to note that the Rupert Neve Designs 535 Diode Bridge Compressor is designed for use within a 500 Series chassis and is not a standalone unit. It requires a compatible 500 Series chassis for power and integration into a larger audio processing setup.

In summary, diode bridge compression is a classic and characterful compression technique that can shape the sound of audio sources with its unique tonal qualities. The 535 Diode Bridge Compressor from Rupert Neve Designs offers modern enhancements and controls while retaining the essence of this vintage compression style.
