Rupert Neve Designs 5045 Primary Source Enhancer

Rupert Neve Designs 5045 Primary Source Enhancer Overview

The Rupert Neve Designs Portico 5045 Primary Source Enhancer is a two-channel primary source enhancer that reduces feedback and has a constantly changeable threshold and depth. The 5045 Primary Source Enhancer is extremely successful in reducing feedback while maintaining the acoustic integrity of the source signal, thereby increasing the volume at which a microphone may be raised before feedback arises in a live sound situation by up to 20 decibels. The 5045 is a useful instrument for churches, stadiums, concert halls, and any location where feedback is an issue, thanks to its simple controls that require minimal tweaking.

The 5045 is similar to traditional “noise gates” but functions on a different premise. One thing they have in common is that they both lower gain when there is no signal present, or, more precisely, when the strength of a signal goes below a particular user-defined threshold. The 5045 detects when someone is speaking or singing into the microphone and enables the signal to flow through, as well as when the person has ceased talking or singing and decreases the gain appropriately, so reducing the system’s inclination to feed back. Most notably, the 5045 delivers considerable improvements without the need for filtering or digital processing.

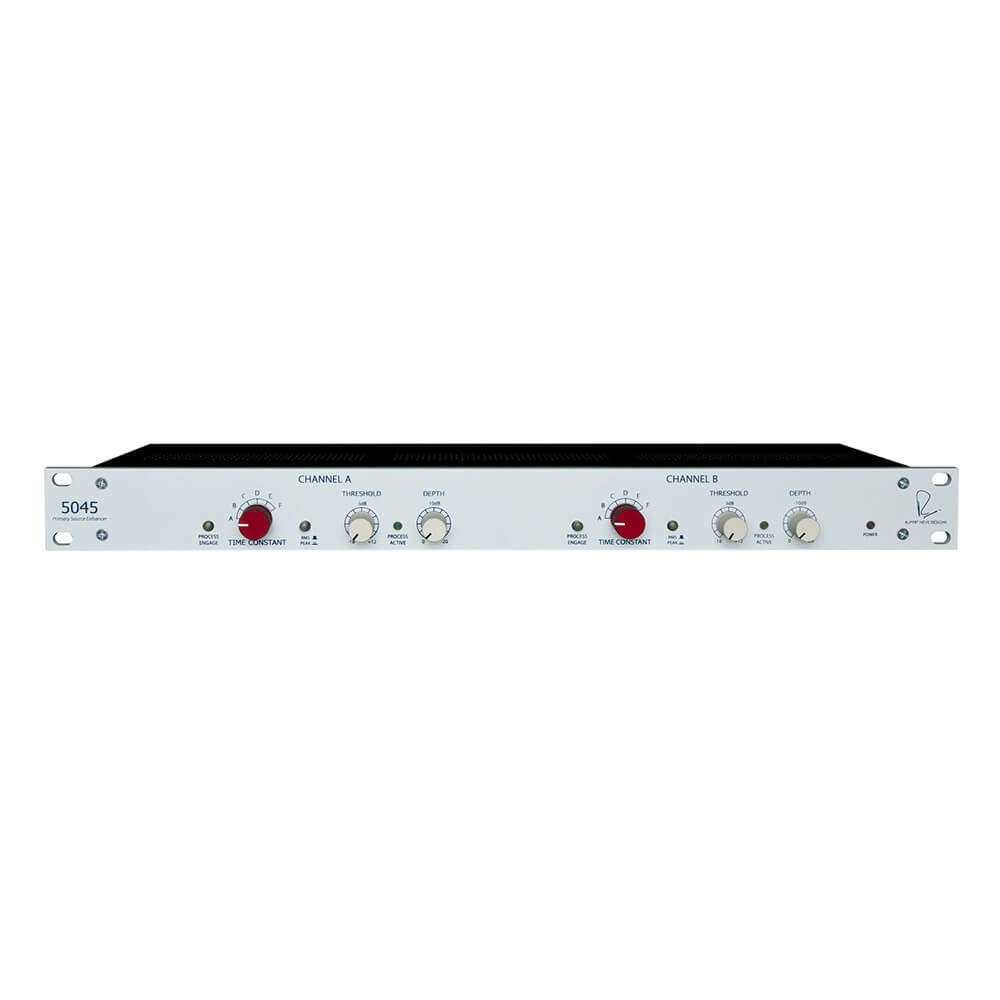

The “DEPTH” knob controls how much attenuation is applied after the signal falls below the “THRESHOLD” value. “0” signifies no attenuation; therefore, the 5045 will do nothing. “-10 dB” represents moderate attenuation and is relatively safe from mistakenly cutting off a word or portion of a syllable. “-20 dB” attenuates deeper but may be jerky. Setting the “DEPTH” setting so that it does not cut out sections of gently uttered words while dealing with a severe feedback problem is the aim, especially for vocalists who sing quietly one minute and loudly the next while requesting loud monitors.

The “TIME CONSTANT” option is intended to assist in reducing choppiness in certain instances while stopping feedback in others. It mostly controls how rapidly attenuation happens in the silent intervals between words or phrases. “A” is the quickest, while “F” is the slowest. “A” will swiftly reduce the volume, which might be useful when the vocalist is consistent and the feedback howl is difficult.

“F” is the safest option for gradually fading down, although it may be a little sluggish to fade up again and may be too slow to manage some annoying feedback situations. “C” and “D” are reasonable settings that should work in a variety of scenarios. They fade out slowly enough to preserve word endings while also controlling feedback. Choose the most appropriate time constant that does not soften the beginnings and ends of phrases while also reducing the signal’s feedback and “boominess”.

Similarly, the “RMS/PEAK” button allows you to fine-tune the timing of the 5045. With the “PEAK” button pressed, the 5045 quickly returns to its regular level after attenuation. This may help keep the start of some words from getting chopped off. (It also allows for some creative dynamics sculpting when using the 5045 on musical instruments.) When the button is set to “RMS”, the 5045 behaves slightly slower but with more perceived “musicality”. This mode is based on the “average” signal level rather than only the loudest and briefest peaks.

Rupert Neve Designs 5045 Primary Source Enhancer Features:

•  Easily removes background noise from audio.
•  Offers two channels of a clean signal for increased gain without the chance of feedback.
•  Works similarly to a noise gate, but uses a more discriminating concept.
•  Automatically recognizes direct sound for quick response time.
•  Simple controls provide quick results.

In the world of professional audio production, achieving pristine sound clarity and presence is paramount. Whether you are mixing, mastering, or recording, the ability to enhance the primary source without introducing unwanted color or distortion can make the difference between a good track and an exceptional one. The Rupert Neve Designs 5045 Primary Source Enhancer is designed precisely for this purpose, offering audio engineers and producers a powerful tool to elevate their sound with precision and finesse.

Many audio professionals struggle with vocals or instruments that lack clarity or presence in a mix. Traditional equalizers and compressors can sometimes add unwanted artifacts or fail to bring the source forward effectively. The 5045 Primary Source Enhancer addresses this challenge by focusing on the fundamental elements of the sound, subtly enhancing the primary source signal to deliver increased presence and clarity. This means your tracks will cut through the mix more naturally, without resorting to harsh boosting or excessive processing.

At the heart of the 5045 is Rupert Neve’s renowned analog design philosophy, which brings a unique warmth and musicality to your audio. The unit features a dual-band enhancer that allows you to fine-tune the mid and high-frequency ranges independently, giving you precise control over the tonal balance of your source. This targeted approach ensures that you can enhance the critical frequencies that define clarity and presence, making vocals more intelligible and instruments more articulate. Additionally, the 5045 incorporates a switchable high-pass filter and phase reverse function, enabling you to tailor the signal path to the specific needs of your source material and prevent phase issues that can muddy your mix.

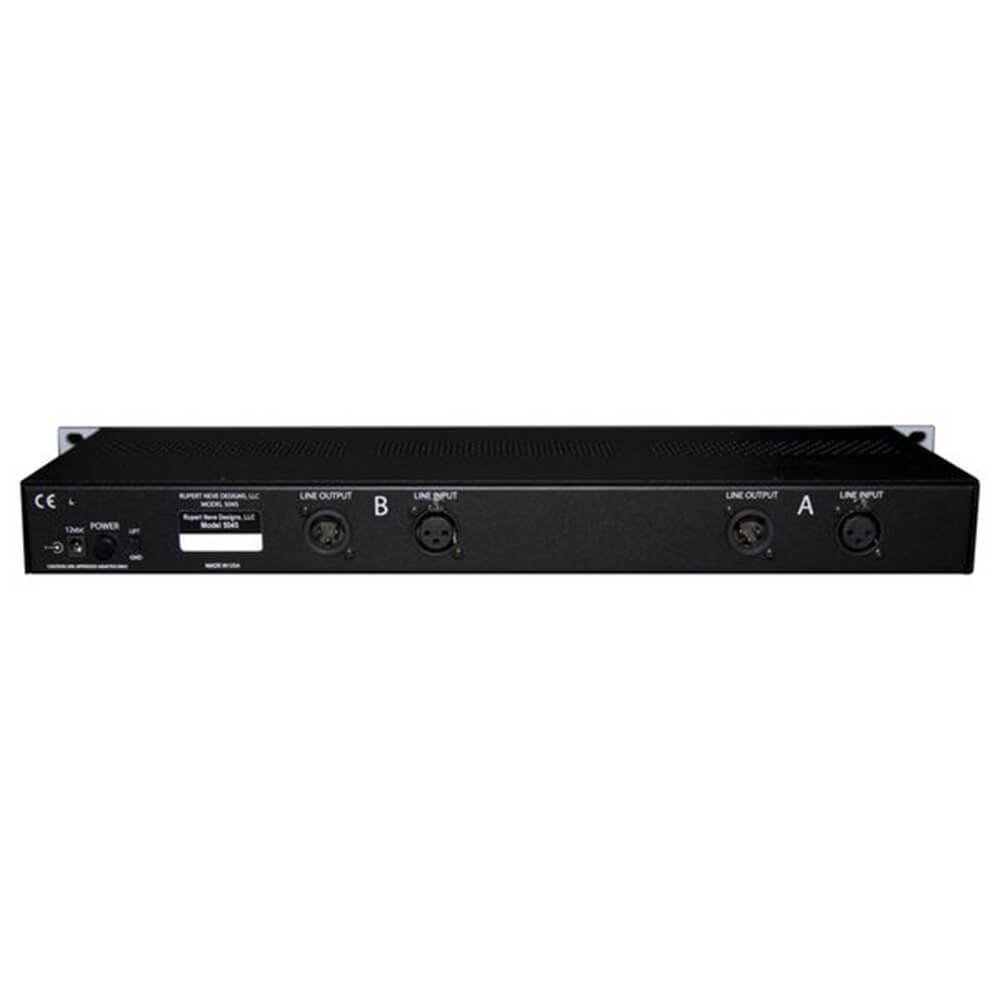

The 5045 is built with high-quality components and a robust chassis, ensuring reliable performance in both studio and live environments. Its compact design fits seamlessly into any rack setup, making it an ideal addition for studios where space and signal integrity are priorities. The unit operates on standard 48V phantom power and offers both balanced XLR and TRS inputs and outputs, providing compatibility with a wide range of professional audio gear. This flexibility means you can easily integrate the 5045 into your existing signal chain, whether you are working with analog consoles, digital audio workstations, or hybrid setups.

Practical applications of the Rupert Neve Designs 5045 are vast. It excels in vocal production, where clarity and presence can dramatically impact the emotional connection with the listener. It also enhances acoustic instruments, such as guitars, pianos, and strings, by bringing out the natural harmonic content without artificial brightness. For broadcast and post-production professionals, the 5045 offers a reliable way to ensure dialogue and narration are clear and intelligible, even in complex mixes. Its subtle yet effective enhancement capabilities make it a versatile tool for any audio professional aiming for that polished, professional sound.

Priced at ₹256,990 on sale from a regular price of ₹295,500, the Rupert Neve Designs 5045 Primary Source Enhancer represents a worthwhile investment in your audio quality. The cost reflects the exceptional build quality, the sophisticated analog design, and the sonic benefits it delivers. For professionals who demand excellence in their recordings and mixes, the 5045 offers a unique combination of precision, musicality, and ease of use.

In conclusion, the Rupert Neve Designs 5045 Primary Source Enhancer is an essential accessory for anyone serious about achieving superior sound clarity and presence. By focusing on the primary source and enhancing its natural characteristics, it allows you to create mixes that stand out with warmth and definition. Its versatile features, robust construction, and professional-grade components ensure it will be a valuable part of your audio toolkit for years to come. Elevate your sound with the 5045 and experience the difference that expert design and engineering can make.
