Proel WX 10A Active Stage Monitor

Brand:  ‎Proel
SKU: SM-4013

Product Highlights

Active 2-way coaxial stage monitor. – 1” driver with 1” VC. – 10” woofer with 2” VC. – 500 W total Peak Power. – 2 EQ PRESETS for Monitor or FOH. – SPL MAX 123 dB. – Frequency range 70 Hz – 20 Khz. – Durable polyurethane paint. – Recessed connection panel for added protection. – Pole socket

WX series stage monitors, with a perfect sound intelligibility, a high SPL and an ultra-compact format, can offer a professional yet affordable monitoring solution able to fit into stages of any size.

The transducers’ coaxial design not only provides an optimal HF and LF alignment and a controlled directivity for a perfect listening from any position, but it also helps to minimize the size of the monitor. The ultra-compact enclosures, with integrated handle and pole socket, have been designed to feature a very low profile and, therefore, a minimal footprint on stage. The cabinets are finished with extra-strong polyurethane painting, making them resistant to any abuse.

Experience crystal-clear sound and powerful stage presence with the Proel WX 10 A Active Stage Monitor, designed to deliver exceptional audio fidelity with its 10-inch woofer and 1-inch compression driver. Offering a maximum peak SPL of 123 dB and a versatile 60° angular coverage, this monitor ensures your performance is heard with precision and clarity. Discover how its robust 250 W Class D amplifier and professional-grade construction can elevate your live sound setup.

Original price was: ₹44,515.Current price is: ₹42,289.

In stock

Estimated delivery dates: Apr 14, 2026 - Apr 18, 2026

In stock

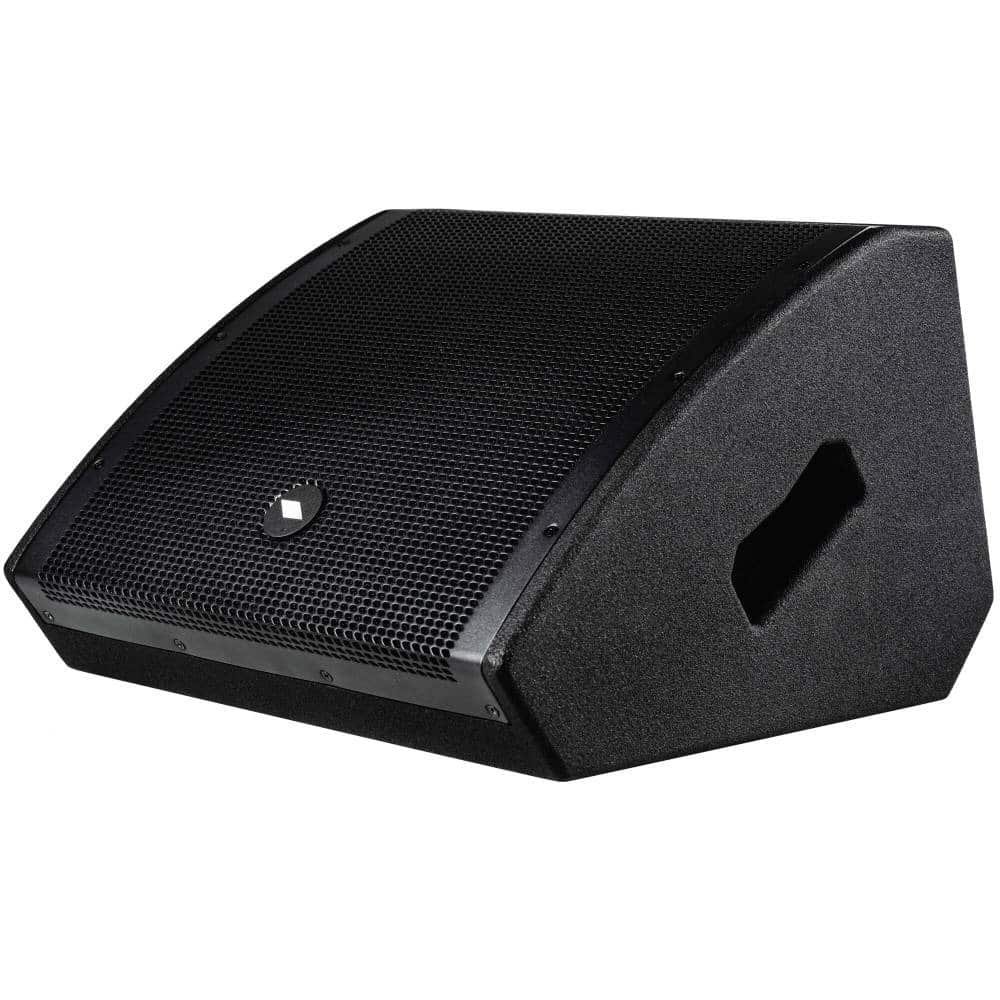

imgi_99_WX10A_LEFT-1000x1000w

Compact Powerful Monitor

The WX10A is an active 2-way coaxial stage monitor designed for professional performance in any live sound environment. With its 10” woofer and 1” compression driver, perfectly aligned for optimal HF and LF response, it delivers accurate sound from any listening position. Its ultra-compact, lightweight enclosure ensures a minimal stage footprint while providing high SPL levels up to 123 dB. Built with a durable polyurethane finish, recessed handle, and pole socket, it offers both portability and resilience. Ideal for vocals, guitars, horns, and electronic instruments, the WX10A combines precision audio reproduction with rugged reliability in a versatile, affordable package.

Advanced Amplification Technology

Powered by a 500W Class D amplifier with SMPS, the WX10A produces exceptional output from a compact design. The dual limiter circuit ensures protection and consistent audio clarity, even at high volumes. Its sophisticated analogue processing enhances vocal presence and provides excellent resistance to feedback, making it perfect for demanding stage environments. Two EQ presets offer flexibility for either MONITOR or FOH (Front-of-House) applications, allowing it to function as a main PA speaker if required. Whether for live bands, DJs, or speech reinforcement, the WX10A delivers balanced, dynamic sound with impressive headroom and professional-grade performance in a portable, user-friendly format.

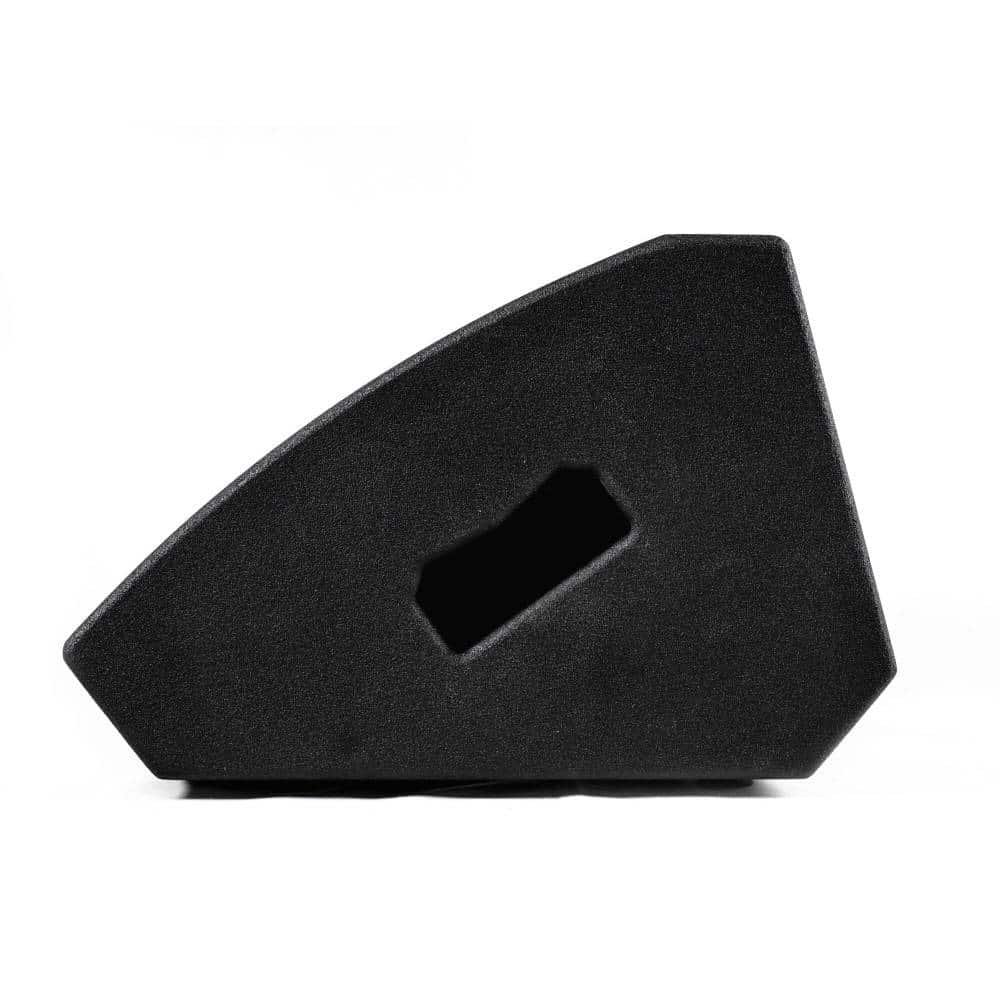

imgi_91_WX10A_RIGHT SIDE-1000x1000w

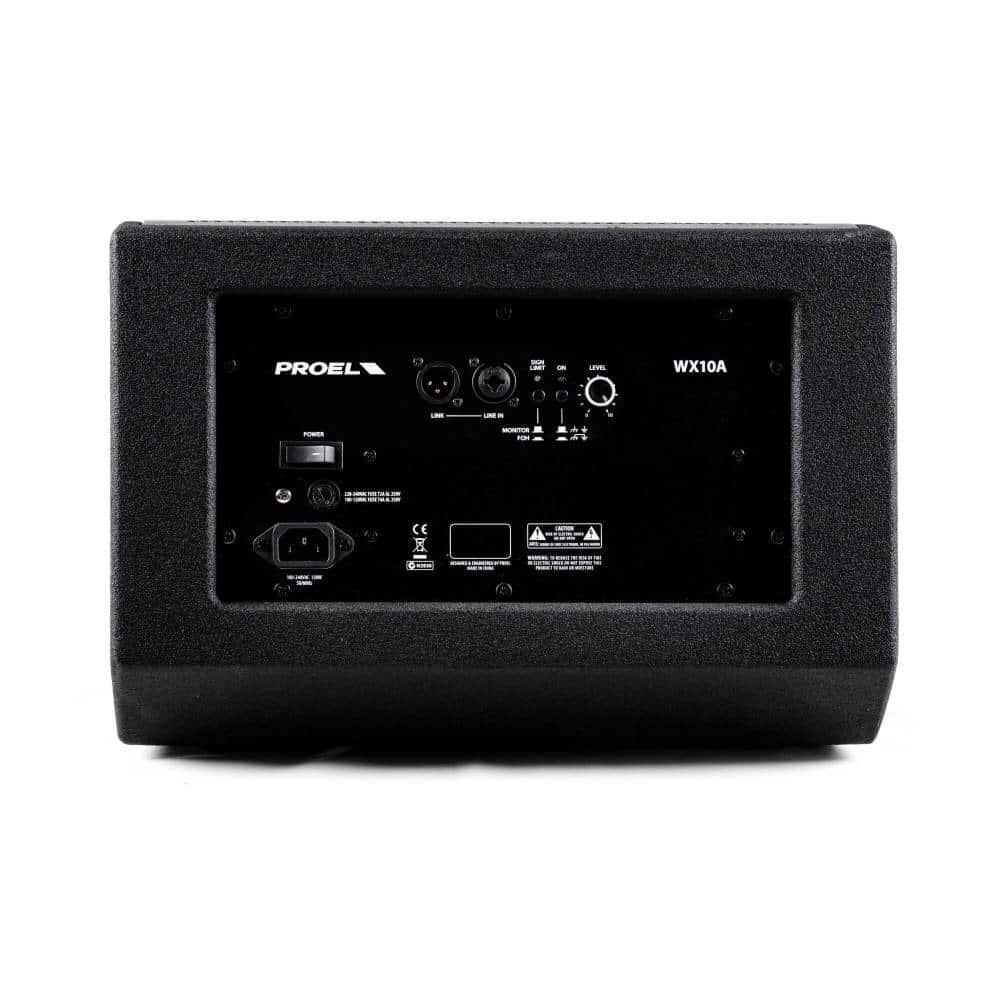

imgi_97_WX10A_REAR2-1000x1000w

Durable Stage Solution

Crafted for real-world use, the WX10A’s cabinet is coated with ultra-strong polyurethane paint, protecting it from the wear and tear of frequent transport and stage handling. Its reinforced metal grille safeguards internal components, while the recessed connection panel provides additional protection during setup. With a built-in pole socket, the monitor can easily transition from floor wedge to stand-mounted main speaker, maximizing flexibility for any venue. Designed to offer a cost-effective yet professional solution, the WX10A suits stages of all sizes, from intimate clubs to large events, combining compact design, powerful output, and reliable durability for consistent, high-quality performance.

Features

  • Active 2-way coaxial stage monitor
  • 1” compression driver with 1” VC
  • 10” woofer with 2” VC
  • 500 W total power
  • Class D power amplifier with SMPS
  • Dual LIMITER circuit
  • 2 optimized EQ PRESETS for MONITOR or FOH (Front-Of-House) use
  • SPL MAX 123 dB
  • Frequency response 70 Hz – 20 KHz
  • Ultra-compact, lightweight cabinet with black ultra-durable polyurethane paint
  • Reinforced metal grille
  • Recessed handle for easy transport
  • Pole socket
Tags: , ,
System type

2-way coaxial vented stage monitor

Low Frequency Device

10” woofer with 2"VC

High Frequency Device

1” compression driver with 1"VC

Angular Coverage

60°

Frequency response

70 Hz – 20 kHz

Max SPL at 1mt (peak)

123 dB

Amplifier Continuous Power

250W CLASS D with SMPS

Input Impedance

30 kohm balanced, 15 kohm unbalanced

Input Sensitivity

-10 dBu

Controls

LEVEL, PRESET selector (MONITOR, FOH), GND lift

Connectors

INPUT: COMBO (XLR-F/JACK), LINK: XLR-M

Power Supply

230 VAC or 115 VAC – 50/60 Hz

Rated Consumption*

200 W

Construction

MDF with black anti-scratch polyurethane paint

Pole Adapter

1 x side

Handles

1 x side

Monitor taper

36°

Weight

10 kg (22 lb)

Dimensions (W x H x D)

390x396x270 mm
