Description

Name: Novation Peak Eight Voice Desktop Polyphonic Synthesiser - Suhavi Mart
Price: 199979 INR
Availability: InStock

Peak is an eight-voice desktop polyphonic synthesiser built around New Oxford Oscillators that combine the best of analogue sound and digital flexibility – including inbuilt and custom digital wavetables. With a resonant multi-mode analogue filter for each voice, and three separate points of distortion per voice, it’s truly the best of both worlds.

Polyphonic aftertouch, an extensive mod matrix, and two dedicated Animate buttons allow for endlessly expressive performances, while lush onboard reverb, delay and chorus round off a formidable addition to any sound designer’s arsenal.

Key Features

Digital where it counts — Digital FPGA-generated New Oxford Oscillators for analogue-style, wavetable and FM synthesis
Analogue where it matters — an analogue filter, analogue VCAs and three stages of analogue distortion per voice
High-quality digital effects — stunning reverb, delay, and chorus effects are instantly accessible via the effects section
Extensive modulation system — 16-slot modulation matrix and 16 direct assignments controllable from the front panel
Wavetable Editor — featuring drawing tools and a Live Edit mode, so you can draw your own oscillator shapes and preview them in real time

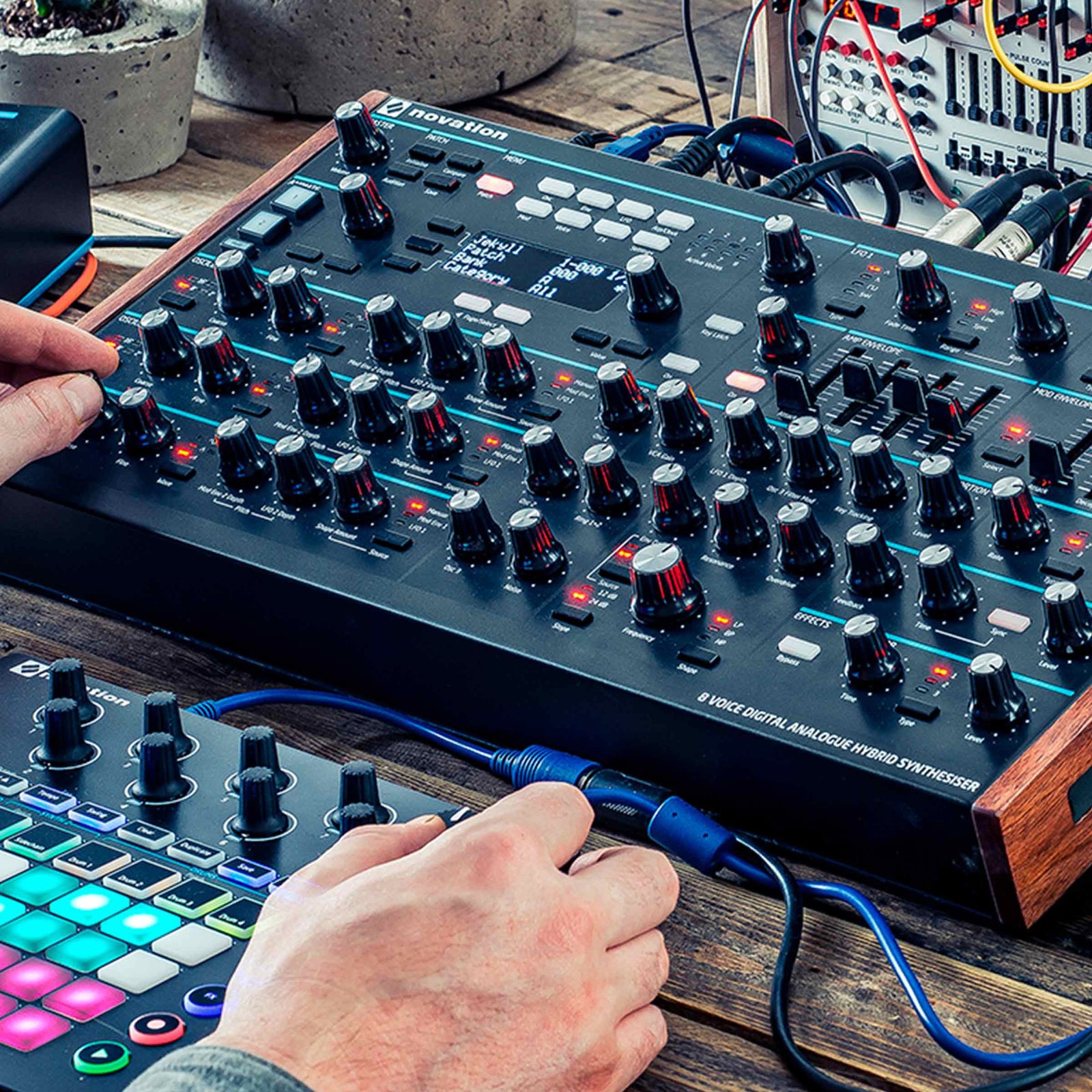

Analogue where it matters – digital where it counts

This synth can sound as mellow or aggressive as you want. Seek out sweet spots with the filter mod to make it sing. Crank the distortion and it will growl with pent up anger. Push the resonance to self oscillation to create shrieking leads. Bass StaaPeak’s design consultant was none other than Chris Huggett, the man behind Bass Station, Supernova, OSCar and many more legendary synths. Peak has its origin in the Bass Station II analogue monosynth, and Peak’s oscillators sound completely analogue by being high-quality NCOs (Numerically-Controlled Oscillators), but gain the flexibility of the digital domain with 60 digital wavetables.tion II can sound however you feel.

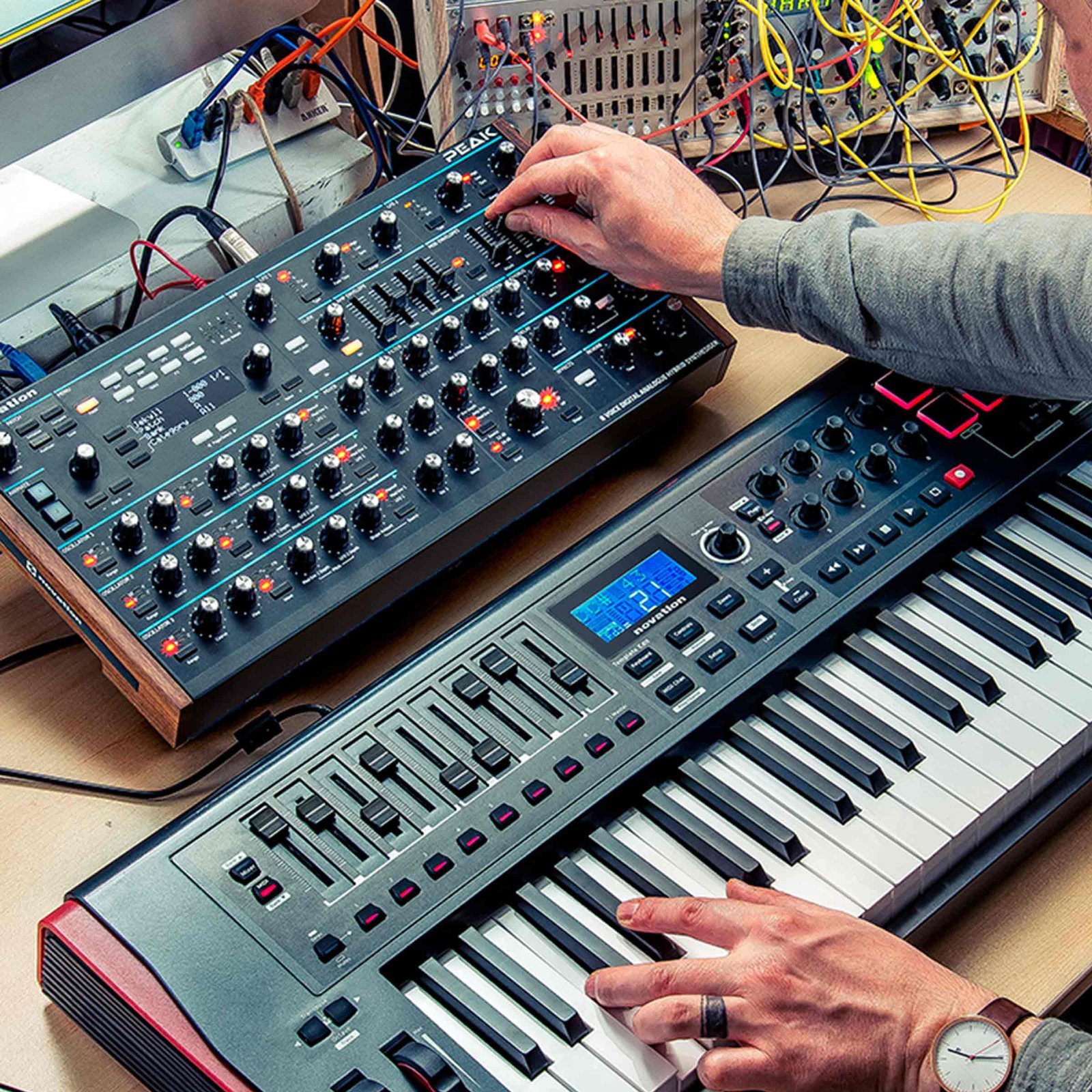

Build and refine new sounds from scratch

Broaden out your electronic music, draw in new influences and take artistic risks. The modulation system puts the most frequently used assignments right at your fingertips in the main controls. More elaborate movements and secondary ‘via’ assignments are made just a few menu button presses away.

Overview

42 Control knobs
8 35mm Sliders
1 Volume knob
2 Data encoders
Rubberised knob caps with spun metal discs
30 Function buttons (not lit)
16 Function buttons (lit)
2 Animate buttons plus hold button
90 Indicator LEDs
OLED display
Kensington Security Slot
Power switch
Power supply connector
USB B 2.0 / MIDI comms only (no bus-power)
MIDI In / Out / Thru
2 1/4″ jack socket for continuous or switched pedals
3.5mm jack socket for CV in
1/4″ jack sockets for left and right outputs
1/4″ jack socket for headphone output
Metal chassis with American walnut wooden end cheeks
Metal magnetic inset end pieces

Dimensions

Length 233mm
Depth 464mm
Height 70.5mm

Waveforms include

Sine, tri, sawtooth, square / pulse plus 17 wavetables of 5 waveforms per row

Effects

Analogue distortion
Chorus – 3 types
Delay with 16 types of delay sync, LP and HP damping, slew and stereo
Reverb – 3 types

Software compatibility

Ableton Live Lite is included
Peak is a USB-MIDI class compliant device

Power requirements

Maximum power consumption 12V DC 1A

Synth engine

8 voice polyphonic (voice modes available unison etc.)
Mono-Timbral
5 Voice Modes – Mono, MonoLG, Mono2, Poly, Poly2

Per voice

3 oscillators
1 noise generator
1 ring modulator
2 LFOs
1 Amp envelope and 2 mod envelopes
1 Filter

Filter

1x State variable OTA filter per voice
12/24dB slope
Low-pass / band-pass / high-pass
Pre-filter overdrive
Post-filter distortion

Modulation

16 modulation slots per patch
Each slot has 2 sources to 1 destination

Misc

Arpeggiator w/ key latch – 33 patterns
Patch storage – up to 512 on hardware (ships with 256 factory patches)
Glide
All knobs (excl. volume), sliders and most buttons transmit and receive MIDI cc commands for external control and mapping
