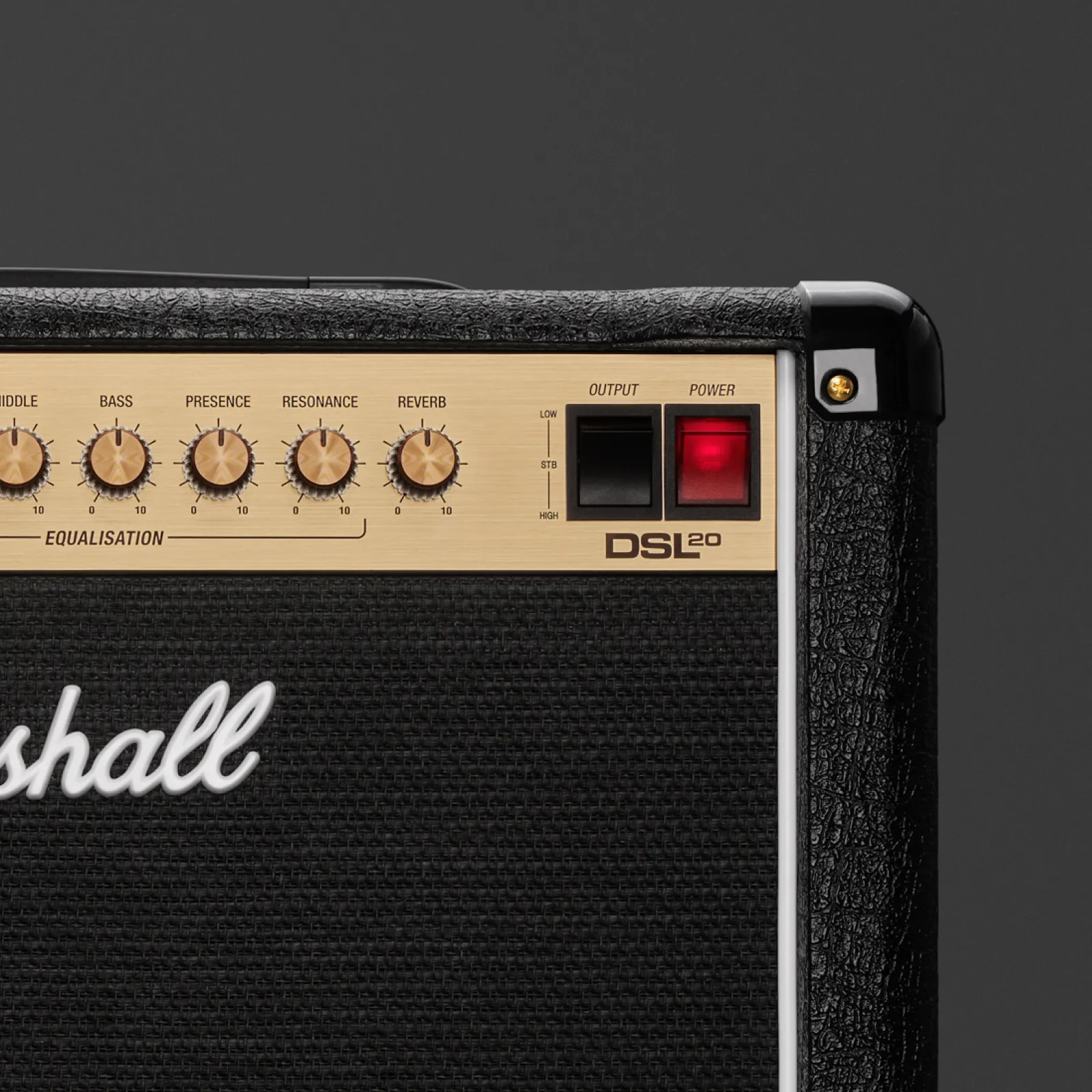

Power reduction from 20W to 10W at the flick of a switch
The DSL20 Combo gives you full control over the volume. Choose between 20W and 10W power output at the flick of a switch. The amp is perfect for a variety of different playing situations and environments, letting you take the stage wherever you go.

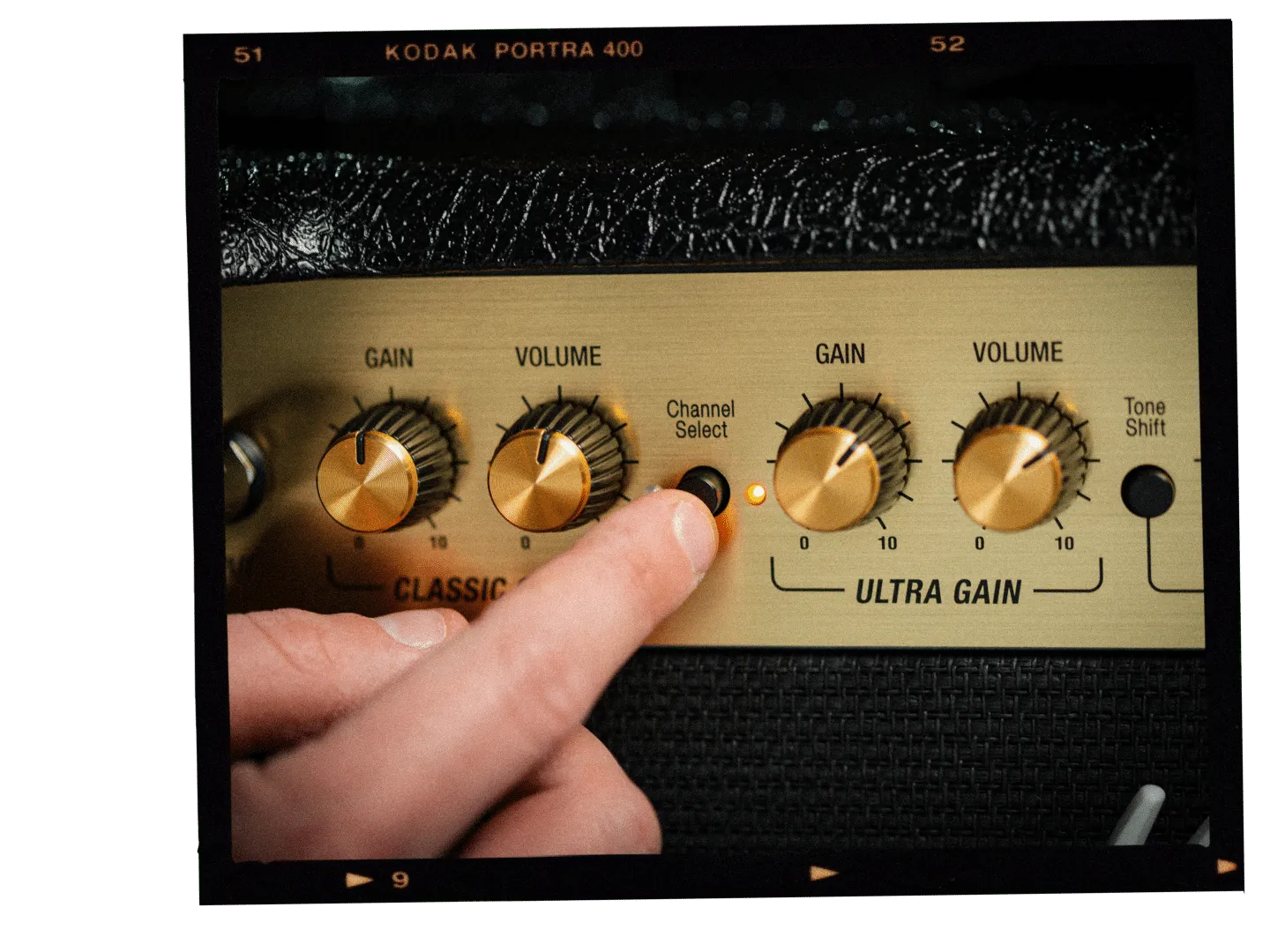

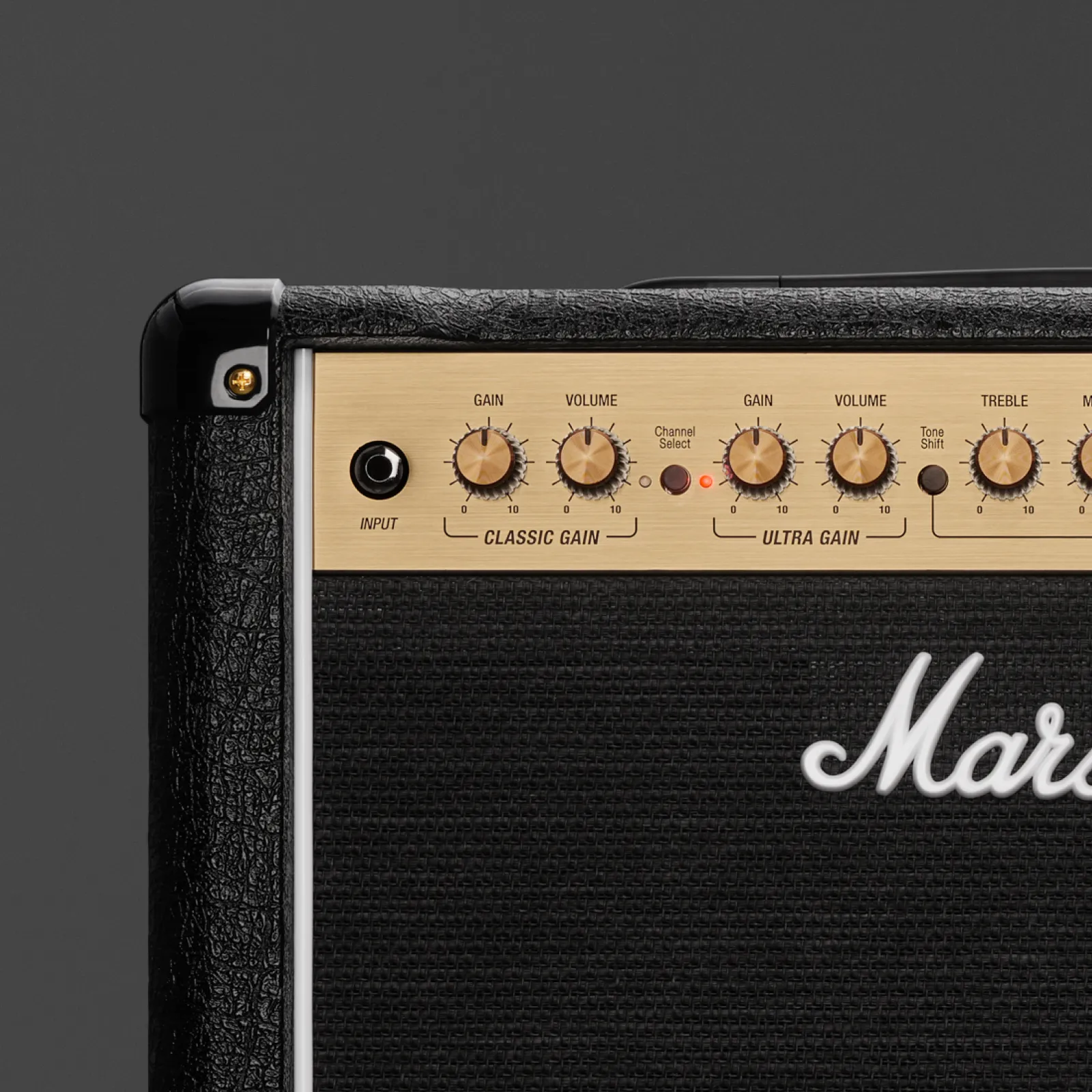

Two gain channels
Unleash your alter ego. The DSL20 Combo has two gain channels, ultra gain and classic gain, giving you greater versatility in tone shaping. These channels typically feature varying amounts of gain/distortion, allowing you to transition between cleaner tones and heavier overdriven/distorted sounds without having to substantially alter settings. Try experimenting with your sound by switching from ultra clean to heavy distortion and everything in between.

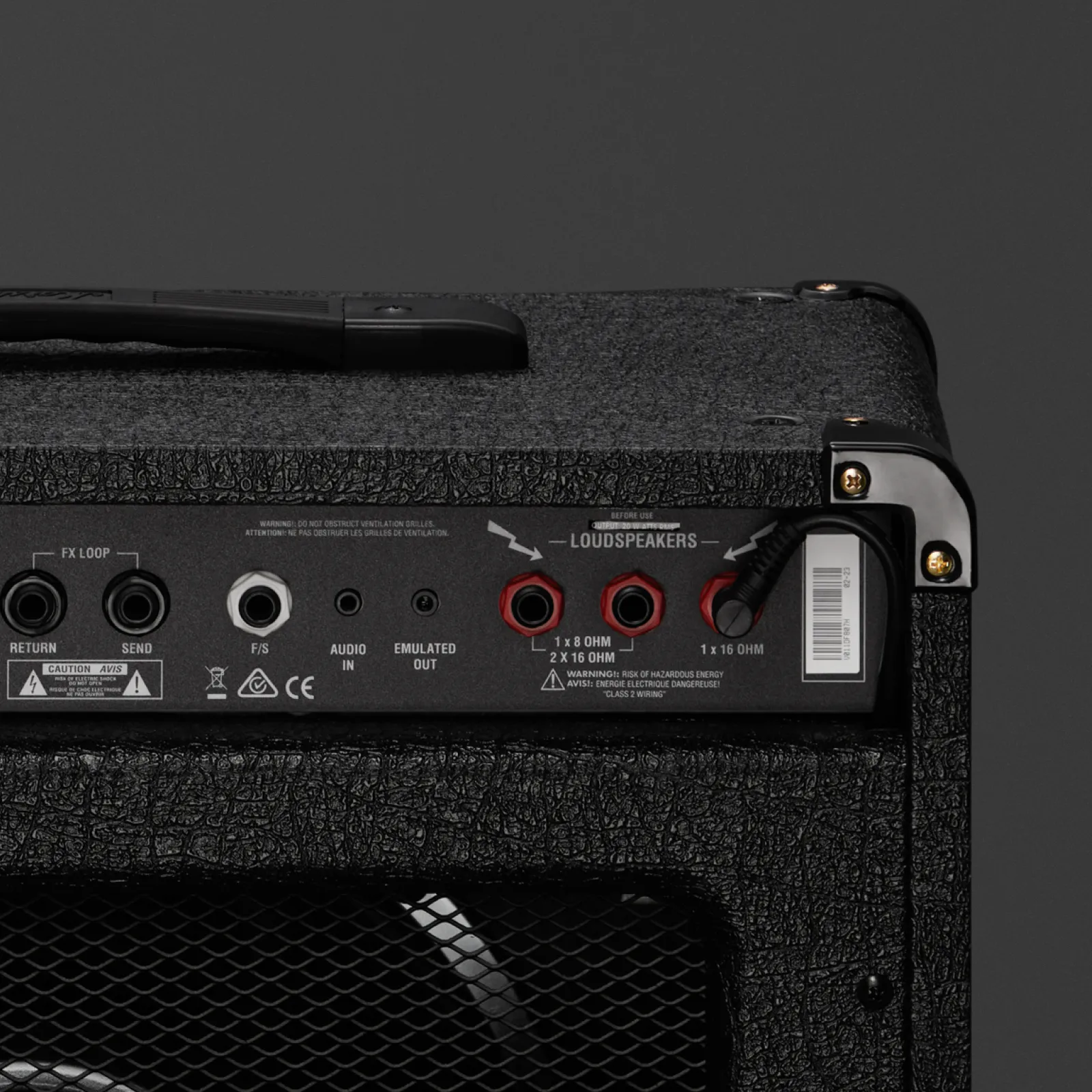

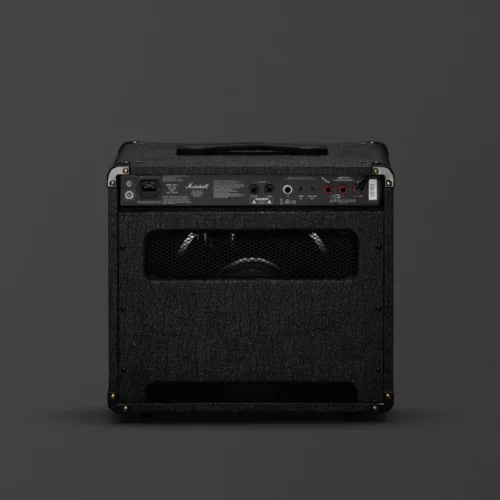

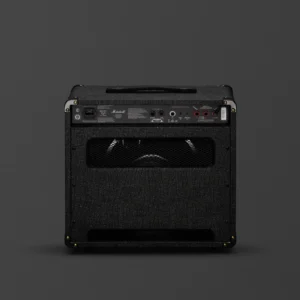

Three speaker outputs
The three speaker outputs allow you to experiment with different speaker configurations to discover the best sound for your playing style, genre or performance location. This adaptability enables customisation to your specific tastes. It also provides the ability to record, making the DSL20 Combo perfect for gigging and practising in the studio.
Standby function for silent recording
With its three speaker outputs, the DSL20 Combo has the ability to record and a standby function for silent recording. Simply connect your amp to a recording device through the line out and keep the standby switch in off mode.
This function allows you to effortlessly take this amp from your bedroom to the studio. Before long, and with enough practise, you’ll be stepping straight into the limelight.
Weight
16.3 kg
Dimensions
25 × 50 × 42 cm
Model
DSL20CR
Range
DSL
CHANNELS
2
TECHNOLOGY
Valve
Output wattage
20W (with power reduction option, 10W)
OUTPUTS
Speaker outputs: 3 x 1/4" jack sockets (16? load / 8? load), 1 x 3.5mm jack emulated line out
INPUTS
1 x 1/4" instrument jack, 1 x 3.5mm jack Aux in, footswitch
Controls
CLASSIC GAIN CHANNEL GAIN AND VOLUME, CHANNEL SELECT SWITCH, ULTRA GAIN CHANNEL GAIN AND VOLUME, TONE SHIFT SWITCH, TREBLE, MIDDLE, BASS, PRESENCE, REVERB
Effects
Digital reverb
Effects loop
YES, 1 X SERIES
Speaker configuration
1×12"
Speaker model
Celestion Seventy 80 speaker (16?, 80w)
Unit impedance
16?
Preamp valves
2 X ECC83, 1 X ECC83 (PHASE SPLITTER)
Power amp valves
2 x EL34
Box Contents
Footswitch PEDL-90012 included Cable Detachable power cable included
