Mid/ Hi System

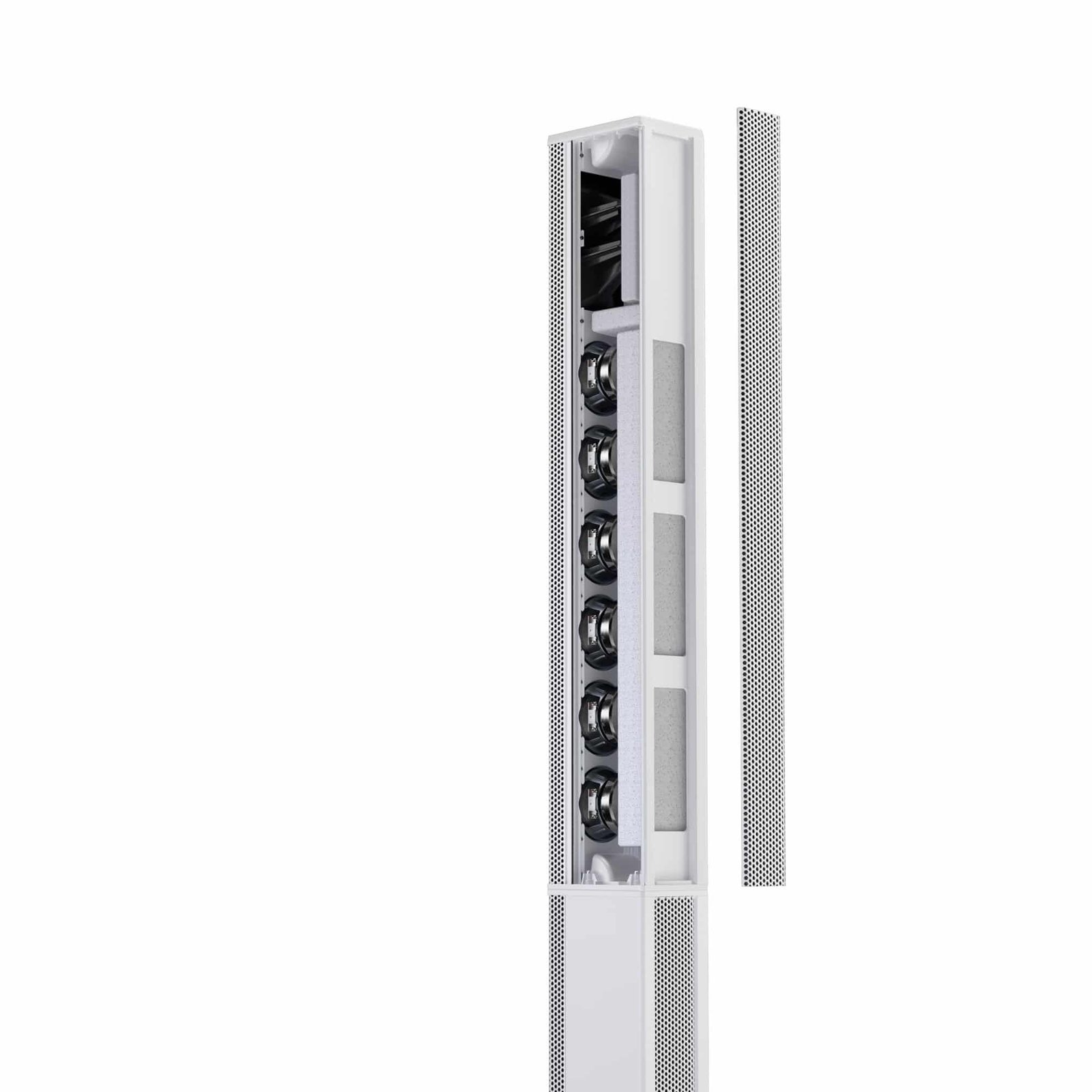

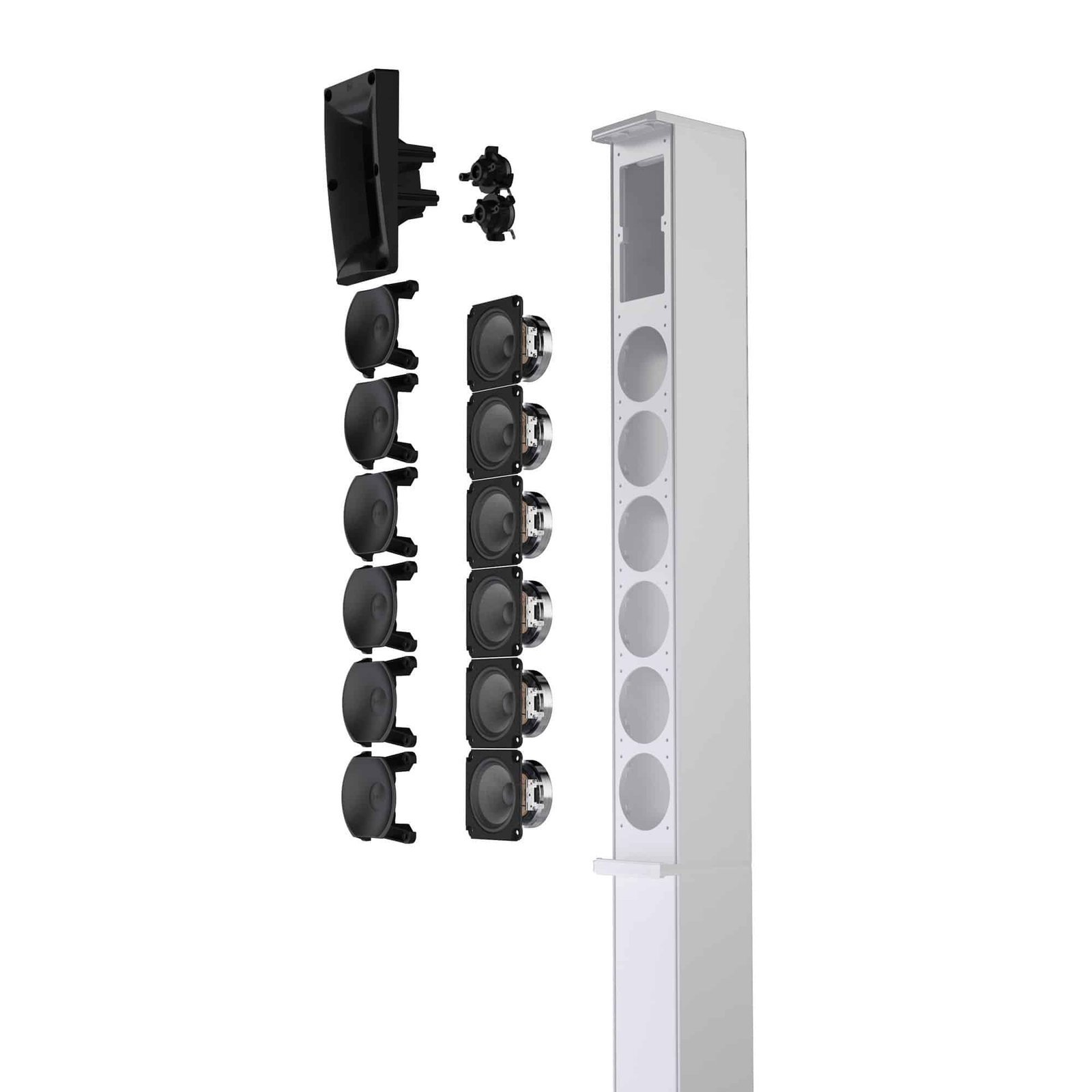

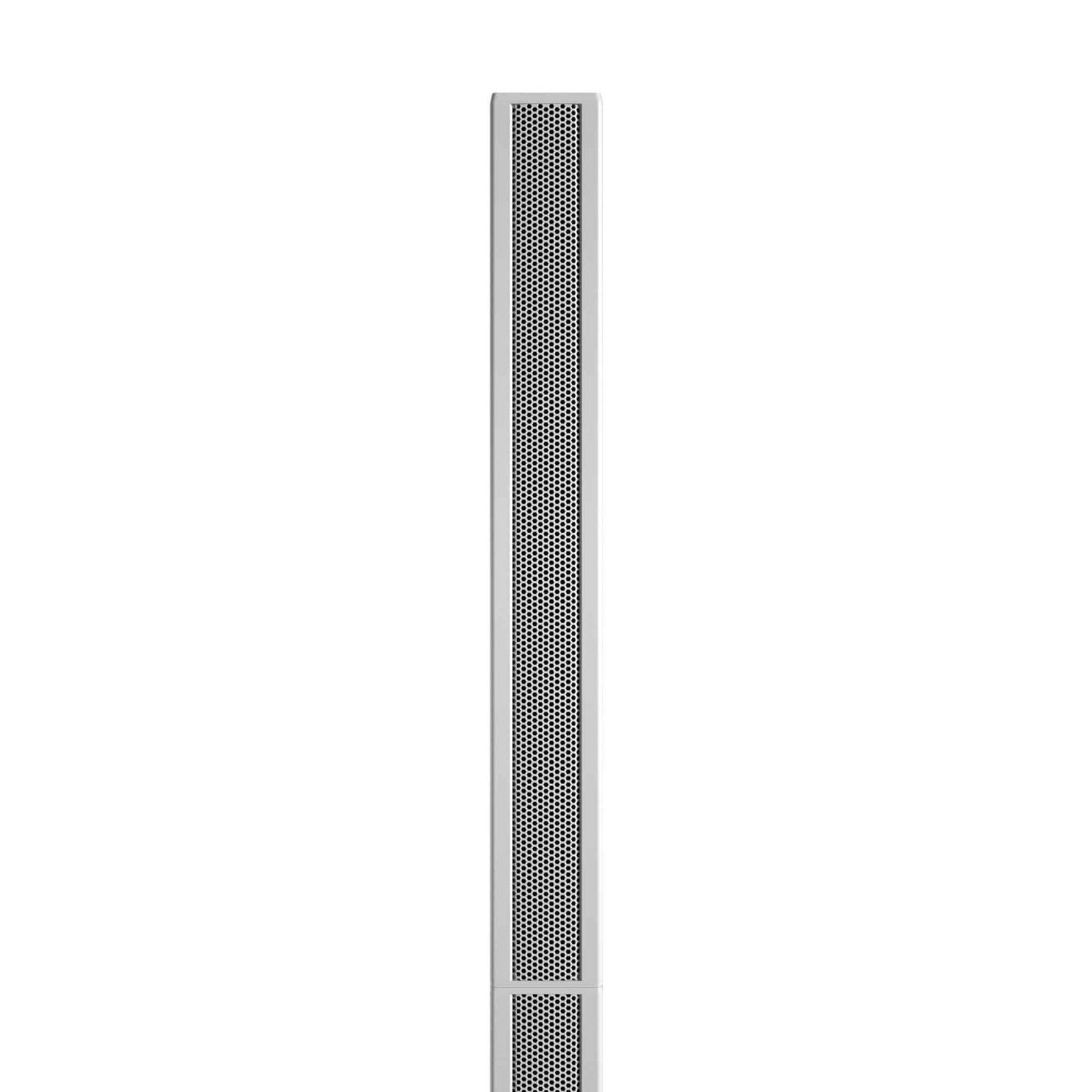

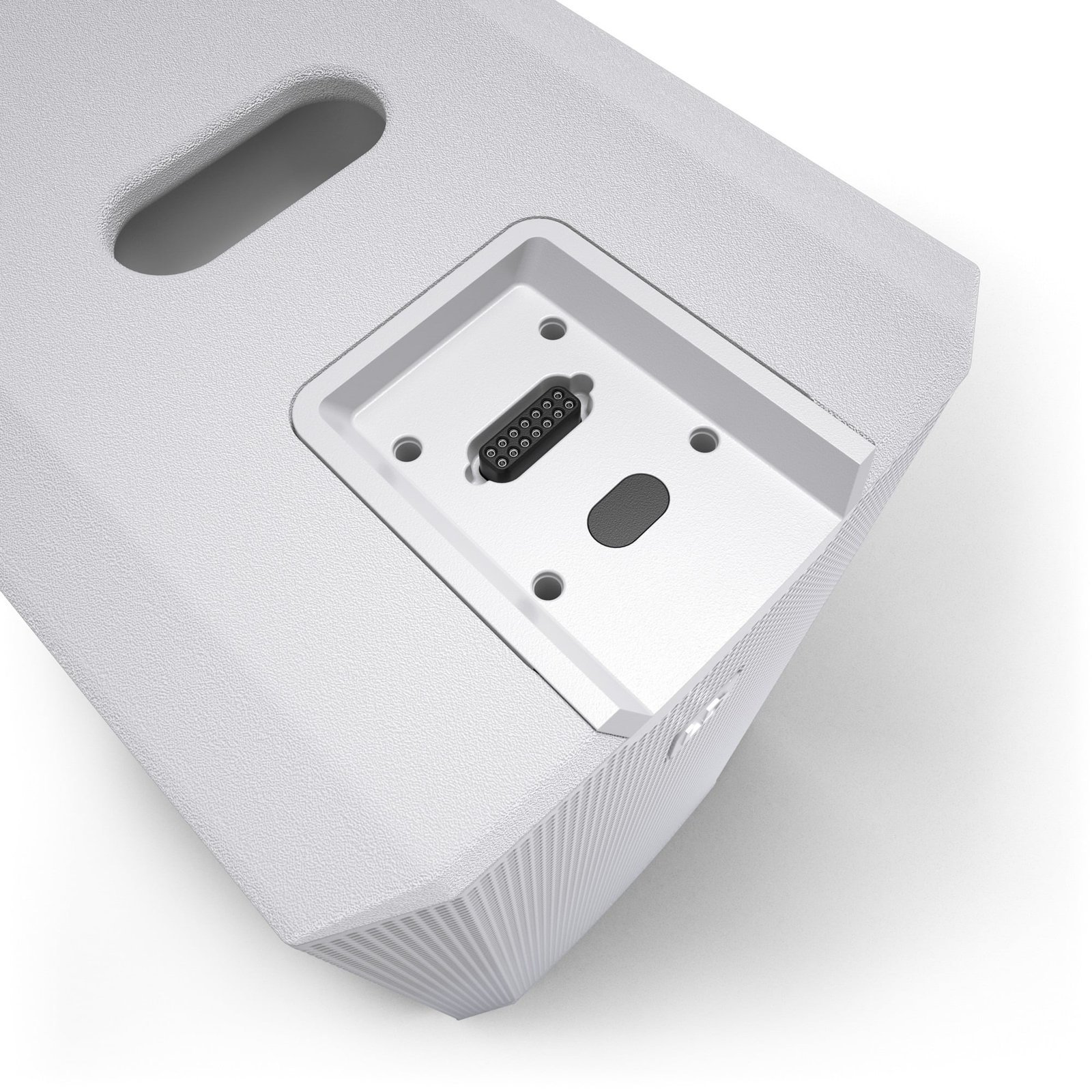

Midrange dimensions : 6 x 3.5 “Midrange dimensions (mm) : 6 x 89 mmMidrange magnet : FerriteMidrange brand  : Custom-madeMidrange voice coil : 0.75 “Midrange voice coil : 19 mmTweeter dimensions : 2 x 1 “Tweeter dimensions (mm) : 2 x 25.4 mmTweeter magnet : NeodymiumTweeter brand : Custom-madeTweeter voice coil  : 1 “Tweeter voice coil (mm) : 25.4 mmWave Guide : CD WaveguideLoudspeaker inputs : 1Speaker input connections : Custom-made multipinCabinet construction mid/high : Passive CardioidMid/Hi system cabinet material : AluminiumMid/Hi system cabinet surface : Powder-coatedMid/Hi system width : 103 mmMid/Hi system height : 1460 mmMid/Hi system depth : 135 mmMid/Hi system weight : 10.2 kg

Amplifier module (integrated in subwoofer)

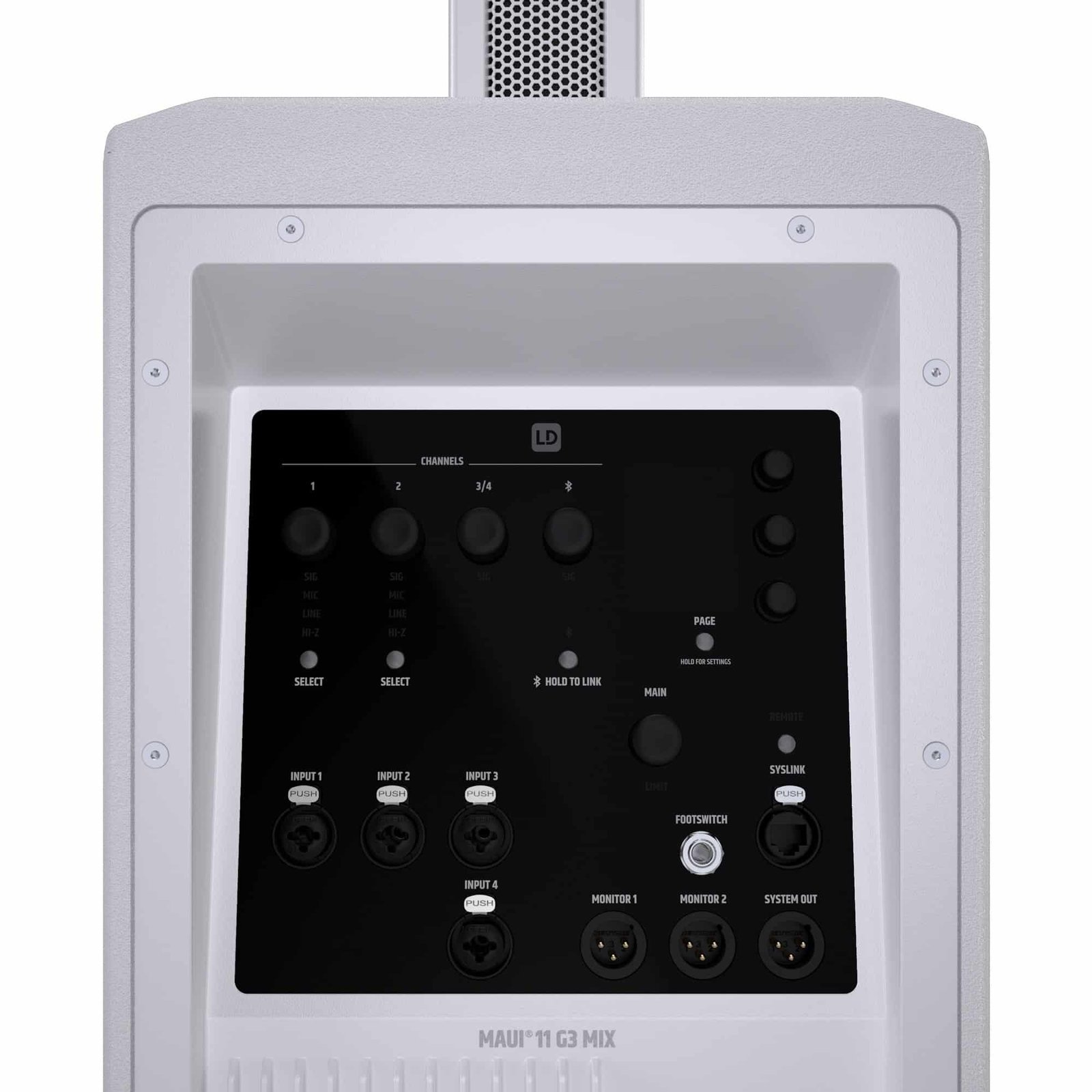

Amplifier : Class DSystem output (RMS) : 730 WSystem output (Peak) : 1460 WProtection circuits : DC protection, Multiband limiter, Short circuit, Thermal protectionCooling : ConvectionControls : Bluetooth HOLD TO LINK button, Cardioid On/Off, Main level, Power On/Off, Sub levelIndicators : Bluetooth, Cardioid On/Off, Follower mode, Limit, Power, Protect (protection circuit engaged), Signal, Subwoofer ModeMains connector : PowerConOperating voltage : 100 V AC – 120 V AC, 50 – 60 Hz, 220 V AC – 240 V AC, 50-60 HzFuse : T 3.15AL / 250 VPower consumption : 300 WAmbient temperature (operating) : 0 – 40 °CRelative Humidity : < 80% (non-condensing)Line Inputs : 4, FootswitchLine Input Connectors : Combo XLR / TRSLine Outputs : 1 System OUT, 2 Monitor OUTLine Output Connectors : XLR maleNumber of speaker outputs : 1Loudspeaker Output Connectors : Custom-made multipinBluetooth Standard : A2DPBluetooth Audio Decoder :  SBCOther Connections : 1 RJ45 SysLink® Port

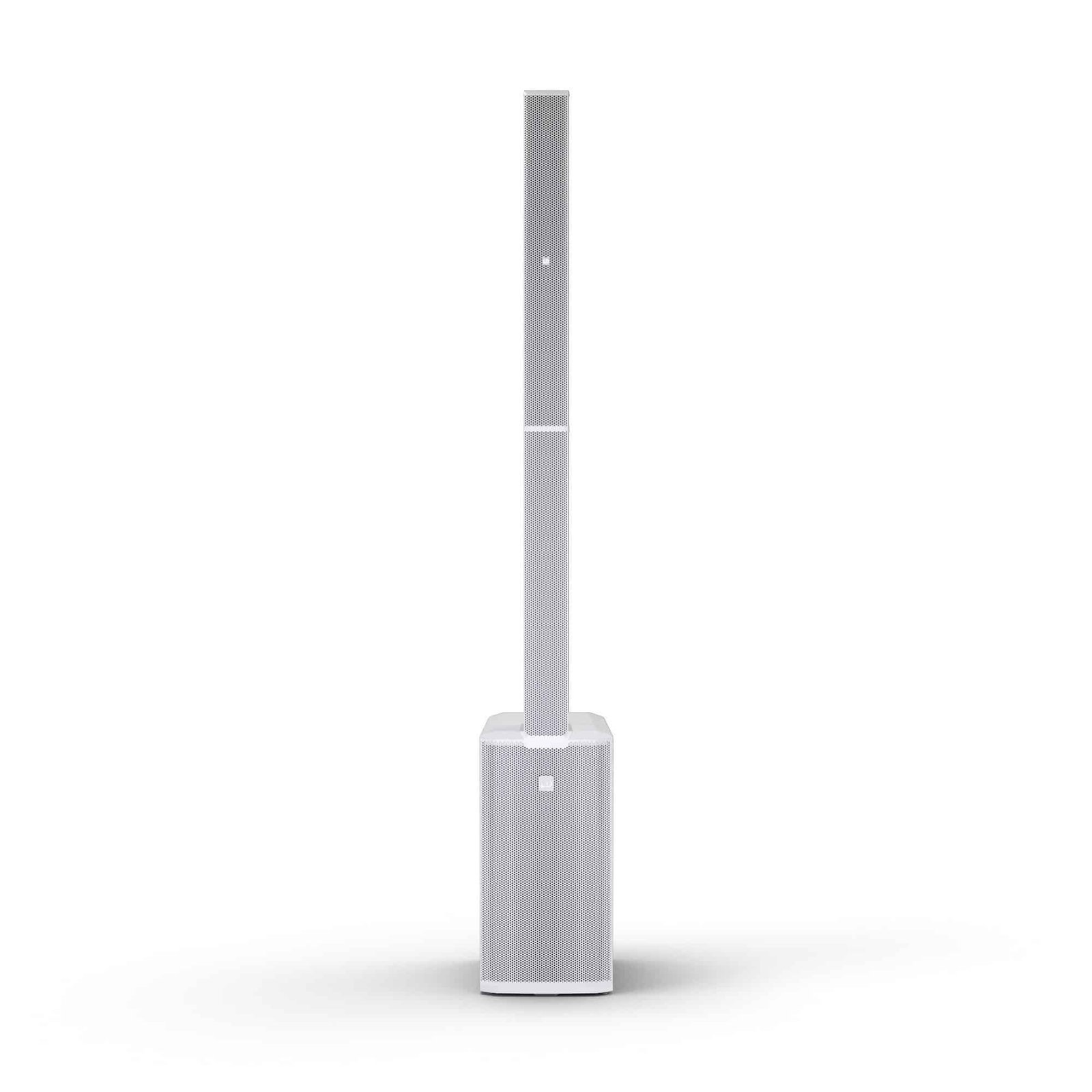

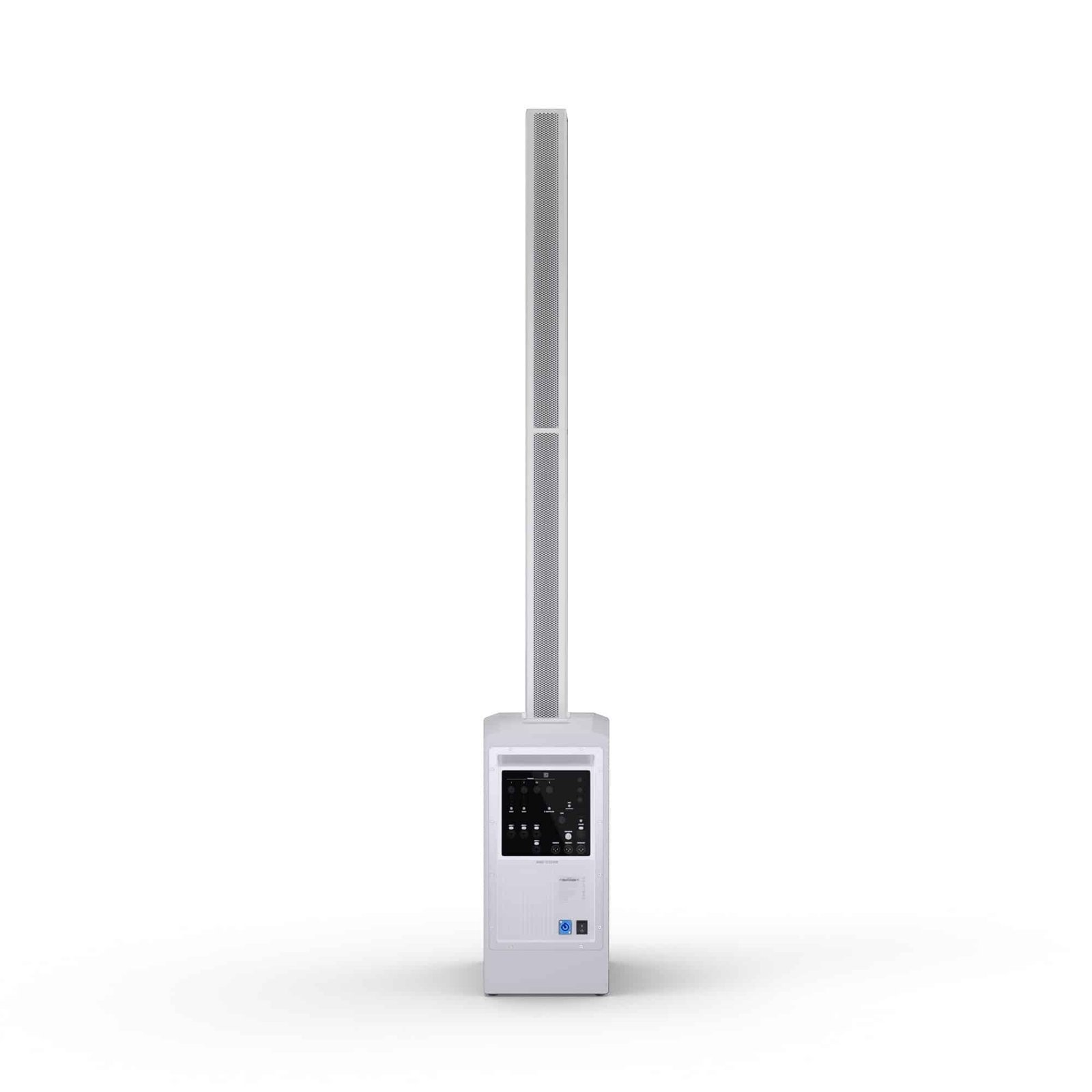

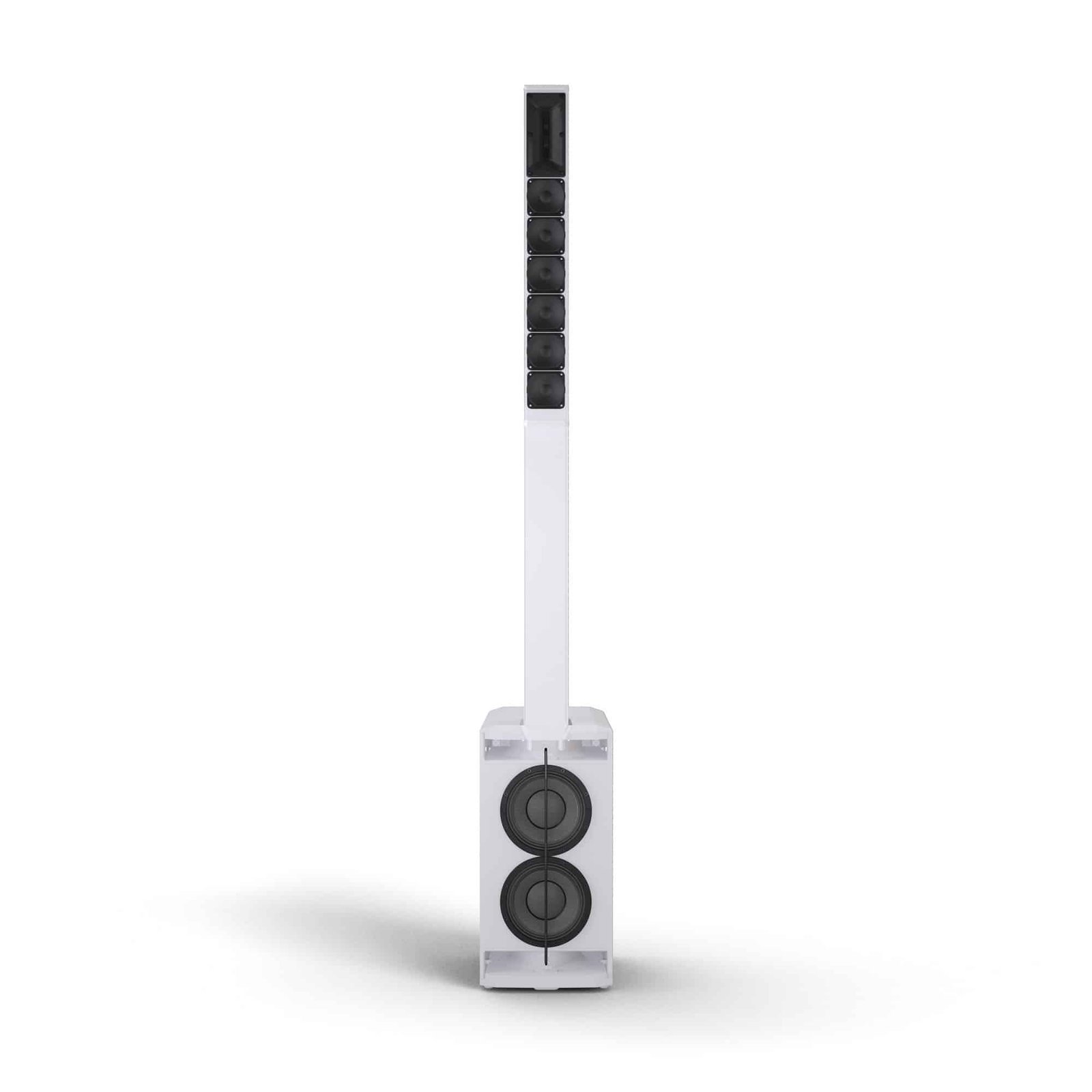

When delivering professional sound in any setting, having a reliable, versatile, and powerful PA system is essential. The LD System Portable Cardioid Column PA System in white offers a comprehensive solution designed to meet the demands of musicians, event organizers, and audio professionals who require exceptional sound clarity, ease of use, and flexible control options. Whether you are performing at a live event, hosting a corporate presentation, or managing a public address, this system ensures your audio reaches the audience with precision and impact.

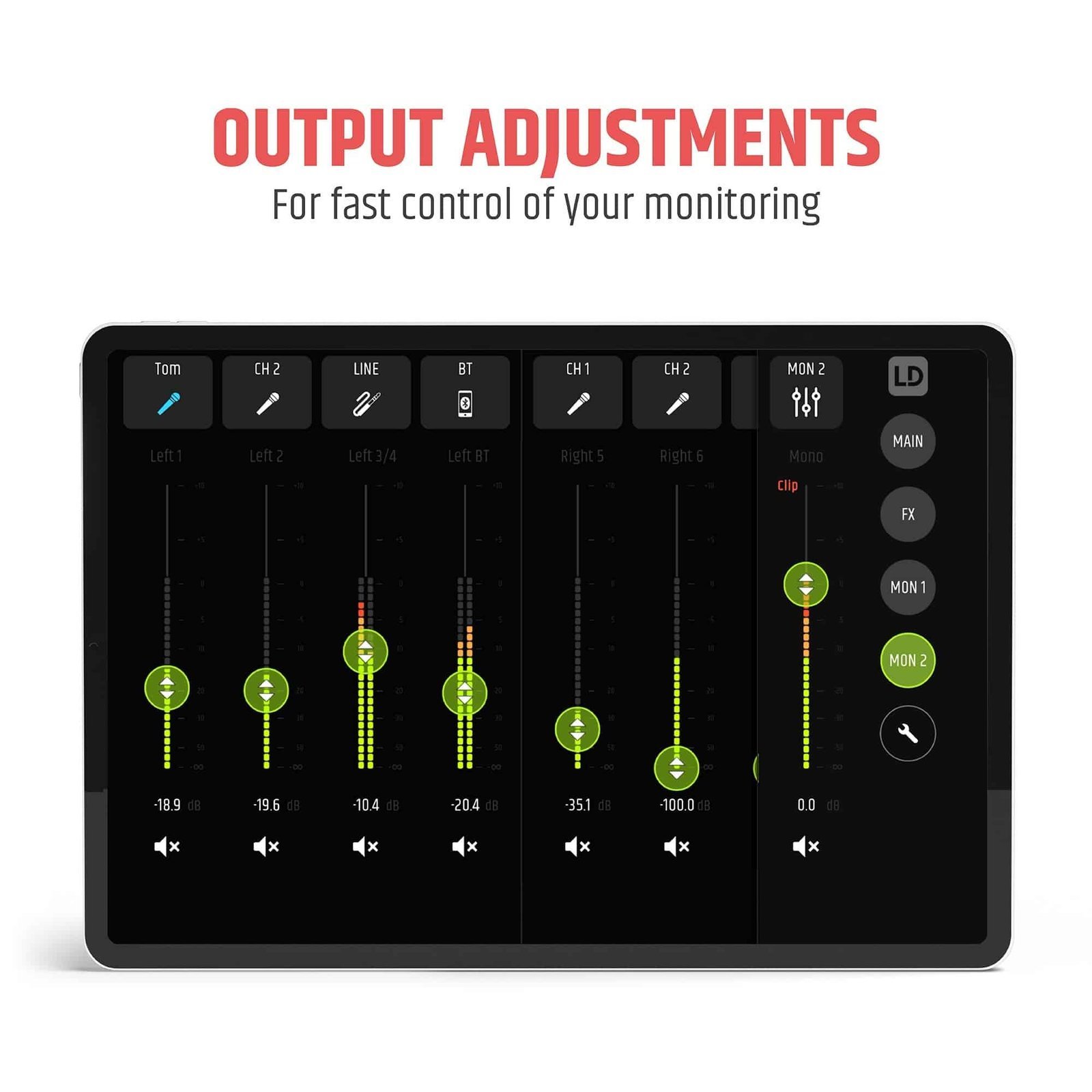

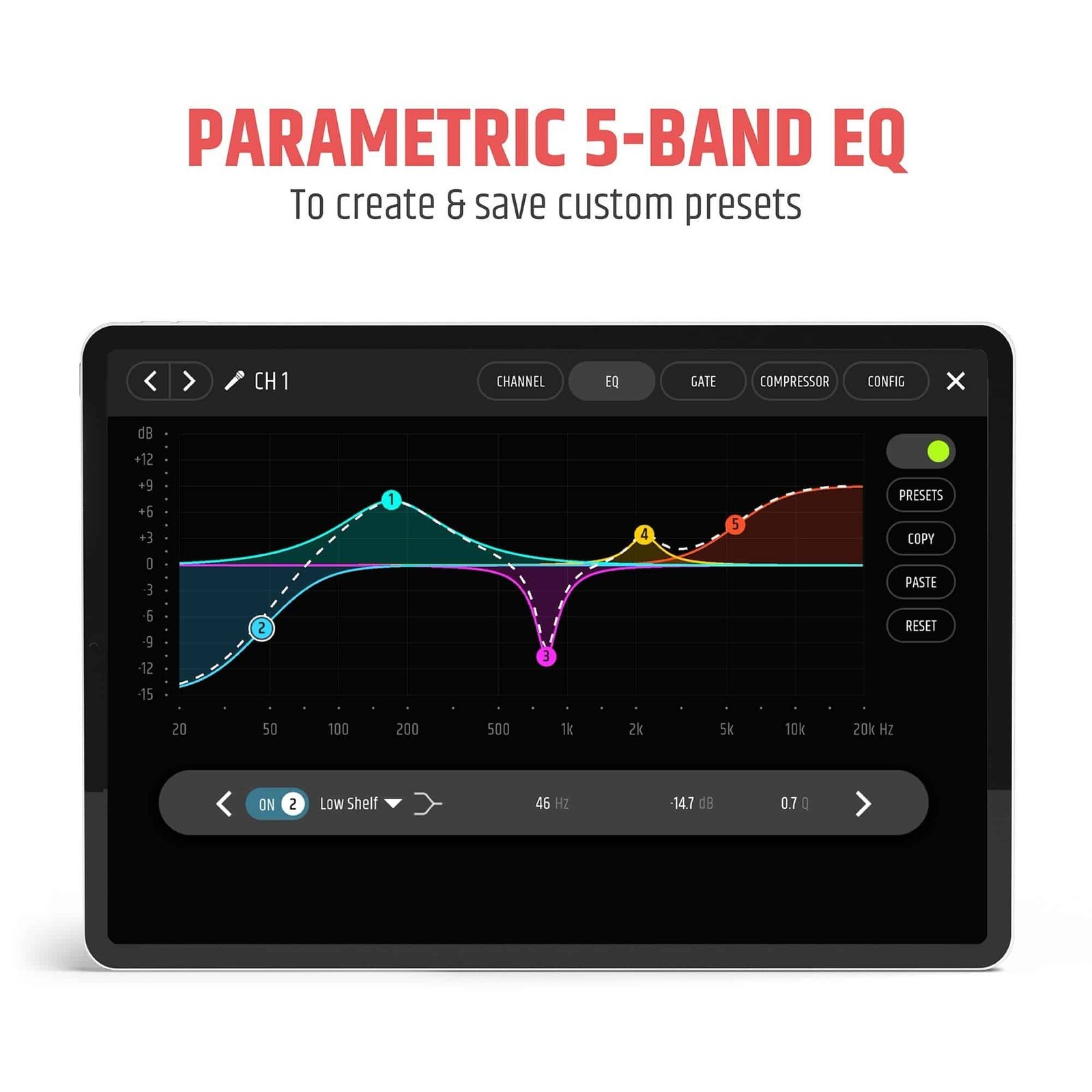

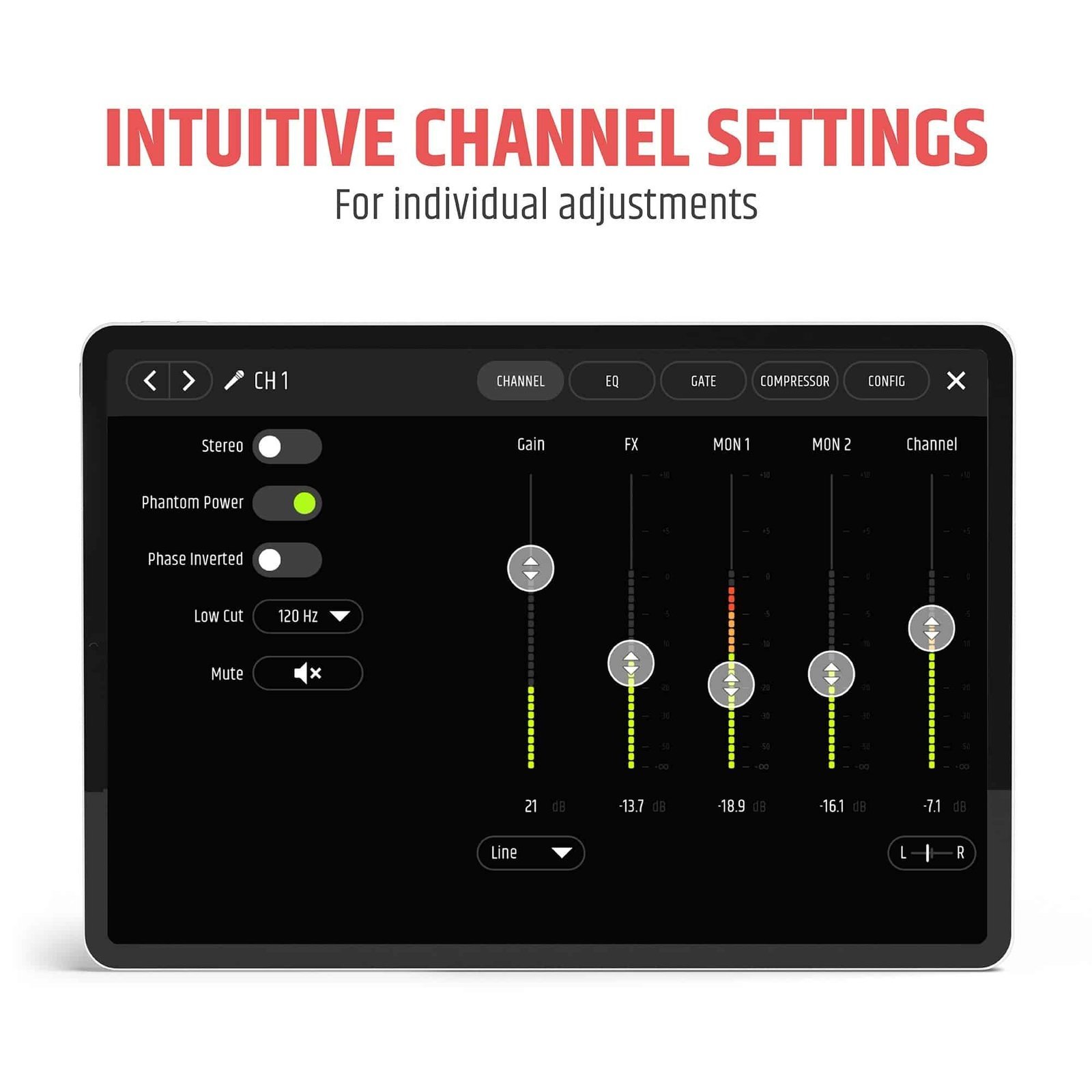

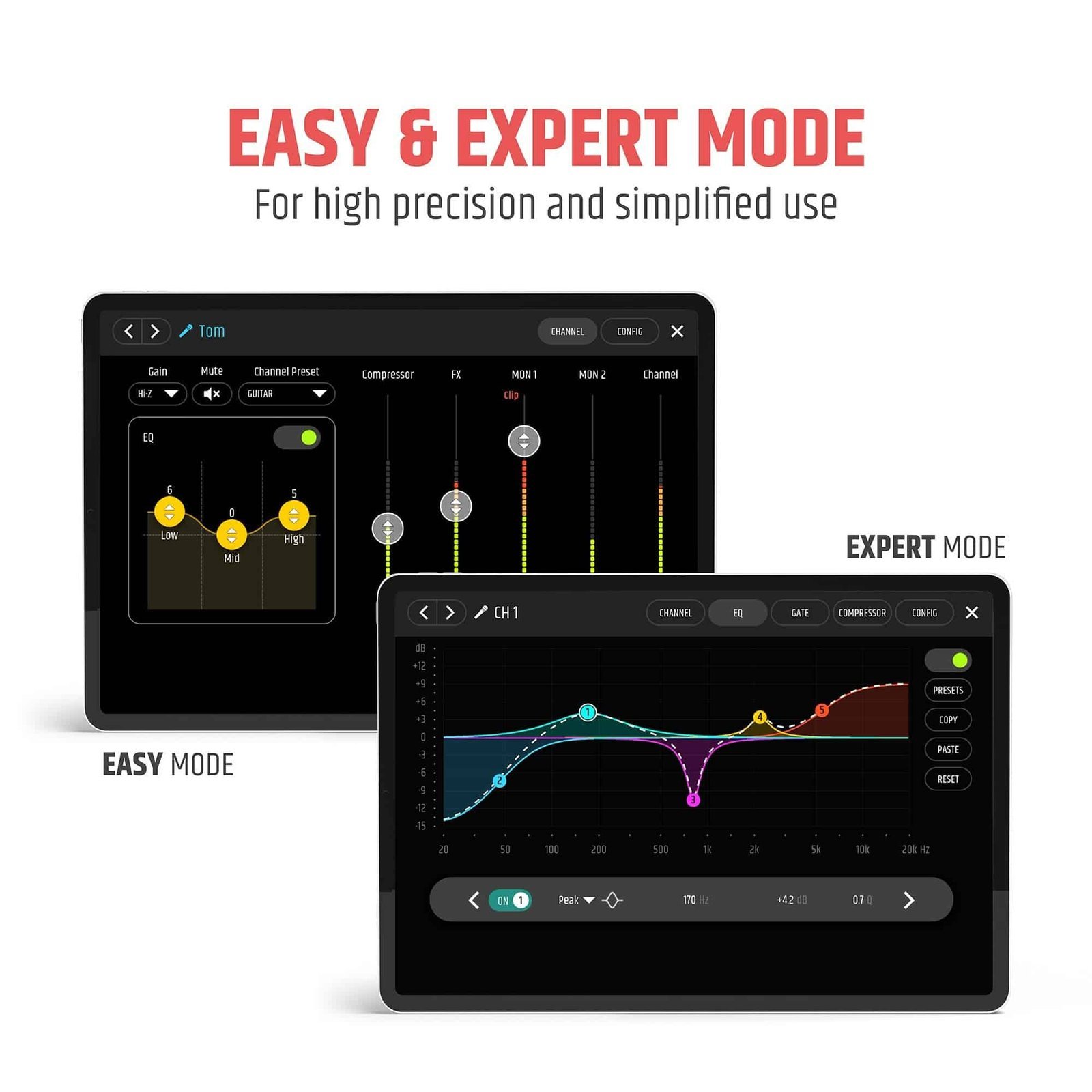

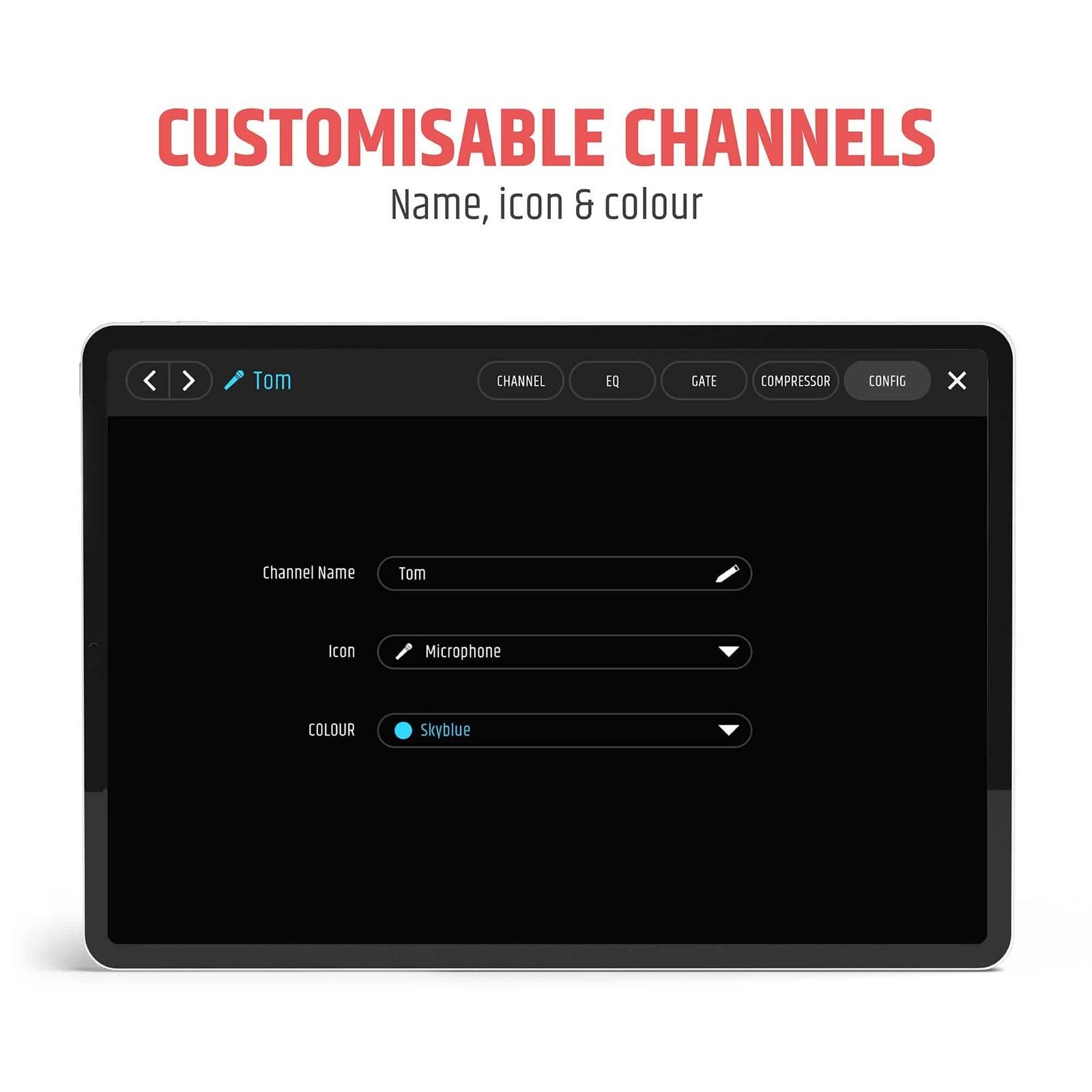

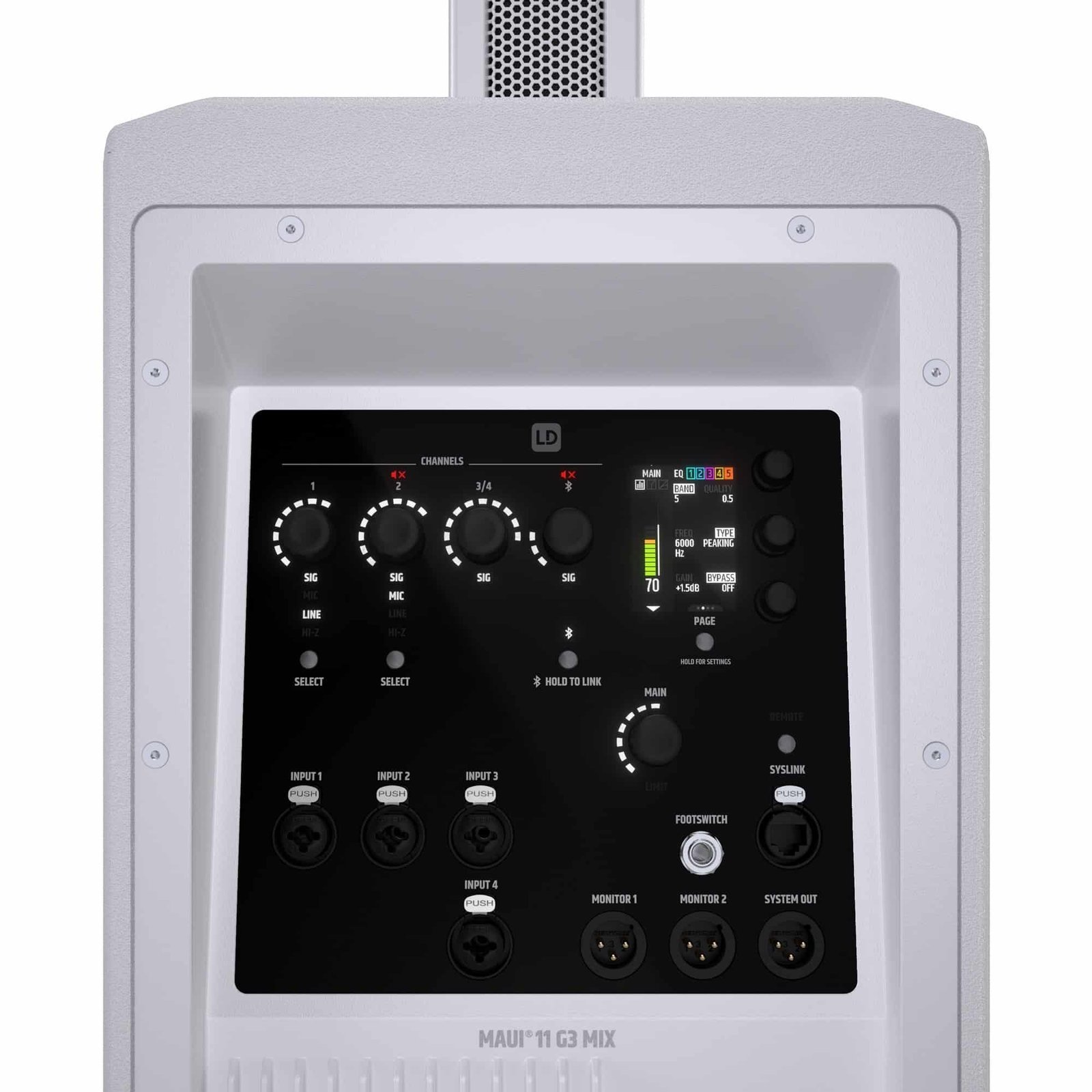

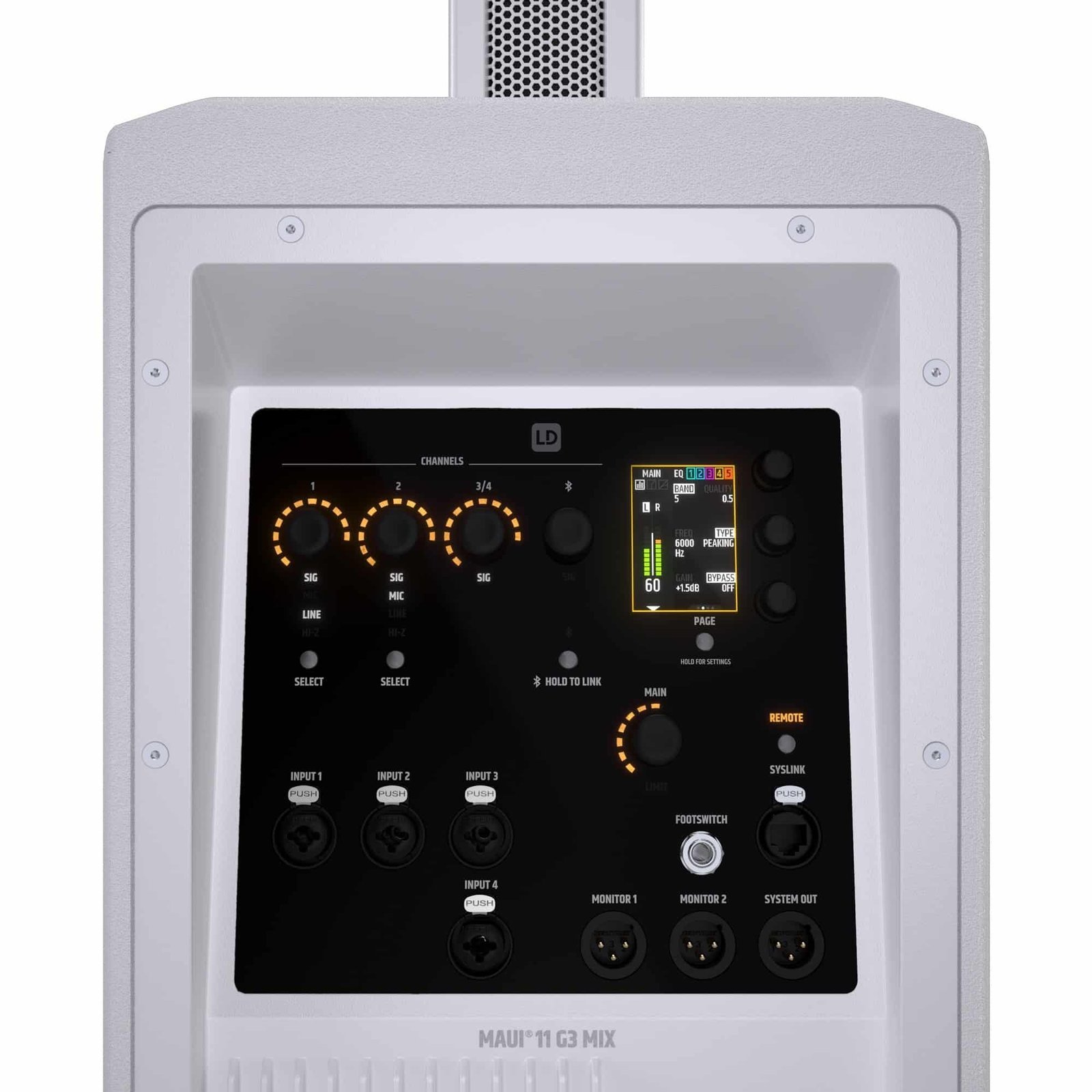

One of the standout features of this PA system is its integrated 6-channel digital mixer with app control, providing users with unprecedented control over their sound. The inclusion of both Easy and Expert modes in the app allows beginners and seasoned professionals alike to tailor the audio settings effortlessly. This means you can fine-tune your mix on the fly from your smartphone or tablet without needing additional hardware, saving time and simplifying setup. The Bluetooth audio streaming functionality further enhances convenience by allowing wireless playback from your devices, eliminating clutter and enabling seamless integration of background music or audio tracks into your live mix.

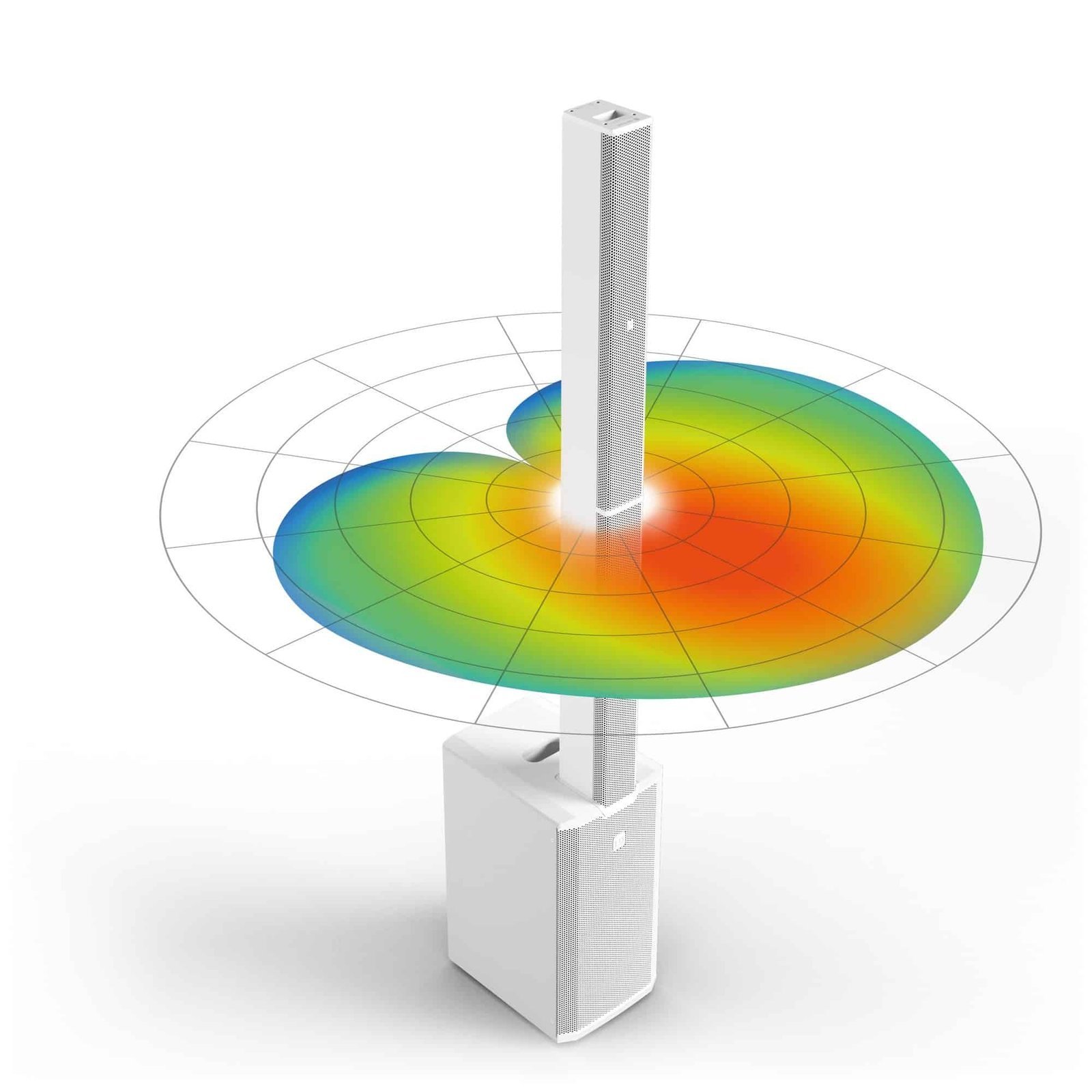

The system’s cardioid column design is engineered to focus sound projection forward while minimizing unwanted noise and feedback from behind the speakers. This translates to clearer vocals and instruments, particularly in challenging acoustic environments where sound reflections can muddy the mix. With a maximum peak SPL of 125 dB, the system delivers powerful volume levels capable of filling medium to large venues while maintaining crystal-clear audio fidelity across the entire frequency range from 39 Hz to 20,000 Hz. The wide horizontal dispersion of 120° and vertical dispersion of 30° ensure that sound covers a broad audience area evenly, making it ideal for both indoor and outdoor use.

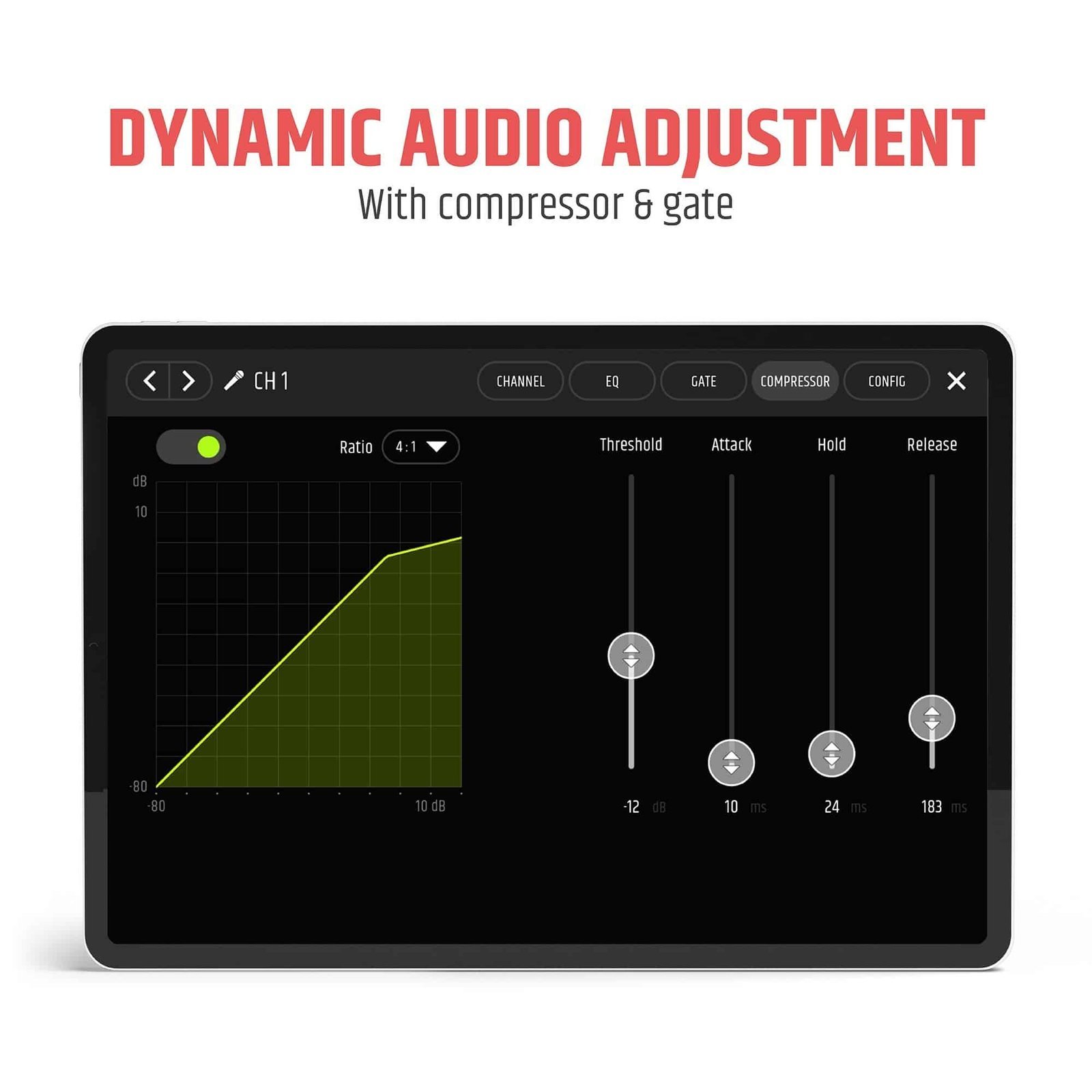

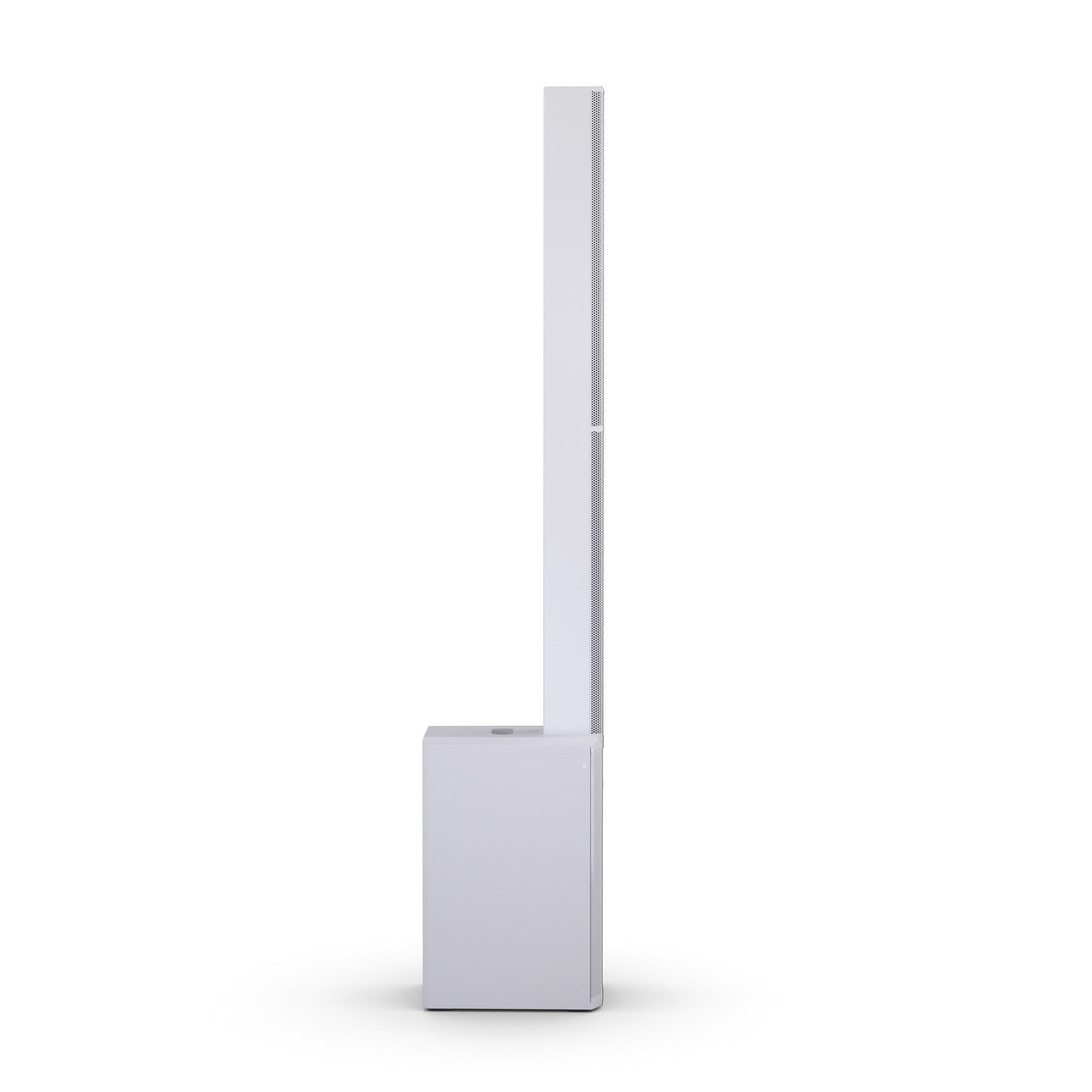

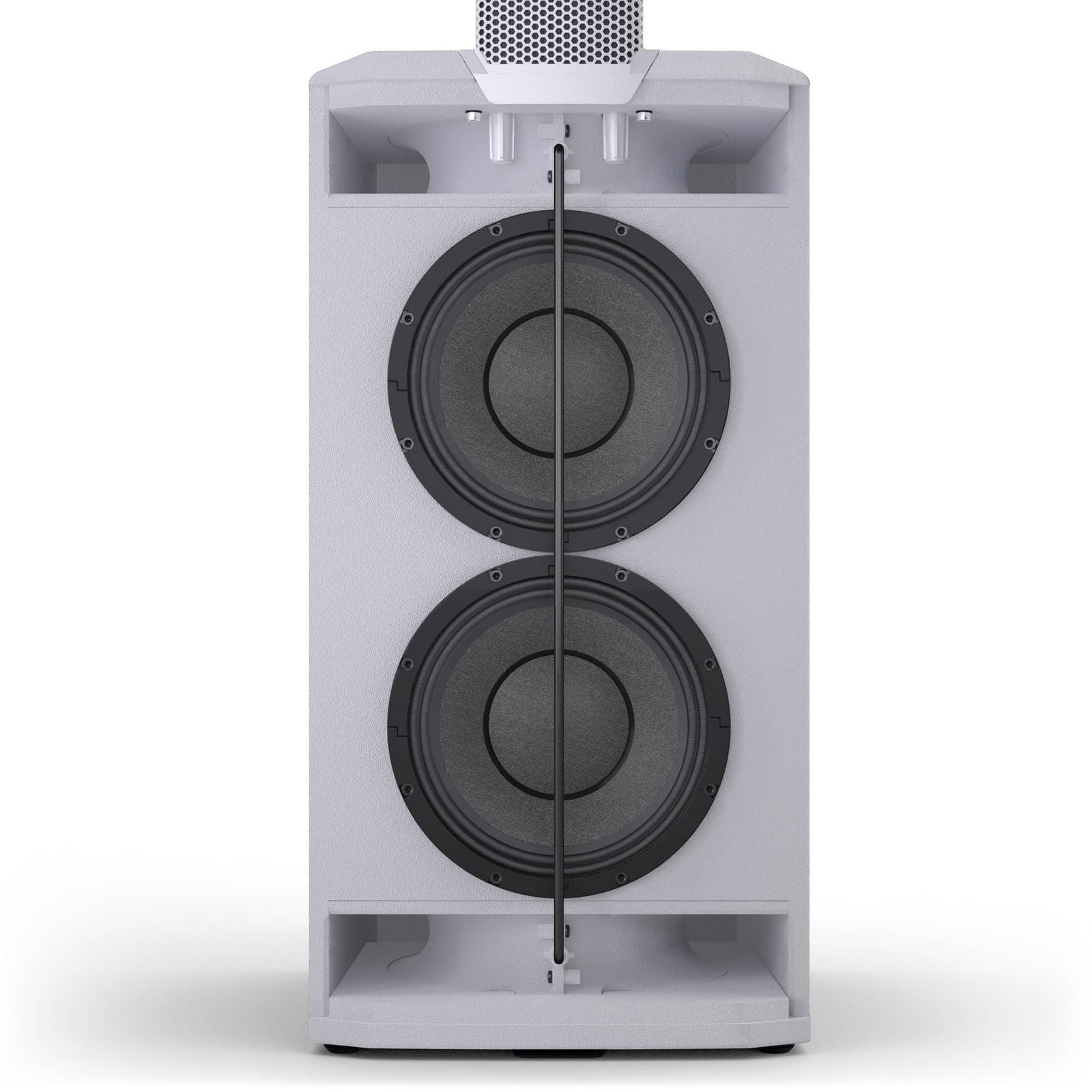

Built for durability and portability, the PA system features a robust cabinet constructed from 15 mm birch plywood with a protective polyurea surface, ensuring it withstands the rigors of frequent transport and setup. The bass reflex design and two custom-made 8-inch woofers with 2-inch voice coils deliver deep, punchy lows that enrich the overall sound quality. Weighing 31.5 kg in total and standing 2052 mm tall, it balances substantial power with manageable portability. Additionally, the footswitch input provides hands-free control options, and the onboard effects and dynamics processors allow you to add professional-grade audio enhancements without external equipment.

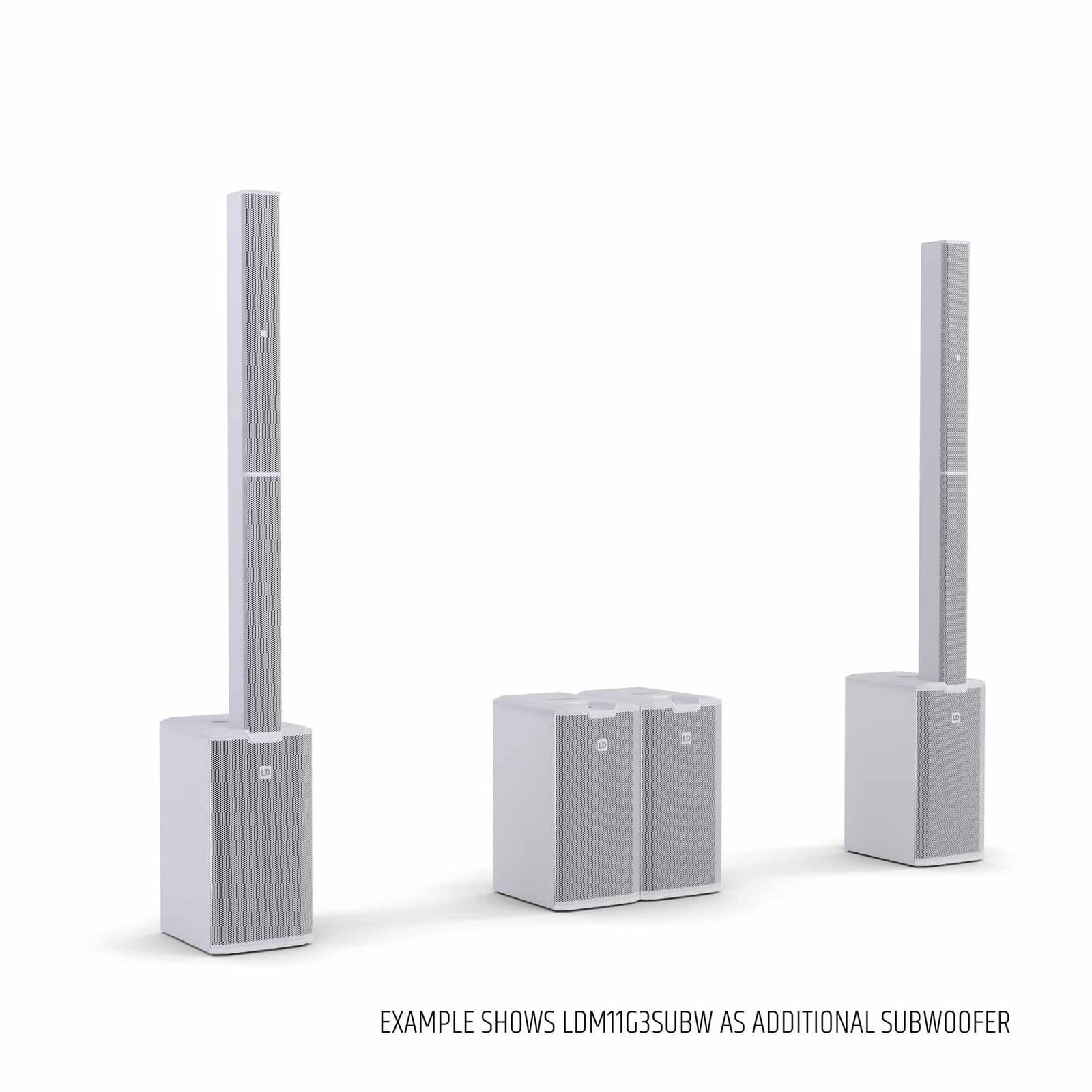

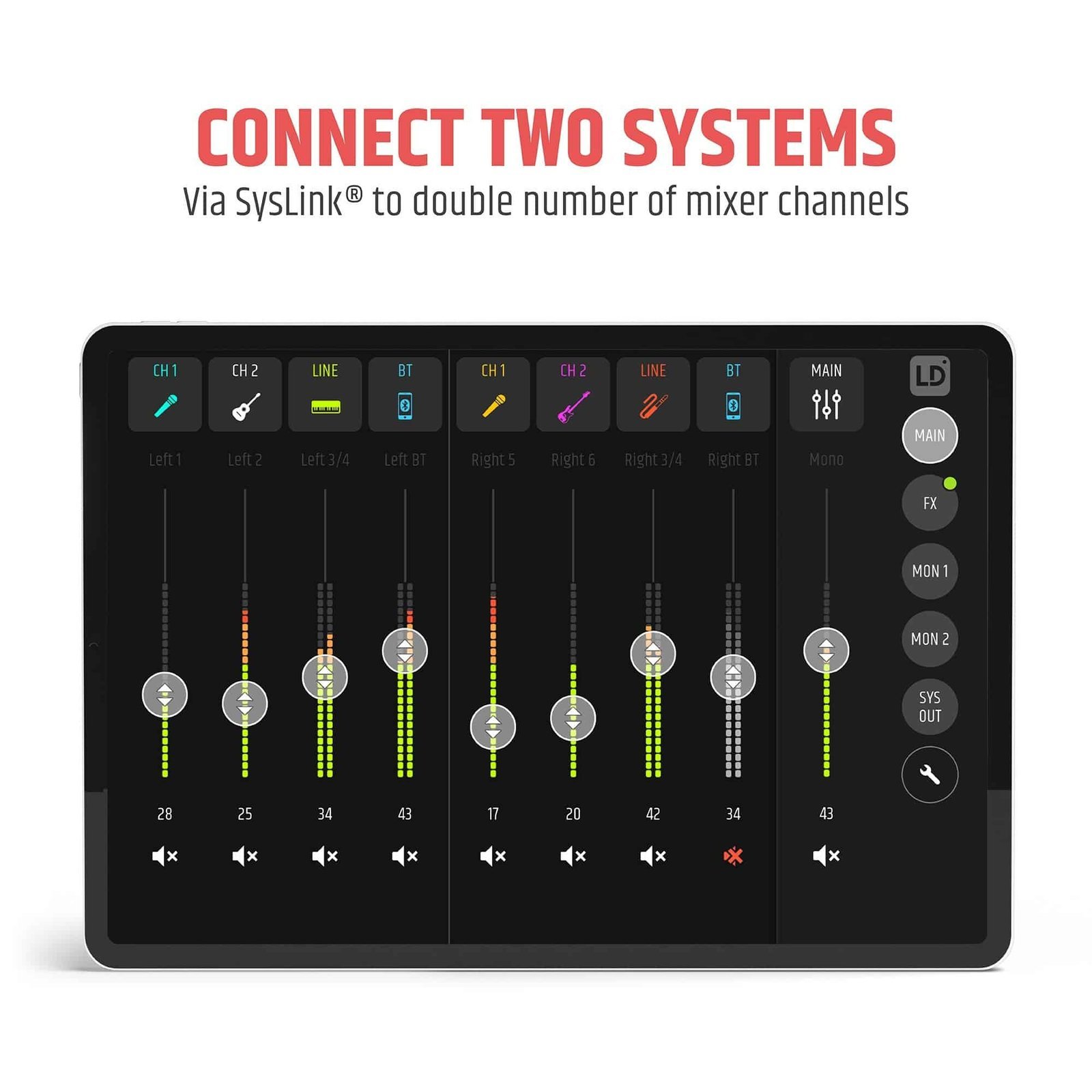

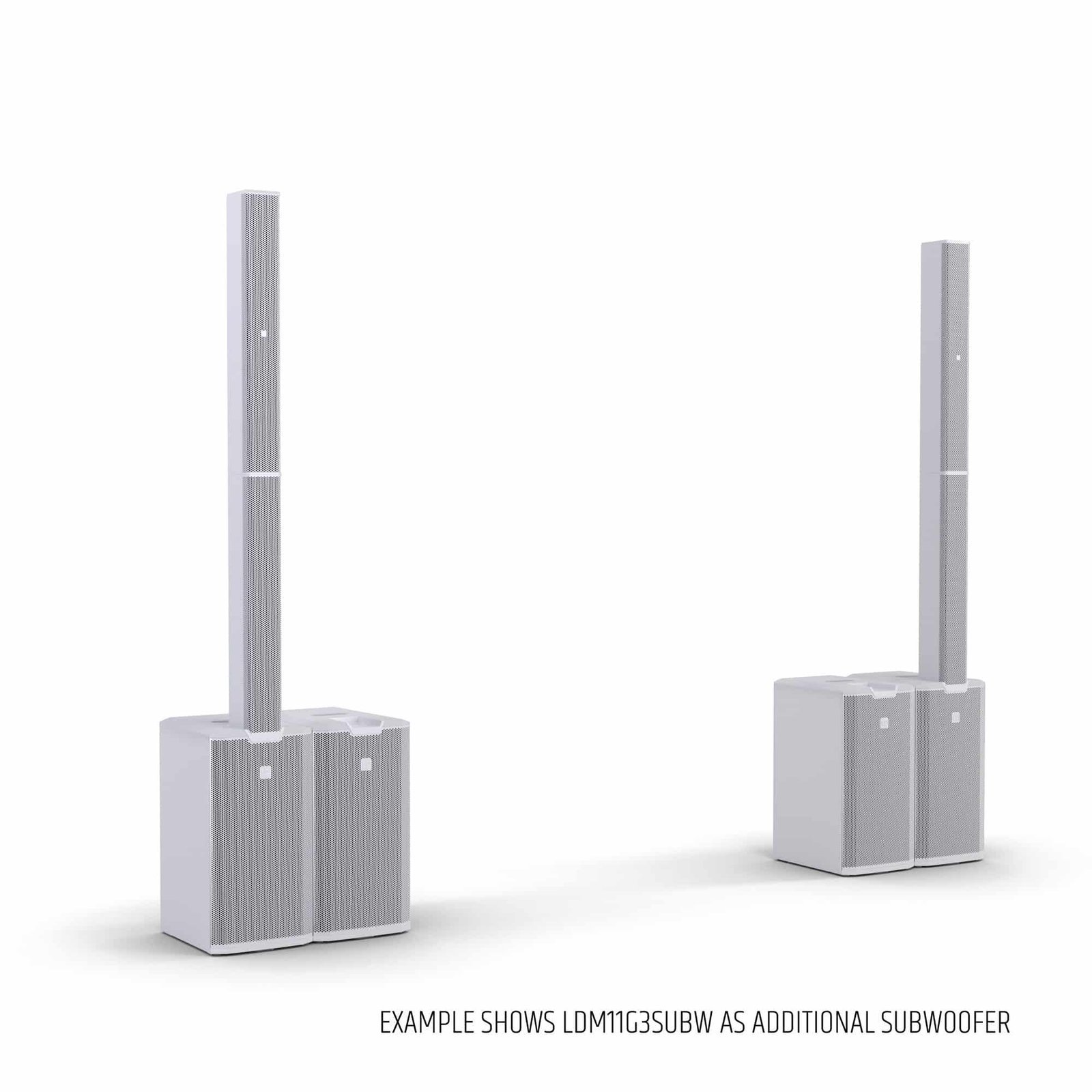

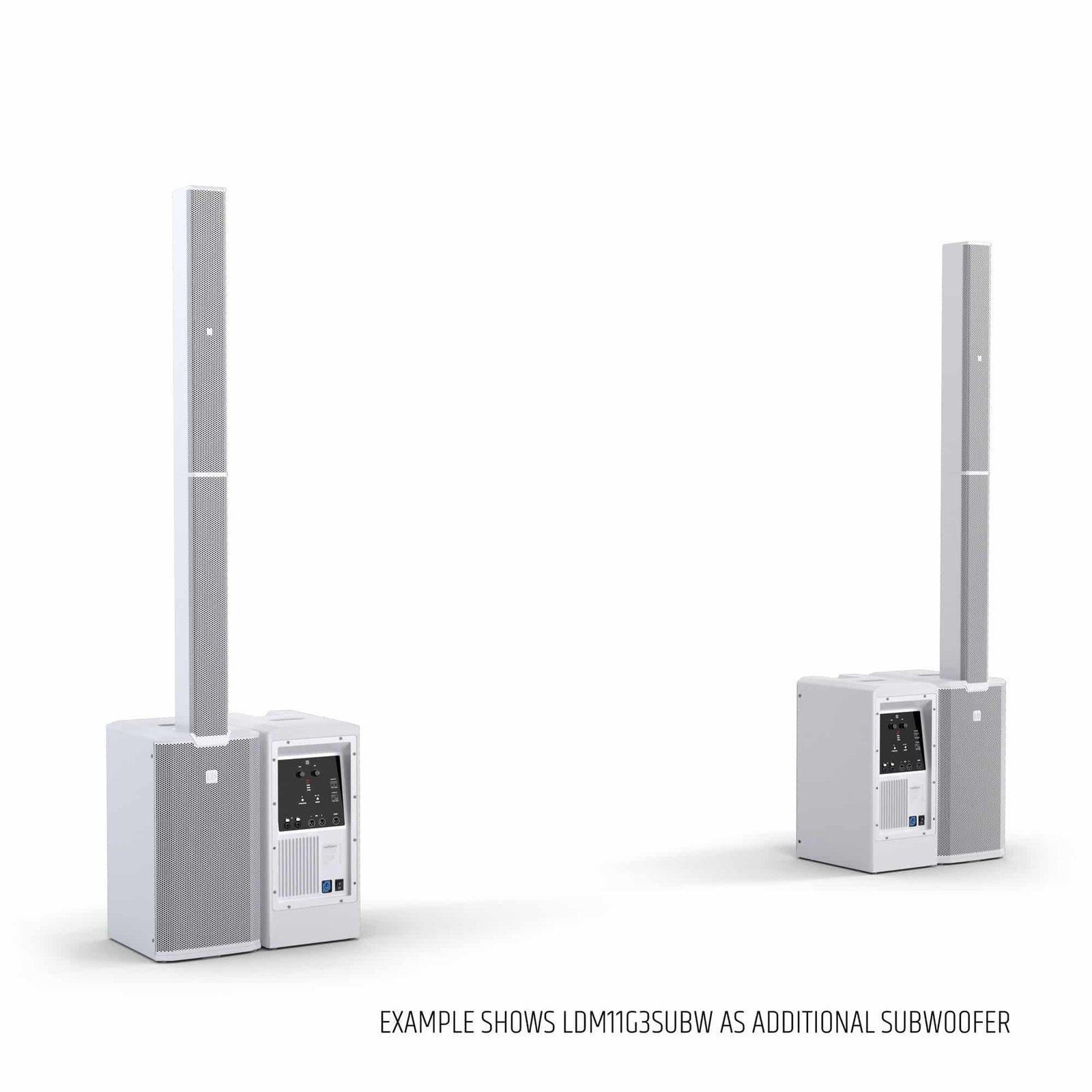

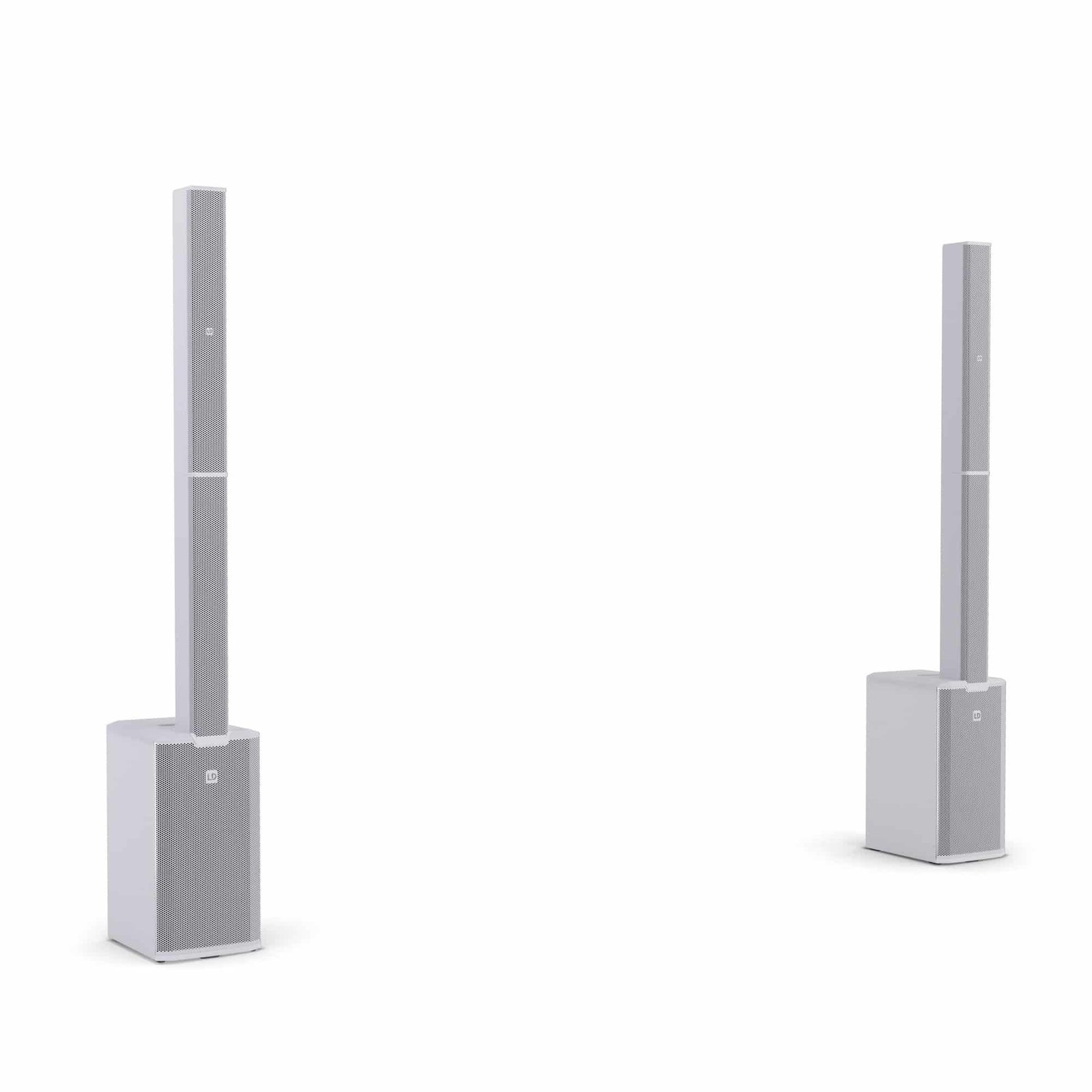

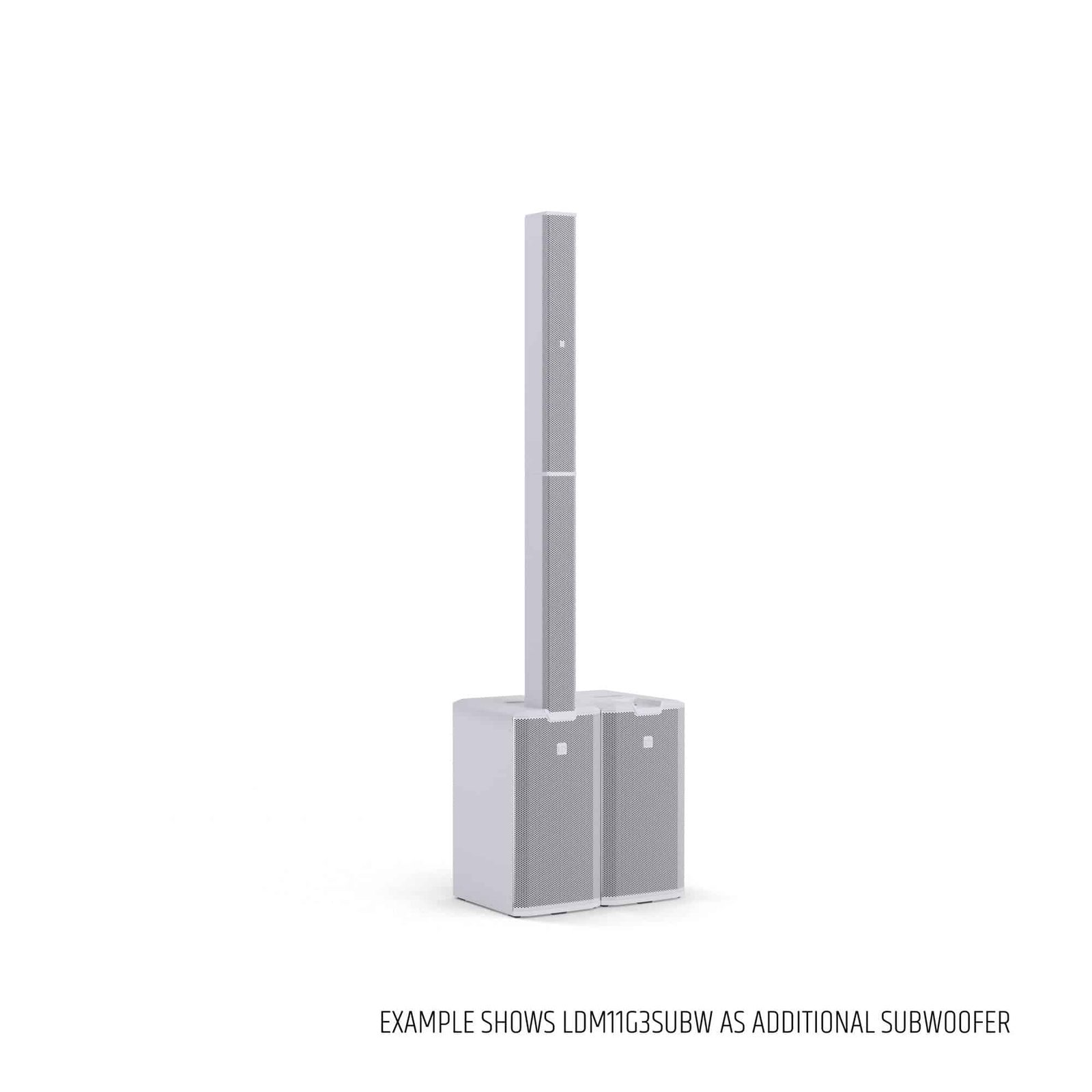

The system’s Sys Link® feature enables cascading of two systems, making it scalable for larger events that require extended coverage. This flexibility allows users to expand their setup without compromising sound consistency or control. Practical dimensions of the subwoofer (305 x 607 x 403 mm) and its weight of 21.3 kg mean the subwoofer can be positioned discreetly while contributing powerful bass performance crucial for a full-range audio experience.

Ideal for live music performances, corporate events, conferences, and DJ sets, the LD System Portable Cardioid Column PA System combines professional sound quality with intuitive operation and rugged construction. Its comprehensive feature set empowers users to deliver clear, impactful audio effortlessly, whether in small venues or larger spaces. With a competitive price point of ₹227,700, it offers exceptional value for a complete, powered PA solution that integrates advanced technology and user-friendly design.

Confidently investing in the LD System Portable Cardioid Column PA System means you are equipped with a versatile, high-performance audio platform that adapts to your needs and elevates your sound delivery. From setup to performance, this system is engineered to provide reliability, clarity, and control, ensuring your audience experiences your audio exactly as intended every time.
