Mid/ Hi System

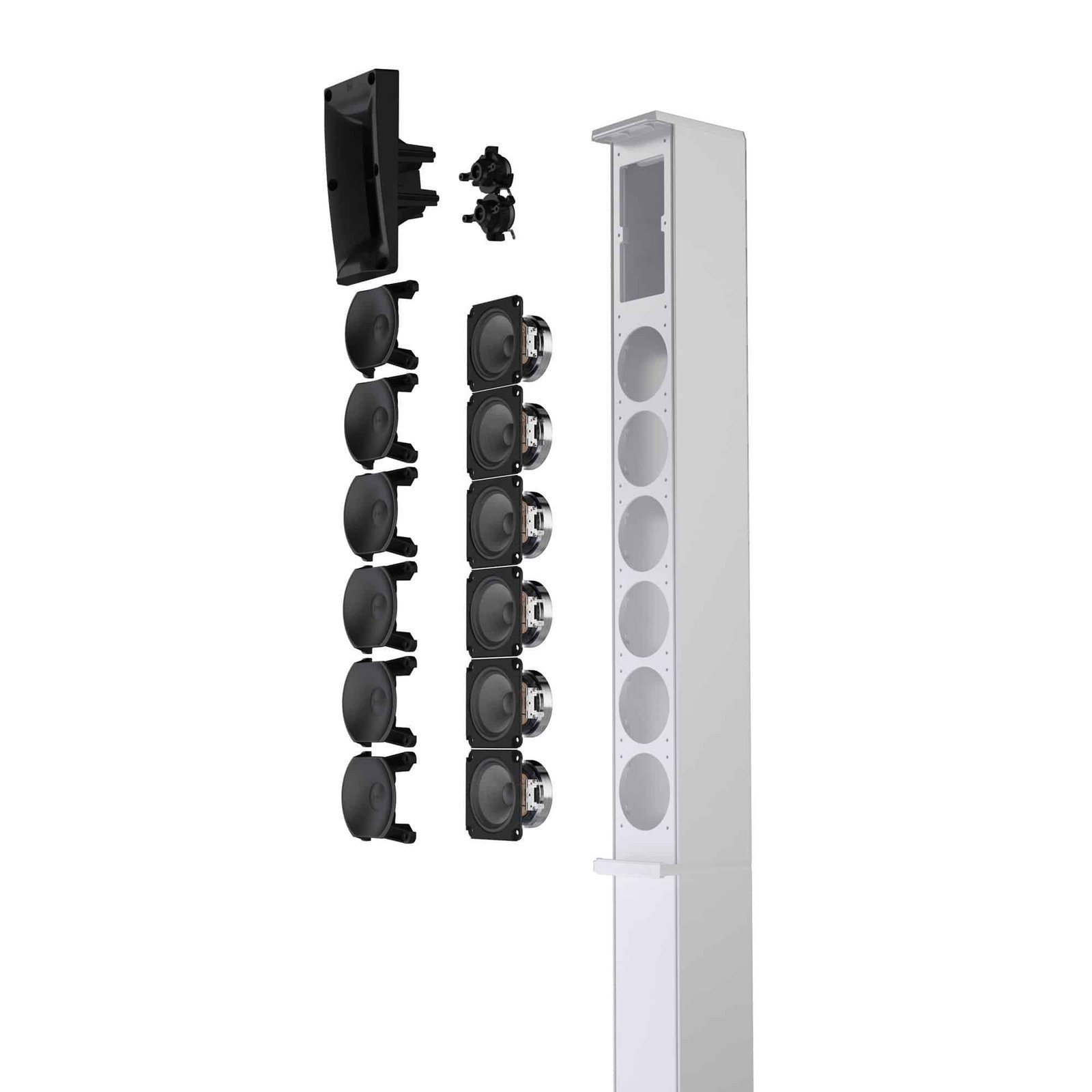

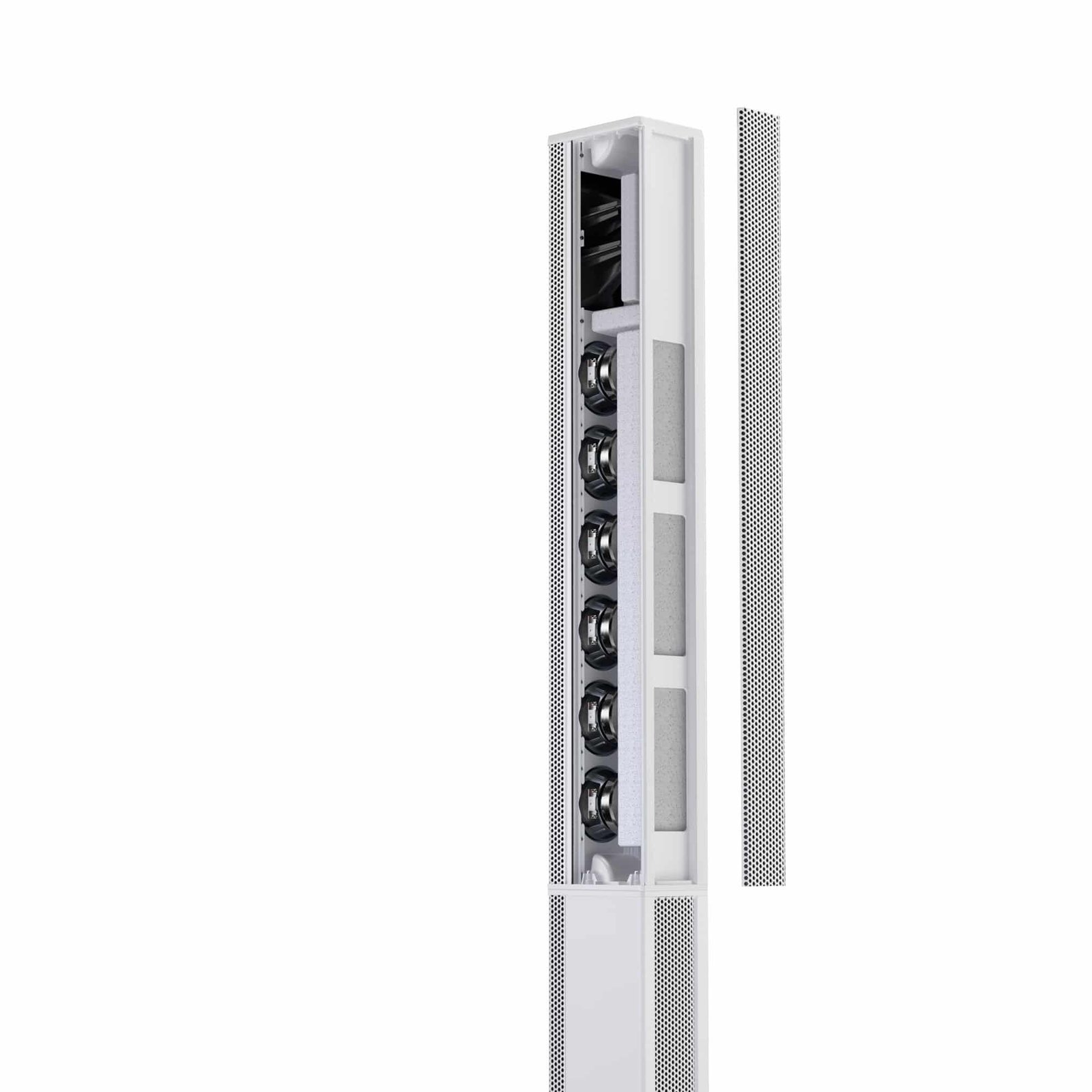

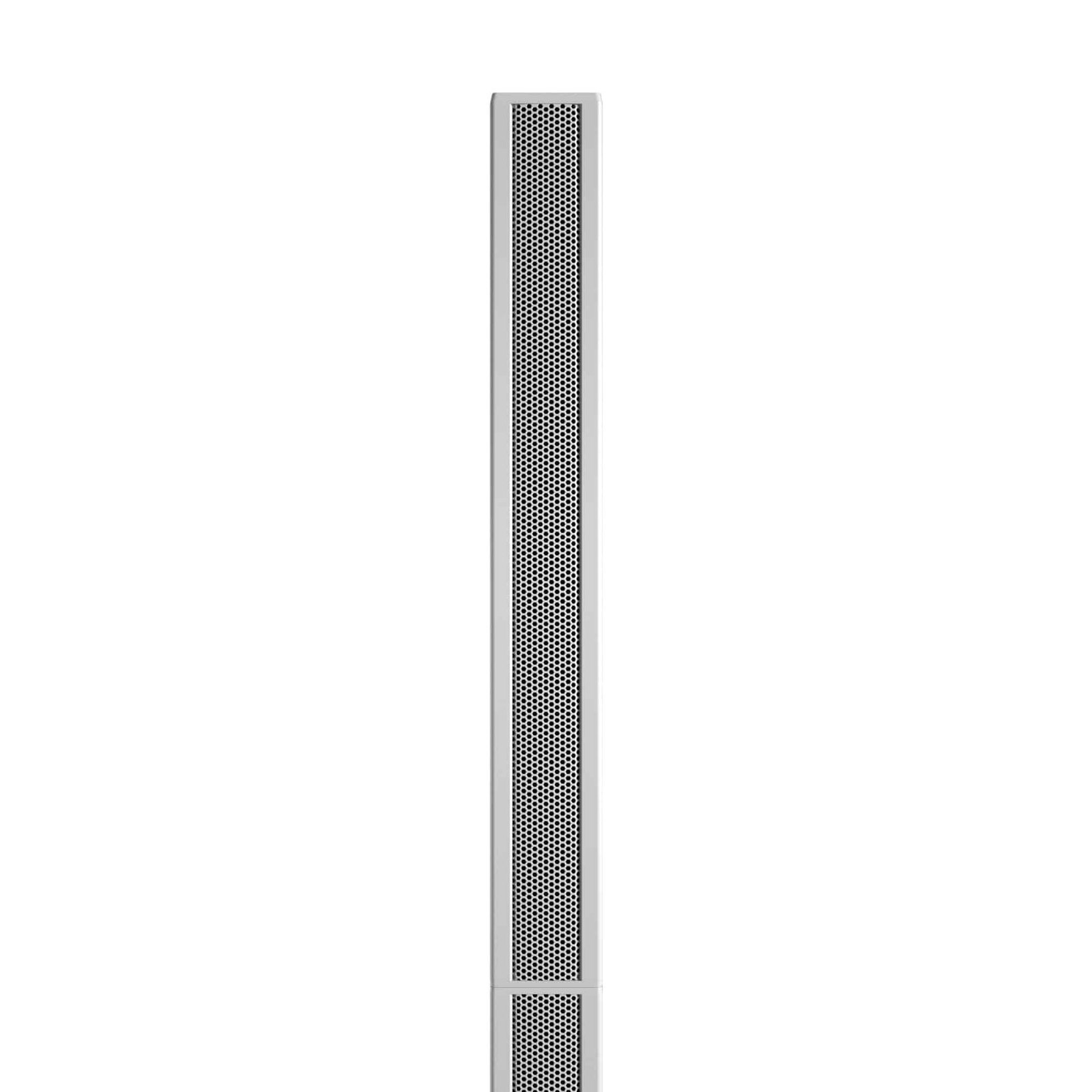

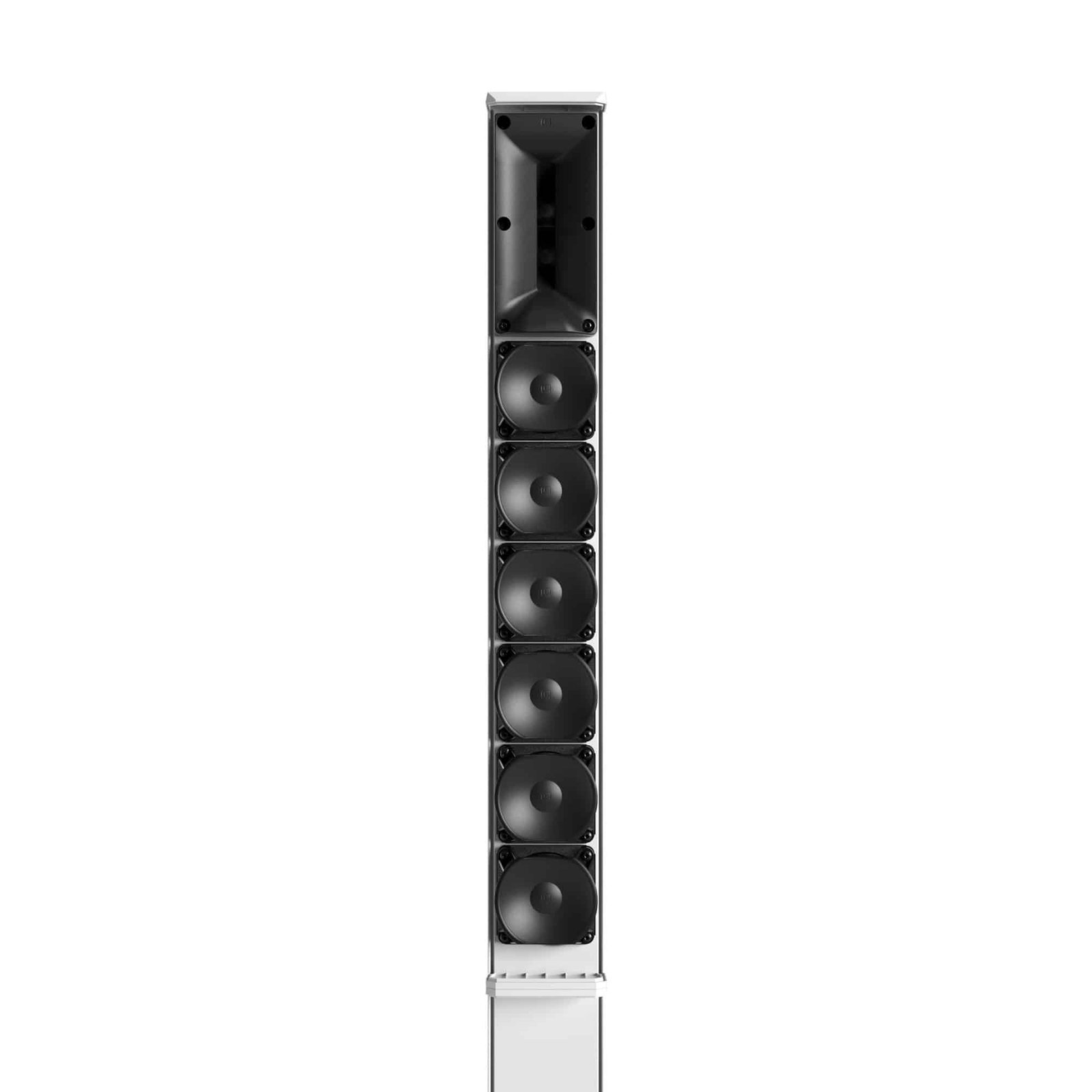

Midrange dimensions : 6 x 3.5 “Midrange dimensions (mm) : 6 x 89 mmMidrange magnet : FerriteMidrange brand: Custom-madeMidrange voice coil : 0.75 “Midrange voice coil : 19 mmTweeter dimensions : 2 x 1 “Tweeter dimensions (mm) : 2 x 25.4 mmTweeter magnet : NeodymiumTweeter brand : Custom-madeTweeter voice coil : 1 “Tweeter voice coil (mm) : 25.4 mmWave Guide : CD WaveguideLoudspeaker inputs  :  1Speaker input connections : Custom-made multipinCabinet construction mid/high : Passive CardioidMid/Hi system cabinet material : AluminiumMid/Hi system cabinet surface : Powder-coatedMid/Hi system width : 103 mmMid/Hi system height : 1460 mmMid/Hi system depth : 135 mmMid/Hi system weight : 10.2 kg

Amplifier module (integrated in subwoofer)

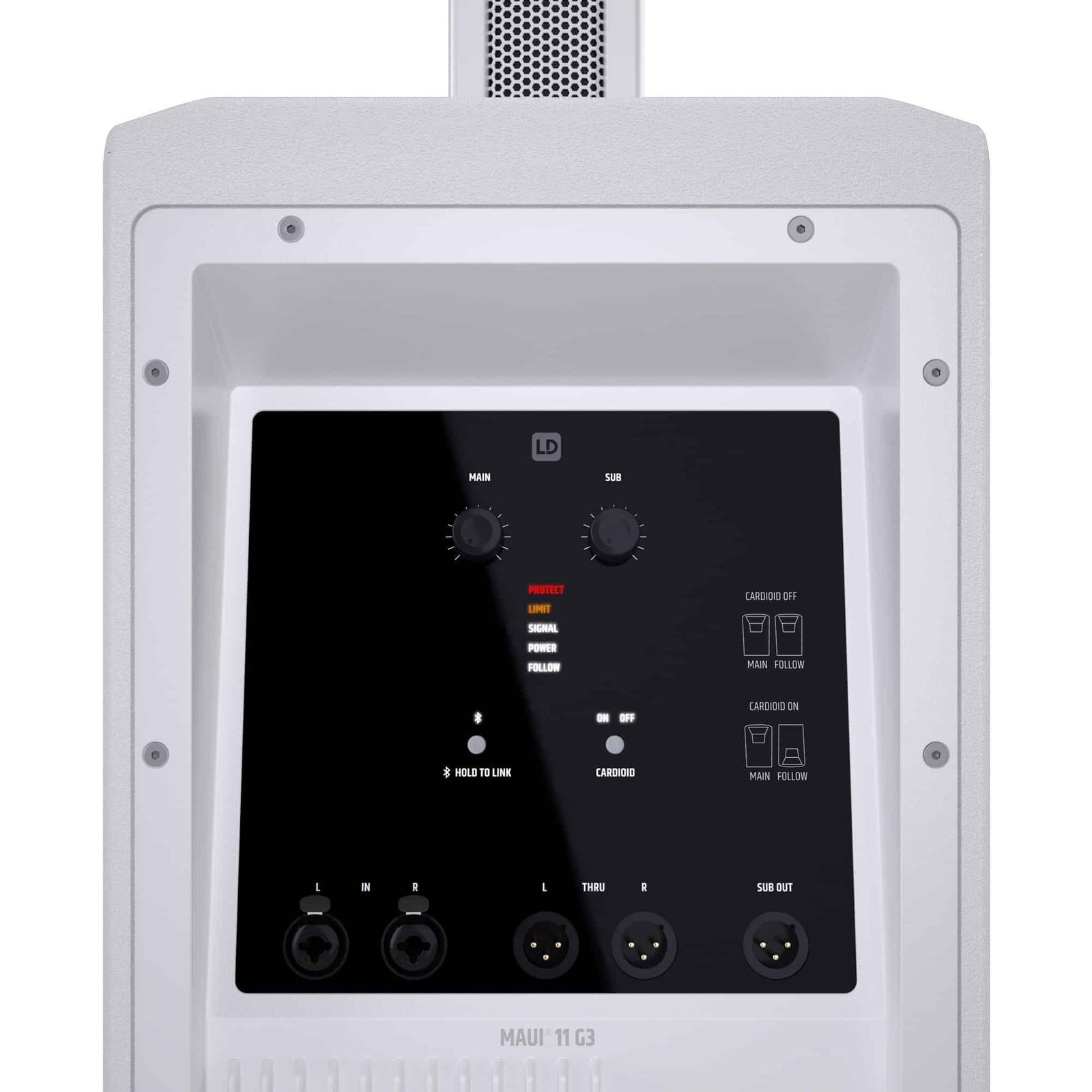

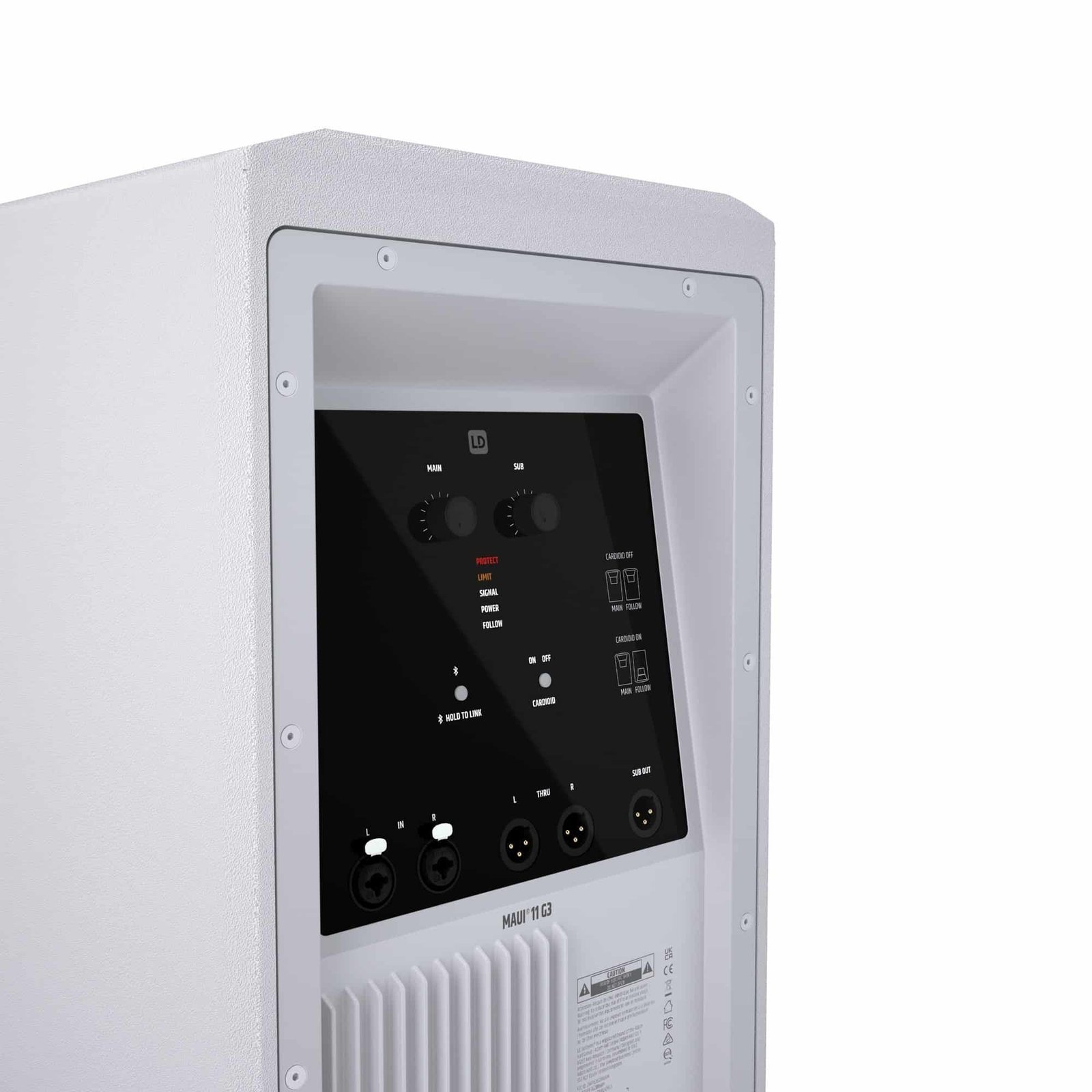

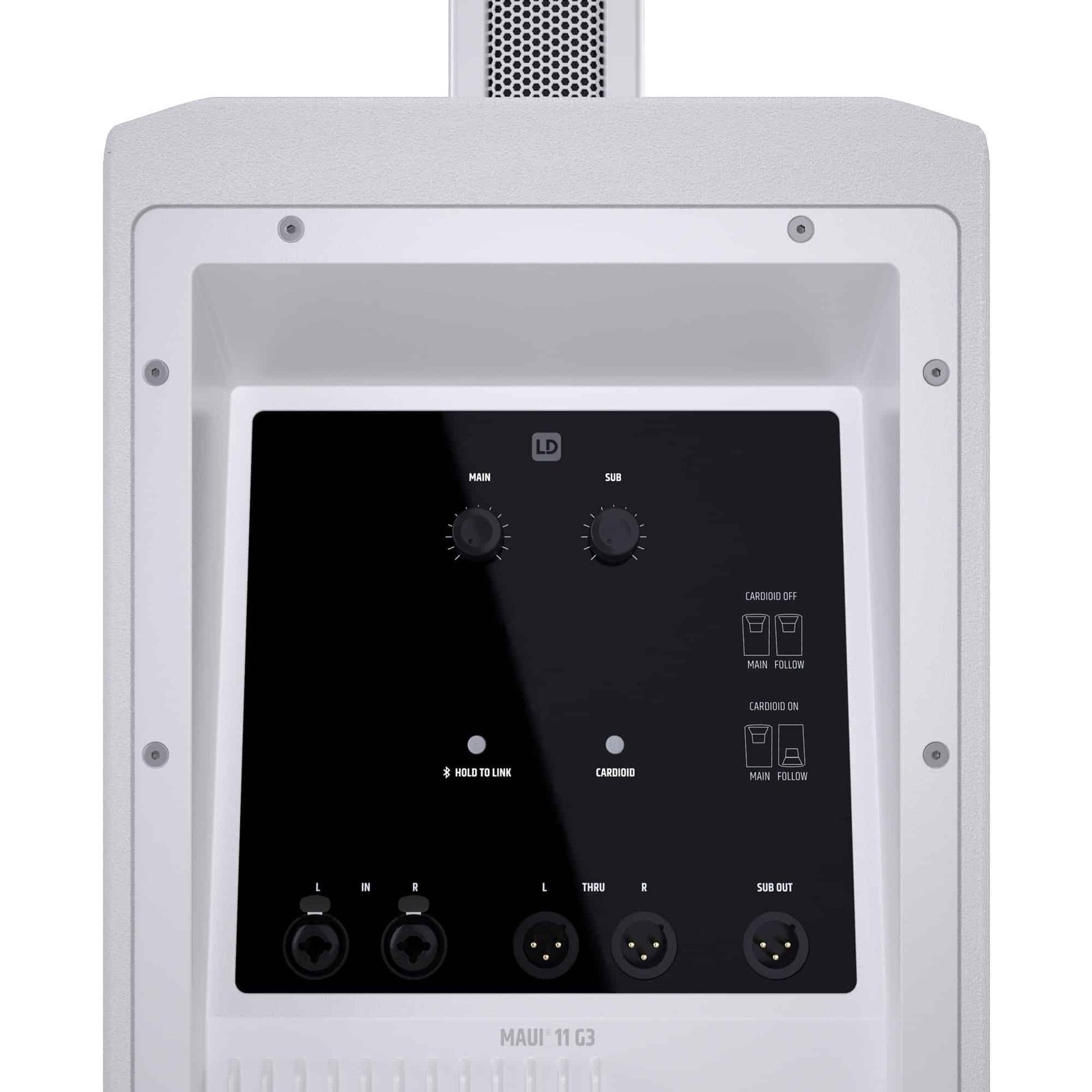

Amplifier : Class DSystem output (RMS) : 730 WSystem output (Peak) : 1460 WProtection circuits : DC protection, Multiband limiter, Short circuit, Thermal protectionCooling : ConvectionControls : Bluetooth HOLD TO LINK button, Cardioid On/Off, Main level, Power On/Off, Sub levelIndicators : Bluetooth, Cardioid On/Off, Follower mode, Limit, Power, Protect (protection circuit engaged), Signal, Subwoofer ModeMains connector : PowerConOperating voltage :  100 V AC – 120 V AC, 50 – 60 Hz, 220 V AC – 240 V AC, 50-60 HzFuse : T 3.15AL / 250 VPower consumption : 300 WAmbient temperature (operating) :  0 – 40 °CRelative Humidity :  < 80% (non-condensing)Line Inputs : 2Line Input Connectors : Combo XLR / TRSLine Outputs : 1 x Sub OUT, 2 x THRULine Output Connectors : XLR maleNumber of speaker outputs : 1Loudspeaker Output Connectors : Custom-made multipinBluetooth Standard : A2DPBluetooth Audio Decoder : AAC, SBC

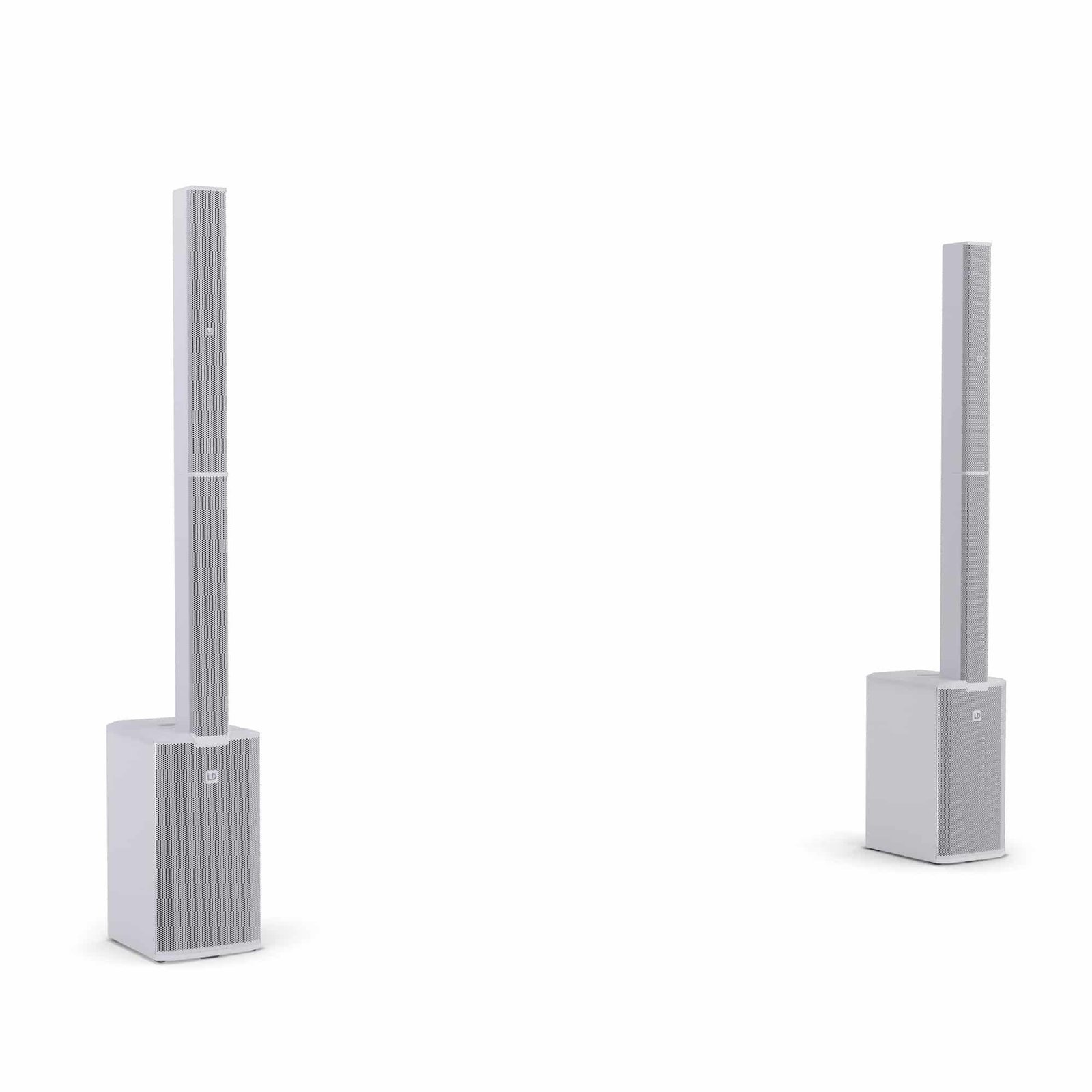

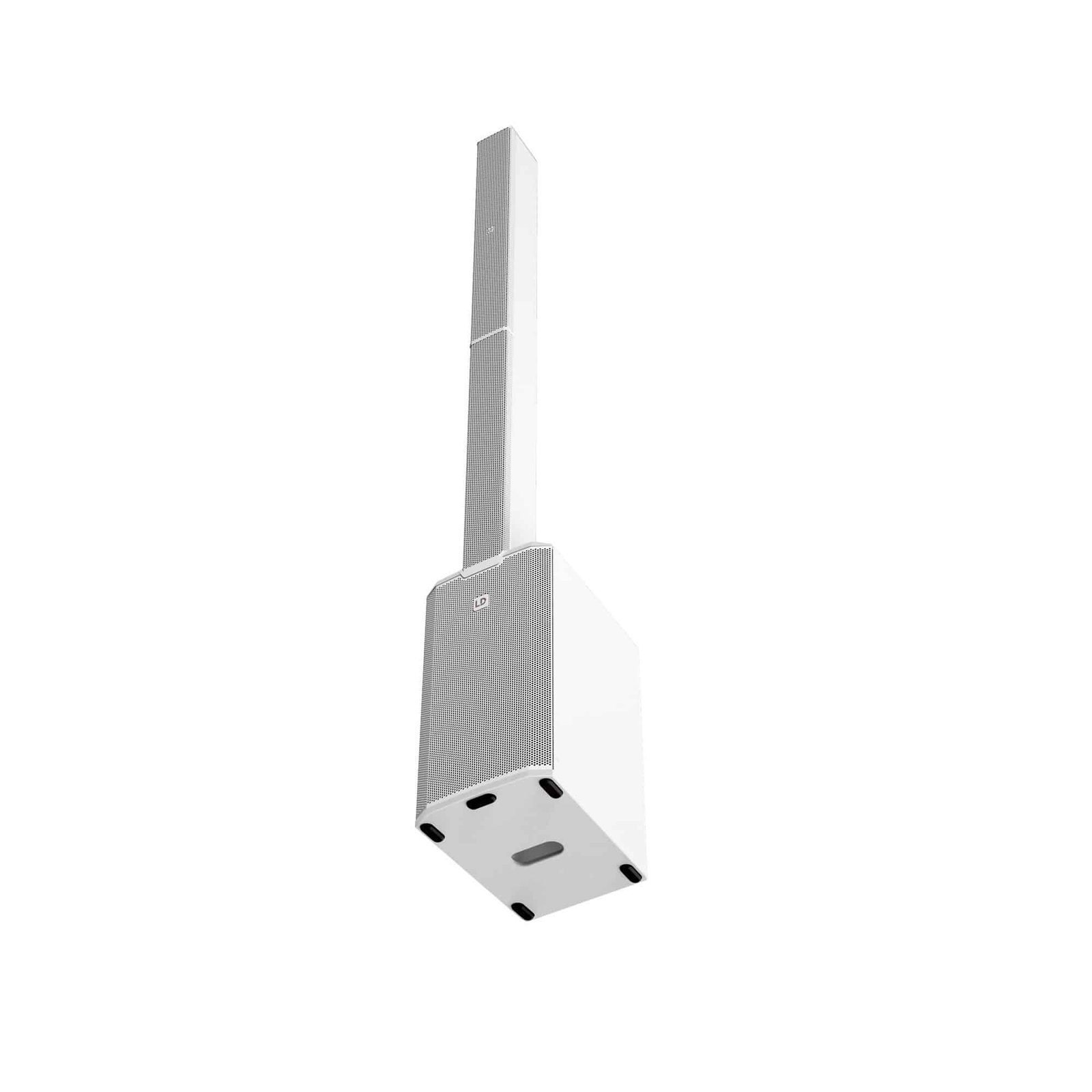

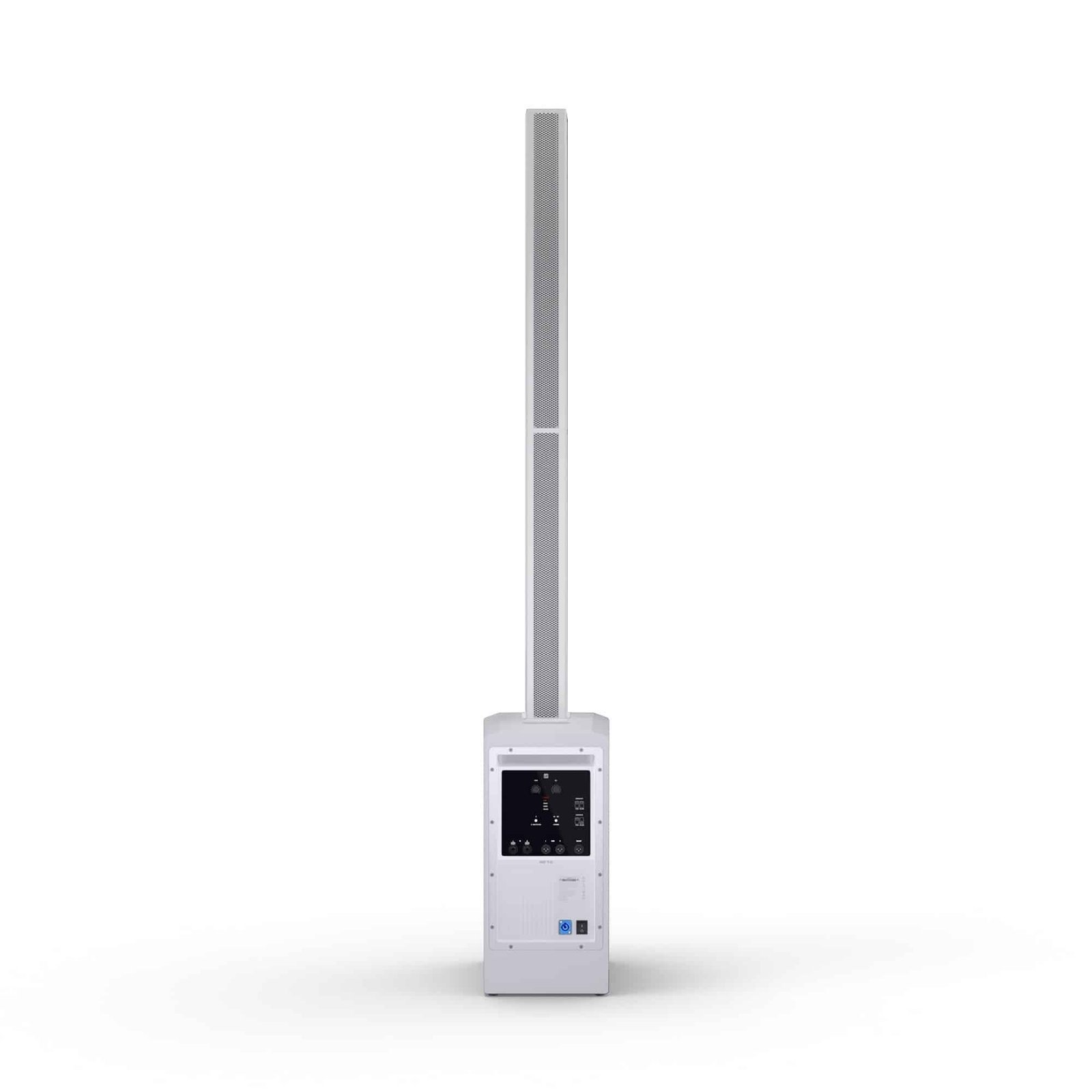

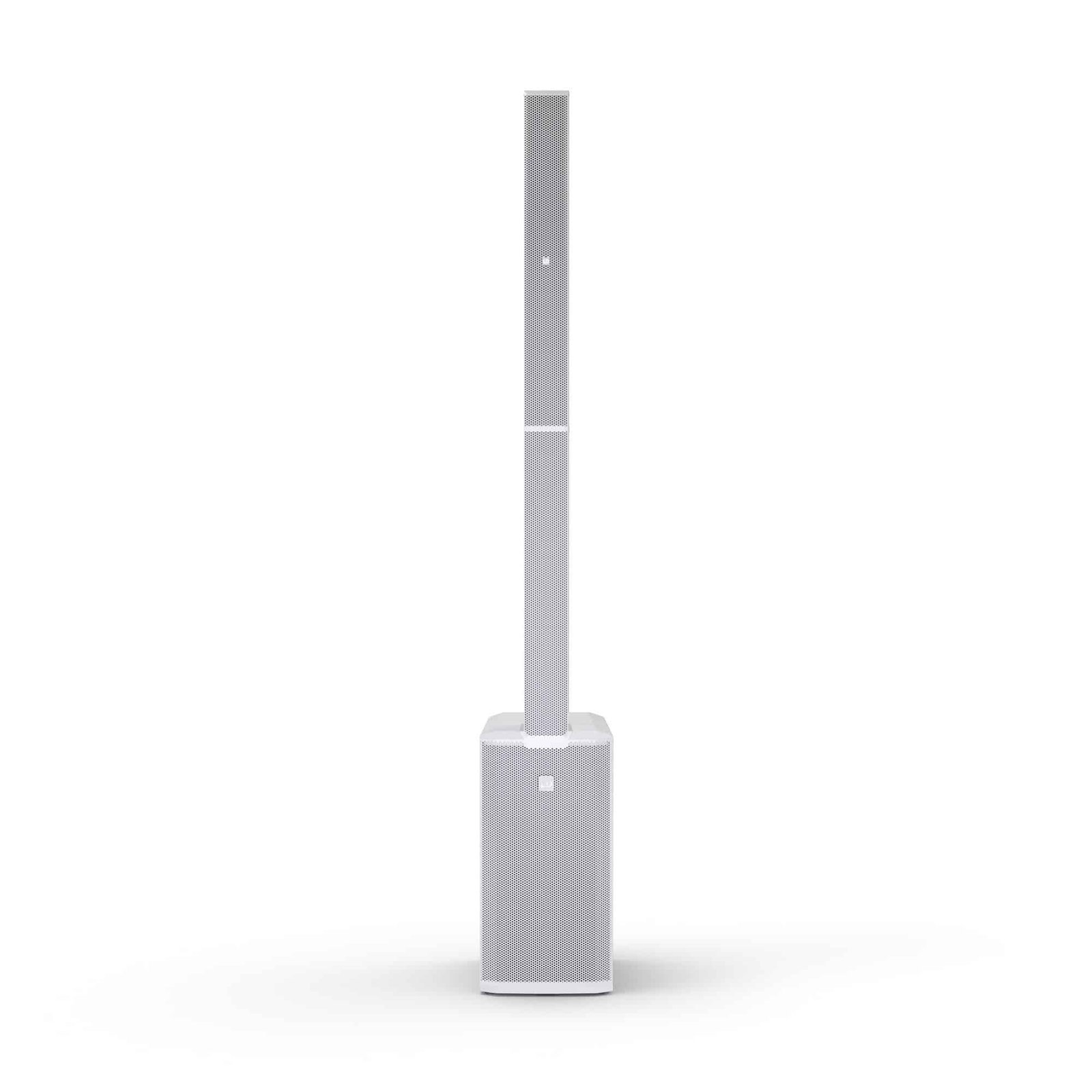

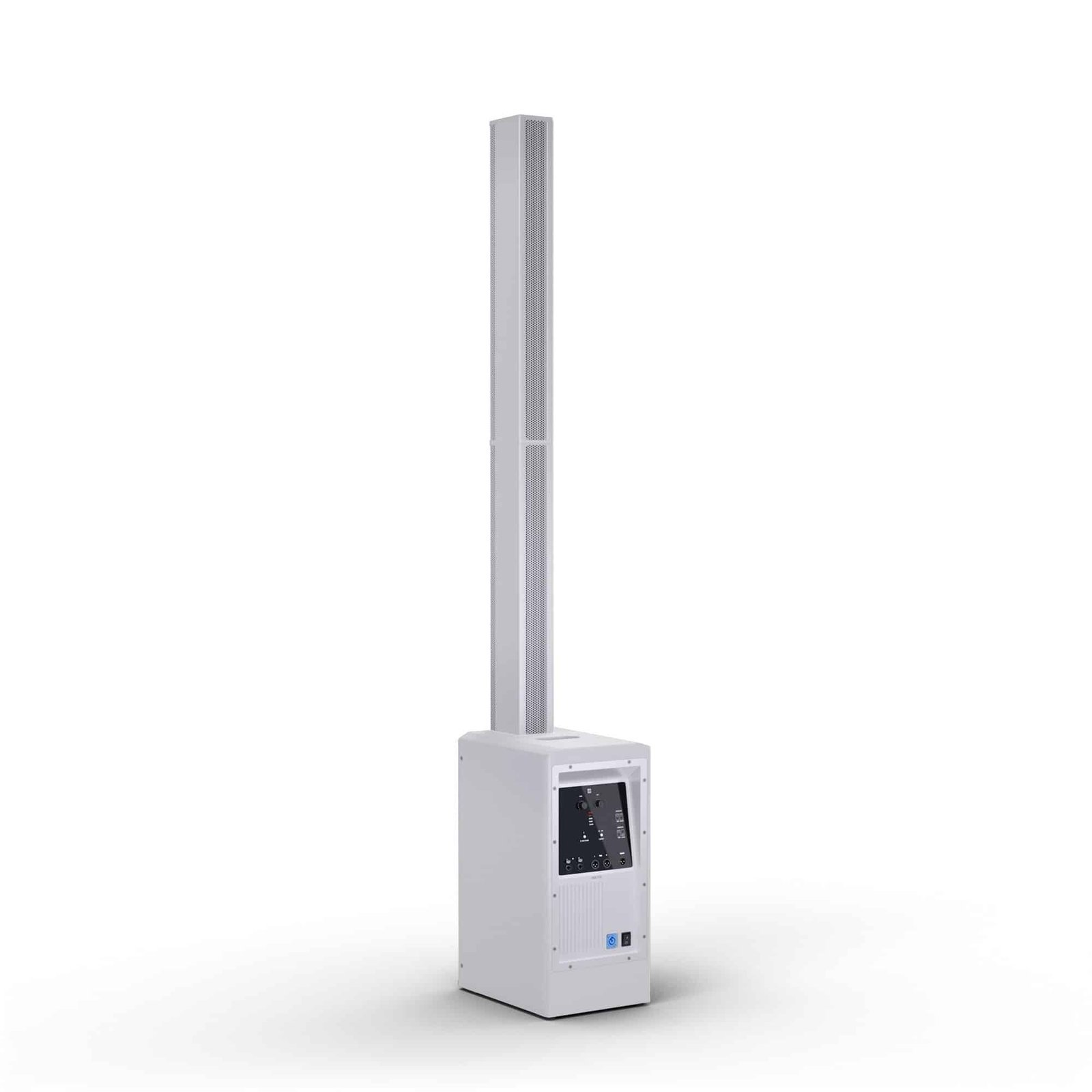

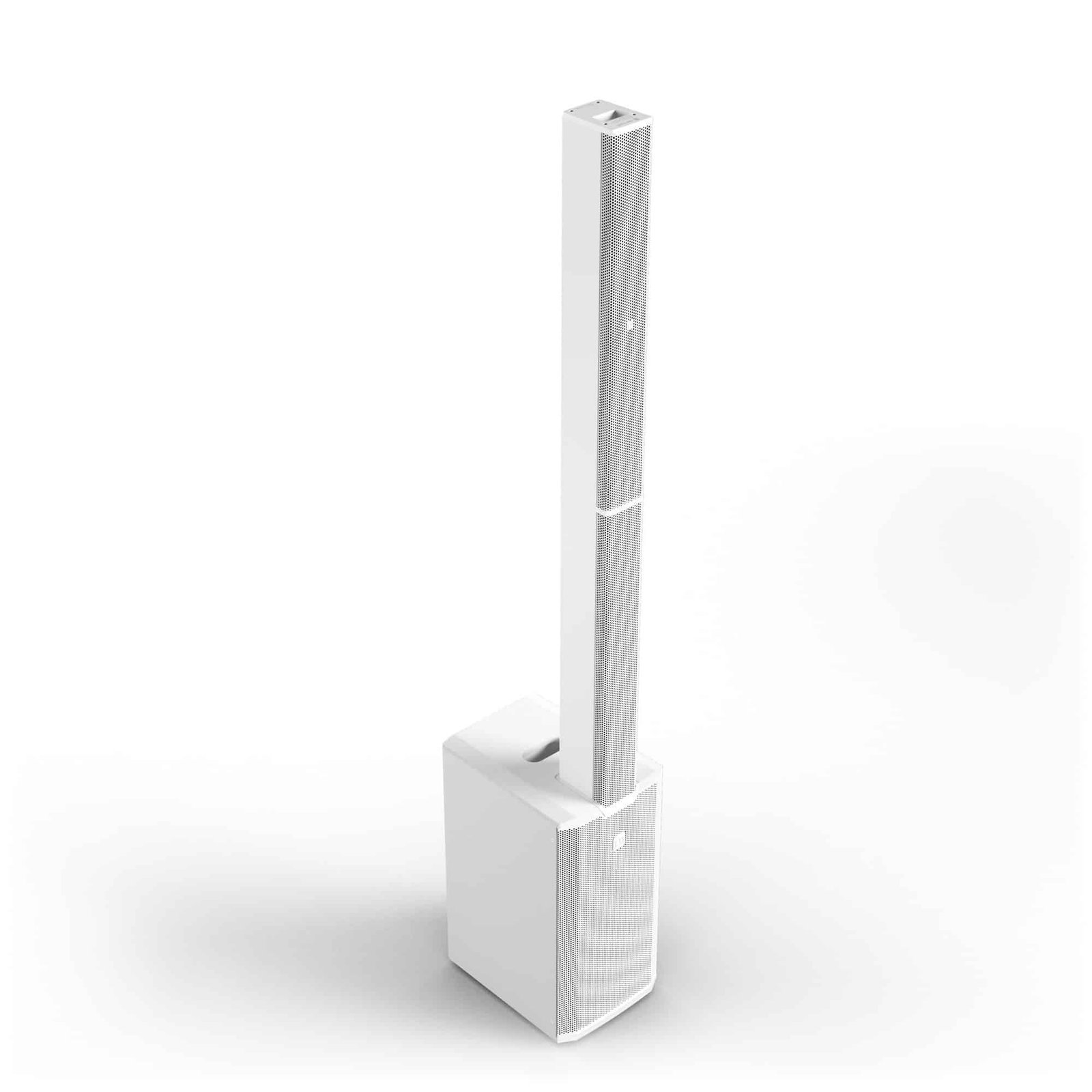

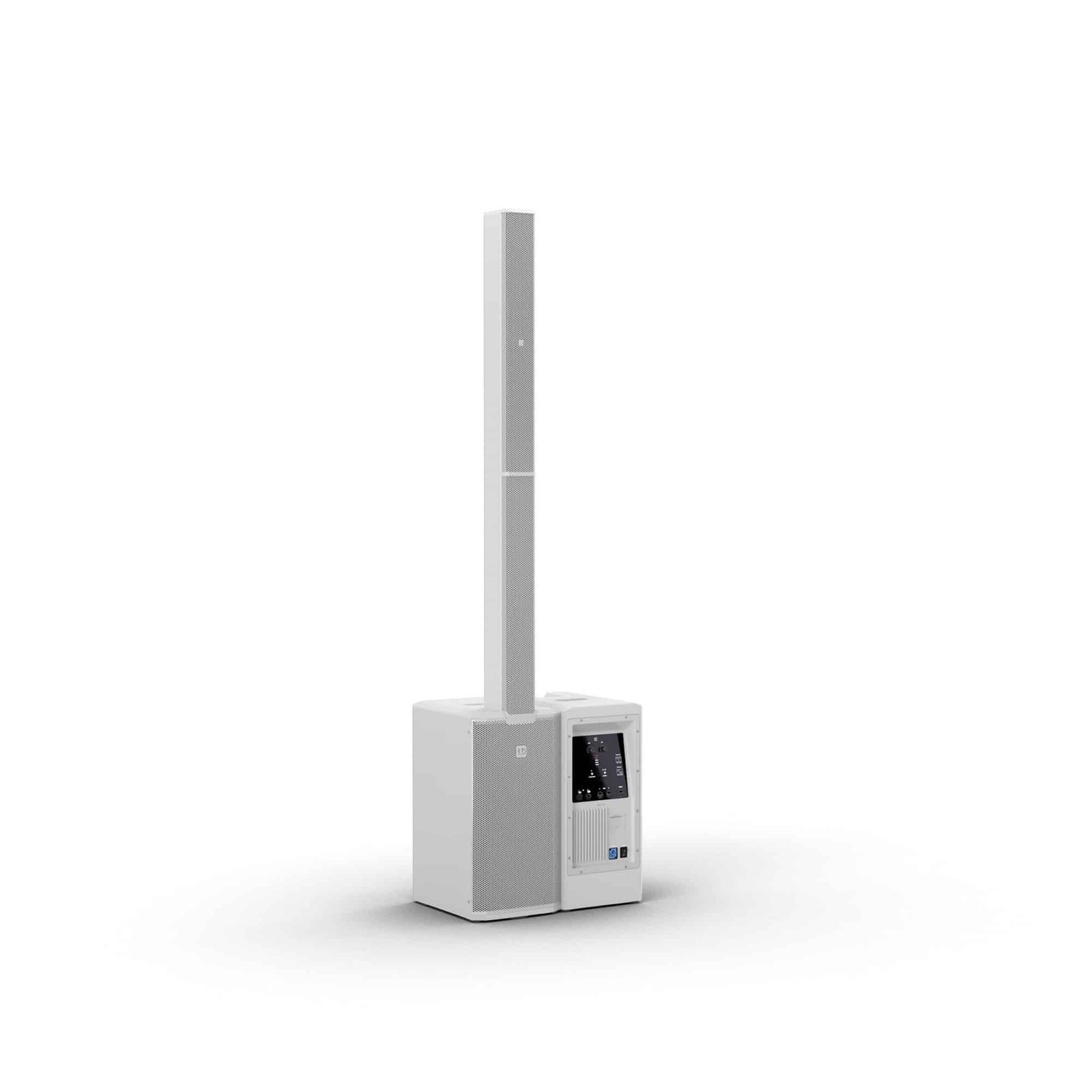

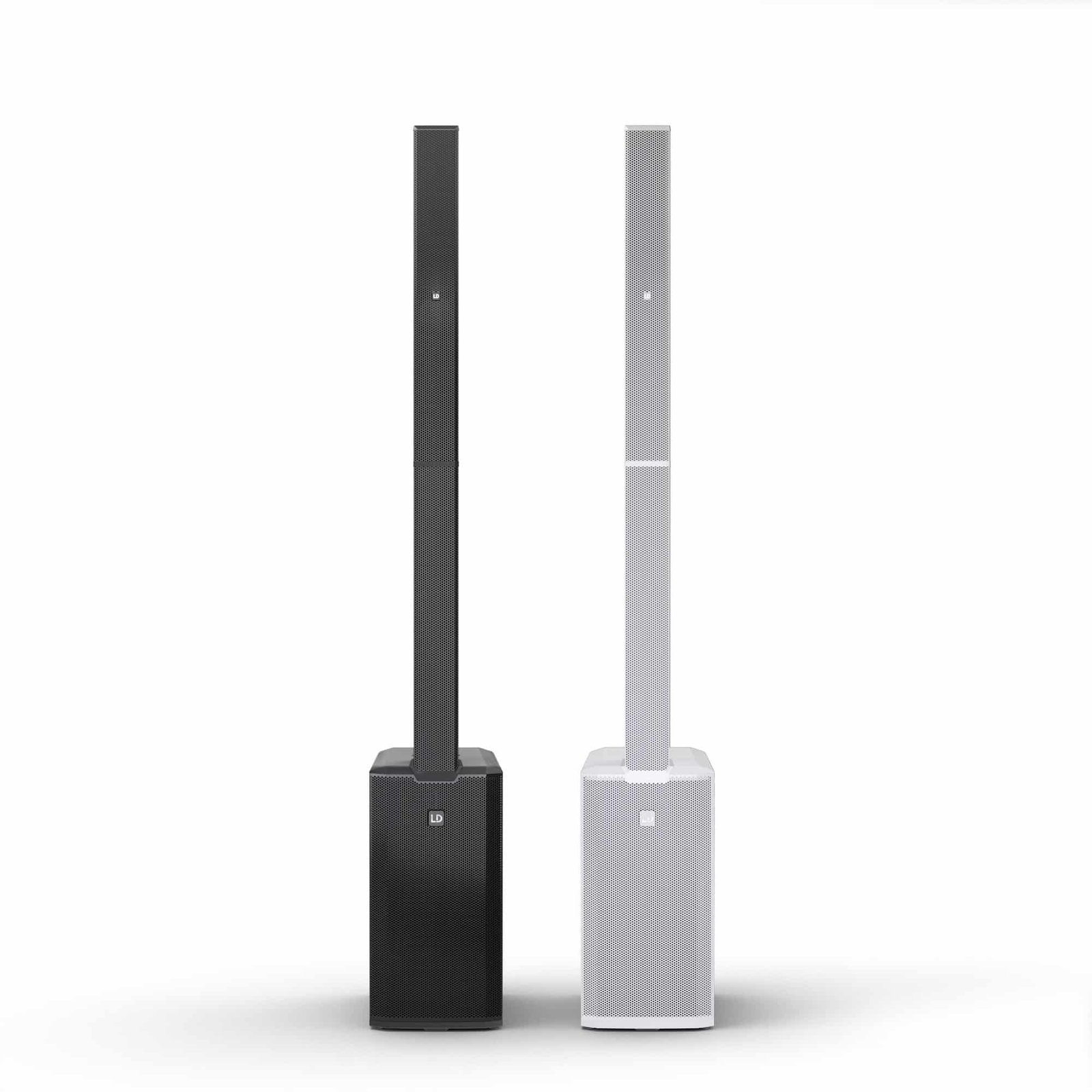

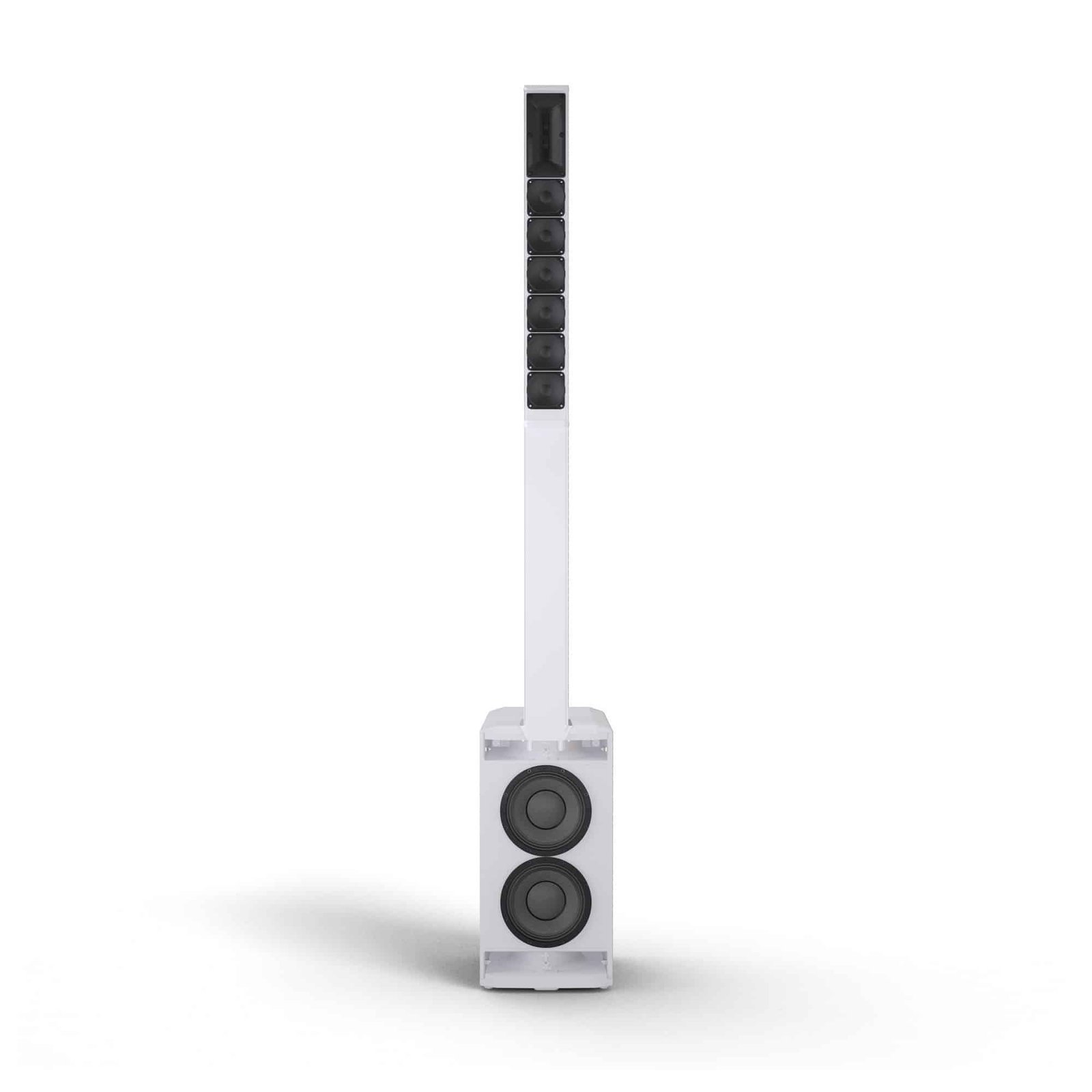

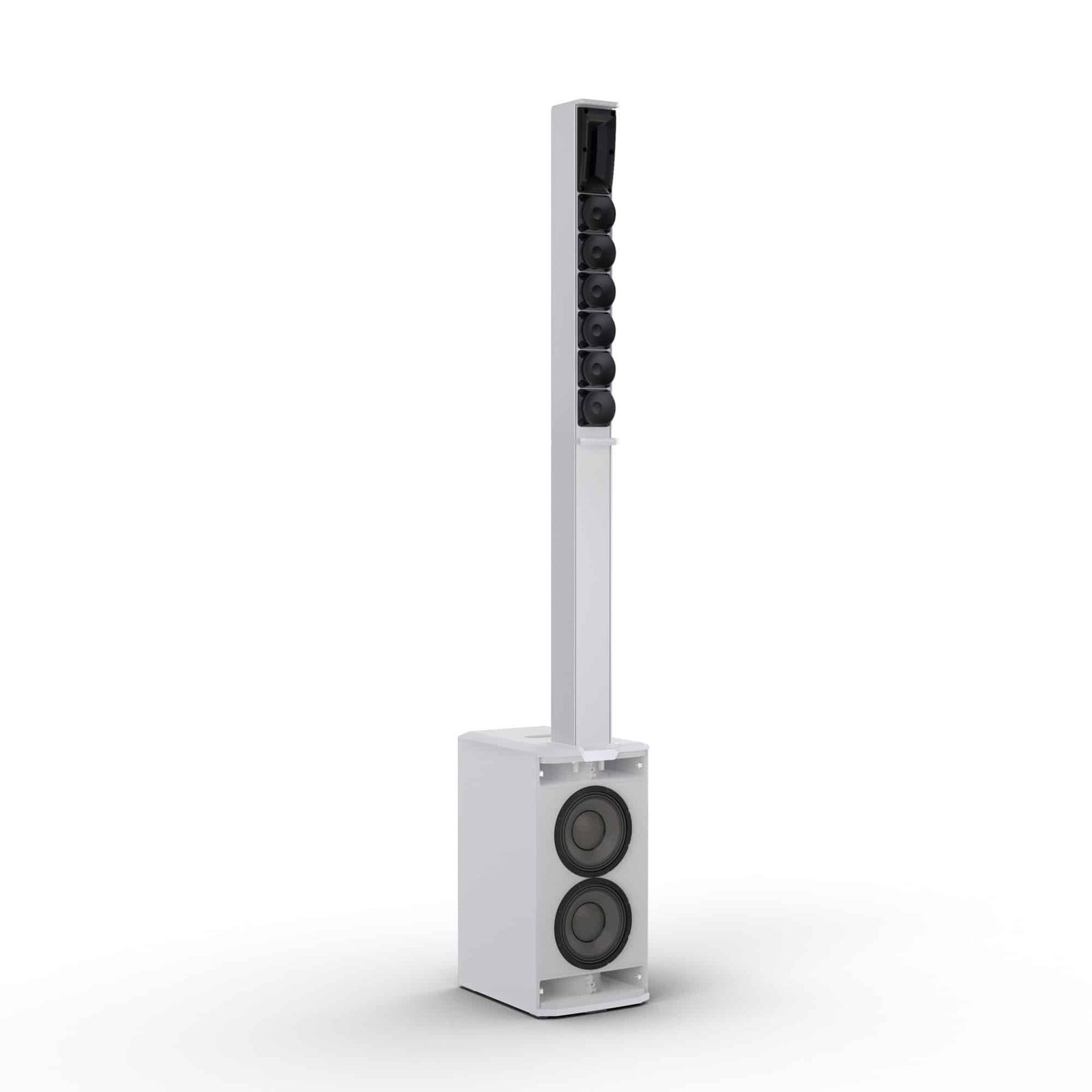

The LD System MAUI Portable cardioid column PA system in white is designed for professionals and enthusiasts who demand exceptional sound quality, portability, and versatility in a sleek, modern design. Whether you’re a musician, event organizer, or public speaker, this complete PA system delivers powerful, clear audio with ease of setup and use, elevating your live performances, presentations, or gatherings to a new level of professionalism.

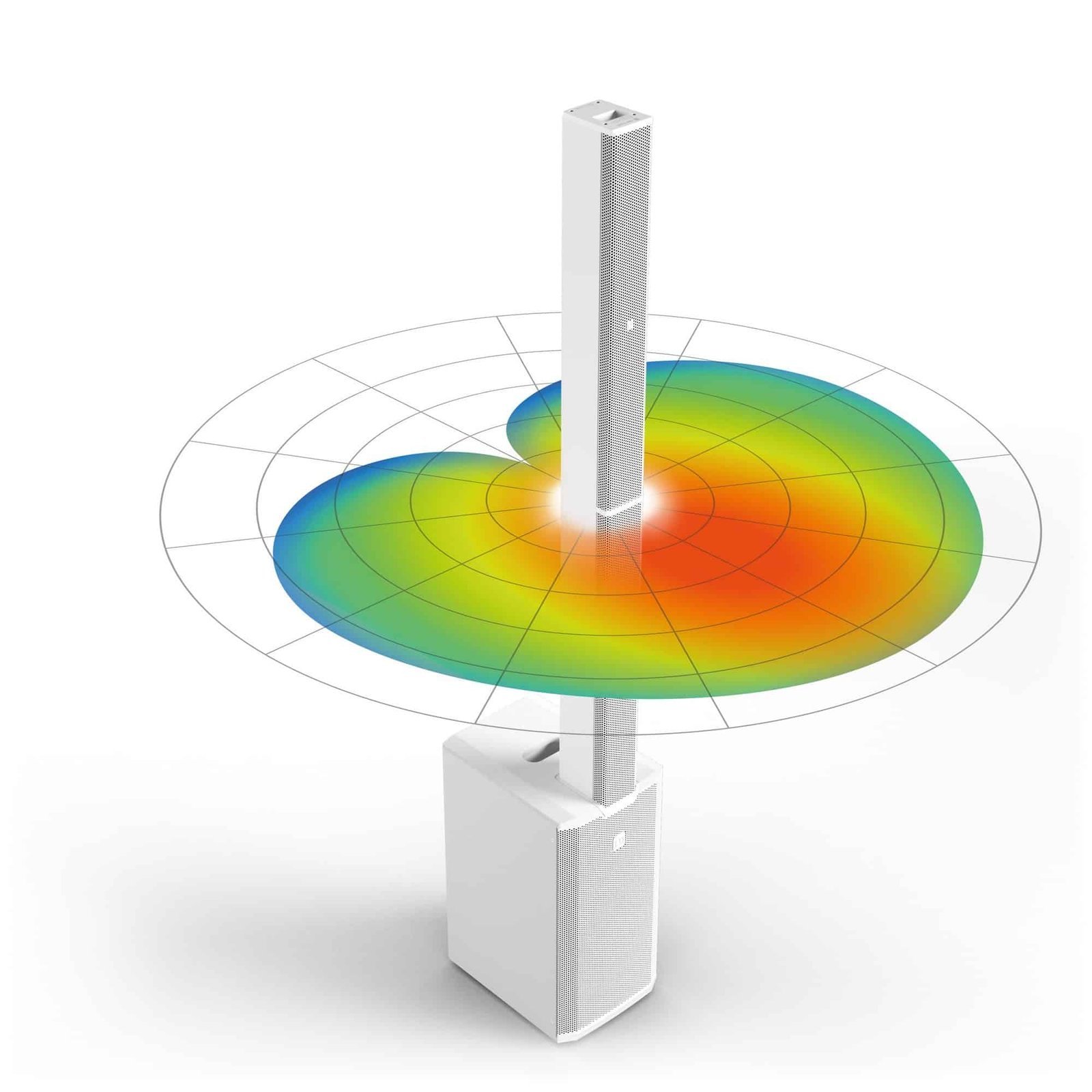

One of the key challenges in live sound reinforcement is achieving a balanced, clear audio output that reaches the audience evenly without excessive feedback or unwanted noise. The LD System MAUI addresses this with its innovative cardioid column design, which controls the dispersion of sound to reduce feedback and unwanted rear noise. This means your audience experiences focused, natural sound while you maintain control over your environment, even in challenging acoustic spaces. The system’s DSP-based signal processing further enhances this by optimizing the audio output in real-time, ensuring consistent clarity and tonal balance regardless of the venue or setup.

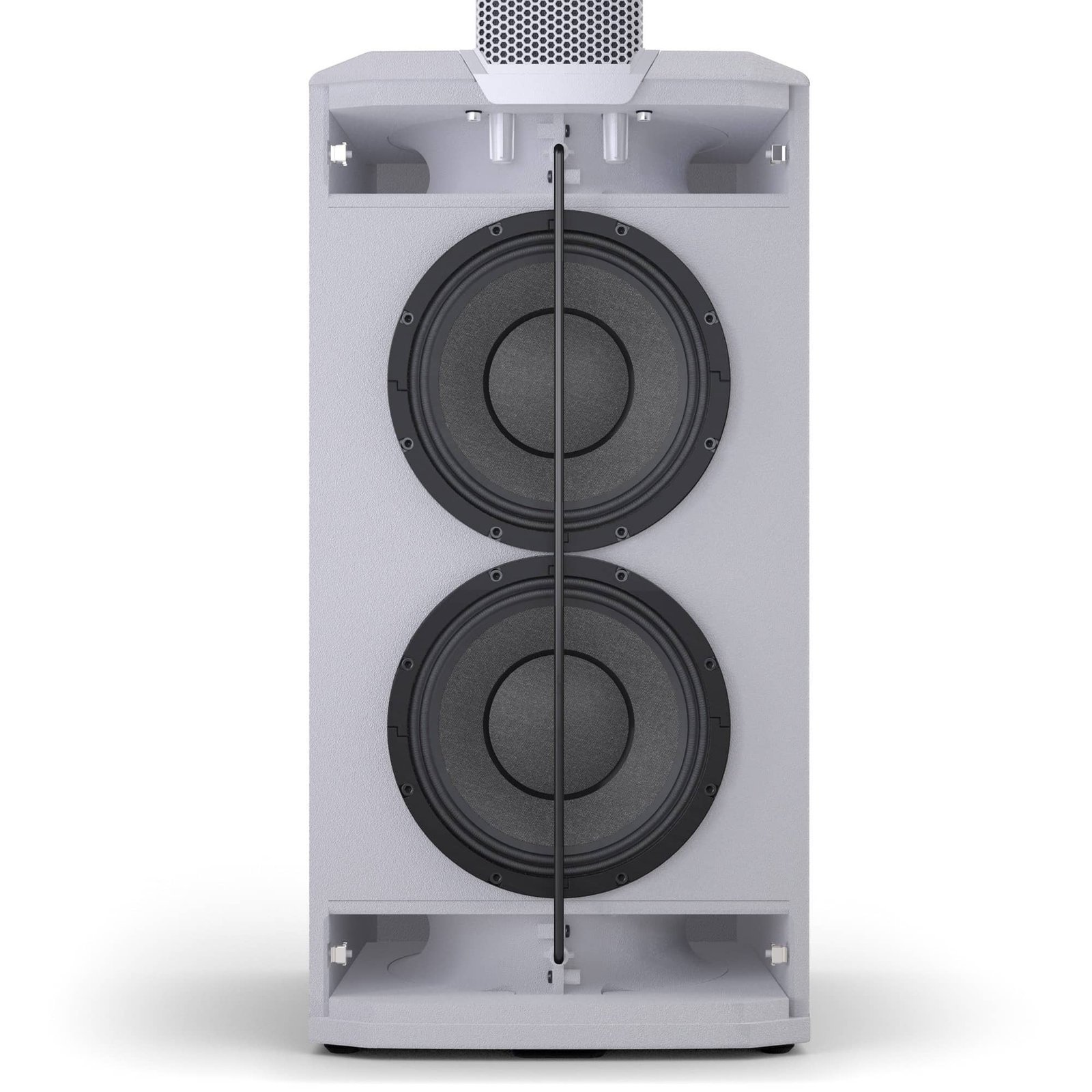

The system produces a peak maximum sound pressure level of 125 dB, which translates into ample volume for medium to large venues, ensuring your sound carries clearly without distortion. The wide frequency response from 39 Hz to 20,000 Hz guarantees that both deep bass and crisp highs are faithfully reproduced. The dual 8-inch custom-made woofers with 2-inch voice coils provide robust low-end performance, delivering punchy bass that adds depth and presence to your music or speech. The bass reflex cabinet construction enhances this low-frequency response by improving airflow and reducing distortion, giving your sound a professional edge.

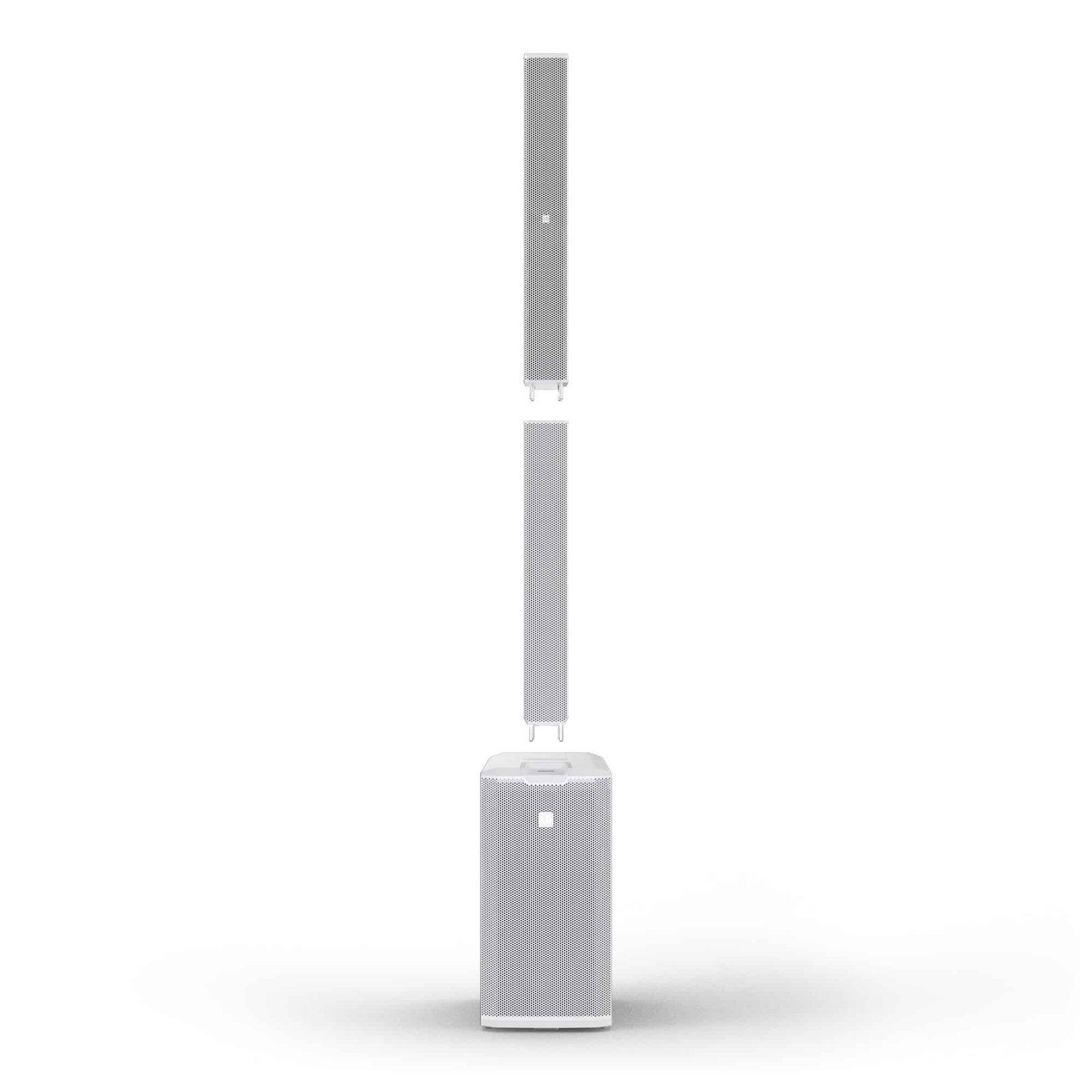

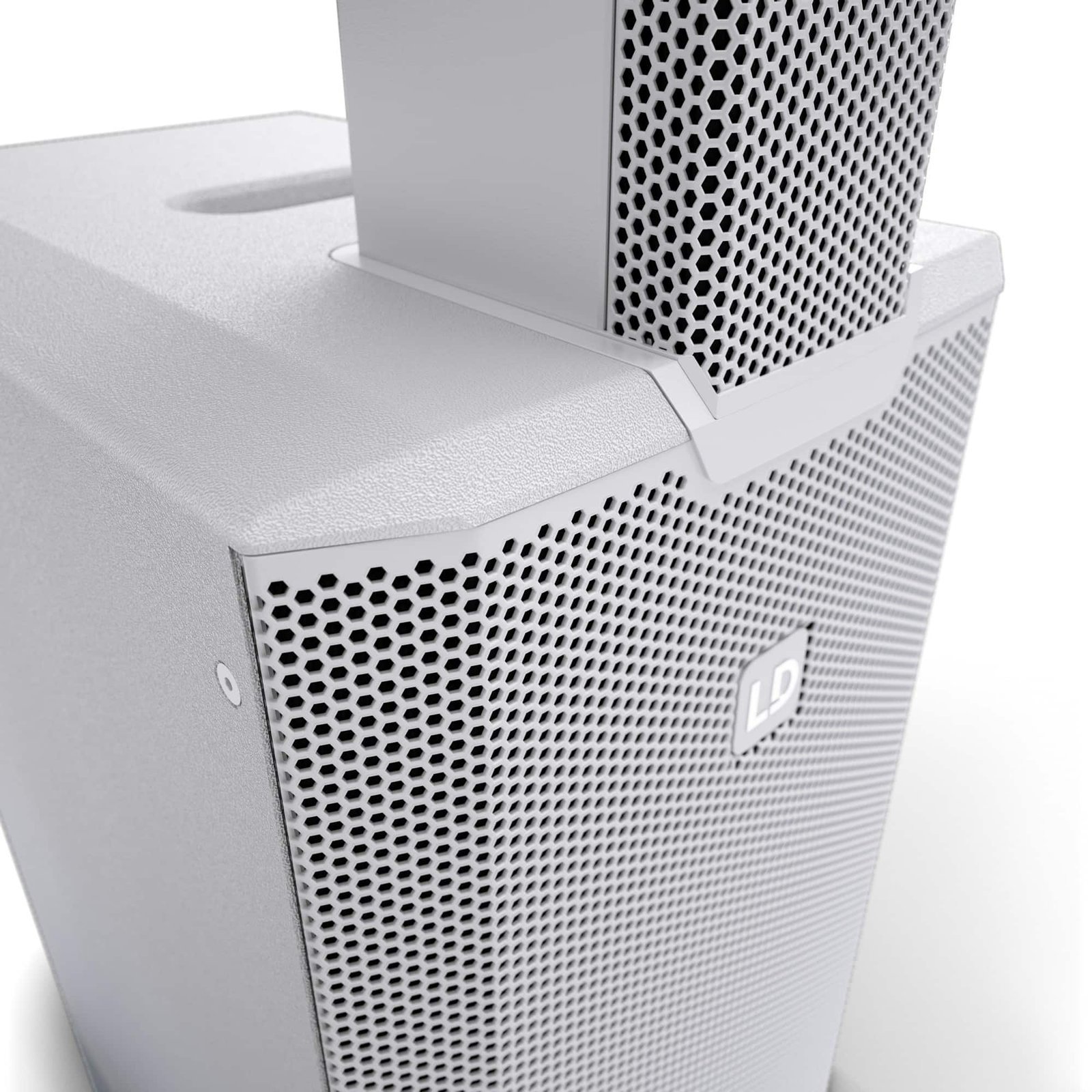

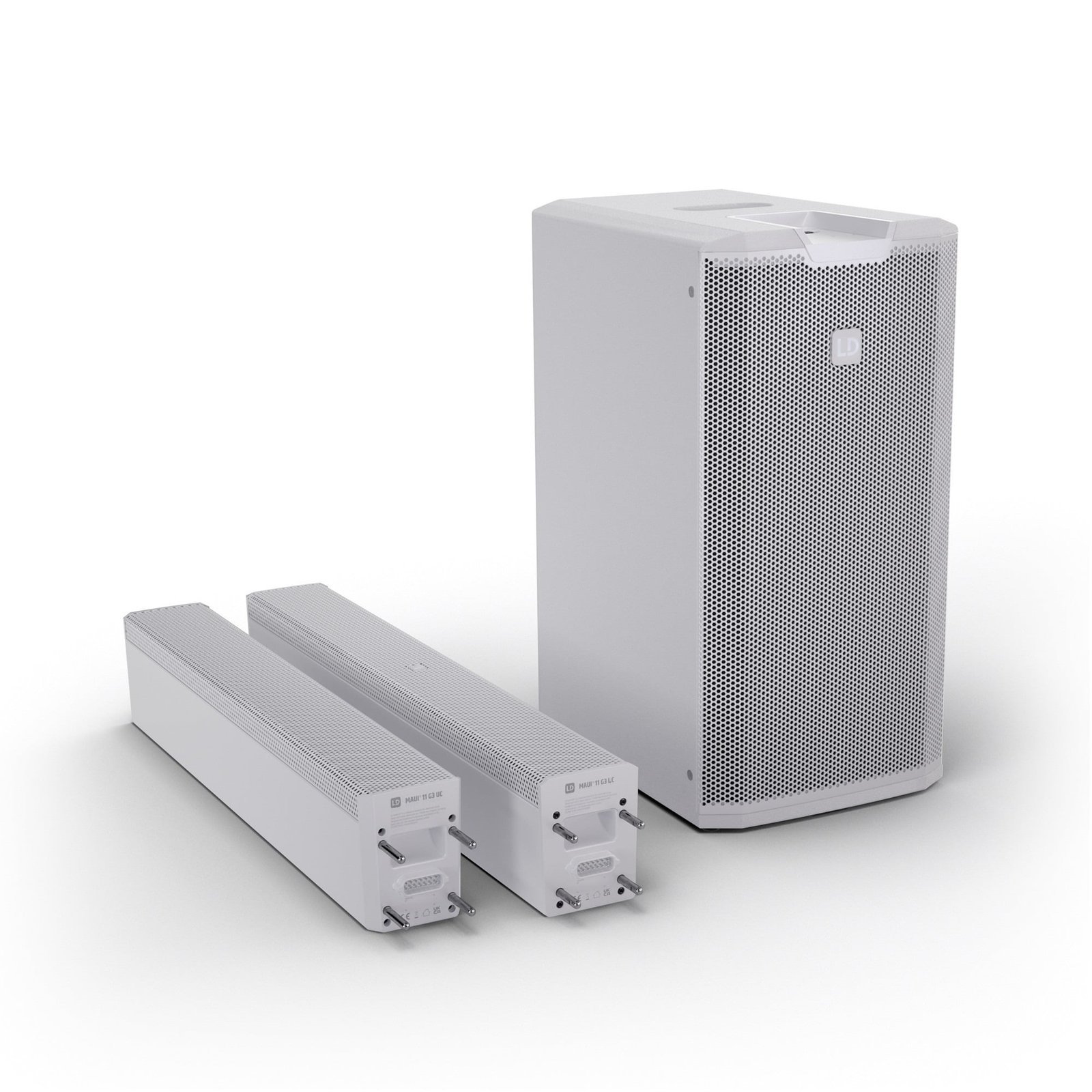

Portability and durability are equally important for a PA system intended for frequent transportation and setup. The MAUI’s 15mm multiplex housing with a polyurea surface ensures a rugged, scratch-resistant exterior that can withstand the rigors of touring or regular event use. Despite its solid construction, the system remains manageable in weight, with the column standing at 2052 mm tall and weighing 30.7 kg, while the subwoofer weighs 20.5 kg and measures 305 x 607 x 403 mm. Its compact design and integrated components allow for quick assembly and breakdown, saving valuable time during event setup.

In addition to wired connectivity, the MAUI offers Bluetooth audio streaming, providing flexible wireless audio input options. This feature enhances convenience by allowing seamless integration with smartphones, tablets, or laptops without the need for extra cables or adapters. Whether you’re DJing, giving a presentation, or hosting a live band, this wireless capability simplifies your workflow and reduces clutter.

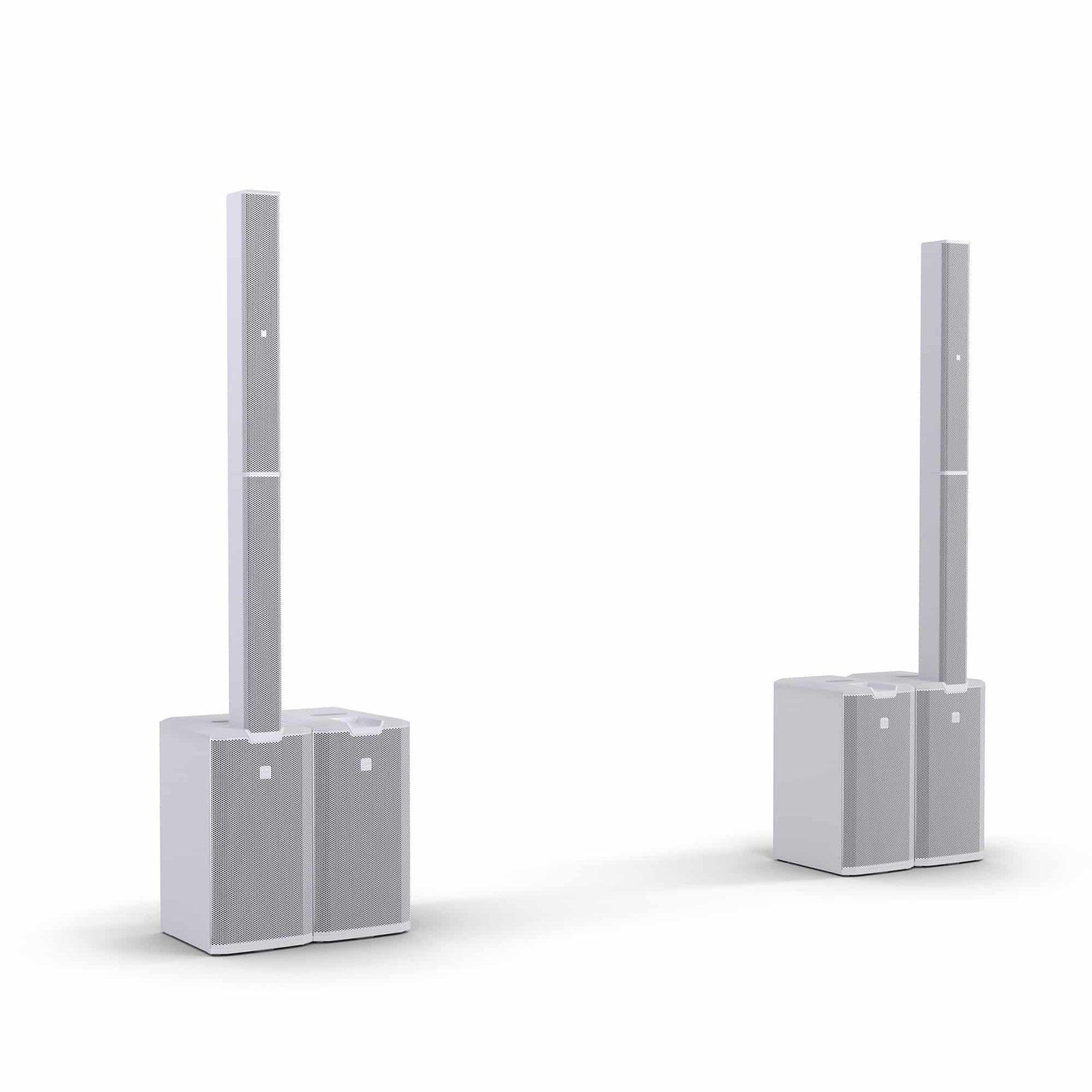

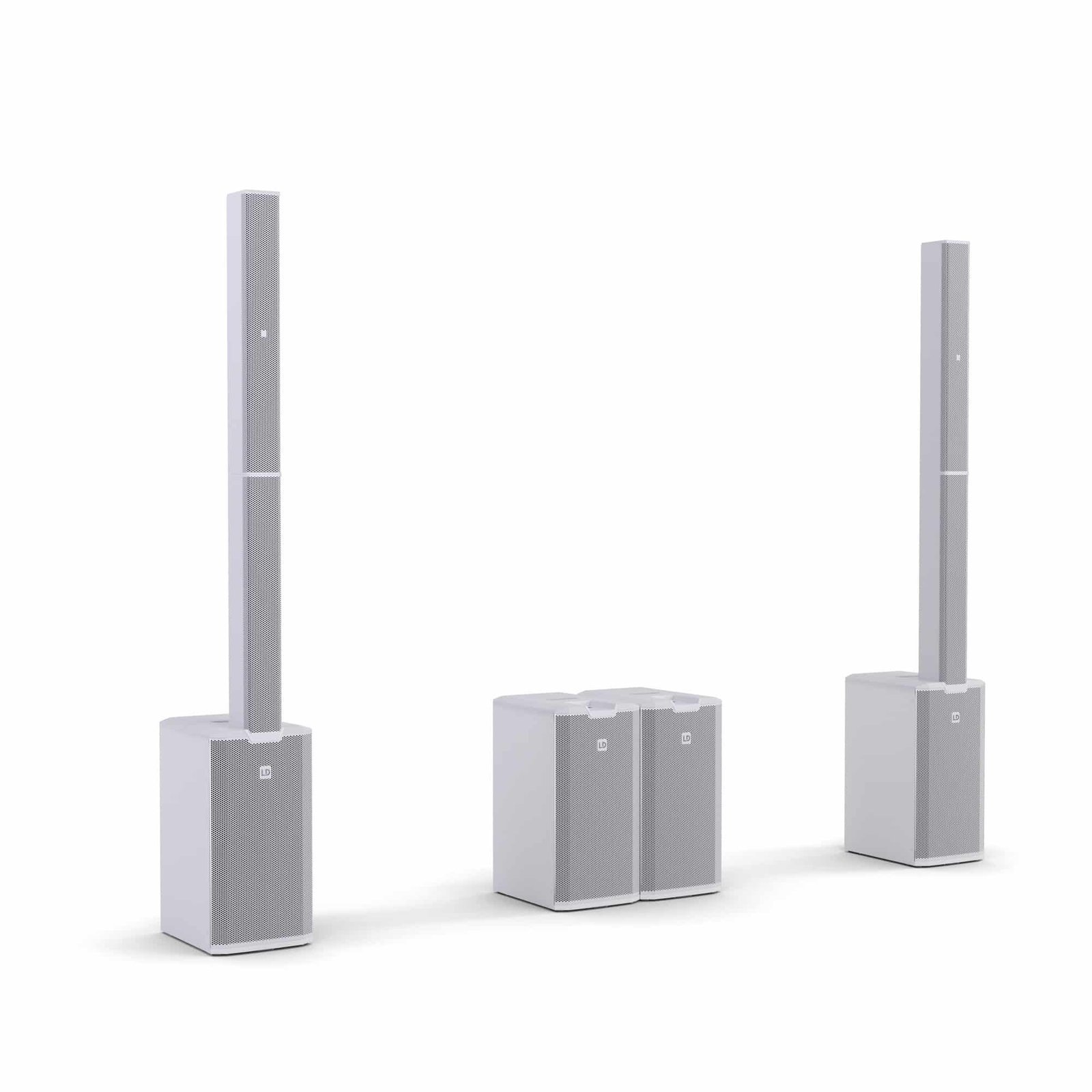

The system supports both mono and stereo applications, making it adaptable to various performance scenarios. This flexibility means you can configure the system for solo acts, small ensembles, or larger productions, tailoring the sound setup precisely to your needs. The 120-degree horizontal and 30-degree vertical dispersion pattern ensures broad audience coverage without sacrificing sound focus, so every listener enjoys a clear and immersive audio experience.

In summary, the LD System MAUI Portable cardioid column PA system combines cutting-edge audio technology, robust construction, and user-friendly features to meet the demands of professional sound reinforcement. Priced competitively at ₹183,150, it offers outstanding value for those seeking a reliable, high-performance PA solution. Investing in this system means you’re equipped to deliver powerful, clear sound with confidence and ease, no matter the event or venue.
