Mid/ Hi System

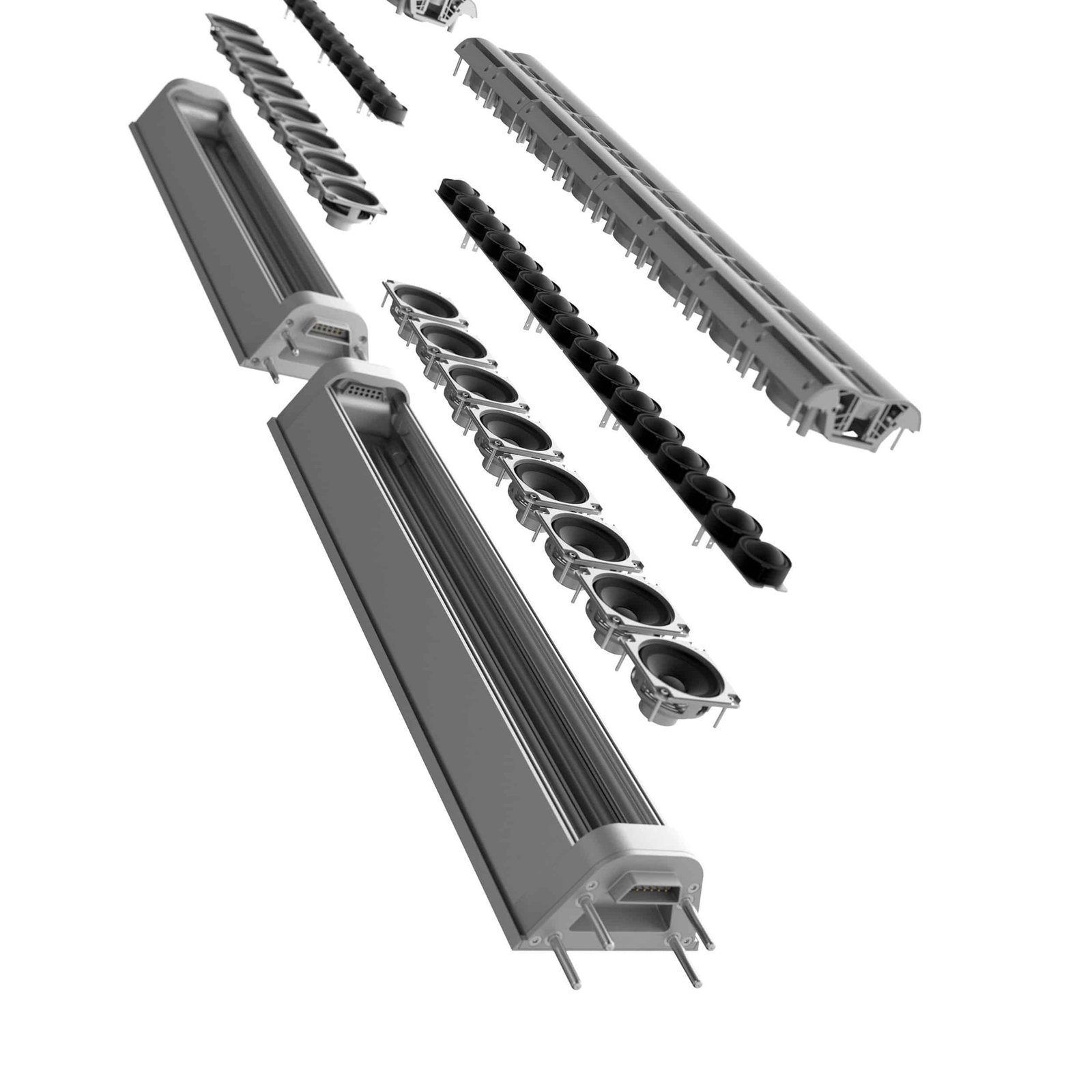

Midrange dimensions :                      16 x 2.8 “Midrange dimensions (mm) :          16 x 71,1 mmMidrange magnet :                                NeodymiumMidrange brand:                                    Custom-madeMidrange voice coil:                            0.75 “Midrange voice coil:                             20 mmTweeter dimensions:                          32 x 1 “Tweeter dimensions (mm) :              25.4 mmTweeter magnet :                                  NeodymiumTweeter brand :                                     Custom-madeTweeter voice coil :                                1 “Tweeter voice coil (mm) :                  25.4 mmWave Guide :                                        SonicGuide® TechnologyLoudspeaker inputs :                             1Speaker input connections:               Custom-made multipinCabinet construction mid/high :      ClosedMid/Hi system cabinet material:       AluminiumMid/Hi system cabinet surface :         HD coated aluminum, multi layer                                                                        mesh (cloth)Mid/Hi system width :                        157 mmMid/Hi system height :                      1428 (2 x 714) mmMid/Hi system depth :                         91 mmMid/Hi system weight :                      2 x 7.7 kg

Amplifier module (integrated in subwoofer)

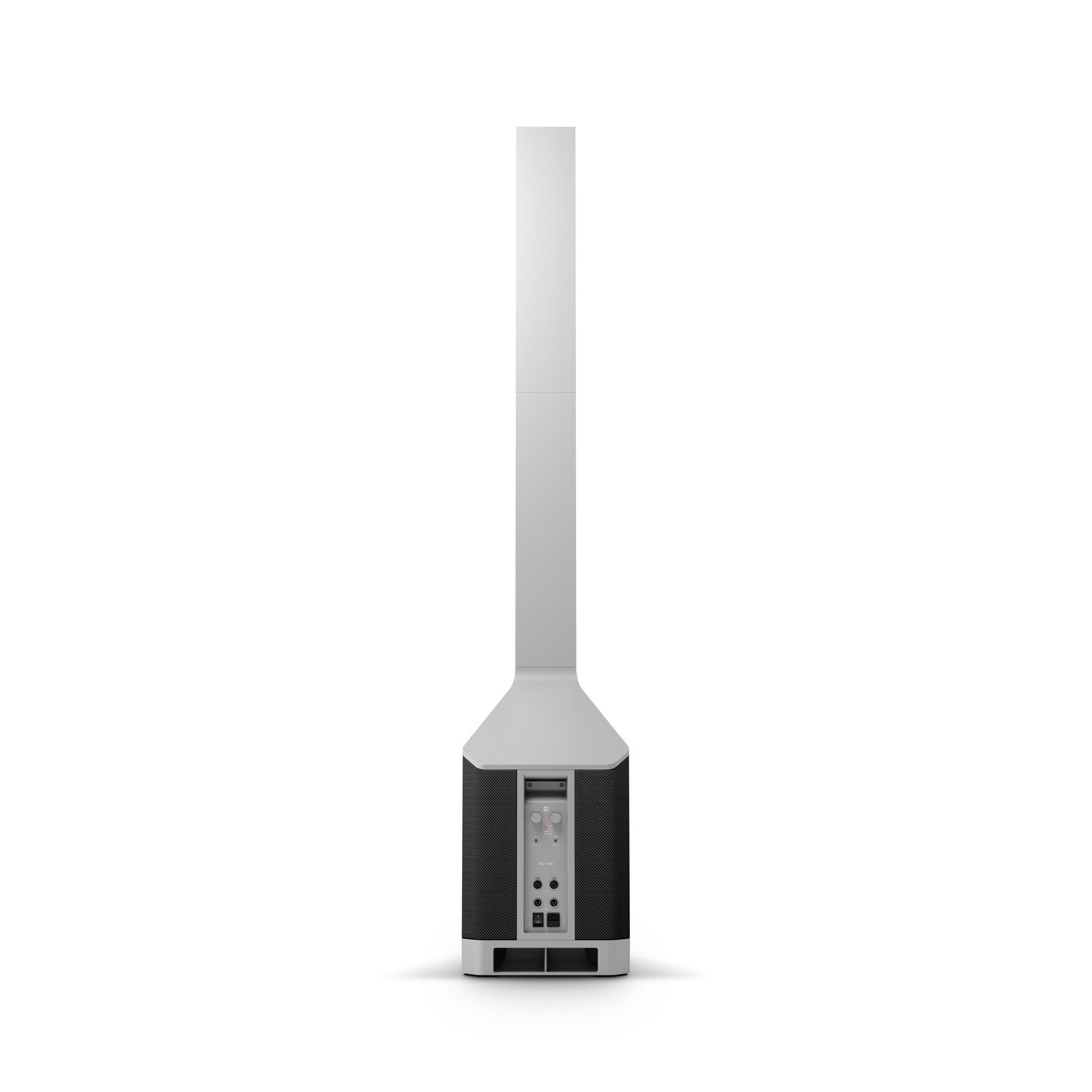

Amplifier :                                         3 x class DSystem output (RMS) :                   1400 WProtection circuits :                         DC protection, Multiband limiter, Short circuit, Thermal protectionCooling :                                             ConvectionControls :                                           Bluetooth HOLD TO LINK button, Bluetooth STEREO LINK button, Main level, Power On/Off, Sub levelIndicators :                                     Bluetooth, Bluetooth STEREO LINK, Limit, Power, Protect (protection circuit engaged), SignalMains connector :                                IEC power cable (included)Operating voltage :                       100 V AC – 120 V AC, 50 – 60 Hz, 200 V AC – 240 V AC, 50 – 60 Hz (Automatic conversion), Switching power supplyAmbient temperature (operating) :    0 – 40 °CRelative Humidity :                       10 % – 80 %Line Inputs :                                      1 x stereoLine Input Connectors :               Neutrik XLRLine Outputs :                                   1 x Stereo ThruLine Output Connectors :            Neutrik XLRNumber of speaker outputs :           1Loudspeaker Output Connectors :    Custom-made multipinBluetooth Standard :                             A2DPBluetooth Audio Decoder :                     AAC, aptX, SBCSystem output (Peak) :                       2800 WPower Consumption (On / Off / Max.) :        0 W / 11 W / 1000 W

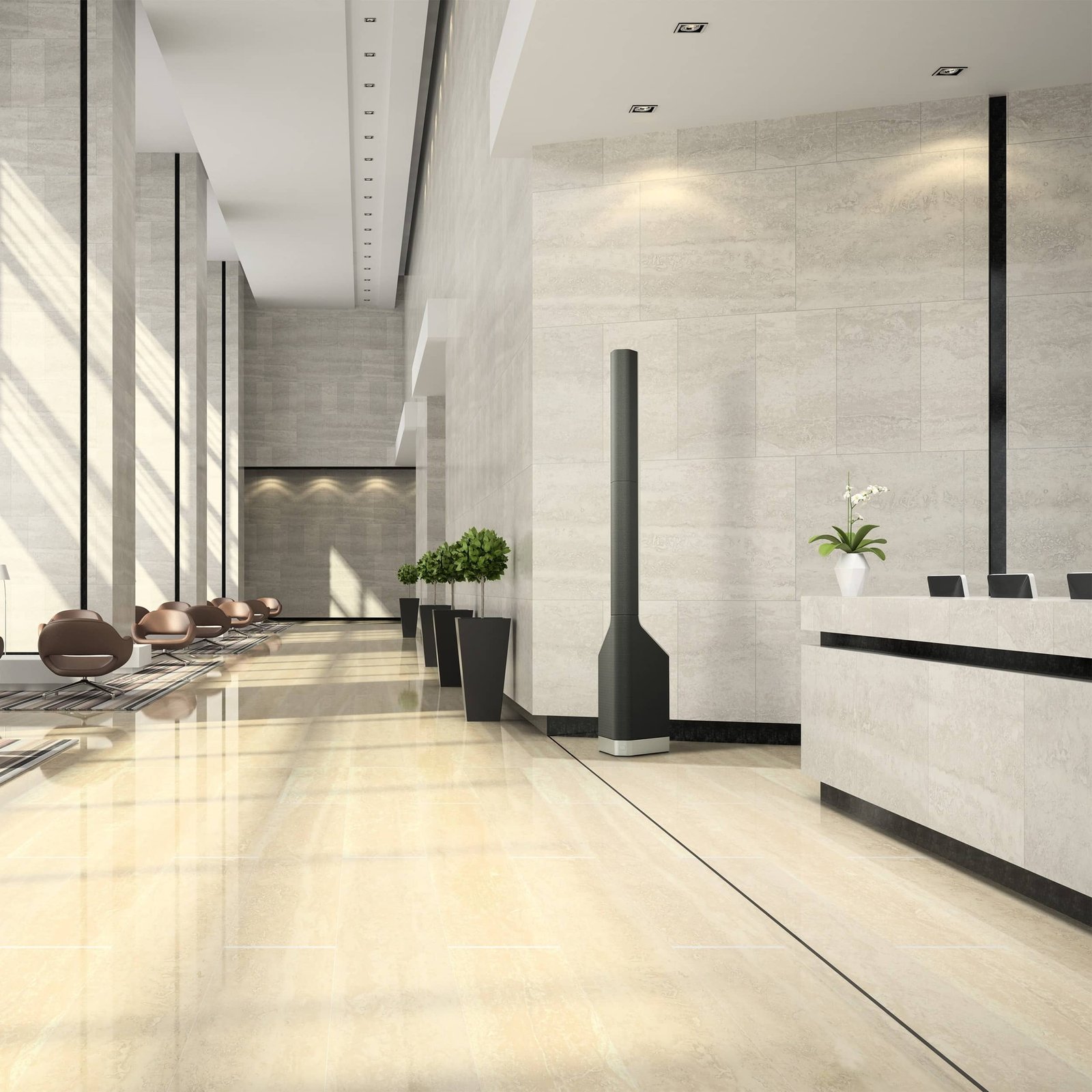

For professionals and enthusiasts seeking a premium sound solution that combines cutting-edge technology with elegant design, the LD System MAUI P900 B Powered Column PA System by Porsche Design Studio offers an unparalleled experience. Whether you are a musician, event organizer, or corporate presenter, this system delivers crystal-clear audio with impressive volume and clarity, ensuring your sound reaches every corner of the venue without distortion or loss of quality.

One of the standout attributes of the MAUI P900 B is its remarkable power output, capable of reaching a continuous maximum sound pressure level (SPL) of 121 dB and peaking at 131 dB. This means that even in large spaces or outdoor environments, your audio will remain loud and clear without compromising fidelity. The system’s frequency response spans from 42 Hz to 20,000 Hz, covering the full audible spectrum from deep bass to sparkling highs. This wide range ensures that music, speech, and effects are reproduced accurately, offering a rich and immersive listening experience for your audience.

The MAUI P900 B’s design incorporates advanced DSP-based signal processing, which intelligently optimizes sound quality and system performance in real-time. This technology allows for precise control over tone and dynamics, reducing unwanted feedback and distortion. For the user, this means effortless setup and consistent sound quality regardless of the environment. Additionally, Bluetooth audio streaming capability offers the convenience of wireless playback from smartphones, tablets, or other compatible devices, streamlining your workflow and reducing cable clutter.

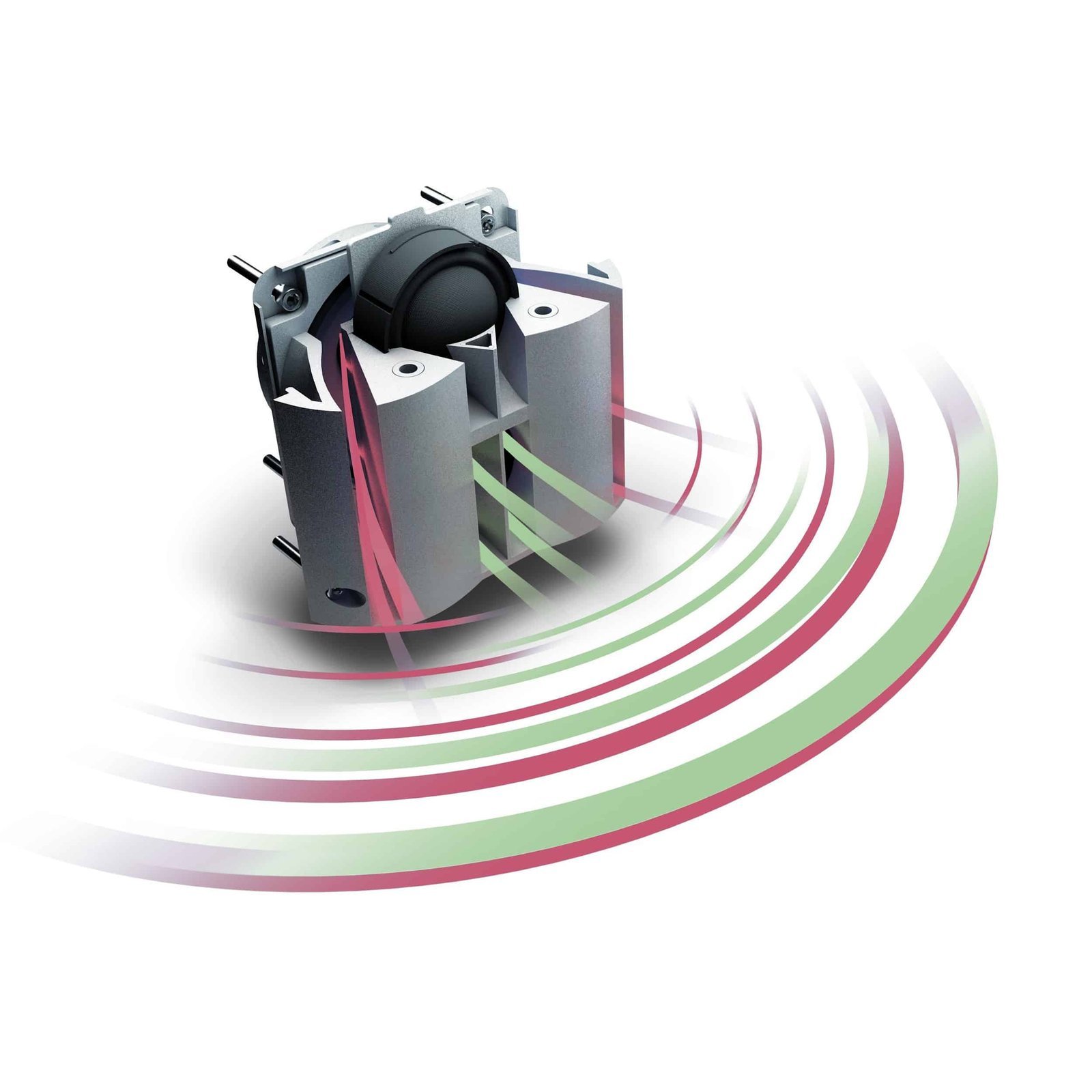

With its excellent sound dispersion characteristics—140 degrees horizontally and 15 degrees vertically—the system ensures wide and even sound coverage. This wide horizontal dispersion means that audiences spread across a wide area will receive a balanced audio experience, while the narrower vertical angle minimizes ceiling and floor reflections, enhancing clarity. This precise dispersion is particularly beneficial in venues with challenging acoustics, as it helps maintain intelligibility and tonal balance throughout the space.

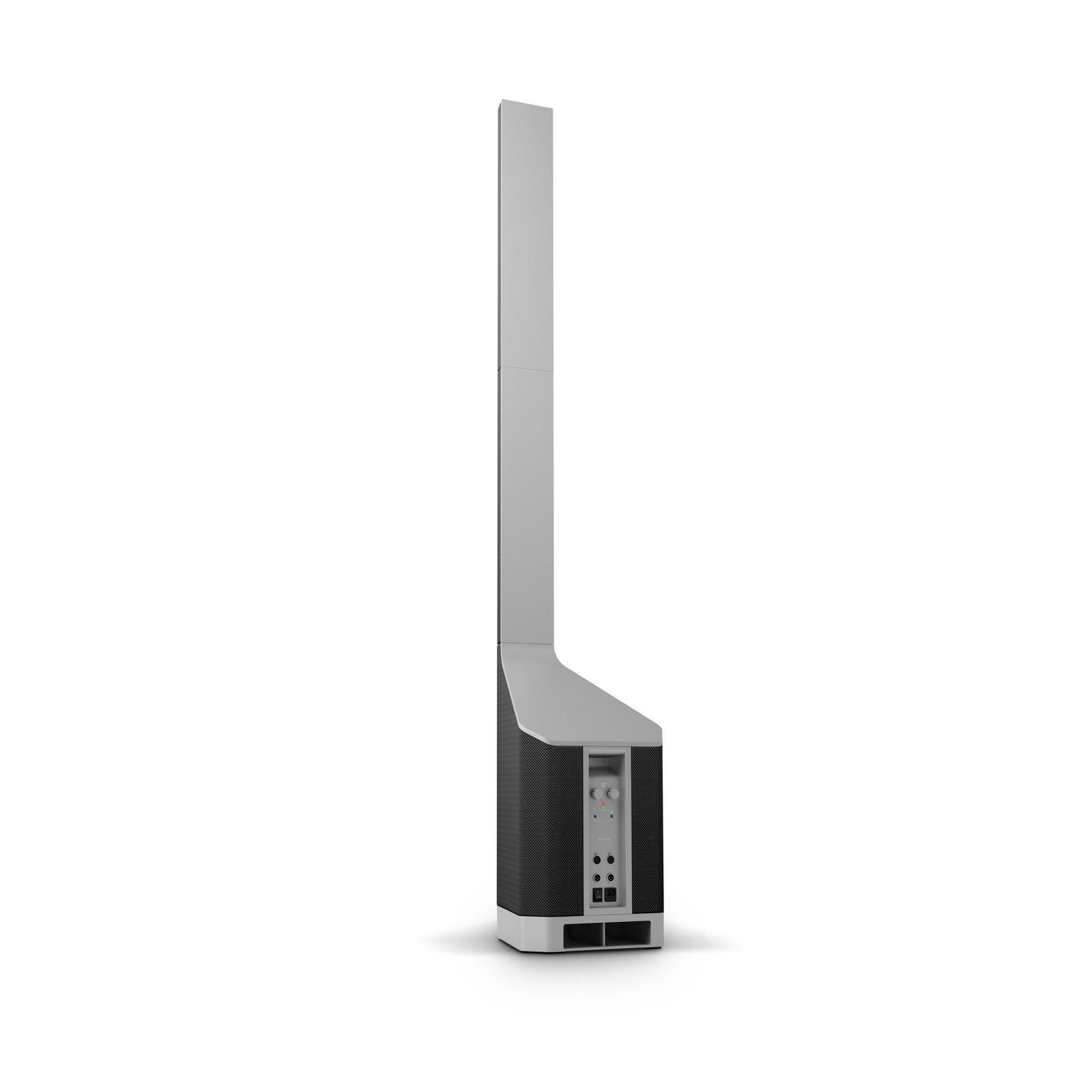

Constructed with durability and aesthetics in mind, the MAUI P900 B features a robust 15 mm plywood cabinet with a bass reflex design that enhances low-frequency response, delivering punchy and deep bass. The housing is finished with high-definition coated aluminum and a multi-layer mesh cloth, combining strength with a sleek graphite black finish designed by Porsche Design Studio. The included subwoofer measures 400 x 745 x 470 mm and weighs 30.6 kg, while the total column height stands at an impressive 2173 mm with an overall weight of 46 kg, making it a substantial yet manageable system for transport and setup.

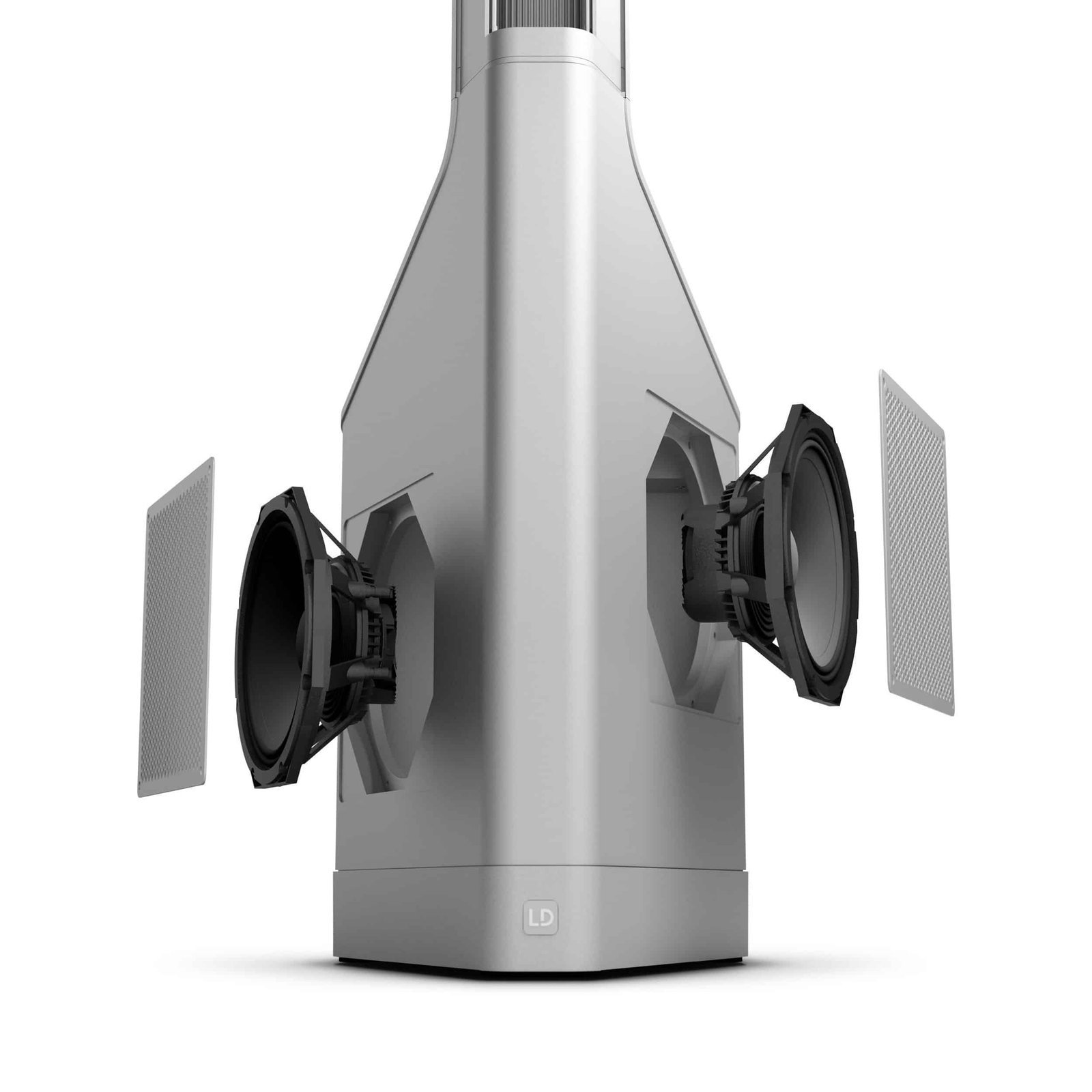

The system’s dual 10-inch custom-made neodymium woofers, each equipped with 3-inch voice coils, provide powerful low-end performance and high sensitivity. Neodymium magnets contribute to a lighter and more efficient driver, reducing overall system weight without sacrificing output. The bass reflex cabinet design complements these drivers by enhancing efficiency and bass extension, delivering an immersive sound experience that is ideal for live performances, DJ sets, corporate events, and large presentations.

In summary, the LD System MAUI P900 B Powered Column PA System offers a perfect blend of power, precision, and portability wrapped in a sophisticated design. Its high SPL capacity, wide frequency coverage, smart DSP processing, and robust build make it a versatile choice for any professional seeking reliable and superior sound reinforcement. Backed by Porsche Design Studio’s attention to detail and innovation, this PA system inspires confidence that your audio needs will be met with excellence. Whether you are amplifying music or spoken word, the MAUI P900 B ensures your message is heard loud and clear with style and impact.
