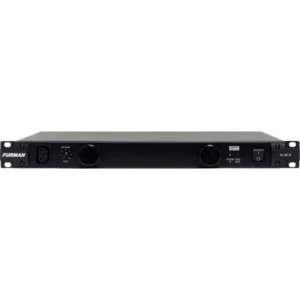

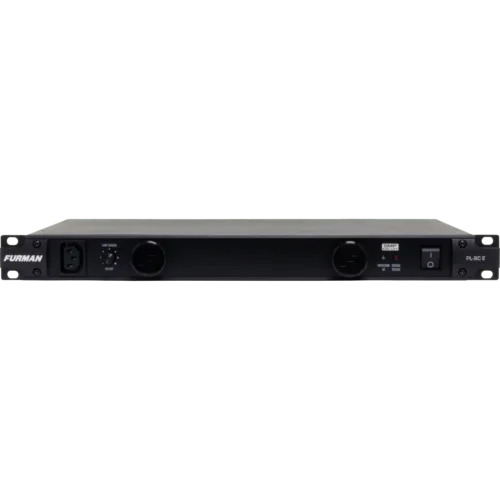

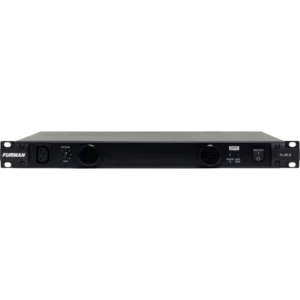

Furman’s advanced protection for valuable studio and stage gear. The Furman PL-8C E is a 10-amp, 230V Classic Series power conditioner with lights. It combines Furman’s Series Multi-Stage Protection (SMP), Linear Filtering Technology (LiFT) and Extreme Voltage Shutdown (EVS) – one of the most comprehensive surge suppression systems available.
Why customers choose it
Who it is for
Studios with expensive interfaces, preamps and computers, live sound and touring racks, churches and broadcast rooms – especially where mains voltage is unstable.
Specifications
| Model | PL-8C E |
|---|---|
| Series | Classic Series 240V |
| Voltage | 240 V |
| Maximum current | 10 A |
| Outlets | 11, in 2 isolated banks |
| Protection | SMP, EVS |
| Under / over-voltage shutoff | 180 V / 274 V |
| Clamping level | 375 VAC peak @ 3,000 A |
| Peak impulse current | 6,500 A |
| Response time | 1 ns |
| Filtering | LiFT: 10 dB @ 10 kHz, 40 dB @ 100 kHz, 50 dB @ 500 kHz |
| Lights | 2 dimmable multi-LED lamps; rear BNC 12 VAC lamp socket |
| Power cord | 2.5 m, IEC to 10 A Schuko |
| Power consumption | 12 W |
| Size | 482.6 x 266.7 x 44.5 mm (1U) |
| Compliance | CE |
| Warranty | 5-year limited (Furman) |
| Type | Rack power conditioner |
| Mounting | 1U rack |
Good to know
- The power cord ends in a 10 A Schuko (European) plug – you may need a suitable socket or adapter.
- 5-year limited Furman maker warranty.
FAQ
What happens if the voltage goes too high?
EVS switches the outlets off above 274 V and back on when the mains returns to a safe level, protecting your gear.
