64×64 MADI I/O with dual PSUs

RedNet D64R is a 1U, 64×64 MADI interface for any Dante™ audio-over-IP network. Featuring network and power supply redundancy, RedNet D64R is the ideal choice for providing MADI I/O in many critical-path applications, whether in Post Production, Broadcast, Live Sound or the Recording Studio.

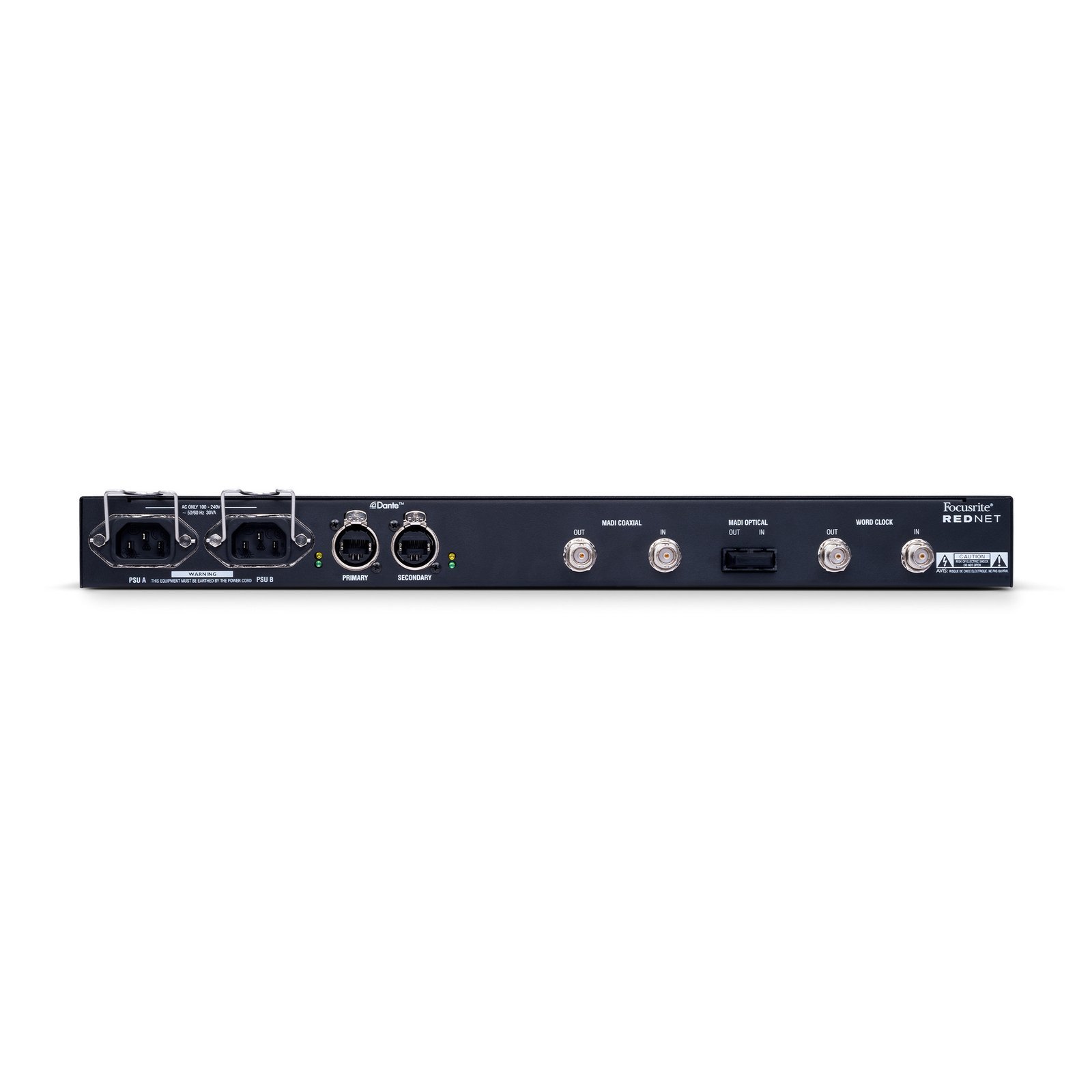

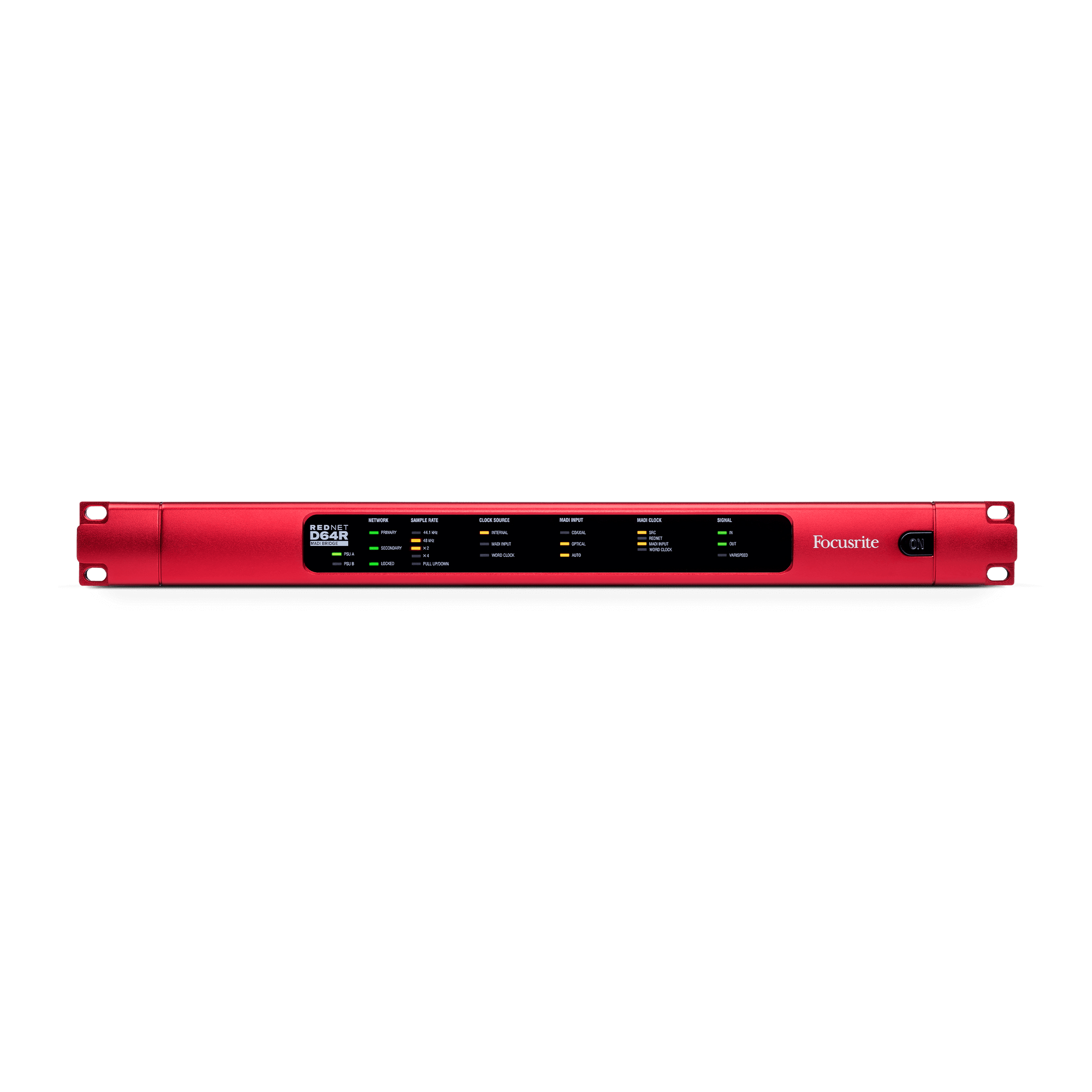

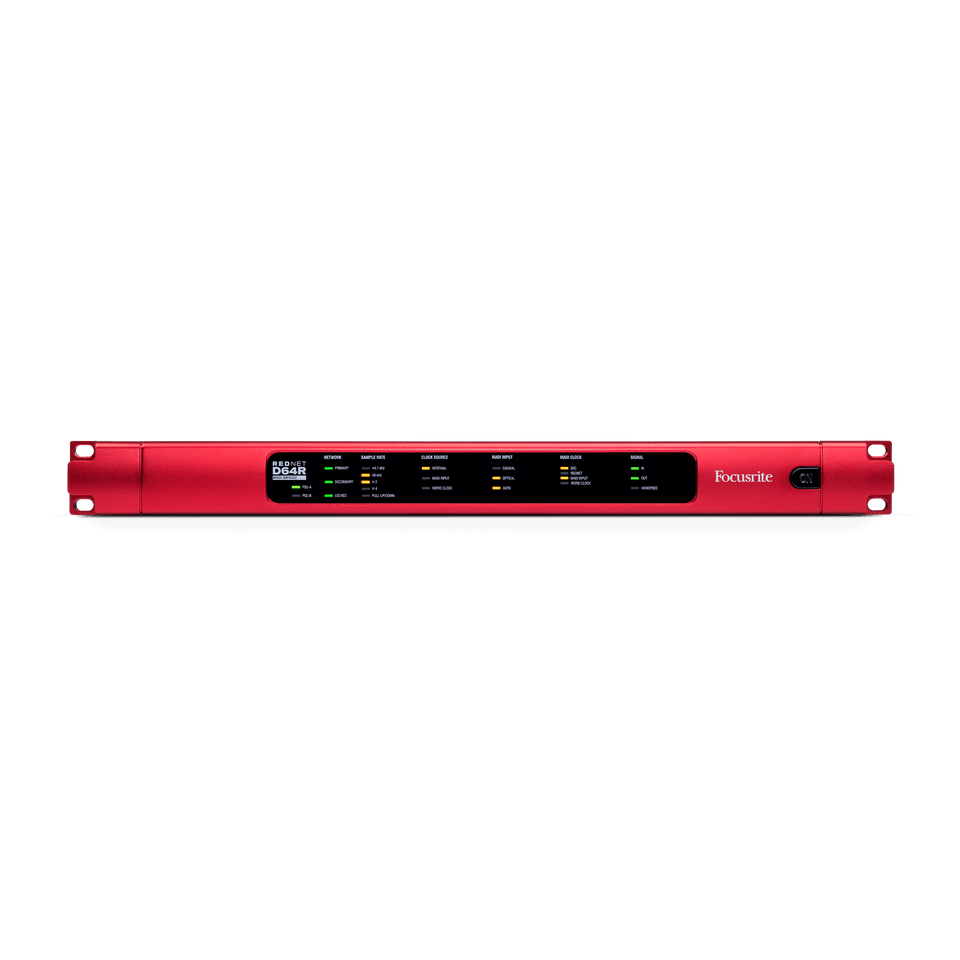

MADI connectivity is provided in the form of coax through two rear-panel BNC connectors, as well as optical through an SC-Duplex connector. Word Clock I/O allows RedNet D64R to provide clock to external equipment, or alternatively to sync the Dante network to an external clock. The word clock input can additionally be used as the sync source for the unit’s sample rate converters, allowing asynchronous operation between the network and the MADI domains. Front panel status LEDs provide visual feedback of signal presence, SRC status, PSU status and more.

Brainworx bx_console

The Focusrite Studio Console reborn in your DAW

The Focusrite Studio Console defined countless hits of the 80s and 90s, thanks in large part to its ISA 110 Equaliser and ISA 130 Dynamics Modules. Brainworx’s bx_console Focusrite plug-in brings you stunningly accurate emulations of both in a single plug-in, perfectly capturing the famously warm, open sound of two of the most revered pieces of studio hardware ever made.

Enjoy 3 years of warranty

All Focusrite products are built to the highest standards, and are designed to provide many years of reliable performance.

Specifications in detail

Sample rate convertors

• Sample Rate Range                               44.1kHz -4% to 192kHz +4.1667%
• Gain Error                                                -0.01dB
• Dynamic Range                                     > 139dB (-60 dBFS method)
• THD N                                                         < -130dB (0.00003); 0 dBFS input
• Latency                                                     43 to 196 samples (Network and MADI sample rate
  dependent)
• MADI Clock Sources                              RedNet, MADI Input and Word Clock

Digital performance

• Supported Sample Rates                      44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz (-4 / -0.1 / 0.1 /
  4.167) at 24 bit
• Clock Sources                                          Internal, MADI, Word Clock, or from Dante Network
  Leader

Rear panel connectivity

• Electrical Standard                                 as per AES10:2008
• Recommended Cable                            OM1 adheres to AES10:2008 RedNet 6/ D64R
  supports OM2 if 3rd Party Device also supports
  OM2
• Connector                                                 Duplex-SC
• Optical Standard                                    as per AES10:2008 (ISO/IEC 9314-3, FDDI, ANSI X3.166)
• Word Clock Input                                     1 x BNC 75O port
• Word Clock Output                                   1 x BNC 75O port
• PSU                                                               2 x IEC Inputs with retaining clips
• Network                                                       2 x etherCON NE8FBH-S, also compatible with
  standard RJ45 connectors

Network modes

• Redundant                                                Allows unit to connect two independent networks
• Switched                                                    Connects both ports to integrated network switch
  allowing daisy-chaining of device
